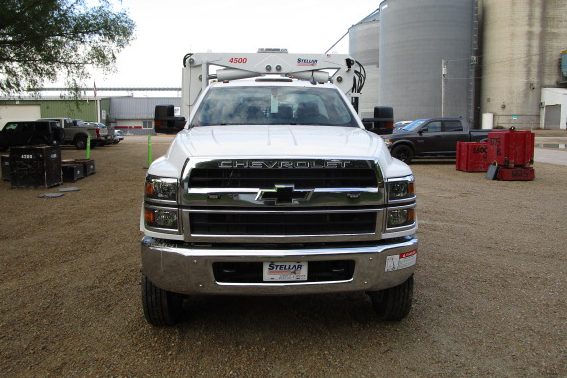

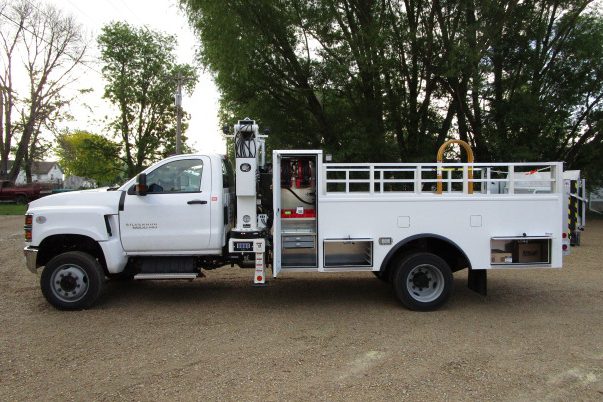

2024 Chevy 6500 w/1302E-13/4500 (WR102)

• 4×4
• 08″ CA/189″WB
• 22500# GVW
• 6.6L Duramax diesel engine
• Allison automatic trans w/PTO provision
• Air conditioning
• Cruise control
• 40/20/40 split vinyl bench seat
• Power Group
• Backup Camera

Body

• 1302E V3 – Mini-OTR Aluminum body
• Rack sides 13’L, 36″H
• (2) front vertical compartments 64″H x 22″D x 26″W
• Hose reels on SS of body (CS NOT AVAILABLE)
• 12″ low-profile rear gate between vertical compartments
• LR and RR underbody compartments 19″H x 29″W x 22″D
• Stop, turn, tail light kit
• Single skirt-mounted lights RS/LS,
• Dual fuel fills for chassis with 19.5 & smaller tires
• Body mounting kit for 1302E/1100/1184 fleet bodies without
  jack box

Equipment / Options

• Crane installation kit
• Mini-OTR bead hook – 12000# capacity
• Service kit for Stellar 46P compressor and 3200/4500/6000
  crane
• 2,000# Hydraulic liftgate
• 86″ wide
• Dual lift cylinders
• Recessed lights
• Galvanized frame and platform
• Folding side rail and tire stop for 86″ wide liftgate
• Sign Panel for Model 87 Tommy Gate

Air Options

• 1/2” Reel Craft dual post hose reel with 50’ Artic grade
  hose
• 1/2″ FLR system (filter/lubricator/regulator) with
  additional regulator for lubricated line
• 20′ OTR inflation/deflation hose kit w / quick release coupler
• Includes muffleR
• Small and large bore core ejectors
• 1/4 turn ball valve and rotary air gauge

Tool Package

• Tire bead wedge – six pack

Compartment Options

• Plastic tray package includes (4) 5″ W trays & (6) 3 1/2″ W trays for LF or RF vertical compartment
  15-pin socket rack
• Drawer Set, 8″H x 18″W x 18″D, 2-3″ (hanging)
• Adjustable Shelf

Jackbox Option

• Underbody toolbox panel

Body Mounted Options

• Dri deck mat kit for compartment floors on 1202-13 and 1300 AR
• Aluminum folding step
• One pair Stellar mud flaps with mounting bolts (Included in factory installation)
• 25-gallon tire life tank for 1184, 1320E, and 138-15/138-215 body
• Two bar truck tire safety inflation cage
• Inflation cage holder (body deck mount)
• LED flood light with wide beam
• Compartment LED Light Kit
• Whelen Century 16″ LED amber mini lightbar with clear lens and mount kit
• Streamlight Stinger Switchblade LED work light with J hook, magnetic base, UV leak detection, 180 degrees of rotation. Includes charger
• Strobe light kit – low profile LED amber lights (2) mounted in chassis grill
• Strobe light kit – low profile LED amber lights (2)
• Two tire carrier mast mounted LED floodlights
• Rear ground perimeter light for mini-OTR and fleet bodies

Safety Options

• Chassis mounted back up alarm – 107 Db
• GM chassis provided backup camera for installation with lift gates and in tire service
• ICC safety kit consisting of rechargeable 2.5# fire extinguisher and reflector kit

PTO/Pump Options

• PTO for 2019 Chevrolet 4500 / 5500 and International CV
• Hydraulic pump, tandem section for crane and compressor
• Includes:
  100319X PTO INST KIT CHEVY HD 2019
  34476 PUMP HYD DE2R41SHBB12517N113
  37673X PUMP INST KIT T-SERVICE DAN FOSS INSTALL

Electrical Options

• Speed control kit includes start-stop functionality
• Electrical Control Kit Includes harness
• Upfitter Switches ONLY

Paint & Finish

• Paint 902/1302E body Stellar White
• Axalta Paint code 350407EX
• Single stage, non-metallic

• 4500 side-mount mast crane with 17′ of
  reach from center line of chassis
• 45,000 ft lb capacity
• 7500# @ 9′, 3200# @ 17′
• Proportional radio remote control
• Counter balance check valves
• A-frame style stabilizers
• Painted white
• Stellar 46P compressor with 15 gallon hydraulic reservoir
• Crane mounted
• 46 CFM@175 PSI
• 20 gallon air tank
