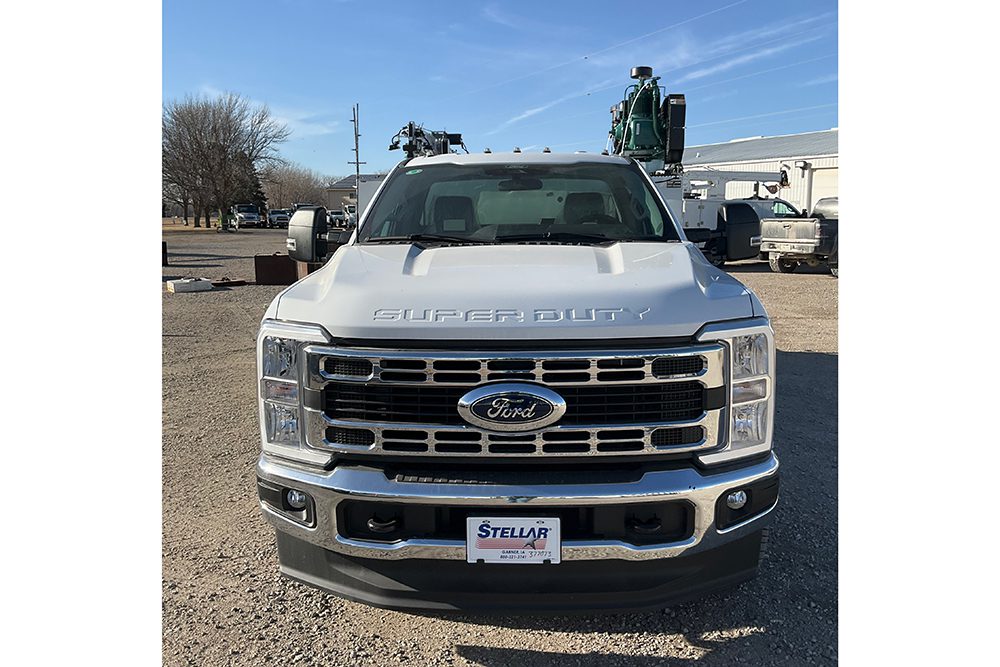

2024 Ford F350 w/TMAX 16K-11 Aluminum/EC3200AL/Champion 14HP Kohler (WR73)

2024 Ford F350

• 4×4
• 84″CA/169″WB
• 14000# GVW
• 6.7L Diesel
• Automatic
• XL trim
• Air conditioning
• Cruise control
• Tilt wheel
• AM/FM
• 40/20/40 vinyl seat
• Sync system
• Power Group
• Backup Camera

Body Features

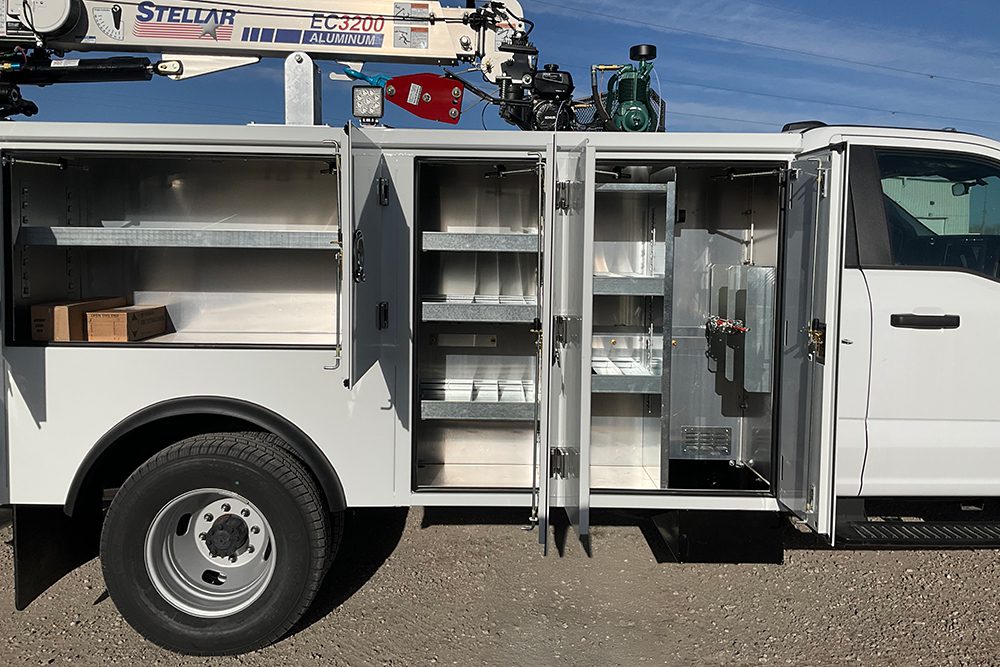

• Aluminum Side Packs
• Aluminum Doors
• Steel Crane Compartment
• All compartments raised to 52″
• 8″ Drop Well in CS1V for Oxy/Acet Bottles
• Exterior DOT light package
• Master-Lock system
• 22″D X 52″H side packs
• 109″ long, 50″ loadbed width
• (4) recessed cargo tie-downs
• (2) rear mounted grab handles
• Dual-seal automotive type compartment weather seal
• Overlapped doors on SS1V / CS1V,
• Overlapped doors on horizontal compartments

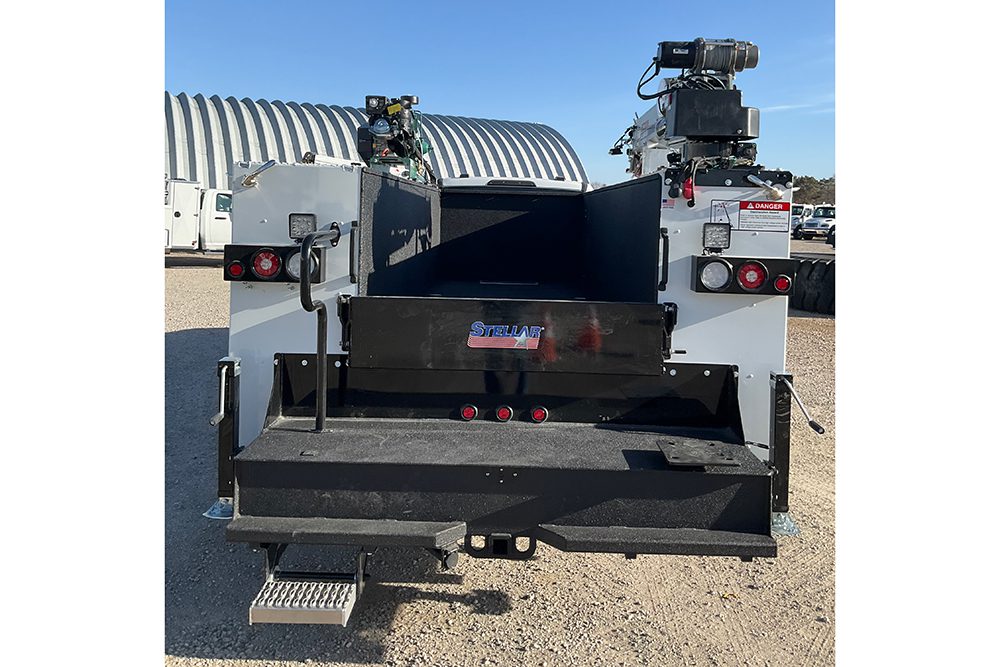

• 12″ fold down aluminum tailgate (painted black)
• 2 & 3-point stainless steel compression latches
• Stainless steel “Billet Style” hinges
• Spring loaded door stops
• Weld on receiver hitch
• Prime painted
• Undercoated
• Additional Product Information

Compartment Storage

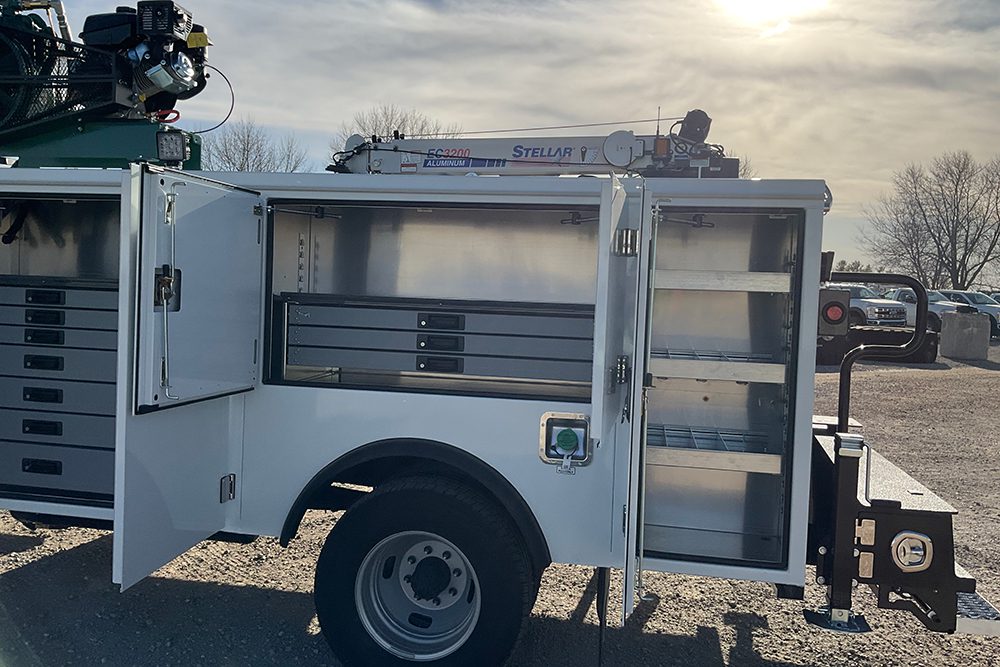

• Streetside 1st Vertical:

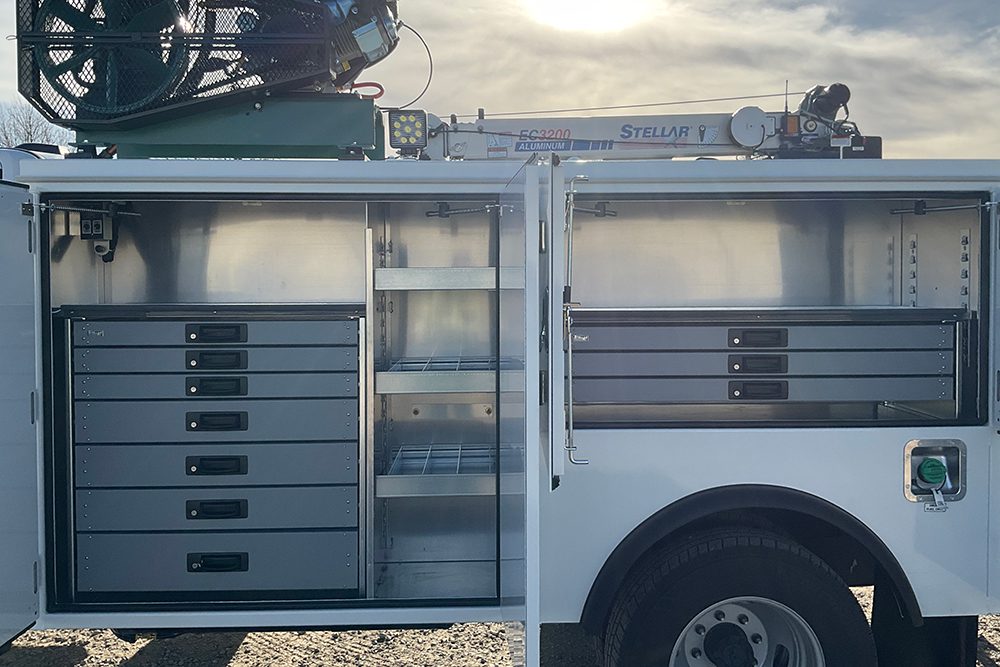

  • Heavy Duty Aluminum Drawer set, 35.5″H x 29″W x 18″D, 3-3″, 3-5″, 1-7″ drawers (72892X) w/LightBar
• Streetside Horizontal
  • Shelf with (3) dividers 46.81-48.13″W x 19.00″D (72892X)
• Streetside Rear
  • Shelf with (3) dividers 24.38″W x 19.00″D (72869X)
• Curbside 1st Vertical
  • Divider kit with shelves 19.00″ wide (73116X) and Oxy-Acet 2-Bottle Holder (14013X)
• Curbside Horizontal
  • Shelf with (3) dividers 46.81″-48.13″W x 19.00″D (72892X)
• Curbside Rear
  • Shelf with (3) dividers 24.38″W x 19.00″D (72869X)

Body Mounted Options

• Rock guard kit – Adhesive black
• Grab Handle – mounts to rear side pack and bumper – easily accessible from ground
• One pair Stellar mud flaps with mounting bolts
• TMAX Aluminum Tailgate – 12″ Tall, painted black
• Adjustable Boom Support
• Roller Rest, painted black

Bumper Mounted Options

• Vise mounting plate – Receiver work bench mount
• Step, slide out for TMAX mechanics work bench bumper
• Stabilizer Assembly – manual out/crank down, painted black

Light Options

• LED Flood Light Kit – 4 lights – (1 near boom support, 1 SS behind compressor, 1 on each rear taillight box)
• LED Compartment Light Kit

 Safety Options

• Back Up Alarm – Flush Mount
• Ford chassis provided backup camera for installation in workbench bumpers
• ICC safety kit consisting of rechargeable 2.5# fire extinguisher and reflector kit

Electrical Options

• Truck Upfitter Switches Control Package

Paint & Finish

• Paint 9’+ body Stellar White Paint, Axalta paint code 350407EX
• Spray on bed liner for load bed walls and floor – Black
• Spray on bed liner for work bench bumper – Black

EC3200A

• Ball Bearing Rotation Gear for solid support and smooth operation
• Steel Worm Gear for reliable speed control when rotating the shaft
• Electric Planetary Winch that lifts the maximum crane load and offers the smoothest and fastest speeds in the market today for maximum productivity
• Low-Profile Design for superior clearance
• Exclusive Double-Boom Design for rigidity, strength and accuracy^*
• Integral Rotation Stop with 410° rotation for the greatest performance while protecting wires and hoses from damage
• More Mounting Options with Standard or Narrow base choices
  • Wide mount version for 20″ wide sidepacks or larger
  • Narrow mount version for 14″ wide sidepacks
• Certification for ANSI B30.5 and OSHA 1910.180 specifications
• ^*Not available on EC3200 AL
• Crane Rating: 11,500 ft-lbs (1.59 tm)Standard Boom Length: 7′ (2.13 m) from CL of craneBoom Extension:
  • 1st Stage:
  • 2nd Stage:

  Hydraulic 48″ (121.9 cm)

  Manual 48″ (121.9 cm)

  Maximum Horizontal Reach: 15′ (4.57 m) from CL of crane

  Maximum Vertical Lift: 16′ 2″ (4.93 m) from crane base

  Lifting Capacity: 3,200 lbs @ 3.6′ (1,451 kg @ 1.1 m)

  1,625 lbs @ 7′ (737 kg @ 2.1 m)

  905 lbs @ 11′ (410 kg @ 3.35 m)

  640 lbs @ 15′ (290 kg @ 4.6 m)

  Boom Elevation: -5° to +80°

  Stowed Height (crane only): Steel: 24″ (61 cm)

  Aluminum: 24.7″ (63 cm)

  Mounting Space Required: 18″ x 15″ (45.7 x 38.1 cm)

  Approximate Crane Weight: Steel: 730 lbs (331 kg)

  Aluminum: 500 lbs (230 kg)

  Controls: Radio remote

  Winch:

  • Rope Diameter:
  • Rope Length:
  • Line Pull Speed:
  • Max. Single Part Line:
  • Max. Double Part Line:

  7/32″ (0.56 cm)

  65′ (19.8 m)

  15 ft/min (4.6 m/min)

  1,600 lbs (725 kg)

  3,200 lbs (1,450 kg)

  Rotation: 410° (worm gear)

  Power Supply Required: 12V power unit: 2 gpm @ 2,600 psi (7.57 lpm @ 179 bars)

  Min. Rec. Chassis (GVRW)*: 10,500
