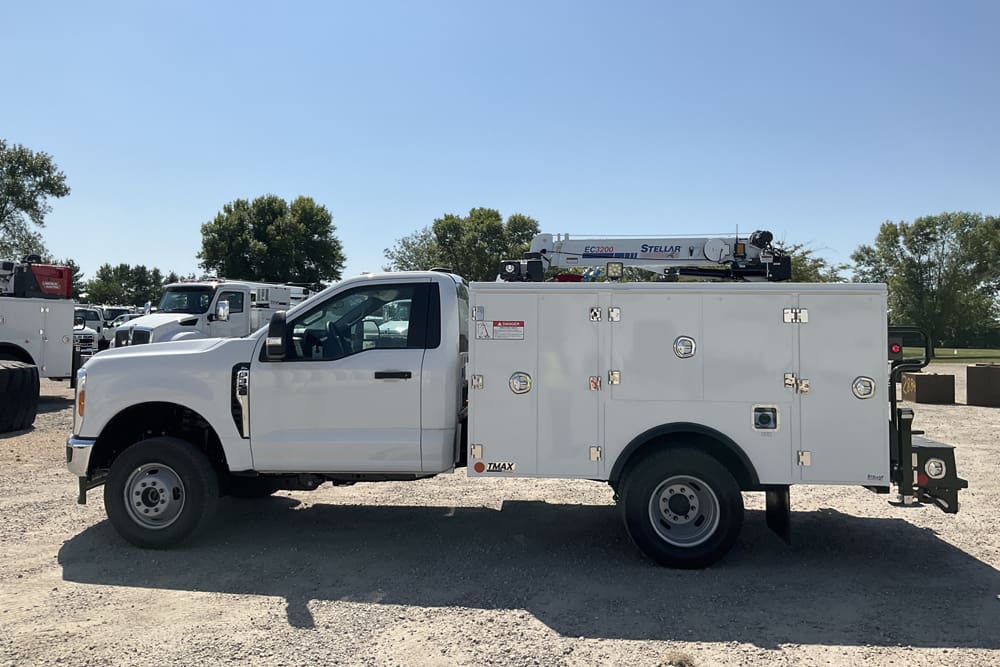

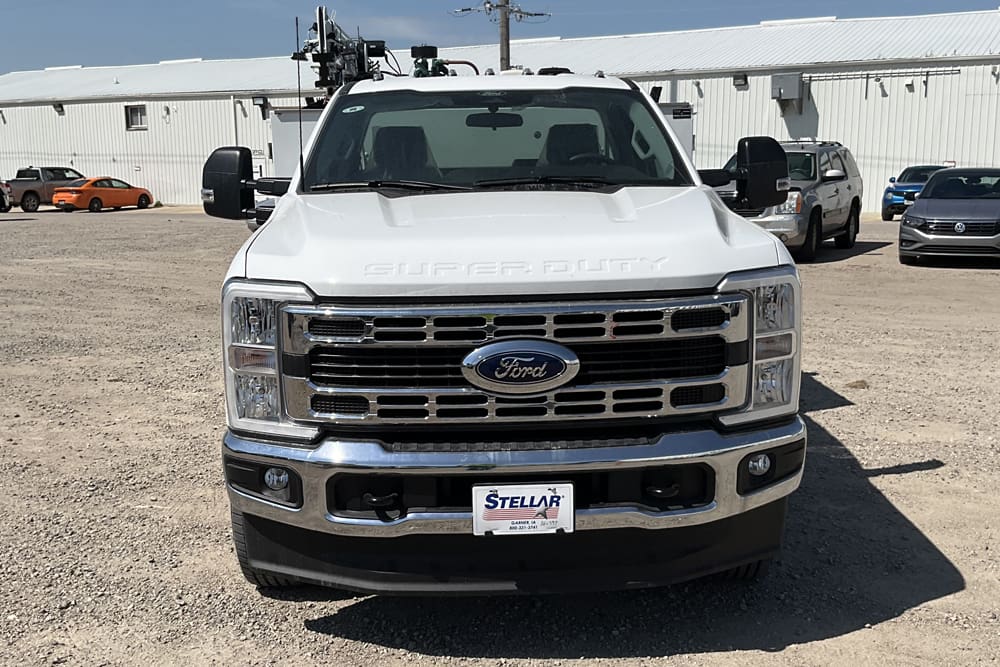

2024 Ford F350 w/TMAX 16K-9 Aluminum/EC3200 (WR25)
- 7.3L V8 gas
- 4×4 10-Speed Automatic Transmission w/PTO provision
- Air conditioning
- XL trim
- Tilt wheel
- 40/20/40 split vinyl bench seat
- Sync System
- Power Group
- Backup Camera
Body Features
- Aluminum Side Packs
- Aluminum Doors
- Steel Crane Compartment
- All compartments raised to 52″
- 8″ Drop Well in CS1V for Oxy/Acet Bottles
- Exterior DOT light package
- Master-Lock system
- 22″D X 52″H side packs
- 109″ long, 50″ loadbed width
- (4) recessed cargo tie-downs
- (2) rear mounted grab handles
- Dual-seal automotive type compartment weather seal
- Overlapped doors on SS1V / CS1V,
- Overlapped doors on horizontal compartments
- 12″ fold down aluminum tailgate (painted black)
- 2 & 3-point stainless steel compression latches
- Stainless steel “Billet Style” hinges
- Spring loaded door stops
- Weld on receiver hitch
- Prime painted
- Undercoated
- Additional Product Information
Compartment Storage

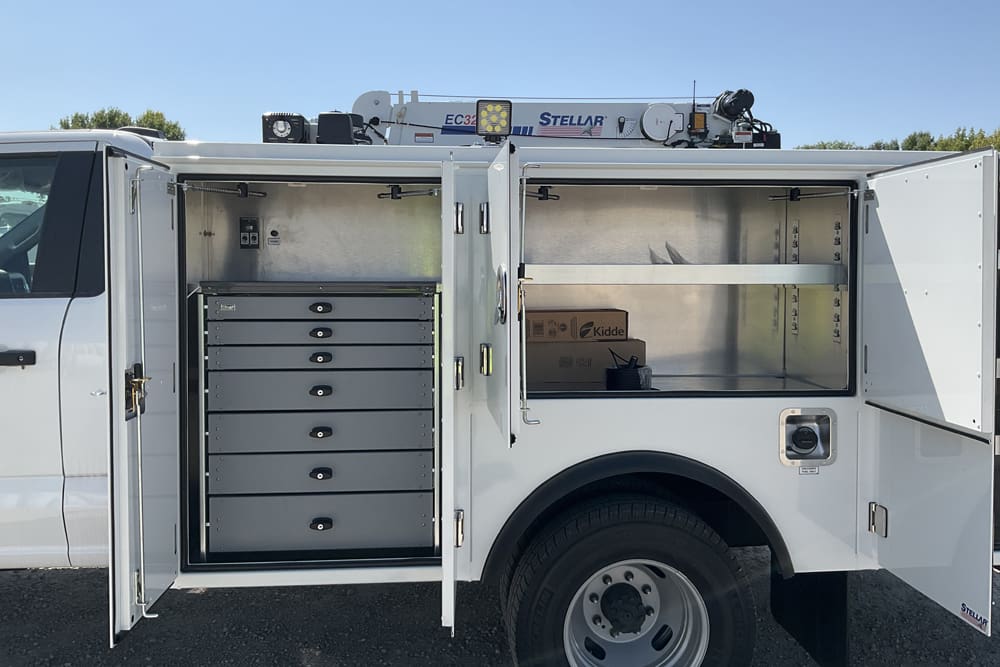

- Streetside 1st Vertical:
- Heavy Duty Aluminum Drawer set, 35.5″H x 29″W x 18″D, 3-3″, 3-5″, 1-7″ drawers (72892X) w/LightBar
- Streetside Horizontal
- Shelf with (3) dividers 46.81-48.13″W x 19.00″D (72892X)
- Streetside Rear
- Shelf with (3) dividers 24.38″W x 19.00″D (72869X)

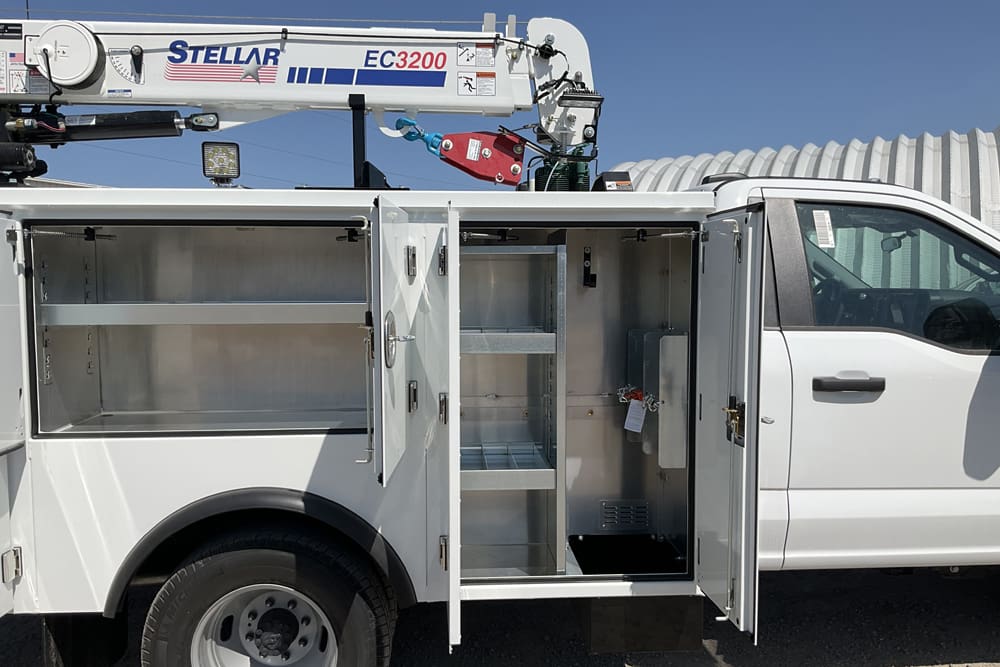

- Curbside 1st Vertical
- Divider kit with shelves 19.00″ wide (73116X) and Oxy-Acet 2-Bottle Holder (14013X)

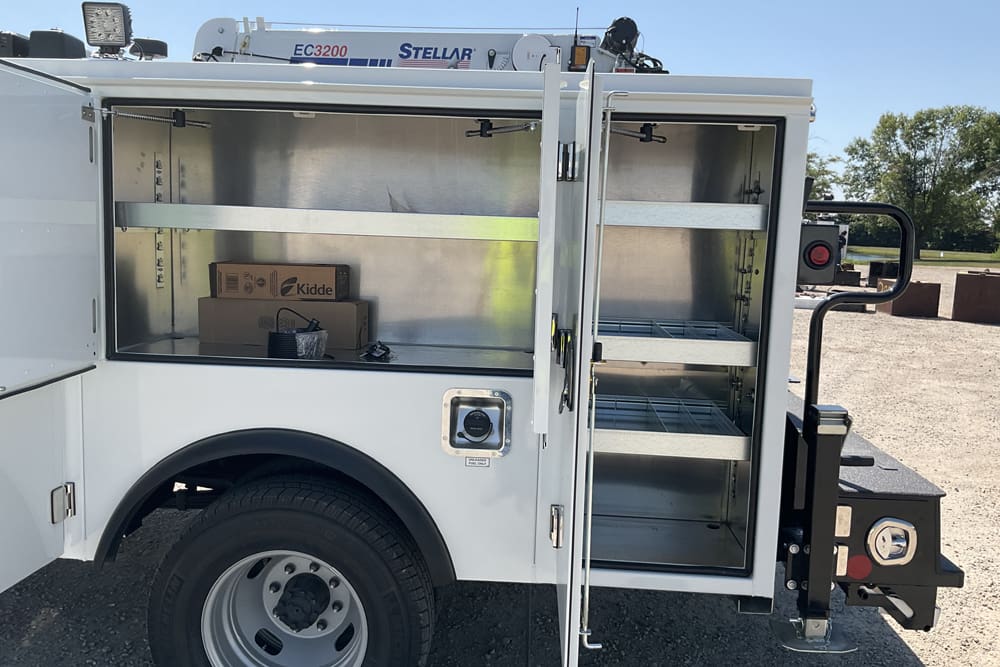

- Curbside Horizontal
- Shelf with (3) dividers 46.81″-48.13″W x 19.00″D (72892X)
- Curbside Rear
- Shelf with (3) dividers 24.38″W x 19.00″D (72869X)
Body Mounted Options
- Rock guard kit – Adhesive black
- Grab Handle – mounts to rear side pack and bumper – easily accessible from ground
- One pair Stellar mud flaps with mounting bolts
- TMAX Aluminum Tailgate – 12″ Tall, painted black
- Adjustable Boom Support
- Roller Rest, painted black
Bumper Mounted Options

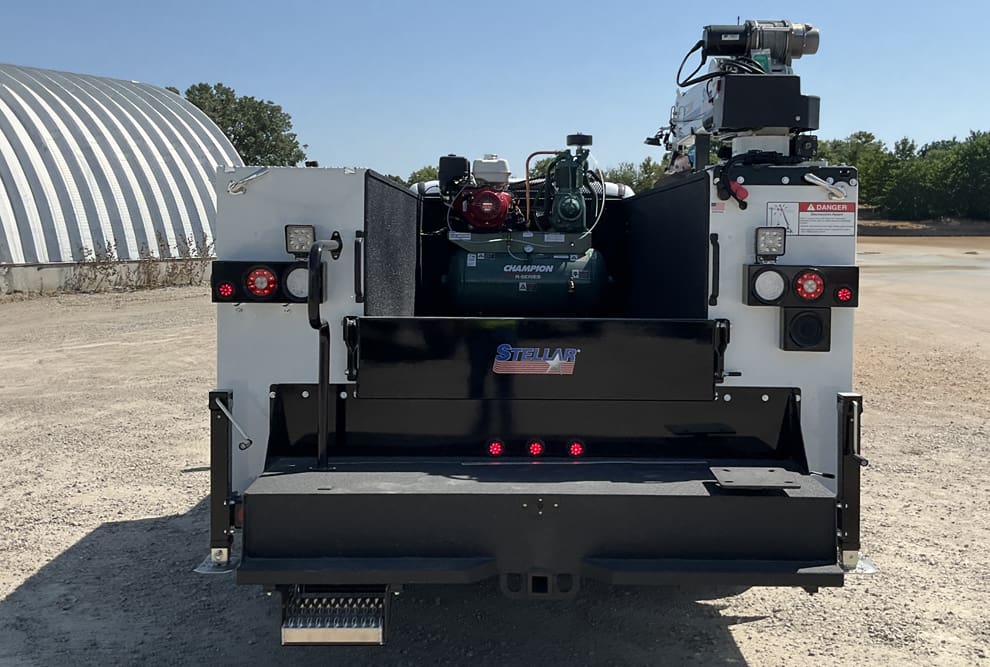

- Vise mounting plate – Receiver work bench mount
- Step, slide out for TMAX mechanics work bench bumper
- Stabilizer Assembly – manual out/crank down, painted black
Light Options
- LED Flood Light Kit – 4 lights – (1 near boom support, 1 SS behind compressor, 1 on each rear taillight box)
- LED Compartment Light Kit
Safety Options
- Back Up Alarm – Flush Mount
- Ford chassis provided backup camera for installation in workbench bumpers
- ICC safety kit consisting of rechargeable 2.5# fire extinguisher and reflector kit
Electrical Options
- Truck Upfitter Switches Control Package
Paint & Finish
- Paint 9’+ body Stellar White Paint, Axalta paint code 350407EX
- Spray on bed liner for load bed walls and floor – Black
- Spray on bed liner for work bench bumper – Black
- Crane Rating : 11,500 ft-lbs
- Max Lifting Capacity: 3,200 lbs @ 3′ 6″
- Maximum Horizontal Reach: 15′ from CL of crane
- Maximum Vertical Lift: 16′ 2″ from crane base
- Boom Elevation: -5° to +80°
- Additional Product Information

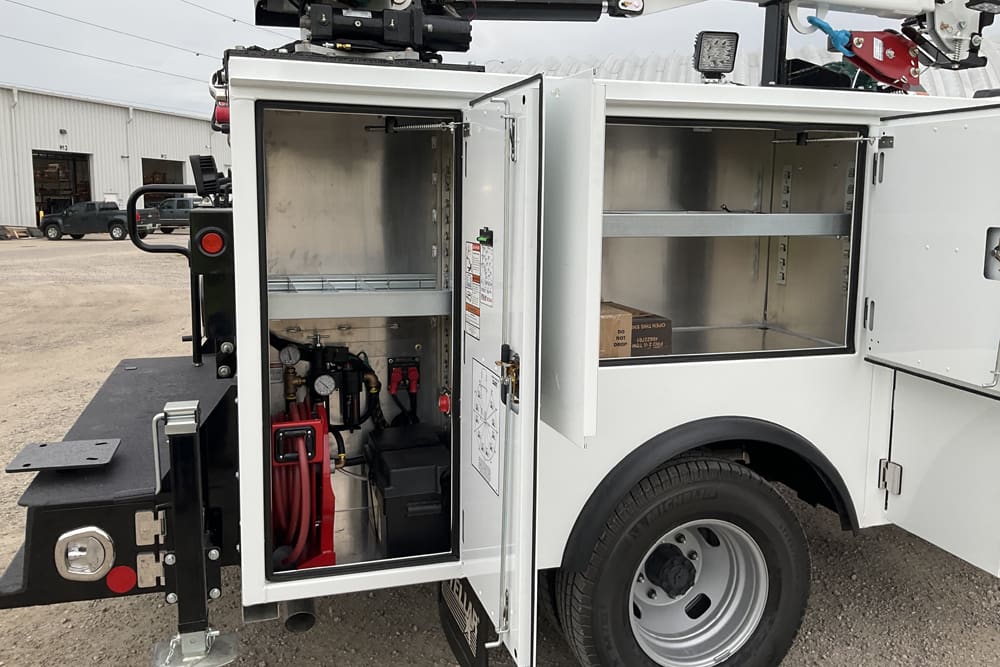

- 13 HP Honda engine
- Output Capacity: 23.2 cfm @ 175 psi
- 30 gallon air tank
- Remote start/stop and controls
- FLR system installed – 1 outlet for air hose (filter, lubricator, regulator)
SO# |
Unit |
Chassis |
Availability |
360897 |
TMAX16K-9AL/EC3200 |
24 Ford F350 |
Available Now |
360898 |
TMAX16K-9AL/EC3200 |
24 Ford F350 |
Available Now |
359433
|
TMAX 16K-9AL/EC3200A
|
24 Ford F350 |
Available Now |
359432
|
TMAX 16K-9AL/EC3200A
|
24 Ford F350 |
Available Now |
