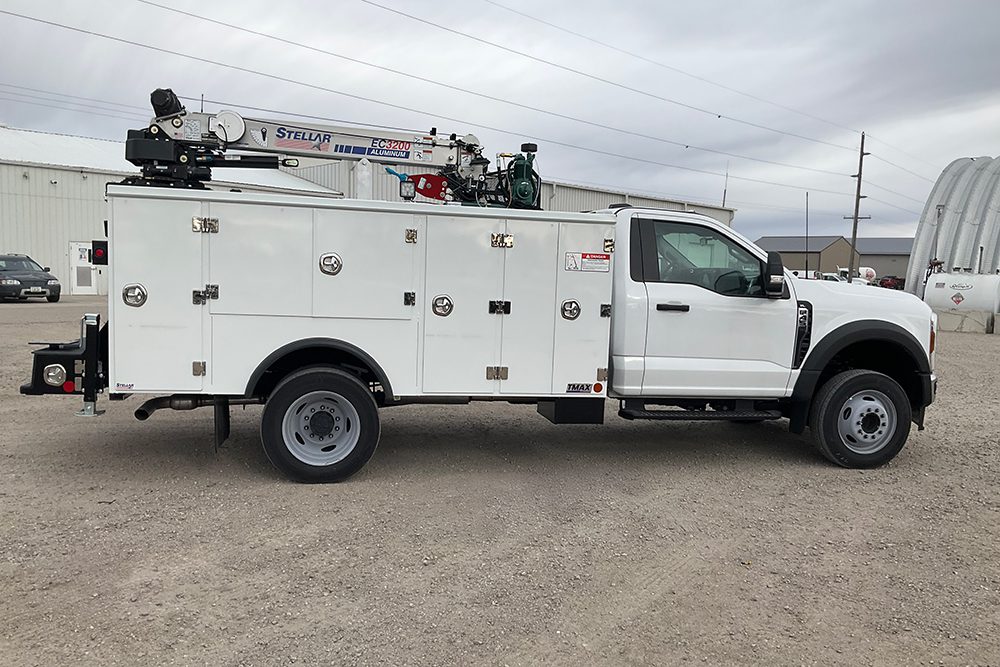

2024 Ford F450 w/TMAX 16K-11 Aluminum/EC3200AL/Champion 14HP Kohler (WR72)

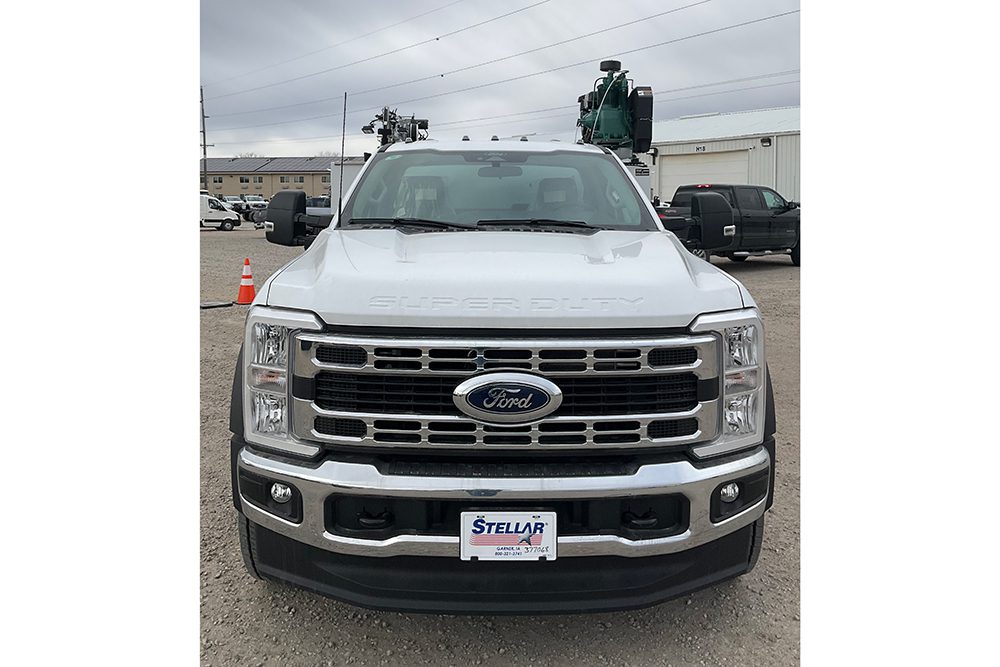

2024 Ford F450

• 4×2
• 84″CA/169″WB
• 16500# GVW
• 7.3L V-8 gas
• Automatic (no PTO prov.)
• XL trim
• Air conditioning Cruise control
• Tilt wheel
• AM/FM
• 40/20/40 vinyl seat
• Sync system
• Power Group
• Backup Camera

Body Features

• Aluminum Side Packs
• Aluminum Doors
• Steel Crane Compartment
• All compartments raised to 52″
• 8″ Drop Well in CS1V for Oxy/Acet Bottles
• Exterior DOT light package
• Master-Lock system
• 22″D X 52″H side packs
• 109″ long, 50″ loadbed width
• (4) recessed cargo tie-downs
• (2) rear mounted grab handles
• Dual-seal automotive type compartment weather seal
• Overlapped doors on SS1V / CS1V,
• Overlapped doors on horizontal compartments
• 12″ fold down aluminum tailgate (painted black)
• 2 & 3-point stainless steel compression latches
• Stainless steel “Billet Style” hinges
• Spring loaded door stops
• Weld on receiver hitch
• Prime painted
• Undercoated
• Additional Product Information

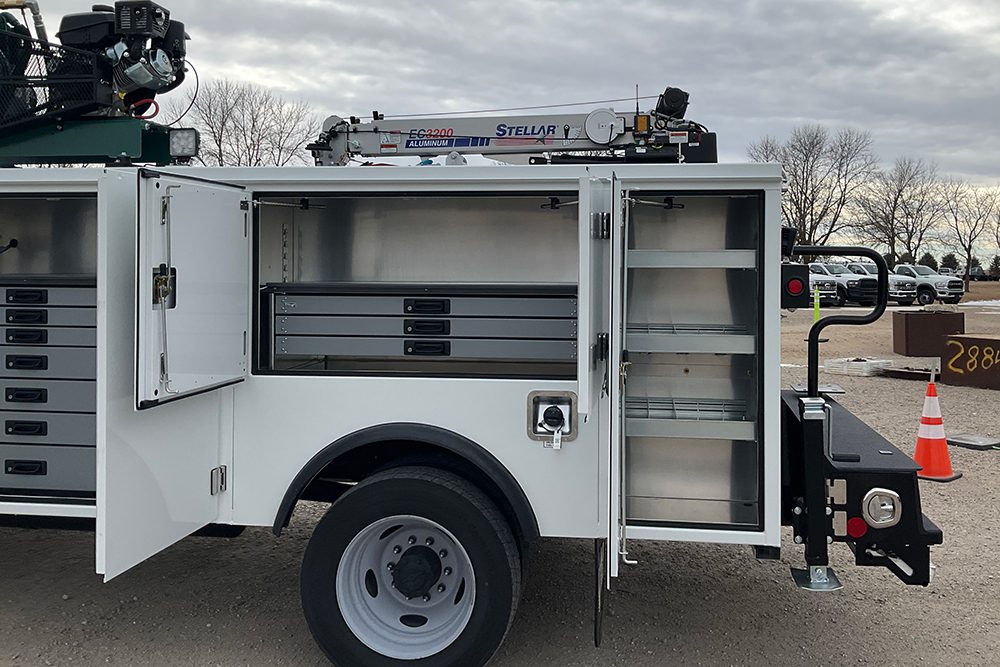

Compartment Storage

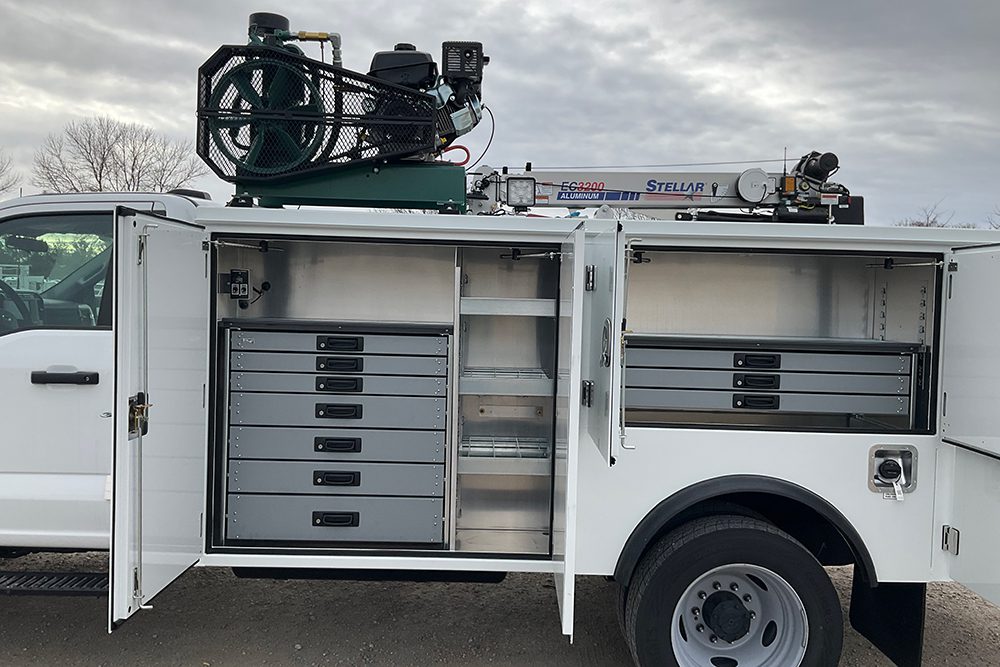

• Streetside 1st Vertical:
  • Heavy Duty Aluminum Drawer set, 35.5″H x 29″W x 18″D, 3-3″, 3-5″, 1-7″ drawers (72892X) w/LightBar
• Streetside Horizontal
  • Shelf with (3) dividers 46.81-48.13″W x 19.00″D (72892X)
• Streetside Rear
  • Shelf with (3) dividers 24.38″W x 19.00″D (72869X)
• Curbside 1st Vertical
  • Divider kit with shelves 19.00″ wide (73116X) and Oxy-Acet 2-Bottle Holder (14013X)
• Curbside Horizontal
  • Shelf with (3) dividers 46.81″-48.13″W x 19.00″D (72892X)
• Curbside Rear
  • Shelf with (3) dividers 24.38″W x 19.00″D (72869X)

Body Mounted Options

• Rock guard kit – Adhesive black
• Grab Handle – mounts to rear side pack and bumper – easily accessible from ground
• One pair Stellar mud flaps with mounting bolts
• TMAX Aluminum Tailgate – 12″ Tall, painted black
• Adjustable Boom Support
• Roller Rest, painted black

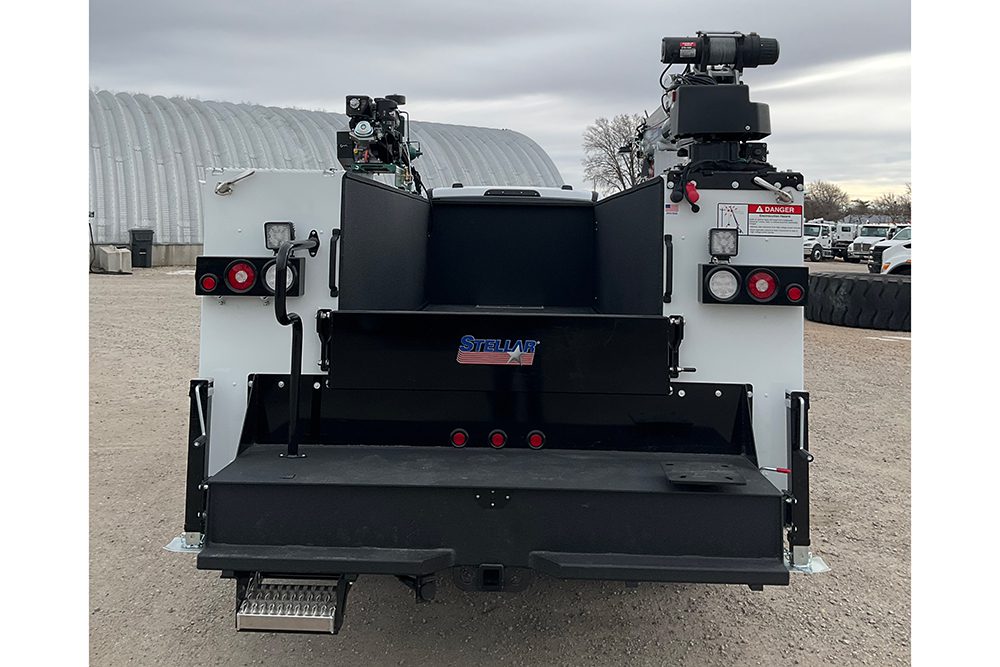

Bumper Mounted Options

• Vise mounting plate – Receiver work bench mount
• Step, slide out for TMAX mechanics work bench bumper
• Stabilizer Assembly – manual out/crank down, painted black

Light Options

• LED Flood Light Kit – 4 lights – (1 near boom support, 1 SS behind compressor, 1 on each rear taillight box)
• LED Compartment Light Kit

 Safety Options

• Back Up Alarm – Flush Mount
• Ford chassis provided backup camera for installation in workbench bumpers
• ICC safety kit consisting of rechargeable 2.5# fire extinguisher and reflector kit

Electrical Options

• Truck Upfitter Switches Control Package

Paint & Finish

• Paint 9’+ body Stellar White Paint, Axalta paint code 350407EX
• Spray on bed liner for load bed walls and floor – Black
• Spray on bed liner for work bench bumper – Black

• Crane Rating: 11,500 ft-lbs.
• Max Lifting Capacity: 3,200 lbs @ 3.6′
• Maximum Horizontal Reach: 15′ (4.57 m) from CL of crane
• Maximum Vertical Lift: 16′ 2″ (4.93 m) from crane base
• Boom Elevation: -5° to +80°
• Controls: Radio remote
• https://www.stellarindustries.com/products/service-cranes/electric-cranes/ec3200/
• Additional Product Information

• Output Capacity: 23.2 cfm @ 175 psi
• Max. pressure: 175 psi
• Electric key start switch
• 30 gallon air tank
• Cast-iron pump with disc valves
• 14HP Gas Air Compressor
• Additional Product Information
