Inventory | Agriculture

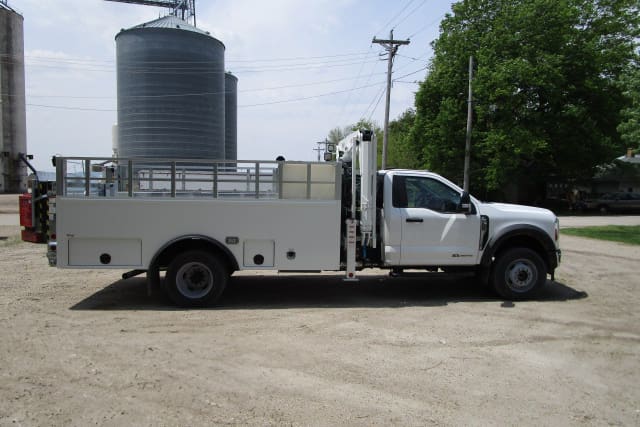

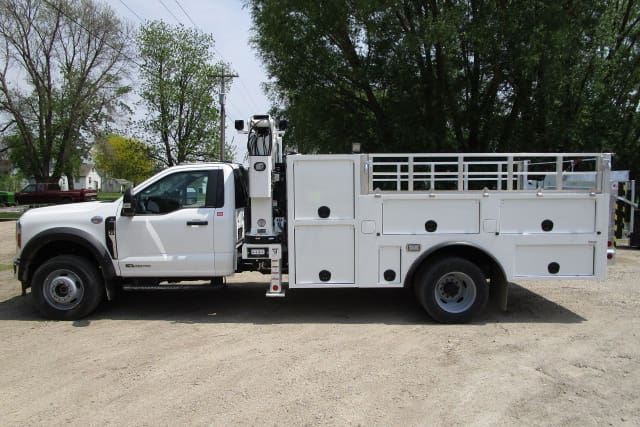

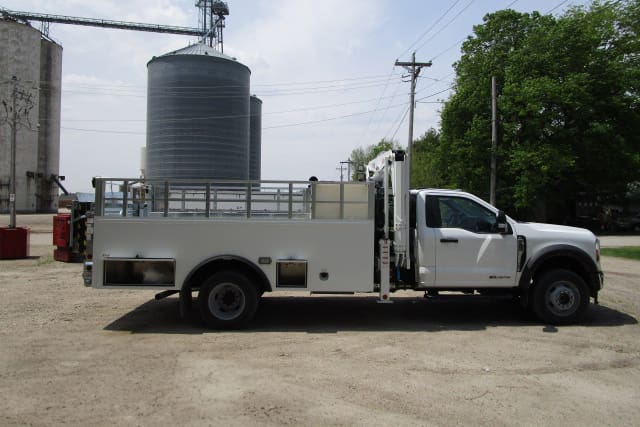

2024 Ford F600 w/1184-13AG/4500/46P (WR51)

Note: Includes 400-Gallon fluid tank and pumping system.

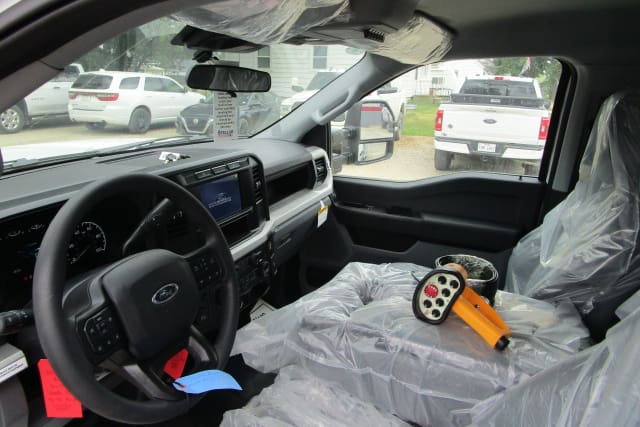

2024 Ford F600 Details

  • 6.7L diesel engine
  • 4×4 Automatic Transmission w/PTO provision
  • 108″ CA/193″ WB
  • XL Trim
  • Air conditioning
  • Cruise control
  • Tilt wheel
  • Cab steps
  • 40/20/40 split vinyl seat
  • Sync System
  • Power Group
  • Backup Camera

1184-13 AG Body Details

Body Features
  • 1184-13 AG V3 – Aluminum body
  • Rack sides 13’L, 40″H
  • Extruded plank floor
  • (2) 25″L underbody compartments (LF)
  • 36″ top mount (LF)
  • (2) 44″L underbody compartments (RR/LR)
  • 117″W x 21″H x 13″D LS deck mount toolbox
  • 22″H sign panels
  • fold down rail (LS)
  • load bed wall liner
  • stop, turn, tail light kit
  • aluminum skirts with skirt-mounted floodlights RS and LS
  • 400 gallon calcium tank
  • Additional Product Information
Equipment Options
  • Mini-OTR bead hook – 12000# capacity
  • 2,000# Hydraulic liftgate, 86″ wide, dual lift cylinders, recessed lights, galvanized frame and platform
  • Folding side rail and tire stop for EDL16-86 liftgate
  • Sign Panel for Model 87 Tommy Gate
Module/Skid Options
  • Pro Flow Poly calcium pump
  • Rinse Tank w/ 12V Pump – 20 Gallon Cap
Air Options
  • 3/8” Reel Craft dual post hose reel with 50’ Artic grade hose – For channel mounting in compartment
  • 1/2” Reel Craft dual post hose reel with 50’ Artic grade hose – For channel mounting in compartment
  • 1/2″ FLR system (filter/lubricator/regulator) with additional regulator for lubricated line, easily replaceable segments and safety air dump valve
  • 20′ OTR inflation/deflation hose kit w / quick release coupler for emergency air evacuation – Includes muffler, small and large bore core ejectors, and 1/4 turn ball valve and rotary air gauge for checking tire pressure
Tool Package
  • Tire bead wedge – six pack
Compartment Options
  • 3 1/2″ wide plastic tray inserts
  • 5″ wide plastic tray inserts
  • 11″ wide plastic tray inserts
  • Socket Tray – Flat Design – 9 pin – 12″w
Jackbox Options
  • Underbody toolbox panel
Body Mounted Options
  • Dri deck mat kit for compartment floors on 1202-13 and 1300 AR
  • Aluminum folding step
  • One pair Stellar mud flaps with mounting bolts
  • LED Floodlight
  • Compartment LED Light Kit
  • Amber strobe light package includes (2) LED lights – Mounted in rear corner post of body
  • Streamlight Stinger Switchblade LED work light with J hook, magnetic base, UV light for leak detection, and 180 degrees of rotation – Includes charger
  • Strobe light kit – LED Amber (2 Whelen lights) – For mounting to vertical body or truck surface (front of body or front grille) – Includes additional wiring
Safety Options
  • Backup alarm, electric
  • Chassis provided backup camera
  • ICC safety kit consisting of rechargeable 2.5# fire extinguisher and reflector kit
Electrical Options
  • Speed Control Kit – Includes start-stop functionality
  • Electrical Control Kit – Includes harness – Upfitter Switches Only
Paint & Finish
  • Paint 1184-13/1184-14 body Stellar White, Axalta Paint code 350407EX – Single Stage – Non-Metallic

4500 Crane Details

  • Rating: 45,000 ft-lbs
  • Lifting Capacities:
    • 7,500 lbs @ 9′
    • 3,200 lbs @ 17′
  • Controls: Proportional radio control
  • Stowed Height: 71″
  • Mounting Space Required: 26″
  • Shipping Weight: 2,400 lbs
  • Additional Product Information

46P Air Compressor Details

  • Output Capacity: 46 cfm @ 175 psi
  • Max. pressure: 175 psi
  • Cylinders: 4-cylinder, 2-stage
  • Electrical control: 12 VDC @ 20 amps
  • 22 gallon air tank with fittings, hose kit, mounting bracket
  • FLR system installed – 1 outlet for air hose (filter, lubricator, regulator).
  • Additional Product Information
