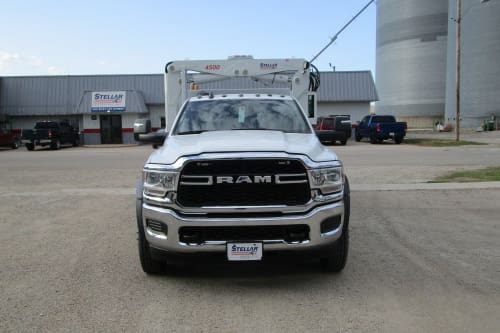

2024 Ram 5500 w/1302E-13 Mini OTR/4500/46P (WR57)

• 6.7L Cummins diesel engine
• 4×2 AISIN Automatic Transmission w/PTO provision
• 108″ CA/192″ WB
• 19,500 GVW
• Air conditioning
• Cruise control

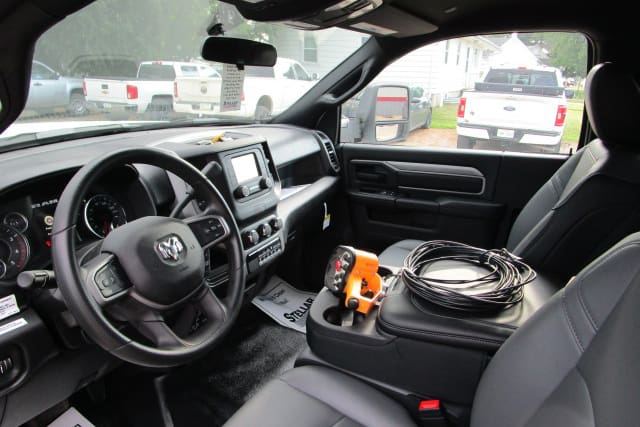

• 40/20/40 split vinyl bench seat
• Chrome tubular side steps
• Upgraded radio w/Bluetooth
• Power Group
• Backup Camera

Body Features

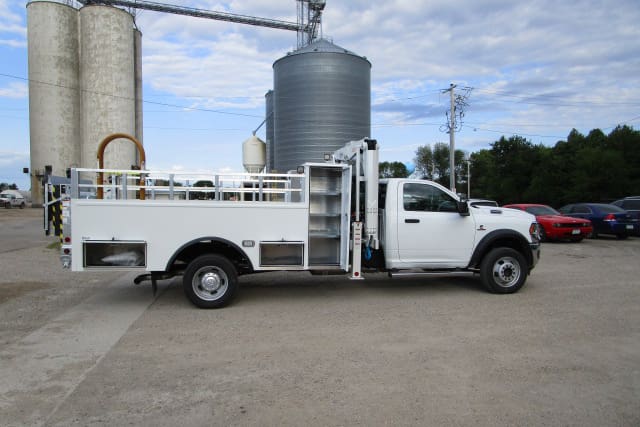

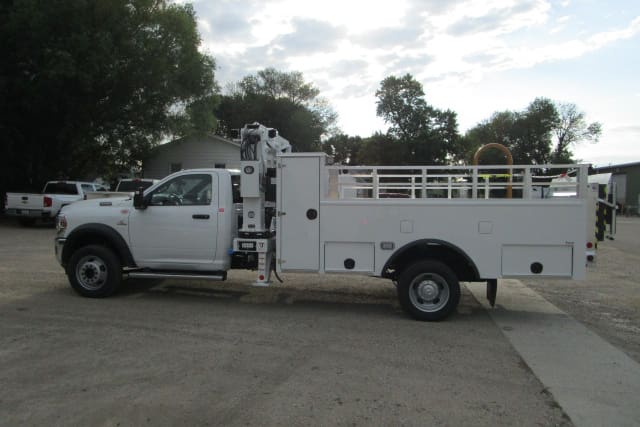

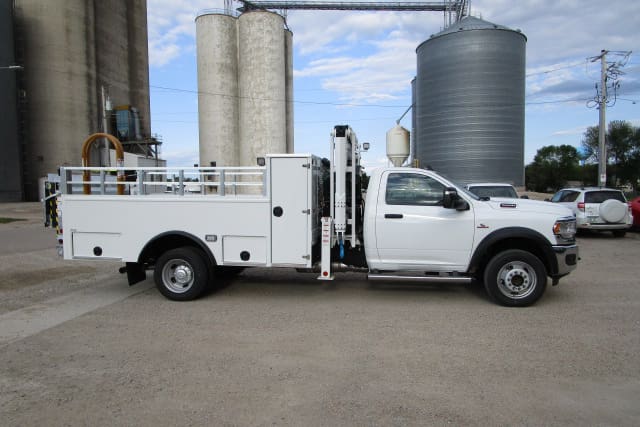

• 1302E V3 – Mini-OTR – aluminum body
• Rack sides
• 13’L, 36″H

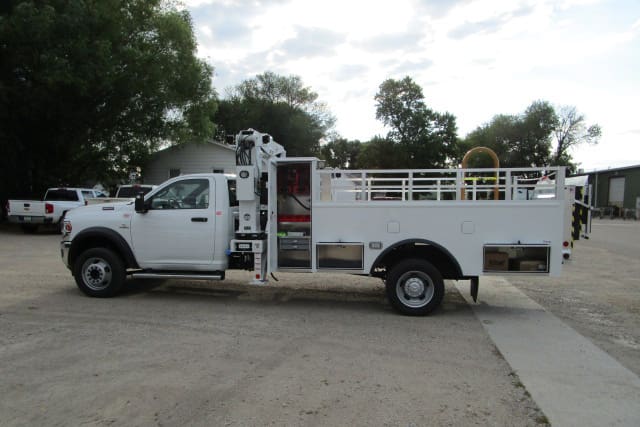

• (2) front vertical compartments 64″H x 22″D x 26″W
• Hose reels on SS of body

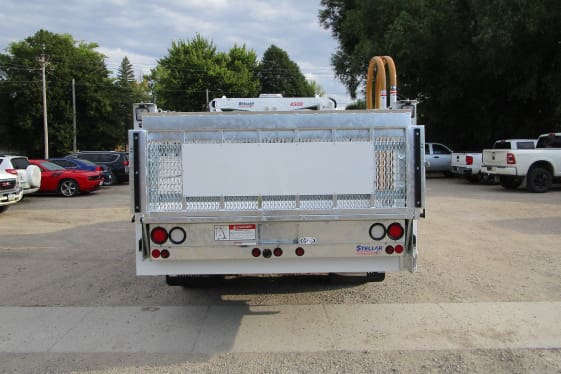

• 12″ low-profile rear gate between vertical compartments
• LR and RR underbody compartments 19″H x 29″W x 22″D
• Stop, turn, tail light kit
• Single skirt-mounted lights RS/LS
• Dual fuel fills for chassis with 19.5 & smaller tires
• Additional Product Information

Equipment Options

• Mini-OTR bead hook – 12000# capacity
• 2,000# Hydraulic liftgate, 86″ wide, dual lift cylinders, recessed lights, galvanized frame and platform
• Folding side rail and tire stop for EDL16-86 liftgate
• Sign Panel for Model 87 Tommy Gate

Air Options

• 1/2” Reel Craft dual post hose reel with 50’ Artic grade hose – For channel mounting in compartment
• 1/2″ FLR system (filter/lubricator/regulator) with additional regulator for lubricated line, easily replaceable segments and safety air dump valve
• 20′ OTR inflation/deflation hose kit w / quick release coupler for emergency air evacuation. Includes muffler, small and large bore core ejectors, and 1/4 turn ball valve and rotary air gauge for checking tire pressure.

Tool Package

• Tire bead wedge – six pack

Compartment Options

• Plastic tray package includes (4) 5″ W trays & (6) 3 1/2″ W trays for LF or RF vertical compartment
• 15-pin socket rack
• Heavy Duty Steel Drawer set, 8″H x 18″W x 18″D, 2-3″ (hanging)
• Adjustable Shelf – 902, 1302 Body

Jackbox Options

• Underbody toolbox panel

Body Mounted Options

• Dri deck mat kit for compartment floors on 1202-13 and 1300 AR
• Aluminum folding step
• One pair Stellar mud flaps with mounting bolts
• Two bar truck tire safety inflation cage
• Inflation cage holder (body deck mount)
• LED Floodlight
• Compartment LED Light Kit
• Whelen Century 16″ LED amber mini lightbar with clear lens and mount kit for 3200/4500/6000 tire crane
• Streamlight Stinger Switchblade LED work light with J hook, magnetic base, UV light for leak detection, and 180 degrees of rotation – Includes charger
• Strobe light kit – Low profile LED Amber lights (2) mounted in chassis grill
• Strobe light kit – Low profile LED Amber lights (2) mounted in rear lightboxes or truck surface
• Two tire carrier mast mounted LED floodlights

Safety Options

• Backup alarm, electric
• Chassis provided backup camera
• ICC safety kit consisting of rechargeable 2.5# fire extinguisher and reflector kit

Chassis Options

• Super Spring for RAM 5500-Single Leaf

PTO/Pump Options

• PTO for automatic transmission
• Hydraulic pump, tandem section

Electrical Options

• Speed Control Kit – Includes start-stop functionality
• Electrical Control Kit – 1302 Body – Includes harness – Upfitter Switches Only

Paint & Finish

• Paint 902/1302E body Stellar White, Axalta Paint code 350407EX – Single stage, non-metallic

• Rating: 45,000 ft-lbs
• Lifting Capacities:
  • 7,500 lbs @ 9′
  • 3,200 lbs @ 17′
• Controls: Proportional radio control
• Stowed Height: 71″
• Mounting Space Required: 26″
• Shipping Weight: 2,400 lbs
• Additional Product Information

• Output Capacity: 46 cfm @ 175 psi
• Max. pressure: 175 psi
• Cylinders: 4-cylinder, 2-stage
• Electrical control: 12 VDC @ 20 amps
• 22 gallon air tank with fittings, hose kit, mounting bracket
• FLR system installed – 1 outlet for air hose (filter, lubricator, regulator).
• Additional Product Information
