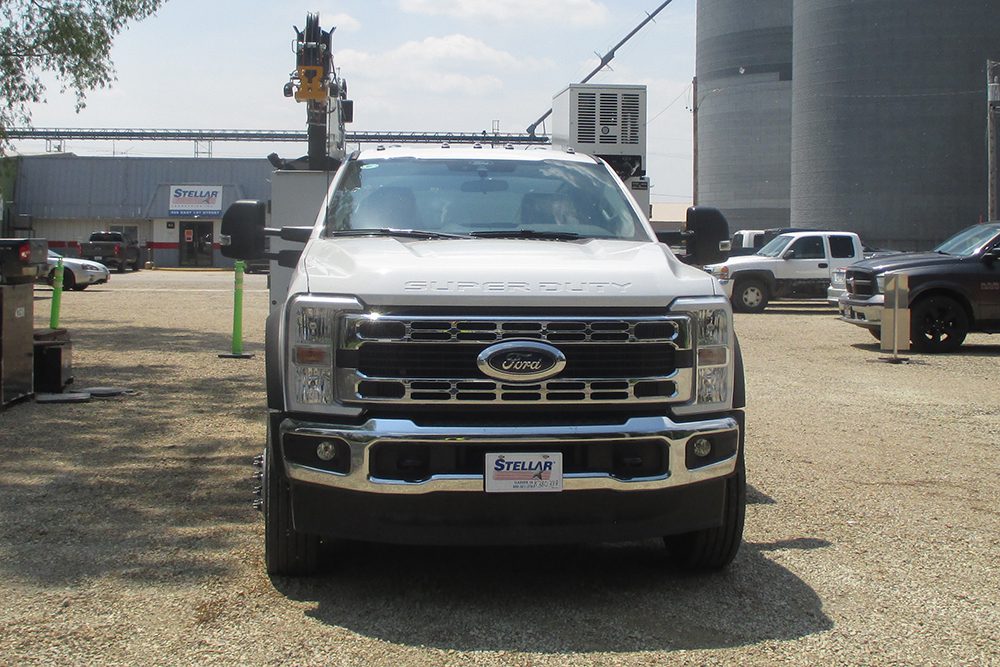

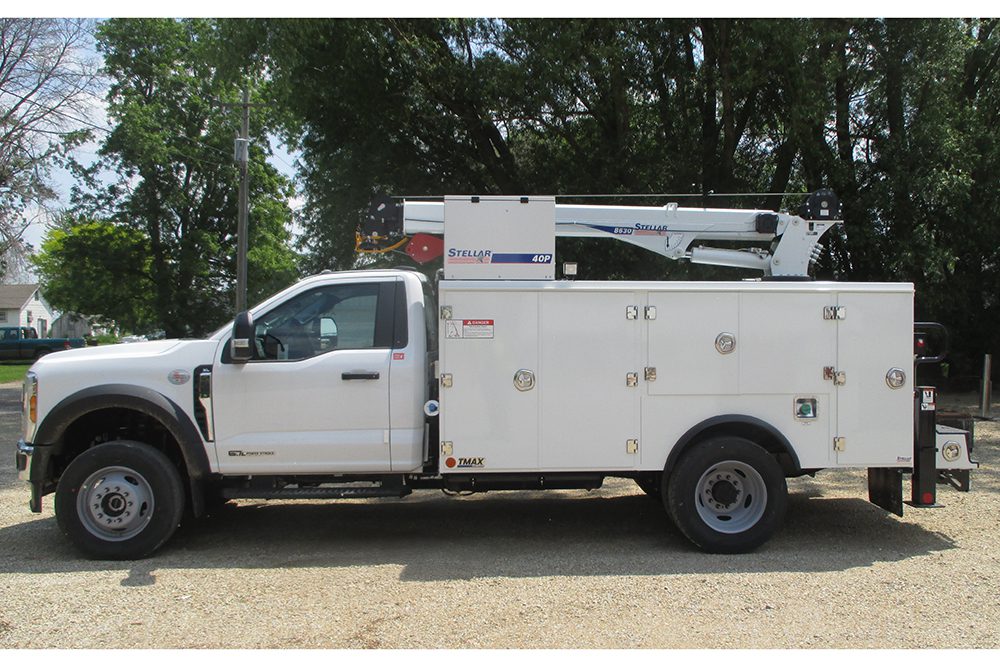

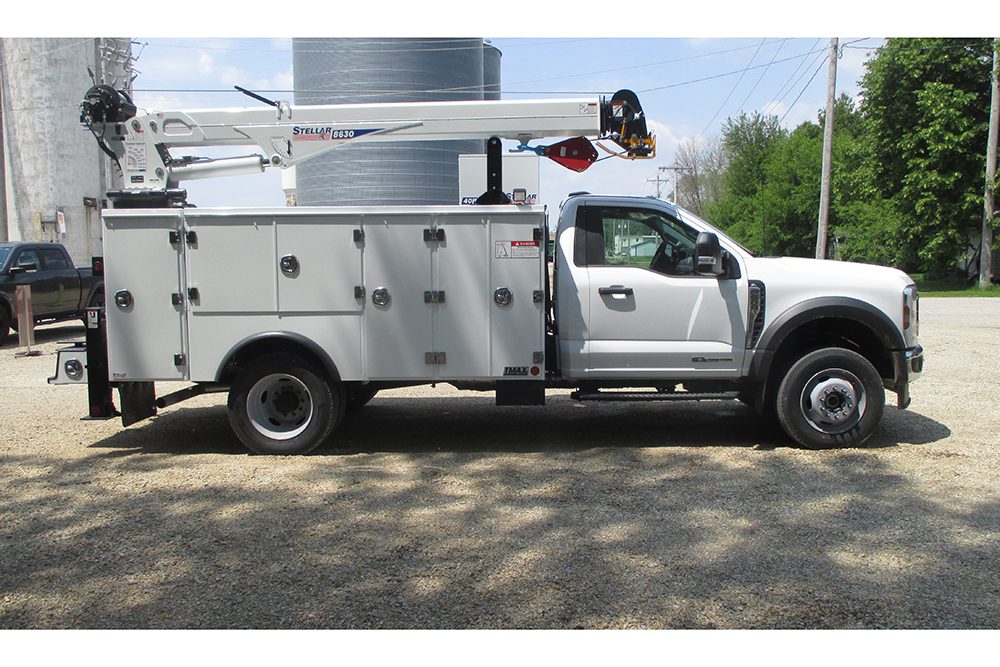

2025 Ford F600 w/2025 TMAX 1-11 Aluminum/8630/40P (WR94)

• 6.7L diesel engine
• 4×4 10-Speed Automatic Transmission w/PTO provision
• XL Trim
• Air conditioning
• Cruise control
• Tilt wheel
• Cab steps
• 40/20/40 split vinyl bench seat
• Sync System
• Power Group
• Backup Camera

Body Features

• Aluminum Side Packs
• Aluminum Doors
• Isolated Steel Crane Compartment and Torsion Box Understructure
• All compartments raised to 52″
• 8″ Drop Well in CS1V for Oxy /Acet Bottles
• 21″ work bench bumper with thru compartment
• flush front bulkhead
• exterior DOT light package
• master-lock system
• 22″D X 52″H side packs
• 133″ long
• (6) recessed cargo tie-downs
• Dual-seal automotive type compartment weather seal
• Rubber fenderettes
• Overlapped doors on SS1V / CS1V and horizontal compartments
• 2 & 3-point stainless steel compression latches
• Stainless steel “Billet Style” hinges
• Spring loaded door stops
• Weld on receiver hitch
• Prime painted
• Undercoated

Additional TMAX Information

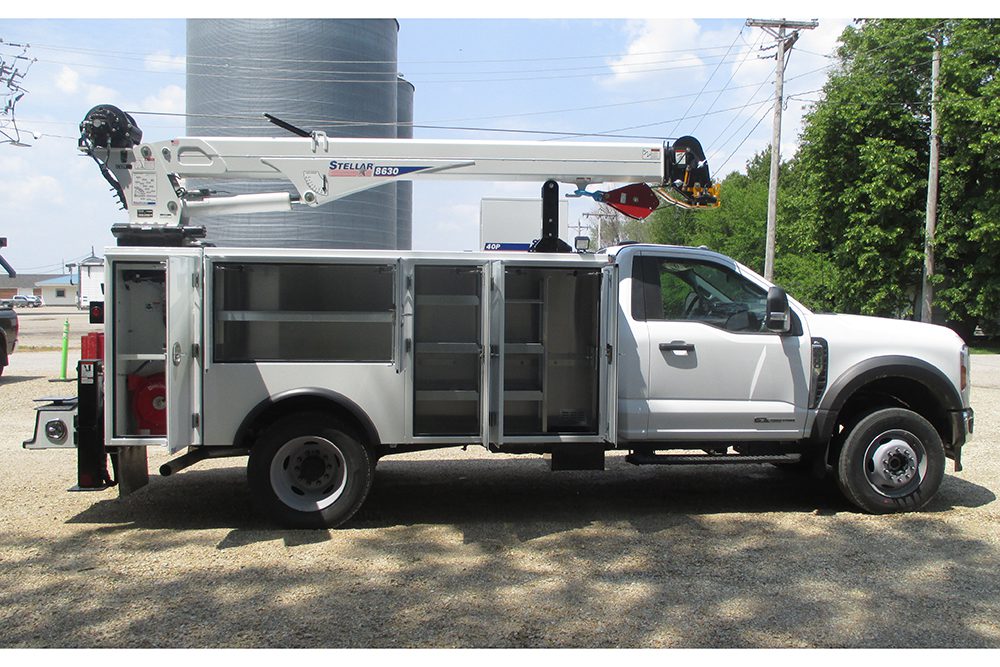

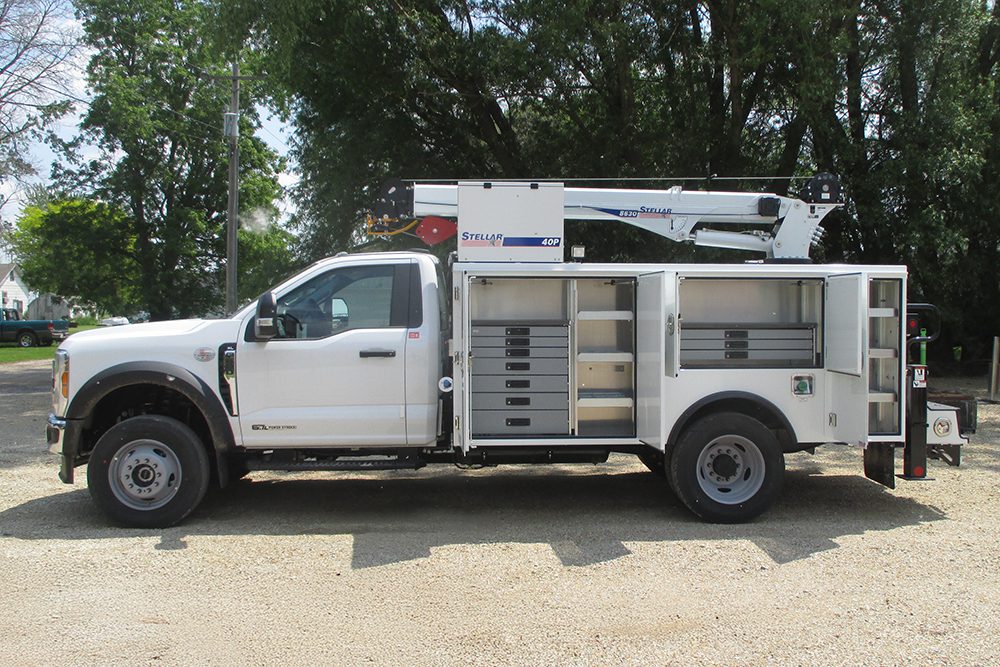

Compartment Storage

• Streetside 1st Vertical in front of the divider:
  • Heavy Duty Aluminum Bale Style Pull Handle Drawer Set, 35.5″H x 31″W x 18″D, 3-3″, 3-5″, 1-7″ (139705AX) w/LightBar
• Streetside 1st Vertical to the rear of the divider:
  • Strut mounted shelf with (3) dividers 18.50″W x 19.00″D (138604X)
• Streetside Horizontal
  • Heavy Duty Aluminum Bale Style Pull Handle Drawer Set, 13.5″H x 48″W x 18″D, 3-3″ (13472AX) w/LightBar
• Streetside Rear
  • Strut mounted shelf with (3) dividers 23.38″W x 19.00″D (138441X)
• Curbside 1st Vertical
  • Divider kit with strut mounted shelves 19.00 wide (138792X)
  • Strut mounted oxy-acet bottle holder – 2 bottle holder (138165X)
• Curbside 2nd Vertical
  • Strut mounted shelf with (3) dividers 20.38″W x 19.00″D (138834X)
• Curbside Horizontal
  • Strut mounted shelf with (3) dividers 52.00″W x 19.00″D (138443X)
• Curbside Rear
  • 1/2″ x 50′ hose reel with roller guide (16337X) – exits rear of body

Body Mounted Options

• Rock guard kit – Adhesive black
• Black Grab Handle – mounts to rear side pack and bumper
• One pair Stellar mud flaps with mounting bolts
• TMAX Aluminum Tailgate – 12″ Tall, painted black
• Adjustable Boom Support
• Roller Rest, painted black

Bumper Mounted Options

• Vise mounting plate – Receiver work bench mount
• Step, slide out for TMAX mechanics work bench bumper
• Stabilizer Assembly – hydraulic out/hydraulic down, painted black

Light Options

• LED Flood Light Kit – 4 lights – (1 near boom support, 1 SS behind compressor, 1 on each rear taillight box)
• LED Compartment Light Kit
• Stellar® rear taillights equipped with integrated strobe lights, license plate bracket, ID light bar, reflectors, and one flood light mounted on top of each box

 Safety Options

• Cover Plate for Backup Camera

Electrical Options

• Truck Upfitter Switches Control Package

Hydraulic Options

• Hydraulic reservoir, 20 gallon, bulkhead mounted, painted black

Paint & Finish

• Paint 9’-12’ body Stellar White Paint, Axalta paint code 350407EX
• Spray on bed liner for load bed walls and floor – Black
• Spray on bed liner for work bench bumper – Black

• Crane Rating : 53,100 ft-lb
• Max Lifting Capacity: 8,600 lbs @ 6′ 2″
• Maximum Horizontal Reach: 29′ 8″ from CL of crane
• Maximum Vertical Lift: 31′ 6″ from crane base
• Boom Elevation: -10° to +80°
• CDTpro™ Control System w/Range Finder
• Additional Product Information

• Output Capacity: 40 cfm @ 100 psi
• Max. pressure: 150 psi
• Cylinders: 2-cylinder, single-stage
• Electrical control: 12 VDC @ 20 amps
• 25 gallon air tank kit (1 -10 gallon, 1-15 gallon)
• FLR system installed – 1 outlet for air hose (filter, lubricator, regulator)
• Additional Product Information
