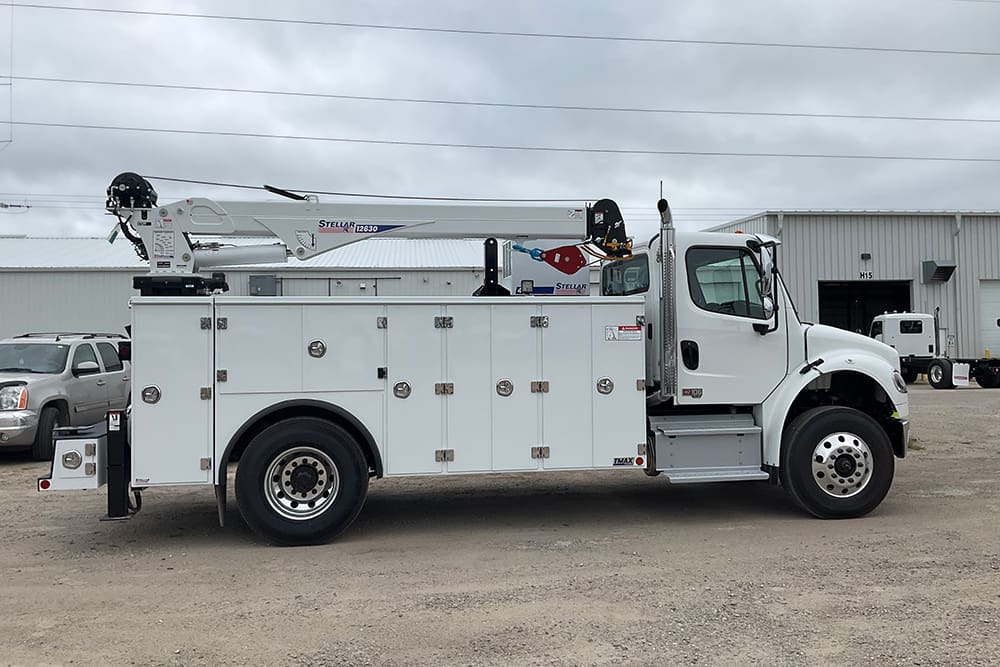

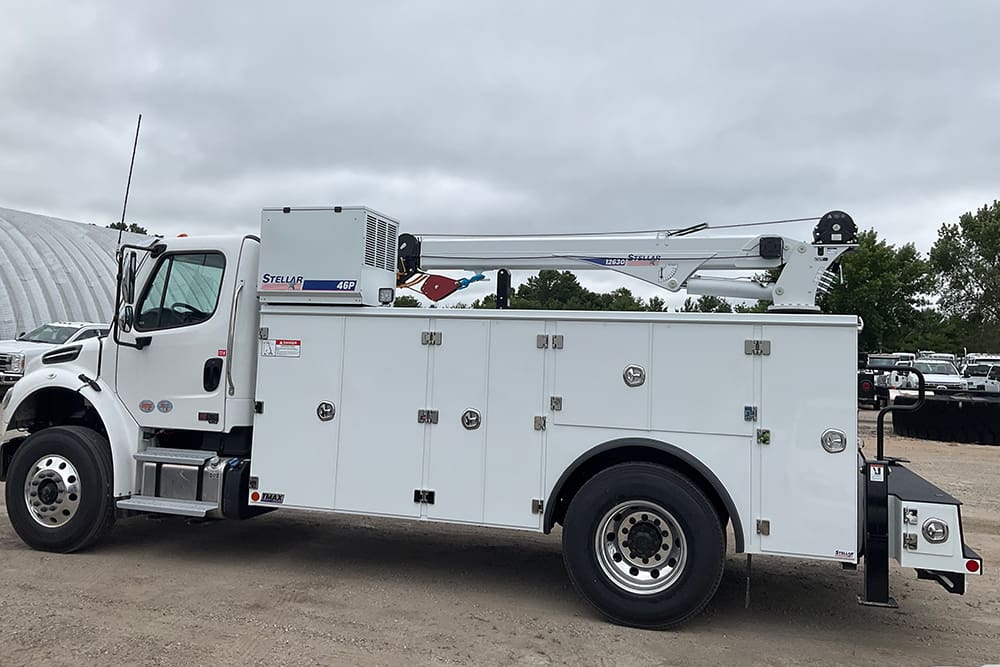

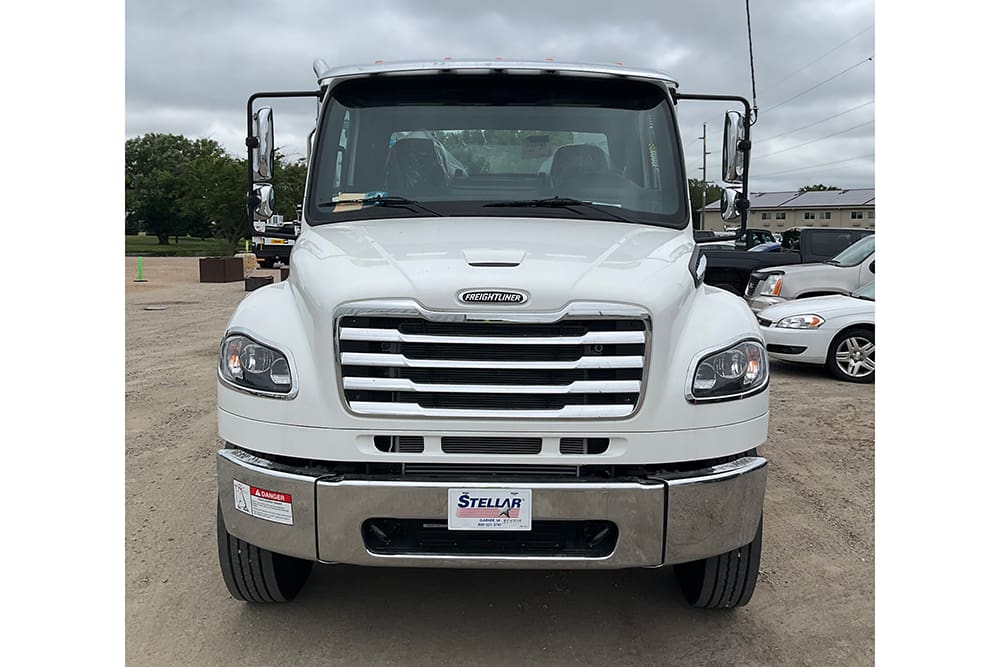

2025 Freightliner M2 106 w/TMAX 2-14 Aluminum/12630/46P (WR32)
- Cummins L9 330 HP
- 4×2 Allison 3500 RDS Automatic Transmission w/PTO provision
- Horizontal exhaust pipe
- Air brakes
- Air Suspension
- 50 gallon LH fuel tank
- 22.5 tires
Body Features
- Aluminum Side Packs
- Aluminum Doors
- Steel Crane Compartment
- All compartments raised to 60″
- Flush front bulkhead
- Torsion box understructure with isolated crane compartment
- Master-Lock system
- Exterior LED DOT light package
- 22″D X 60″H side packs

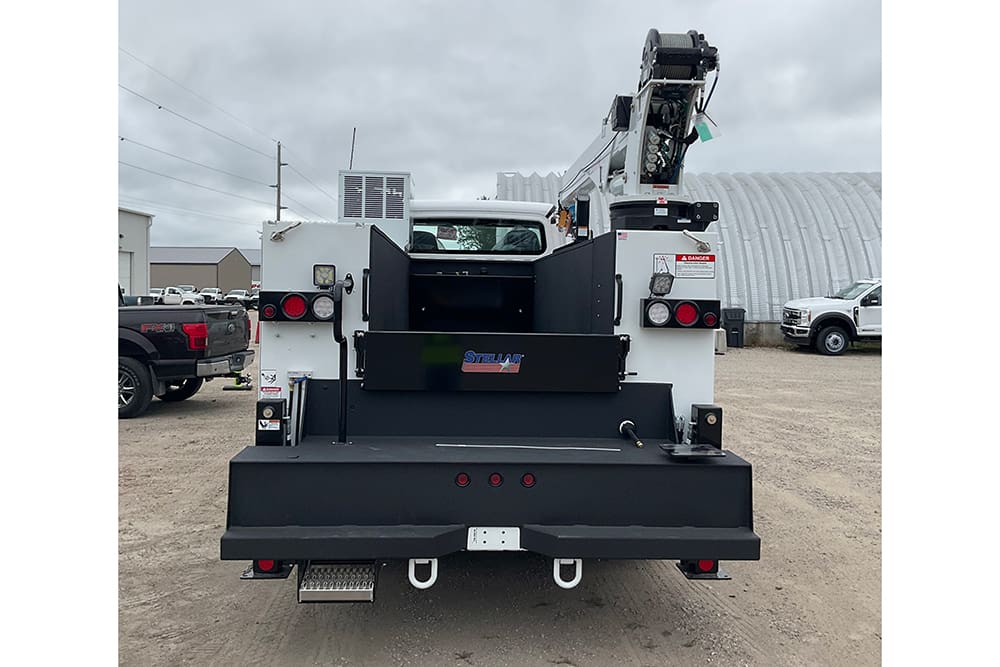

- 168″ long, 21″ work bench bumper with thru compartment
- (6) recessed cargo tie-downs
- (2) rear mounted grab handles
- Dual-seal automotive type compartment weather seal
- Rubber fenderettes
- Overlapped doors on SS1V / CS1V,
- Overlapped doors on horizontal compartments
- 12″ fold down aluminum tailgate (painted black)
- 2 & 3-point stainless steel compression latches
- Stainless steel “Billet Style” hinges
- Spring loaded door stops
- Pintle hitch mount
- Prime painted
- Undercoated
- Additional Product Information
Compartment Storage

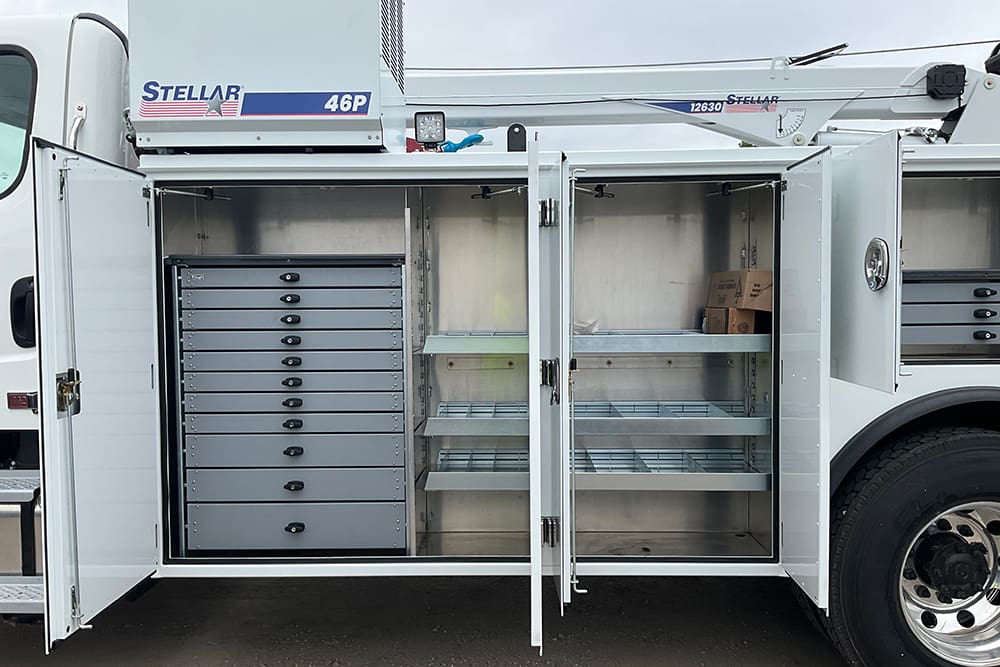

- Streetside 1st Vertical in front of the divider:
- Heavy Duty Aluminum Drawer set, 43″H x 34″W x 18″D, 8-3″,2-5″, 1-7″drawers (18259AX) w/LightBar
- Streetside 1st Vertical to the rear of the divider:
- Shelf with (3) dividers 17.63″W x 19.00″D (72773X)
- Streetside 2nd Vertical:
- Shelf with (3) dividers 135.25-36.56″W x 19.00″D (72879X)
- Streetside Horizontal
- Heavy Duty Aluminum Drawer set, 11″H x 48″W x 18″D, 3-3″ drawers (23378AX) w/LightBar
- Streetside Rear
- Shelf with (3) dividers 24.38″W x 19.00″D (72869X)

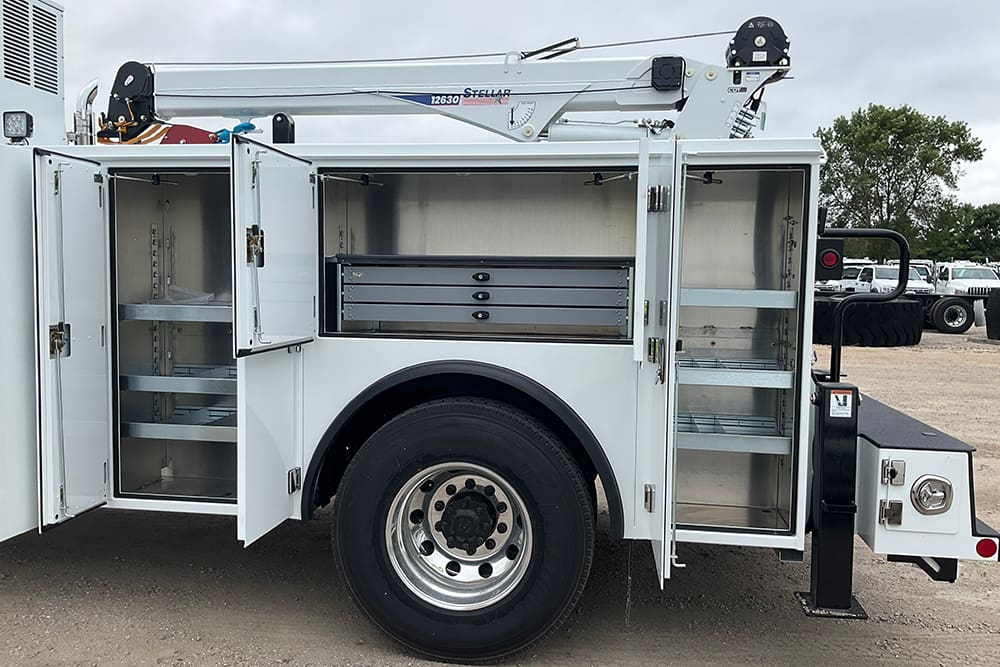

- Curbside 1st Vertical
- Divider kit with shelves (73116X) and Oxy-Acet 2-Bottle Holder (14013X)
- Curbside 2nd Vertical
- Shelf with (3) dividers 32.25″W x 19.00″D (72875X)
- Curbside 3rd Vertical
- Shelf with (3) dividers 19.00″W x 19.00″D (72775X)
- Curbside Horizontal
- Shelf with (3) dividers 52.44″W x 19.00″D (72894X)

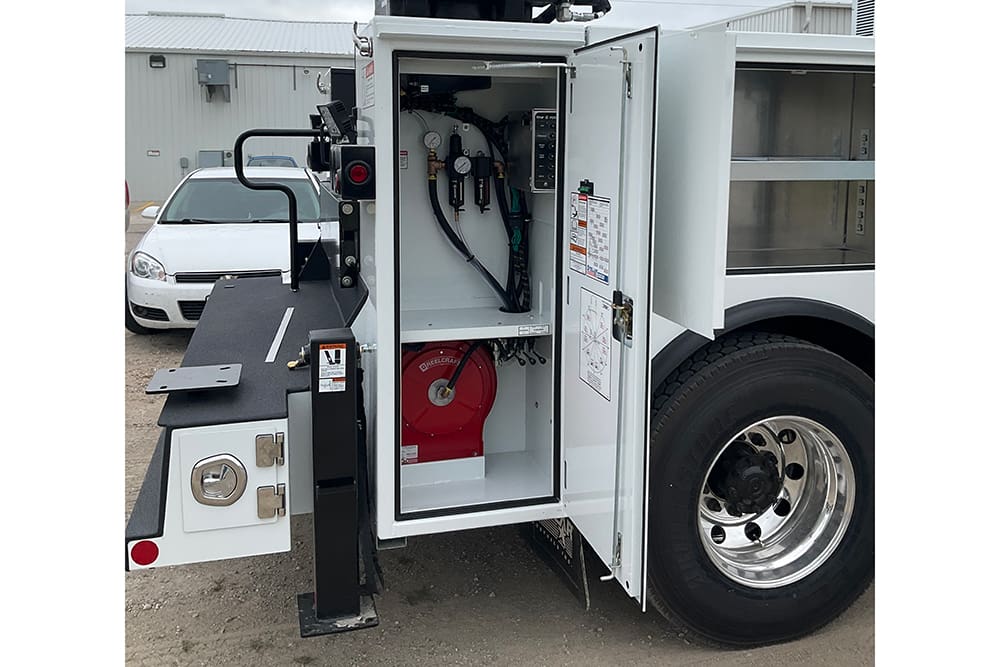

- Curbside Rear
- 1/2″ x 50′ hose reel with roller guide (16337X) – exits rear of body
Body Mounted Options
- Rock guard kit – Adhesive black
- Grab Handle – mounts to rear side pack and bumper – easily accessible from ground
- TMAX Aluminum Tailgate – 12″ Tall, painted black
- Adjustable Boom Support
- Roller Rest, painted black
Bumper Mounted Options
- Vise mounting plate – Receiver work bench mount
- Step, slide out for TMAX mechanics work bench bumper
- Stabilizer Assembly – hydraulic out/hydraulic down, painted black
Light Options
- LED Flood Light Kit – 4 lights – (1 near boom support, 1 SS behind compressor, 1 on each rear taillight box)
- LED Compartment Light Kit
Safety Options
- Chassis mounted back up alarm – 107 Db
- ICC safety kit consisting of rechargeable 2.5# fire extinguisher and reflector kit
Electrical Options
- Program speed control for Cummins engine
- Truck Upfitter Switches Control Panel
PTO/Pump Options
- Hot shift PTO
- Hydraulic pump, tandem section for crane and compressor
- Includes: 74423X PTO 280GSFJP-B5RK, 34301 PUMP HYD DE2R41SHBB12521N113, 37674X PUMP INST KIT MECH DAN FOSS
Hydraulic Options
- Hydraulic reservoir, 35 gallon, bulkhead mounted, painted black
Paint & Finish
- Paint 13’+ body Stellar White Paint, Axalta paint code 350407EX
- Spray on bed liner for load bed walls and floor – Black
- Spray on bed liner for work bench bumper – Black
- Crane Rating : 77,800 ft-lb
- Max Lifting Capacity: 12,000 lbs @ 6′ 5″
- Maximum Horizontal Reach: 30′ from CL of crane
- Maximum Vertical Lift: 31′ 9″ from crane base
- Boom Elevation: -10° to +80°
- CDTpro™ Control System w/Range Finder
- Additional Product Information
- Output Capacity: 46 cfm @ 175 psi
- Max. pressure: 175 psi
- Cylinders: 4-cylinder, 2-stage
- Electrical control: 12 VDC @ 20 amps
- 22 gallon air tank with fittings, hose kit, mounting bracket
- FLR system installed – 1 outlet for air hose (filter, lubricator, regulator).
- Additional Product Information
SO# |
Unit |
Chassis |
Availability |
354809 |
TMAX2-14 AL/ 12630/ 46P |
25 Freightliner |
10/2/24 |
359676 |
TMAX2-14 AL/ 12630/ 46P |
25 Freightliner |
10/23/24 |
359678 |
TMAX2-14 AL/ 12630/ 46P |
25 Freightliner |
12/12/24 |
