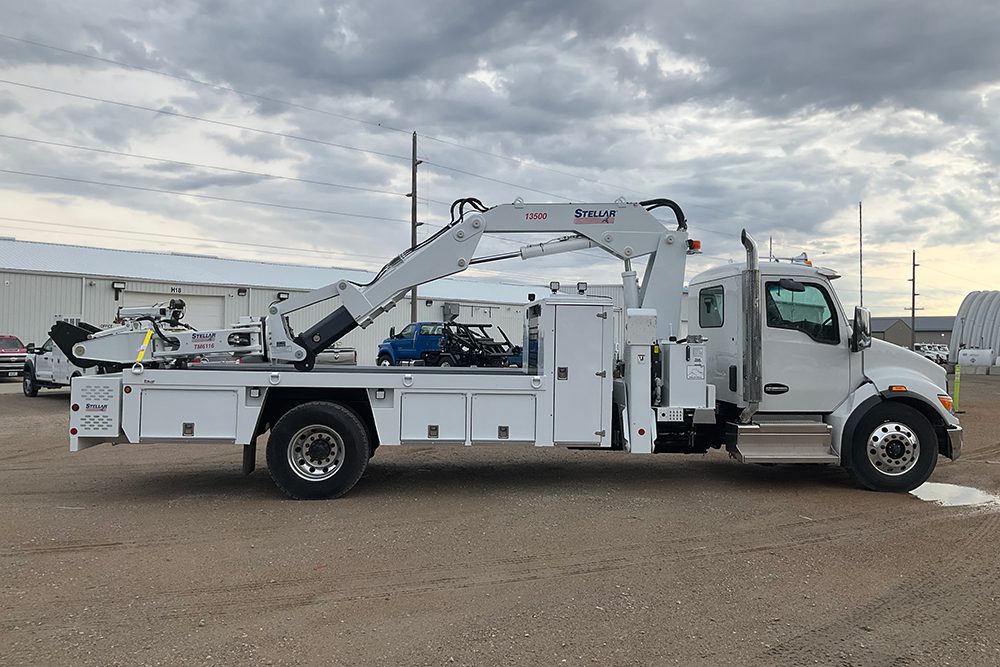

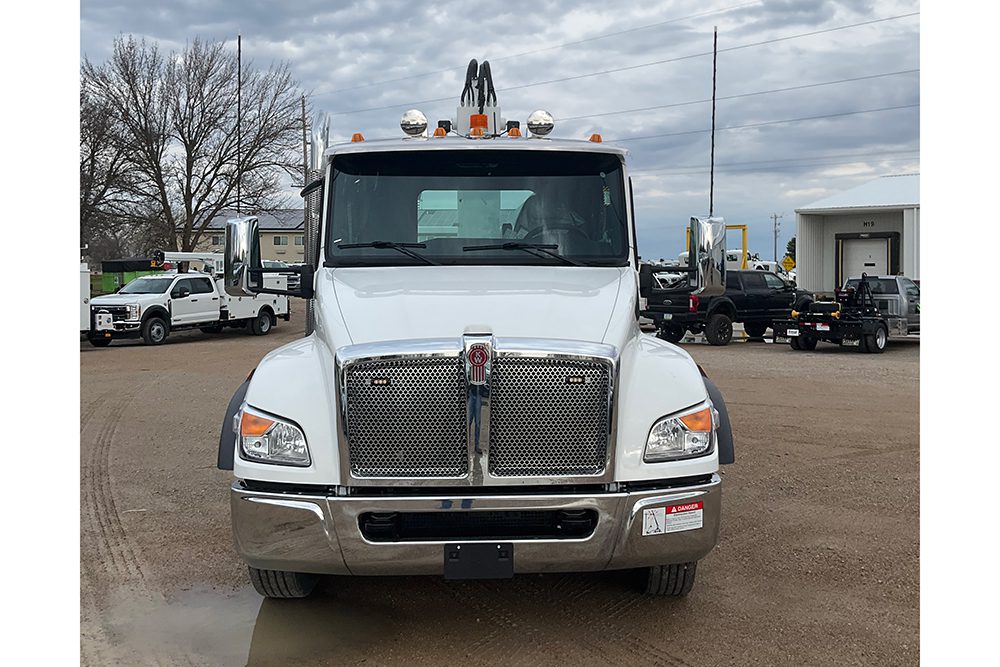

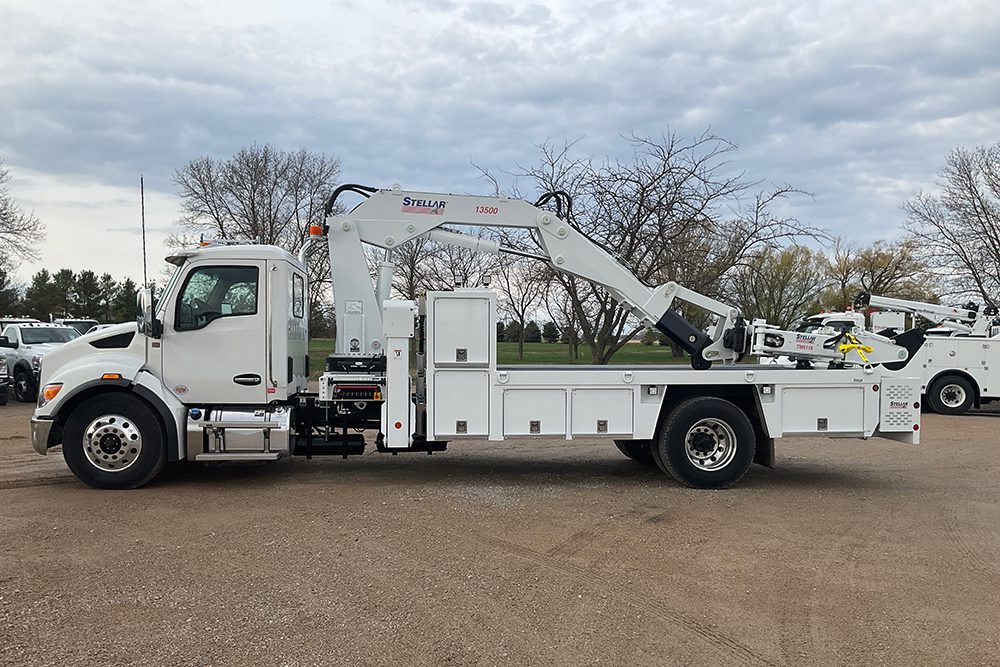

2025 Kenworth T380 w/TM6116/13500/110P (WR67)

• Paccar PX-9 330 HP Diesel
• 4×2 Allison 3500 Automatic Transmission
• 184″ CA/252″ WB
• 33,000 GVW
• Horizontal exhaust with vertical pipe
• Air brakes
• 56 gallon LH fuel tank
• 11R22.5 tires
• Air conditioning
• Air cushion driver’s seat

Body Features

• 162-217 steel flatbed body
• 17’L
• 3/16″ deck plate floor

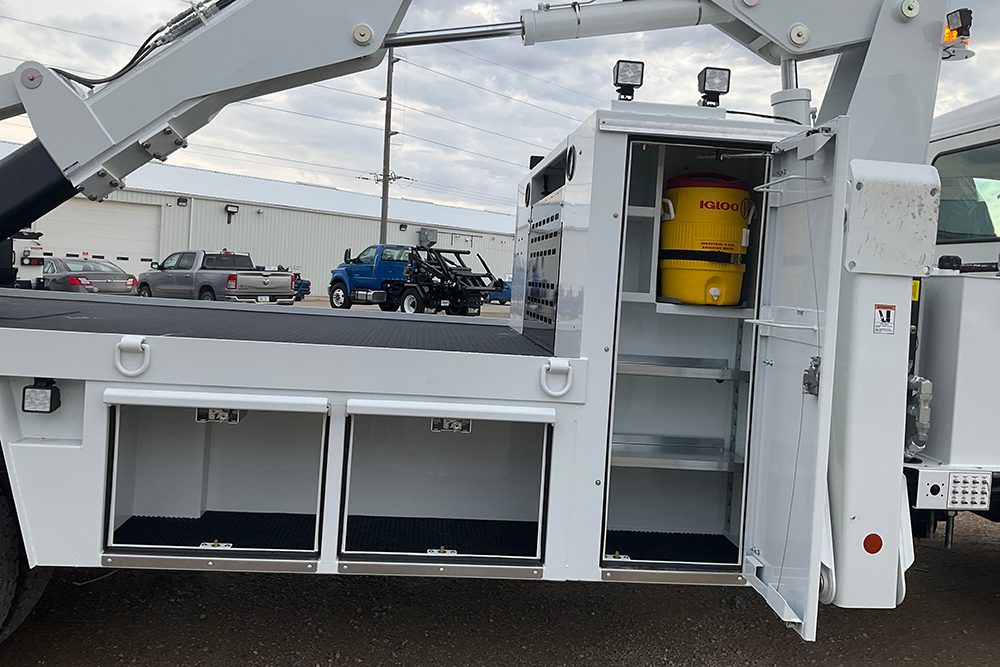

• (1) LF underbody tool compartment 30″H x 30″W x 27″D, and LF top compartment 34″H x 30″W x 27″D
• (1) RF vertical compartment 64″H x 30″W x 20″D
• Underbody tool compartments LF, RF, LR, RR
• Stop, turn, tail lights

Air Options

• 1/2” Reel Craft dual post hose reel with 50’ Artic grade hose – For channel mounting in compartment
• 22 gallon air tank, ASME approved, with fittings, hose kit
• 1/2″ FLR system (filter/lubricator/regulator) with additional regulator for lubricated line, easily replaceable segments and safety air dump valve
• 20′ OTR inflation/deflation hose kit w / quick release coupler for emergency air evacuation. Includes muffler, small and large bore core ejectors, and 1/4 turn ball valve and rotary air gauge for checking tire pressure.

Tool Package

• Tire bead wedge – six pack

Compartment Options

• 3 1/2″ wide plastic tray inserts
• 5″ wide plastic tray inserts
• 15-pin socket rack
• 6-drawer parts cabinet
• Drawer set, 8″H x 22″W x 18″D NR hanging, 2-3″
• Shelf Kit – 17 x 30″
• 5 gallon insulated water cooler

Body Mounted Options

• Dri deck mat kit for compartment floors
• Back gate and lid for Stellar 110P compressor
• Compartment sill guards
• One pair Stellar mud flaps with mounting bolts
• 60 Gallon Tire Life Tank
• Heavy duty rear bumper/block storage box, frame mounted, 94″W x 24″H x 19″D
• vertical taillights mounted to outside of block box door
• Tail Light Cover Kit
• LED Floodlight
• One white round plug installed for large OTR compartment light, to be used with LED Compartment lights
• Compartment light package-(3) lights on vertical bracket, switch and wiring
• Amber LED class 1 beacon light
• Amber strobe light package includes (2) LED lights. Mounted in rear corner post of body
• Streamlight Stinger Switchblade LED work light with J hook, magnetic base, UV light for leak detection, and 180 degrees of rotation – Includes charger
• Strobe light kit – LED Amber (2 Whelen lights) – For mounting to vertical body or truck surface (front of body or front grille) – Includes additional wiring
• Two tire carrier mast mounted LED floodlights

Safety Options

• Backup alarm, electric
• ICC safety kit consisting of rechargeable 2.5# fire extinguisher and reflector kit

PTO/Pump Options

• PTO for automatic transmission
• (2) Hydraulic pumps, single section

Electrical Options

• Electrical Control Kit – Large OTR Body – Includes harness and switch panel with 12V power port

Paint & Finish

• Paint Stellar White, Axalta Paint code 350407EX – Single stage, non-metallic
• Spray on bed liner for 138-15 and 156-17 body (black)

Tire Manipulator

• Stellar Model 6116 Tire Manipulator
• Parallelogram arms
• 6000# lifting capacity
• 120° of body rotation
• 130° angle of articulation
• 90° rotating pads
• clamping span of 17″ to 115″
• Painted white

Carrier

• Stellar Model 13500 center mount mast carrier
• 16’8″ of reach from center line of chassis
• 135,000 ft lb capacity
• 13,500 lbs @ 10′
• 8,100 lbs @ 16’8″
• Fully proportional radio remote control
• Counter balance check valves
• Fold over style stabilizers
• 40 gallon reservoir
• Painted white

Additional Product Information

• Output Capacity: 110 cfm @ 175 psi
• Max. pressure: 175 psi
• Cylinders: 4-cylinder, 2-stage
