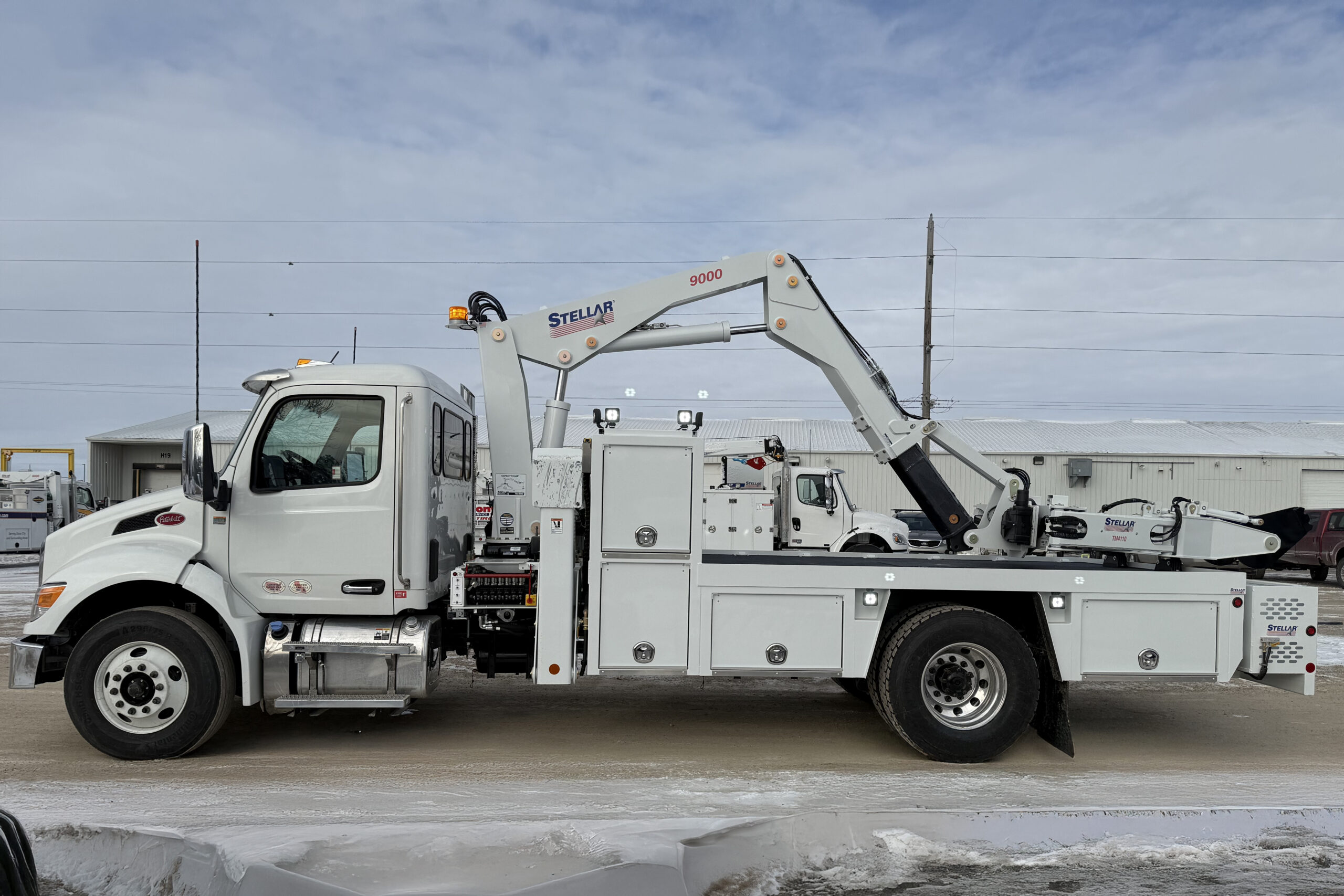

2025 Peterbilt 536 w 138-215 V2/4110/9000 (WR174)

• 2025 Peterbilt 536
• 144″ CA/212″ WB, 26,000# GVW
• Paccar PX-7 300 HP Diesel
• Allison 2500
• 12,000# Front Axle
• 19,000# Rear Axle
• Horiz. Exhaust With Vertical Pipe
• Air Brakes
• 50-Gallon LH Fuel Tank
• 11R22.5 Tires
• Air Cond.
• Air Cushion Driver’s Seat

Body

• 138-215 V2 Steel Flatbed Body
• 15’L, 3/16″ Deck Plate Floor

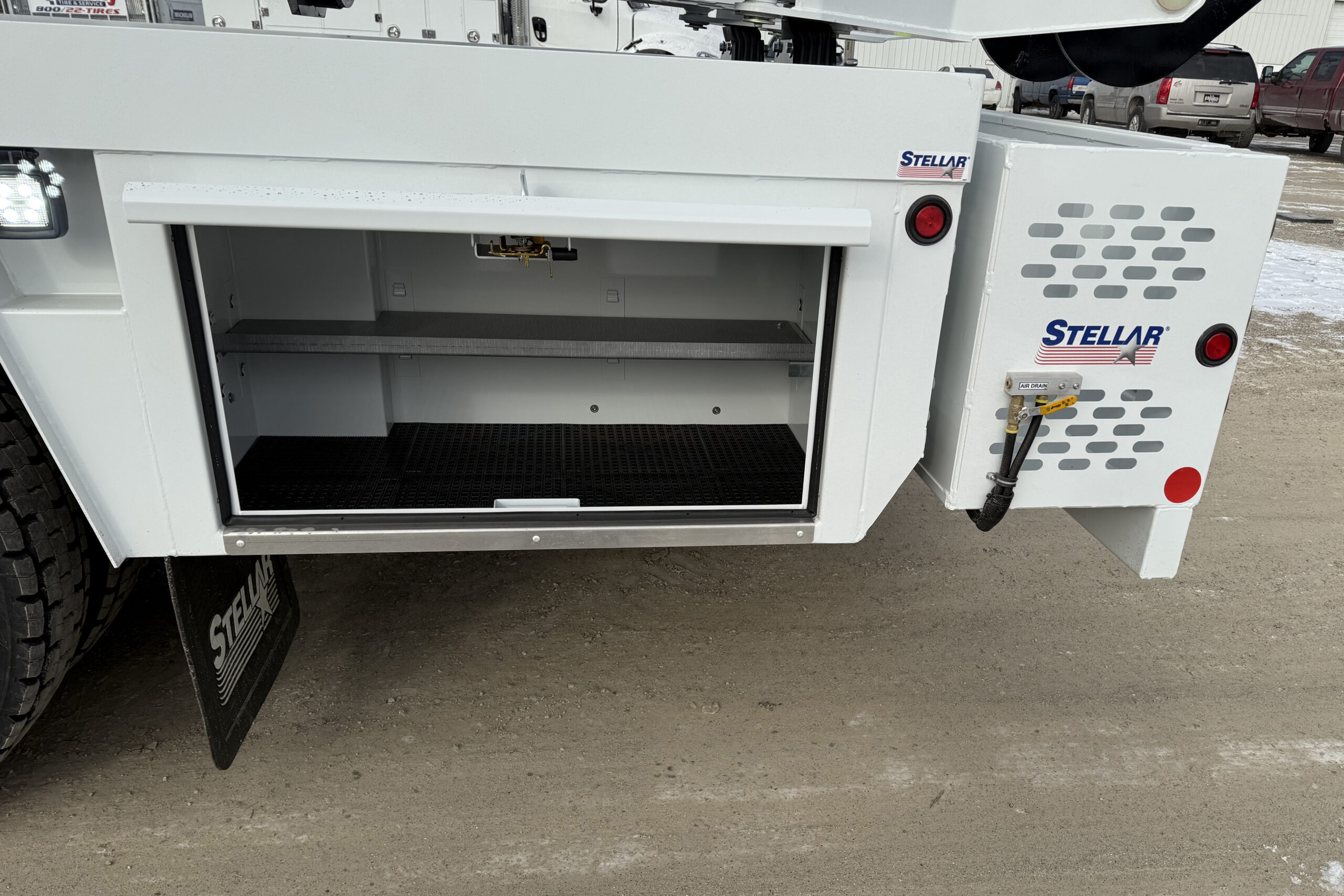

• SS1V (Upper) Reel And Storage Compartment 34″H x 30″W x 27″D
• SS1VL (Lower) Compartment 30″H x 30″W x 27″D
• CS1V Compartment 64″H x 30″W x 20″D
• Underbody Tool Compartments SS2, SS3, CS2, CS3
• Shelf Standards In All Compartments Except SS1VU
• Includes 12 D-Rings In The Load bed
• Stop, Turn, Tail-Lights
• Body Mounting Kit OTR

Equipment / Options

• Swivel Load Hook
• Service Kit For Fully Proportional 9000 Crane
• American Eagle 46P Air Compressor

Air Options

• 1/2” Reel Craft Dual Post Hose Reel
• 50’ Artic Grade Hose
• 22-Gallon Air Tank
• ASME Approved, With Fittings, Hose Kit, Mounting Brackets
• 1/2″ FLR System w/Additional Regulator For Lubricated Line, Easily Replaceable Segments And Safety Air Dump Valve
• 20′ OTR Inflation/Deflation Hose Kit w / Quick Release Coupler For Emergency Air Evacuation
• Includes Muffler, Small And Large Bore Core Ejectors, And 1/4 Turn Ball Valve And Rotary Air Gauge For Checking Tire Pressure

Tool Package

• Tire Bead Wedge – Six Pack

Compartment Options

• 3 1/2″ Wide Plastic Tray Inserts
• 5″ Wide Plastic Tray Inserts
• Compartment Option 7-Engineered To Order
• Drawer Set, 10.5″H x 32″W x 16″D, 2-3″ (Incl. 2.5″ Riser)
• Adjustable Shelf – 17″D x 30″ W

Front Compartment Options

• Adjustable Shelf – 13″D x 45″ W For CS Notched Underbody Toolbox
• Adjustable Shelf – 13″D x 45″ W For SS Notched Underbody Toolbox

Body Mounted Options

• Dri Deck Mat Kit For Compartment Floors
• Compartment Sill Guards
• One Pair Stellar Mud Flaps With Mounting Bolts
• 25-Gallon Tire Life Tank Mounted In Loadbed

Bumper Options

• Heavy Duty Rear Bumper/Block Storage Box
• Frame Mounted
• 94″W x 24″H x 19″D
• Vertical Taillights Mounted To Outside Of Block Box Door
• Tail Light Cover Kit – 138 / 162 style OTR body with
• LED Flood Light With Wide Beam
• Large OTR LED Compartment Light Kit
• Front vertical compartment
• Large OTR LED Compartment Light Kit
• Underbody Tool Box Compartments
• Amber LED Class 1 Beacon Light
• Light Kit – High Mount
• Streamlight Stinger Switchblade LED Work Light With J-Hook
• Magnetic Base
• UV Light For Leak Detection
• 180 Degrees Of Rotation
• Includes charger
• Strobe light kit – low profile LED amber lights
• (2) Mounted In Chassis Grill
• Two Tire Carrier Mast Mounted LED Floodlights

Safety Options

• Chassis Mounted Back Up Alarm – 107 Db
• ICC Safety Kit Consisting Of Rechargeable 2.5# Fire Extinguisher And Reflector Kit

Electrical Options

• Program Speed Control For Cummins Engine
• Electrical Control Kit – Large OTR Body – Includes Harness And Switch Panel With 12V Power Port

Paint & Finish

• Paint 15′ OTR Body Stellar White
• Axalta Paint Code 350407EX (includes undercoating)
• Single Stage – Non-Metallic
• Spray On Bed Liner For 138-15 And 156-17 body (black)

Stellar Model 4110 Tire Manipulator

• Parallelogram Arms
• 4600 lbs. Lifting Capacity
• 300° Of Body Rotation
• 154° Angle Of Articulation
• 90° Rotating Pads
• Clamping Span Of 16″ To 110″
• Painted White

Stellar Model 9000 center mount mast crane

• 16′ Of Reach From Center Line Of Chassis
• 90,000 ft-lb capacity
• 9,000 lbs. @ 10′, 5,425 lbs. @16’7″
• Fully Proportional Radio Remote Control
• Counter Balance Check Valves
• Dual Worm Gear Rotation
• Fold Over Style Stabilizers
• Painted White

Stellar Accessories 46P compressor

• 30-Gallon Hydraulic Reservoir
• Crane Mounted
• 46 CFM @175 PSI With Base, Motor, Cooler, Filters And Fittings
