Inventory | Mechanic Trucks

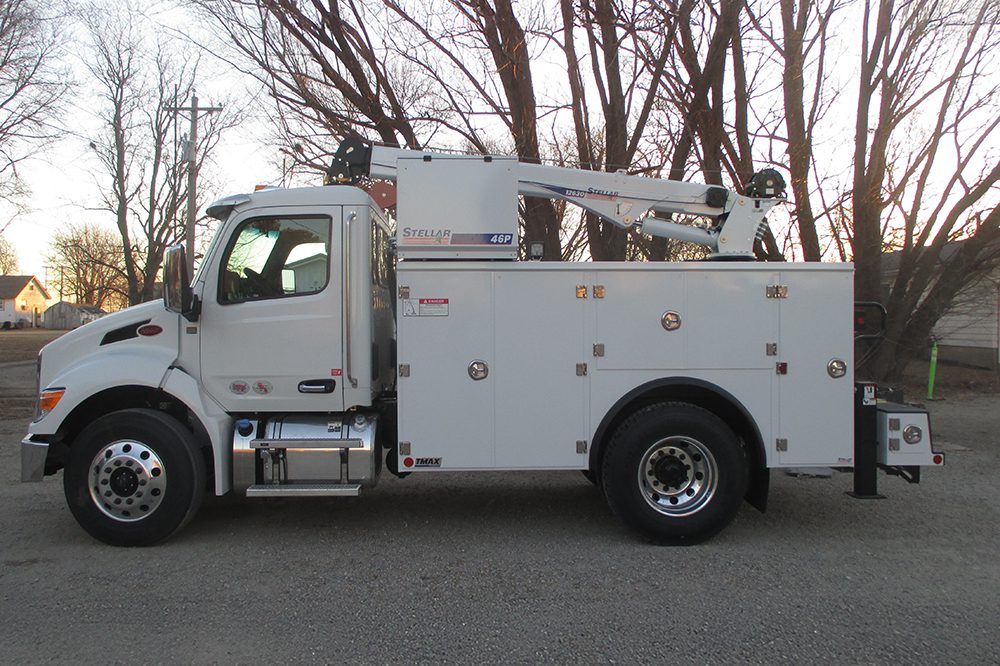

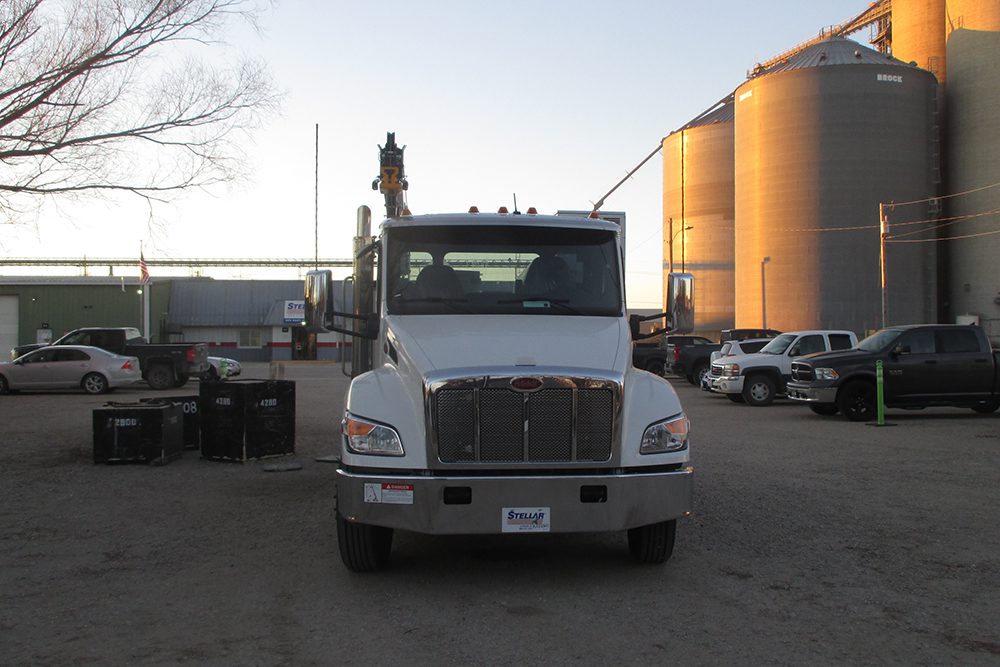

2025 Peterbilt 536 w/TMAX 2-11 Aluminum/12630/46P (WR30)

2025 Kenworth T280 Details

  • Paccar PX-7 300 HP Diesel
  • 4×2 Allison 2500 RDS Automatic Transmission w/PTO provision
  • Horizontal exhaust with vertical pipe
  • Air brakes
  • 60 gallon LH fuel tank
  • 11R22.5 tires
  • Air conditioning
  • Air cushion driver’s seat

TMAX 2-11 Mechanic Body Details

Body Features
  • Aluminum Side Packs
  • Aluminum Doors
  • Steel Crane Compartment
  • All compartments raised to 60″
  • Flush front bulkhead
  • Torsion box understructure with isolated crane compartment
  • Master-Lock system
  • Exterior LED DOT light package
  • 22″D X 60″H side packs
  • 133″ long, 21″ work bench bumper with thru compartment
  • (6) recessed cargo tie-downs
  • (2) rear mounted grab handles
  • Dual-seal automotive type compartment weather seal
  • Rubber fenderettes
  • Overlapped doors on SS1V / CS1V,
  • Overlapped doors on horizontal compartments
  • 12″ fold down aluminum tailgate (painted black)
  • 2 & 3-point stainless steel compression latches
  • Stainless steel “Billet Style” hinges
  • Spring loaded door stops
  • Pintle hitch mount
  • Prime painted
  • Undercoated
  • Additional Product Information

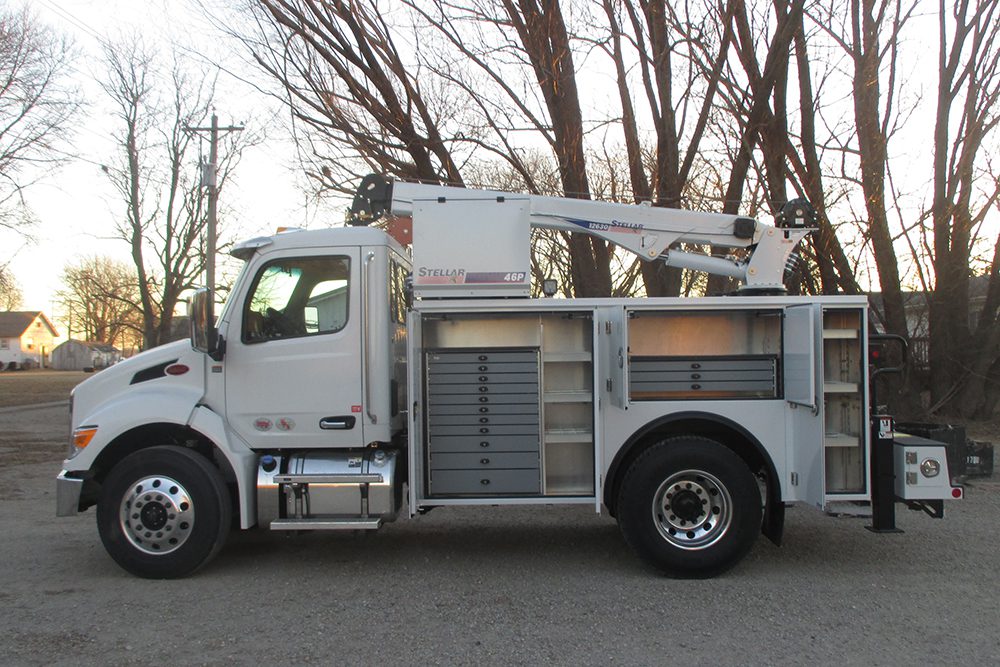

Compartment Storage
  • Streetside 1st Vertical in front of the divider:
    • Heavy Duty Aluminum Drawer set, 43″H x 34″W x 18″D, 8-3″,2-5″, 1-7″drawers (18259AX) w/LightBar
  • Streetside 1st Vertical to the rear of the divider:
    • Shelf with (3) dividers 17.63″W x 19.00″D (72773X)
  • Streetside Horizontal
    • Heavy Duty Aluminum Drawer set, 11″H x 48″W x 18″D, 3-3″ drawers (23378AX) w/LightBar
  • Streetside Rear
    • Shelf with (3) dividers 24.38″W x 19.00″D (72869X)
  • Curbside 1st Vertical
    • Divider kit with shelves (73116X) and Oxy-Acet 2-Bottle Holder (14013X)
  • Curbside 2nd Vertical
    • Shelf with (3) dividers 21″W x 19.00″D (72865X)
  • Curbside Horizontal
    • Shelf with (3) dividers 52.44″W x 19.00″D (72894X)
  • Curbside Rear
    • 1/2″ x 50′ hose reel with roller guide (16337X) – exits rear of body
Body Mounted Options
  • Rock guard kit – Adhesive black
  • Grab Handle – mounts to rear side pack and bumper – easily accessible from ground
  • TMAX Aluminum Tailgate – 12″ Tall, painted black
  • Adjustable Boom Support
  • Roller Rest, painted black
Bumper Mounted Options
  • Vise mounting plate – Receiver work bench mount
  • Step, slide out for TMAX mechanics work bench bumper
  • Stabilizer Assembly – hydraulic out/hydraulic down, painted black
Light Options
  • LED Flood Light Kit – 4 lights – (1 near boom support, 1 SS behind compressor, 1 on each rear taillight box)
  • LED Compartment Light Kit
Safety Options
  • Chassis Mounted Back Up Alarm – 107 Db
  • ICC safety kit consisting of rechargeable 2.5# fire extinguisher and reflector kit
Chassis Options
  • Leaf springs, installed on crane side of chassis

Electrical Options
  • Program speed control for PX7 engine
  • Truck Upfitter Switches Control Package
PTO/Pump Options
  • Hot shift PTO
  • Hydraulic pump, tandem section for crane and compressor
  • Includes: 58467X PTO 272GCHVP-B3RK, 34301 PUMP HYD DE2R41SHBB12521N113, 37674X PUMP INST KIT MECH DAN FOSS
Hydraulic Options
  • Hydraulic reservoir, 35 gallon, bulkhead mounted, painted black
Paint & Finish
  • Paint 11’+ body Stellar White Paint, Axalta paint code 350407EX
  • Spray on bed liner for load bed walls and floor – Black
  • Spray on bed liner for work bench bumper – Black

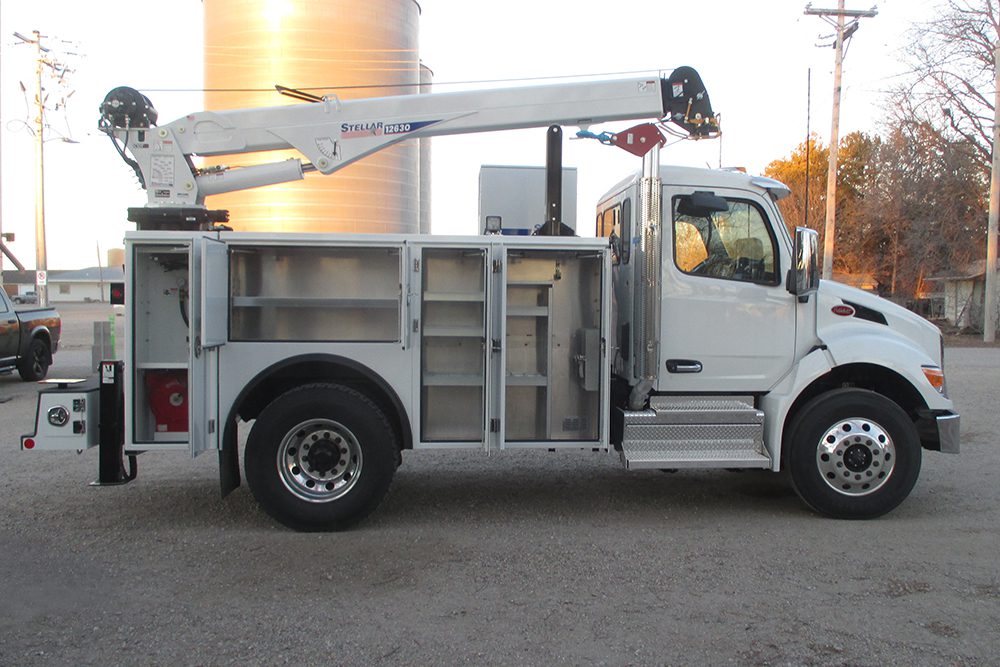

12630 Hydraulic Service Crane Details

  • Crane Rating : 77,800 ft-lb
  • Max Lifting Capacity: 12,000 lbs @ 6′ 5″
  • Maximum Horizontal Reach: 30′ from CL of crane
  • Maximum Vertical Lift: 31′ 9″ from crane base
  • Boom Elevation: -10° to +80°
  • CDTpro™ Control System w/Range Finder
  • Additional Product Information

46P Air Compressor Details

  • Output Capacity: 46 cfm @ 175 psi
  • Max. pressure: 175 psi
  • Cylinders: 4-cylinder, 2-stage
  • Electrical control: 12 VDC @ 20 amps
  • 22 gallon air tank with fittings, hose kit, mounting bracket
  • FLR system installed – 1 outlet for air hose (filter, lubricator, regulator).
  • Additional Product Information

Availability

SO# Unit Chassis Availability
TBD TMAX 2-11 AL/12630/46P 25 Peterbilt -
