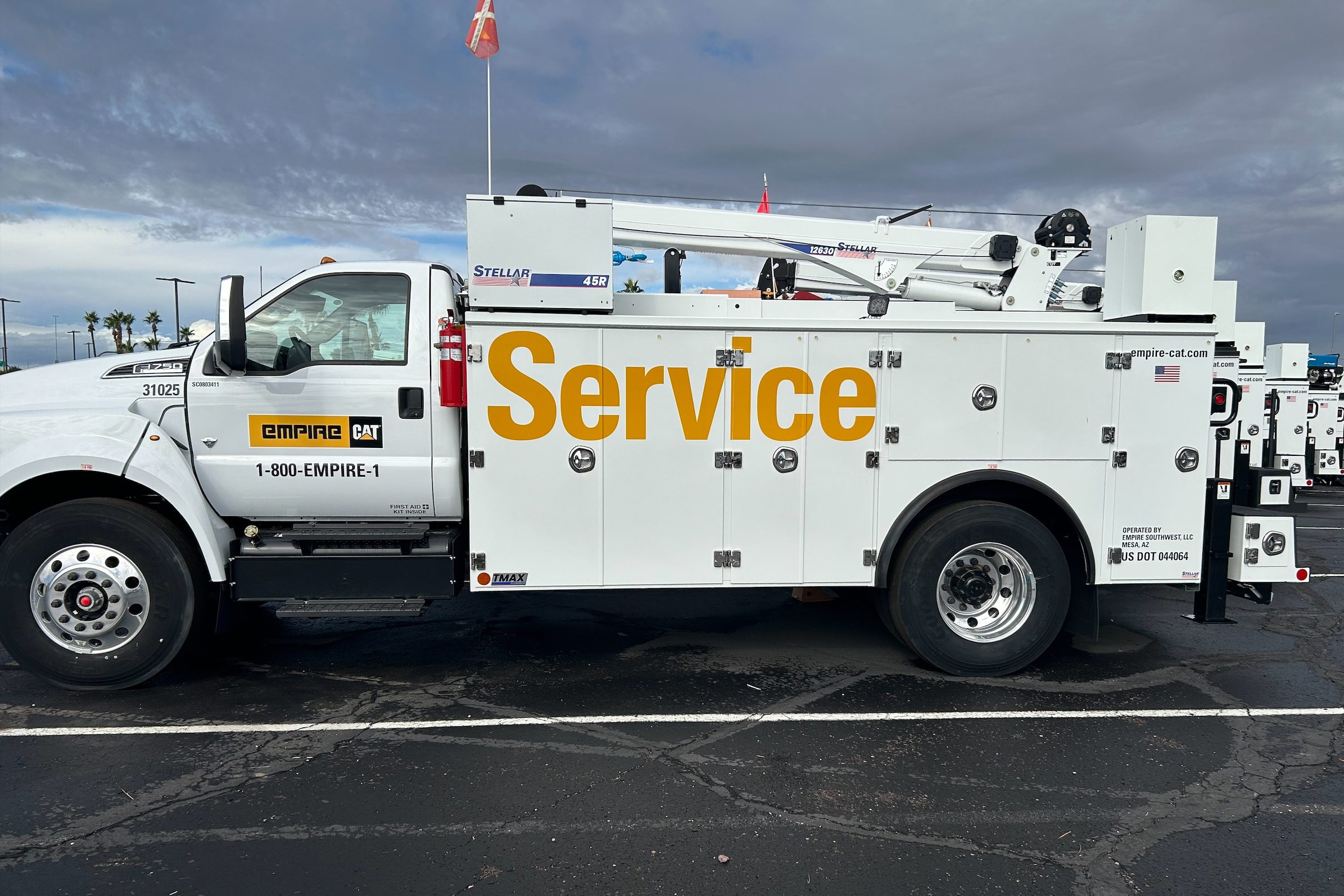

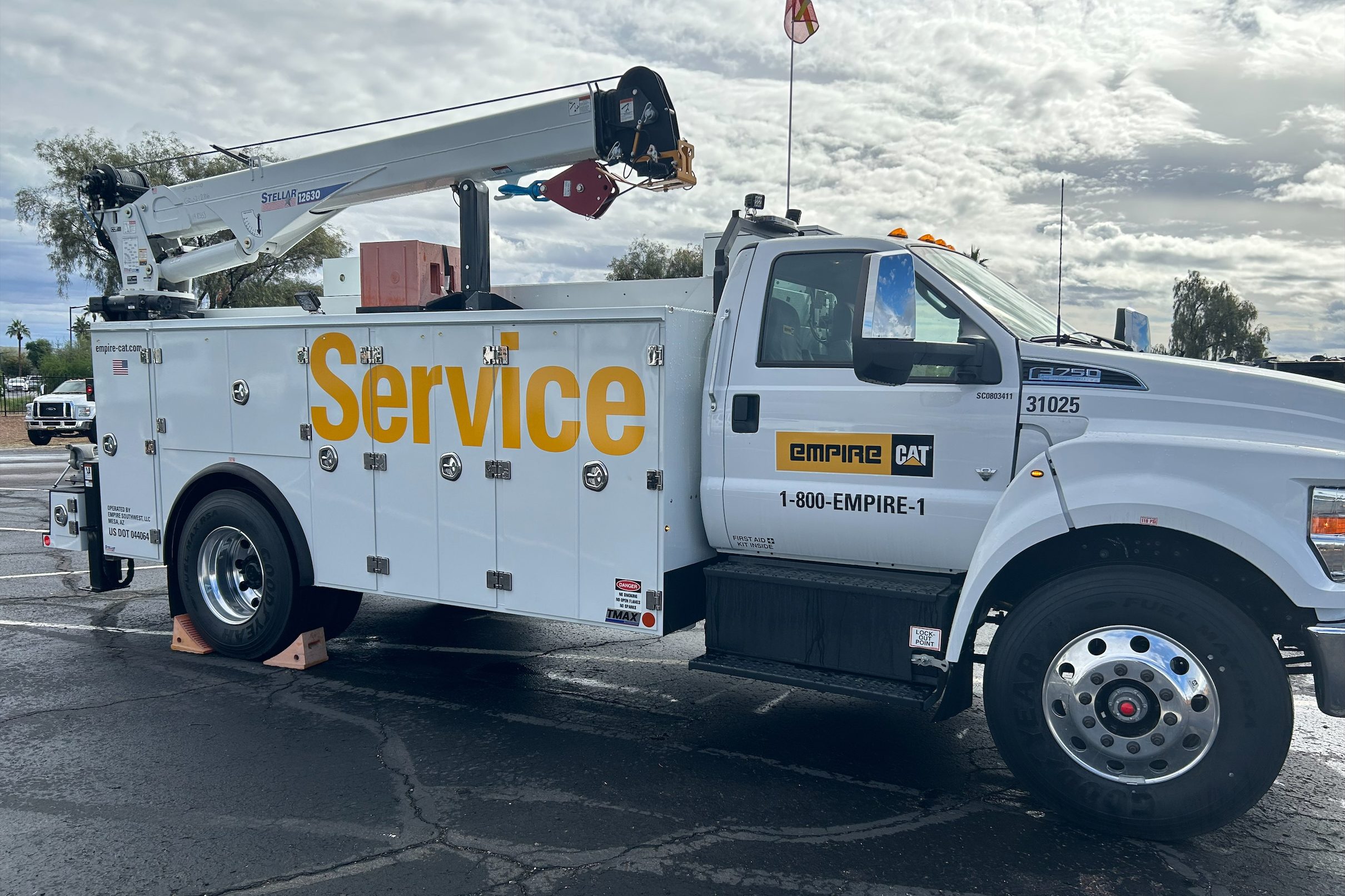

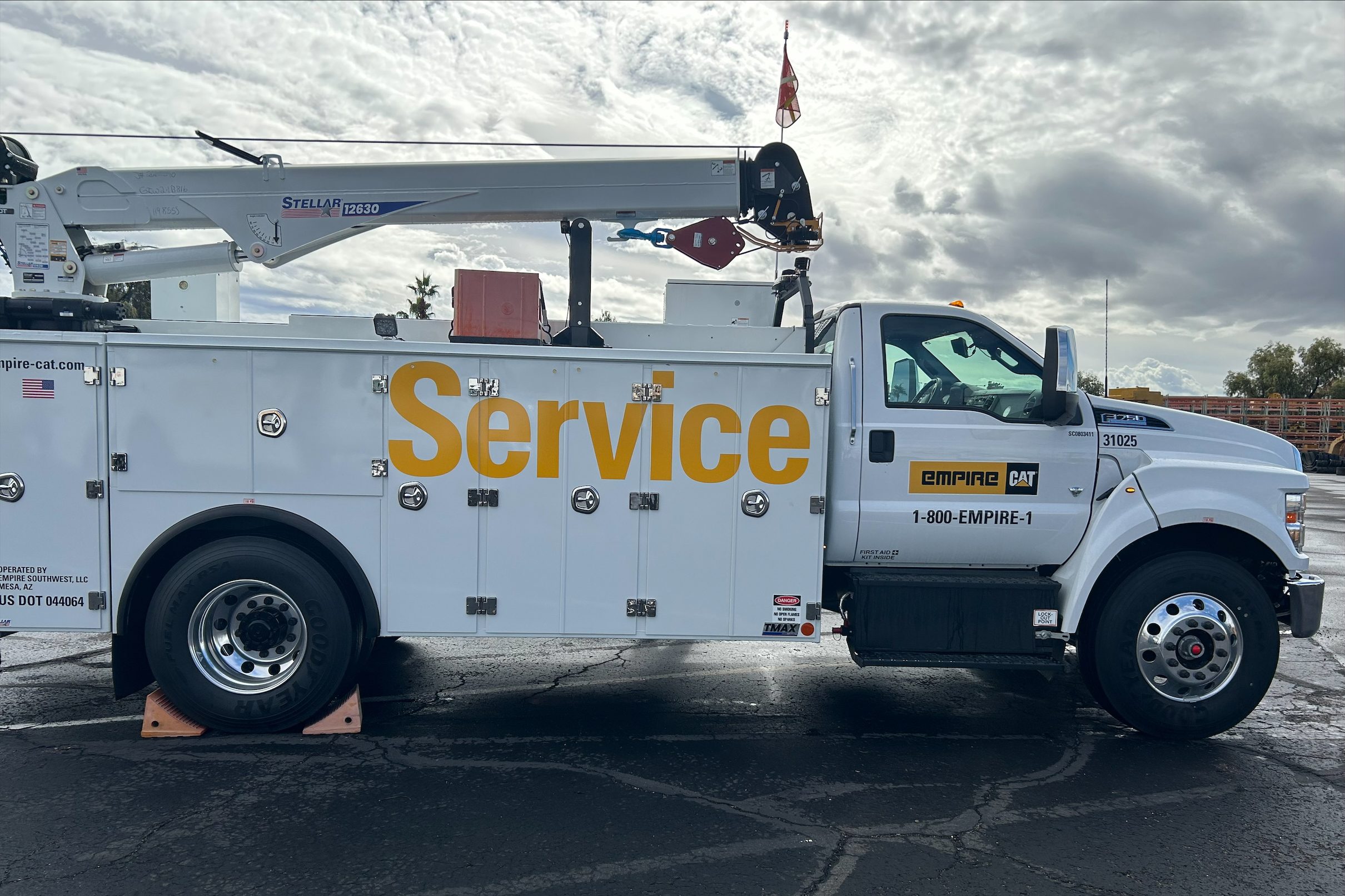

Distributor Stock: 2024 Ford F-750 w/12630/45R (DS137)

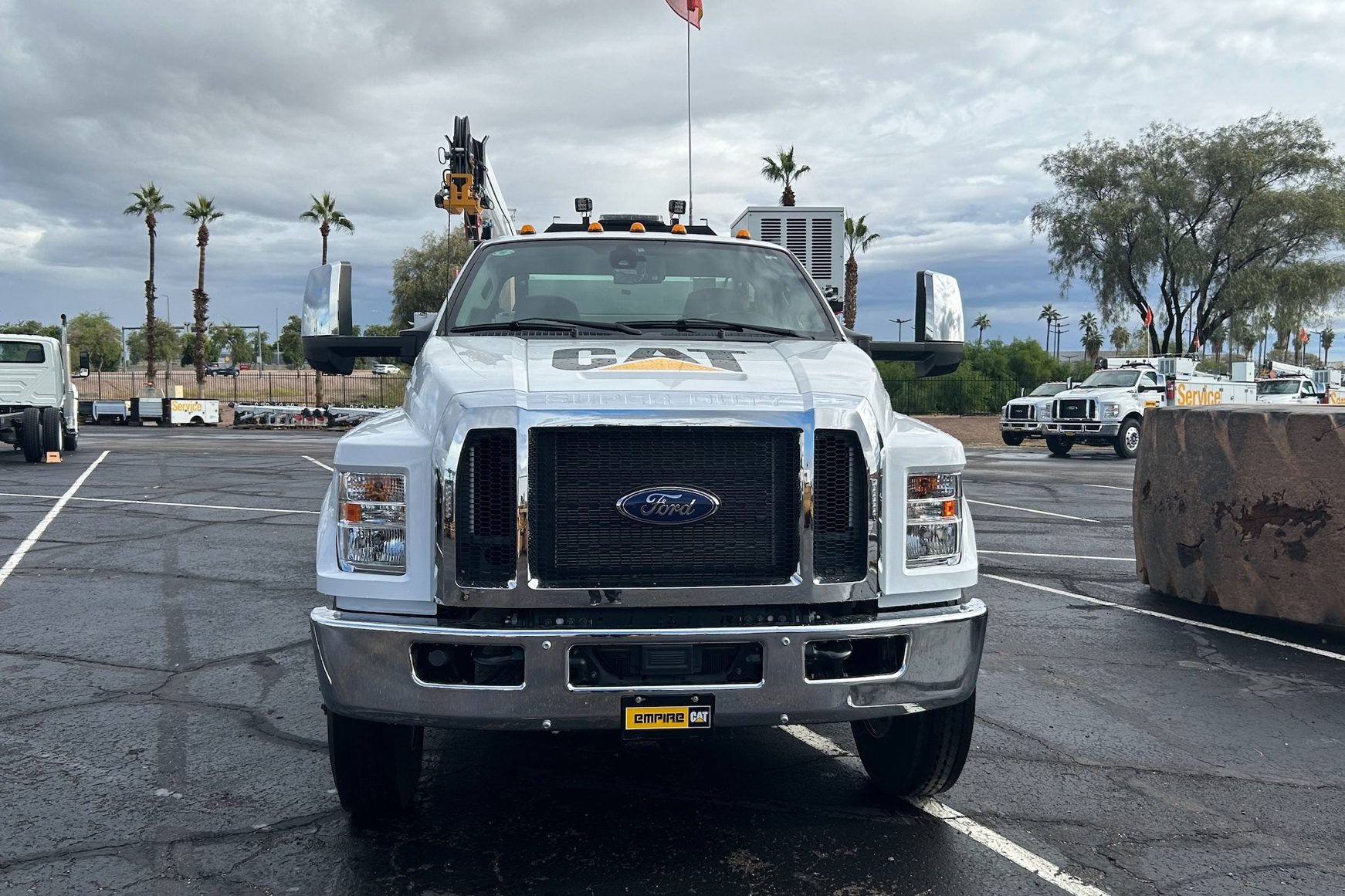

2024 Ford F-750

• 7.3L 2V DEVCT NA PFI V8
• Gas
• 335 HP @ 3750 rpm
• Torque: 468 ft.lbs. @ 3750 rpm
• 50-State Emissions
• Engine Block Heater, Phillips, 120 Volt/750 Watt
• Ford TorqShift HD 6-Speed Automatic – Double Overdrive
• LESS PTO Provision and Tow/Haul Includes tow/haul
• Transmission Power Take-Off Provision w/LiveDrive Capability and Tow/Haul
• Hydraulic Brake System – Bosch HydroMax w/Traction Control
• Full power with automatic adjustment, 4-channel ABS antilock brake system
• Includes 12″ x 3 Includes x 3″ (Bosch) DSSA type rear axle mounted parking brake right of drive
• Fuel Tank – LH 50 Gallon – Steel
• Extra Heavy Duty Alternator – 12-Volt, 210 Amp Mitsubishi
• Extra heavy duty 12 Volt
• Jump Start Stud – Remote Mounted
• Battery – Two 900 CCA, 1800 Total, Includes Steel Battery Box
• 12Volt, Motorcraft
• 30/0/30 Air Ride Driver (Integral Air Pump) & Air Ride Passenger (Integral Air Pump) w/Consolette – Cloth

Preferred Equipment Package 600A

• Wheel Seals, Front – Oil lubricated, SKF ScotSeal PlusXL Seals
• Wheel Seals, Rear – Oil lubricated, SKF ScotSeal PlusXL Seals
• Extra Heavy Duty Altemator- 12-Volt, 210 Amp Mitsubishi Extra heavy duty 12 Voit.
• Lights – Roof Marker/Clearance – Amber Lenses, 5 Lights
• Tow Hooks, Front (2) – Frame-Mounted, Painted Black
• Floor Covering – Black Vinyl
•  Intelligent Oil Life Monitor
• Steering Column – Tilt/Telescoping
• Steering Wheel – Black PVC w/Integral Cruise Control Switches, includes Audio Controls -Body Builder Wiring – At Back of Cab, Combined
• Includes sealed connectors for 2 ground circuits, with combined left/stop, combined right/stop. stop lamps, park lamps, back up lamps. Also includes 2 additional pass through wires fo cab
• Driver Assist Technology Package
• Hydraulic Brake
• Includes Autonomous Emergency Braking, Forward Collision Warning, Lane Departure Warming and Auto High Beam Control
• Enhanced Cluster w/High-Level 8-Inch Display
• Electronic speedometer (MPH/KPH) includes oil pressure, coolant temperature, fuel ga tachometer and indicator lights. Also included coolant temperature, fuel gauge, lights. Also included is enhanced 3-button Message Center wit odometer, trip odometer, distance to empty for fuel, average fuel economy, hour meter, and warning messages. Transmission temperature in message center
• Includes front-mounted overhead console with dual sunglass bins and integral front map reading lights.
• Chrome Trimmed Air Registers w/Positive Shut-Off
• Power Equipment Group – (Included in (90A) Appearance Group) Includes power front side windows, power door locks, door trim panel and passive anti-theft system
• The SecuriLock Passive Anti-Theft System is designed to help prevent the engine from being started unless a coded key, programmed to the vehicle, is used. It helps protect against drive-away theft throuch an electronically coded ignition kev theft through an electronically coded ignition key. its electronically coded ignition key features billions of possible codes to start the vehicle and is not compatible with non-OEM aftermarket remote start systems
• Remote Keyless Entry w/2 Key Fobs
• Enhanced Cluster w/High-Level 8- Inch Display
• Includes power front side windows, power door locks, door trim panel and passive anti-theft system
• Remote Keyless Entry w/2 Key Fobs
• Four Body Builder Switches – Mounted in Center Instrument Panel
• With connector access located in engine compartment. Amperages vary by switch: 10, 15, 25, 25.
• 110 A/C Outlet – in Lower Center
• Radio: AM/FM Stereo w/2 Speakers, USB input, Clock Display and
• Bluetooth
• Interior Rear View Mirror

Body

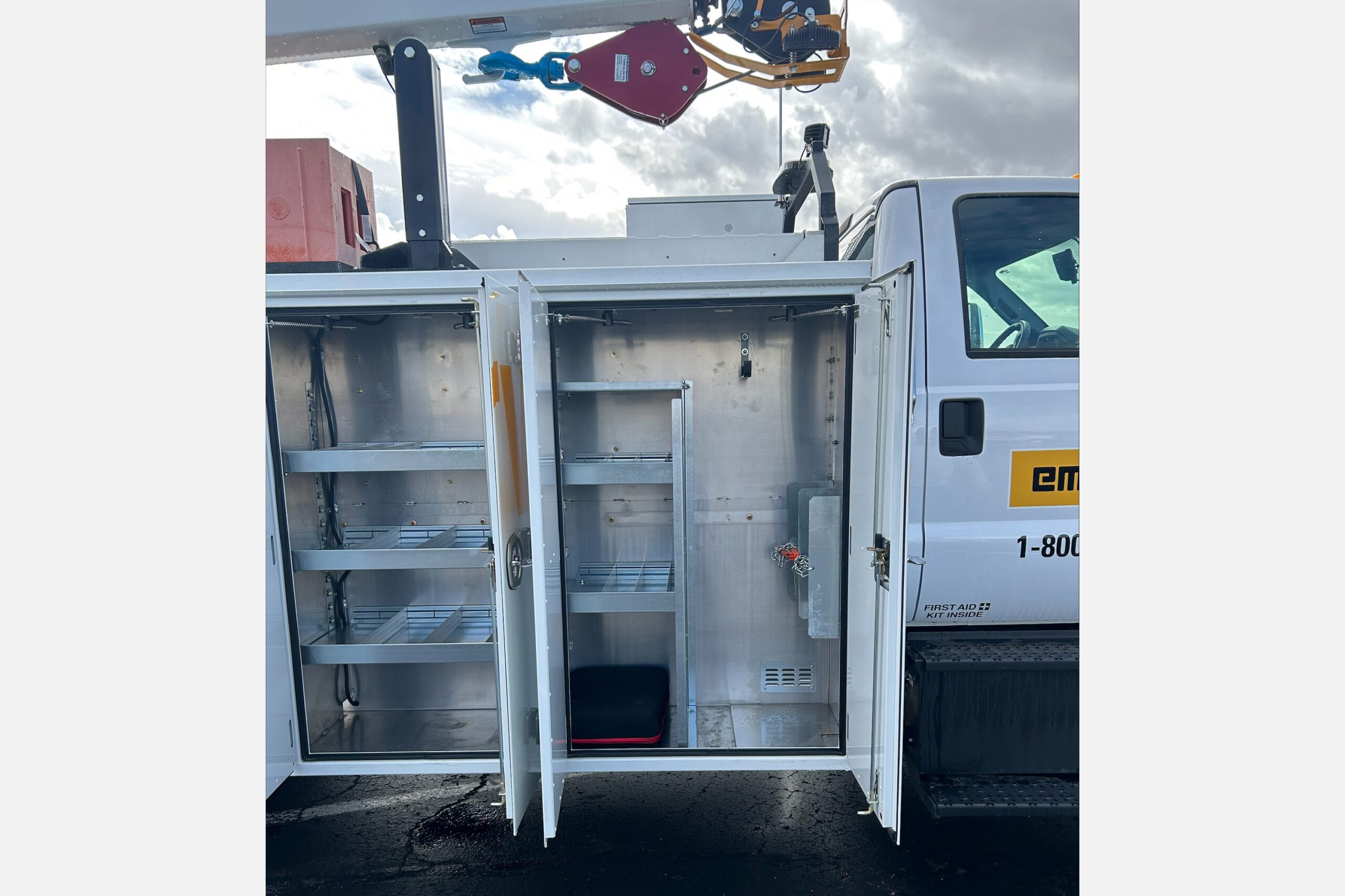

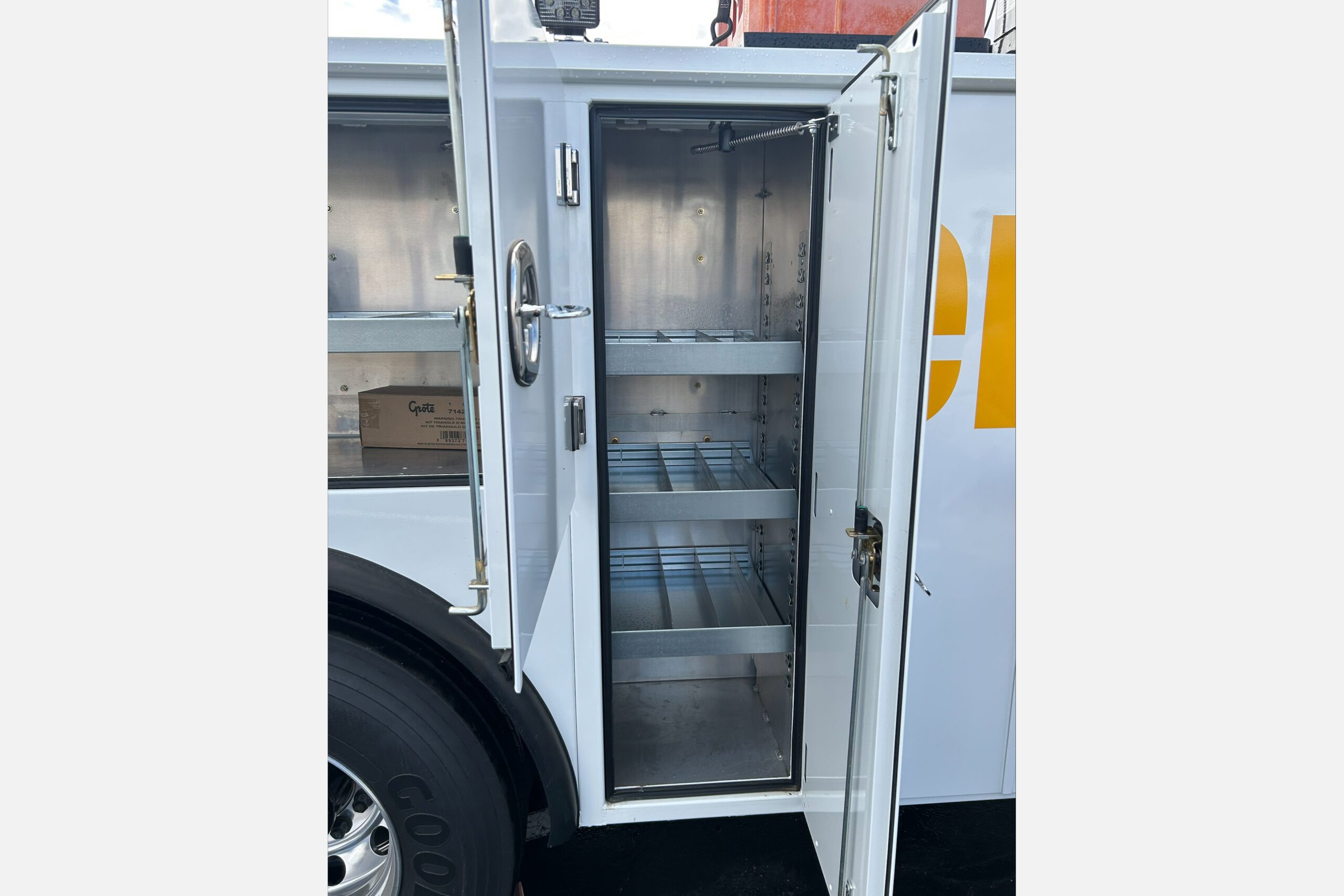

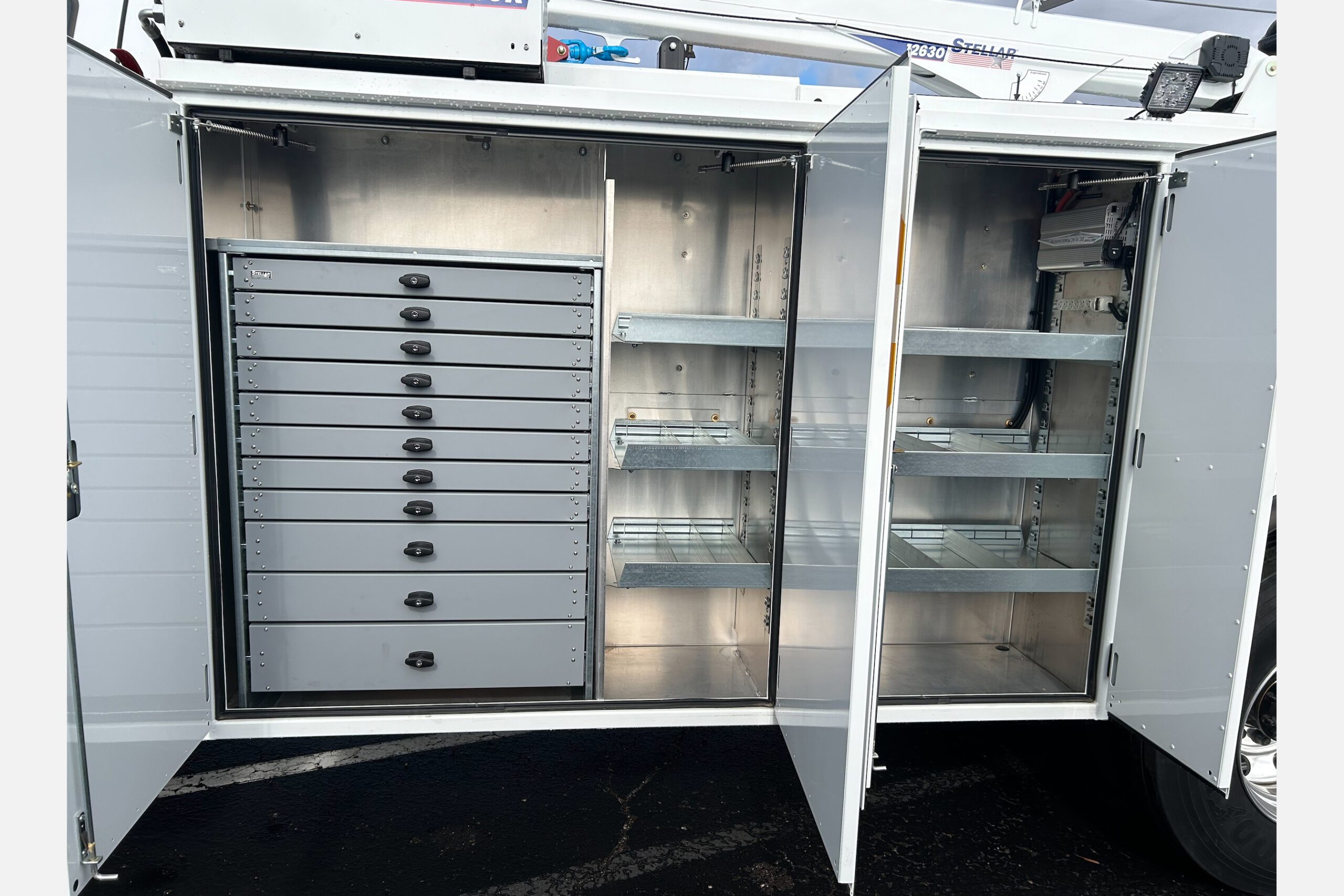

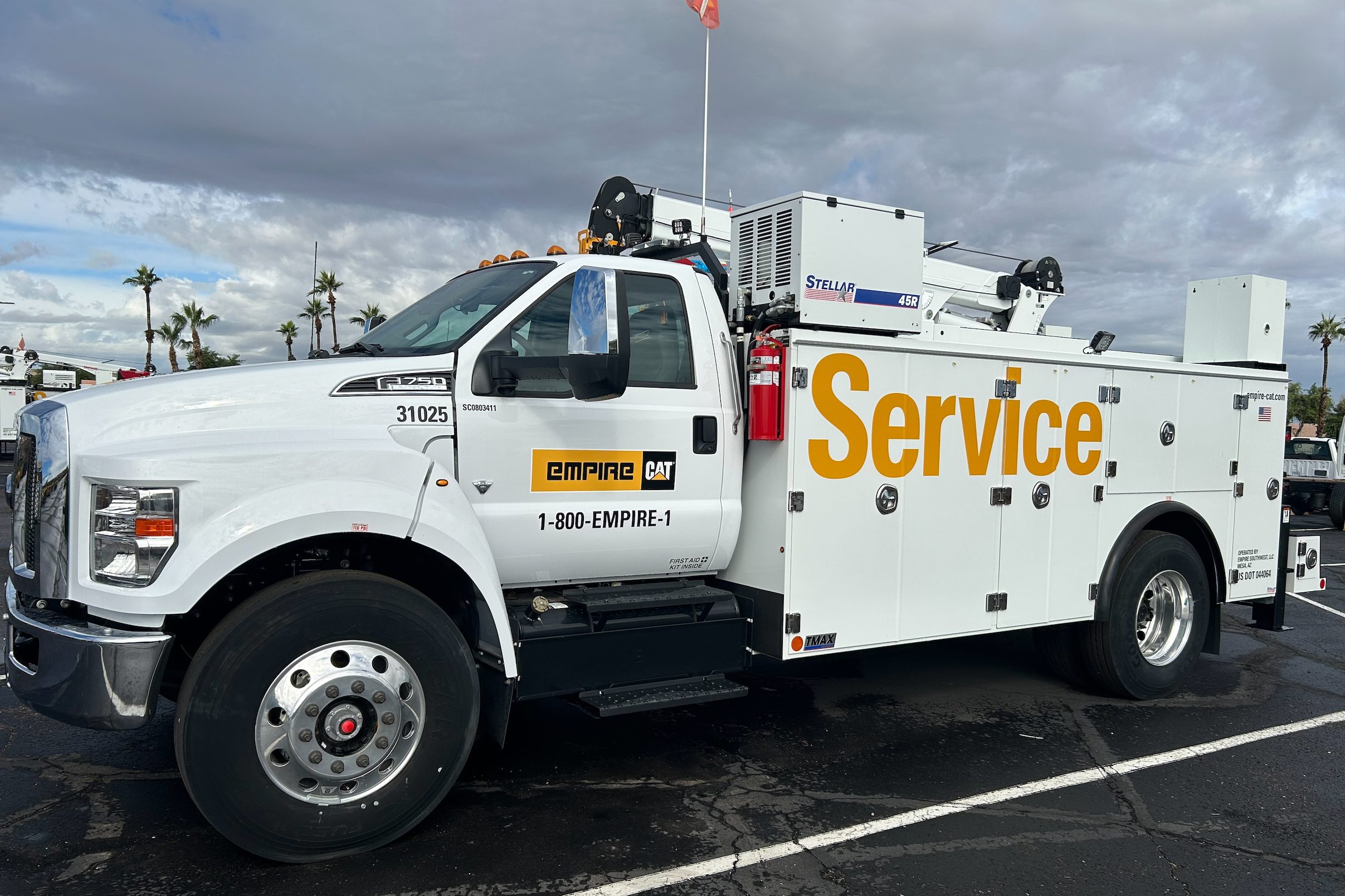

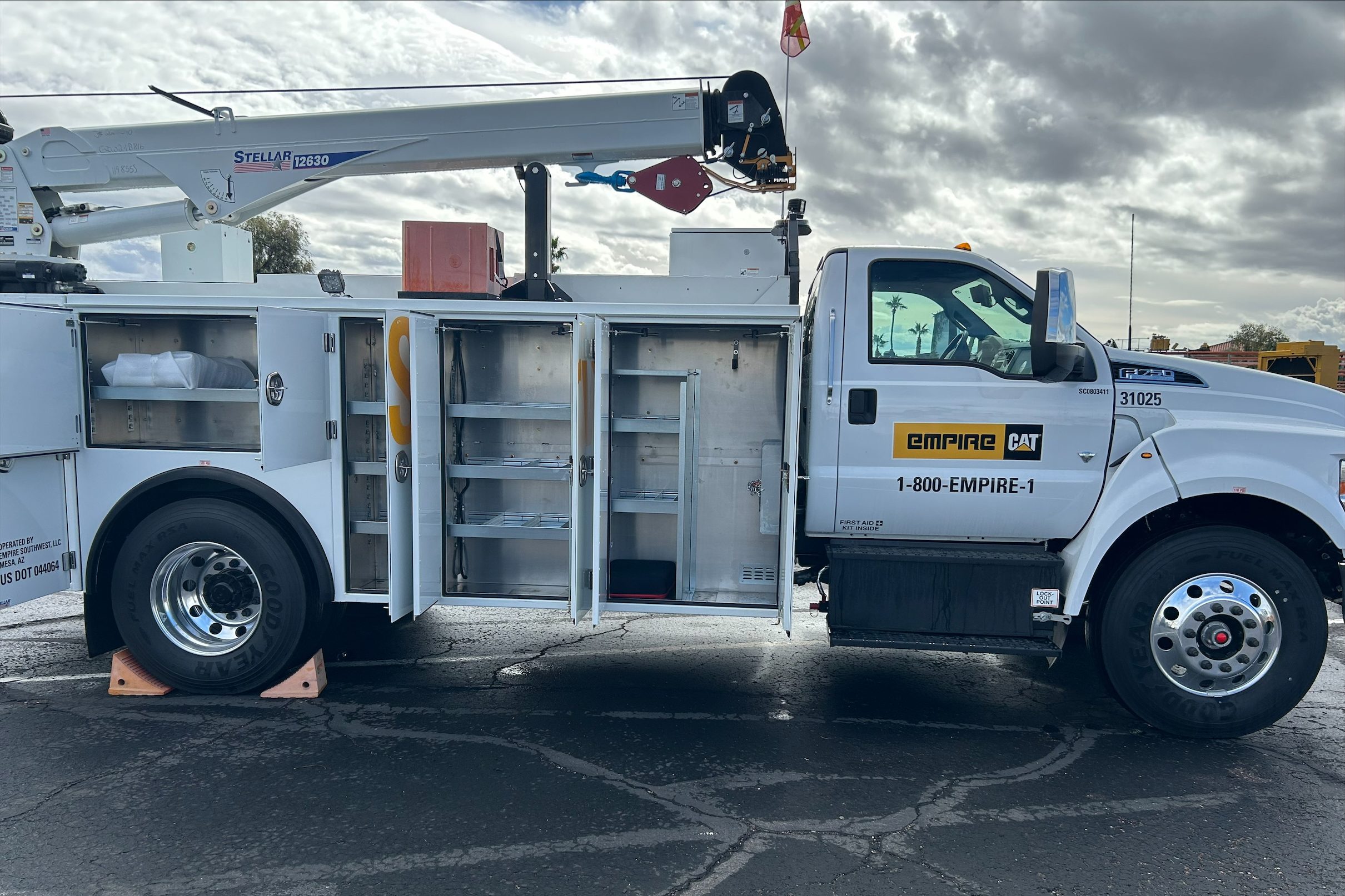

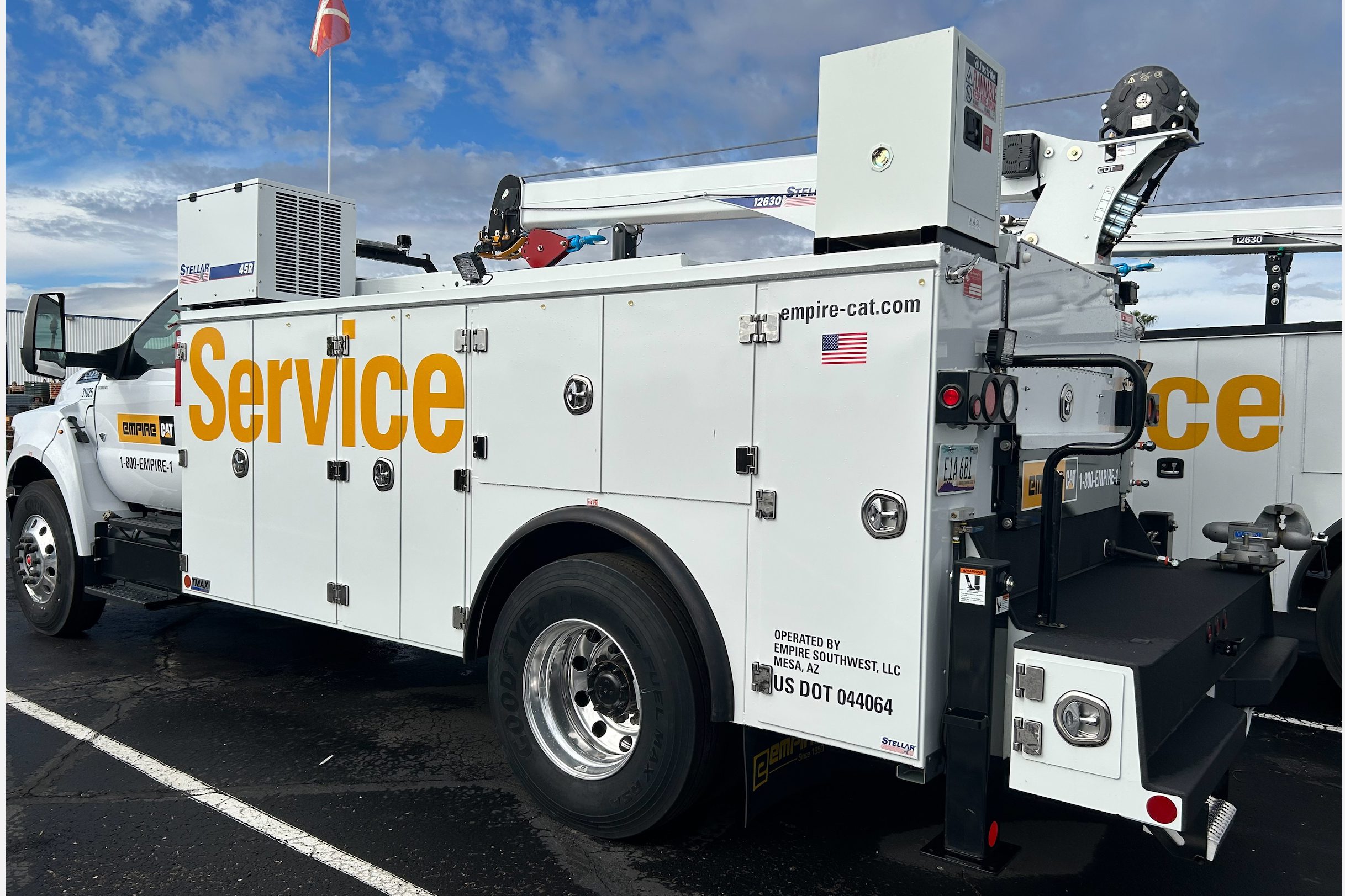

• Stellar TMAX2-14 Aluminum Mechanic Body

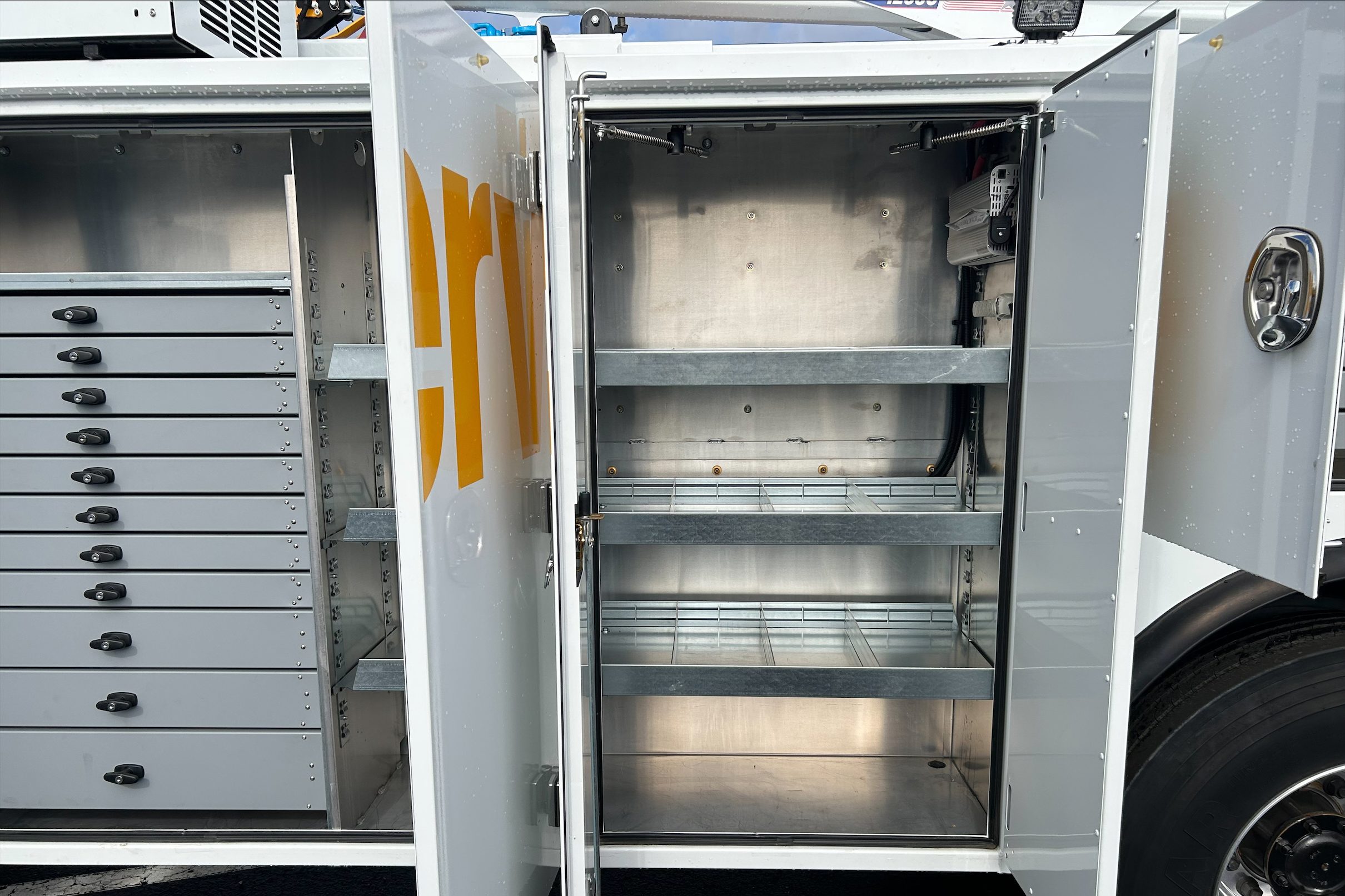

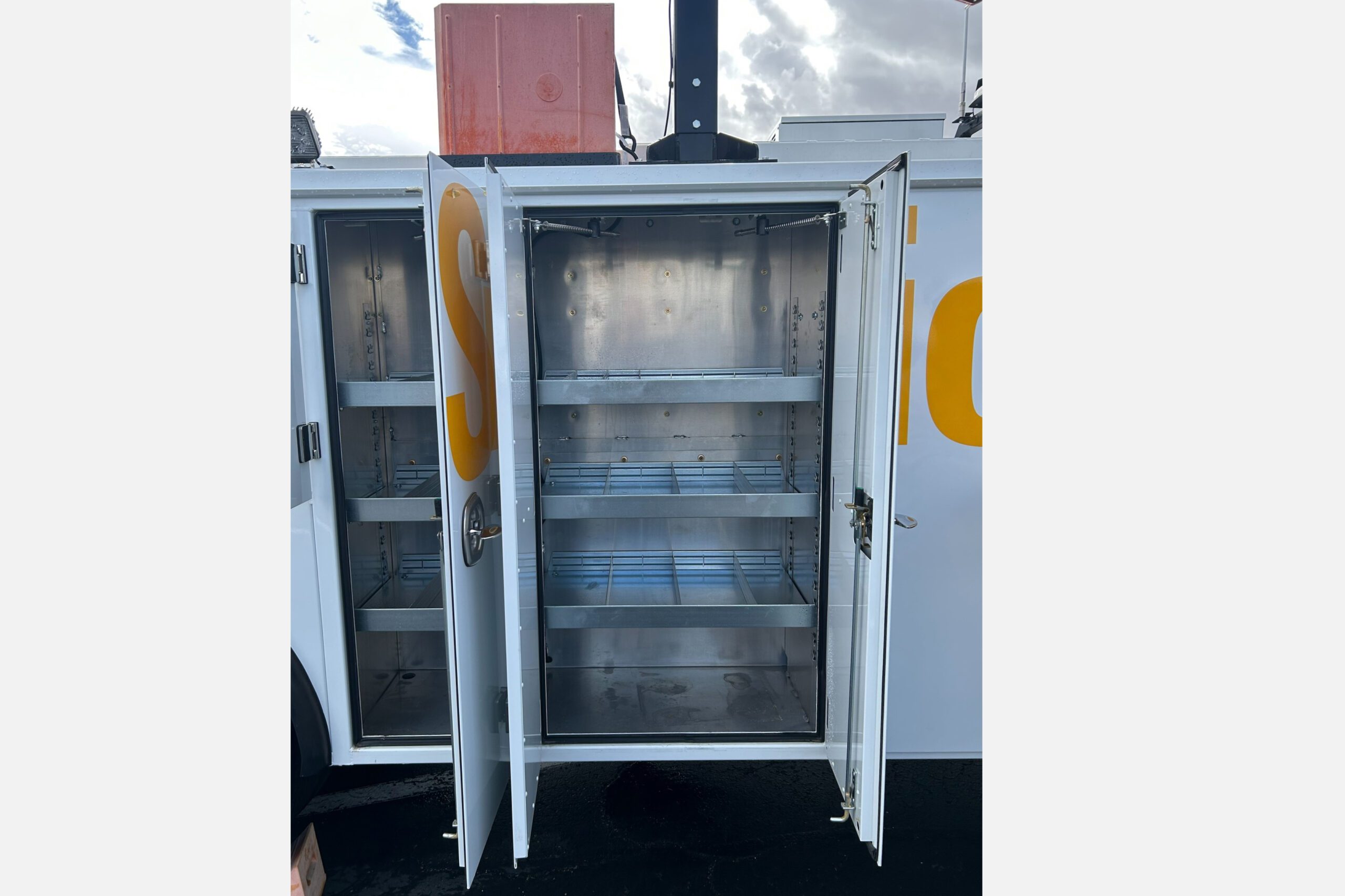

• Aluminum Side Packs
• Aluminum Doors
• Steel Crane Compartment
• All compartments raised to 60″
• Flush front bulkhead
• Torsion box understructure with isolated crane compartment
• Master-Lock system
• Exterior LED DOT light package
• 22″D X 60″H side packs 168″ long
• 21″ work bench bumper with thru compartment
• (6) recessed cargo tie-downs
• (2) rear mounted grab handles
• Dual-seal automotive type compartment weather seal
• Rubber fenderettes
• Overlapped doors on SS1V, CS1V
• Overlapped doors on horizontal compartments
• 12″ fold down aluminum tailgate
• 2 & 3-point stainless steel compression latches
• Stainless steel “Billet Style” hinges
• Spring loaded door stops
• Pintle hitch mount

Equipment

• Stellar 45R hydraulic driven rotary screw air compressor
• 45 CFM @ 100 PSI
• Rotary air end
• Air filter
• Oil filter
• Air/oil separator
• Pressure switch w/solenoid valve
• Oil cooler
• Fan
• Hydraulic motor
• Valve block with pressure relief
• Includes steel base, enclosure, and a flip up lid
• Dimensions: 32.5”L x 22”W x 23.5”H. Weight: 280 lbs (dry)

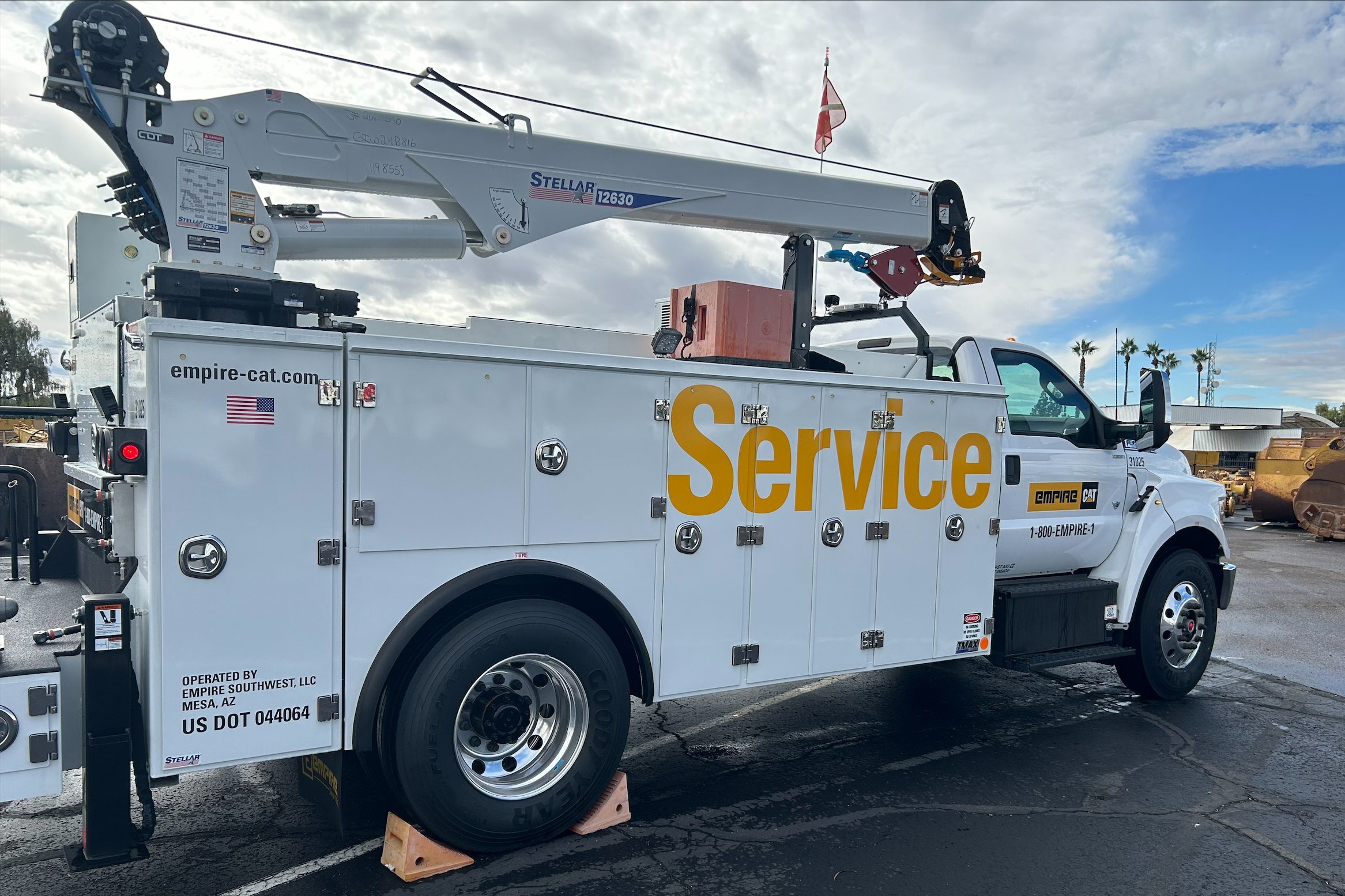

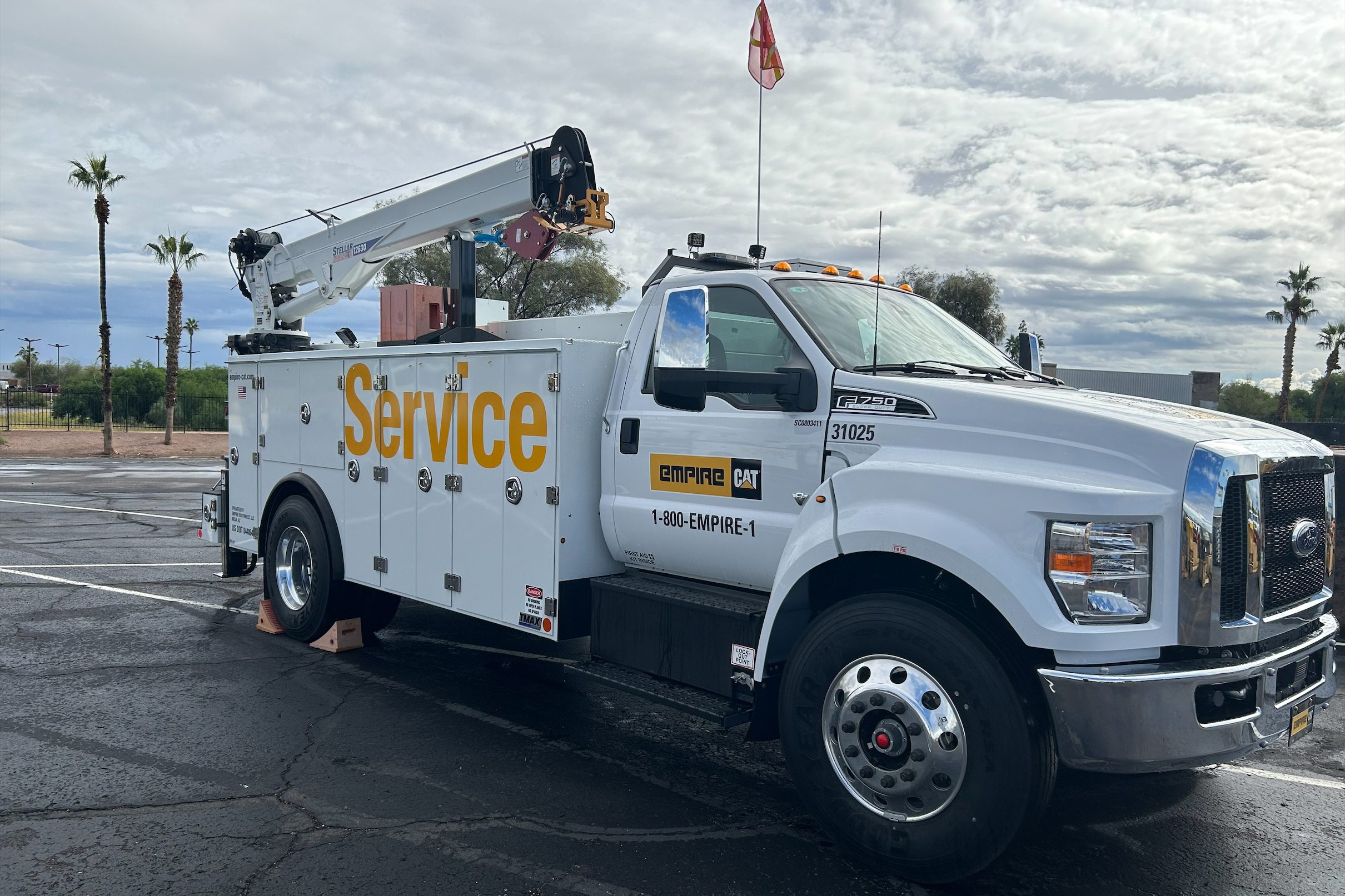

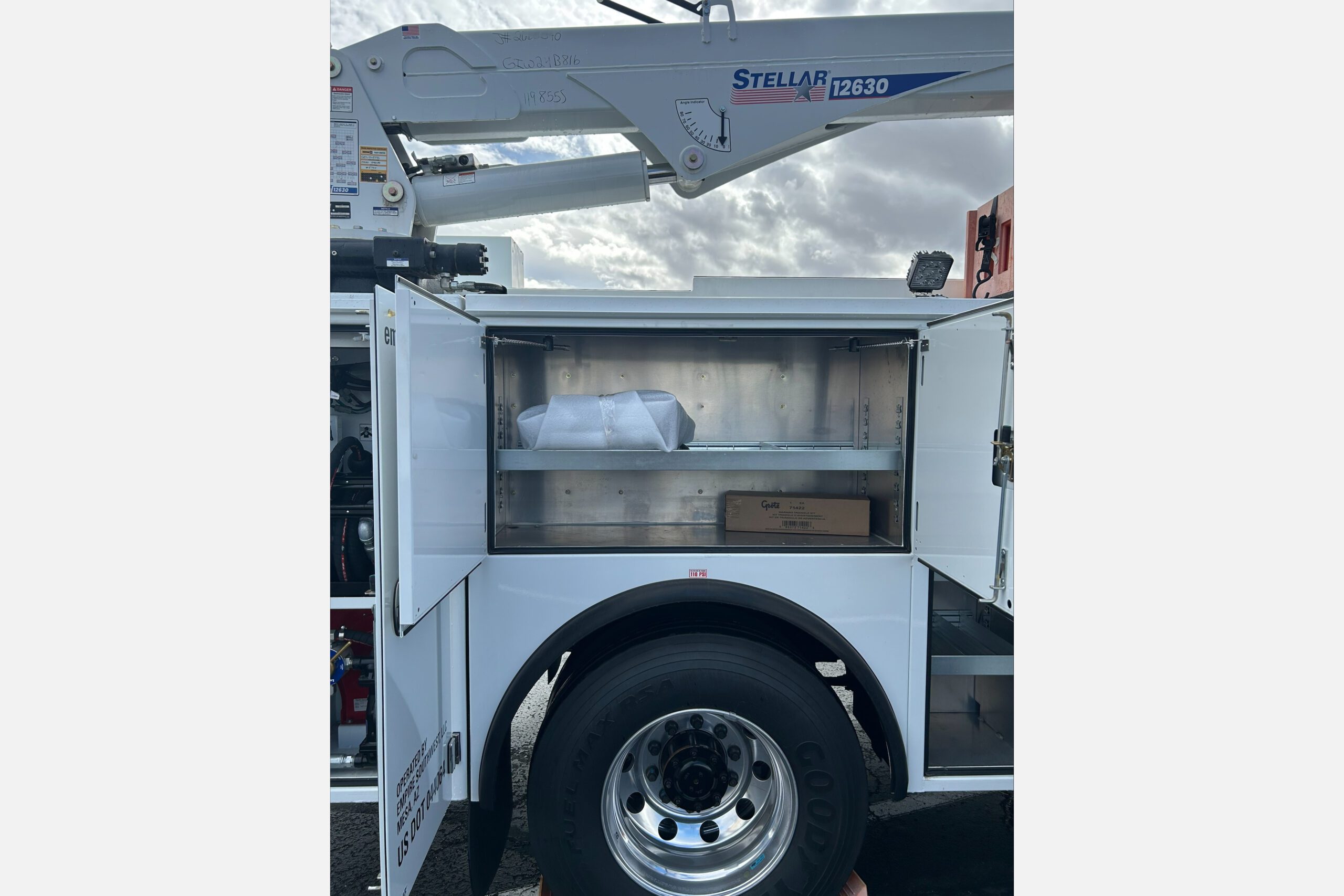

Stellar® 12630 Telescopic Crane

• 77,800 ft/lb rated
• 12,000 lb. maximum capacity
• 30′ full hydraulic reach
• CDTpro™ equipped proportional radio remote control

Stellar LubeMate system

• (1) 50 gallon salvage oil tank internally baffled with sight gauge and vented cap
• (1) Graco 1″ diaphragm pump with 4-way valve
• (1) Reelcraft 1″ x 25′ waste oil reel with quick coupler
• Accessories to include pneumatic control panel
• 1” stub with quick coupler
• 7 gallon drain pan with quick coupler
