Distributor Stock: 2024 Ford F550 w/TMAX1-11/8630/40P (DS117)

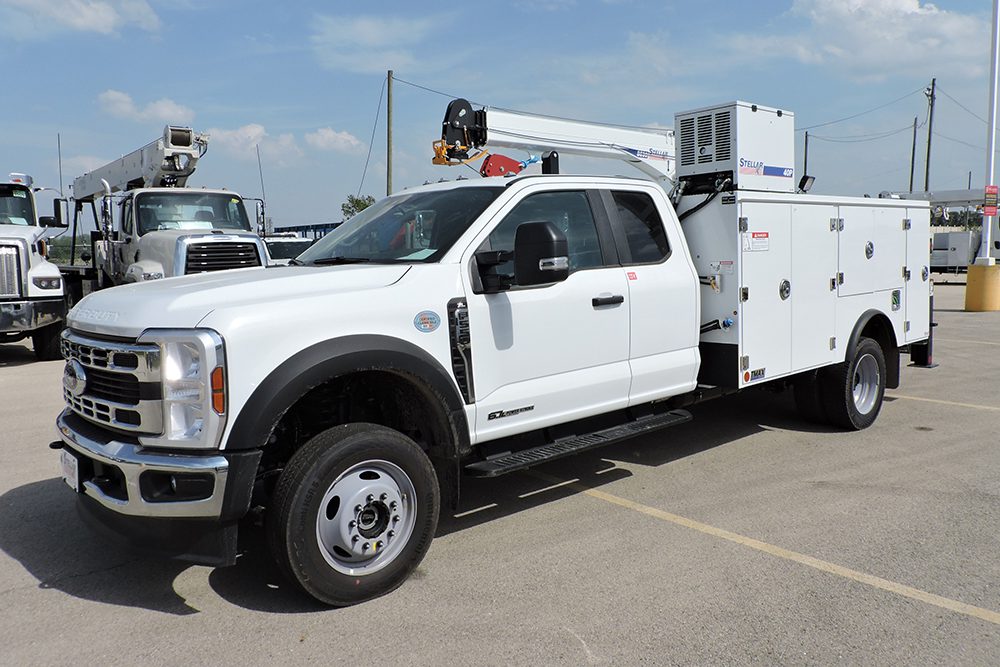

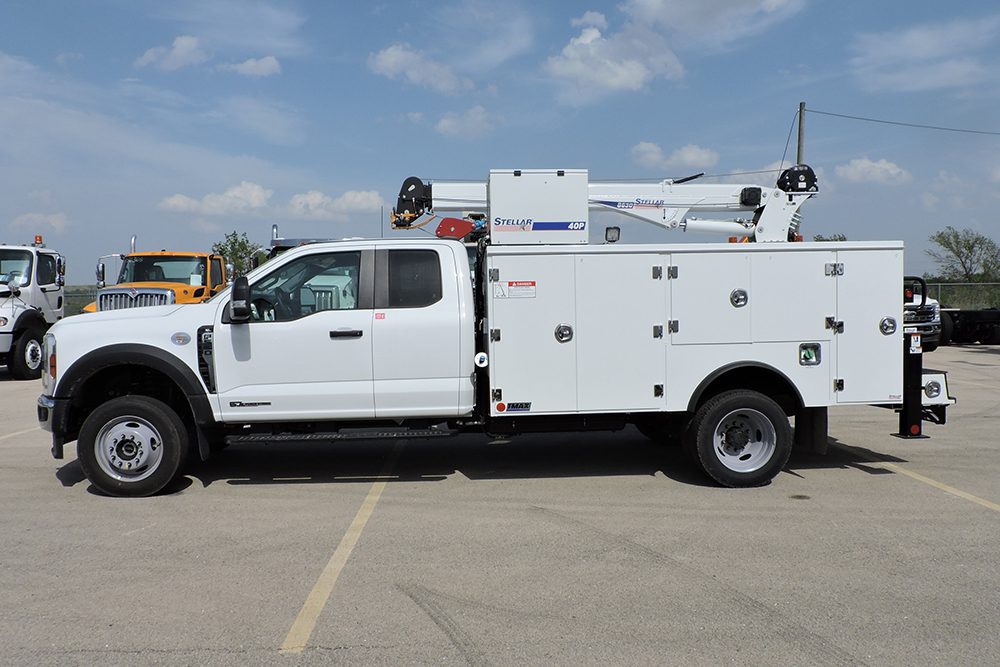

2024 Ford F550 Super Cab 4×4

• 19,500# GVWR
• 6.7L Power Stroke V8 diesel engine
• TorqShift 10-speed automatic transmission
• Engine block heater
• Cruise control
• Air conditioning
• Power group
• AM/FM radio with wireless audio streaming
• Backup camera

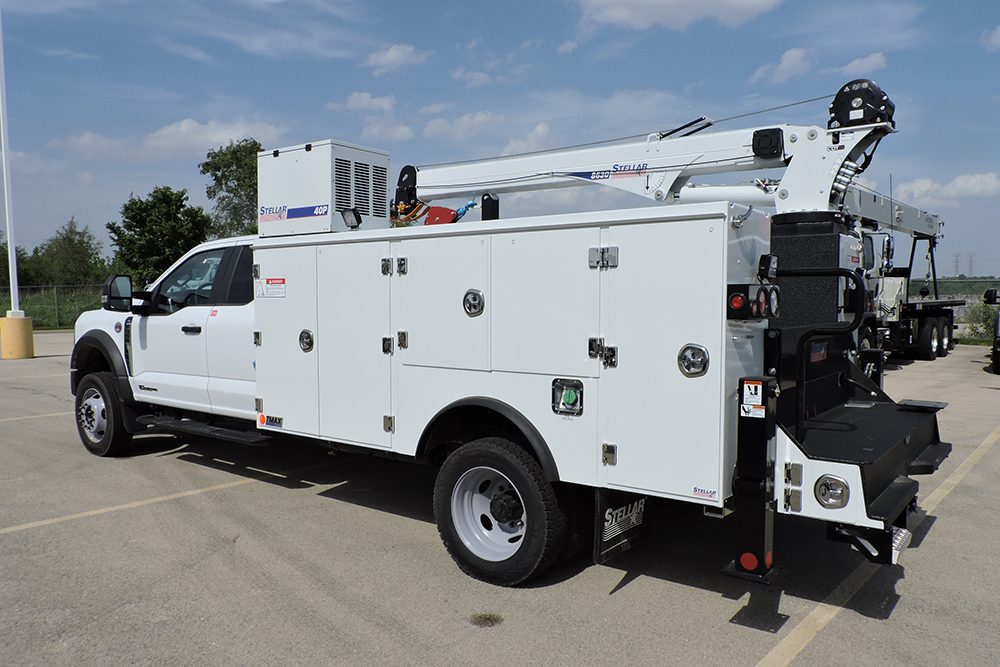

Stellar TMAX1-11 Aluminum Mechanic Body

• Aluminum doors and side packs
• Torsion box understructure with isolated, steel crane compartment
• Master-Lock system
• 133” long
• Six (6) recessed cargo tie-downs
• Two (2) rear mounted grab handles
• 12” fold down tailgate – painted black
• 21” work bench bumper with thru compartment
• Vise mounting plate – receiver workbench mount
• Step, slide out for TMAX mechanics work bench bumper
• Rubber fenderettes
• All compartments raised to 52” H x 22” D
• Overlapped doors on SS1V/CS1V and horizontal compartments
• 2 & 3 point stainless steel compression latches
• Stainless steel “Billet Style” hinges
• Spring loaded door stops
• Dual-seal automotive type compartment weather seal
• LED compartment lights

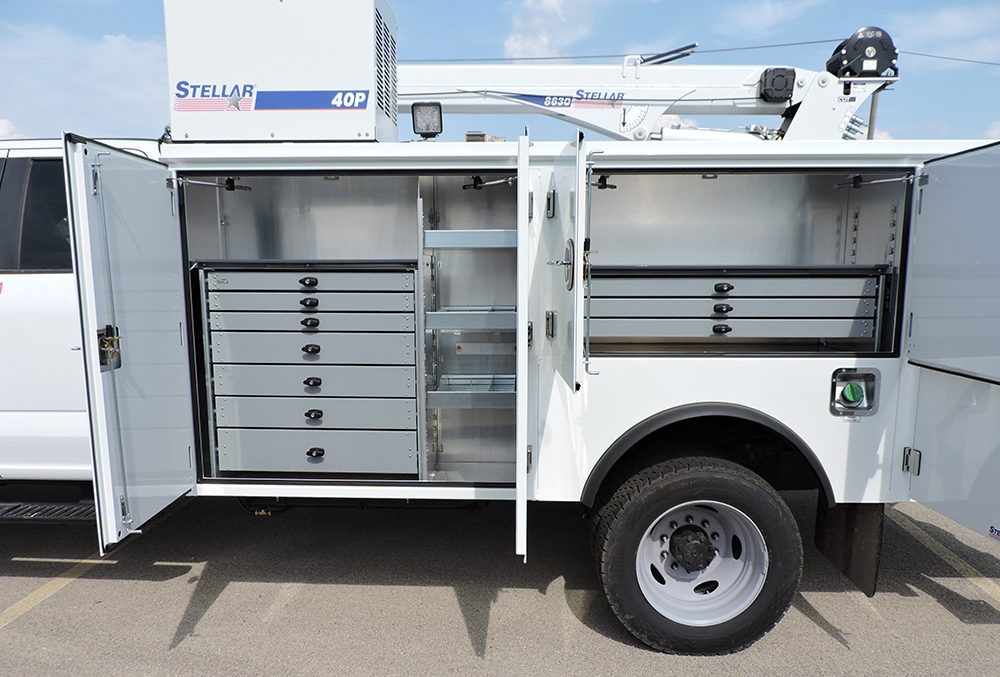

• SS1VF – Heavy duty aluminum drawer set – 35.5” H x 34” W x 18” D – 3-3”, 3-5”, 1-7”
• SS1VR – Three (3) shelves with (3) dividers
• SS Horizontal – Heavy duty aluminum drawer set
• SS Rear – Three (3) shelves with (3) dividers

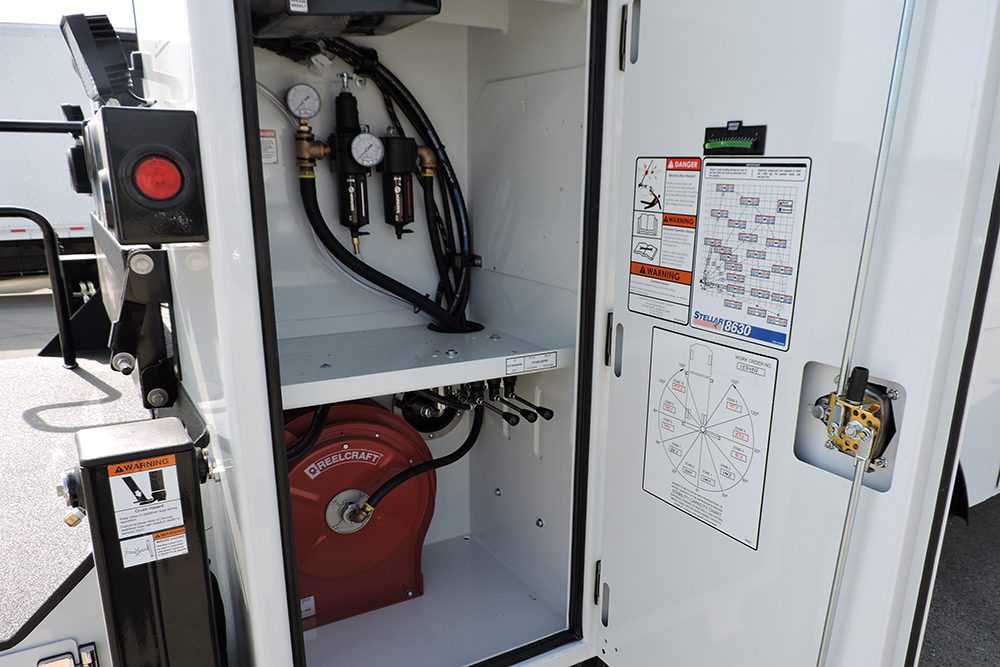

• CS1V – Divider kit with shelves and 8” drop well. Oxy-Acetylene bottle holder holds 2 bottles. Oxy-acetylene twin hose reel with 50’ twin hose

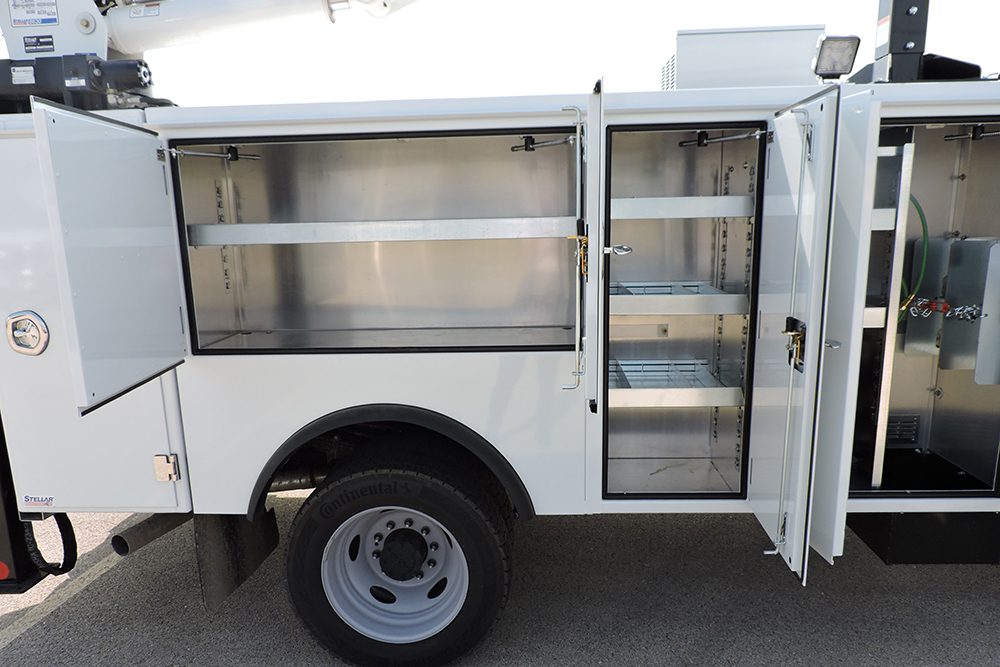

• CS2V – Three (3) shelves with (3) dividers
• CS Horizontal – Shelf with 3 dividers
• CS Rear – ½” x 50’ hose reel with roller guide – exits rear of body
• Stellar 40P hydraulic driver compressor – produces 40 CFM at 100 psi, 2-cylinder, single stage compressor, direct drive coupling, and hydraulic motor
• 25-gallon air tank kit (1 10-gallon, 1 15-gallon)
• FLR system – (filter, lubricator, regulator)
• 20-gallon hydraulic reservoir – bulkhead mounted
• LED floodlights – Four (4) total, 1 on boom support, 1 SS behind compressor, 1 on each rear taillight box
• Backup alarm
• ICC safety kit – 2.5# fire extinguisher and reflector kit
• Weld-on receiver hitch
• Spray-on bed liner for load bed walls and floors, and workbench
• Undercoated
• Prime painted white

Stellar 8630 telescopic crane

• 53,100 ft/lb rated when in boost mode
• 8,600# maximum capacity at 5’10’ radius
• 30’ maximum hydraulic reach
• Boom elevation: -10° to +80°
• 400° non-continuous rotation – durable enclosed rotation system with a cast iron base and an internal mechanical stop
• Planetary winch with 100’ of 3/8” wire rope
• Max line pull speed 60ft/min
• Quick release snatch block stow
• Adjustable boom support, roller rest
• Proportional radio remote control – LCD features real time load capacity, maximum distance with the current load, boom angle, and percentage of load
• CDTpro Control System. The most advanced crane remote ever. Save time by knowing your crane can lift the load before you set up. The innovative, industry-only Range Finder technology provides real-time max lifting capacity from any point around the crane
• On-Demand speed control ramps engine RPM up only when the crane is being used. When crane is not used for 5 seconds engine RPM returns to idle. This lowers fuel consumption and reduces noise pollution in the work area
• Greasable pivot bushings, each pivot pin location includes bushings and grease zerks to provide for years of use
• Hydraulic stabilizers
