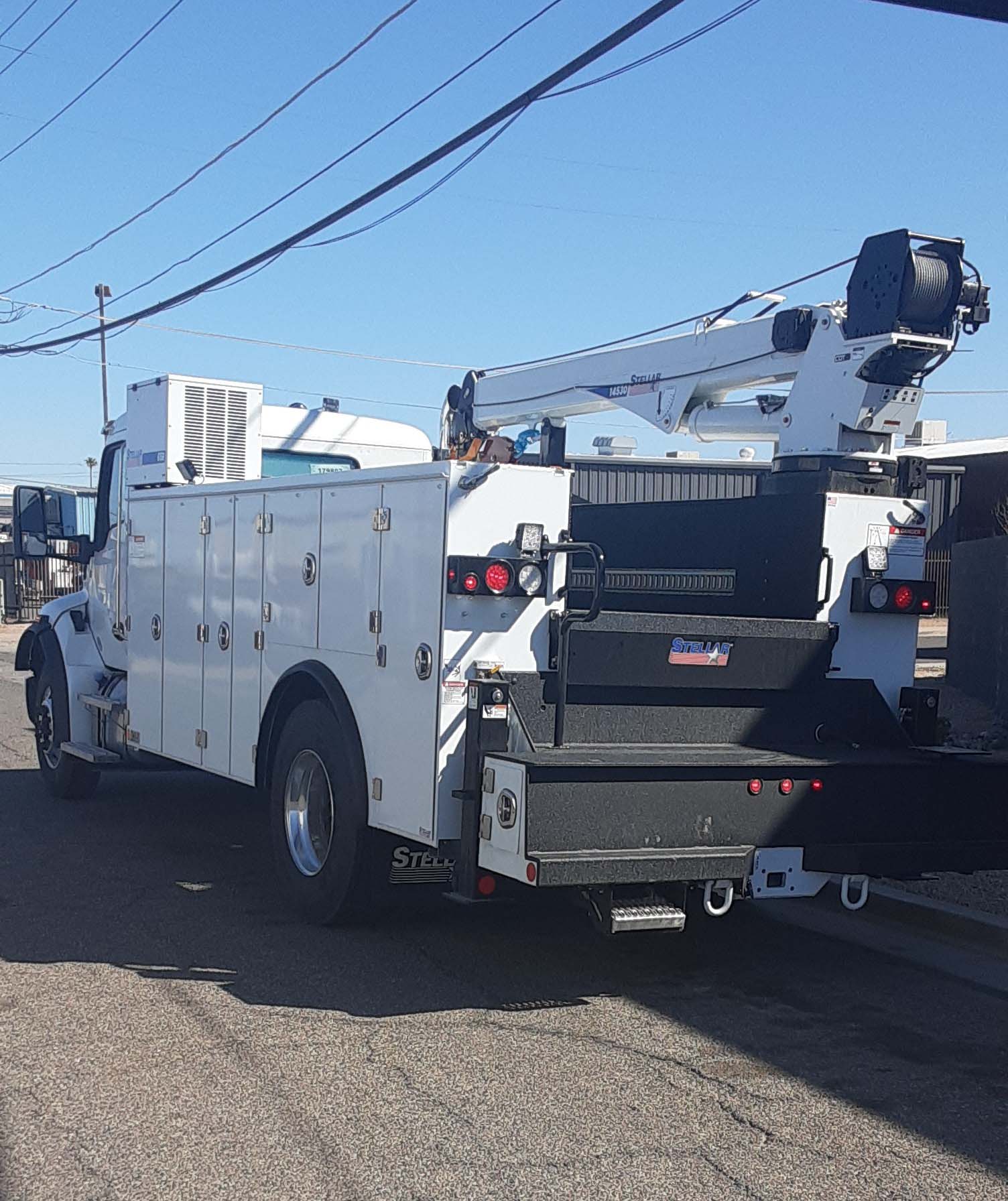

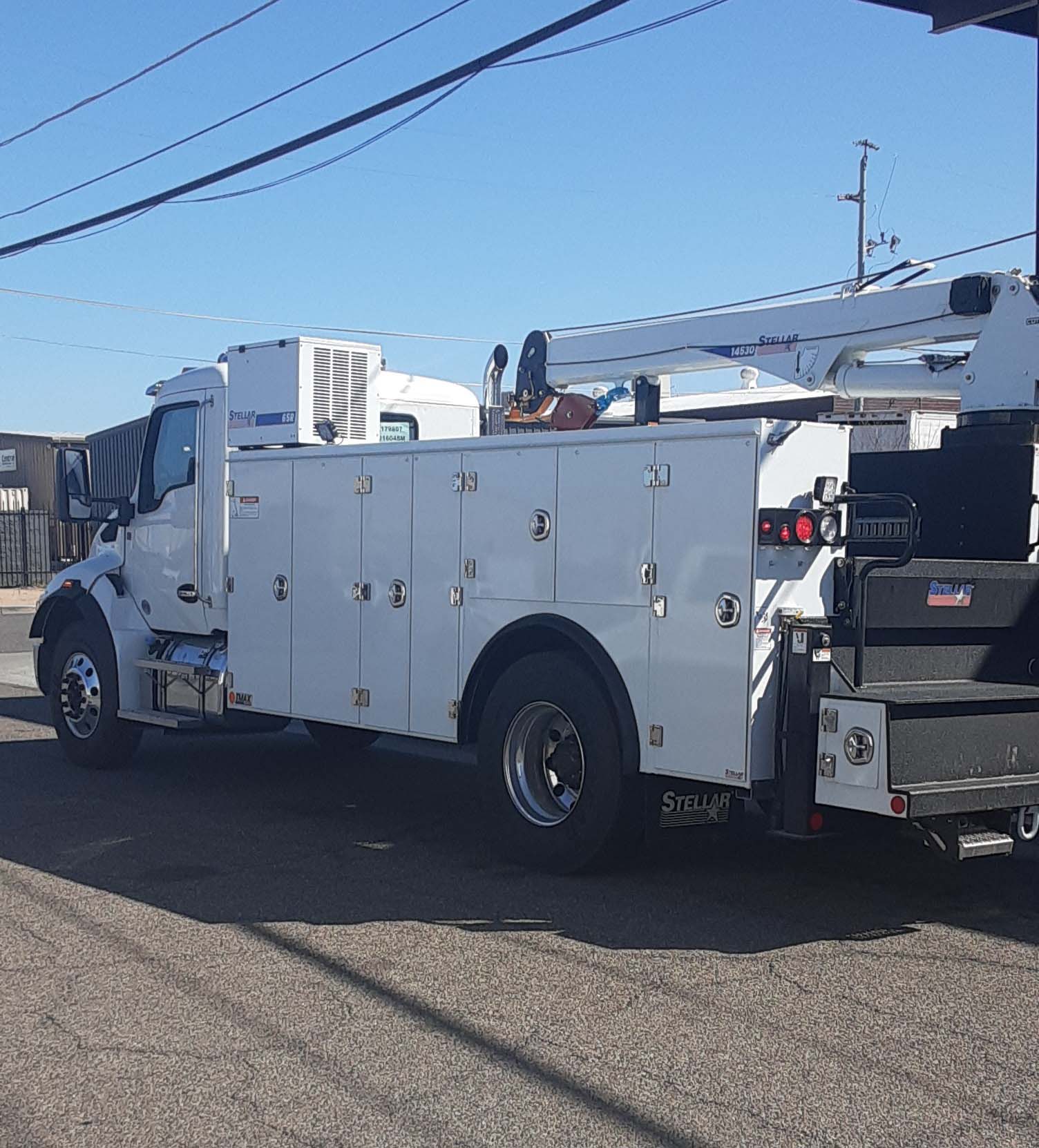

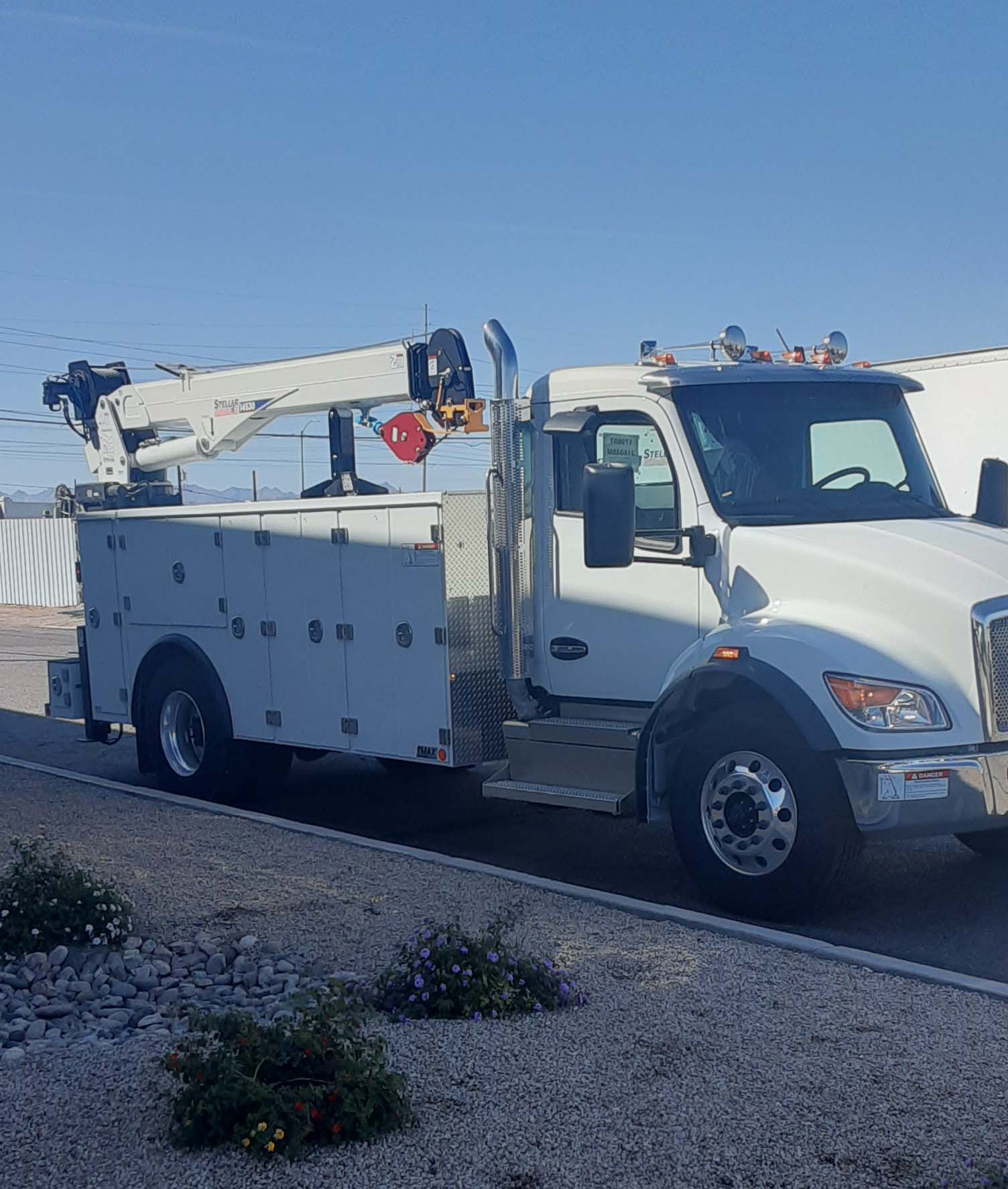

Distributor Stock: 2025 KW T480 w/TMAX3S-14 Aluminum/14530/65R (DS97)

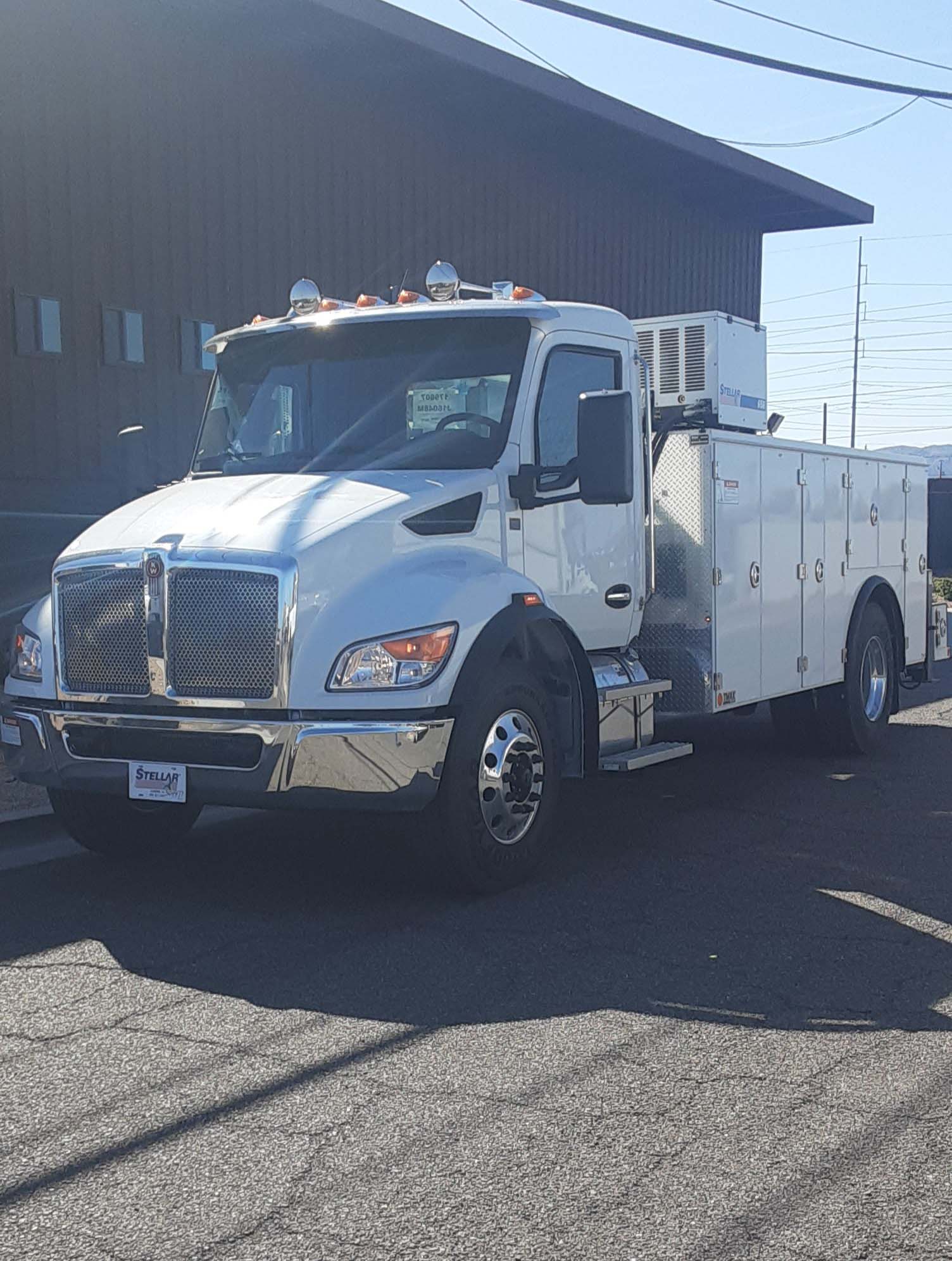

2025 Kenworth T480

• 33,000 GVWR
• 4X2
• PACCAR PX-9
• Allison 3000 RDS Auto
• 131CA

Body Features

• Stellar TMAX3S-14′ Aluminum mechanic body with Aluminum
  Doors
• All compartments raised to 60″H
• Torsion box understructure with isolated crane compartment to
  accommodate crane up to Stellar 14530
• Lifting moment
• Master-Lock system standard
• Exterior LED DOT light package
• 22″D X 52″ and 60″H side packs
• 168″ long, 30″ work bench bumper with thru compartment
• Equipped to handle dual out and down stabilizers
• Eight (8) recessed cargo tie-downs
• Two (2) rear mounted grab handles
• Dual-seal automotive type compartment weather seal
• Rubber fenderettes
• 14 ga. overlapped doors on SS1V, CS1V,14 ga. overlapped doors on horizontal compartments
• 12″ fold down tailgate (painted black)
• 2 & 3-point stainless steel compression latches
• Stainless steel “Billet Style” hinges
• Spring loaded door stops
• Pintle hitch mount
• Prime painted A40 galvanneal
• Undercoated
• Additional Product Information

Compartment Storage

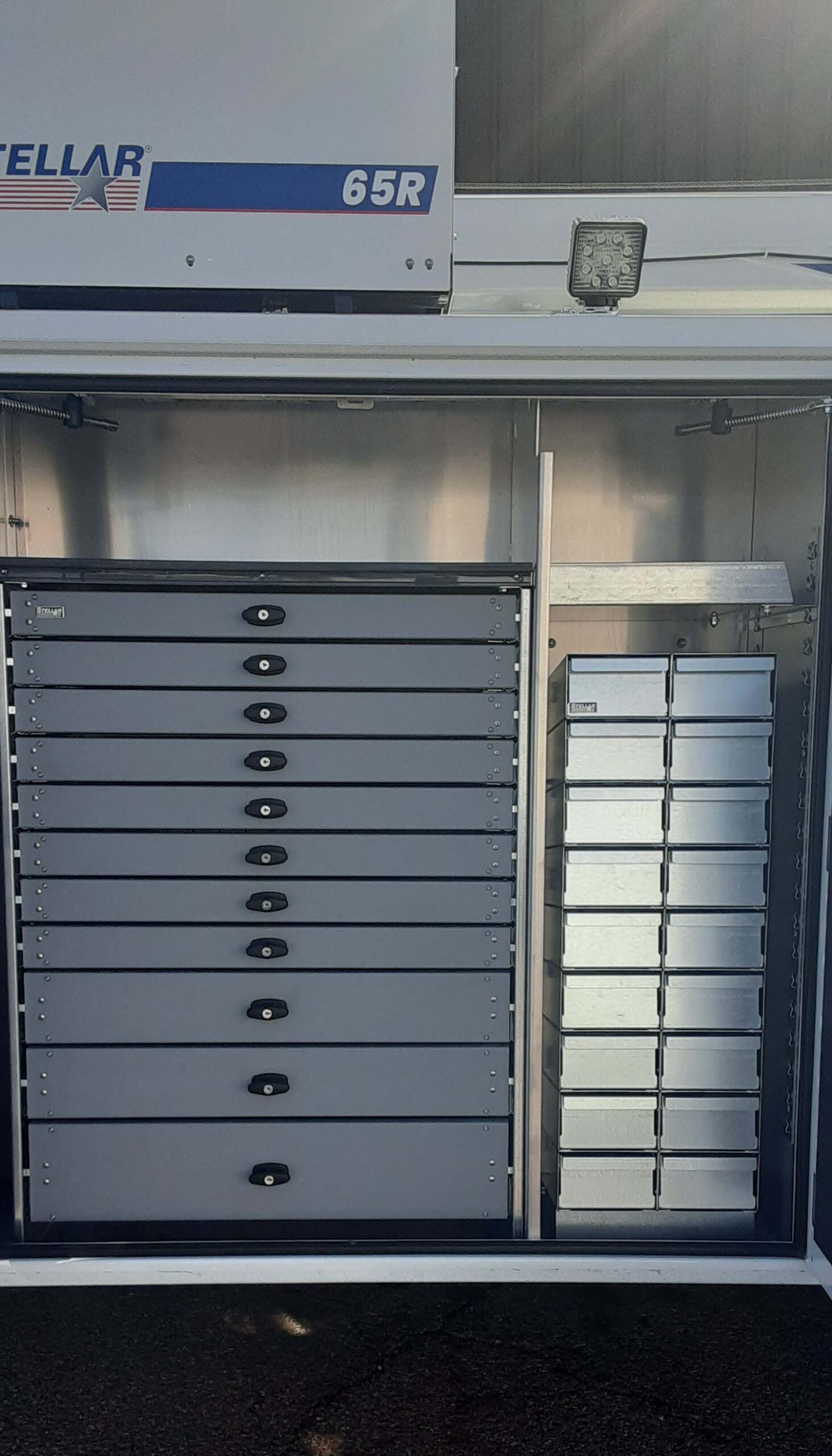

• Streetside 1st Vertical in front of the divider:
  • Heavy Duty Aluminum Drawer Set, 43″H x 34″W x 18″D, 8-3″, 2-5″, 1-7″ (incl. 2.5″ riser)
  • Drawer Light Bar for use on 34″ wide drawers with a left-hand wire harness
• Streetside 1st Vertical to the rear of the divider:
  • 18 Drawer Steel Bolt Bin 41″H x 13.5″W x 17.25″D
  • Shelf with (3) dividers 17.63″W x 19.00″D
• Streetside 1st Vertical to the rear of the divider:
  • Shelf with (3) dividers 35.25-36.56″W x 19.00″D
• Streetside Horizontal
  • Drawer Set, 14.5″H x 48″W x 18″D, 2-5″ (incl. 2.5″ riser)
  • Drawer Light Bar for use on 48″ wide drawers with a left-hand wire harness
• Streetside Rear
  • Shelf with (3) dividers 24.38″W x 19.00″D
• Curbside 1st Vertical
  • Divider kit with shelves 19.00 wide for oxy/Acet in curbside 52″ and 60″ compartments
  • Oxy-Acet Bottle Holder ASM – 2 Bottle Holder
  • Oxy-Acet twin hose reel – Reelcraft with 50′ twin hose
  • Torch tip tray

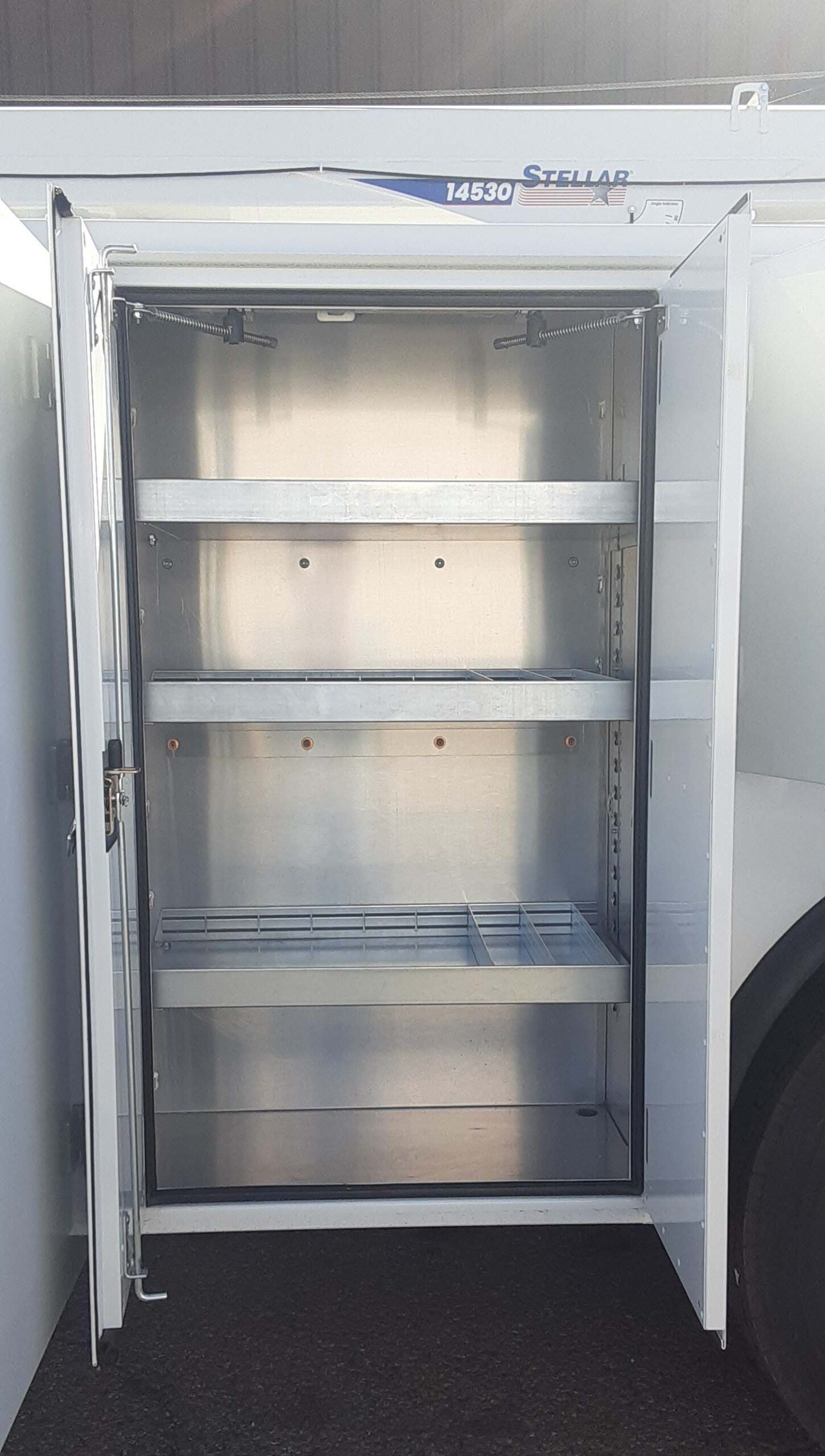

• Curbside 2nd Vertical
  • Shelf with (3) dividers 32.25″W x 19.00″D
• Curbside 3rd Vertical
  • Shelf with (3) dividers 19.00″W x 19.00″D
• Curbside Horizontal
  • Shelf with (3) dividers 52.44″W x 19.00″D
• Curbside Rear
  • 1/2″ x 50′ hose reel with roller guide – exits rear of body

Body Mounted Options

• Aluminum Rock Guard Kit – TMAX V2 – ARSD 60″
• Black grab handle – mounts to rear side pack and bumper
• E-Track System for TMAX-14′ Body. One row on each loadbed wall and 4 ratchet straps
• One pair Stellar mud flaps with mounting bolts (Included in factory installation)
• TMAX aluminum tailgate – 12″ tall, painted black with bedliner on load bed side and 3″ lip on the outside
• Adjustable boom support – octagon booms – 21.5″ to 27.5″ – TMAX aluminum body – roller rest – painted black

Bumper Mounted Options

• Trailer plug – 7 pin round – Only for chassis equipped to handle this style plug from factory
• Vise mounting plate – receiver work bench mount
• Slide out step for TMAX work bench bumper – aluminum
• Rear stabilizers up to 92,000 ft-lbs, dual hydraulic out/hydraulic down

Light Options

• LED flood light kit for TMAX aluminum body – 4 lights – (1 near boom support, 1 SS behind compressor, 1 on each rear taillight box)
• LED Compartment Light Kit – TMAX1-13, TMAX 2-14, T3S-14

Safety Options

• Chassis mounted back up alarm – 107 Db
• ICC safety kit consisting of rechargeable 2.5# fire extinguisher and reflector kit

Electrical Options

• Program speed control for Cummins engine
• E-Link 2.0 Basic – cab mounted / rear mounted manual switches (includes body harness and PDM)
• Dash mount kit – E-Link Basic/VEC CDTpro™ docking station re-locate to crane box w/ Elink

PTO/Pump Options

• Generic hot shift PTO. Actual PTO model will be assigned to order with receipt specific chassis information
• Hydraulic pump, tandem section for crane and compressor

Hydraulic Options

• Hydraulic reservoir, 35 gallon, bulkhead mounted, for Stellar body, painted black

Paint & Finish

• Paint 13’+ body Stellar White Paint, Axalta paint code 350407EX
• Spray on bed liner for load bed walls and floor – Black
• Spray on bed liner for work bench bumper – Black

• 92,000 ft/lb rated
• 14,000 lb. maximum capacity
• 30′ full hydraulic reach
• CDTpro™ equipped proportional radio remote control – Installed
• Additional Product Information

• Stellar® 65R hydraulic driven rotary screw air compressor
  that produces 65 CFM @ 100 PSI
• Rotary air end
• Air filter, oil filter, air/oil separator, pressure switch w/solenoid
  valve, oil cooler, fan, hydraulic motor, and valve block
• Pressure relief
• Includes steel base, enclosure, and a flip up lid
• Dimensions: 32.5”L x 22”W x 23.5”H. Weight:320 lbs (dry)
• Air compressor mounting kit to common rail on aluminum bodies for Stellar® 46P/70P/45R/65R air compressors
• Air compressor mounting kit to common rail on aluminum bodies for Stellar® 46P/70P/45R/65R air compressors
• 22 gallon air tank with fittings, hose kit, mounting brackets, for Ford/IH TS and TMAX2 chassis, painted black
• FLR System – 1 outlet for air hose (filter, lubricator, regulator)
