Stock: TMAX LP-12 Aluminum/8630 (WR81)

Body Features

• Aluminum Side Packs on Street Side
• Aluminum Doors
• Isolated crane compartment
• Torsion box understructure with aluminum compartments on the street side of body
• (1st) 44″H X 30″W X 17″D vertical compartment
• (2nd) 44″H X 21″W X 17″D vertical compartment
• (1) 25″H X 63″W X 17″D horizontal compartment
• (1) 44″H X 25″W X 17″D rear vertical compartment
• E-trac system on bulkhead standard
• (2) underbody storage compartment 13″H X 31″W x 18″D (curbside)
• Stainless steel compression “T” handle latches
• Automotive type door seals
• Stainless steel “Billet” style hinges
• 14″ step bumper
• Exterior DOT light pkg
• (8) recessed cargo tie-downs
• (6) receiver mounts for tank saddles
• One grab handle
• Additional Product Information

Compartment Storage

• Streetside 1st Vertical:
  • Shelf – bolt-in (73408X)
• Streetside 2nd Vertical:
  • Shelf – bolt-in (73334X)
• Streetside Horizontal
  • Shelf – bolt-in (79347X)

Body Mounted Options

• Non-slip Rock Guard Kit
• Fold Down Rack on CS – 26″ H for 12′
• (2) Cradle assemblies – 1,000 gallon propane tanks
• Adjustable Boom Support
• Roller Rest, painted black

Bumper Mounted Options

• Step – Bolt on
• Stabilizer Assembly – hydraulic out/hydraulic down, painted black

Light Options

• LED Compartment Light Kit

Electrical Options

• Truck Upfitter Switches Control Package

Hydraulic Options

• Hydraulic reservoir, 12 gallon body mount

Paint & Finish

• Paint 9′-12′ body Stellar White Paint, Axalta paint code 350407EX
• Spray on bed liner for load bed walls and floor – Black
• Spray on bed liner for work bench bumper – Black

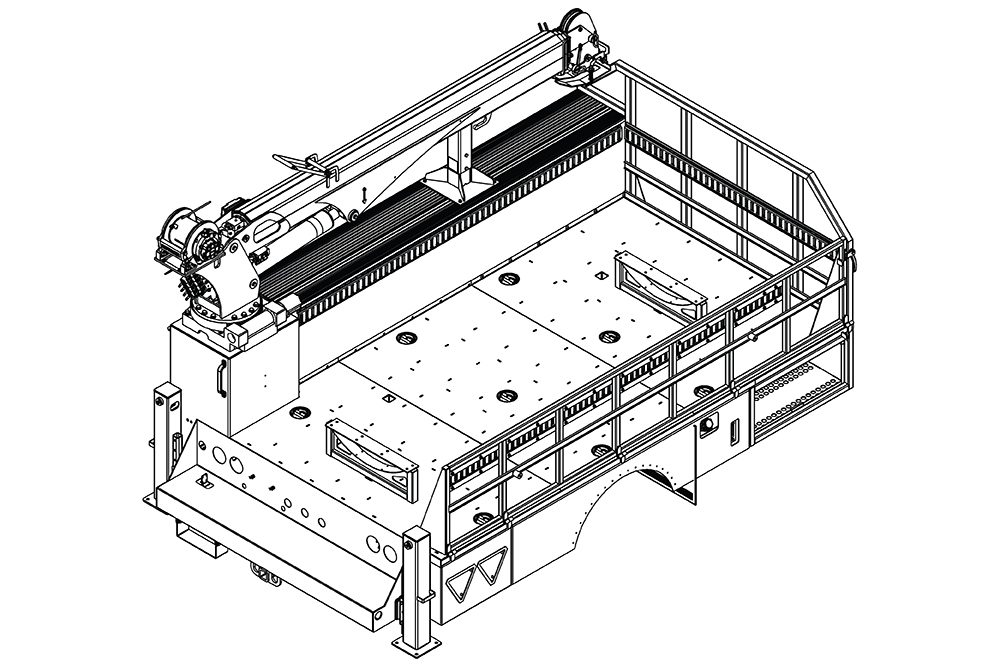

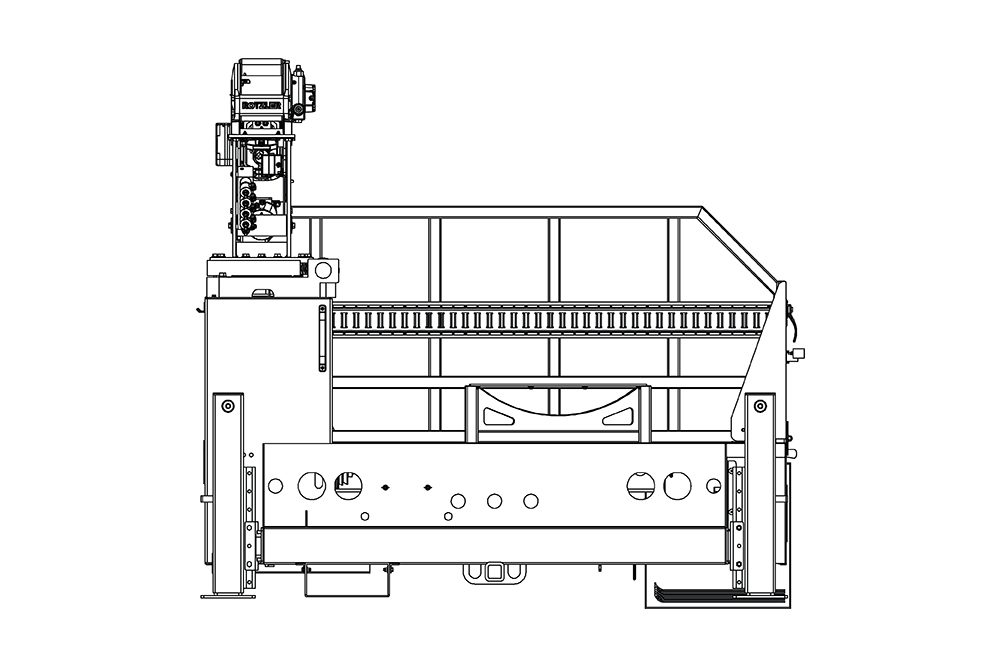

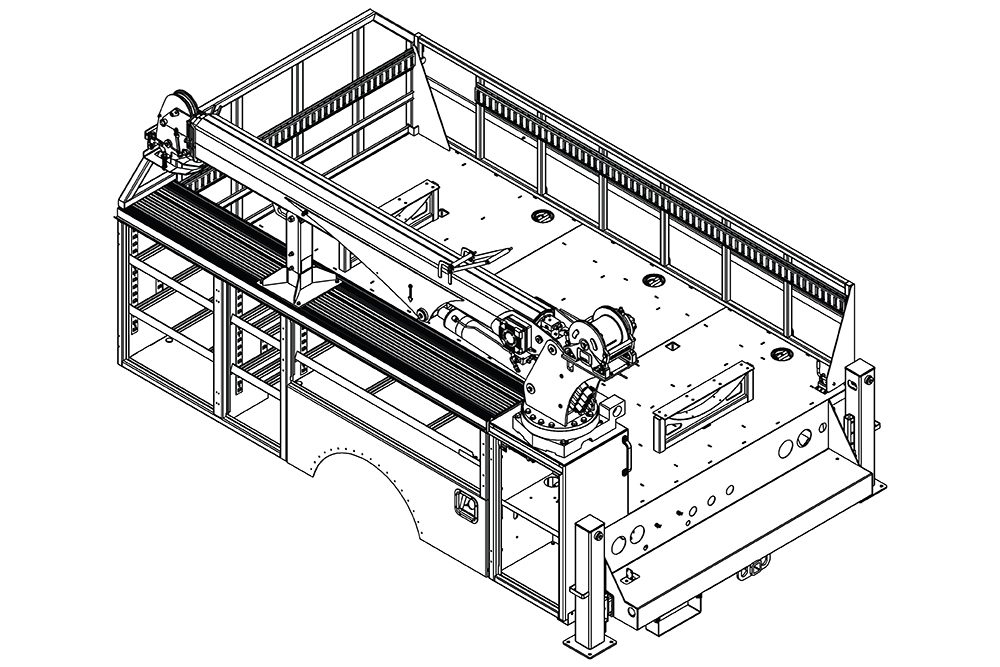

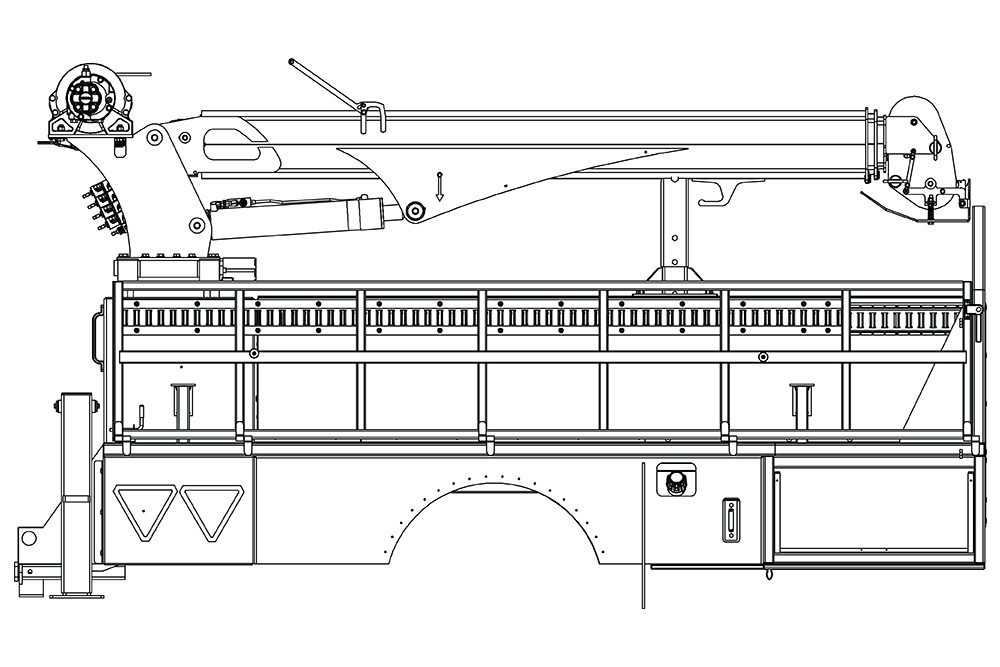

Note: Sales Drawing 943539

• Crane Rating : 44,840 ft-lb
• Max Lifting Capacity: 8,600 lbs @ 6′ 2″
• Maximum Horizontal Reach: 29′ 8″ from CL of crane
• Maximum Vertical Lift: 31′ 6″ from crane base
• Boom Elevation: -10° to +80°
• CDTpro™ Control System w/Range Finder
