AFM60 Cable Hoist Truck

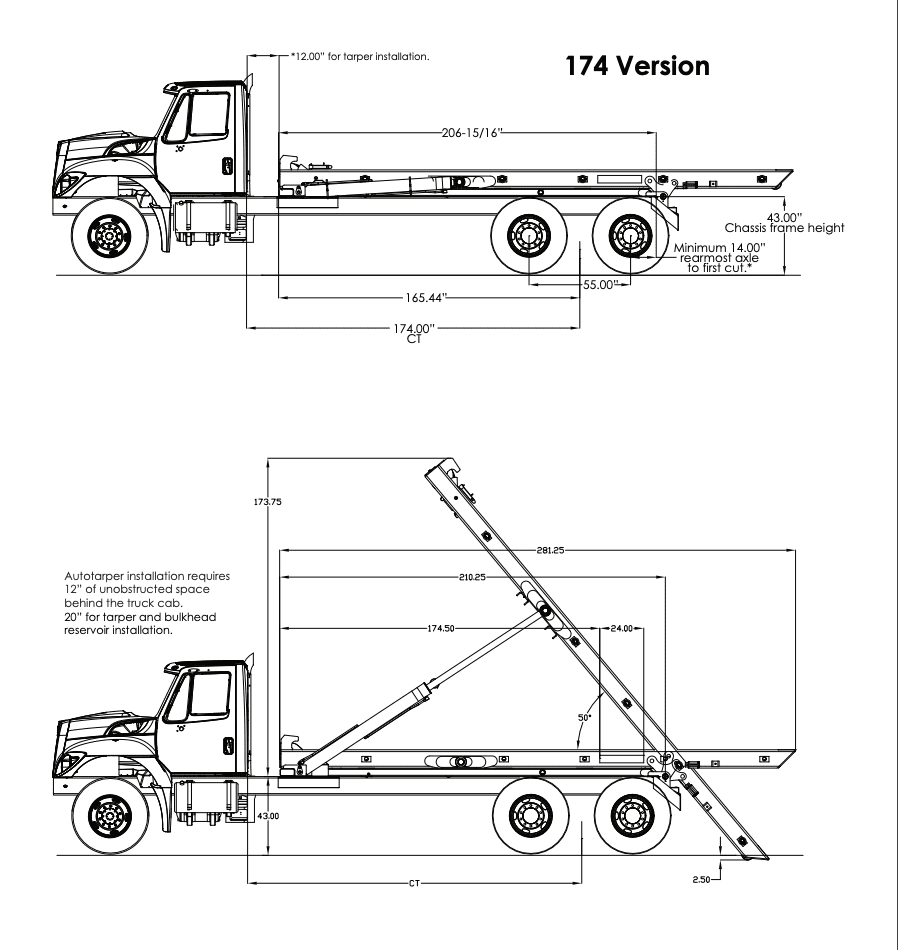

Get job after job after job done with the Stellar® AFM60 Cable Hoist Truck. It has the power and smooth performance to maximize productivity on a daily basis. Choose from the AFM60-174 for handling containers from 18′ to 22′ or the AFM60-194 for containers from 18′ to 24′.
Additional Information
- Reeving Cylinder Enclosure to reduce exposure from damaging debris.
- Dump Cylinder Mounting above and outside of the frame rails for easier access and stability during dumping.
- Durable Construction includes zinc-plated steel pins in the rear hinge, sheaves and cylinders, plus 1/2″ high-strength wear plates at the end of the main frame tubes.
- Hydraulic Piston Pump delivers higher efficiency, longer life and can handle higher operating pressure than gear pumps.
- Cable Routed in the single direction of rotation.
- Protective Coating featuring two-part polyurethane automotive finish paint for added protection against scratches and debris.
- Easy Maintenance thanks to greaseable bushings with zerks at all pivot points.
Warranty:
- 36 months structural
- 12 months parts and labor
Specifications
| Hoist Rated Capacity: | 60,000 lbs |
| Main Frame: | 10" x 4" x 1/2" A500 C tubing |
| Front Stop: | 1" plate |
| Container Lock: | Automatic spring loaded |
| Lift Cylinder Shaft: | 2.5" zinc-plated carbon steel |
| Rear Hinge Shaft: | 3" zinc-plated carbon steel |
| Cable: | 7/8" (6 x 37 EXIWRC) |
| Cable Sheaves: | Front sheave 13.38" / Reeving 10" with bronze bushings |
| Cable Anchor: | 4 cable clamps |
| Cable End: | Steel casting |
| Container Hold Downs: | Standard with ratchet winches and straps |
| Lift Cylinders: | 6" x 72.25" D.A. |
| Reeving Cylinder: | 6.5" x 80" D.A. |
| Direct Mount Pump: | Piston type 25 gpm @ 1,500 rpm |
| Operating Pressure: | 4,500 psi for 60,000 lbs |
| Hydraulic Valve: | 2-spool 25 gpm safety bypass |
| Hydraulic Reservoir: | 25-gallon 10-micron filter and screen filter |
| Outside Rollers: | 4" O.D. with bronze bearing and grease zerks |
| Inside Rollers: | 6" O.D. hardened roller and pins |
| Pivot Points: | Bushings and grease zerks |
| Safety Stand: | Accessible each side |
| I.C.C. Bumper: | Folding, mounting lugs factory-installed |
| Rear Bumper: | Pre-drilled bolt mount – LED sealed beam backup, clearance and tail lights |
Optional Equipment
| Inside Controls: | Direct connect, cable |
| Remote Mount Hydraulic Pump: | Piston type 25 gpm @ 1,500 rpm |
| Auxiliary Fold Down Front Stops: | For short containers |
| Full Fenders: | Tandem or tri-axle, 12-gauge steel or poly |
| Toolbox: | 20" x 15" x 48" |
| 3- And 4-Spool Valve: | For use with optional equipment as needed |
| Additional Hydraulic Lines: | Single-acting hydraulic line to rear (Requires the 3-spool valve option or selector valve) |
| Double-acting hydraulic line to rear (Requires the 3-spool valve option or selector valve) | |
| Double-acting hydraulic line to side (Requires the 3-spool valve option or selector valve) | |
| “Drop-In” Stops: | For short containers |
| Cab Guard | |
| PTO air operated with signal light | |
| Integrated 5-section valve bank for standard cable hoist | |
| Also Includes: | |
| Hoist-up alarm | |
| Inside cab air controls and outside manual controls |
