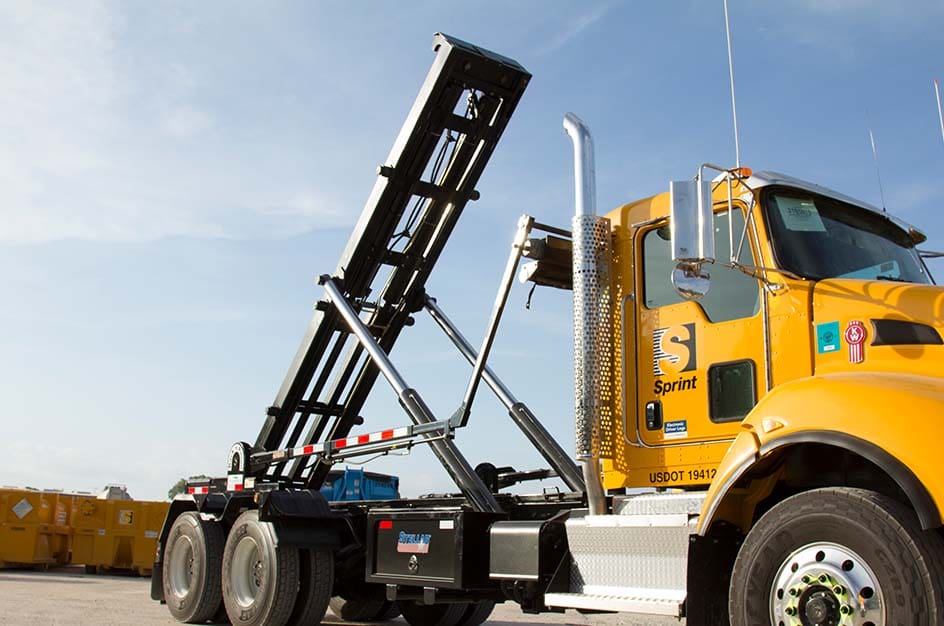

SI-75 Cable Hoist Truck
75,000-lb Capacity
Bring on the challenges and count on the high-capacity Stellar® SI-75 Cable Hoist Truck to meet them. Its 75,000-lb hoist rated capacity ensures you can tackle the toughest jobs, and the high-quality construction helps ensure long-term performance and reliability.
Additional Information
- Reeving Cylinder Enclosure to reduce exposure from damaging debris.
- Dump Cylinder Mounting above and outside of the frame rails for easier access and stability during dumping.
- Durable Construction includes zinc-plated steel pins in the rear hinge, sheaves and cylinders, plus 1/2″ high-strength wear plates at the end of the main frame tubes.
- Cable Routed in the single direction of rotation.
- Container Lock is automatic spring loaded.
- Gear-Type Hydraulic Pump for 35 gpm and low pressure.
- Counterbalance Valves prevent cylinder movement in case of pressure loss.
- Protective Coating featuring two-part polyurethane automotive finish paint for added protection against scratches and debris.
- Easy Maintenance thanks to greaseable bushings with zerks at all pivot points.
Specifications
| Hoist Rated Capacity: | 75,000 lbs |
| Main Frame: | 8" x 4" x 1/2" A500 C tubing |
| Sub Frame: | 4" x 2" x 1/4" A500 C tubing |
| Front Stop: | 1-1/2" plate |
| Container Lock: | Automatic spring-loaded |
| Lift Cylinder Shaft: | 2-1/2" plate |
| Rear Hinge Shaft: | 3" solid steel |
| Cable: | 1" (6 x 37 EXIWRC) |
| Cable Sheaves: | 10" O.D. bronze-brushed sheave |
| Cable Anchor: | 4 cable clamps |
| Cable End: | Steel casting |
| Rear Hold Down: | 1" plate located for standard containers |
| Middle Hold Down: | 3/4" plate |
| Lift Cylinders: | 6" x 72" D.A. |
| Reeving Cylinder: | 7" x 80" D.A. |
| Direct Mount Pump: | Gear type 35 gpm @ 1,500 rpm |
| Operating Pressure: | 1,850 psi |
| Hydraulic Valve: | 2-spool 45 gpm safety bypass |
| Hydraulic Reservoir: | 60-gal 25-micron filter and screen filter |
| Outside Rollers: | 4" O.D. with bronze bearing |
| Inside Rollers: | 6" O.D. hardened roller and pins |
| Working Points: | Greaseable |
| Safety Stand: | Factory-installed |
| I.C.C. Bumper: | Folding, mounting lugs factory-installed |
| Rear Bumper: | Pre-drilled bolt mount — sealed beam backup, clearance and tail lights |
| Rear Flange Roller: | 8" O.D. hardened with 2-1/2" c-1045 |
| Rear Center Sheave: | 8" O.D. hardened |
| Hoist Up: | 30 sec. approx. |
| Hoist Down: | 15 sec. approx. |
| Cable In: | 46 sec. approx. |
| Cable Out: | 37 sec. approx. |
| Container Length: | 18' – 22' |
| Approximate Weight: | 6,100 lbs |
Optional Equipment
| Lift Cylinder — T Models: | 6" x 72" (5.5" x 4.5" x 3.5" x 125") Telescopic cylinders |
| Inside Controls: | Direct connect, cable or pneumatic |
| Remote-Mount Hydraulic Pump: | Gear type 35 gpm @ 1,500 rpm |
| Auxiliary Fold-Down Front Stops: | For short containers |
| Full Fenders: | Tandem or tri-axle, 12-gauge steel or poly |
| Tarp Rack/Toolbox Combination: | 20" x 16" x 48" |
| Drop-In Stops: | For short containers |
| Also available: | |
| Cab guard | |
| 4-spool valve | |
| Boxed-beam double-shear lift cylinder with replaceable stub pins and cross tube for hose routing | |
| PTO air operated with signal light • Single-acting hydraulic line to rear* • Double-acting hydraulic line to rear* • Double-acting hydraulic line to side* |
|
| *Requires the 3-spool valve option or selector valve. |
