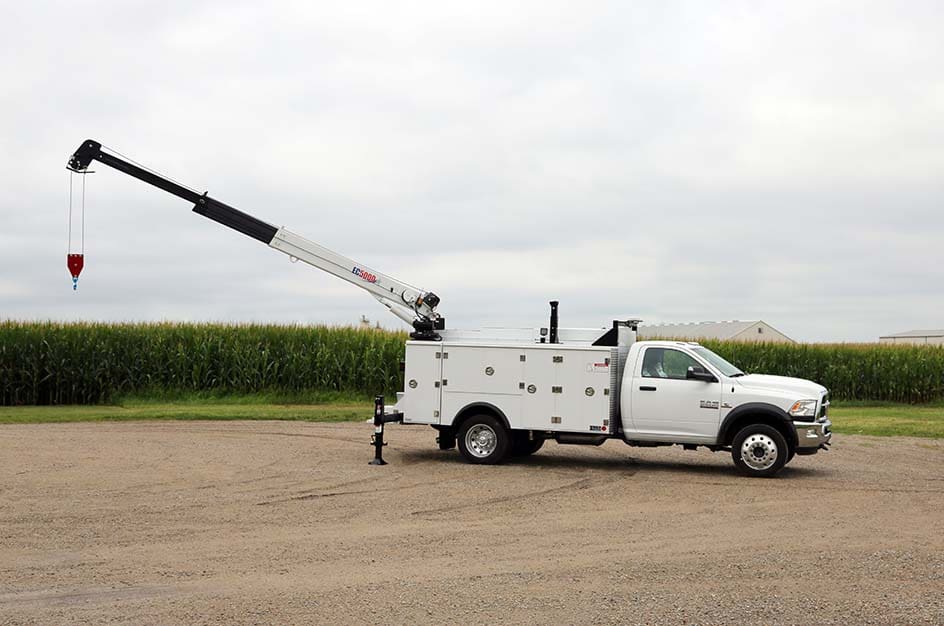

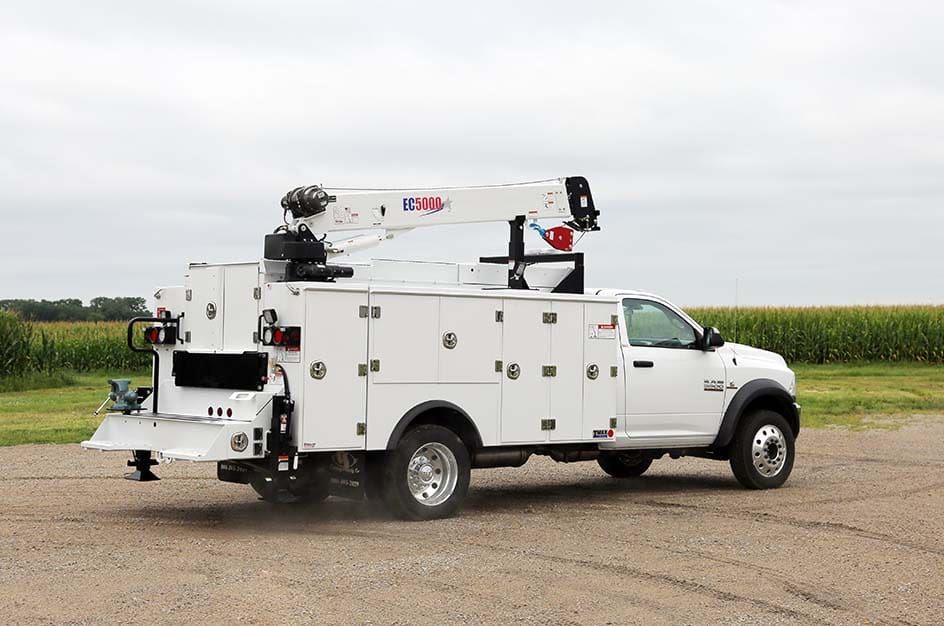

EC5000 Electric Service Cranes
5,000-lb Capacity with 20′ Horizontal Reach
When you need more lifting power, count on Stellar® EC5000 Electric Service Cranes. They combine the lifting power you need with the economy you want, and operation is significantly quieter than hydraulic cranes so you can work at times and in locations where reduced noise is essential. Because you don’t have to maintain separate hydraulic components, you save on labor time and parts. You can also lower chassis costs because EC5000 Electric Cranes let you use a gas or diesel chassis without the need to add a power take-off (PTO) and pump to the chassis or a transmission that can handle the PTO and pump.
PrintAdditional Information
EC5000 Includes:
- Ball Bearing Rotation Gear for solid support and smooth operation
- Steel Worm Gear for reliable speed control when rotating the shaft
- Electric Planetary Winch that lifts the maximum crane load and offers the smoothest and fastest speeds in the market today for maximum productivity
- Low-Profile Design for superior clearance
- Exclusive Double-Boom Design for rigidity, strength and accuracy
- Integral Rotation Stop with 410° rotation for the greatest performance while protecting wires and hoses from damage
- Certification for ANSI B30.5 and OSHA 1910.180 specifications
Specifications
| Crane Rating: | 25,000 ft-lbs (3.46 tm) |
| Standard Boom Length: | 10' (3.05 m) from CL of crane |
| Boom Extension: • 1st Stage: • 2nd Stage: |
Hydraulic 60" (152.4 cm) Manual 60" (152.4 cm) |
| Maximum Horizontal Reach: | 20' (6.1 m) from CL of crane |
| Maximum Vertical Lift: | 21' 3" (6.48 m) from crane base |

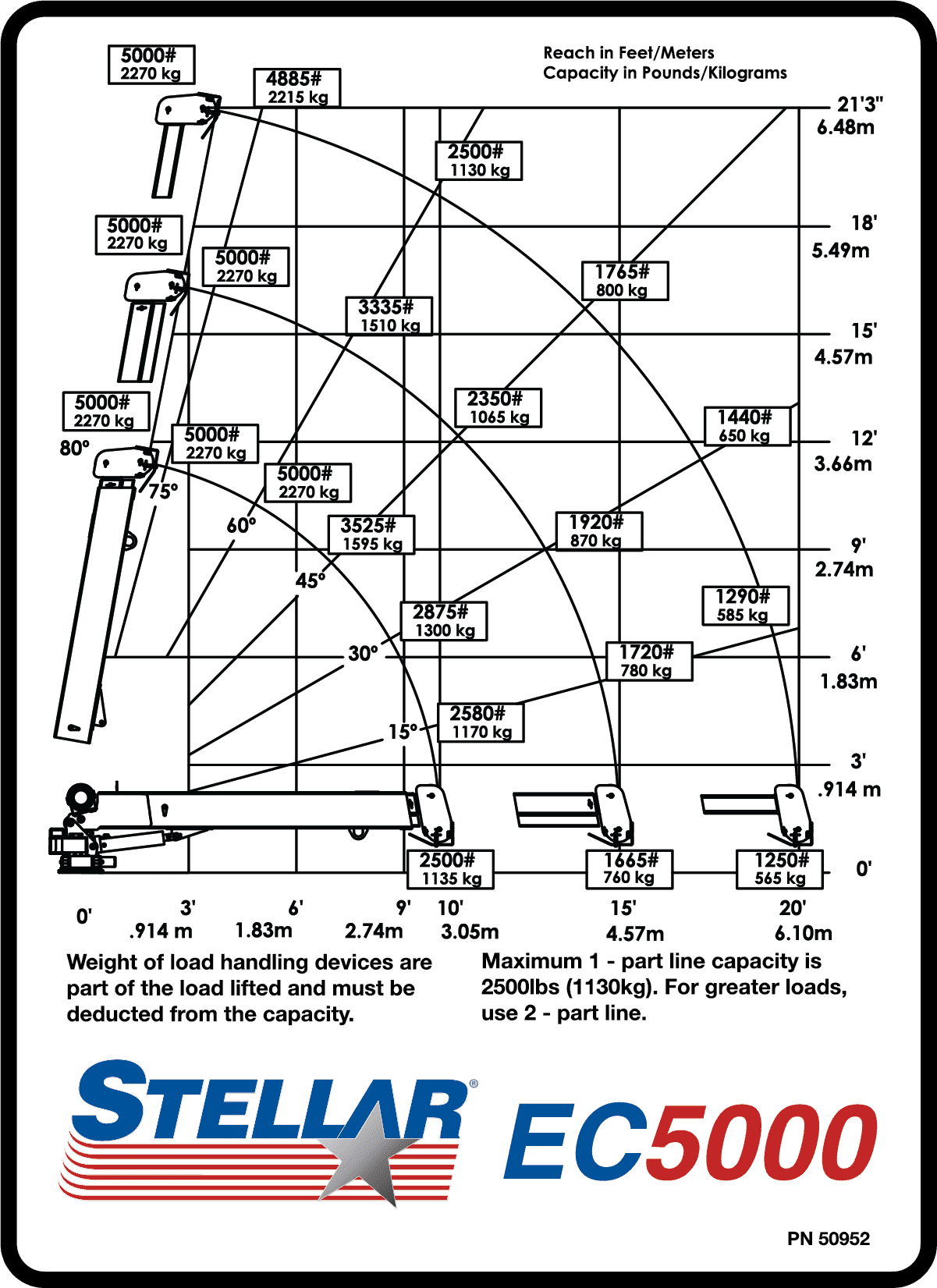

| Lifting Capacity: | 5,000 lbs @ 5' (2,268 kg @ 1.5 m) 1,250 lbs @ 20' (565 kg @ 6.1 m) |
| Boom Elevation: | -5° to +80° |
| Stowed Height (crane only): | 29.53" (75 cm) |
| Mounting Space Required: | 19" x 19" (48.3 x 48.3 cm) |
| Approximate Crane Weight: | 1,180 lbs (535 kg) |
| Controls: | Radio remote |
| Winch • Rope Diameter: • Rope Length: • Line Pull Speed: • Max. Single Part Line: • Max. Double Part Line: |
5/16" (0.79 cm) 90' (27.4 m) 16 ft/min (4.88 m/min) 2,500 lbs (1,134 kg) 5,000 lbs (2,268 kg) |
| Rotation: | 410° (worm gear) |
| Power Supply Required: | 12V power unit: 2 gpm @ 2,900 psi (7.57 lpm @ 200 bars) |
| Min. Rec. Chassis (GVRW)*: | 14,500 |
