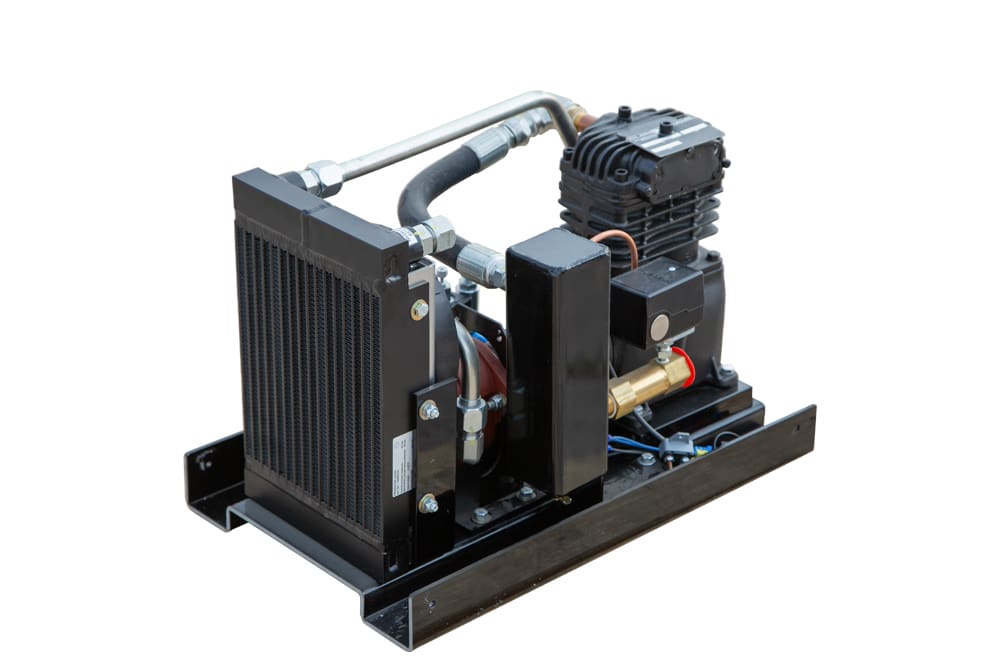

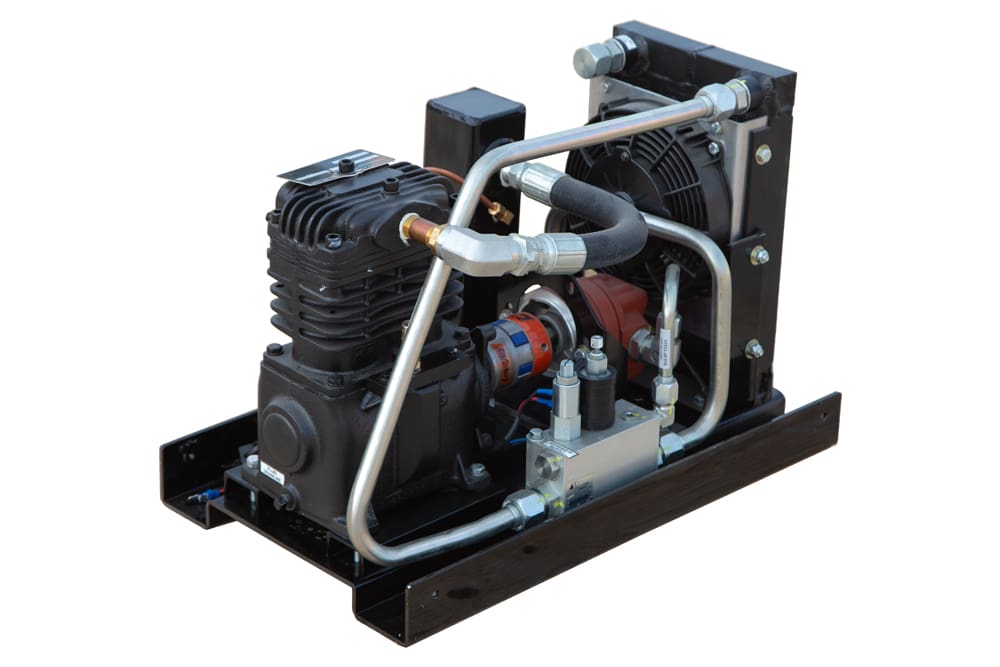

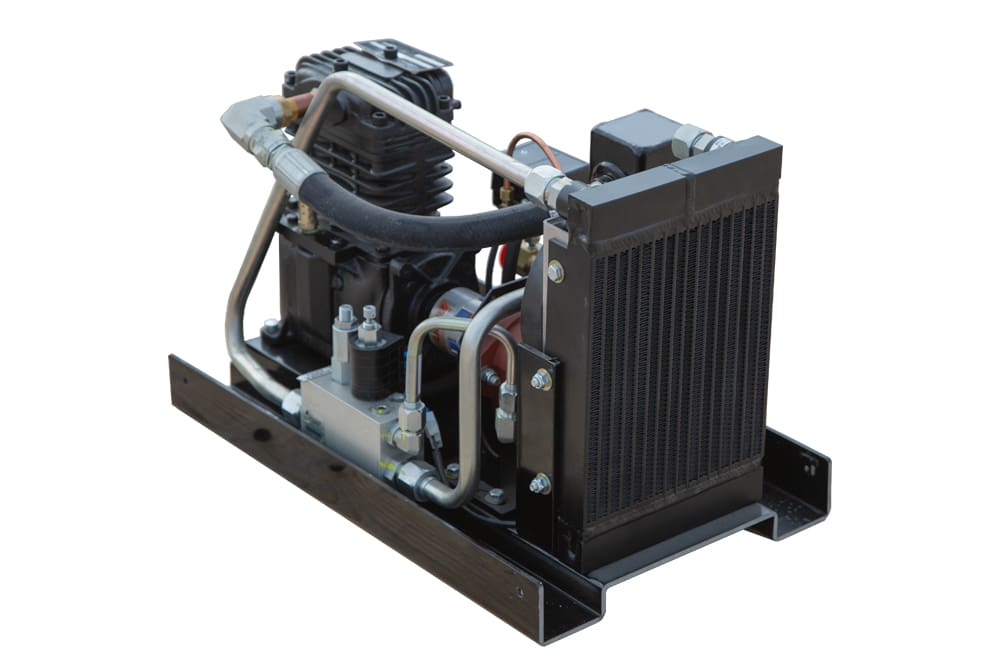

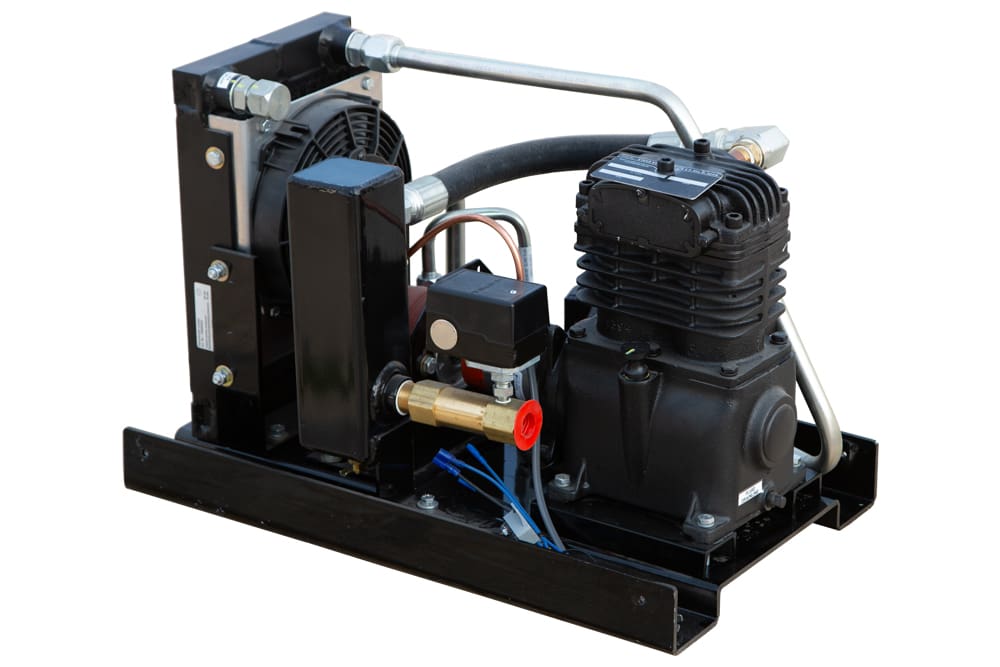

8P SINGLE-STAGE PISTON AIR COMPRESSOR
Offering lighter weight and a smaller footprint than other air compressor assemblies, the Stellar® 8P Single-Stage Piston Air Compressor provides the air you need to get the job done.
PrintAdditional Information
Durability Standard
- Direct drive; no belts to break or adjust
- Cast-iron crankcase and cylinder heads for durability
- High-temperature, precision-ground 4-ring pistons for consistent performance
- Stainless-steel reed valves for long life and heat resistance
- Heavy-ductile iron-balanced crankshaft with heavy-duty journal bushings
- Micro-honed connecting rods for smooth operation and long life
- All single-stage hydraulic-driven units include a reciprocating pump
Ease of Use
- Canister-type air filters for high capacity and easy changing
- High-capacity hydraulic oil cooler and fan for cooler operation

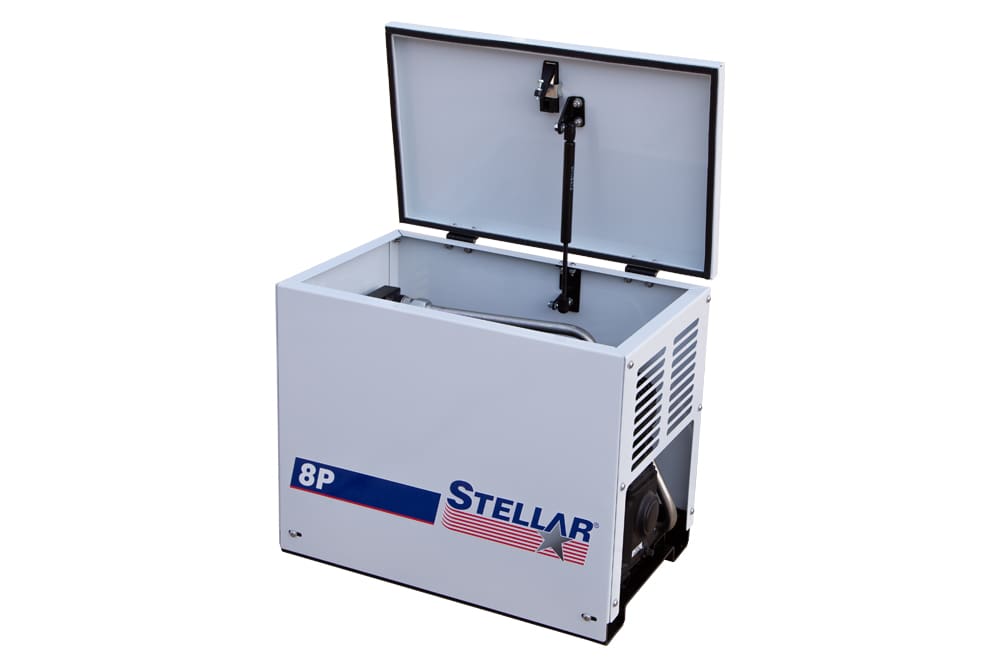

- Flip-up lid for easy access
SPECIFICATIONS
| Output Capacity: | 8 cfm @ 100 psi |
| Hydraulic Req: | 7 gpm @ 1,800 psi |
| Cylinders: | 2-cylinder, single-stage |
| Max Pressure: | 150 psi |
| Weight: | 125 lbs |
| Dimensions: | 23"L x14.5"W x 17"H |
| Uses model 143 pump | |
| Embedded air filter |
