NXT24-S Manual

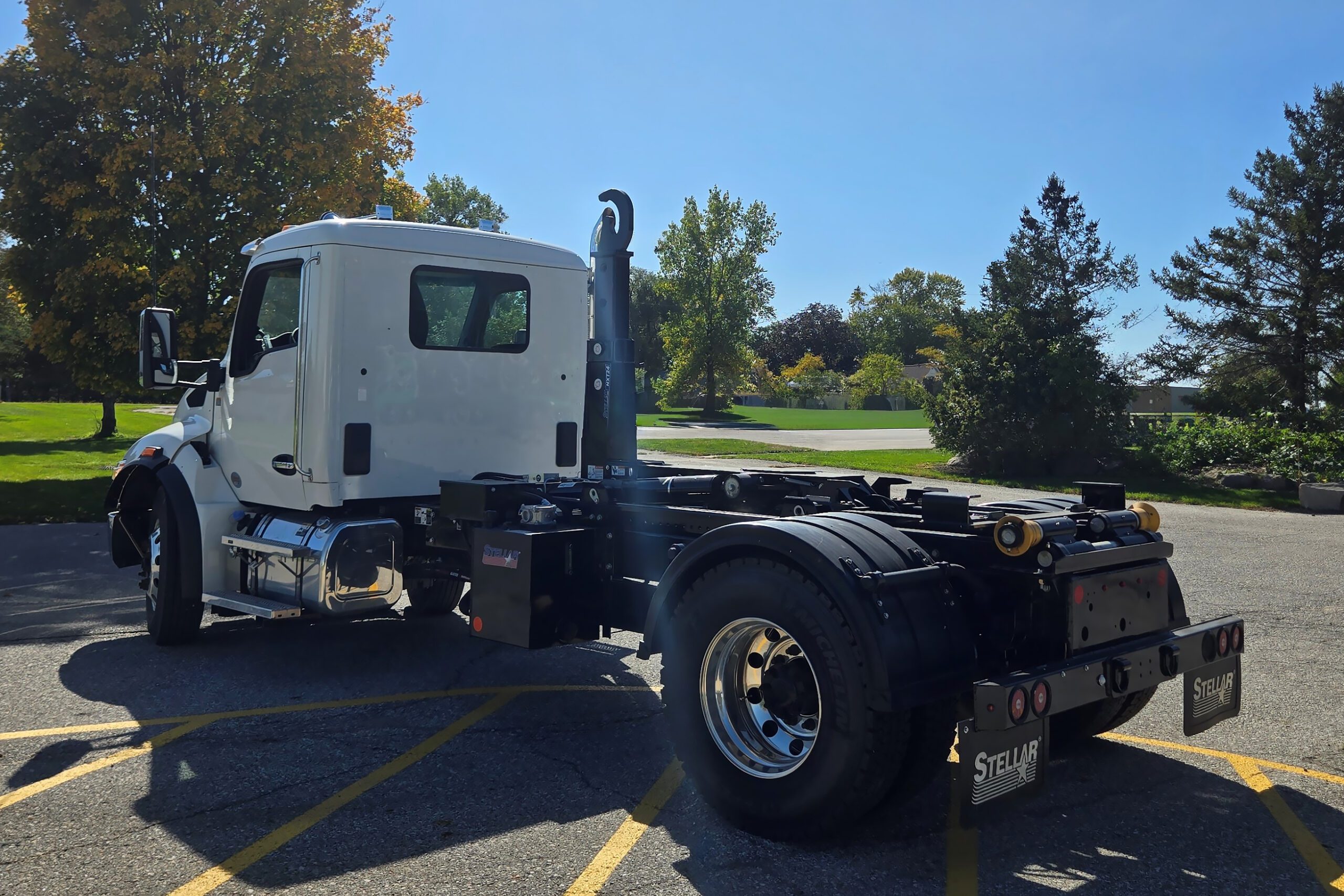

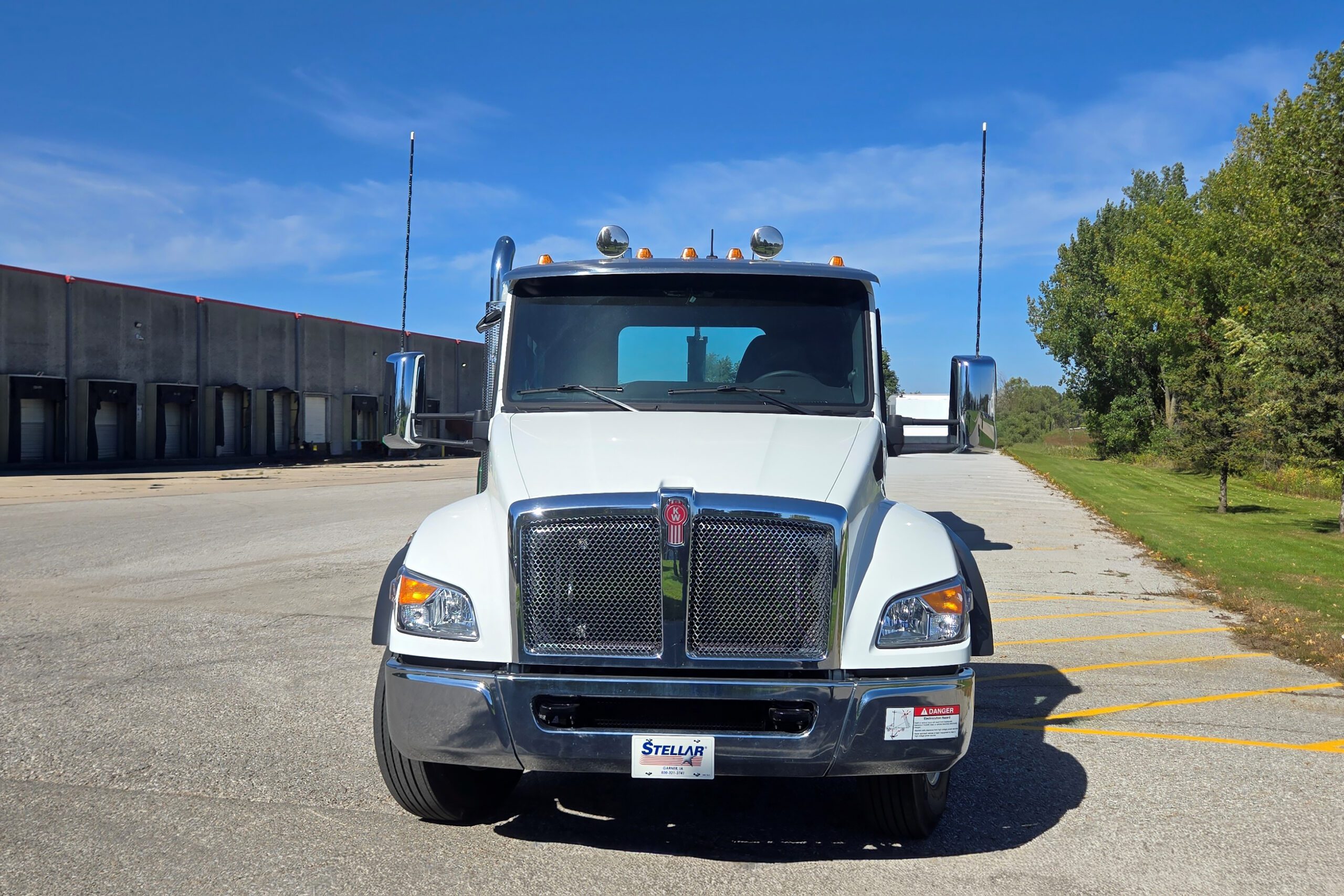

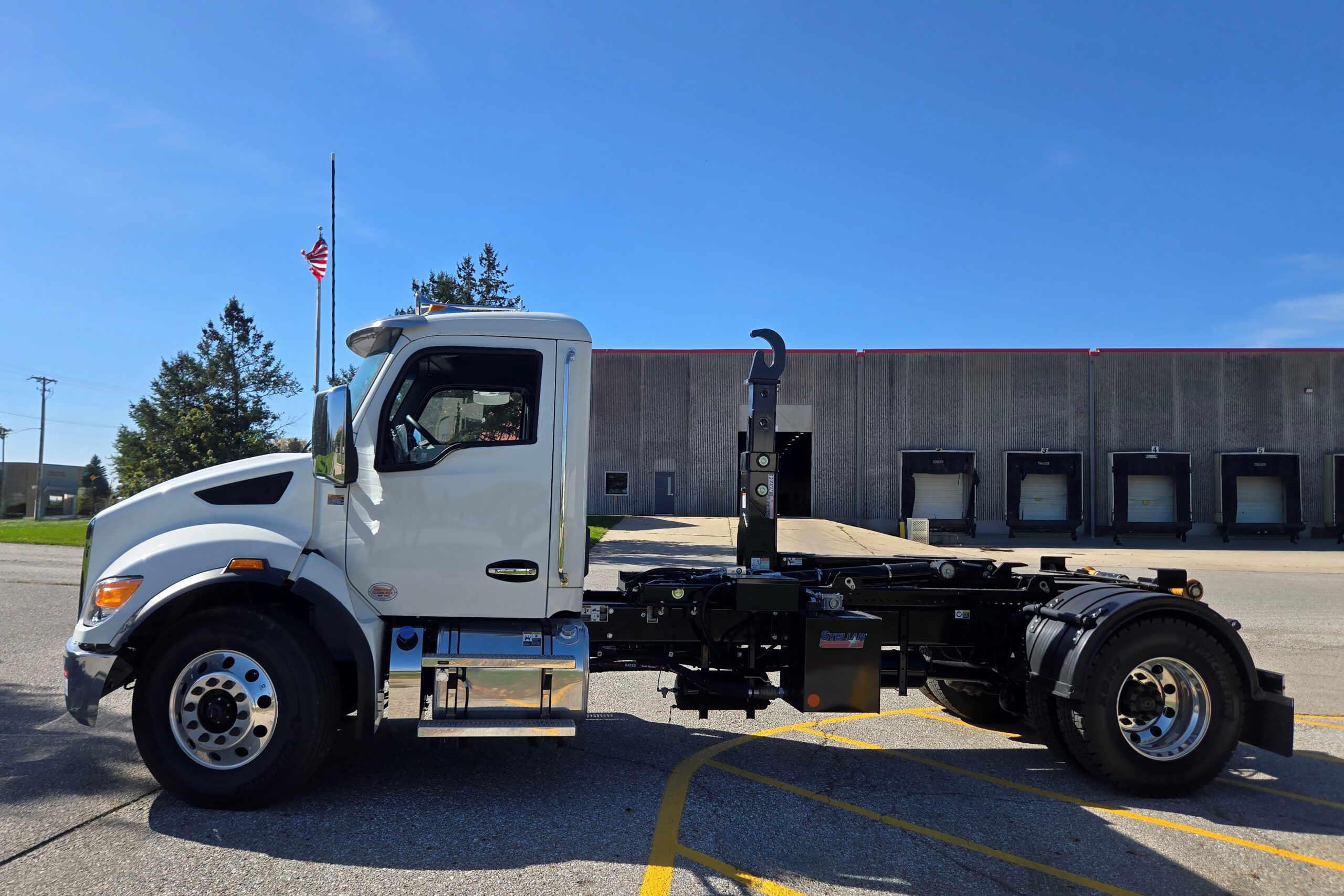

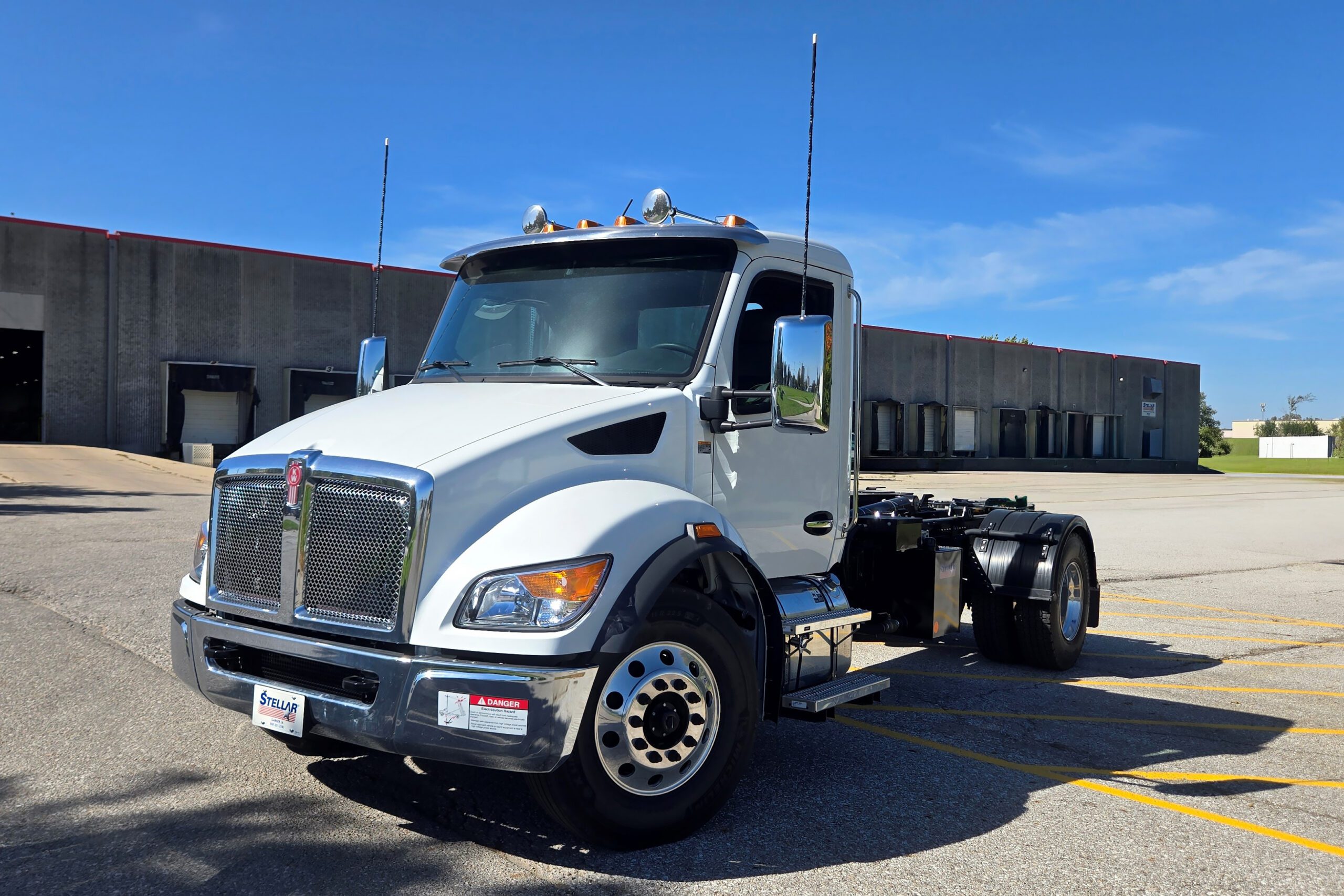

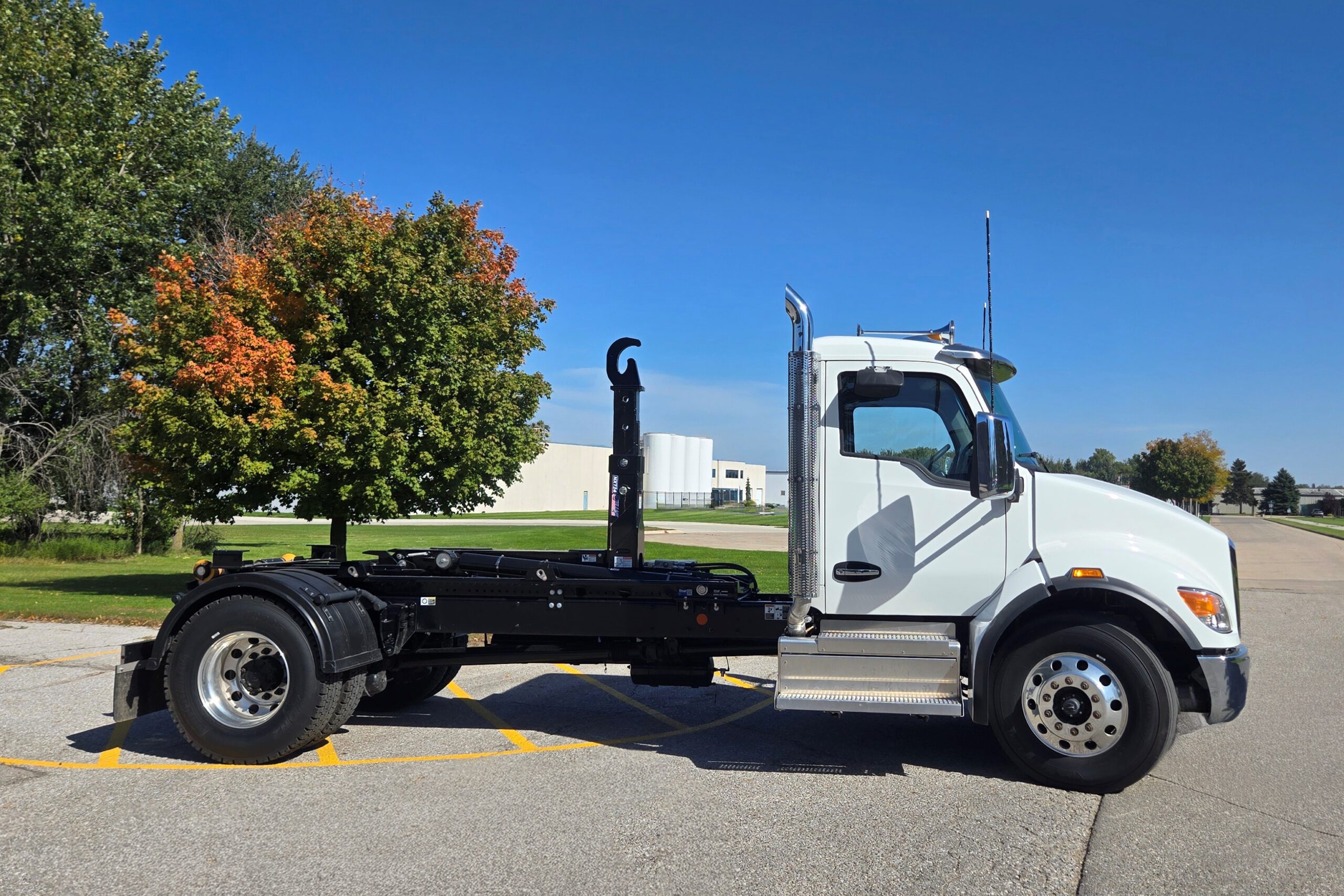

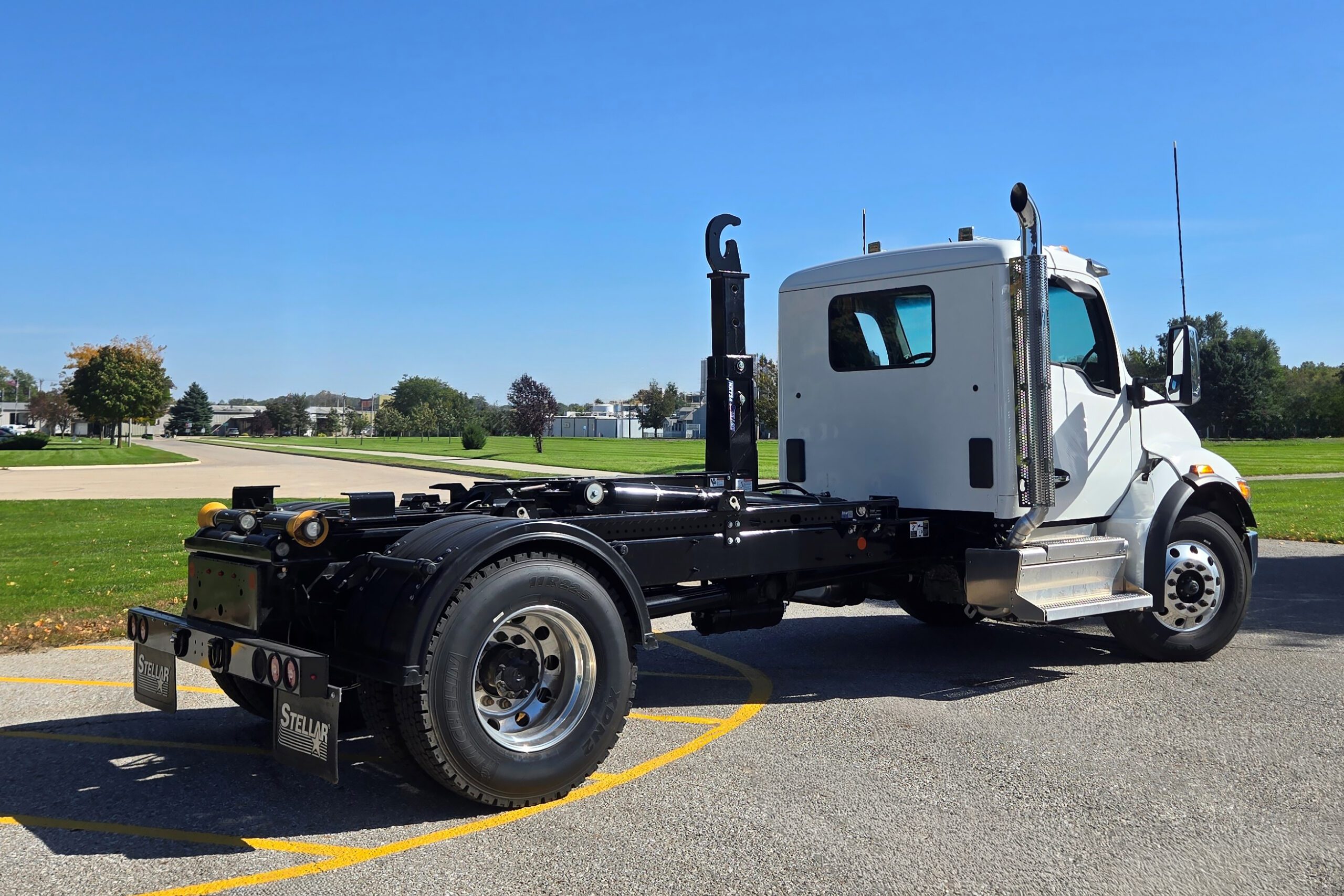

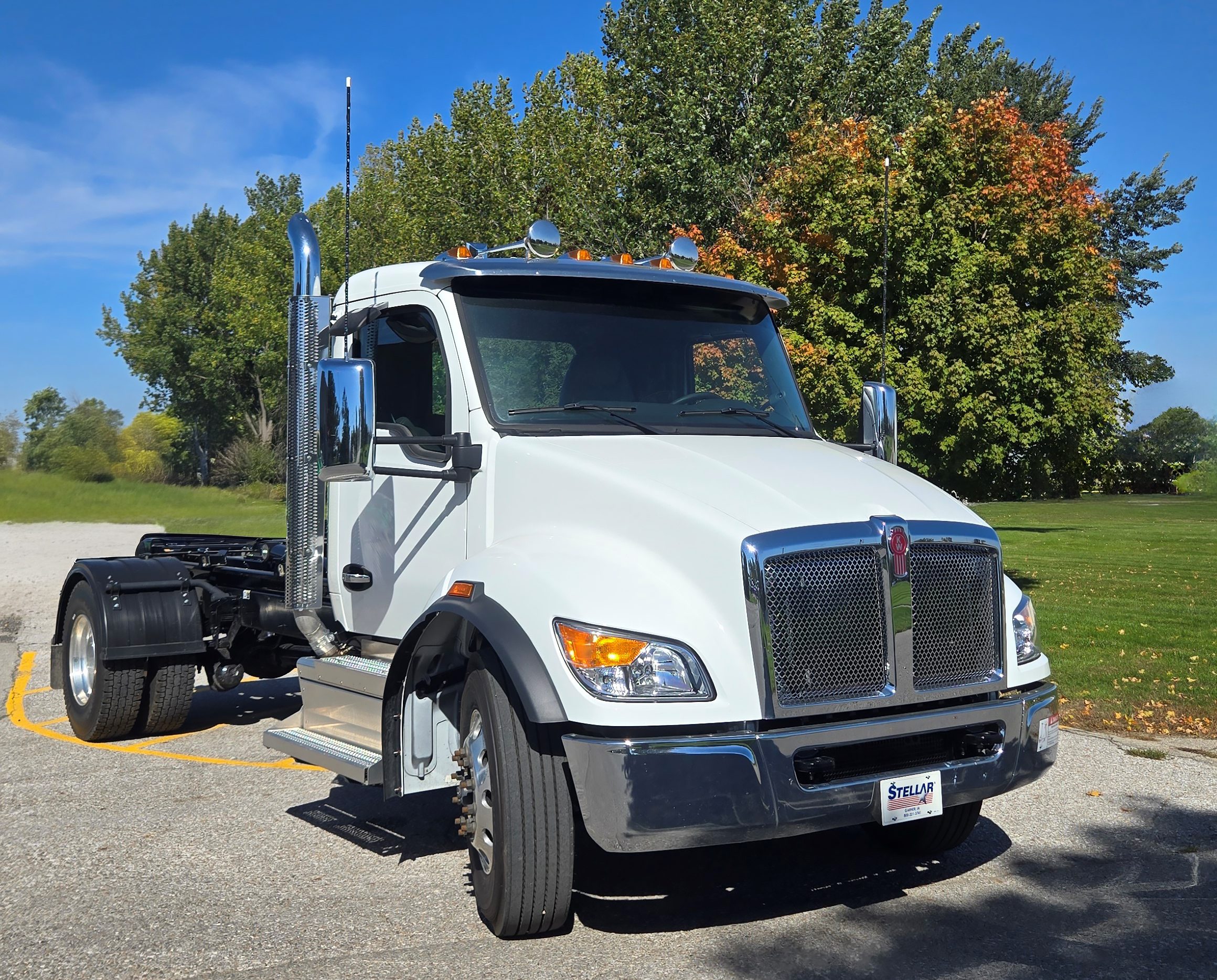

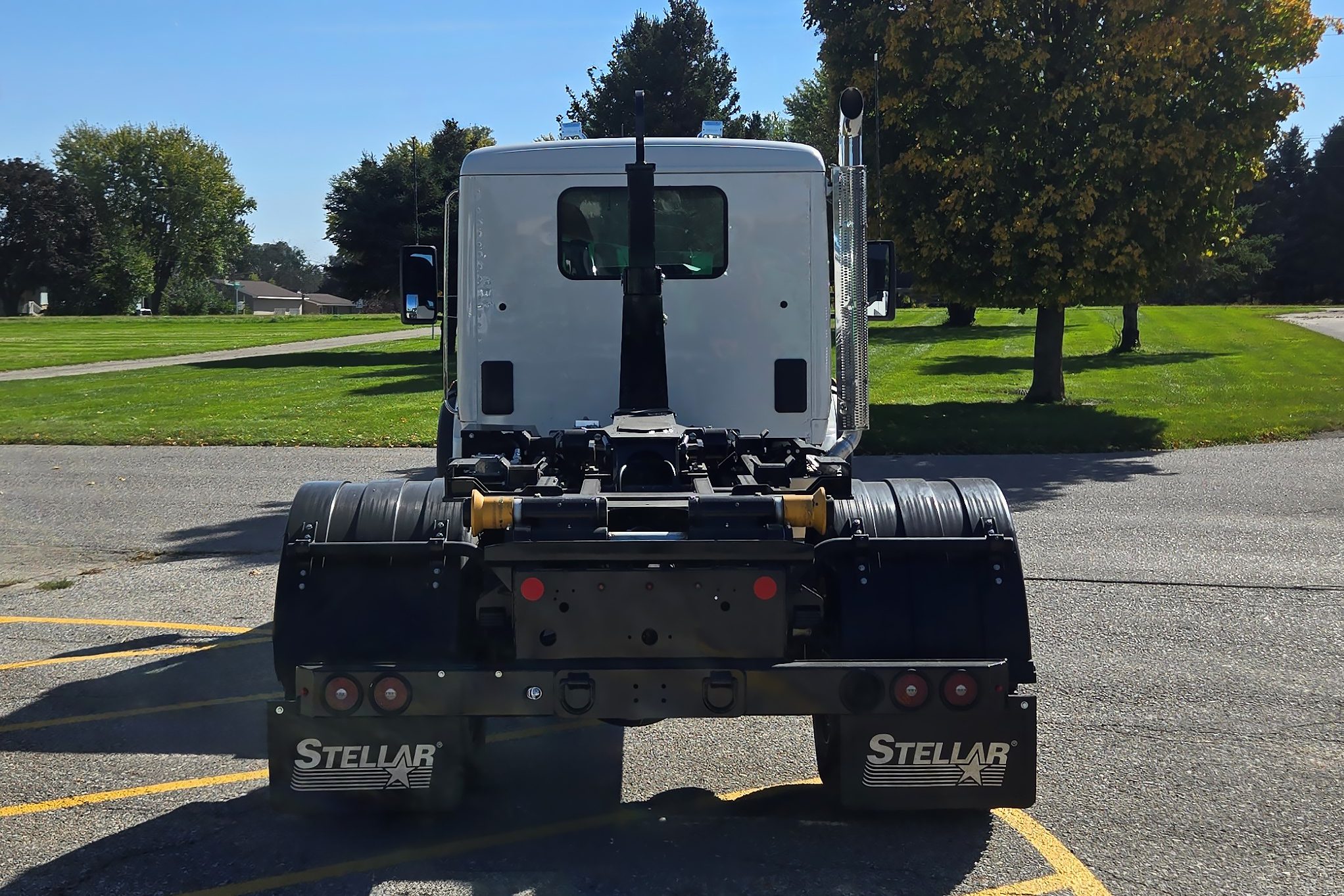

2025 Kenworth T280

• 132″ CA/200″ WB
• 26,000# GVW
• Paccar PX-7 300 HP Diesel
• Allison 3000
• 10,000# Front Axle
• 21,000# Rear Axle
• Horiz. Exhaust With Vertical Pipe
• air brakes
• 56-Gallon LH Fuel Tank
• 11R22.5 Tires
• Air Cond.
• Air Cushion Driver’s Seat

Stellar NXT24S

• Double Pivot
• 24,000 lb Capacity Hooklift
• Hoist With Z-rail Base
• Telescopic Jib
• Manual Adjustable 35 5/8″ – 54” Hook Height,
• Dump Designed To Accept Bolt-On Latches
• Single Rear Rollers
• 63° Dump Angle
• (4) Roller Style Body Saddles
• 25-Gallon Hydraulic Reservoir
• Maximum 24 GPM Hydraulic Flow
• Hydraulic Operating Pressure Of 4,500 PSI
• Includes:

• • 141807 JIB ASM NXT24/30S 36/54HH
  • 141805 SECONDARY ASM NXT24/30S
  • 141803 DUMP ASM NXT24/30S
  • 141801 BASE ASM NXT24/30S
  • 140048 MNT KIT NXT24/30
  • 130144 RSRVR ASM 25GAL SQUARE

• Outside Pass Thru Body Lock
• Standard Zinc Pins
• Standard Black Paint

Hydraulics

• 2-Function Air Control
• Includes 2-Function Air Tower
• 2-Section Valve Bank Assembly
• Valve Bank Mounting And Hoist Up Indicator Light

Accessories

• Reinforced Bumper To Accept Pintle Hitch
• LED Light Kit (FMVSS108 compliant)
• Backup Alarm
• Pump Kit Hyd Piston
• 1.95CID
• 2.00 Suction
