1004 Tire Service Truck

The Stellar® 1004 Tire Service Truck is a fuel-efficient service body for metro, road and light truck fleet tire service. The automotive styling makes the Stellar 1004 a unique and attractive package to represent your company’s image.

Print

Additional Information

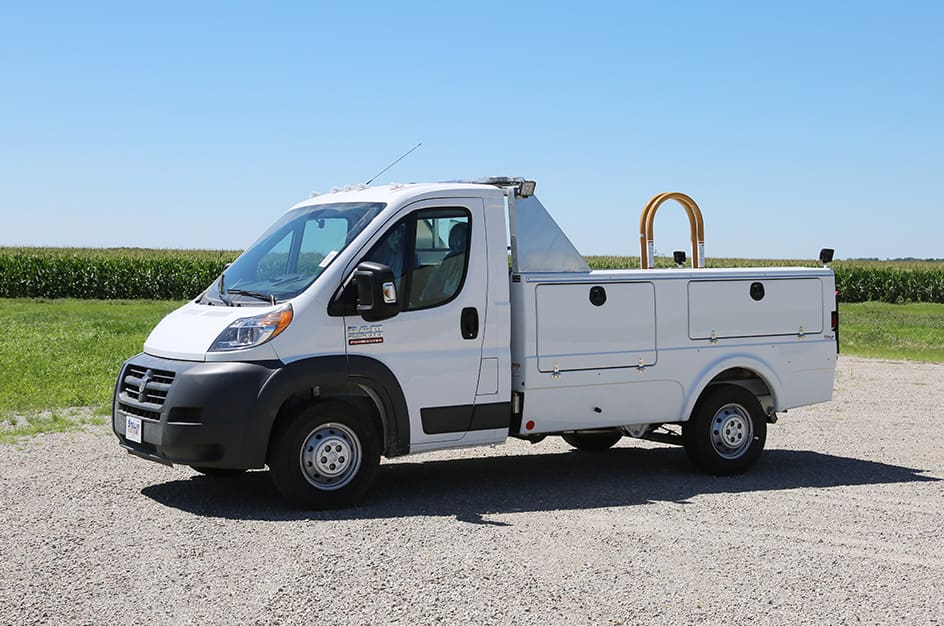

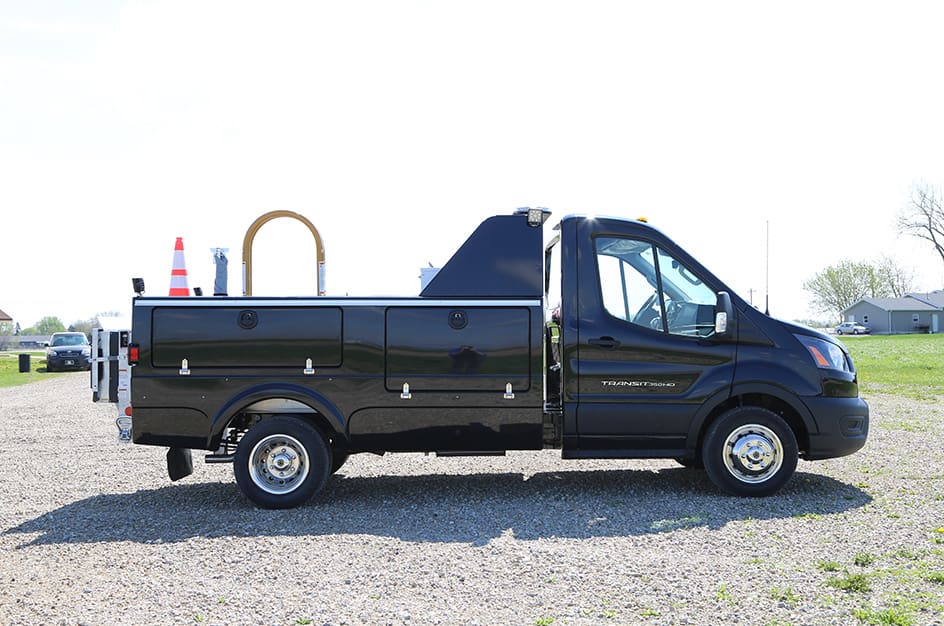

Built to mount on a Ford Transit and RAM ProMaster van chassis, the Stellar 1004 features aluminum and fiberglass construction to maintain a strong yet lightweight construction. The aluminum frame and floors are formed and welded, and the fiberglass shell is impregnated with gelcoat to match the standard white chassis to provide a long-lasting, durable finish.

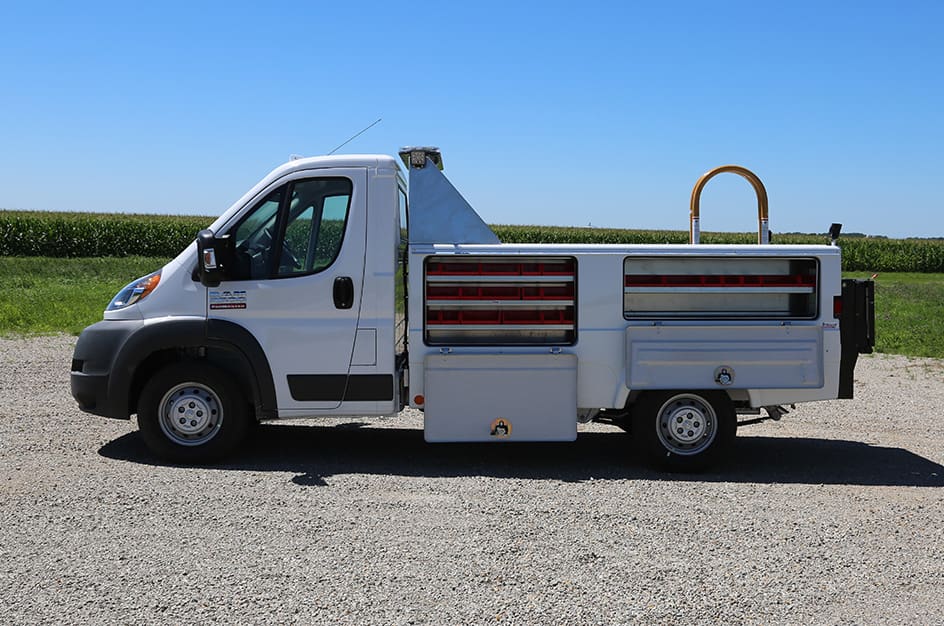

The 1004 body comes equipped with large front compartments and drop-down doors for maximum tool storage and unrestricted access. The longer horizontal compartments are ideal for air reels and a fuel hose for road service applications.

The Stellar 1004 can be mounted on a van chassis with 82″ – 83″ CA. The body is 10′ long and features a 49.5″ wide load bed and 12.8″ deep side packs. The load bed floor and walls are made of durable, lightweight and corrosion-resistant aluminum.

Service Body Features:

  • 10′ long body
  • Corrosion-resistant materials
  • FRP composite exterior
  • Solid gelcoat impregnated into FRP to provide a long-lasting and durable finish
  • Durable aluminum floor, wall and understructure
  • 4 tool compartments
  • All tool compartments feature black, powder-coated, compression-style T-handles with tamper-resistant locking mechanism

Specifications:

The 1004 Series features your choice of the 13 hp or 20 hp gas-powered, two-stage industrial air compressor or the 46P two-stage piston hydraulic air compressor.

Optional Equipment:

  • 1,300-lb electric-hydraulic liftgate
  • Hydraulic-driven air compressor
  • Engine-driven air compressor
  • Air compressor/12V jump start unit
  • Air hose reels
  • Filter/lubricator/regulator (FLR)
  • Fuel caddy
  • Tire inflation cage
  • Safety cones

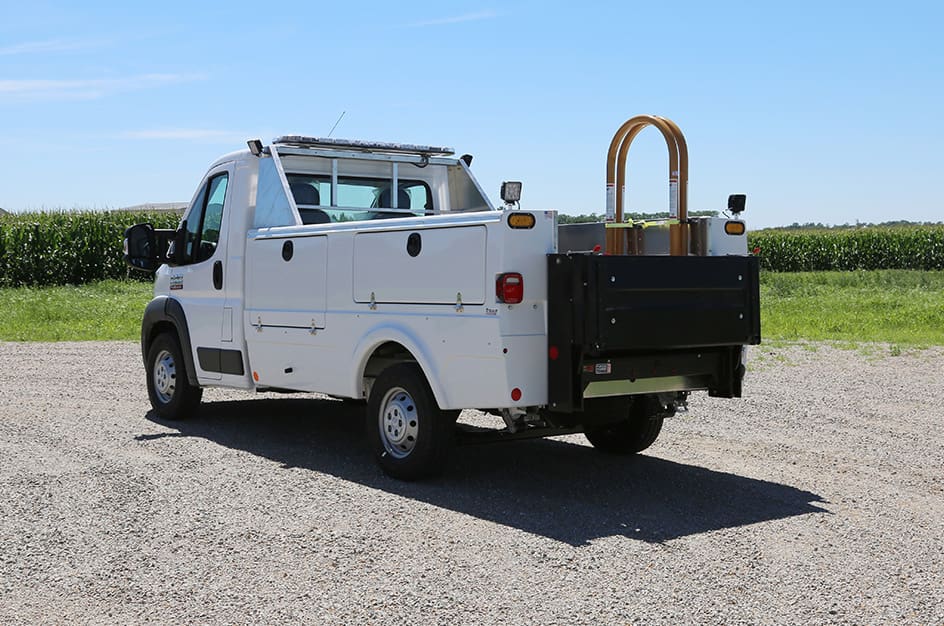

Liftgate Features:

  • Electric-hydraulic liftgate with 1,300-lb capacity
  • Side loading rail and tire stop
  • Hydraulic lift cylinder
  • 54″ loading platform raises on an arc to prevent bumping of the rear body

Jumpstart Equipment Packages

We offer two jumpstart equipment packages for the commercial road service and truck stop markets.

Jumpstart System #1:

  • 13 hp gas-driven air compressor 23 cfm @ 175 psi
  • Portable Start All Jump Pack for 12V to 24V jumpstarting
  • 30-gallon diesel refueling system with 12V pump with meter and 50′ hose reel with nozzle

Jumpstart System #2:

  • 30-gallon diesel refueling system with 12-volt pump with meter and 50′ hose reel with nozzle
  • Cap Start 3000A with air
    • 3,000-amp jumpstart
    • 24 cfm max 175 psi air compressor powered by a 22.5 hp gas engine

Other Equipment:

  • 1,300-lb electric-hydraulic liftgate
  • 3/8″ and 1/2″ hose reels
  • Air filter, lube and regulator system
  • Tire inflation cage
  • Emergency road service strobe lighting
  • 12V LED compartment and work lights
