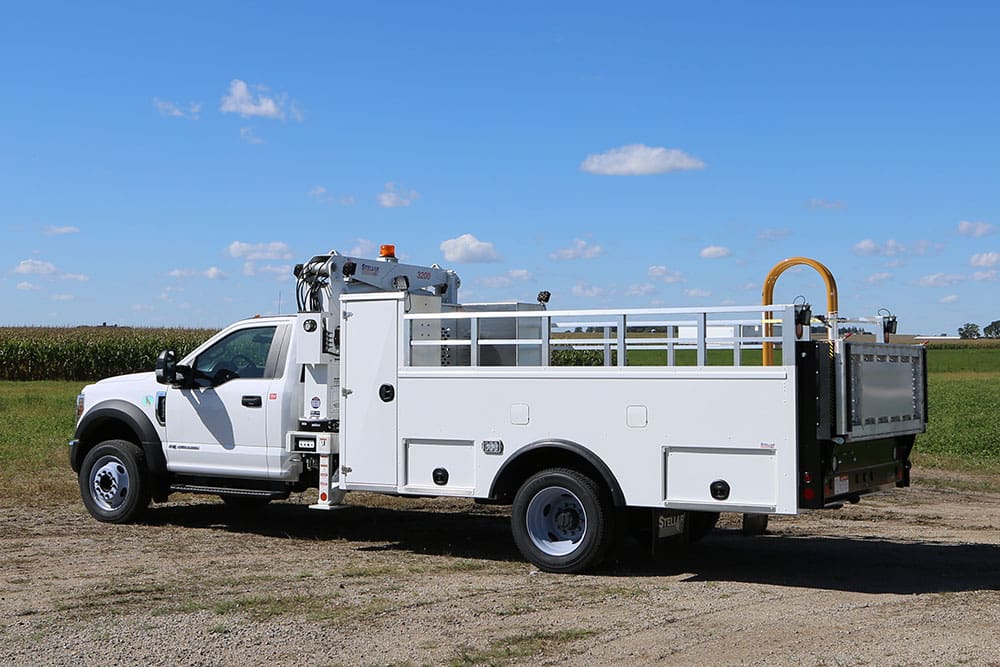

1302 Mini OTR Tire Service Truck
The Stellar® 1302 Series Mini OTR Tire Service Trucks are built for multi-purpose use. They are the ideal, multi-functional tire service trucks capable of meeting any size commercial truck and mini OTR tire dealer’s needs. The 13′ or 15′ aluminum body offers a greater payload, larger capacity and state-of-the-art components.
The industry-proven 1302 body centers around an advanced use of design and materials. The 1302 truck’s sub-structure features an extruded aluminum plank floor, designed to be stronger, more durable and longer lasting than a flat sheet of deck plate commonly found on most tire service bodies.

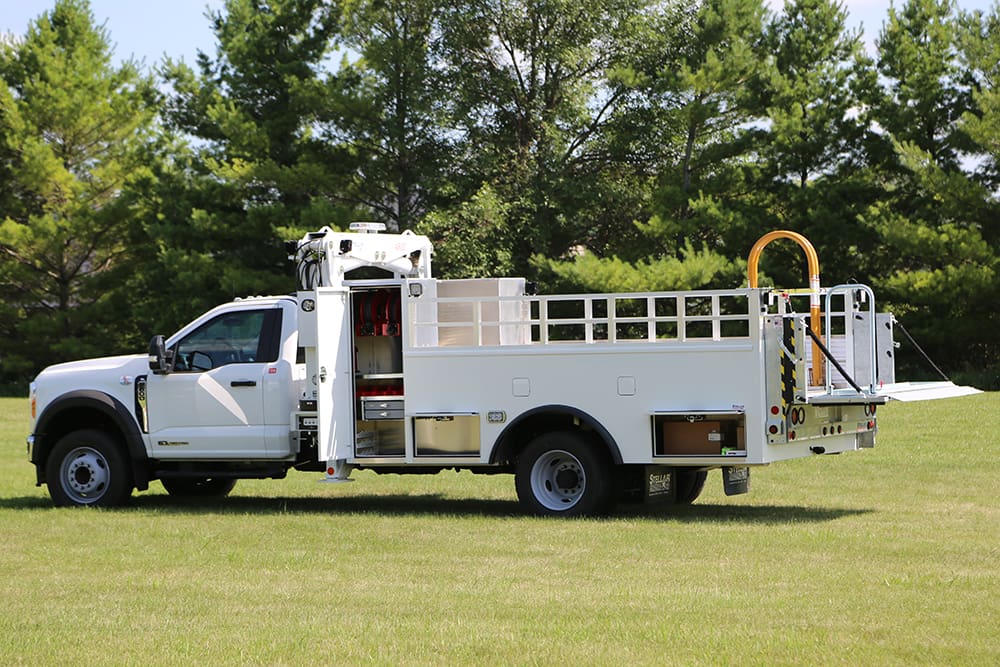

The driver-side front vertical cabinet has optional 3/8″ x 50′ and 1/2″ x 50′ hose reels along with an air filter and regulator mounted to the top of the compartment for ease of accessibility. Other available options include a 2-drawer cabinet with a 15-pin socket rack and compartment lights.
Additional Information
Service Body Features:
- 13′ or 15′ long all aluminum body
- 43″ high x 96″ wide body is designed to hold 3 rows of 8 standard truck tires
- Tool compartments with over 72 cubic feet of user-friendly storage
- Slide-top doors on tool compartments
- Recessed, skirt-mounted LED floodlights
- Seamless 22″ high sign panels

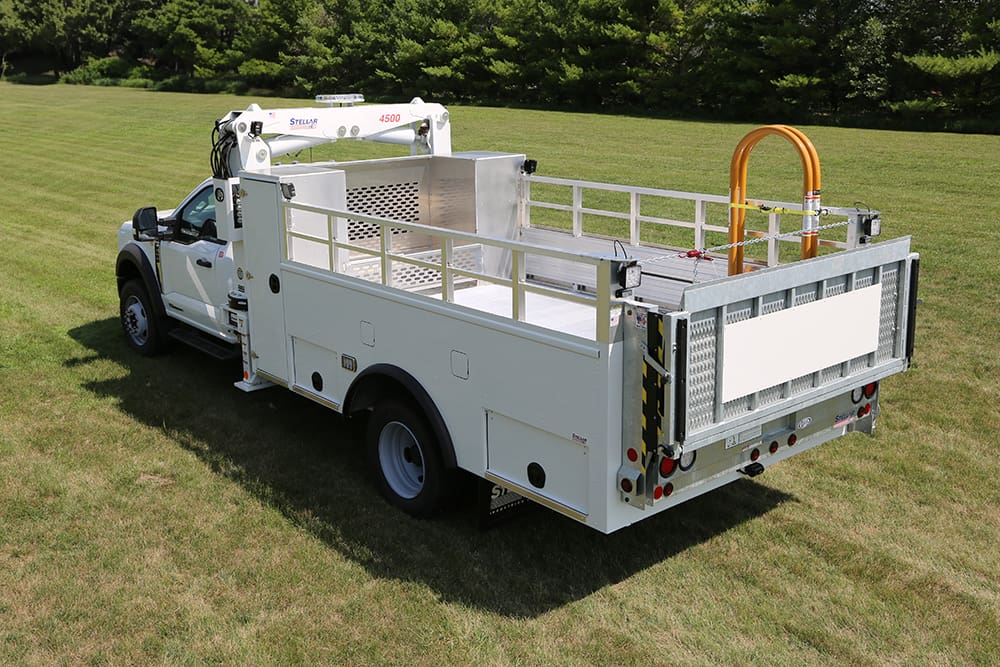

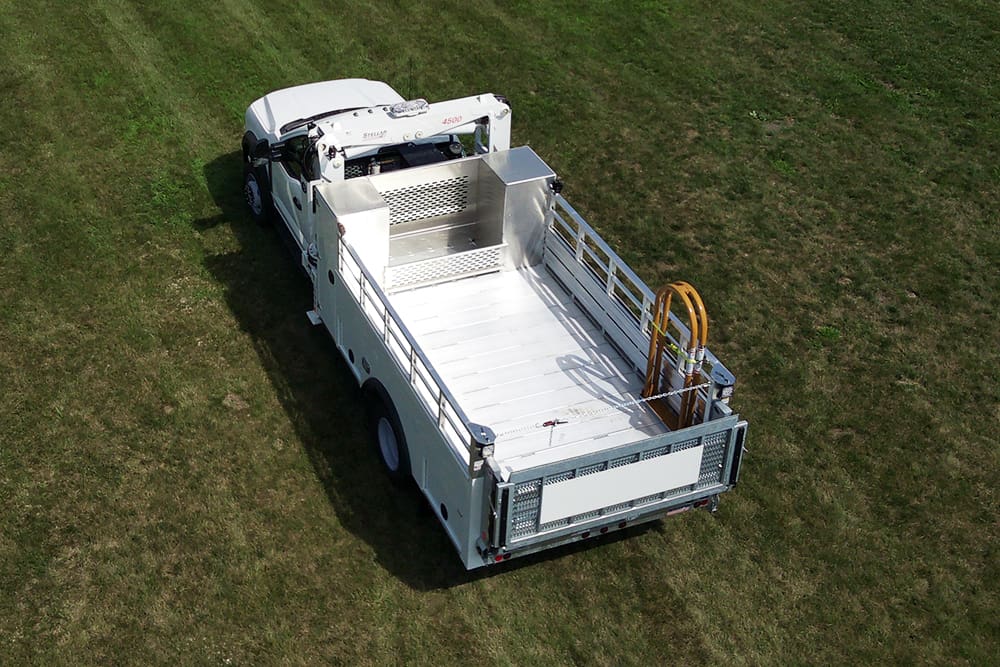

- Extruded aluminum plank floor
Cranes

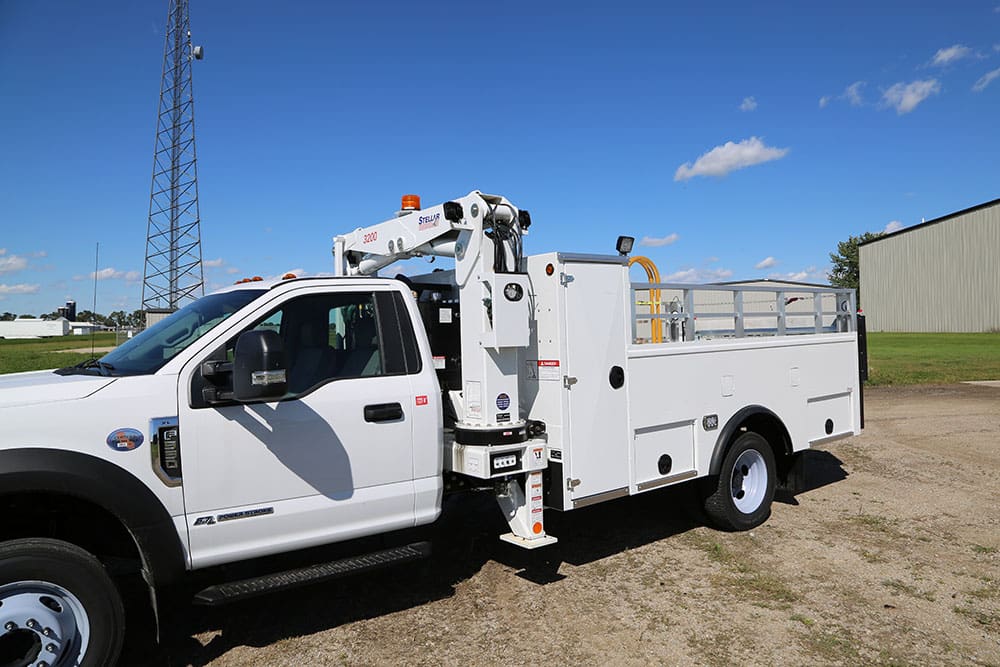

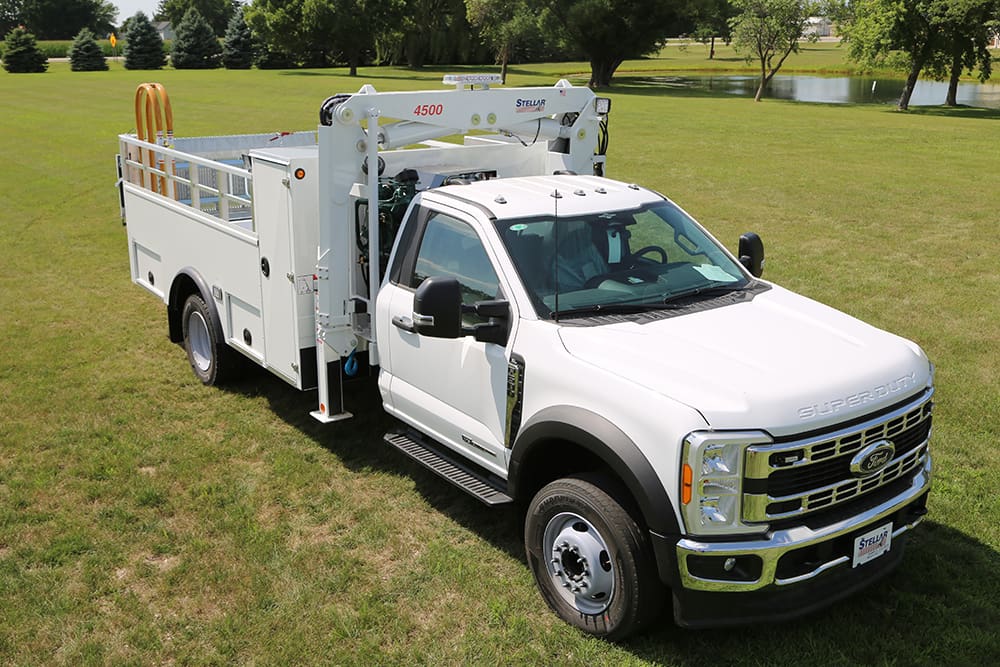

The 1302 Series mini OTR trucks can be equipped with either a model 3200, 4500 or 6000 hydraulic knuckle boom crane. These cranes are designed to handle the largest of farm tires and the smaller sized OTR tires. These cranes are both operated by a standard, fully proportional radio remote control. Optional accessories include: 1/2″ x 50′ and 3/8″ x 50′ hose reels, plastic storage bins and socket racks.
The 46P hydraulic-drive compressor is mounted on the crane base. This compressor has a 46 cfm at 175 psi output. The location allows for cool, clean, fresh air intake and easy maintenance and serviceability.
Crane Features:
- Fully proportional radio remote control
- Fully enclosed extension boom cylinder
- Hexagon-shaped secondary and extension
- Integral-mounted pump and PTO
- Load-holding counterbalance valves
Specifications
| 3200 Crane | |
| Rating: | 32,000 ft-lbs (4.42 t-m) |
| Lifting Capacities: | 5,000 lbs (2,268 kg) in close |
| 2,200 lbs (998 kg) at full extension | |
| Controls: | Proportional radio control |
| Stowed Height: | 68.50" (173.99 cm) |
| Mounting Space Req: | 24" (60.96 cm) |
| Shipping Weight: | 1,900 lbs (862 kg) |
| 4500 Crane | |
| Rating: | 45,000 ft-lbs (6.22 t-m) |
| Lifting Capacities: | 7,500 lbs (3,402 kg) in close |
| 3,200 lbs (1,452 kg) at full extension | |
| Controls: | Proportional radio control |
| Stowed Height: | 72" (182.88 cm) |
| Mounting Space Req: | 26" (66.04 cm) |
| Shipping Weight: | 2,400 lbs (1,089 kg) |
| 6000 Crane | |
| Rating: | 60,000 ft-lbs (8.29 t-m) |
| Lifting Capacities: | 10,000 lbs (4,536 kg) in close |
| 4,250 lbs (1,927 kg) at full extension | |
| Controls: | Proportional radio control |
| Stowed Height: | 77" (195.58 cm) |
| Mounting Space Req: | 32" (81.28 cm) |
| Shipping Weight: | 3,150 lbs (1,429 kg) |
| NOTE: All Stellar cranes meet ANSI B30.22 and OSHA 1910.180 specifications. |
