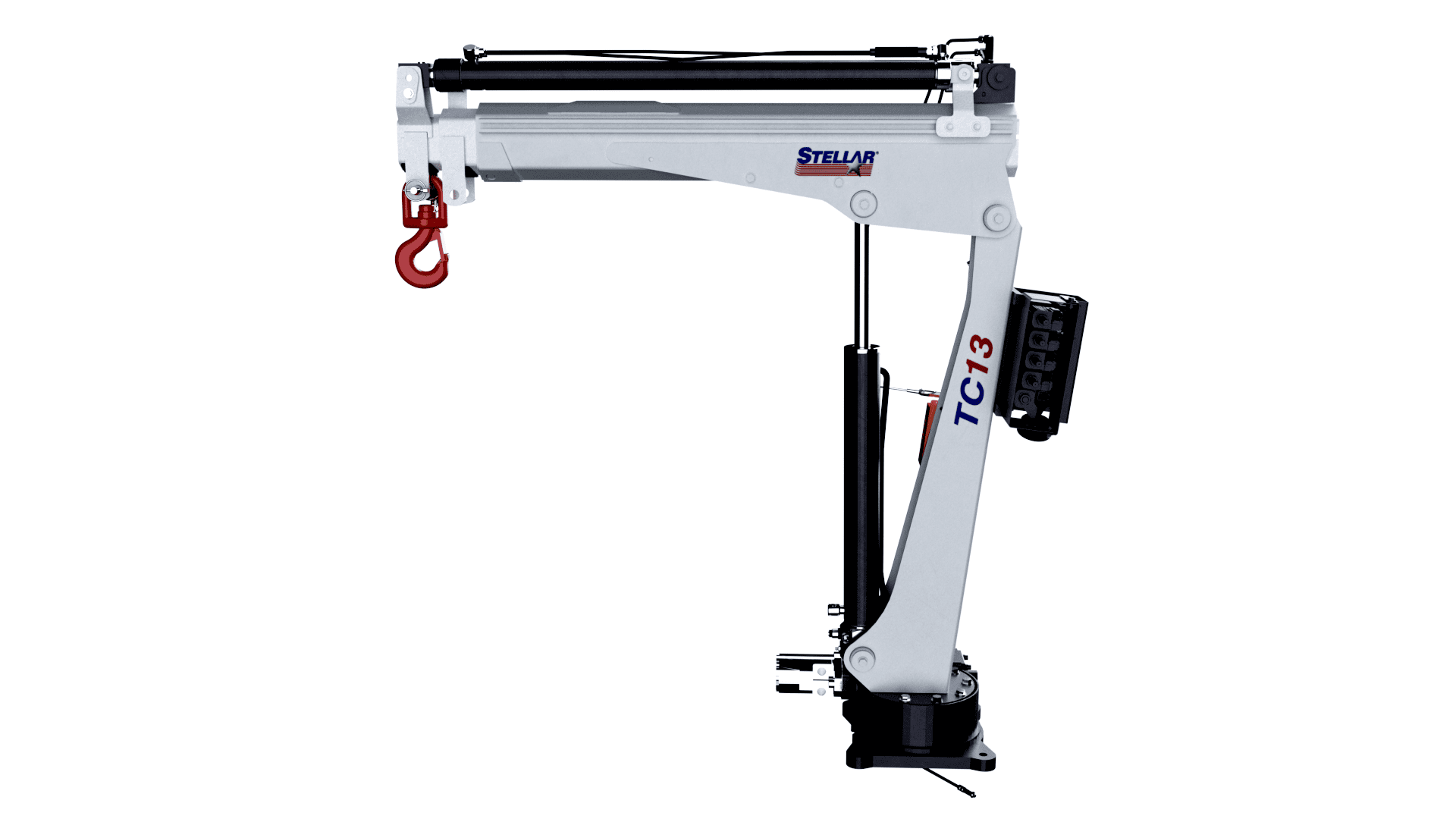

TC13 T-Boom Service Crane

2,400-lb Capacity with 8.1′ of Reach

Small but powerful, the Stellar® TC13 Truck-Mounted T-Boom Crane packs a lot of muscle into a streamlined frame.

Print

Additional Information

  • Space-Saving Design. Engineered to occupy minimum bed space while providing a high load-lifting radius.
  • Proportional Radio Remote. Works with the CDT™ Radio Remote Control System for safe, convenient operation away from the load.
  • Selection. Available as the standard TC13 and the optional TC13 With Winch.
  • Certified. Meets ANSI B30.5 and OSHA 1910.180 specifications.

Specifications

TC13 (standard)
Crane Rating: 8,600 ft-lb
Max Lifting Capacity: 2,400 lbs (1,090 kg)
Maximum Horizontal Reach: 8.86' (2.7 m)
Crane Rotation: 410°
Operating Pressure: 2,750 psi
Pump Capacity: 2.5 gal/min (9.5 l/min)
Weight: 420 lbs (190 kg)
Min. Rec. Chassis (GVRW)*: 10,500
TC13 with Winch (optional)
Crane Rating: 8,600 ft-lb
Max Lifting Capacity: 1,600 lbs (725 kg)
Maximum Horizontal Reach: 8.86' (2.7 m)
Crane Rotation: 410°
Operating Pressure: 2,750 psi
Pump Capacity: 2.5 gal/min (9.5 l/min)
Weight: 560 lbs (254 kg)
Wire Rope: 1/4" (0.63 cm) 7x19 GAC x 65' (19.81 m)
Min. Rec. Chassis (GVRW)*: 10,500

Optimize your Service vehicle

Because different people use service vehicles in different ways, Stellar makes it easy to outfit yours with a wide range of accessories.
