138 Mid-Size OTR Tire Service Trucks

The Stellar® 138 Series of Mid-Size OTR Tire Service Truck is the perfect choice when a mini OTR is not quite large enough, or when more storage is required.

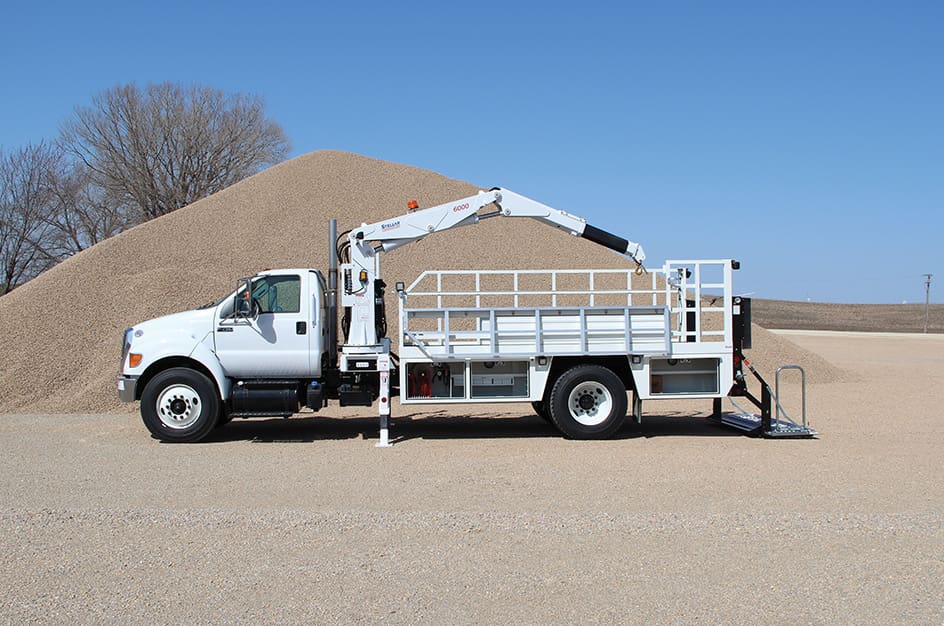

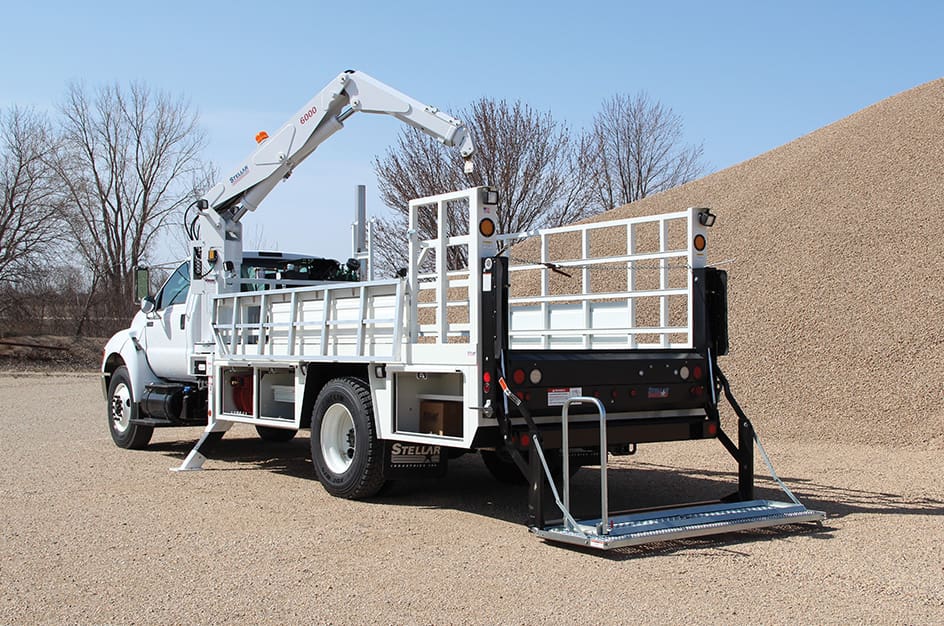

The standard driver side rail folds down for ease and safety of loading and unloading of tires, as well as sign boards for identification. All the underbody tool compartments come standard with the exclusive Stellar slide-top doors for unobstructive storage access. Stainless-steel automotive-style slam latches and hardware are standard on all tool compartments.

Accessories include: 1/2″ x 50′ and 3/8″ x 50′ hose reels, plastic storage bins and socket racks.

Print

Additional Information

Sized Just Right

Stellar Mid-Size 138-Series OTR Tire Service Trucks are the perfect choice when a mini OTR tire service truck is not quite large enough to tackle the task at hand, or when a large OTR tire service truck isn’t quite necessary. These mid-size trucks are the epitome of versatility, which comes from the combination of hardworking features — like the rock-solid steel service body, swift tire-handling crane, durable tire-loading liftgate and large hydraulic-driven air compressor. All features and components are specifically designed for the tire industry with the user in mind.

  • Heavy duty steel construction.
  • 15′ long body.
  • Rack body option has 46″ high racks.
  • The standard driver side rail folds down for ease and safety of loading and unloading of tires, as well as sign boards for identification.
  • Abundant storage to hold any and all tools needed for the job.
  • All the underbody tool compartments come standard with exclusive Stellar slide-top doors that slide up and in to allow for fast and easy access inside the compartments.
  • A storage compartment houses the 3/8″ and 1/2″ hose reels, along with the FLR (filter, lubricator and regulator).
  • Recessed, skirt-mounted LED floodlights.
  • Entire body is undercoated.

The Strength of Steel

OTR tire service trucks tend to face the most rugged work environments, so the durability and strength of steel helps ensure a longer and more productive service life. Stellar’s steel-bodied mid-size OTR tire service trucks are superior in withstanding rough roads and off-road conditions.

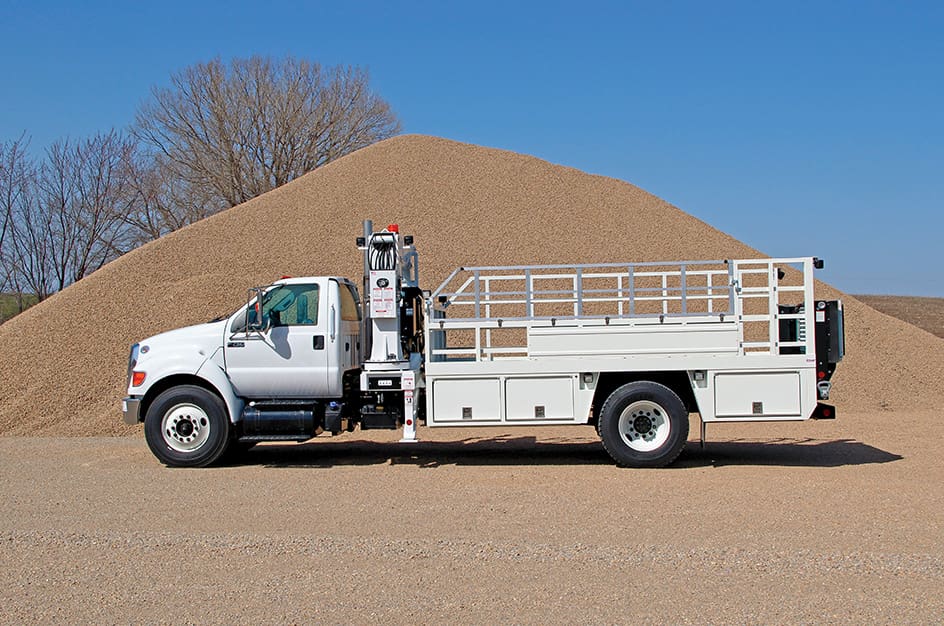

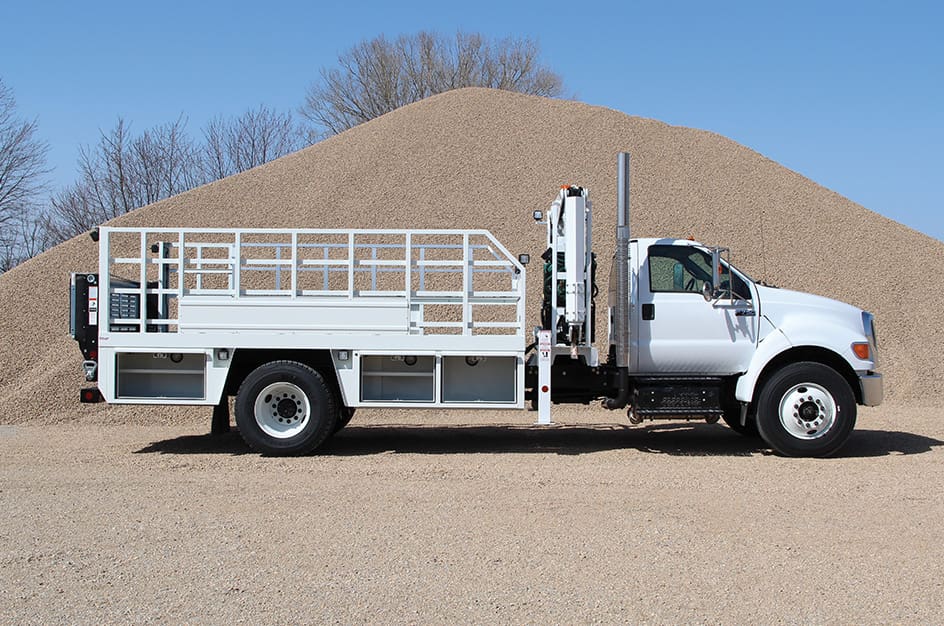

138 Service Body Features:

  • 15′ long body
  • The rack body has 46″ high racks (driver side folds down)
  • Slide-top doors on all tool compartments
  • Recessed, skirt-mounted LED floodlights
  • Entire body is undercoated

138-15 Mid-Size OTR Tire Service Truck:

  • The 138-15 service body comes in either a 15′ flatbed or with a 15′ rack body with over 60 cubic feet of storage for a combination OTR, fleet and ag service vehicle.
  • 6 underbody tool compartments.
  • A removable liquid ballast skid works well for ag tire service.The left front storage compartment houses the 3/8″ and 1/2″ hose reels, along with the FLR (filter, lubricator and regulator).

138-215 Mid-Size OTR Tire Service Truck:

  • If abundant storage is what you need, Stellar’s 138-215 Mid Size OTR tire service truck boasts 80 cubic feet of storage with 4 underbody tool compartments and 2 vertical front-mounted tool compartments.
  • The 15-foot rack body will hold approximately 40 large truck tires. A removable liquid ballast skid works well for ag tire service.
  • The main storage compartment houses the 3/8″ and 1/2″ hoses, which are top-mounted up and out of the way, along with the FLR (filter, lubricator and regulator) and a 12V trouble light reel.

Cranes

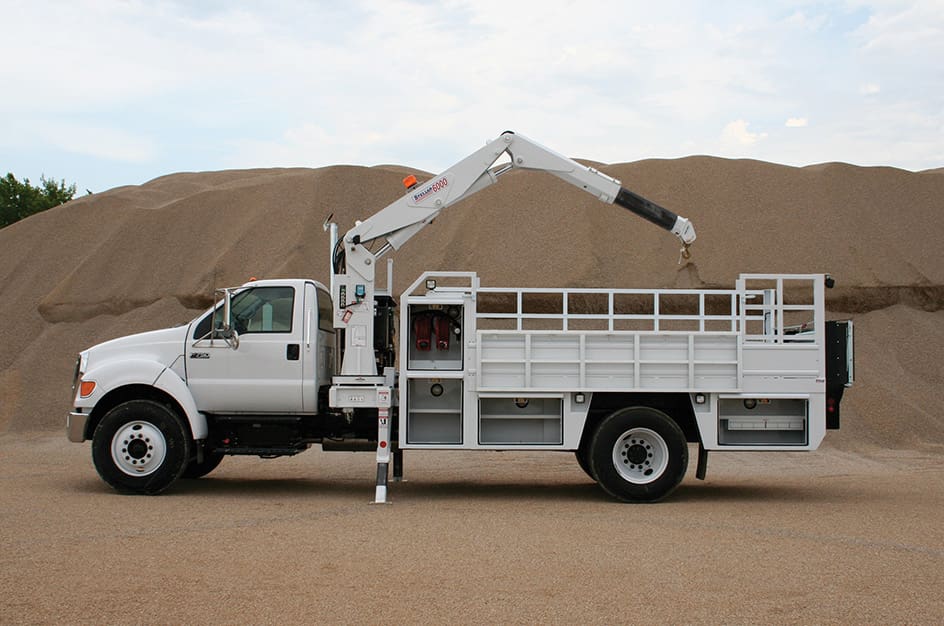

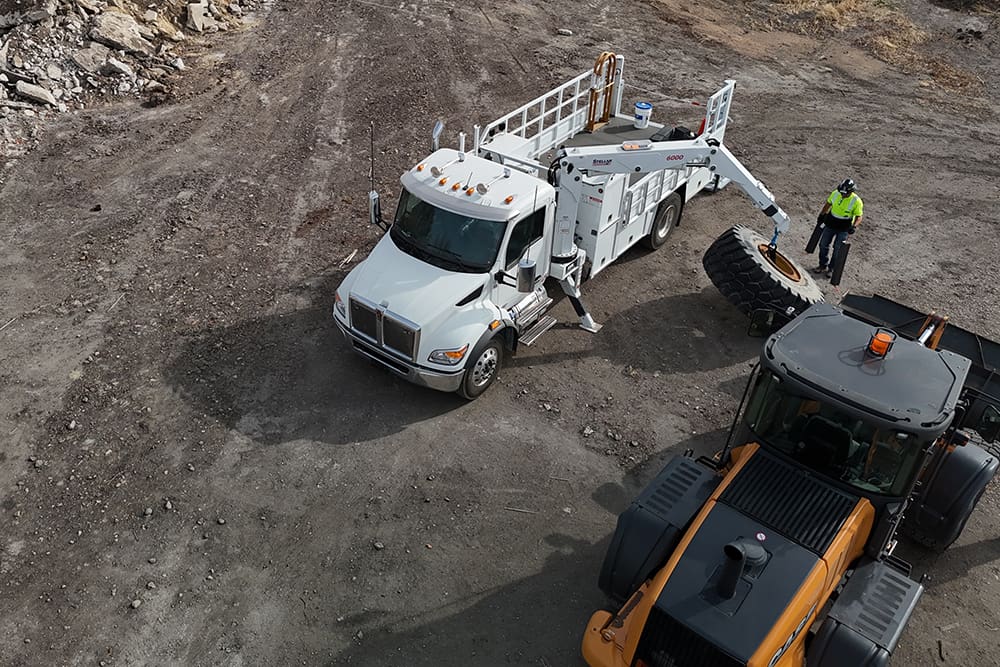

The 138 Series Mid-Size OTR trucks can be equipped with either a model 3200, 4500 or 6000 hydraulic knuckleboom crane. These cranes are designed to handle the largest of farm tires and smaller sized OTR tires, and they are operated by a standard fully proportional radio remote control. The 6000 Series crane will handle up to and including the 45/65 x 45 OTR tire. This package provides 8,500 lbs of payload.

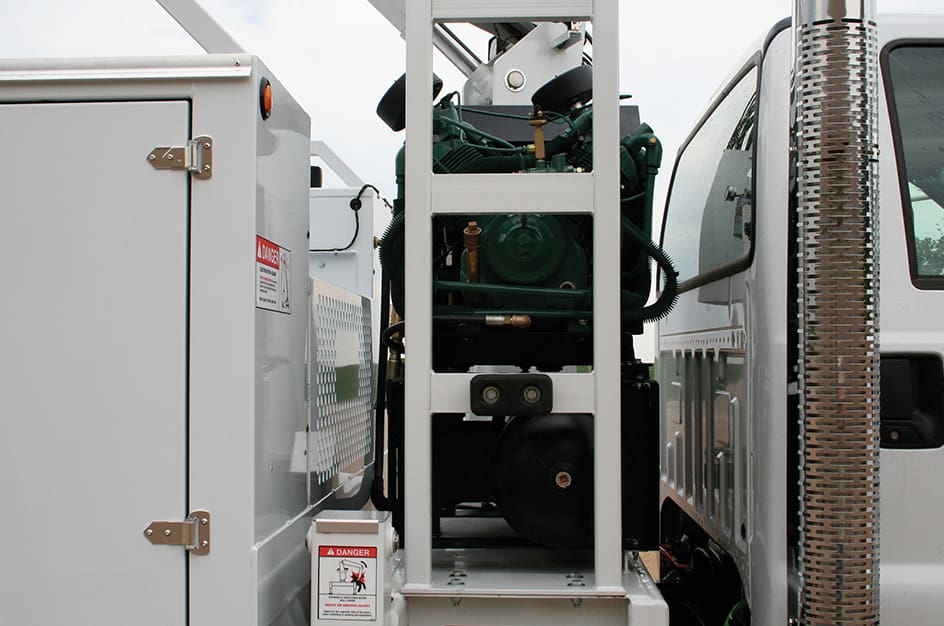

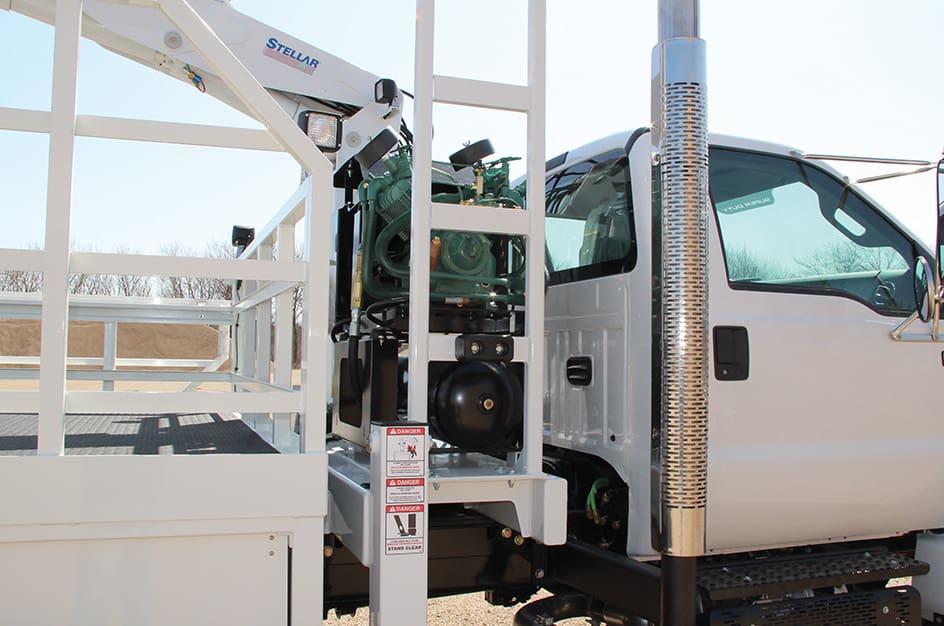

The 46P hydraulic-drive air compressor is mounted on the crane base. This compressor has a 46 cfm at 175 psi output. The location allows for cool, clean, fresh air intake and easy maintenance and serviceability.

Crane Features:

  • Fully proportional radio remote control
  • Fully enclosed extension boom cylinder
  • Hexagon-shaped secondary and extension
  • Integral-mounted pump and PTO
  • Load-holding counterbalance valves

SPECIFICATIONS

3200 Crane
Rating: 32,000 ft-lbs (4.42 t-m)
Lifting Capacities: 5,000 lbs @ 9' (2,270 kg @ 2.74 m)
2,200 lbs @ 17' (1,000 kg @ 5.18 m)
Controls: Proportional radio control
Stowed Height: 60" (152.4 cm)
Mounting Space Required: 24" (60.96 cm)
Shipping Weight: 1,900 lbs (862 kg)
4500 Crane
Rating: 45,000 ft-lbs (6.22 t-m)
Lifting Capacities: 7,500 lbs @ 9' (3,400 kg @ 2.74 m)
3,200 lbs @ 17' (1,450 kg @ 5.18 m)
Controls: Proportional radio control
Stowed Height: 71" (180.3 cm)
Mounting Space Required: 26" (66.04 cm)
Shipping Weight: 2,400 lbs (1,089 kg)
6000 Crane
Rating: 60,000 ft-lbs (8.29 t-m)
Lifting Capacities: 10,000 lbs @ 9' (4,535 kg @ 2.74 m)
4,250 lbs @ 17' (1930 kg @ 5.18 m)
Controls: Proportional radio control
Stowed Height: 75" (190.5 cm) above truck frame
Mounting Space Required: 32" (81.28 cm)
Shipping Weight: 3,150 lbs (1,429 kg)
