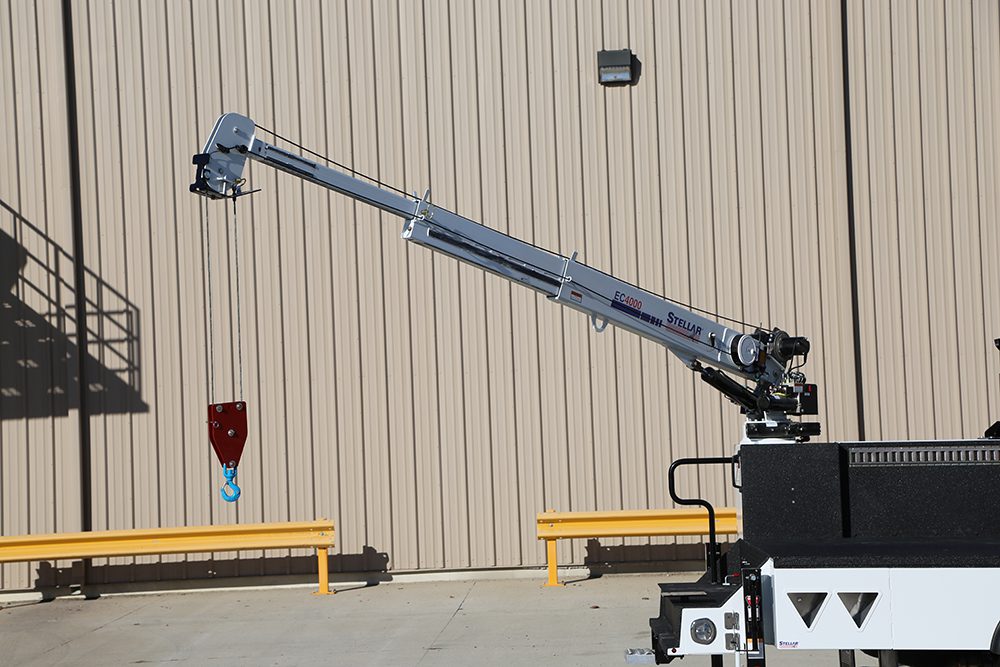

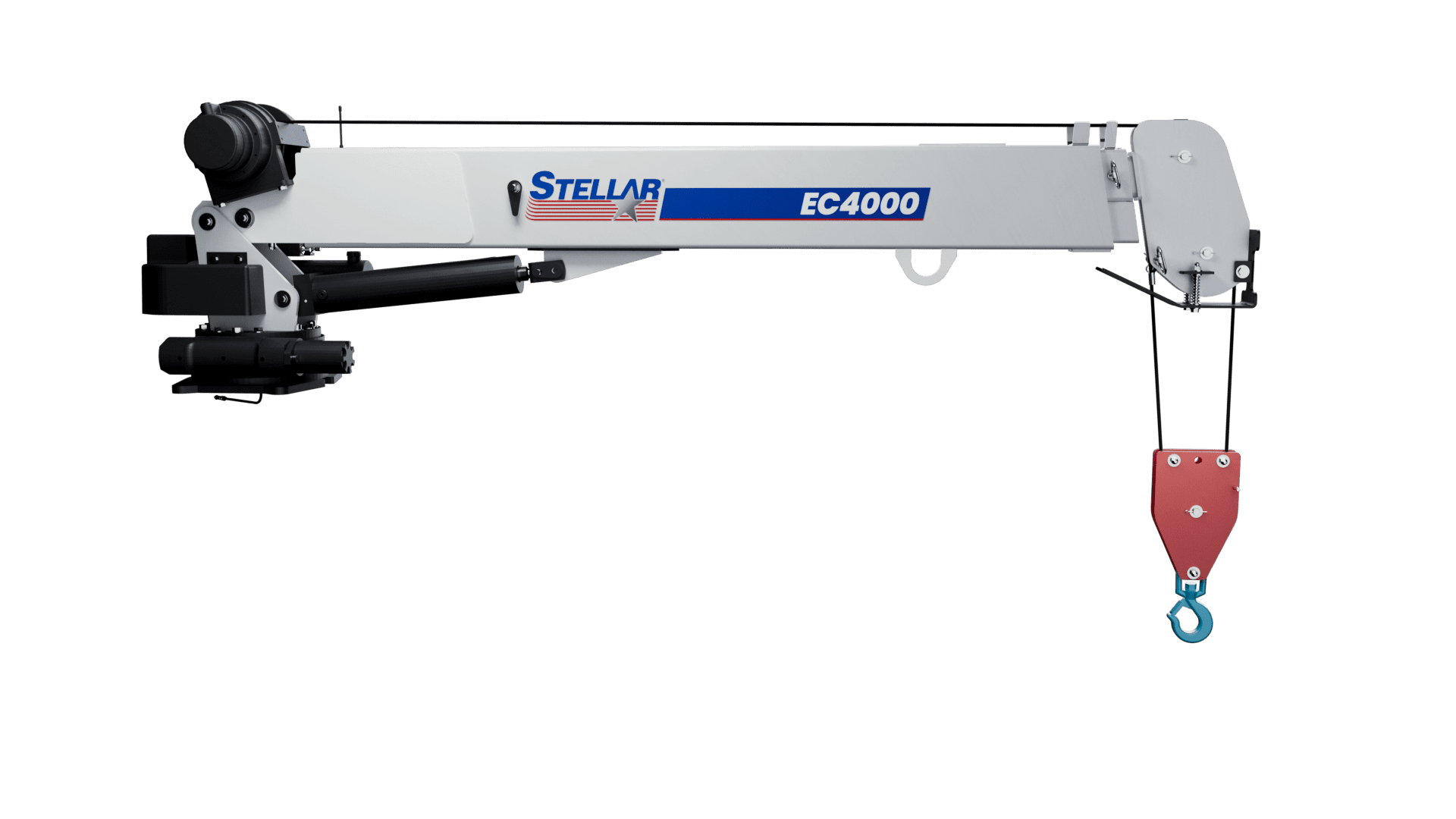

EC4000 Electric Crane

4,000-lb Capacity with 16′ or 20′ Horizontal Reach

Meet your lifting challenges with Stellar® EC4000 Electric Service Cranes. They combine the lifting power you need with the economy you want. You’ll handle a wide range of lifting needs, and operation is significantly quieter than hydraulic cranes so you can work at times and in locations where reduced noise is essential. Because you don’t have to maintain separate hydraulic components, you save on labor time and parts. You can also lower chassis costs because EC4000 Electric Cranes let you use a gas or diesel chassis without the need to add a power take-off (PTO) and pump to the chassis or a transmission that can handle the PTO and pump.

1 available in Inventory

Print

Additional Information

EC4000 Includes

  • Ball Bearing Rotation Gear for solid support and smooth operation
  • Steel Worm Gear for reliable speed control when rotating the shaft
  • Electric Planetary Winch that lifts the maximum crane load and offers the smoothest and fastest speeds in the market today for maximum productivity
  • Low-Profile Design for superior clearance
  • Exclusive Double-Boom Design for rigidity, strength and accuracy
  • Integral Rotation Stop with 410° rotation for the greatest performance while protecting wires and hoses from damage
  • Certification for ANSI B30.5 and OSHA 1910.180 specifications

Specifications

16' model 20' model:
Crane Rating: 16,000 ft-lbs (2.21 tm) 16,000 ft-lbs (2.21 tm)
Standard Boom Length: 8' (2.44 m) from CL of crane 10' (3.05 m) from CL of crane
Boom Extension:
• 1st Stage:
• 2nd Stage:

Hydraulic 48" (121.9 cm)
Manual 48" (121.9 cm)

Hydraulic 60" (152.4cm)
Manual 60" (152.4 cm)
Maximum Horizontal Reach: 16' (4.88 m) from CL of crane 20' (6.1 m) from CL of crane
Maximum Vertical Lift: 17' 4" (5.28 m) from crane base 21' 3" (6.48 m) from crane base

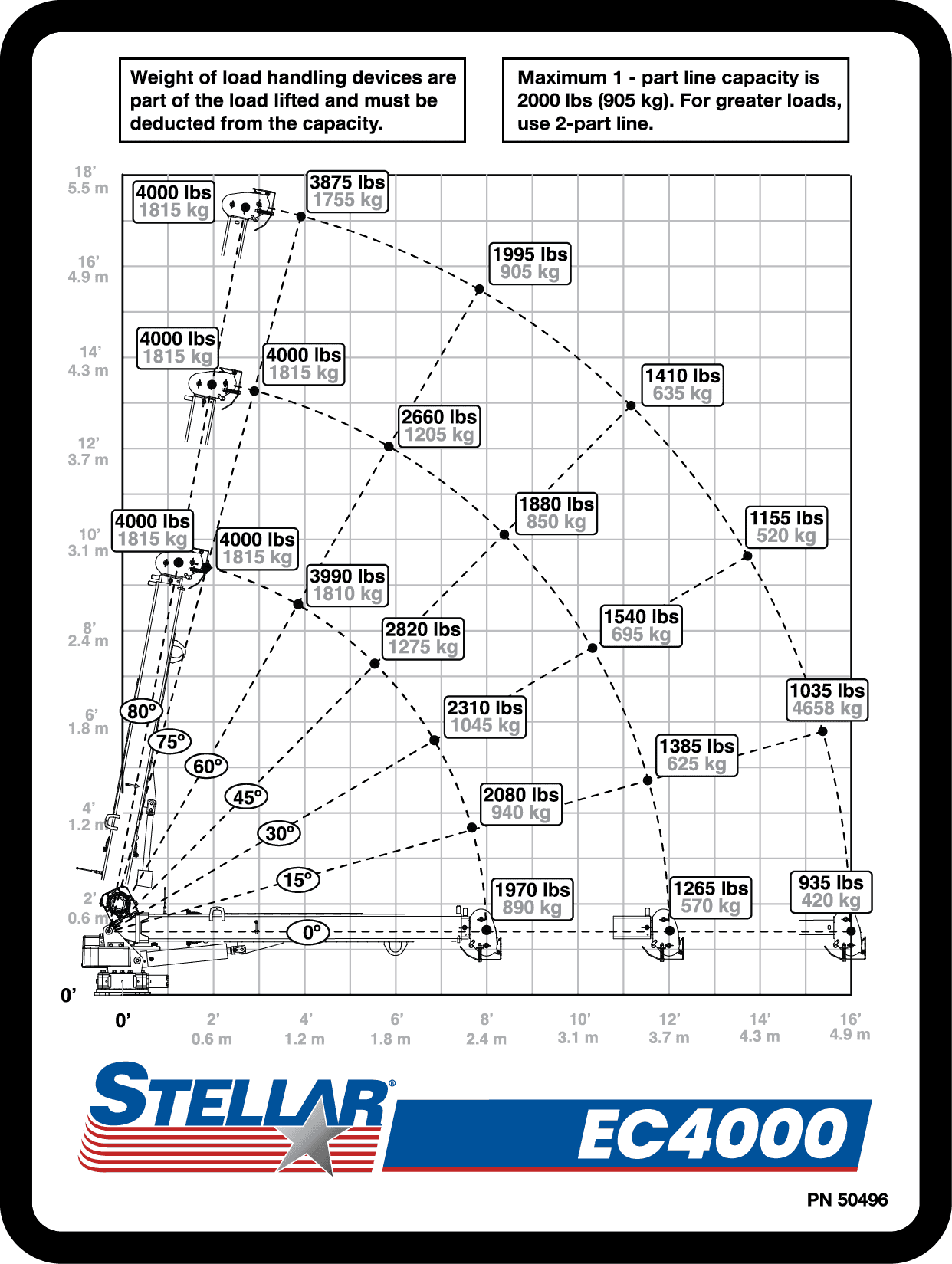

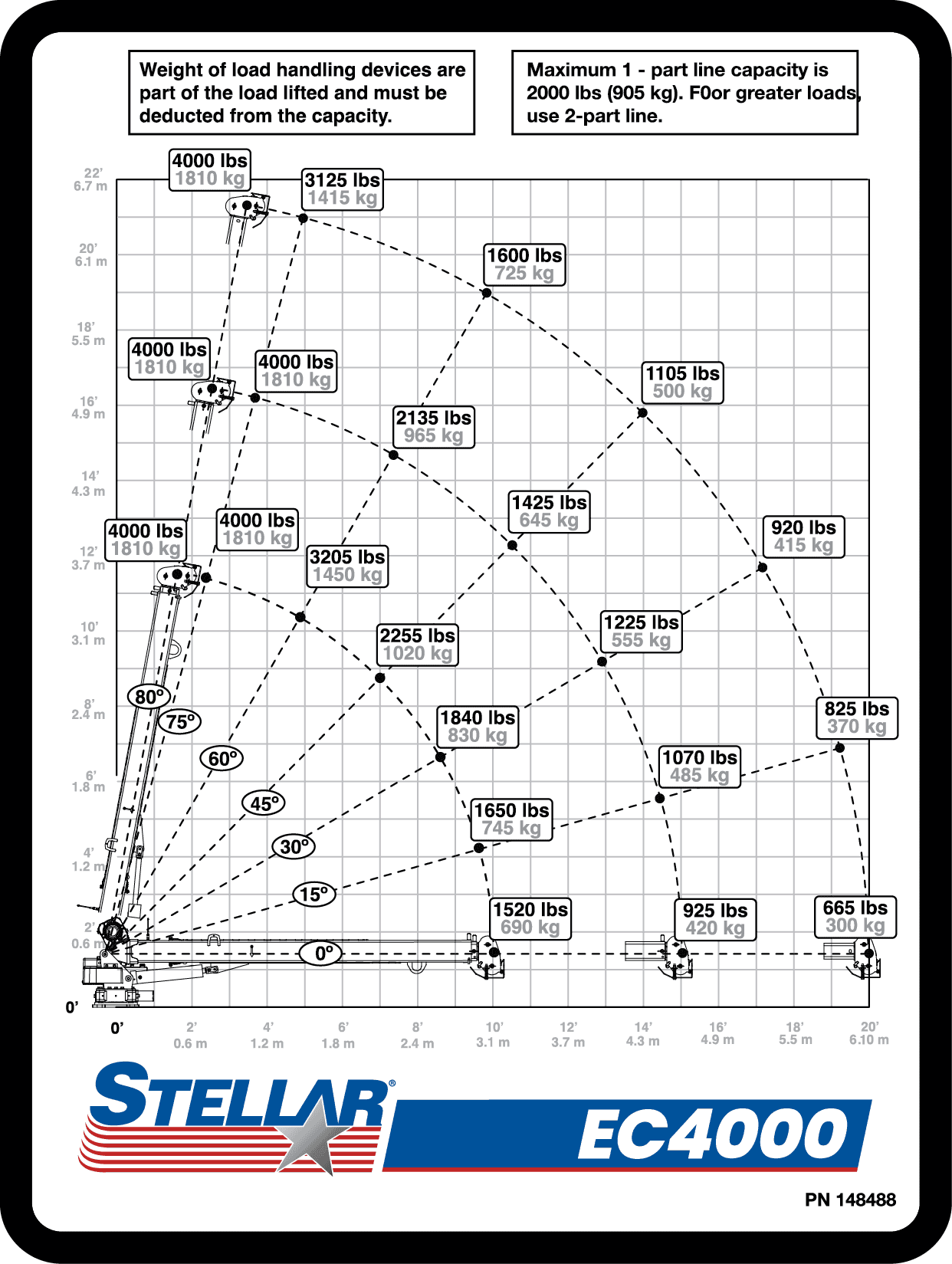

Lifting Capacity: 4,000 lbs @ 4' (1,814 kg @ 1.22 m)
935 lbs @ 16' (420 kg @ 4.88 m)
4,000 lbs @ 4' (1,814 kg @ 1.22 m)
800 lbs @ 20' (363 kg @ 6.1 m)
Boom Elevation: -5° to +80° -5° to +80°

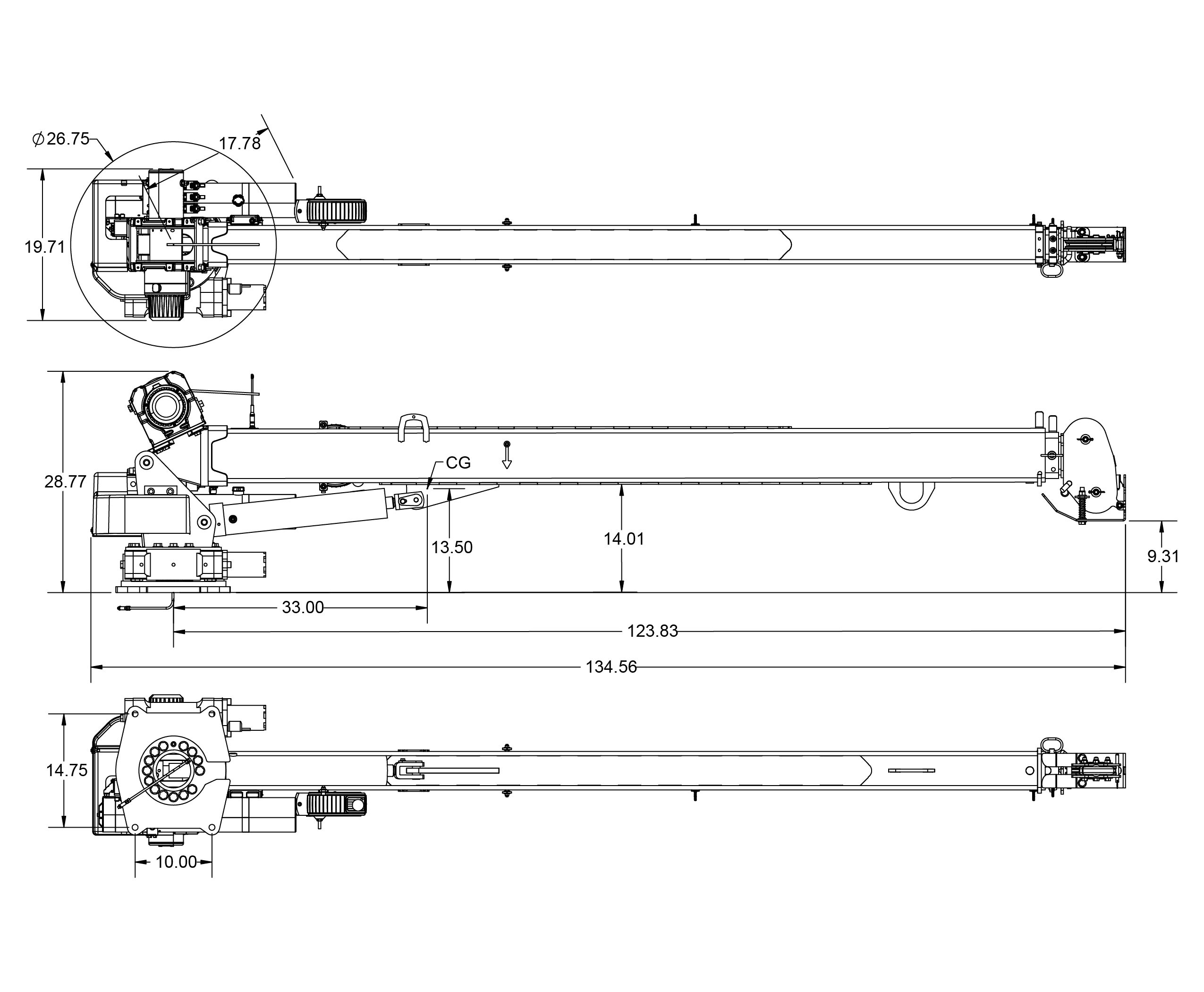

Stowed Height (crane only): 28.53" (72.47 cm) 29.53" (75 cm)

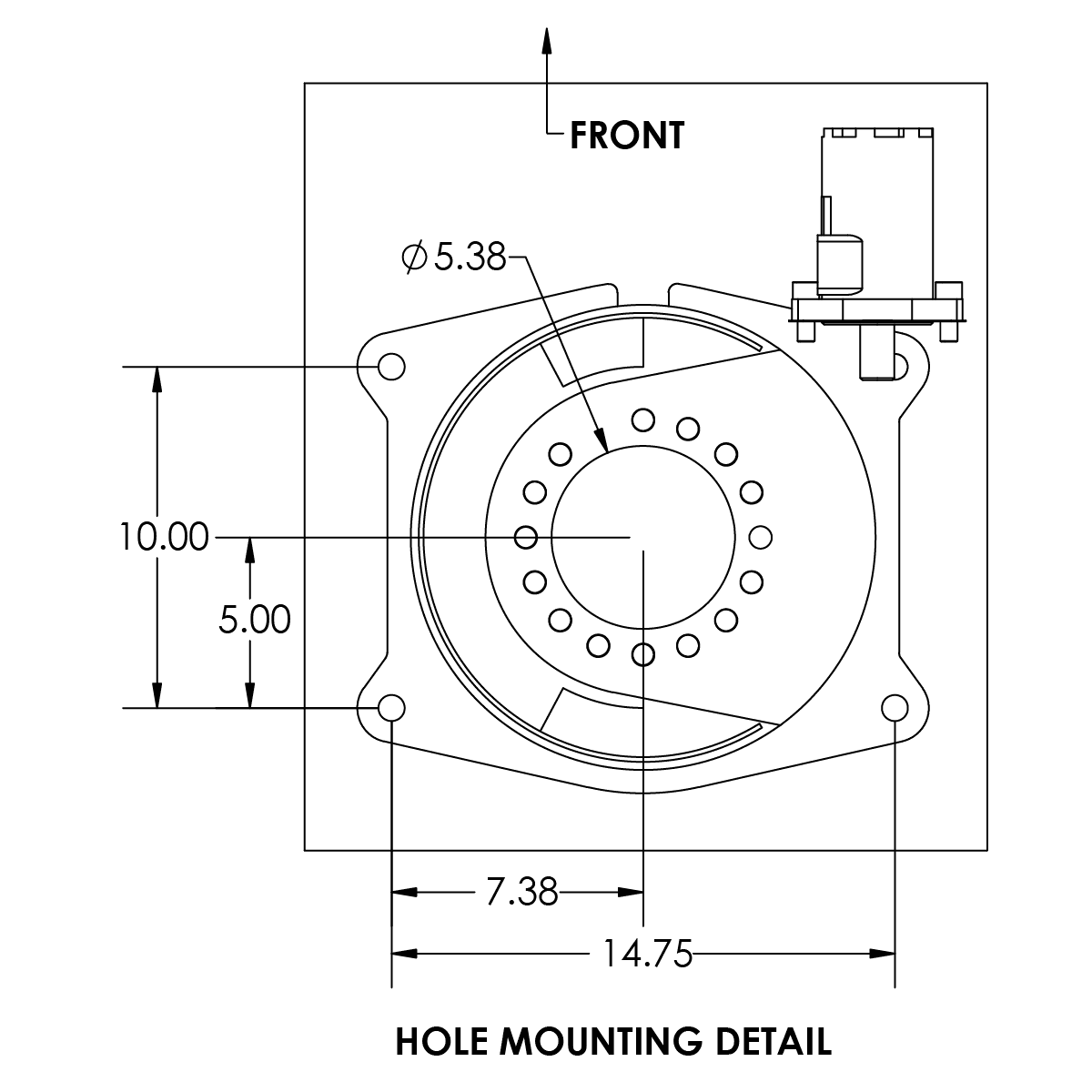

Mounting Space Required: 19" x 19" (48.3 x 48.3 cm) 19" x 19" (48.3 x 48.3 cm)
Approximate Crane Weight: 970 lbs (440 kg) 1,180 lbs (535 kg)
Controls: Radio remote Radio remote
Winch
• Rope Diameter:
• Rope Length:
• Line Pull Speed:
• Max. Single Part Line:
• Max. Double Part Line:

5/16" (0.79 cm)
90' (27.4 m)
15 ft/min (4.6 m/min)
2,000 lbs (905 kg)
4,000 lbs (1,815 kg)

5/16" (0.79 cm)
90' (27.4 m)
15 ft/min (4.6 m/min)
2,000 lbs (905 kg)
4,000 lbs (1,815 kg)
Rotation: 410° (worm gear) 410° (worm gear)
Power Supply Required: 12V power unit: 2 gpm @ 2,300 psi (7.57 lpm @ 159 bars) 12V power unit: 2 gpm @ 2,300 psi (7.57 lpm @ 159 bars)
Min. Rec. Chassis (GVRW)*: 14,000 14,000

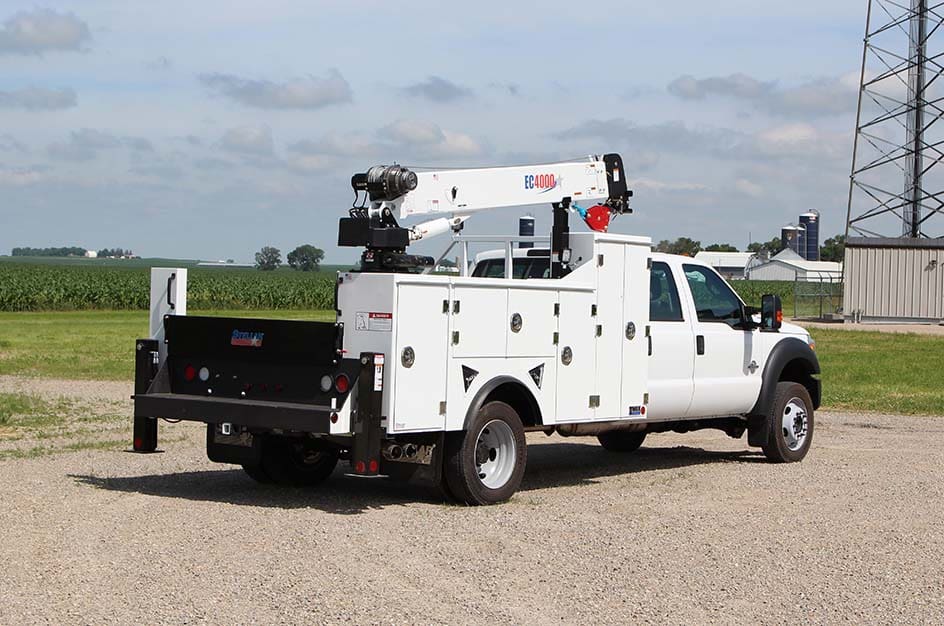

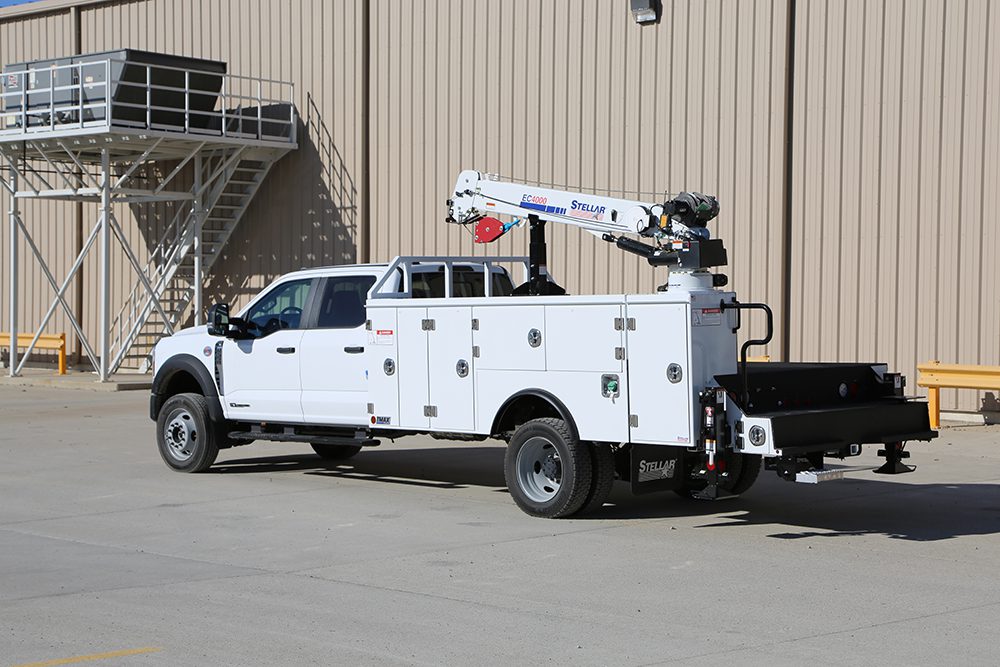

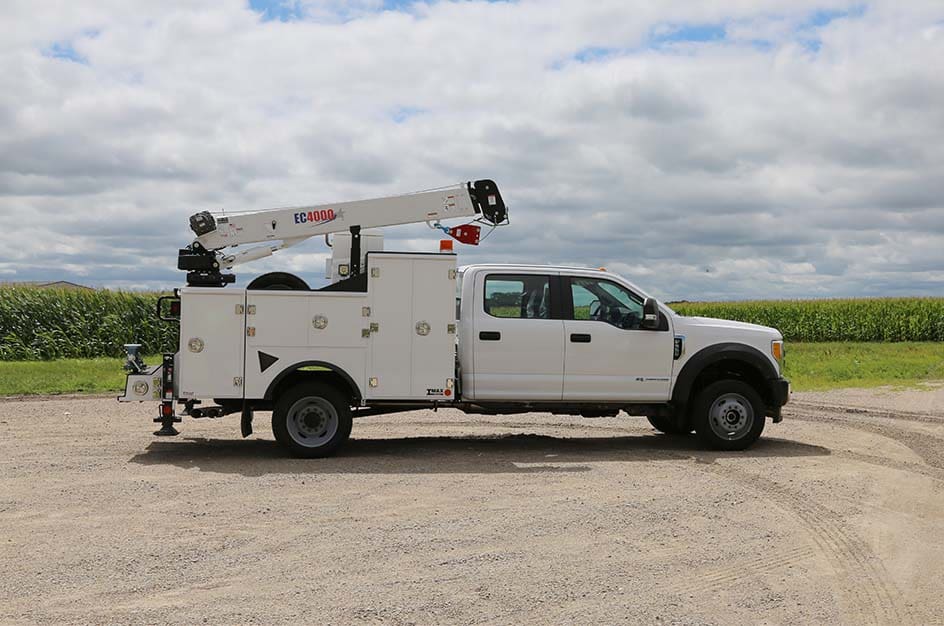

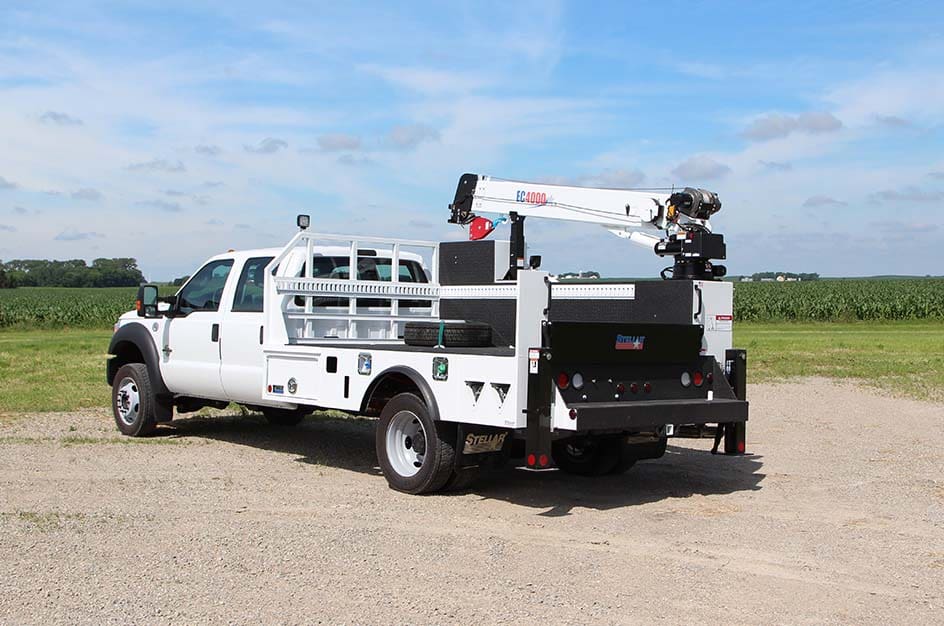

Optimize your Service vehicle

Because different people use service vehicles in different ways, Stellar makes it easy to outfit yours with a wide range of accessories.
