Miller EnPak® A60 Power Source

Enter a new era of fleet management with the Miller EnPak® A60 power source — an all-in-one solution for efficient fleet management. Designed for reduced vehicle idle time and top-tier quality and reliability, the EnPak A60 is a game-changing innovation. Suitable for a range of fleets including Class 5 and above trucks, it sets a new standard for modern fleet operations.

Print

Additional Information

Elevate Fleet Efficiency

Harness power, boost efficiency and amplify productivity with the EnPak A60 power system.

  • Unleash power: Compressed air, generator power, hydraulics, welding, battery charge/crank assist and remote panels — all at your fingertips.
  • Optimize efficiency: Slash fuel expenses by up to 30%, while significantly curbing maintenance costs by powering down your trucks.
  • Elevate productivity: Witness a remarkable up to 75% reduction in truck engine idle time, ensuring your vehicles stay on the job where they belong.

Features:

Air compressor: Delivering air as needed, a dependable 60-cfm rotary-screw compressor can efficiently operate a wide range of air tools, even accommodating most 1″ impact wrenches.

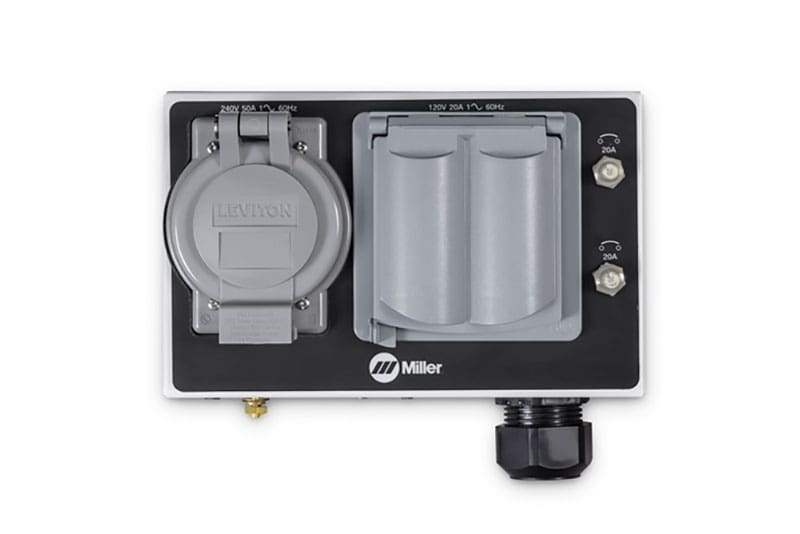

Generator power: Capable of meeting a variety of jobsite electrical requirements, a 7,000-watt generator can power electric tools, lights and other equipment. For added convenience, the optional auxiliary power panel offers two 120-volt GFCI-protected duplex receptacles and one 120/240-volt receptacle operating at 60 Hz.

Battery charge/crank assist: Generating up to 150 amps of DC current, the EnPak A60 swiftly charges both 12- and 24-volt batteries. Additionally, it offers a robust 300-amp crank assist to revive jobsite equipment with low battery power.

Hydraulic pump: Exclusive to the A60GBH and A60GBHW models, the Casappa® variable-displacement pump ensures dependable and accurate crane performance by supplying 16 gpm with an open center design.

Welder with multi-process capabilities: With multi-process welding capabilities, the A60GBHW model offers carbon arc gouging and an impressive 325 amps of output at a 100 percent duty cycle, equipping technicians for diverse welding tasks they might face in the field.

Chassis power: Incorporated within the truck, chassis power oversees the battery status and initiates automatic charging when necessary. This feature assures technicians that they can safely power down their trucks, free from concerns about jobsite tools depleting the battery and leaving them stranded.

Auto-Speed™ technology: Sophisticated Auto-Speed technology automatically adjusts engine speed within the range of 1,800 to 2,800 rpm to align with compressed air, battery charging and welding requirements. This intelligent adjustment minimizes fuel usage, maintenance expenses and noise levels for a safer and more efficient jobsite.

Auto start/stop: The auto start/stop function initiates the EnPak engine according to demand, effectively reducing fuel usage and noise. This improves safety and enhances the work environment for increased productivity.

Turbocharged engine: Operating with a turbocharged diesel engine, the EnPak A60 provides enhanced power at lower speeds (2,800 rpm), surpassing expectations across various settings, including high altitudes. This ensures operators possess the necessary power for seamless performance in any location.

CAN bus connectivity: Through CAN bus connectivity, the EnPak A60 establishes a connection with a telematics system, facilitating the monitoring of engine data, equipment loads and usage patterns. This capability enables you to track service intervals, take a proactive approach to maintenance scheduling and enhance the diagnostics of your EnPak power system.

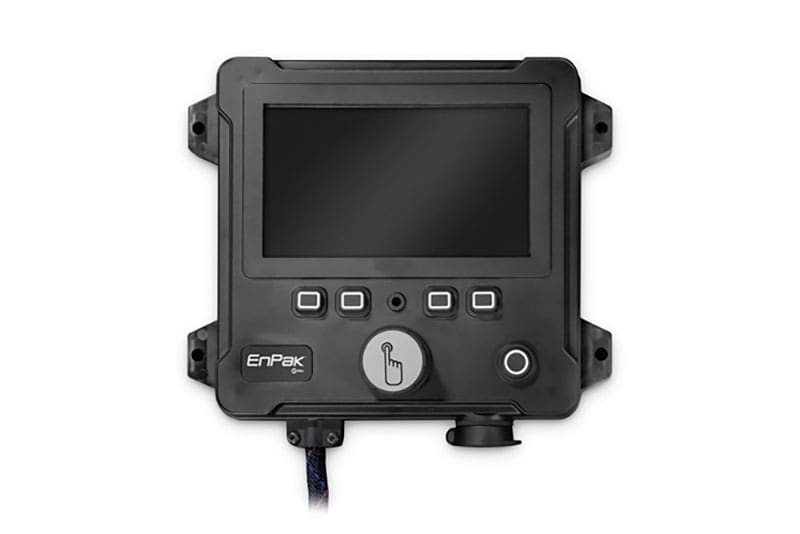

Remote panel: An innovative LCD user interface panel (including 30′ of cabling) enhances user interaction, offers comprehensive system visibility and empowers technicians to oversee their power requirements. Additionally, the EnPak A60 incorporates a battery charge/crank assist panel, a weld output panel and the option for an auxiliary power panel.

Configurations:

The EnPak A60 is available in four configurations:

EnPak A60GB*

  • Air compressor
  • Generator power
  • Battery charge/crank assist
  • Chassis power
  • Comes standard with user interface panel and battery charge/crank assist panel.

EnPak A60GBH*

  • Air compressor
  • Generator power
  • Battery charge/crank assist
  • Chassis power
  • Hydraulic pump
  • Comes standard with user interface panel and battery charge/crank assist panel.

EnPak A60GBW*

  • Air compressor
  • Generator power
  • Battery charge/crank assist
  • Chassis power
  • Integrated multi-process welding
  • Comes standard with user interface panel and battery charge/crank assist panel and weld output panel.

EnPak A60GBHW*

  • Air compressor
  • Generator power
  • Battery charge/crank assist
  • Chassis power
  • Hydraulic pump
  • Integrated multi-process welding
  • Comes standard with user interface panel and battery charge/crank assist panel and weld output panel.

*Available as a Cold-Weather Package, which adds a factory-installed diesel fuel heater and compressor oil heater. Engine block heater standard on all models.

Specifications

EnPak A60GBHW
Rated Carbon Diameter: 1/4" (6.4 mm)
Engine Brand: Kubota
Engine Idle Speed: 1,800 rpm
Engine Weld Speed: 1,800 rpm
2,800 rpm
Fuel Type: Diesel
Horsepower: 24.8 hp
Rated Output: CC/CV
Single Phase Auxiliary Continuous Power: 7,000 W
Sound Rating: Idle, no load: 65.7 dB @ 7 meters
Idle, with air load: 67.0 dB @ 7 meters
Full RPM with 325A weld load: 69.1 dB @ 7 meters
Compressor Brand: Rotorcomp
Compressor Free Air Delivery: 60 cfm (1.7 m3/min.)
Compressor Working Pressure: 80 — 175 psig
Compressor Duty Cycle: 100%
Compressor Automatic Shutdown: High pressure (200 psi)
Hydraulic Pump Brand: Casappa
Hydraulic Rated Output: 8 gpm at 3,000 psi at 2,800 rpm, 50% duty cycle
Hydraulic Max Pressure: 3,500 psi
Hydraulic Flow Rate: 16 gpm (open center or with optional closed center conversion kit)
Battery Charge: 12/24 V, 150 A
Crank Assist: 12/24 V, 300 A
Chassis Power: 12/24 V, 150 A
Warranty 3 years (Miller's True Blue Warranty)
