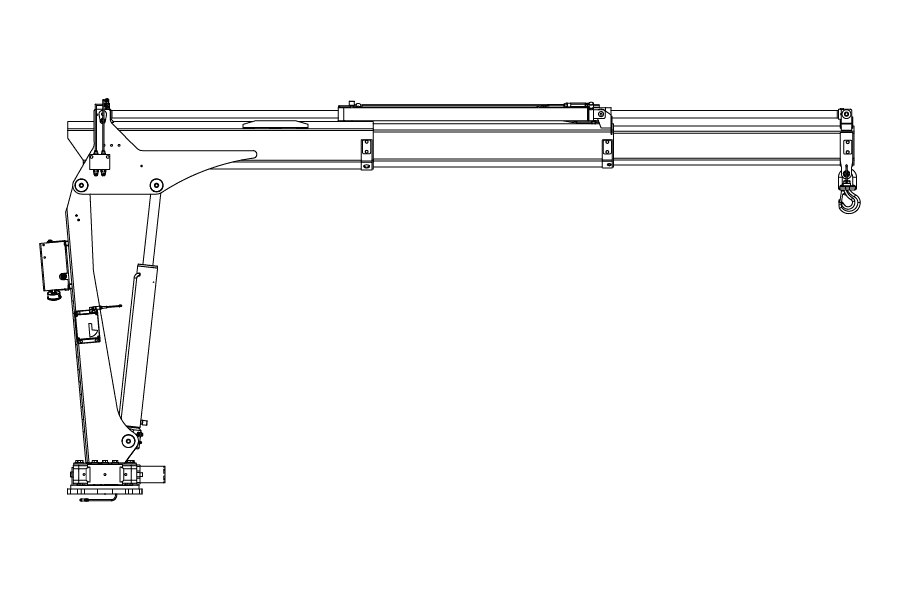

TC33-2H
TC33-3H

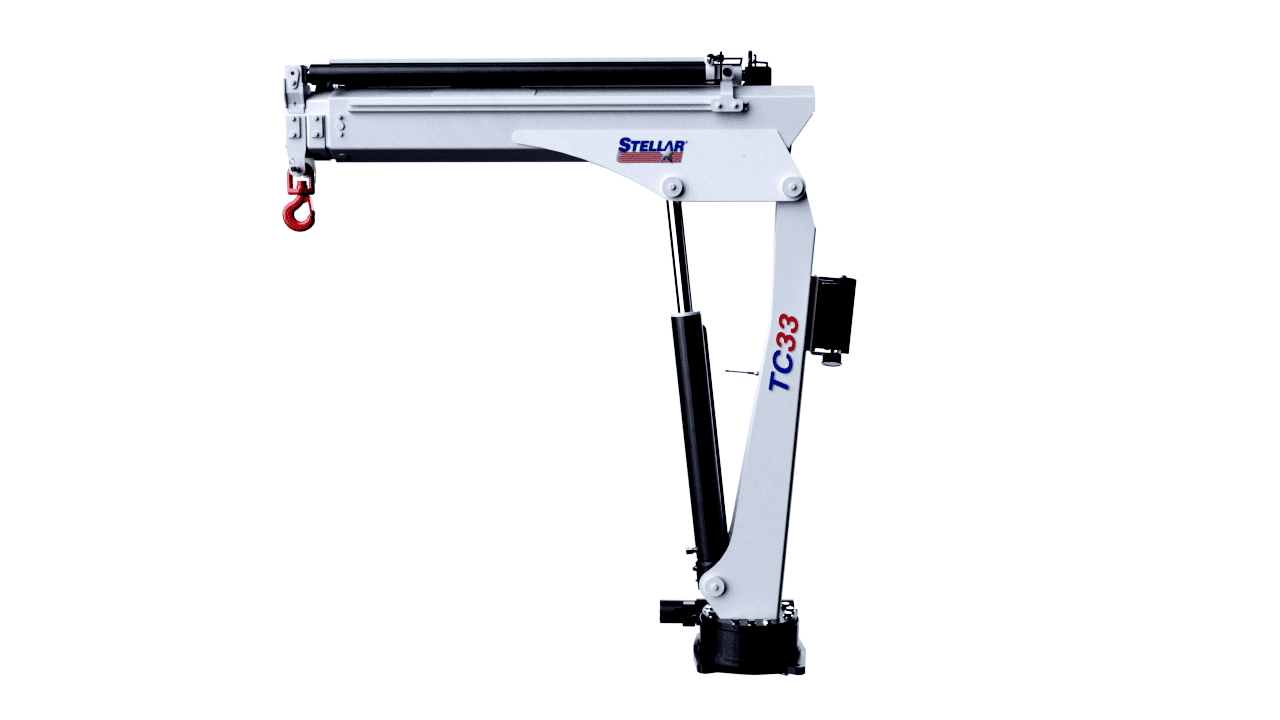

TC33 T-Boom Service Crane
4,865-lb Capacity with 12.4′ of Reach
Also available with a 4,580-lb capacity at 16′ of reach, the Stellar ® TC33 Truck-Mounted T-Boom Crane is just right for worksites with limited space where heavy lifting is needed.
PrintAdditional Information
- Space-Saving Design. Engineered to occupy minimum bed space while providing a high load-lifting radius.
- Proportional Radio Remote. Works with the CDT™ Radio Remote Control System for safe, convenient operation away from the load.
- Selection. Available as the standard TC33 2H and the optional TC33 3H.
- Certified. Meets ANSI B30.5 and OSHA 1910.180 specifications.
Specifications
| TC33 2H (standard) | |
| Crane Rating: | 23,350 ft-lb |
| Max Lifting Capacity: | 4,865 lbs (2,207 kg) |
| Maximum Reach: | 12.3' (3.75 m) |
| Crane Rotation: | 410° |
| Operating Pressure: | 2,750 psi |
| Pump Capacity: | 2.5 gal/min (9.5 l/min) |
| Weight: | 800 lbs (363 kg) |
| Min. Rec. Chassis (GVRW)*: | 14,500 |
| TC33 2H with Winch | |
| Crane Rating: | 23,350 ft-lb |
| Max Lifting Capacity: | 4,865 lbs (2,207 kg) |
| Maximum Reach: | 12.3' (3.75 m) |
| Crane Rotation: | 410° |
| Operating Pressure: | 2,750 psi |
| Pump Capacity: | 2.5 gal/min (9.5 l/min) |
| Weight: | 940 lbs (426 kg) |
| Min. Rec. Chassis (GVRW)*: | 14,500 |
| TC33 3H (optional) | |
| Crane Rating: | 23,350 ft-lb |
| Max Lifting Capacity: | 4,580 lbs (2,077 kg) |
| Maximum Reach: | 16' (4.69 m) |
| Crane Rotation: | 410° |
| Operating Pressure: | 2,750 psi |
| Pump Capacity: | 2.5 gal/min (9.5 l/min) |
| Weight: | 930 lbs (422 kg) |
| Min. Rec. Chassis (GVRW)*: | 14,500 |
| TC33 3H with Winch | |
| Crane Rating: | 23,350 ft-lb |
| Max Lifting Capacity: | 4,580 lbs (2,077 kg) |
| Maximum Reach: | 16' (4.69 m) |
| Crane Rotation: | 410° |
| Operating Pressure: | 2,750 psi |
| Pump Capacity: | 2.5 gal/min (9.5 l/min) |
| Weight: | 1,070 lbs (485 kg) |
| Min. Rec. Chassis (GVRW)*: | 14,500 |
Optimize your Service vehicle
Because different people use service vehicles in different ways, Stellar makes it easy to outfit yours with a wide range of accessories.
