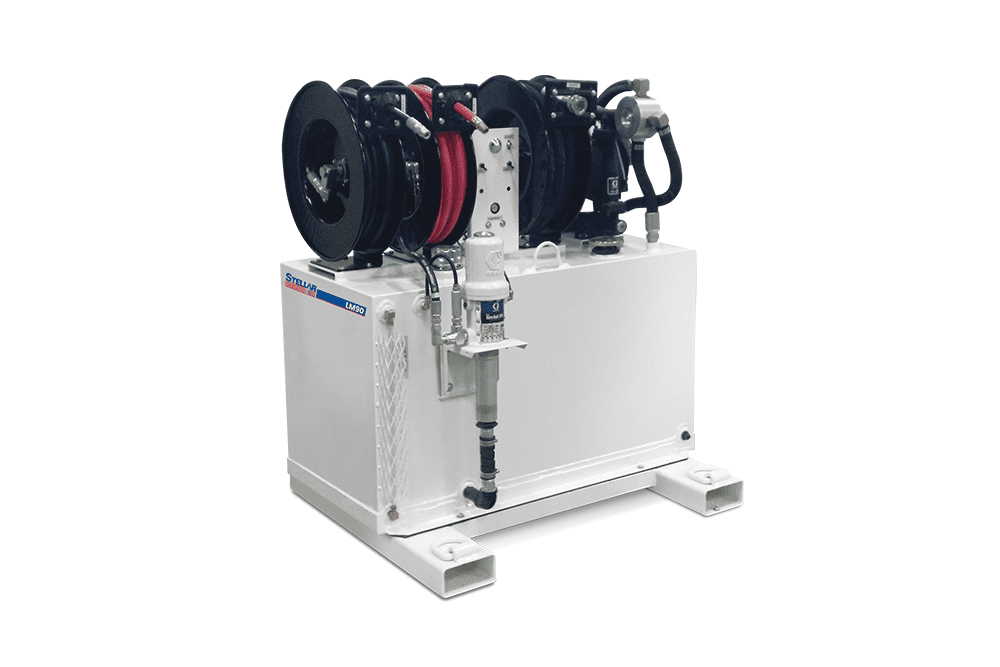

LM90 Lube Skid

Enjoy the flexibility to add lube truck services to your work truck and handle preventive maintenance onsite with the LM90 Lube Skid, available in both mobile and permanent-mount models. The LM90 comes complete with hardware to mount and plumb, and forklift sleeves and D-ring hold-downs make changeout of the mobile model quick and easy. A lighter-weight aluminum model is available for higher truck payload, and you can also get configurations for service vans.

Print

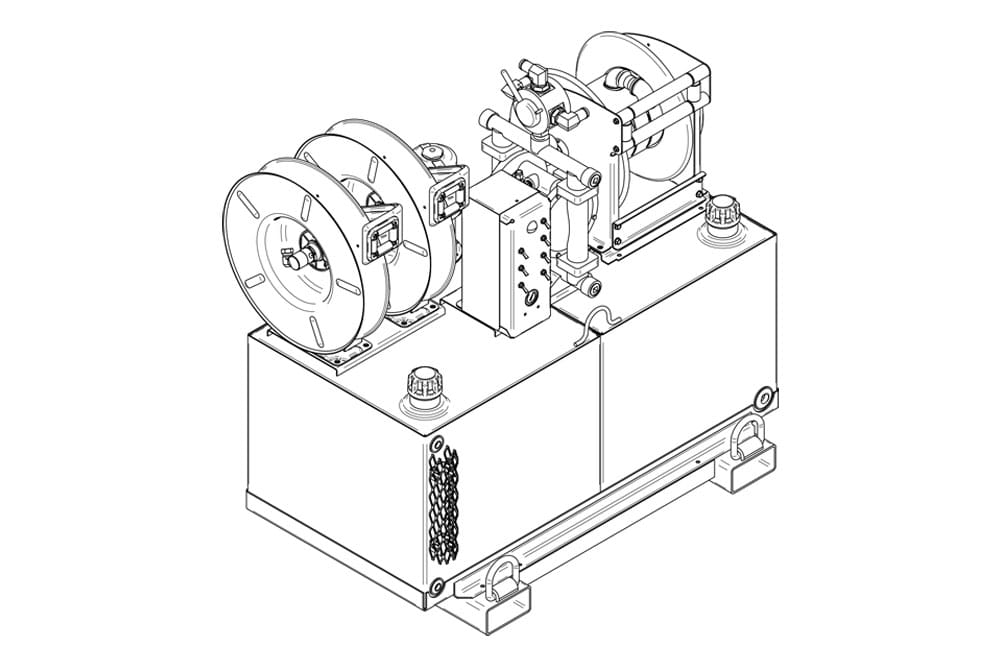

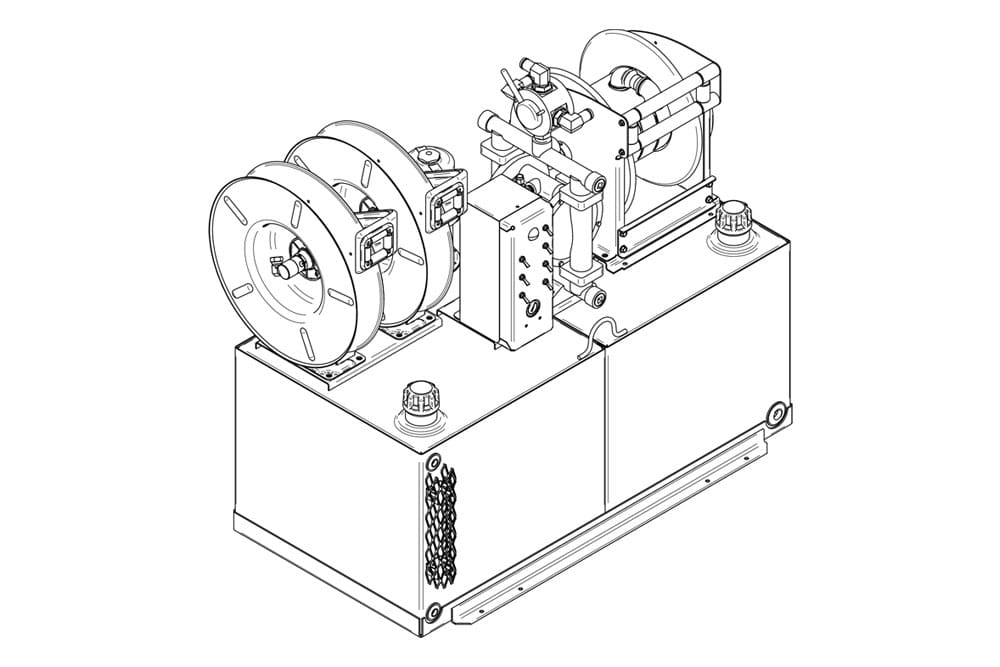

  • Mobile and permanent models available
  • 45-gallon new oil tank internally baffled with sight gauge and vented cap
  • 45-gallon waste oil tank internally baffled with dipstick and vented cap
  • 5:1 pump with reliefs for new oil
  • 1″ diaphragm pump with 4-way valve for evacuation and discharge of waste oil tank
  • 1/2″ x 50′ new oil reel with mechanical meter
  • 1″ x 25′ waste oil reel with quick coupler
  • 3″ x 6″ forklift sleeves with D-ring tie-downs (mobile only)
  • Optional 35-lb or 120-lb grease kit
  • Drip pans and cabinets available for permanent models
  • 7-gallon drain pan with quick coupler and stub, and connecting hoses
  • Dimensions: 47.5″W x 43″T x 35″D
  • Dry Weight: 550 lbs

Optimize your Service vehicle

Because different people use service vehicles in different ways, Stellar makes it easy to outfit yours with a wide range of accessories.
