1184 Mini OTR Tire Service Trucks

The Stellar® 1184 Series Mini OTR Tire Service Trucks are without a doubt some of the most popular trucks in the commercial fleet service vehicle lineup. Their versatility comes from the combination of a service body, tire handling crane, tire loading liftgate and a large hydraulic-driven air compressor.

The floor of the service body is made of sturdy aluminum planking, and the hardware is durable stainless steel. The tool compartment doors slide up and in to allow for easy access inside the compartment. The 1184 Series comes with many other features specifically designed for the tire industry with the user in mind. Optional accessories include: 1/2″ x 50′ and 3/8″ x 50′ hose reels, plastic storage bins and socket racks.

Print

Additional Information

1184 Service Body Features:

  • 13′ or 15′ long all aluminum body is lightweight and dependable to maximize the payload.
  • 46″ high open-style rack sides.
  • Tool compartments with user-friendly storage: 1184-13 features 52 cubic feet of storage, while the 1184-15 features additional horizontal boxes over the left tires.
  • Slide-top doors on all tool compartments.
  • Recessed, skirt-mounted LED floodlights.
  • Seamless 22″ high sign panels.
  • Extruded aluminum plank floor.

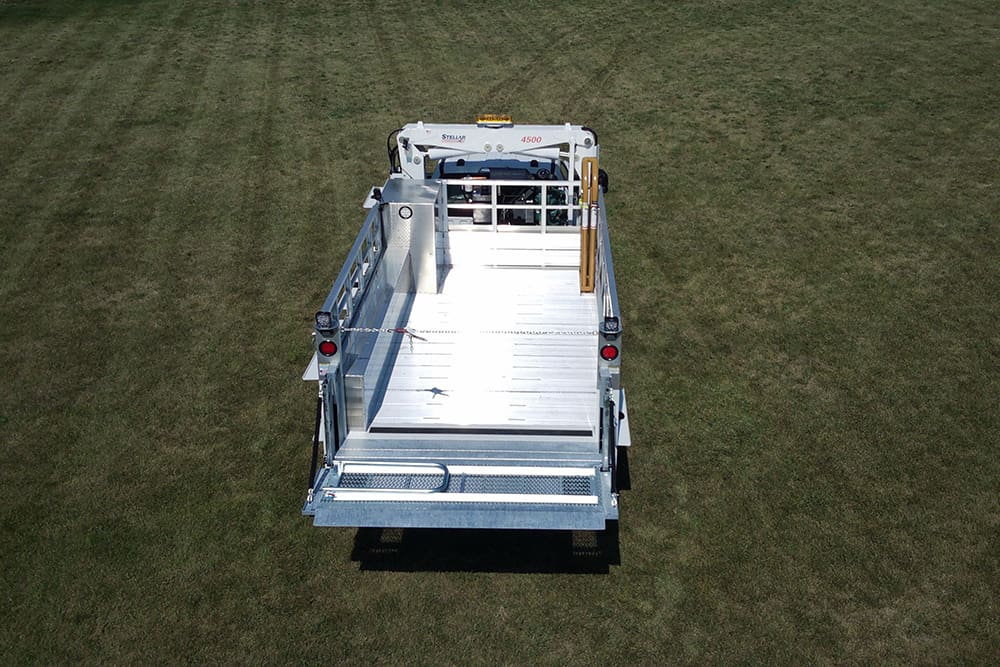

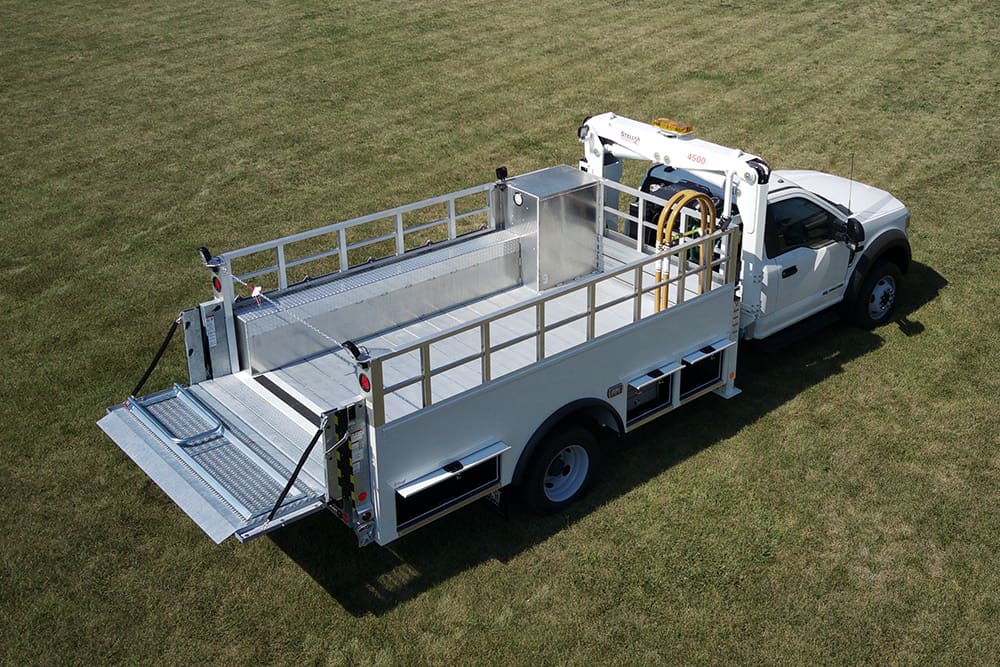

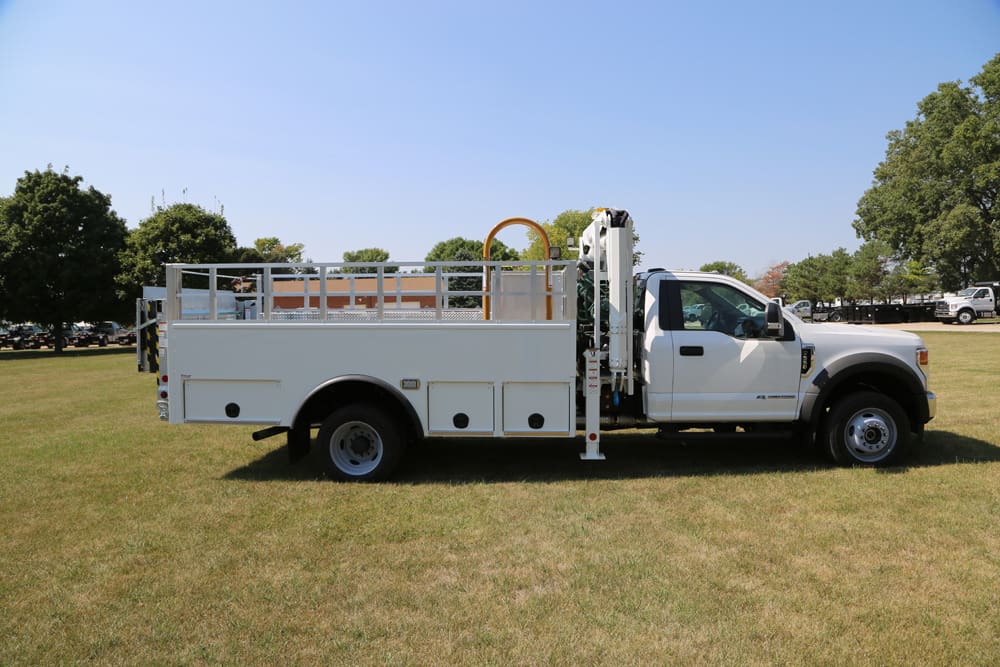

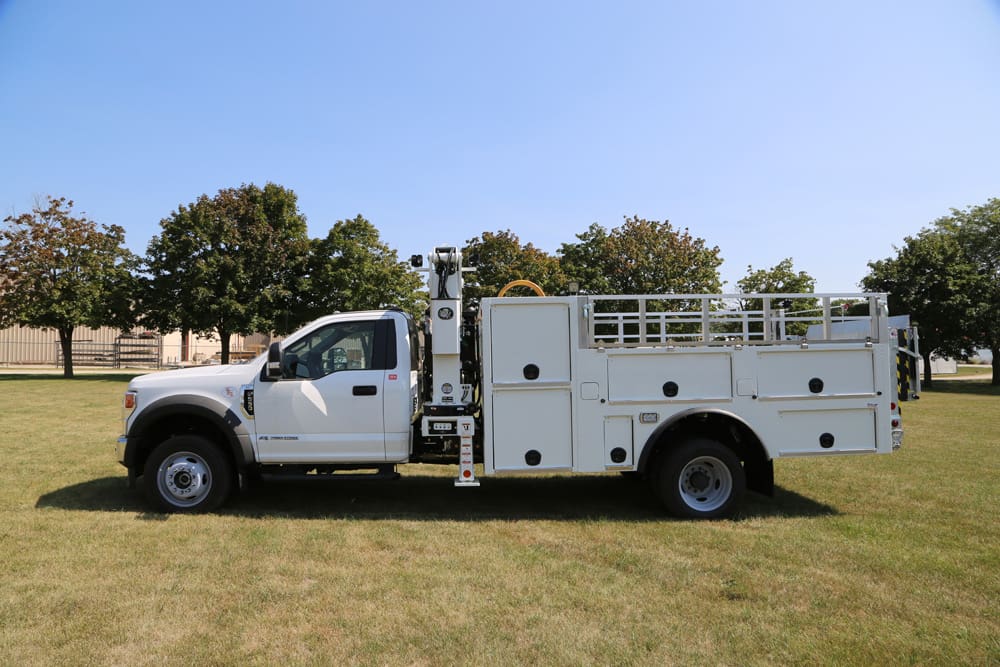

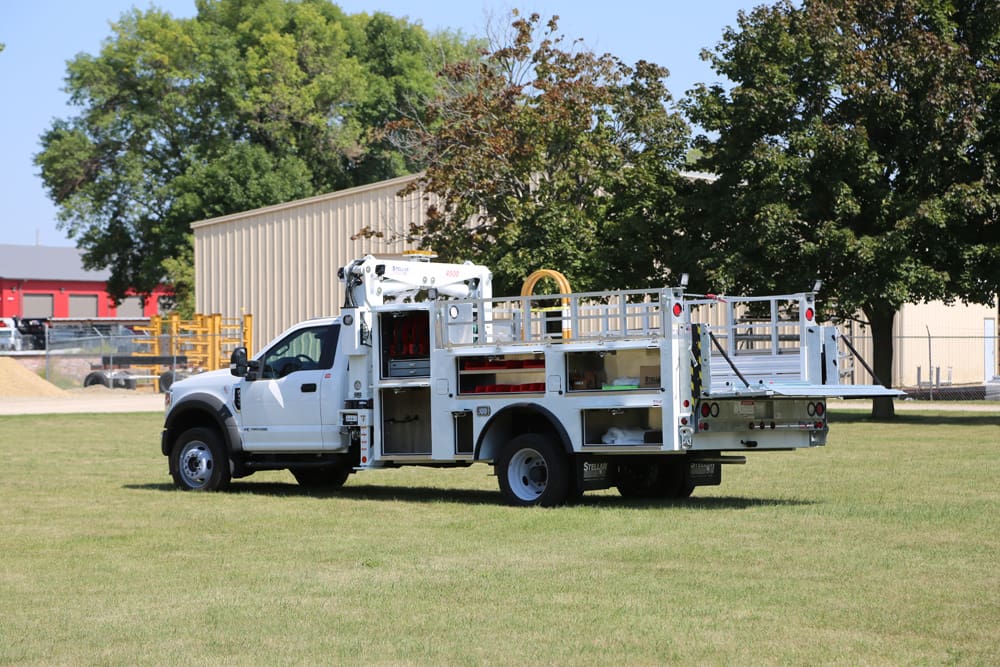

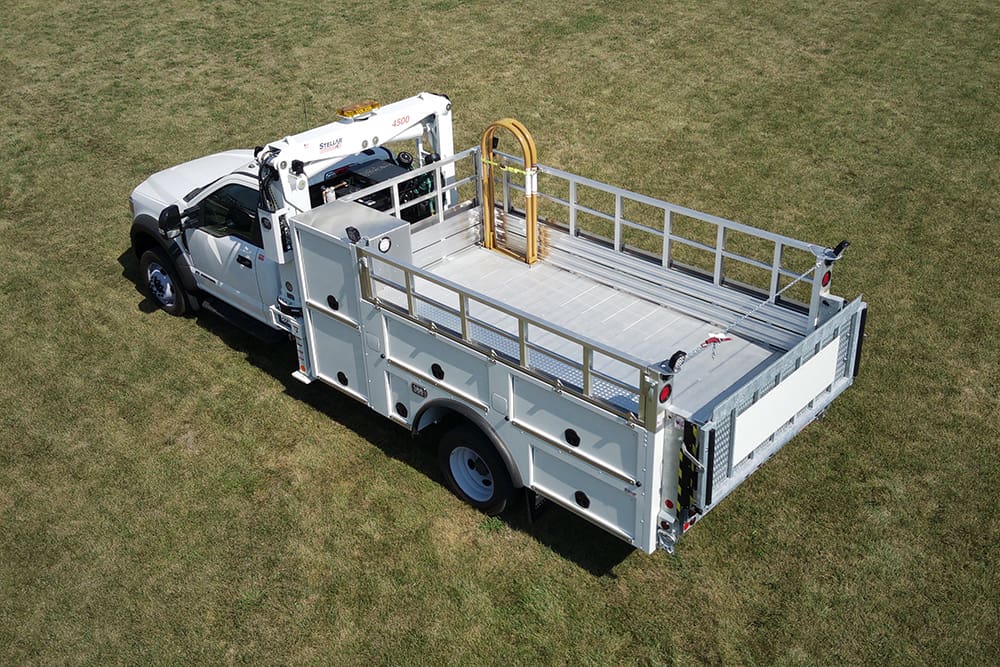

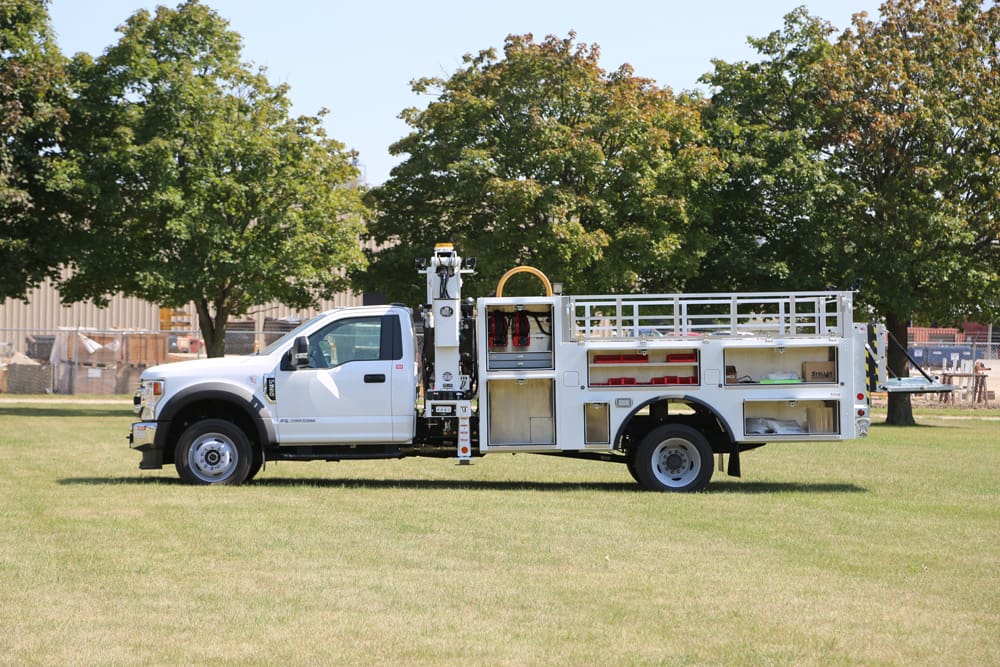

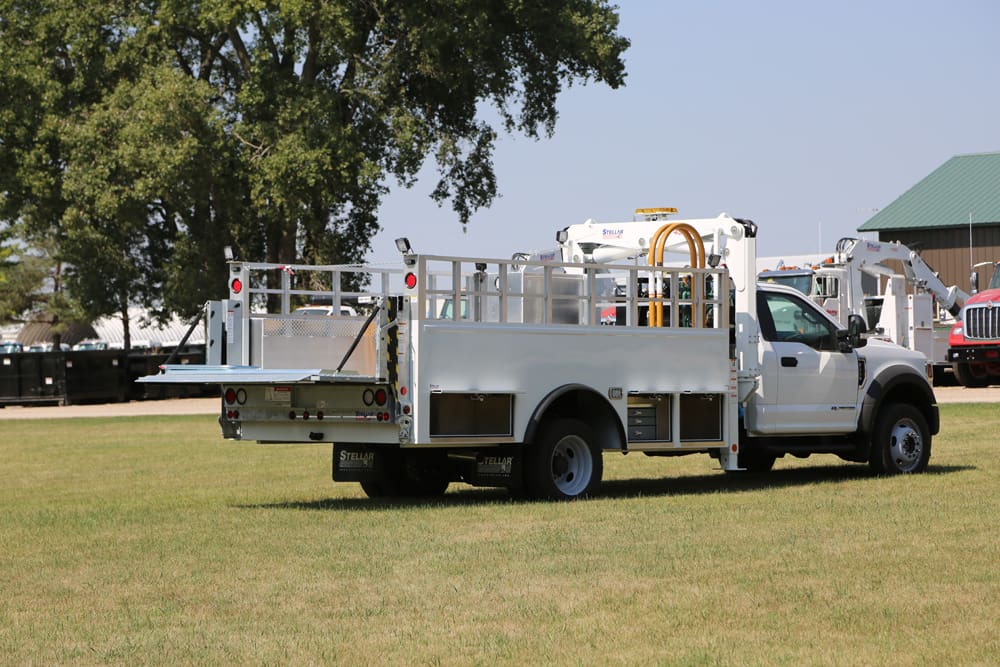

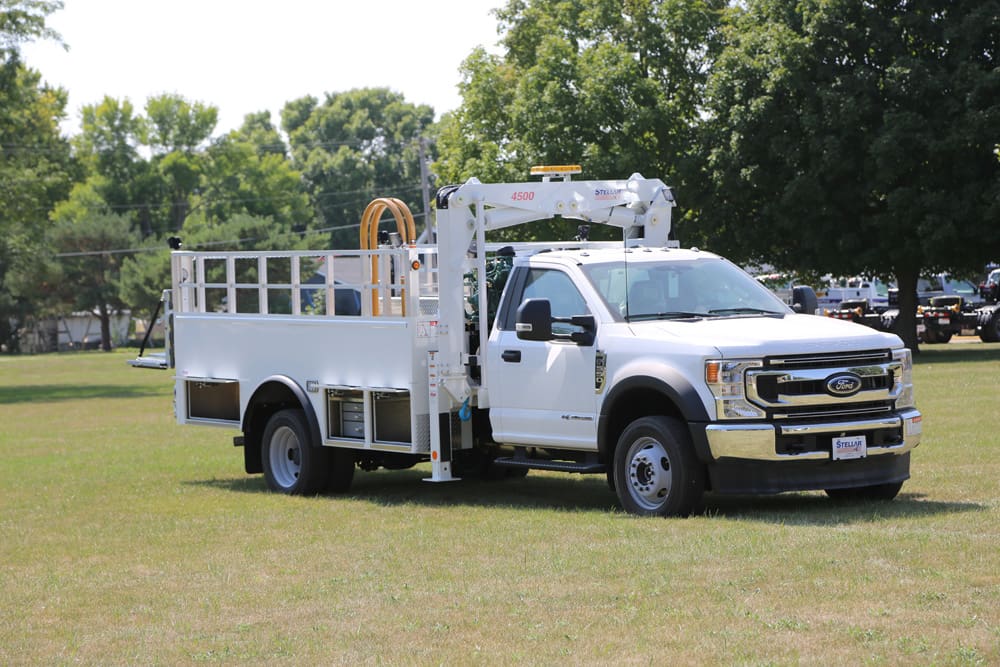

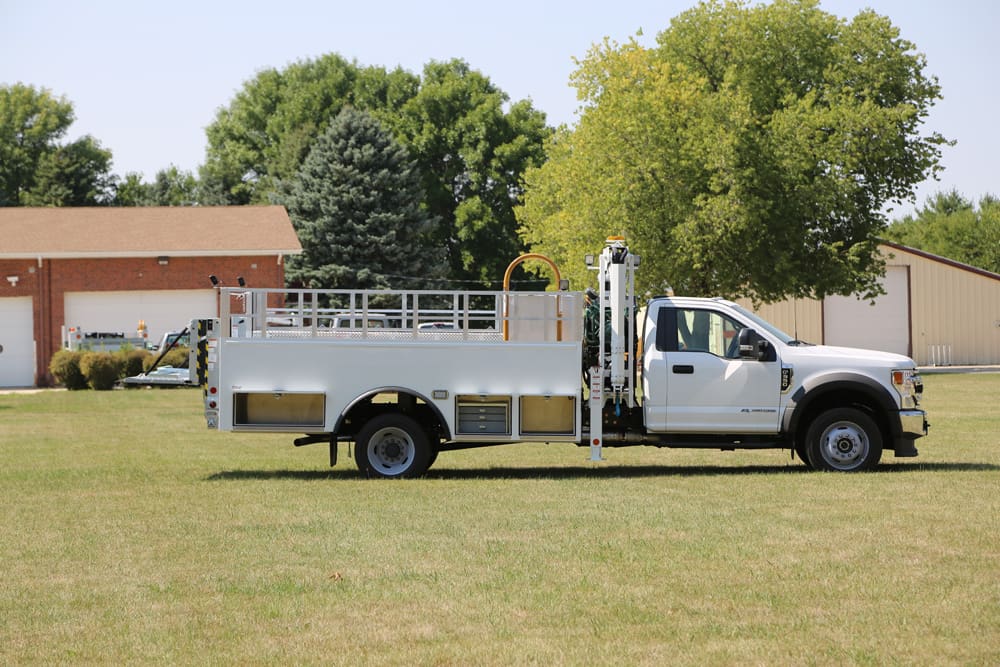

1184-13 OTR Tire Service Truck:

  • 13′ body features an abundance of storage and 238 cubic feet of haul space.
  • Also featured on the 1184-13 body is a left fold-down rack, and optional wheel well lights and a 1,600-lb liftgate.
  • The crane will handle up to a 4,000-lb OTR tire as well as large agricultural tires. This package provides 4,000 lbs of payload to haul approximately 22 truck tires or up to two 29.5″ x 29″ OTR tires.

1184-15 OTR Tire Service Truck:

  • The 15′ body features an abundance of storage and 272 cubic feet of haul space.
  • The 1184-15 is designed to fit a 26,000 GVW and larger chassis with a minimum of 144″ CA.
  • Also featured is a left fold-down rack, and standard wheel well lights.
  • The body of the 1184-15 features a drop-down floor to give a low center of gravity for the optional 400-gal calcium chloride tank.

Cranes

The 1184-13 mini OTR truck can be equipped with either a model 3200 or 4500 hydraulic knuckle boom crane, and the 1184-15 OTR truck can be equipped with either a model 3200, 4500 or 6000 hydraulic knuckle boom crane.

These cranes are designed to handle the largest of farm tires and the smaller sized OTR tires. The cranes are operated by a standard fully proportional radio remote control.

The 46P hydraulic-drive air compressor is mounted on the crane base. This compressor has a 46 cfm at 175 psi output. The location allows for cool, clean, fresh air intake and easy maintenance and serviceability.

Crane Features:

  • Fully proportional radio remote control
  • Fully enclosed extension boom cylinder
  • Hexagon-shaped secondary and extension
  • Integral-mounted pump and PTO
  • Load-holding counterbalance valves

SPECIFICATIONS

3200 Crane
Rating: 32,000 ft-lbs (4.42 t-m)
Lifting Capacities: 5,000 lbs @ 9'
(2,270 kg @ 2.74 m)

2,200 lbs @ 17'
(1,000 kg @ 5.18 m)
Controls: Proportional radio control
Stowed Height: 60" (152.4 cm)
Mounting Space Required: 24" (60.96 cm)
Shipping Weight: 1,900 lbs (862 kg)
4500 Crane
Rating: 45,000 ft-lbs (6.22 t-m)
Lifting Capacities: 7,500 lbs @ 9'
(3,400 kg @ 2.74 m)

3,200 lbs @ 17'
(1,450 kg @ 5.18 m)
Controls: Proportional radio control
Stowed Height: 71" (180.3 cm)
Mounting Space Required: 26" (66.04 cm)
Shipping Weight: 2,400 lbs (1,089 kg)
6000 Crane
Rating: 60,000 ft-lbs (8.29 t-m)
Lifting Capacities: 10,000 lbs @ 9'
(4,535 kg @ 2.74 m)

4,250 lbs @ 17'
(1,930 kg @ 5.18 m)
Controls: Proportional radio control
Stowed Height: 75" (190.5 cm) above truck frame
Mounting Space Required: 32" (81.28 cm)
Shipping Weight: 3,150 lbs (1,429 kg)
