TMAX™ 1

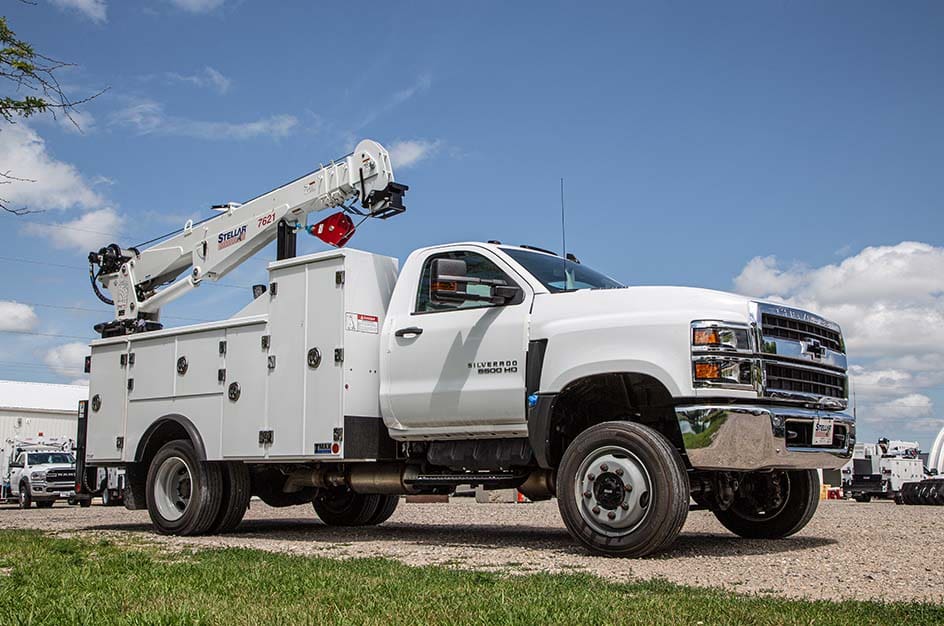

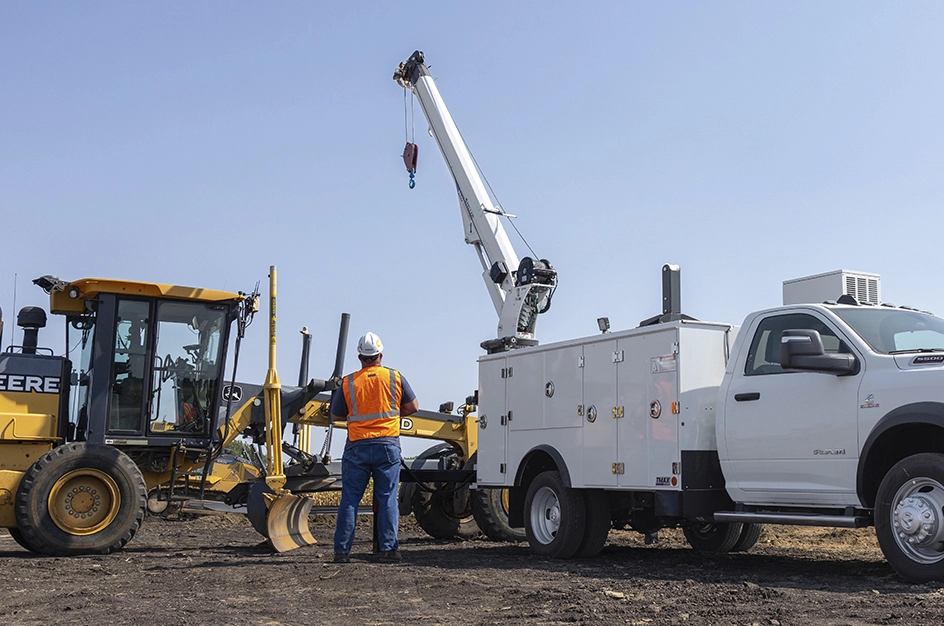

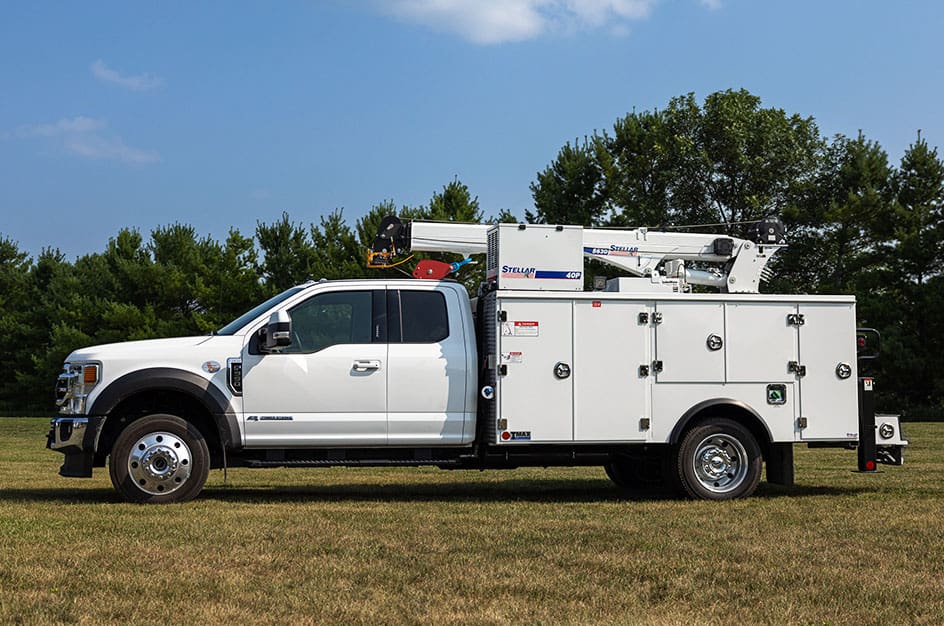

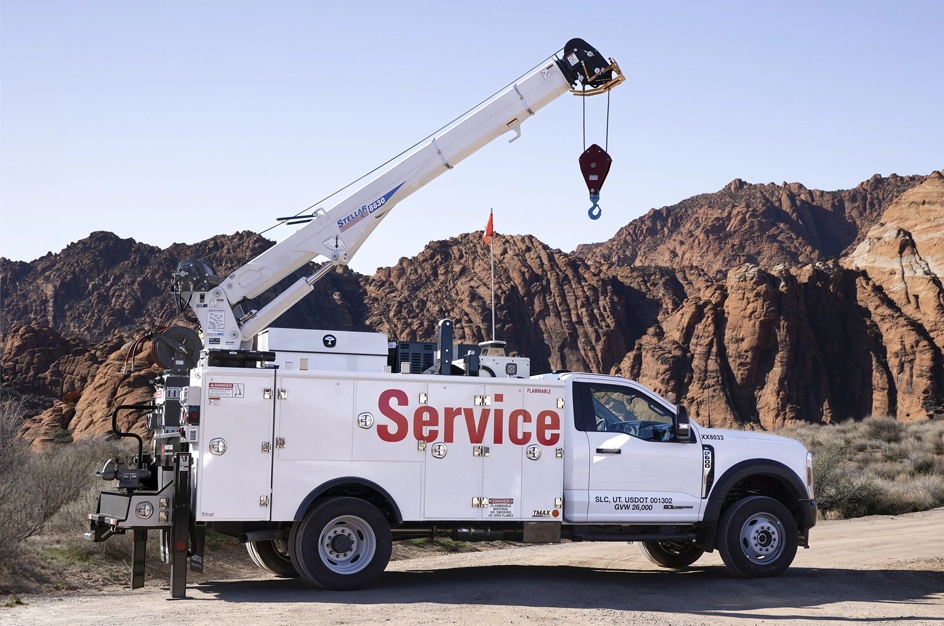

With extensive crane compatibility and customization options, TMAX 1 Mechanic Trucks have a wide range of applications covered. Available in aluminum and steel models, the quality is apparent in every element from the engineering to the materials to the precision construction.
PrintAdditional Information
- Available in either 9′ or 11′ steel bodies or available in 9′, 11′, or 13′ aluminum bodies.
- Stellar’s torq-isolator crane support design isolates the crane compartment from the rest of the side pack.
- Lifting stresses are transferred to the stabilizers and box-type subframe, not the compartment doors.

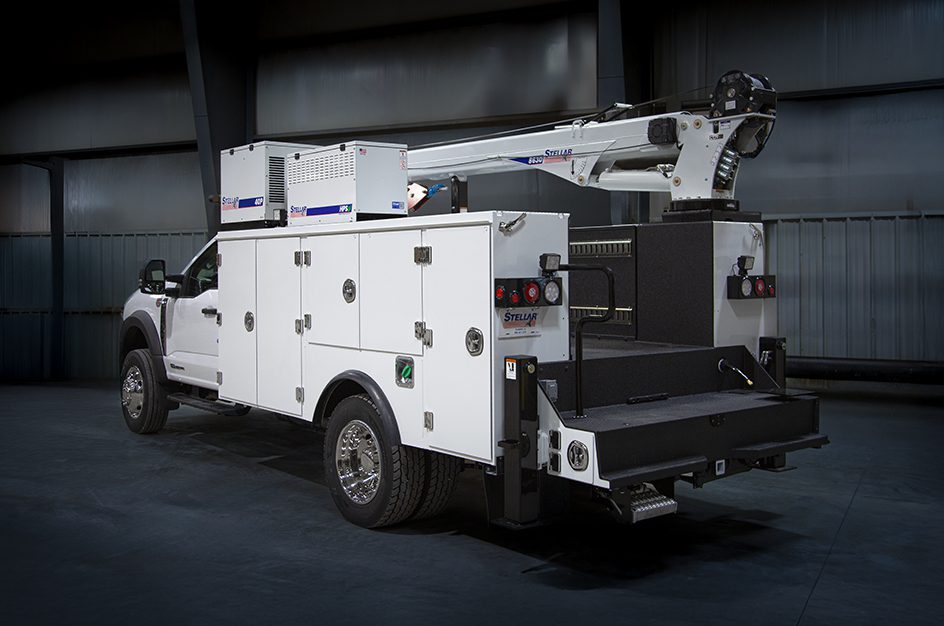

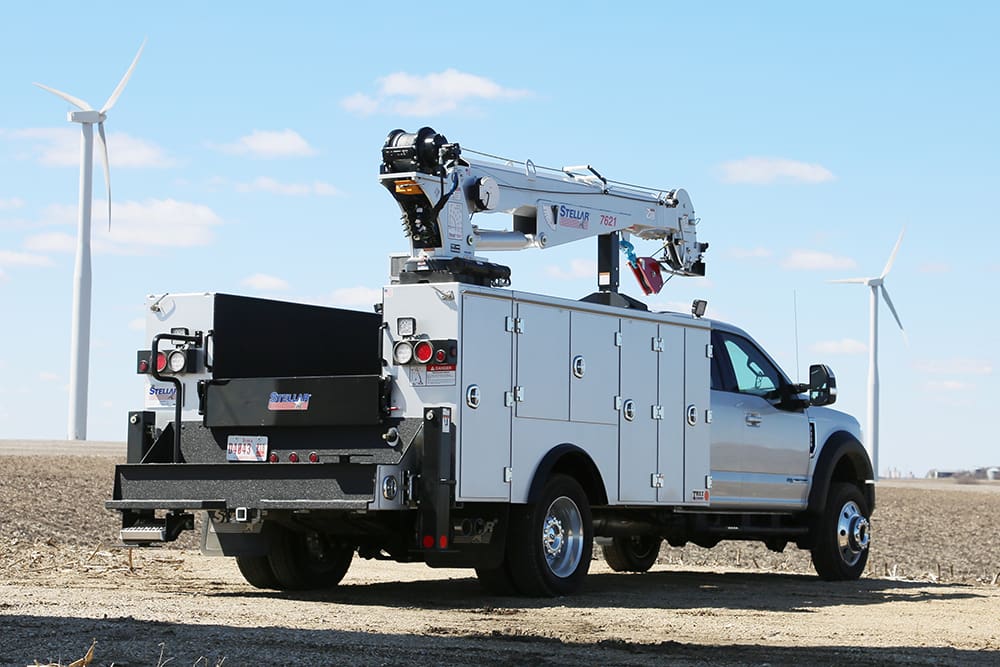

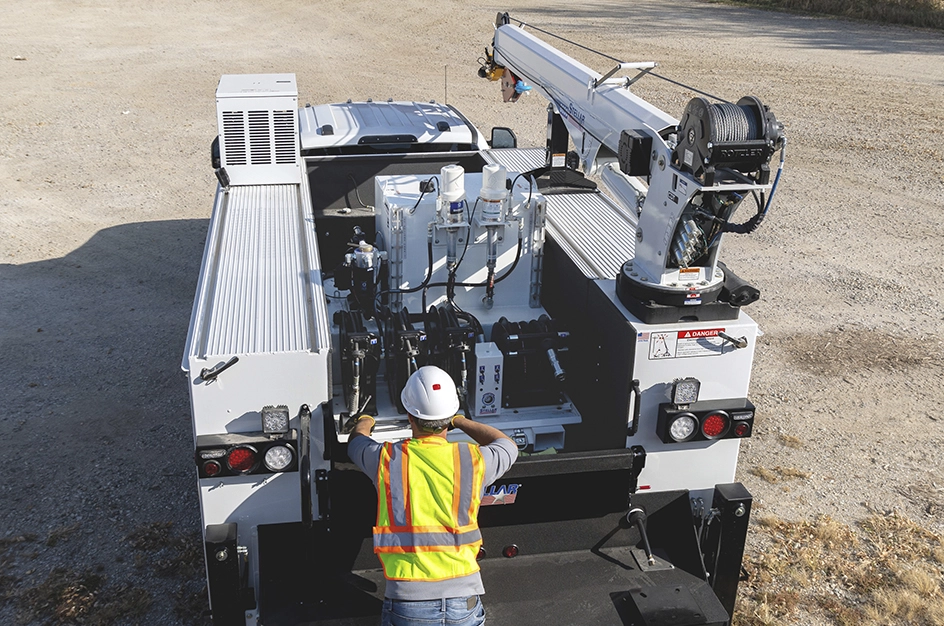

- Aluminum extruded top with drill-free mounting rails make it easy to add a wide range of mechanic service truck accessories.

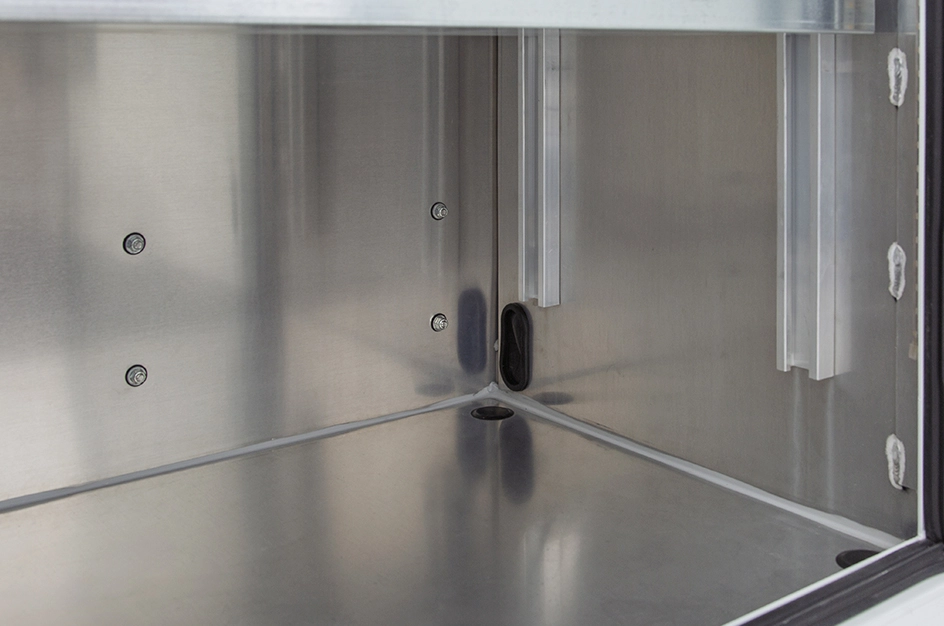

- Aluminum sidepack and doors reduce weight and corrosion, allowing for more payload and longer life.
- Bodies feature a 21″ steel workbench bumper with an integrated full-width long bar storage compartment and vise mounts.

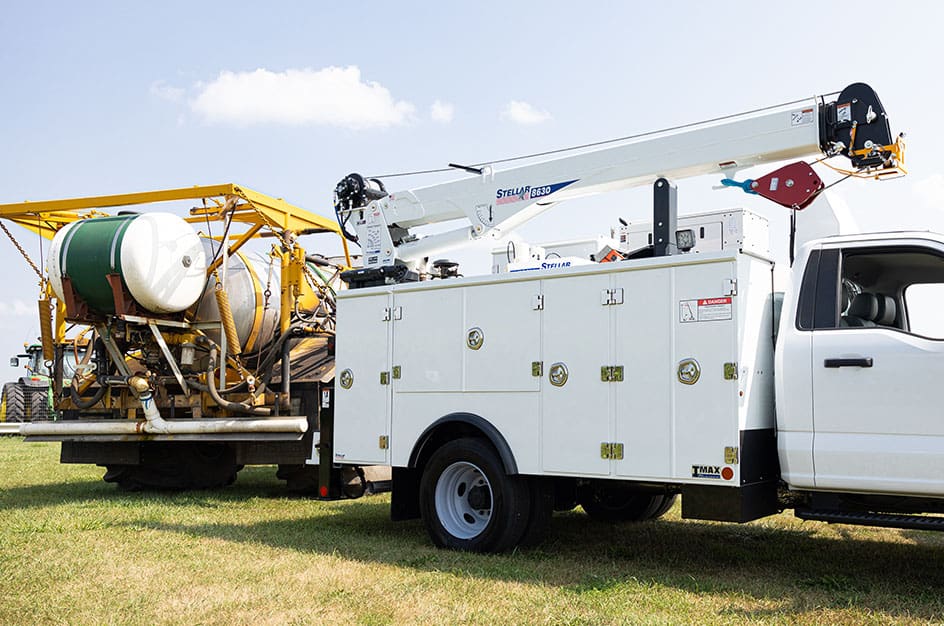

- Roller-type boom support helps center the crane boom when stowing.
- Stainless-steel billet-style hinges have hidden fasteners and a rugged 5/16″ stainless-steel rod for years of heavy use.
- Rotating master-lock system for security.
- Exterior mounted light box provides easy mounting for lights and other accessories while minimizing entry points into the body.
- 3-point compression latches keep weather-stripping tight while allowing easy access.
- Double-panel 1/8″ aluminum tailgate with hinged arm brackets provides a stout working surface.

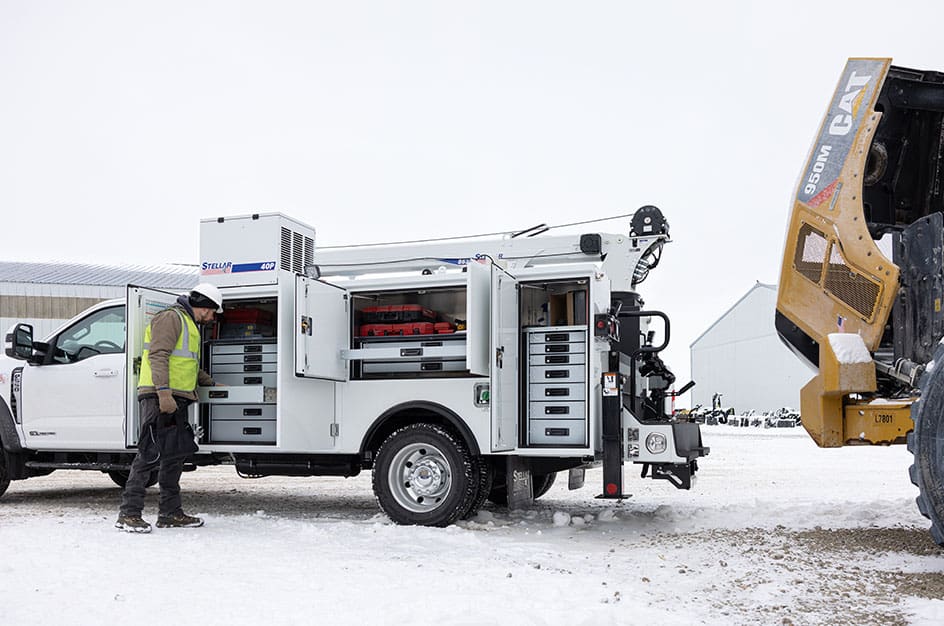

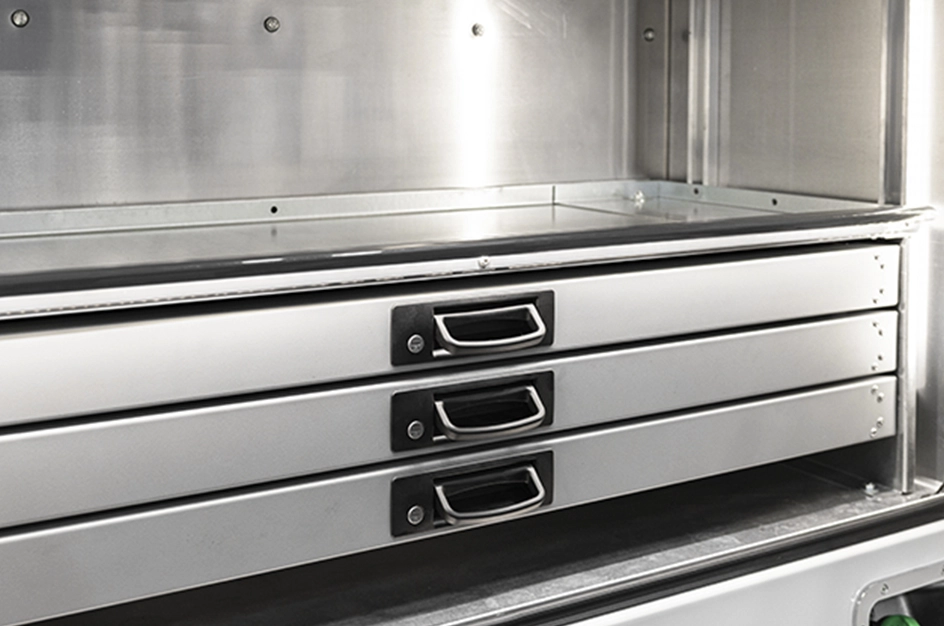

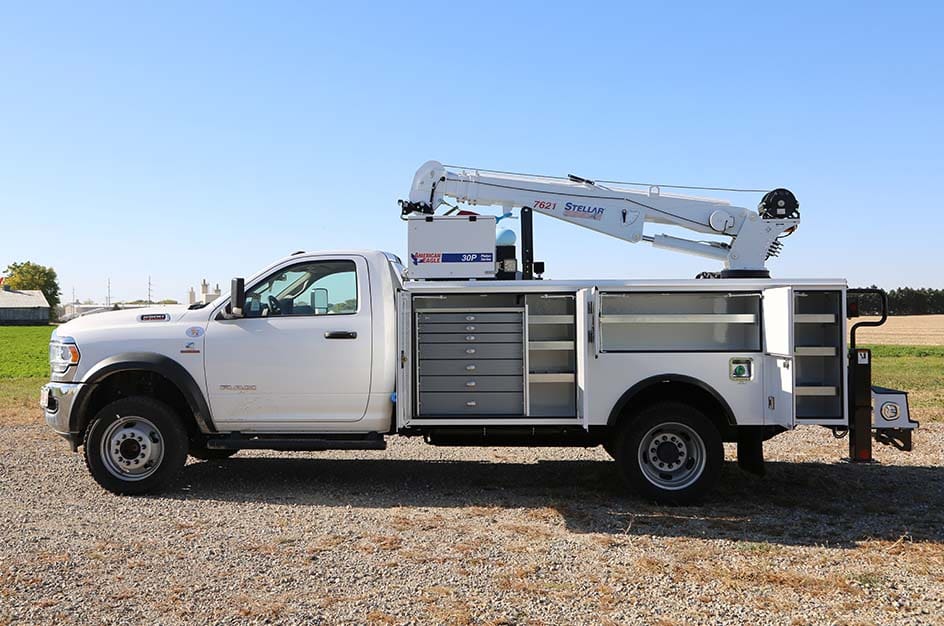

- 250-lb capacity, adjustable divider shelves made of spangled galvanized steel.
- Complete undercoating, with minimum of 6.5 mils of petroleum base material, provides extra protection from corrosion and road debris.
- Easily add a wide range of mechanic service truck accessories.
Models
- TMAX 1-9 (steel and aluminum)
- TMAX 1-11 (steel and aluminum)

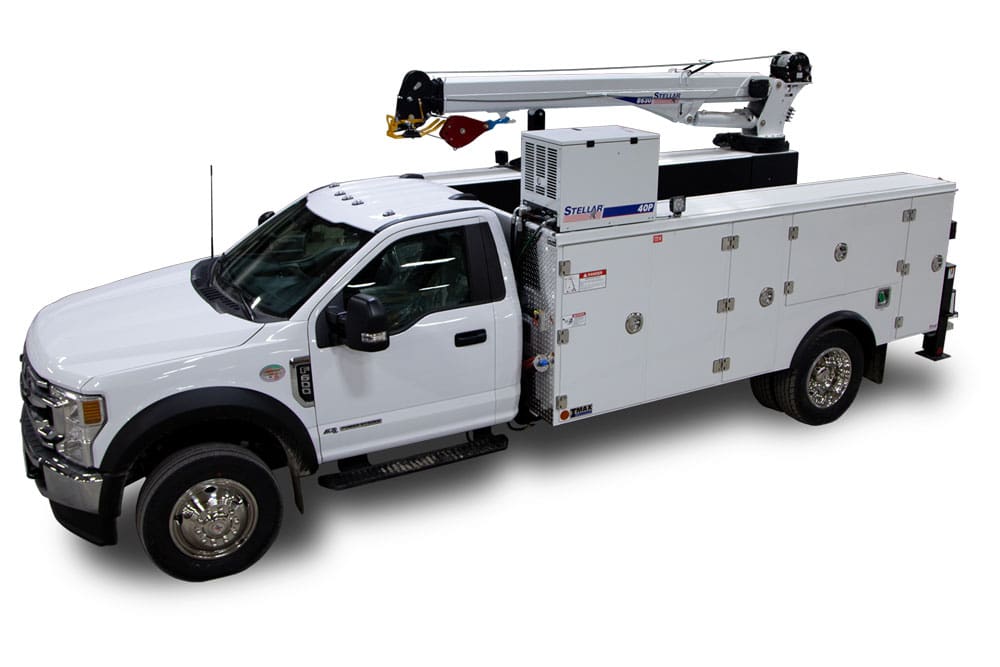

- TMAX 1-13 (aluminum)

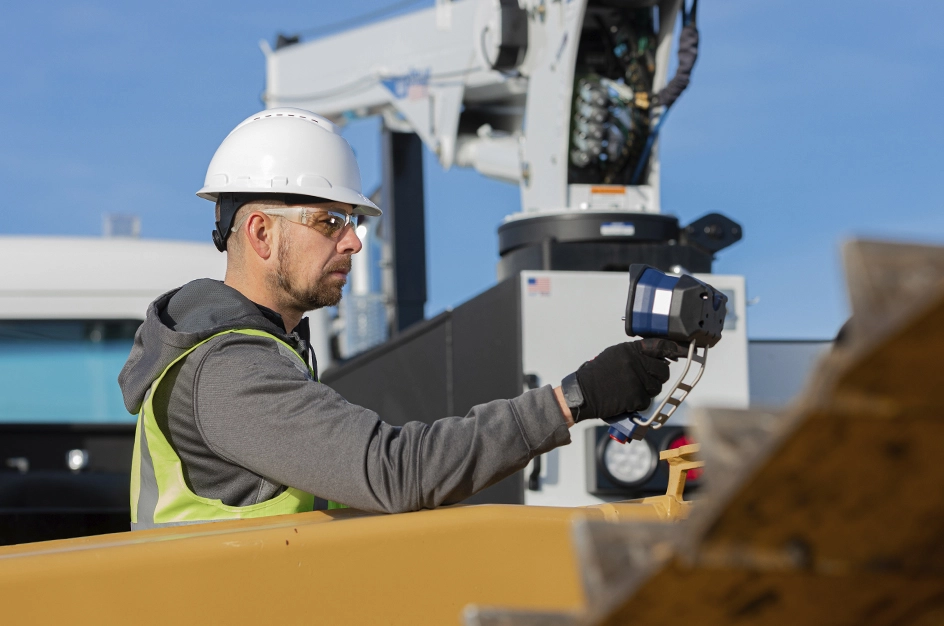

Works with CDTpro™ Control System
Several cranes compatible with the TMAX 1 feature the new CDTpro Control System. Its innovative, industry-only Range Finder™ technology provides real-time max lifting capacity from any point as you walk around the crane.
Specifications
| TMAX 1-9 | TMAX 1-11 | TMAX 1-13 | |
|---|---|---|---|
| Applicable Chassis: | 16,000 – 22,900 GVWR (19.5 tire size) |
16,000 – 22,900 GVWR (19.5 tire size) |
22,000 – 22,900 GVWR (19.5 tire size) |
| Body Height: | Steel: • 44" (112 cm) • CS1V Raised to 60" (152 cm) remaining 44" (112 cm) Aluminum: • All Raised 52" (132 cm) • All Raised 52" (132 cm) with 8" (20 cm) drop well in CS1V |
Steel: • 44" (112 cm) • CS1V Raised to 60" (152 cm) remaining 44" (112 cm) • All Raised 52" (132 cm) • All Raised 52" (132 cm) with 8" (20 cm) drop well in CS1V Aluminum: • 44" (112 cm) • All Raised 52" (132 cm) • All Raised 52" (132 cm) with 8" (20 cm) drop well in CS1V • All Raised 60" (152 cm) |
Aluminum: • All Raised 52" (132 cm) with 8" (20 cm) drop well in CS1V |
| Body Width: | 94" (239 cm) | 94" (239 cm) | 94" (239 cm) |
| Floor Width: | 50" (127 cm) | 50" (127 cm) | 50" (127 cm) |
| Compartment Depth: | 22" (56 cm) | 22" (56 cm) | 22" (56 cm) |
| Clear Cab to Axle: | 60" (152 cm) | 84" (213 cm) | 108" (274cm) |
| Body Length: | 109" (277 cm) | 133" (338 cm) | 157" (399 cm) |
| Net Weight: | Steel: 3,149 - 3,222 lbs (1,428 - 1,462 kg) Aluminum: 2,718 – 2,728 lbs (1,233 – 1,237 kg) |
Steel: 3,604 - 4,076 lbs (1,635 - 1,849 kg) Aluminum: 2,851 - 3,146 lbs (1,293 - 1,427kg) |
Aluminum: 3,330 lbs (1,293 - 1,511 kg) |
Compatible Cranes
| Crane Rating | Max. Reach | Max. Capacity | Control Systems | |
|---|---|---|---|---|
| Electric Cranes | ||||
| EC3200 | 11,500 ft-lb | 15' (4.57 m) | 3,200 lbs (1,451 kg) | |
| EC6000 | 38,000 ft-lb | 21' (6.40 m) | 6,000 lbs (2,722 kg) | |
| Electric-Hydraulic Cranes | ||||
| 3315 | 11,500 ft-lb | 15' (4.57 m) | 3,200 lbs (1,451 kg) | CDT™ |
| 4421 | 16,000 ft-lb | 21' (6.40 m) | 4,000 lbs (1,810 kg) | CDT™ |
| 5521 | 29,500 ft-lb | 21' (6.40 m) | 5,000 lbs (2,268 kg) | CDT™ |
| 6521 | 35,000 ft-lb | 21' (6.40 m) | 6,000 lbs (2,722 kg) | CDT™ |
| Hydraulic Cranes | ||||
| 7621 | 44,840 ft-lb* | 21' (6.40 m) | 7,500 lbs (3,400 kg) | CDTpro™ |
| 7630 | 44,840 ft-lb* | 29' 8" (9.04 m) | 7,500 lbs (3,400 kg) | CDTpro™ |
| 8621 | 53,100 ft-lb* | 21' (6.40 m) | 8,600 lbs (3,900 kg) | CDTpro™ |
| 8630 | 53,100 ft-lb* | 29' 8" (9.04 m) | 8,600 lbs (3,900 kg) | CDTpro™ |
