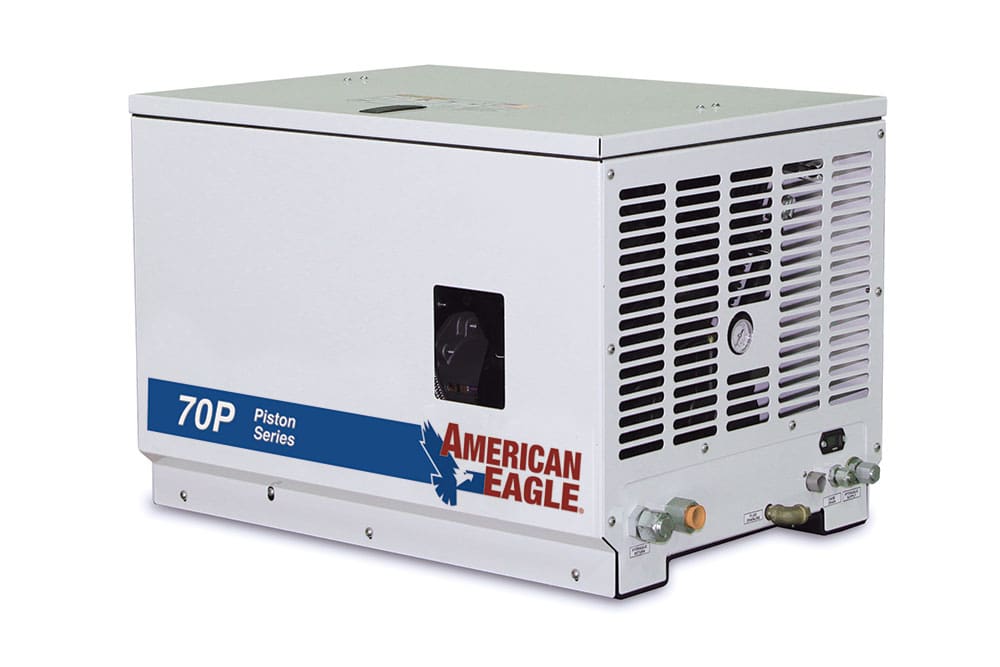

70P SINGLE-STAGE PISTON AIR COMPRESSOR

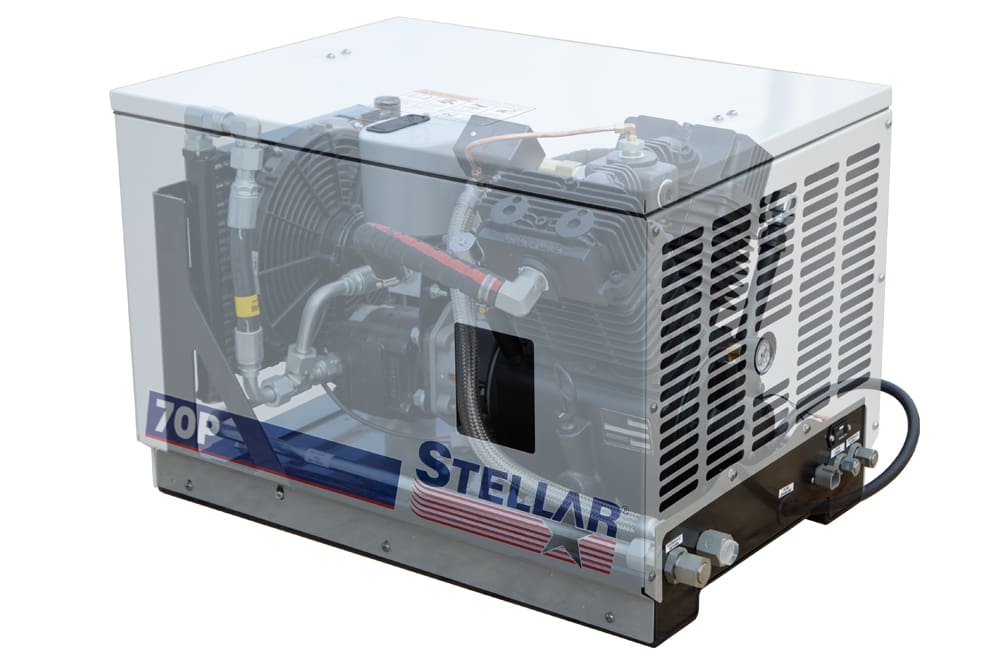

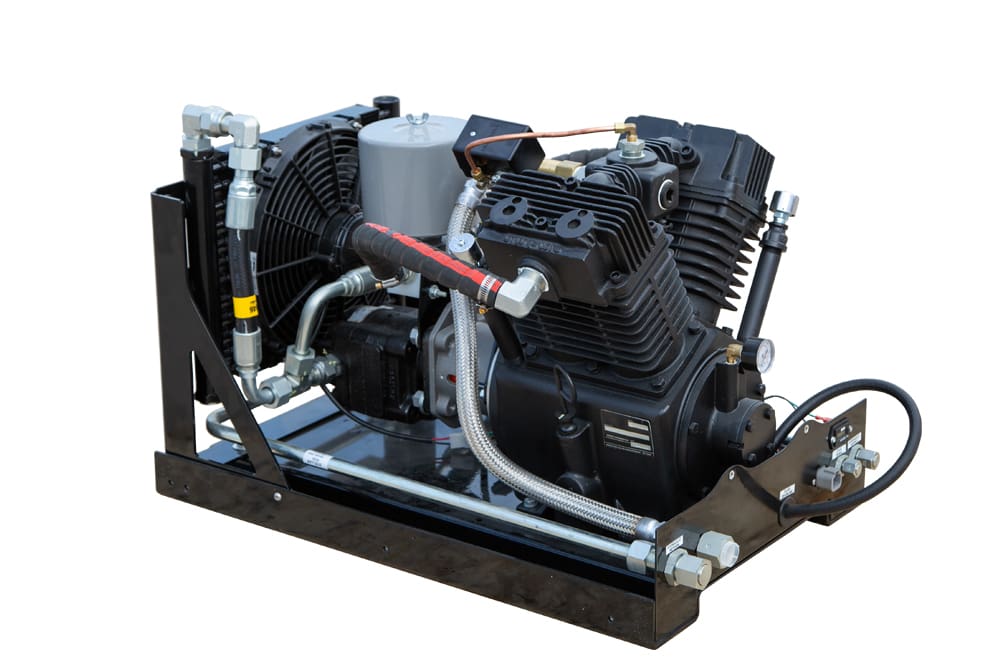

Rugged, reliable, simple and inexpensive to maintain, the Stellar® 70P Single-Stage Air Compressor is a cost-effective alternative to rotary screw compressors. The 70P units include our single-stage reciprocating pump, which is directly attached to the hydraulic motor (with no pulleys and belts), a hydraulic oil cooler, 12V fan and valve block.
Optional hydraulic oil reservoir is available.
PrintAdditional Information
Durability Standard
- Direct drive; no belts to break or adjust
- Double powder-coated cover with flip-up lid for easy access
- Canister-type air filters for high capacity and easy changing
- Cast-iron crankcase and cylinder heads for durability
- High-temperature, precision-ground 4-ring pistons for consistent performance
- Stainless-steel reed valves for long life and heat resistance
- Heavy-ductile, iron-balanced crankshaft with heavy-duty journal bushings and micro-honed connecting rods for smooth operation and long life
Ease of Use
- High-capacity hydraulic oil cooler and fan for cooler operation
- Pressure lubricated for consistent oil flow and pressure
- Flip-up lid for easy access
SPECIFICATIONS
Output Capacity: | 70 cfm @ 100 psi |
Hydraulic Req: | 18 gpm @ 2,650 psi |
Cylinders: | 4-cylinder, single-stage |
Max Pressure: | 150 psi |
Weight: | 325 lbs |
Dimensions: | 33"L x 22.5"W x 22"H |
Uses model HV60 pump |
