1184 Ag Tire Service Truck

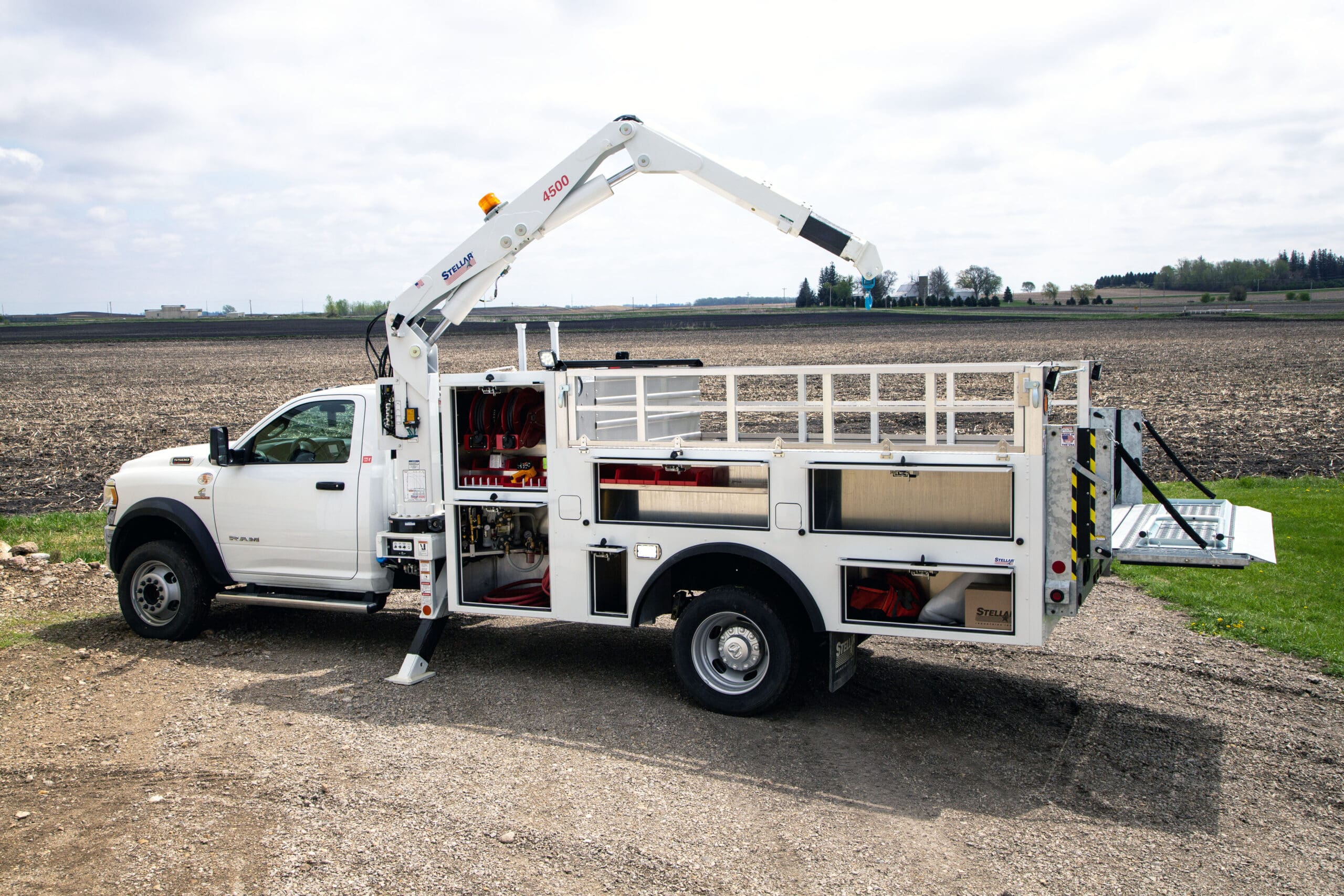

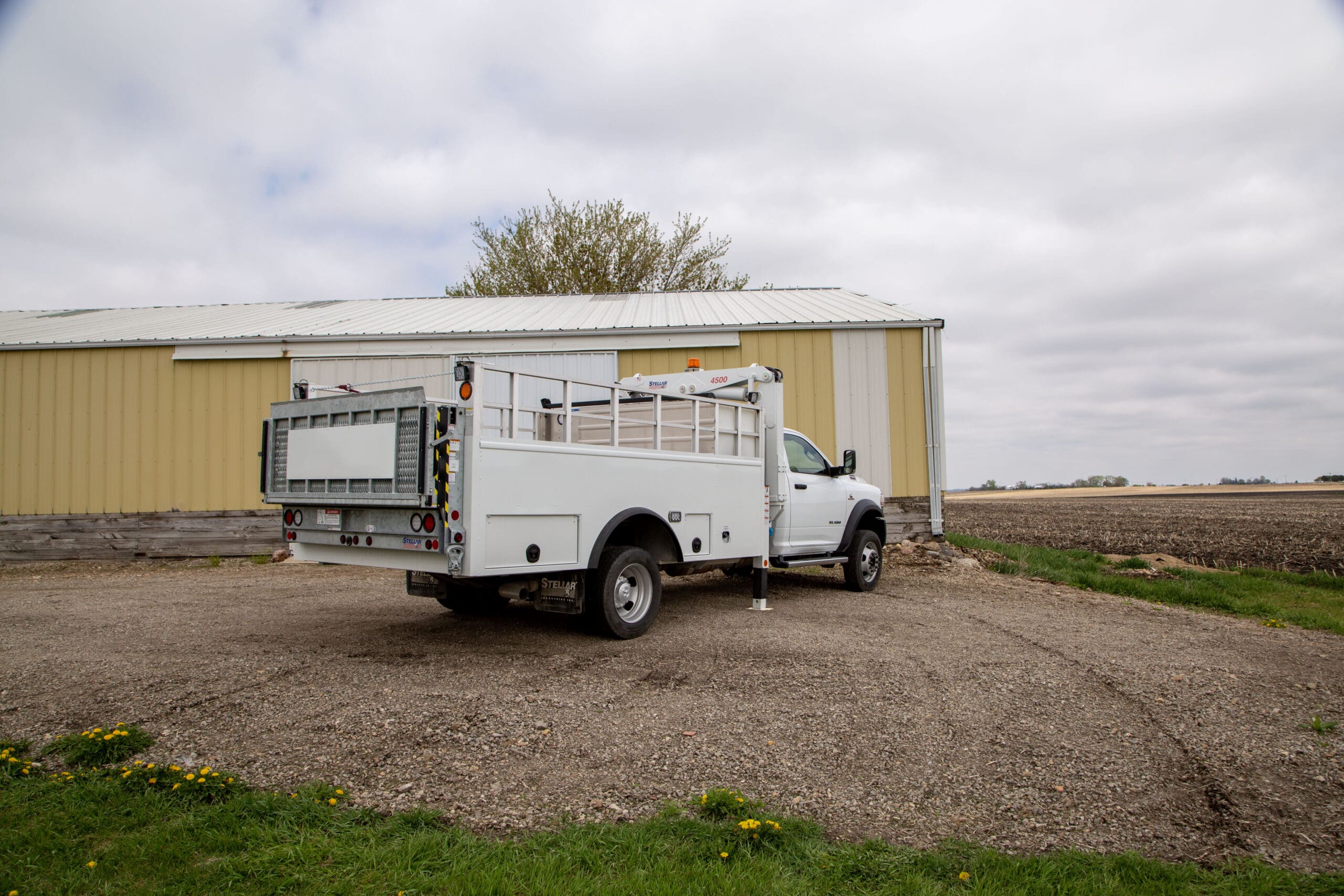

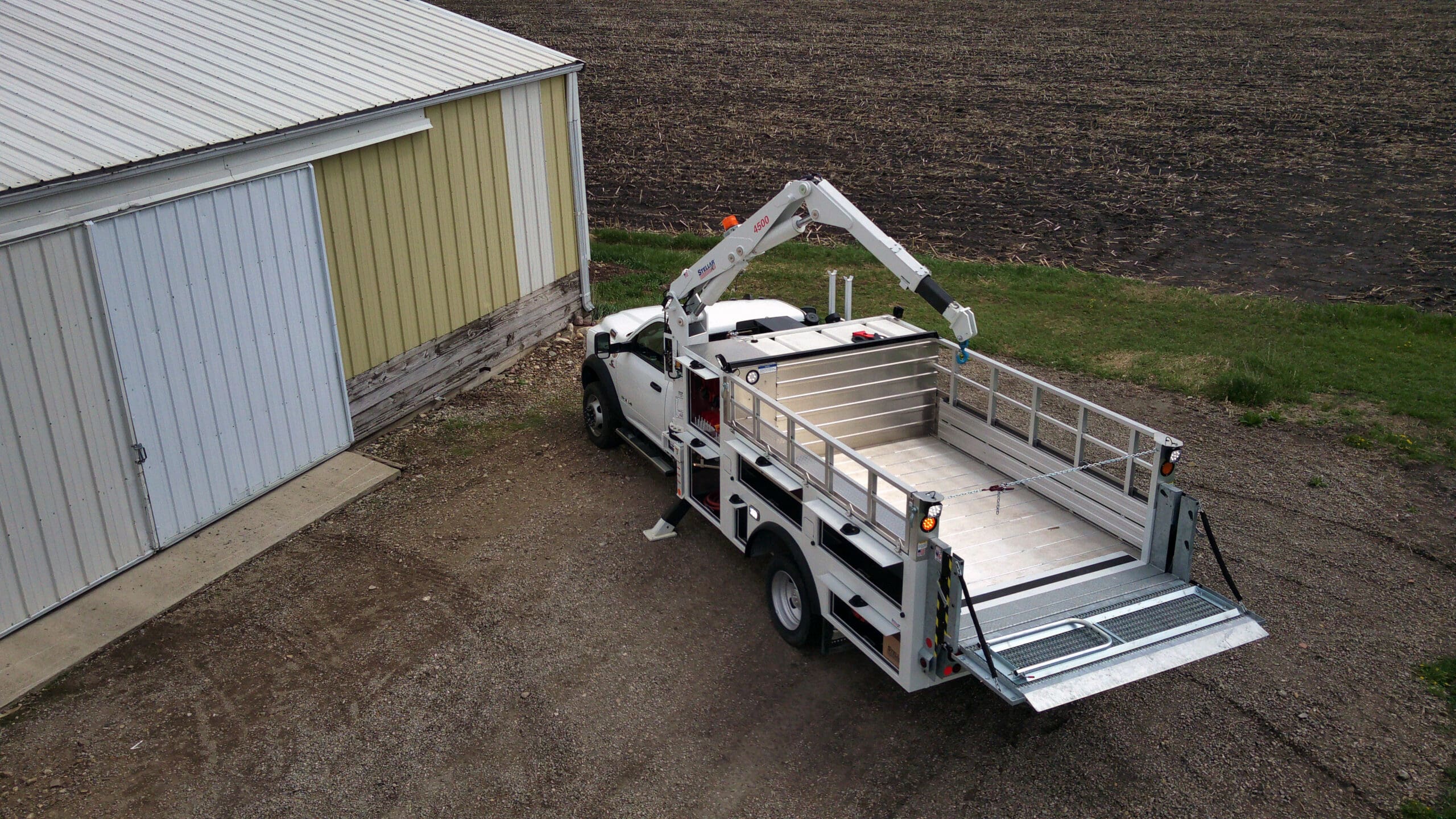

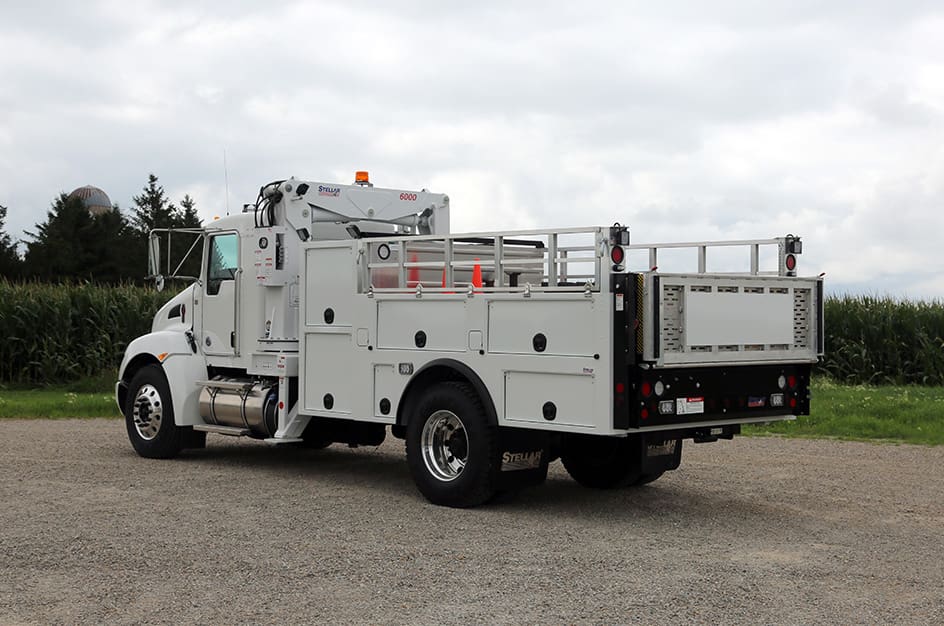

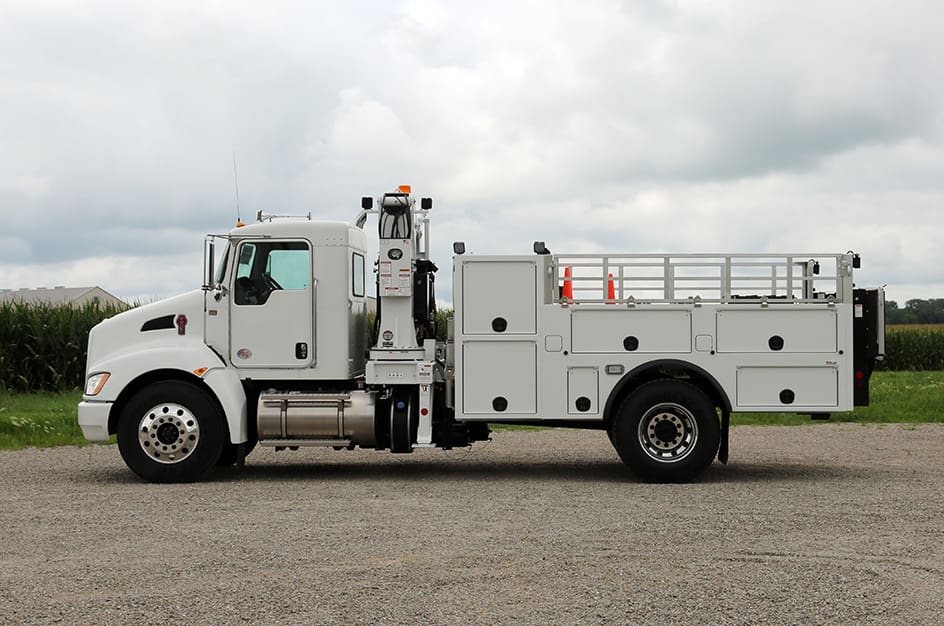

Stellar® 1184-13 and 1184-15 Ag Tire Service Trucks offer many of the same superb features of the 1184 Mini OTR Tire Service Truck with the addition of 2′ or 3′ of cargo area. Stellar 1184 Tire Service Trucks offer versatility and dependability and come with many other features designed with the user in mind.

Print

Additional Information

Service Body Features:

  • 13′ or 15′ long all aluminum body is lightweight and dependable to maximize the payload.
  • 40″ high open-style rack sides.

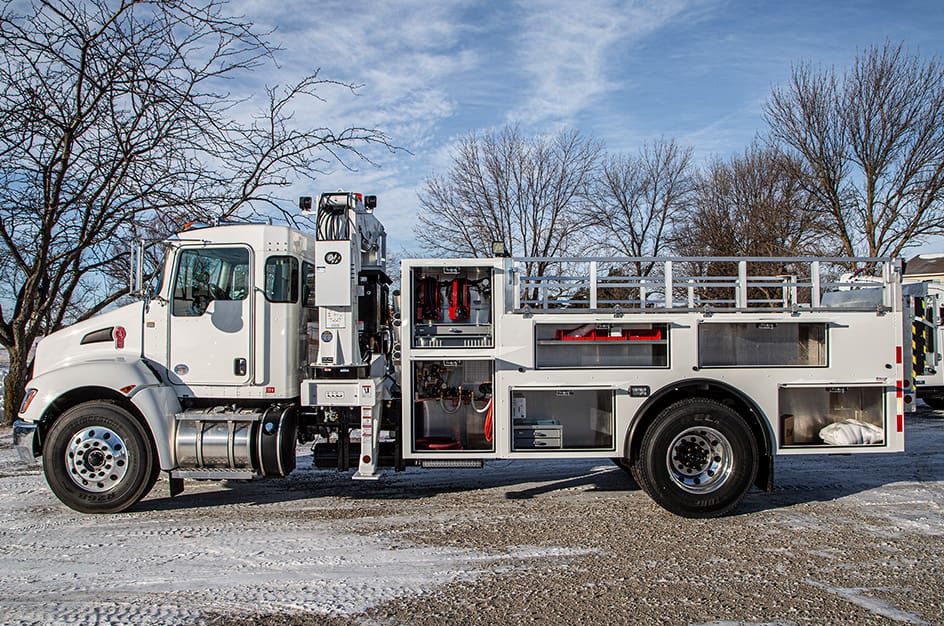

  • Tool compartments with user-friendly storage: 1184-13 features 52 cubic feet of storage, while the 1184-15 features additional horizontal boxes over the left tires.

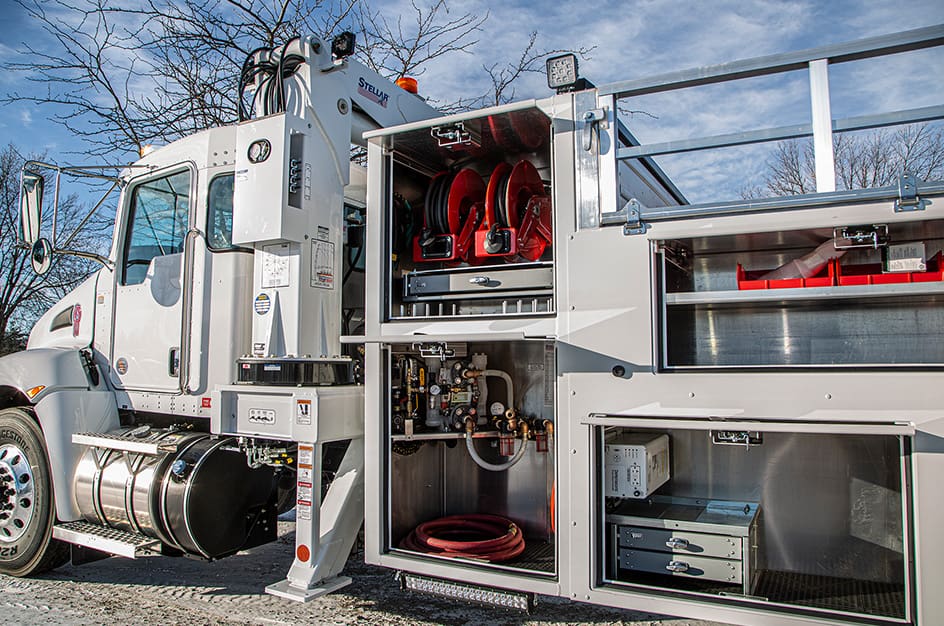

  •  Slide-top doors on all tool compartments slide up and in to allow for easy access inside the compartment.
  • Recessed, skirt-mounted LED floodlights.
  • Seamless 22″ high sign panels.
  • Sturdy, extruded aluminum plank floor.
  • Ballast pump system with 400-gallon reinforced polypropylene tank and air operated fluid mixer.
  • Different crane models available to customize to your needs.
  • The body of the 1184 features a drop-down floor to give a low center of gravity for the 400-gallon fluid tank. This allows for maximum storage of the tank, provides maximum hauling space for the tires and eliminates any interference with the crane.

1184-13 Ag Tire Service Truck:

  • 13′ body features an abundance of storage and 253 cubic feet of haul space.
  • Designed to fit a 19,500 – 26,000 GVW and larger chassis with a minimum of 108″ CA (cab-to-axle) measurement.
  • Also featured on the 1184-13 are a left fold-down rack and standard LED wheel well lights.

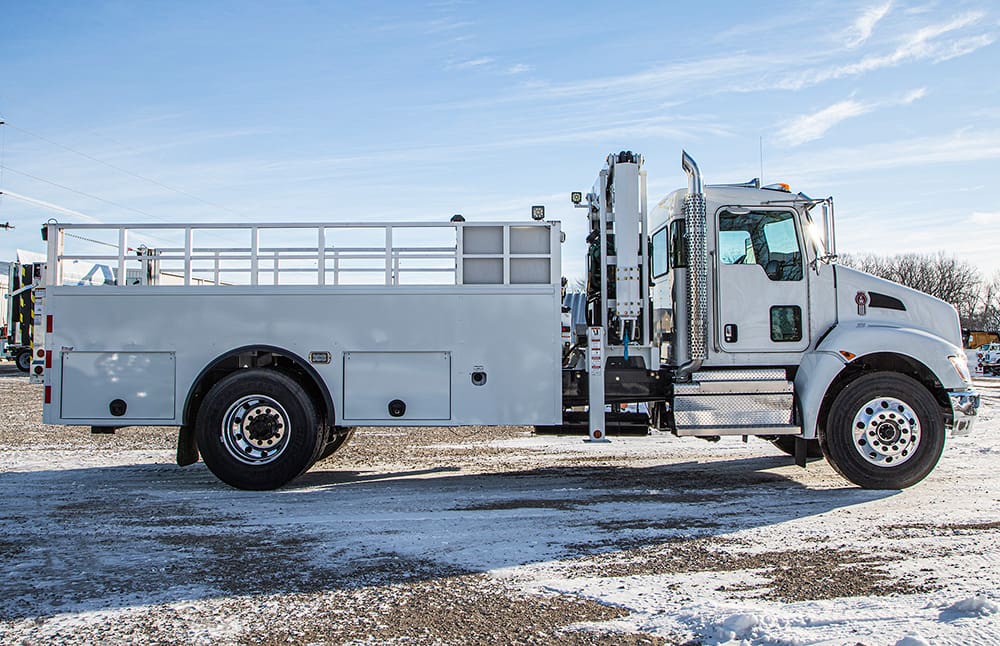

1184-15 Ag Tire Service Truck:

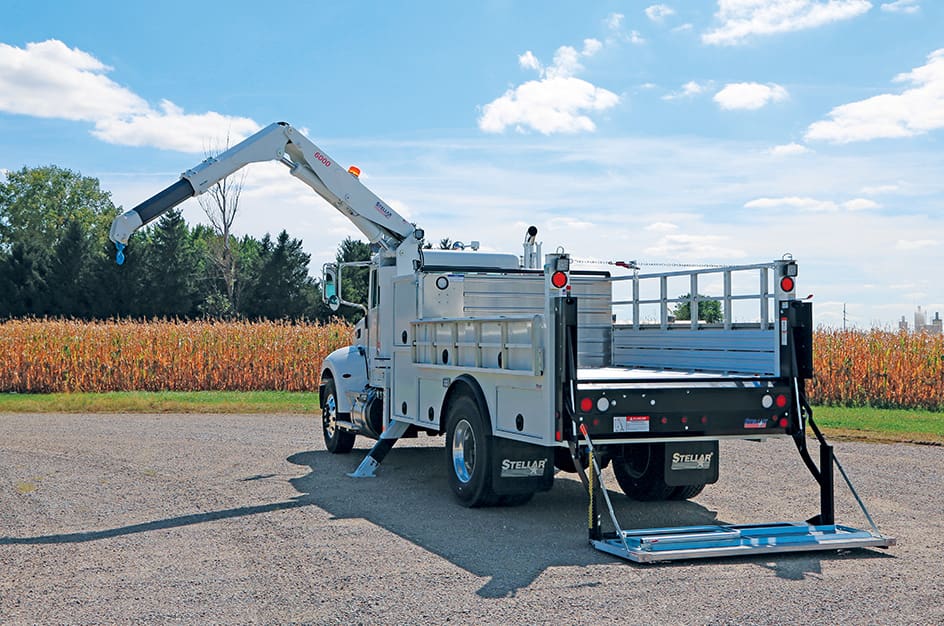

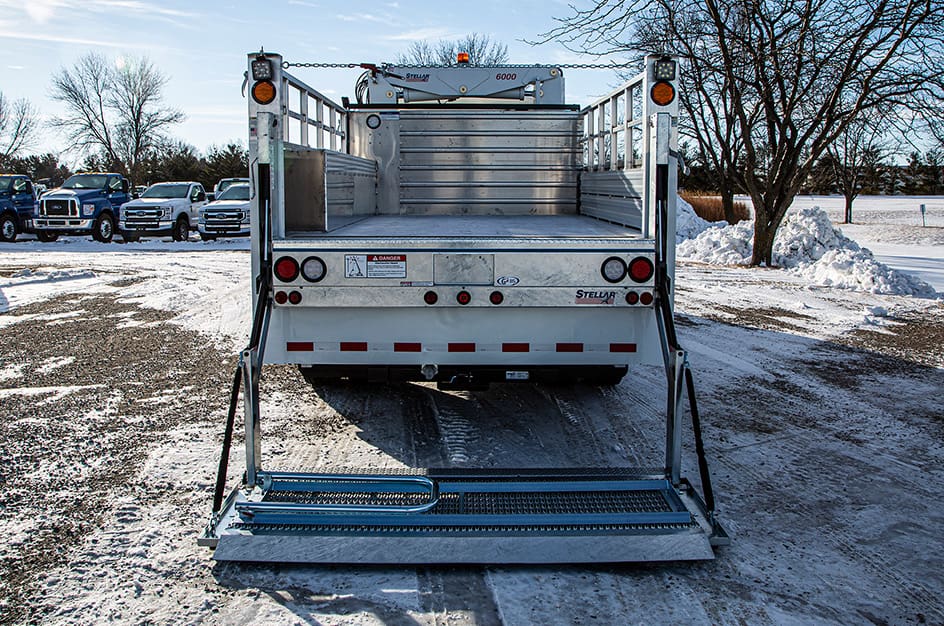

  • The combination of a larger service body, tire handling crane, tire loading liftgate and a large hydraulic-driven air compressor, makes the 1184-15 a very versatile and productive service unit.
  • The 1184-15 is designed to fit a 26,000 GVW and larger chassis with a minimum of 144″ CA (cab-to-axle) measurement.
  • The 15′ body features an abundance of storage and 272 cubic feet of haul space.
  • Also featured are a left fold-down rack and standard wheel well lights.

The 1184 Ag Service Trucks can be equipped with either a model 3200, 4500 or 6000 tire service crane. These cranes are designed from the ground up to handle the largest of farm tires and the smaller-sized OTR tires. The cranes are operated by a standard fully proportional radio remote control. Optional accessories include: 3/8″ x 50′ and 1/2″ x 50′ hose reels, plastic storage bins and socket racks.

The 46P hydraulic-drive air compressor is mounted on the crane base with a hydraulic cooler. This compressor has a 46 cfm at 175 psi output. The location allows for cool, clean, fresh air intake and easy maintenance and serviceability.

Crane Features:

  • Standard fully proportional radio remote control and manual controls with the ability to do multiple functions at once; controls mounted to valve bank
  • Fully enclosed extension boom cylinder
  • Hexagon-shaped secondary and extension
  • Load-holding counterbalance valves

SPECIFICATIONS

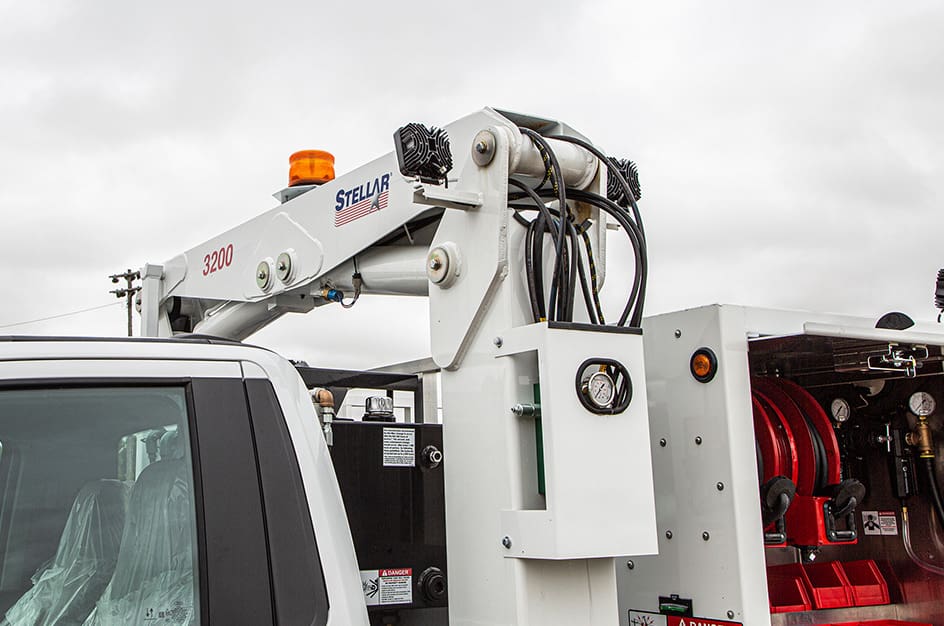

3200 Crane
Rating: 32,000 ft-lbs (4.42 t-m)
Lifting Capacities: 5,000 lbs @ 9'
(2,270 kg @ 2.74 m)

2,200 lbs @ 17'
(1,000 kg @ 5.18 m)
Controls: Proportional radio control
Stowed Height: 60" (152.4 cm)
Mounting Space Required: 24" (60.96 cm)
Shipping Weight: 1,900 lbs (862 kg)

4500 Crane
Rating: 45,000 ft-lbs (6.22 t-m)
Lifting Capacities: 7,500 lbs @ 9'
(3,400 kg @ 2.74 m)

3,200 lbs @ 17'
(1,450 kg @ 5.18 m)
Controls: Proportional radio control
Stowed Height: 71" (180.3 cm)
Mounting Space Required: 26" (66.04 cm)
Shipping Weight: 2,400 lbs (1,089 kg)

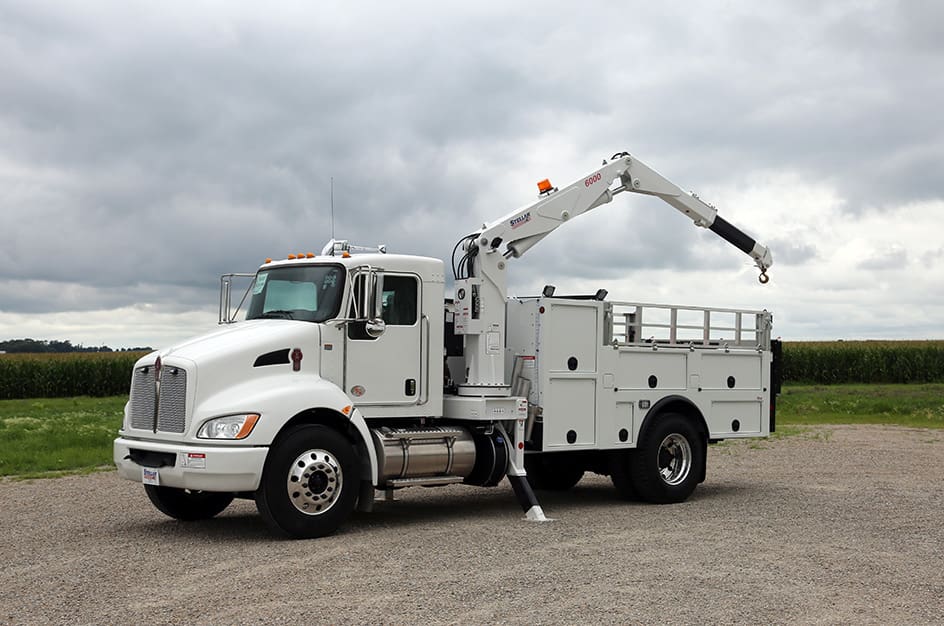

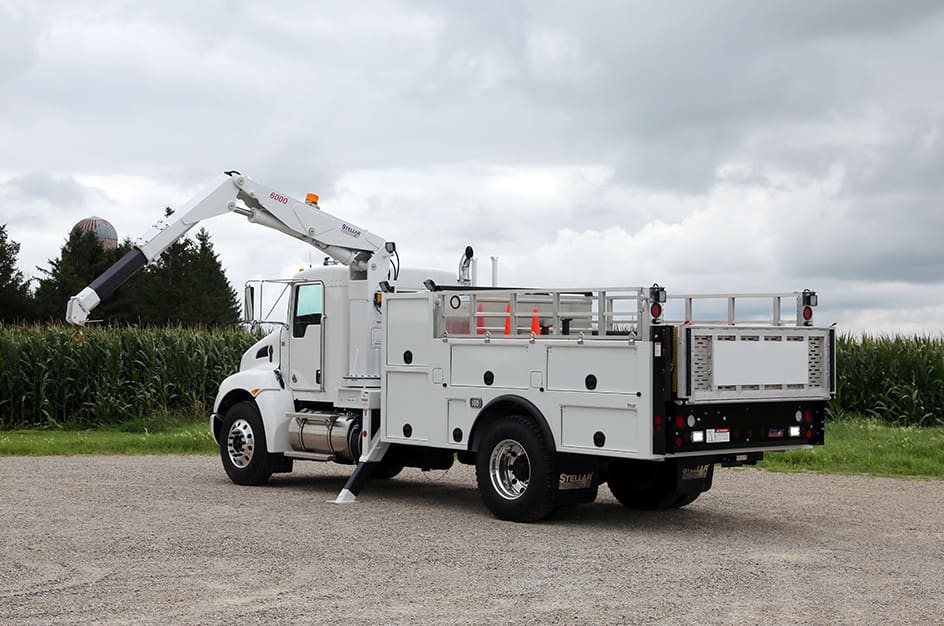

6000 Crane
Crane Rating: 60,000 ft-lbs (8.29 t-m)
Lifting Capacities: 10,000 lbs @ 9'
(4,535 kg @ 2.74 m)

4,250 lbs @ 17'
(1,930 kg @ 5.18 m)
Controls: Proportional radio control
Stowed Height: 75" (190.5 cm) above truck frame
Mounting Space Required: 32" (81.28 cm)
Shipping Weight: 3,150 lbs (1,429 kg)
