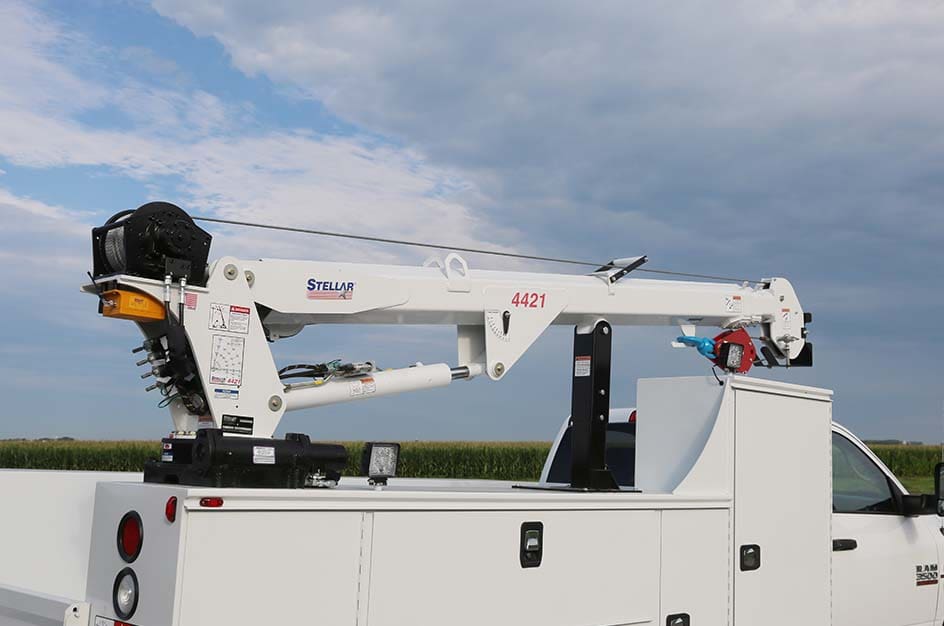

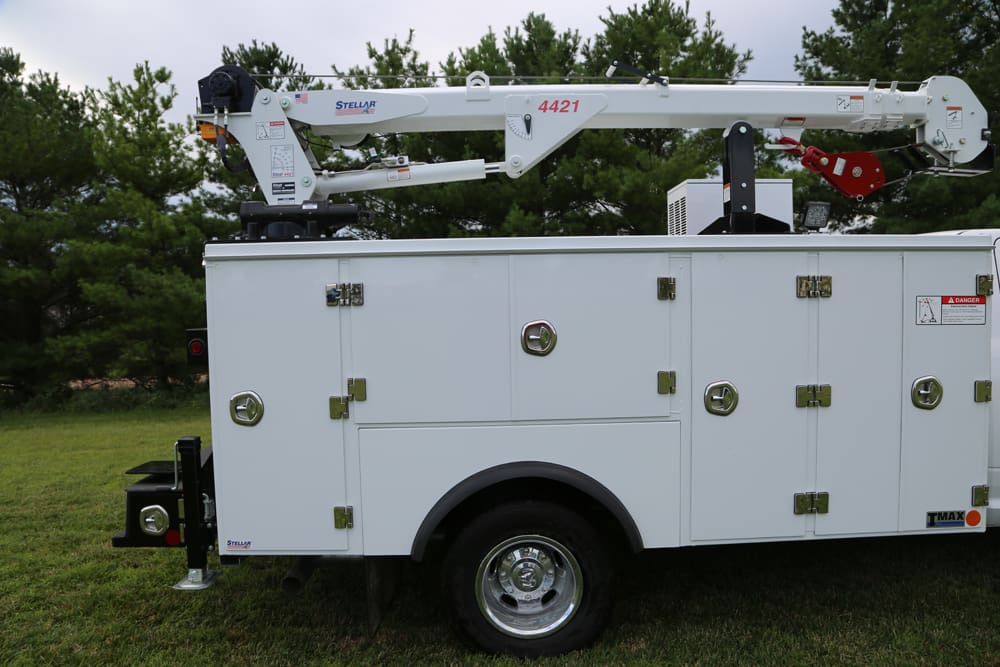

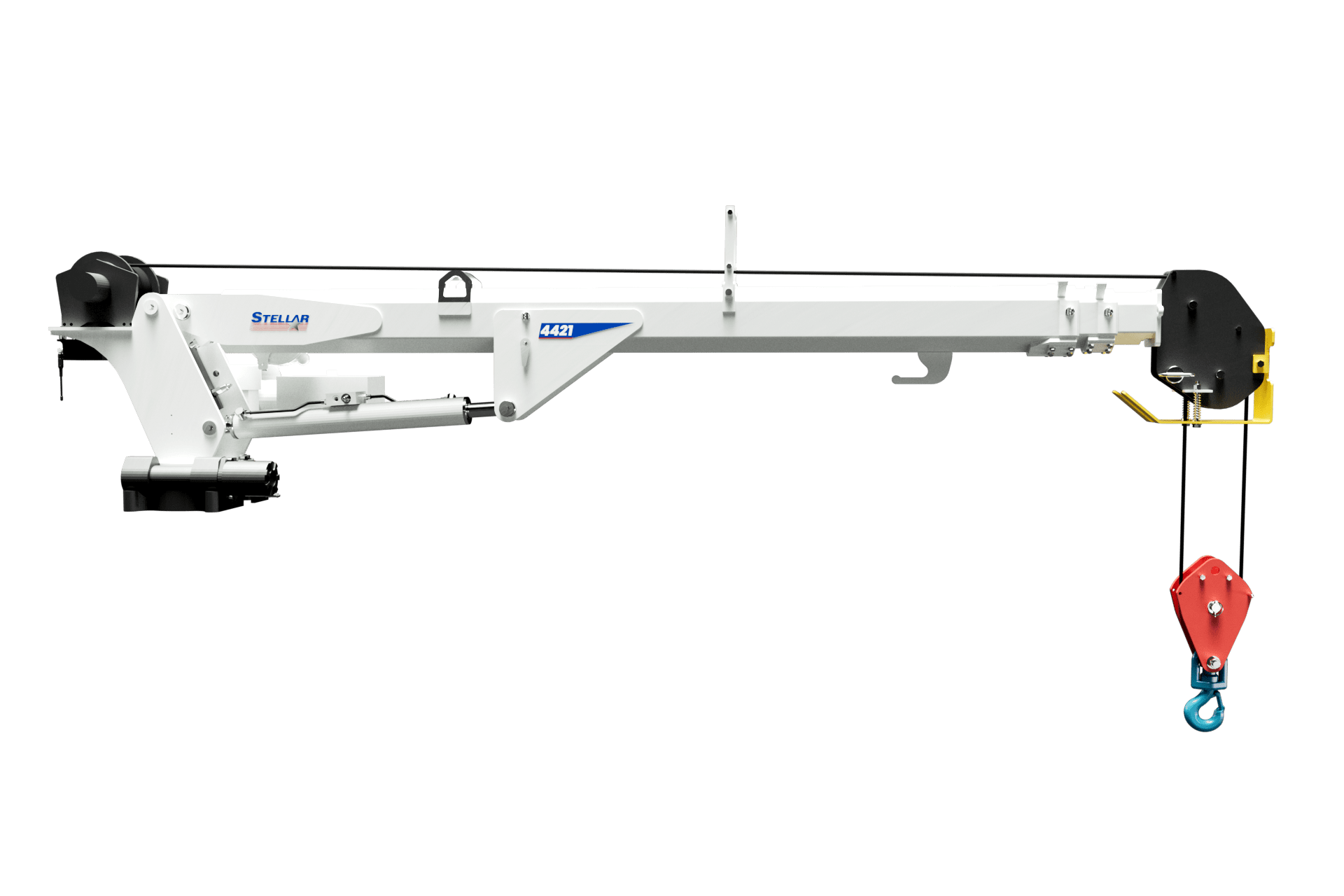

4421 Electric-Hydraulic Cranes

4,000-lb Capacity with 21′ of Reach

The Stellar® 4421 Electric-Hydraulic Truck Crane helps construction companies, public utilities, municipalities, agriculture operations and more handle their lifting needs.

Print
  • Selection. Available in electric and hydraulic models.
  • Proportional Radio Remote. Remote options for this model are hydraulic= proportional remote, hydraulic = on/off remote, electric= proportional remote, electric= on/off. CDT is the proportional remote.
  • Planetary Winch. Featuring a hydraulic or mechanical brake system, it lifts the maximum crane load and offers the smoothest and fastest speeds in the market today for maximum productivity.

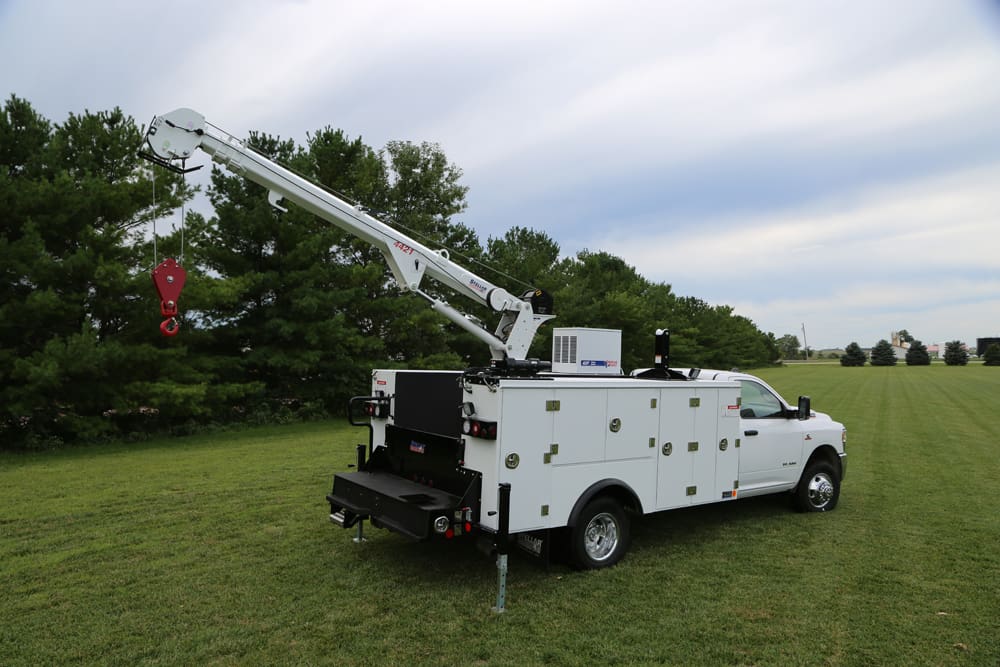

  • Superior Boom Articulation. Stellar Electric-Hydraulic Cranes make loading easier with industry-leading -10 degrees to +80 degrees articulation.
  • Full Hydraulic Extension. No manual extension is required for hydraulic models. A configuration with one hydraulic and one manual boom is standard, and an optional boom configuration of two hydraulic boom extensions is available.
  • Internal Extension Cylinder. Delivers the same extension boom performance as our larger cranes.
  • Quick-Release Snatch Block Stow. Easily stow your snatch block on the underside of the boom after use. The unique design gently releases the snatch block for use when the boom is raised at close to 60 degrees to ensure a safe and orderly deployment.

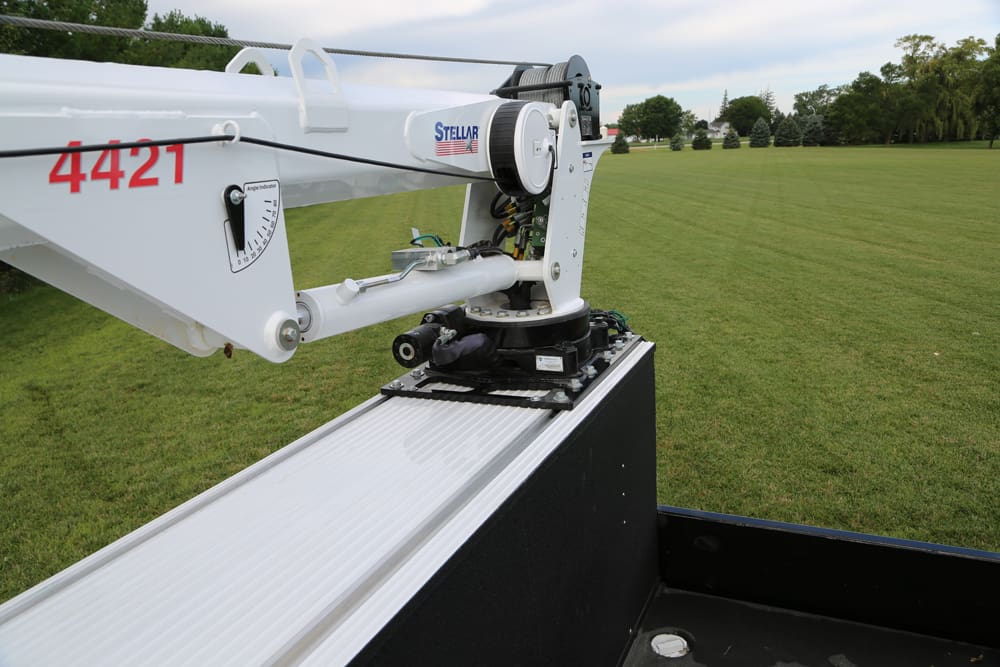

  • Strong Rotation System. The cast iron base and internal mechanical stop provide the most durable rotation system found in the industry.
  • Counterbalance Valves. Included on each cylinder to prevent unintended cylinder movement should a hose break.
  • Greaseable Pivot Bushings. Each pivot pin location includes bushings and grease zerks to simplify maintenance and help ensure years of use.
  • Innovative Boom Design. Stellar’s boom design delivers a stronger and better-aligning boom than the square booms of other brands.
  • Bar-Style Anti-Two Block. The low-profile, bar-style anti-two block system allows for easy access to the tightest lifting locations.
  • Certified. Meets ANSI B30.5 and OSHA 1910.180 specifications.
Crane Rating: 16,000 ft-lb (2.23 tm)
Standard Boom Length: 11' (3.35 m) from CL of crane
Boom Extension:
• 1st Stage:
• 2nd Stage:

Hydraulic 60" (152.4 cm)
Manual 60" (152.4 cm)
Maximum Horizontal Reach: 21' (6.4 m) from CL of crane
Maximum Vertical Lift: 22' 7" (6.89 m) from crane base

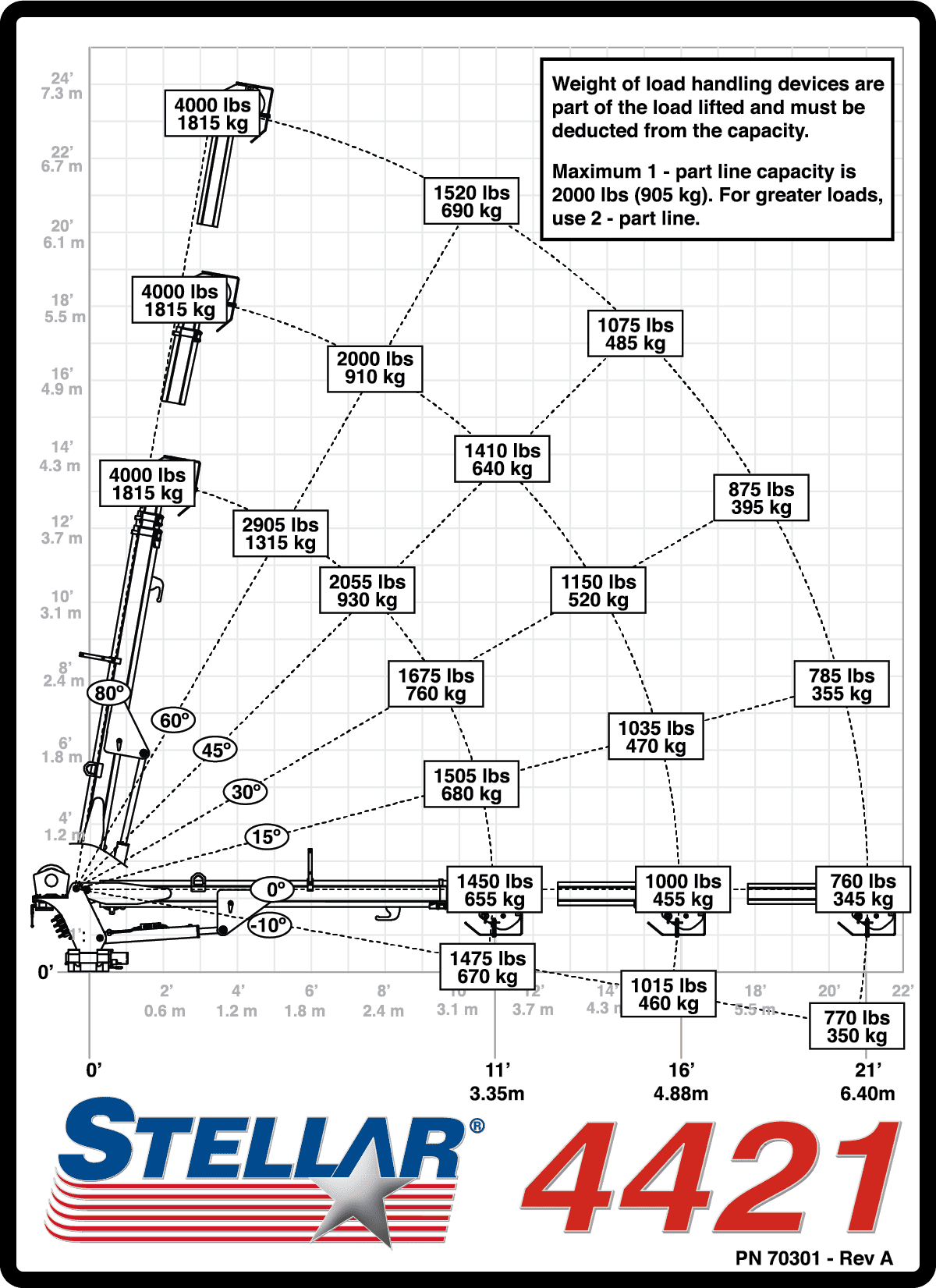

Lifting Capacity: 4,000 lbs @ 4' (1,810 kg @ 1.22 m)
760 lbs @ 21' (345 kg @ 6.4 m)
Boom Elevation: -10° to +80°
Stowed Height (crane only): 31.2" (79.2 cm)
Mounting Space Required: 18" x 15" (45.7 x 38.1 cm)
Approximate Crane Weight: 4421 (electric)
2H: 1,090 lbs (494 kg)
4421 (hydraulic)
2H: 990 lbs (449 kg)
1H1M: 905 lbs (411 kg) 1H1M: 995 lbs (451 kg)
Winch:
• Rope Diameter:

• Line pull speed:
• Max. single part line:
• Max. double part line:

5/16" (0.79 cm)
6 x 19 IWRC-DGXIP x 90' (27.73 m)
25 ft/min (7.62 m/min)
2,000 lbs (905 kg)
4,000 lbs (1,815 kg)
Rotation: 370° power (worm gear)
Power Supply Required: 12V power unit: 2 gpm @ 2,600 psi
(7.57 lpm @ 179 bars)
Min. Rec. Chassis (GVRW)*: 14,500
Controls: CDT proportional remote or On/Off remote

Optimize your Service vehicle

Because different people use service vehicles in different ways, Stellar makes it easy to outfit yours with a wide range of accessories.
