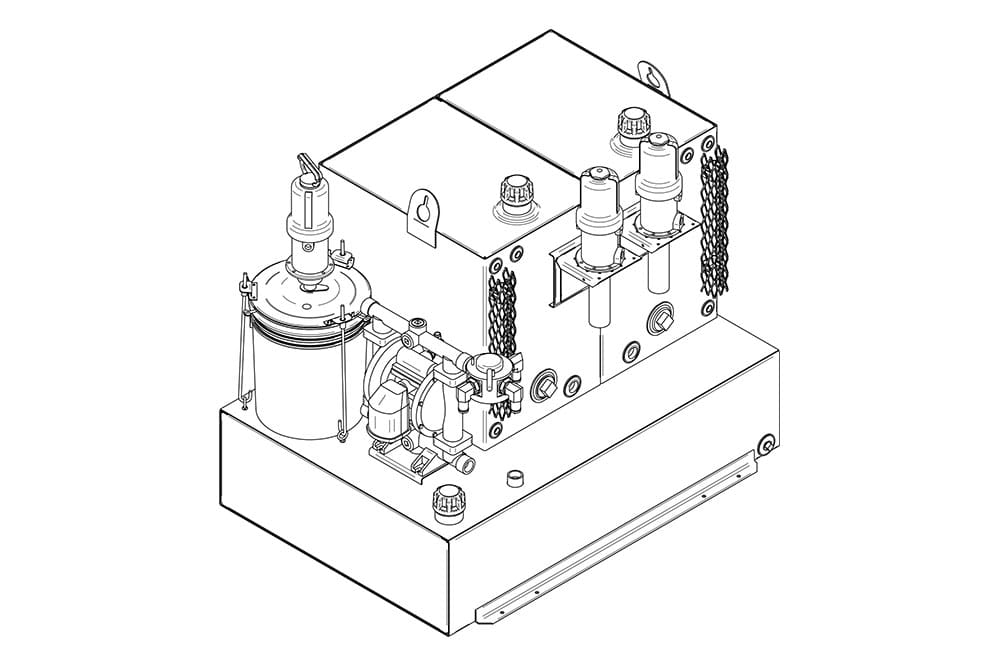

LM160 Lube Skid

Steel Aluminum

Meet more demands in the field by adding lube truck services to your service truck. The LM160 Lube Skid gives you the ability to tackle preventive maintenance onsite, maximizing uptime. It comes complete with hardware to mount and plumb. A lighter-weight aluminum model is available for higher truck payload. A service van configuration is also available.

  • Two (2) 40-gallon new oil tanks internally baffled with sight gauges and vented caps
  • 80-gallon waste oil tank internally baffled with dipstick and vented cap
  • Two (2) 5:1 pumps with reliefs for new oil
  • 1″ diaphragm pump with 4-way valve for evacuation and discharge of waste oil tank
  • Two (2) 1/2″ x 50′ new oil reels with mechanical meters
  • 1″ x 25′ waste oil reel with quick coupler
  • 7-gallon drain pan with quick coupler and stub, and connecting hoses
  • Dimensions: 47.5″W x 43″T x 36″D

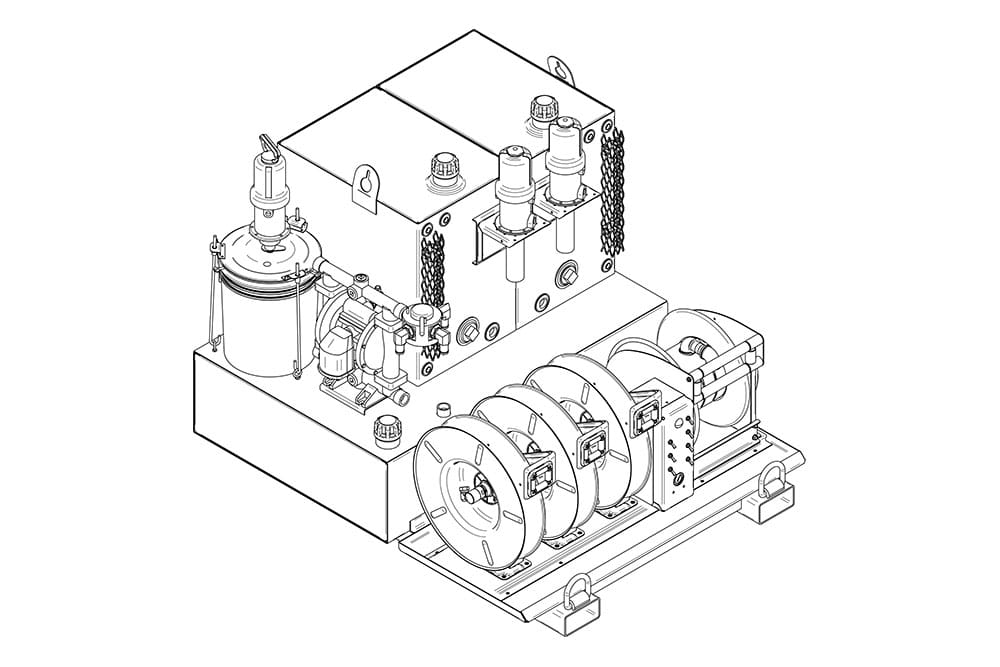

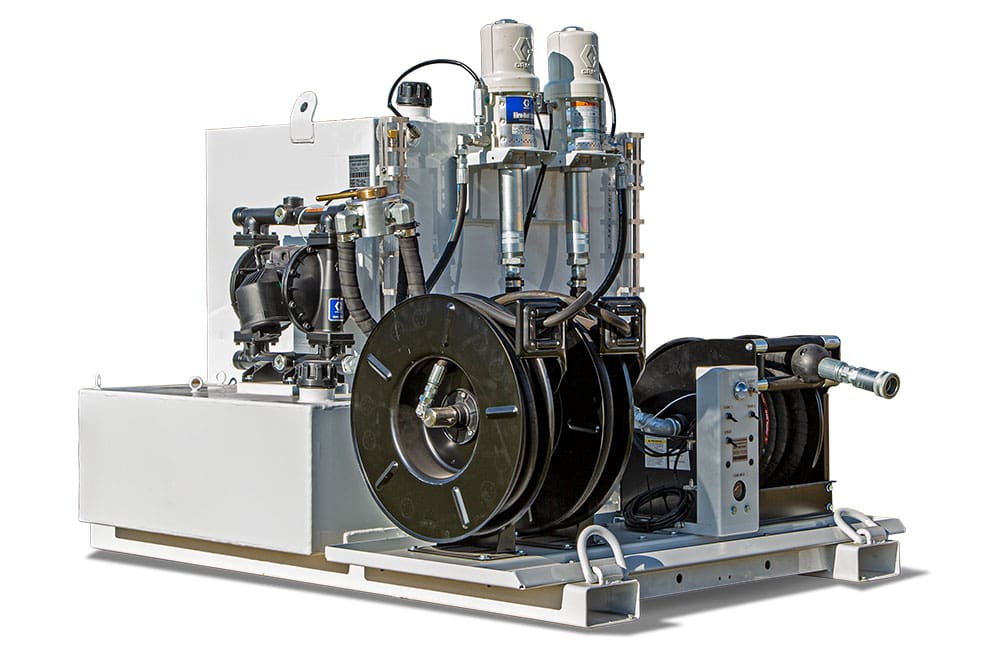

  • Mobile model available
