TM16160/28000 Large OTR Tire Service Truck

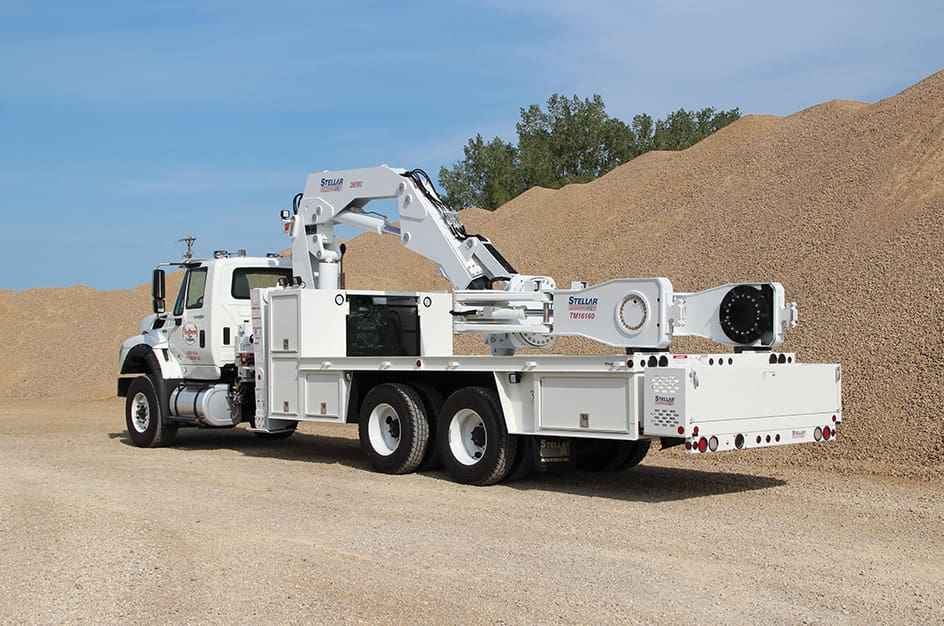

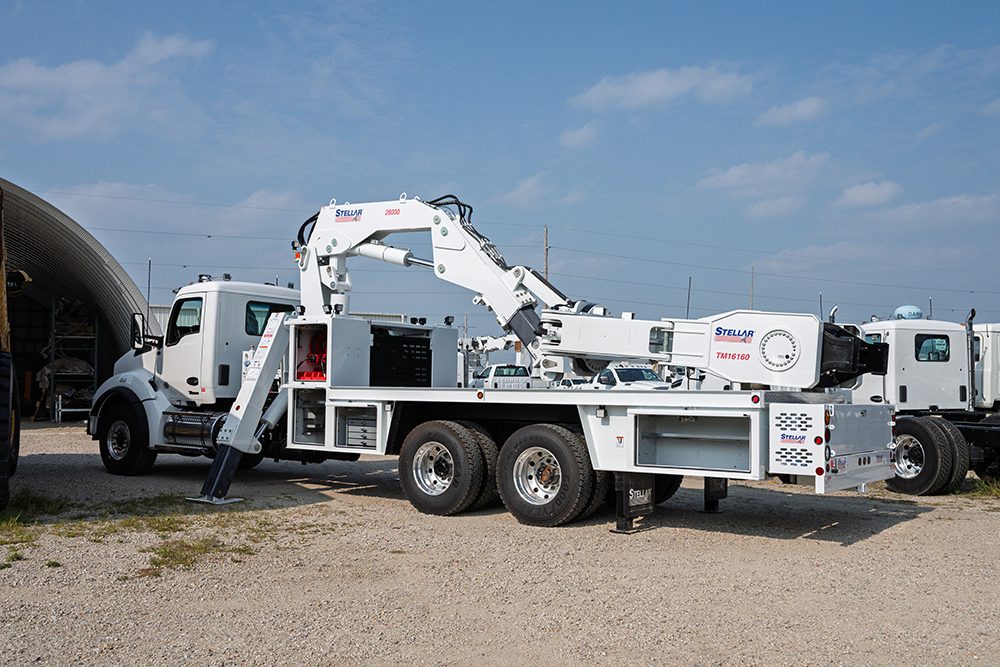

The Stellar® TM16160/28000 OTR Tire Service Truck fits the needs of OTR tire service technicians who need something that can handle it all. A 315° turntable rotation system driven by a worm gear and pinion system ensures rock-solid performance. This carrier features a lifting capacity of 28,000 lbs at 10′ and 17,200 lbs at 16′ 3″ of total reach without the tire manipulator.
PrintAdditional Information

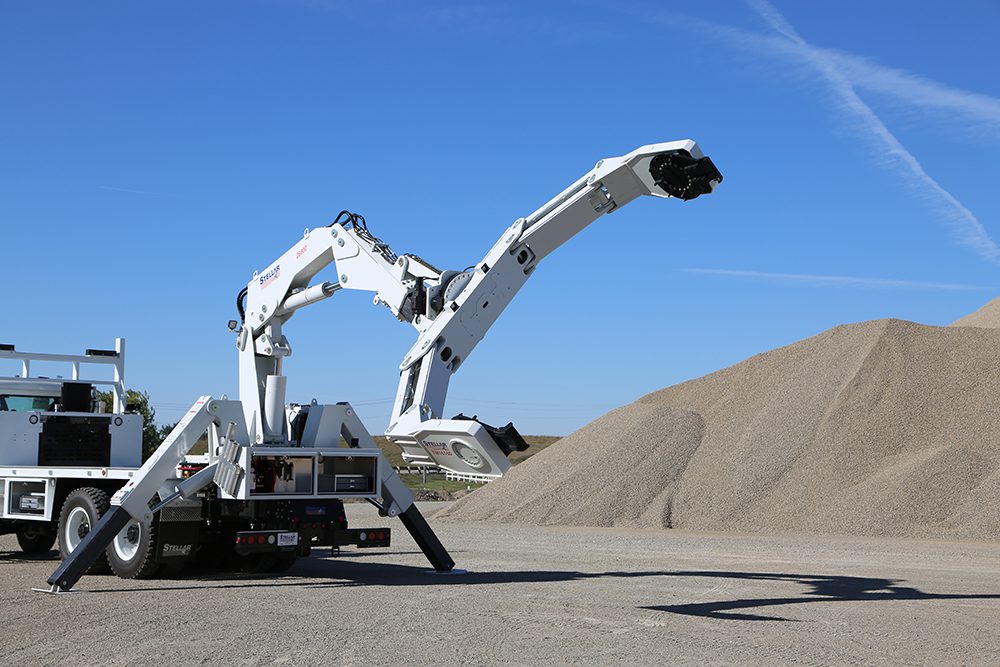

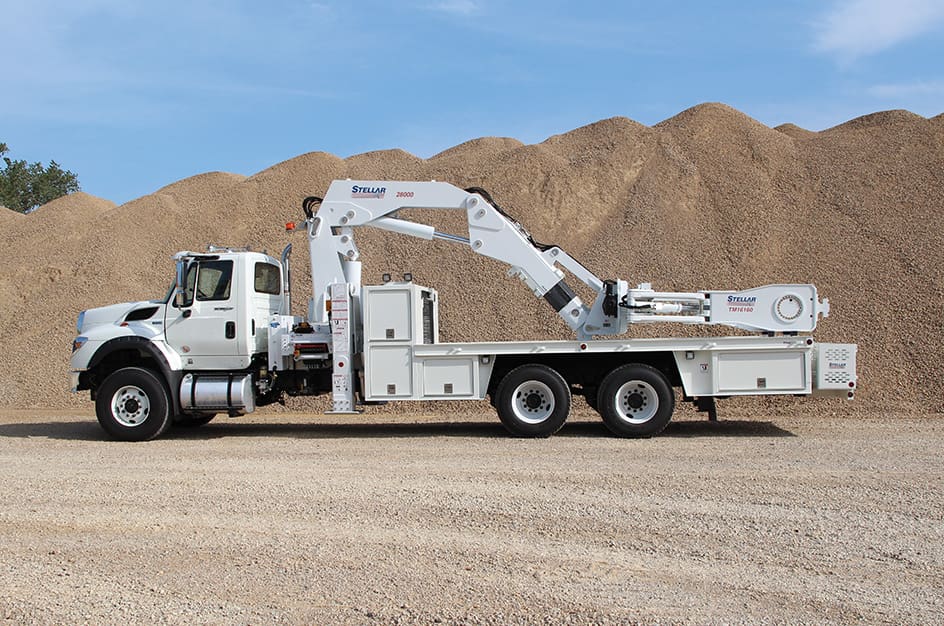

Stellar’s modified A-frame stabilizer design is an industry first. The Stellar TM16160/28000 OTR offers the stability and durability of A-frame stabilizers with the diversity of out-and-down style outriggers. Modifying the A-frame geometry and using dual cylinders allows A-frame stability at differing widths.

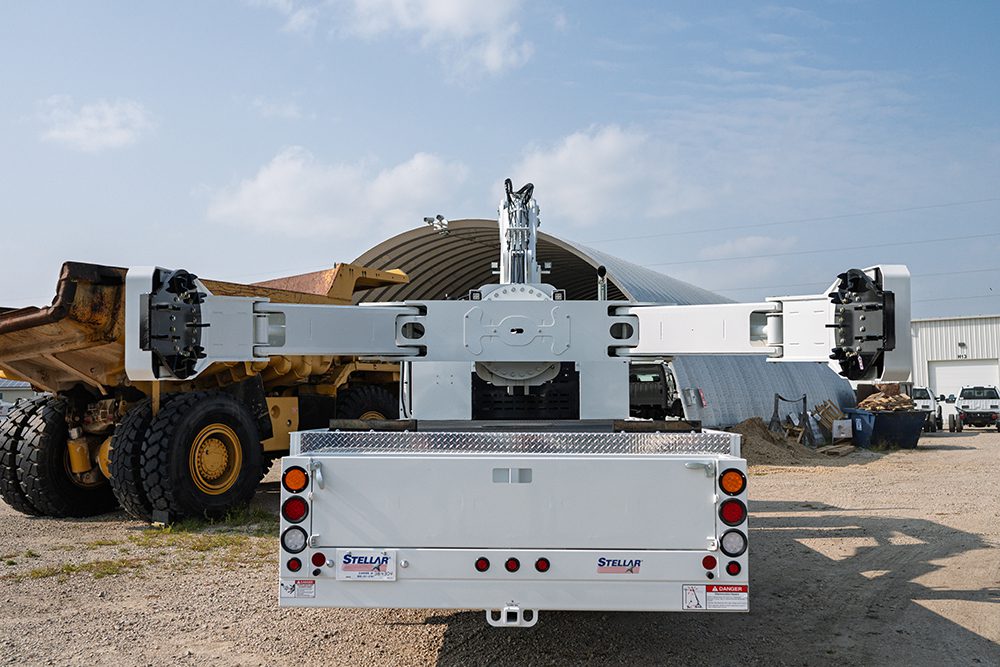

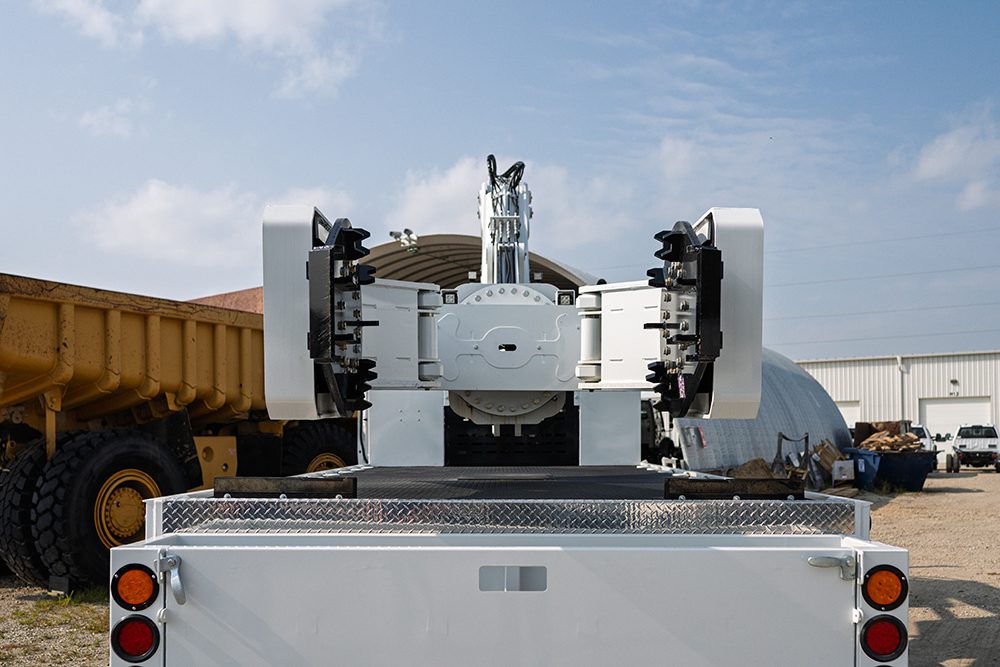

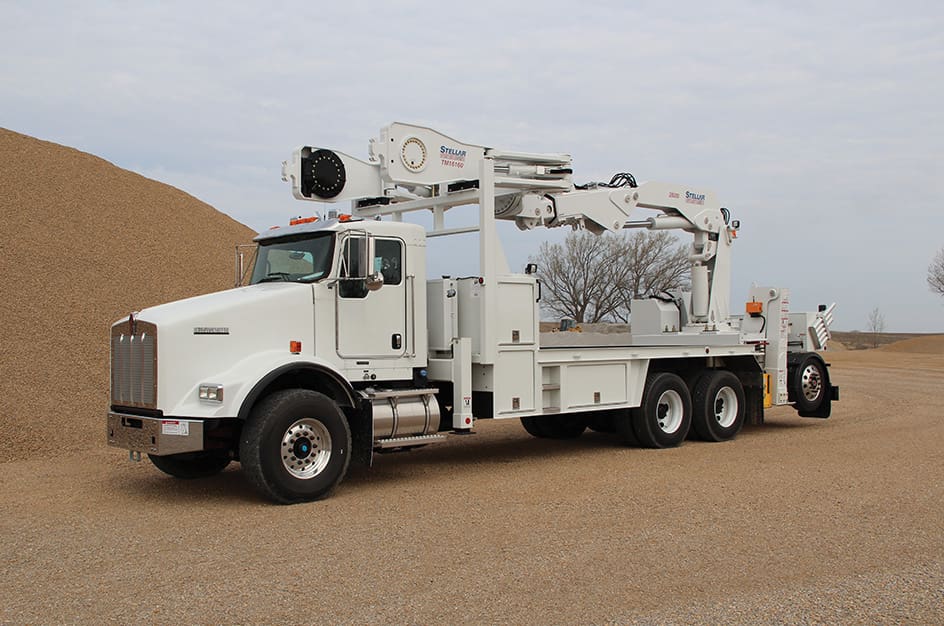

The tire manipulator offers over 143° of articulation and 315° rotation, along with continuous rotating pads. With a clamping width of 158″, it can easily handle tire and tire rim combinations up to 16,500 lbs. The unique parallelogram design gives it considerable clamping width, but also the ability to clamp tires as small as 40″.

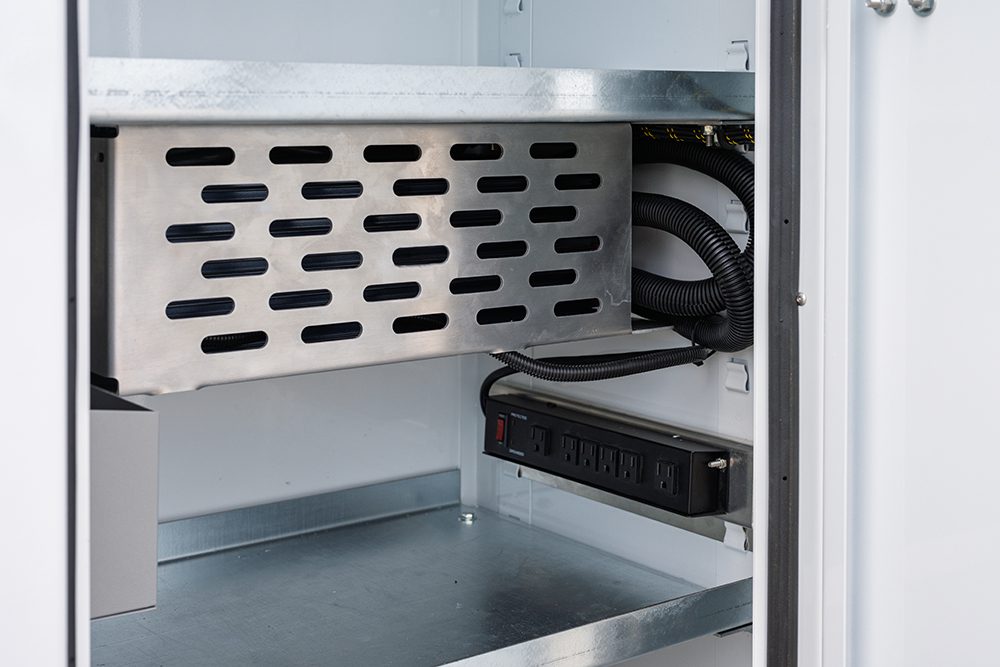

Service Body Features:
- 20′ long body
- Heavy-duty steel construction
- Flat body has 8 D-ring tiedowns

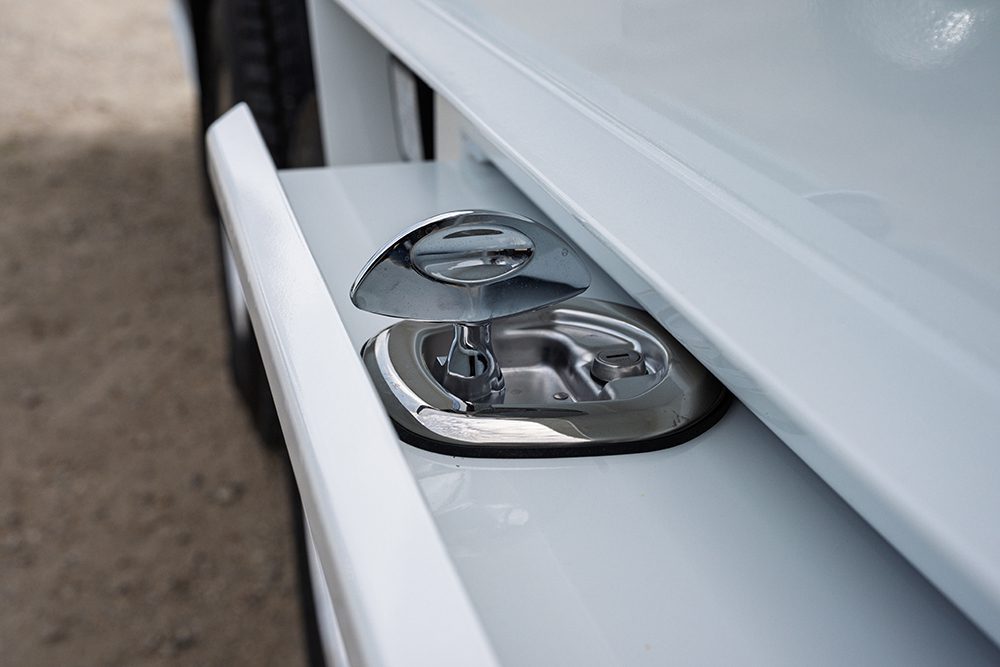

- Stainless-steel rotary slam latches

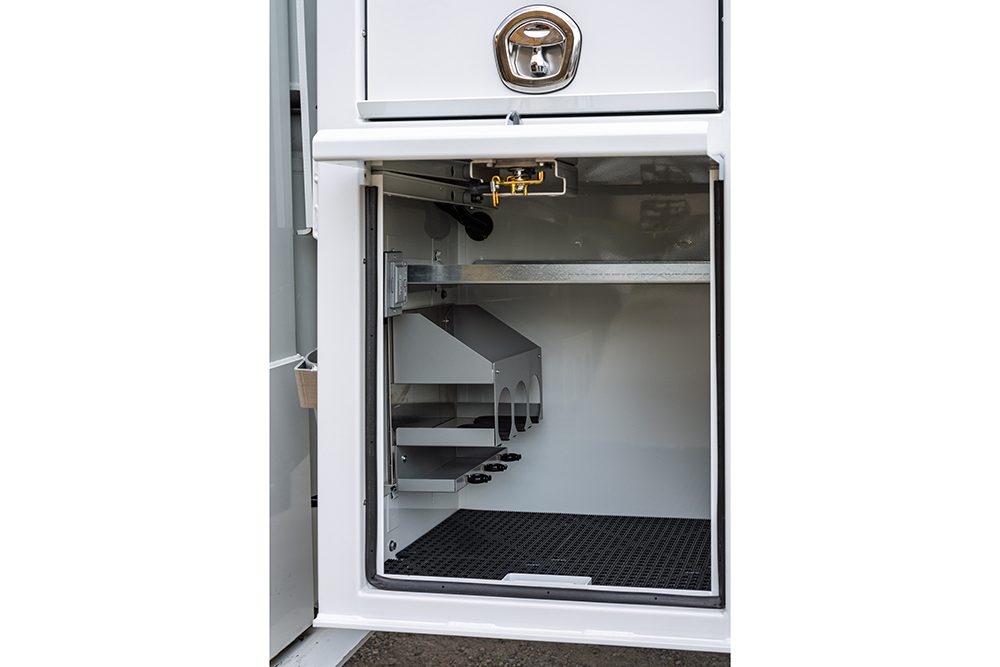

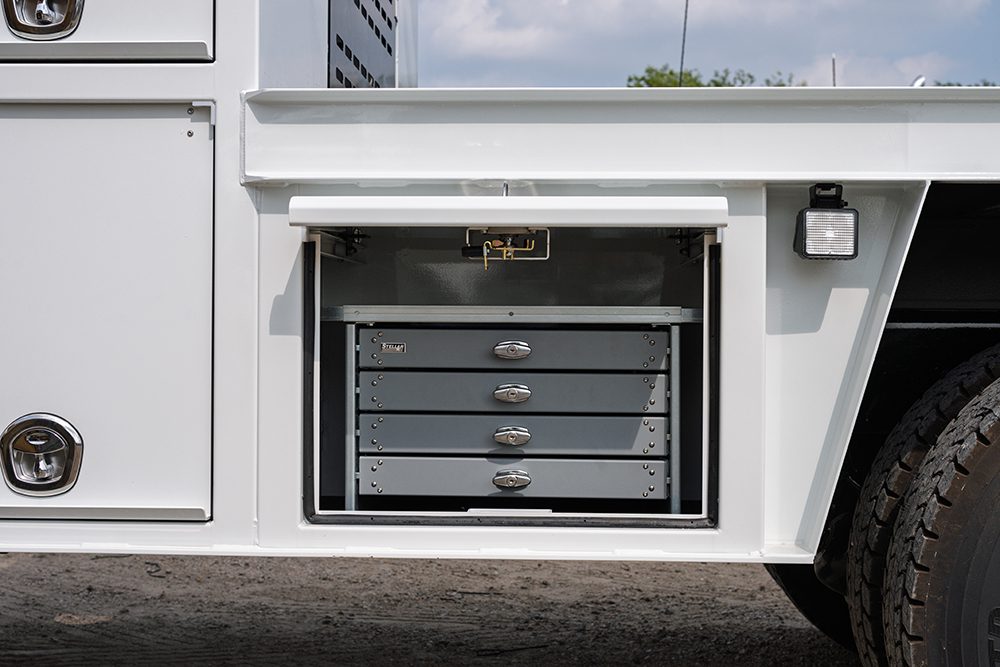

- Slide-top doors on all tool compartments

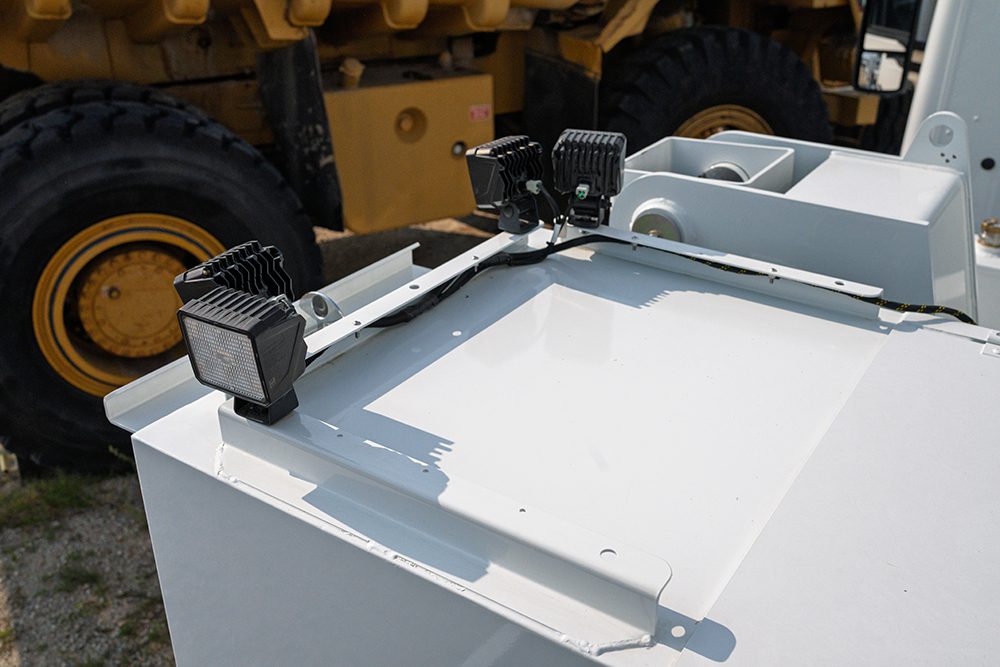

- Recessed, skirt-mounted halogen floodlights
- Rubber-mounted running lights
- Entire body is undercoated
Carrier Features:
- Rotation is accomplished through a turntable bearing
- Standard fully proportional radio remote control and manual controls on TM16160/28000 with the ability to do multiple functions at once
- Fully enclosed extension boom cylinder
- Hexagon-shaped secondary and extension boom
- Integral-mounted pump and PTO on chassis
- Load-holding counterbalance valves
SPECIFICATIONS
| TM16160/28000 Tire Manipulator & Carrier | |
| Capacity: | 16,500 lbs @ 15' (7,484 kg @ 4.57 m) |
| Clamping span: | 40" to 158" (102 cm to 401 cm) |
| Clamp cylinders: | 4.5" (11.43 cm) w/ pilot-operated check valve |
| Tilt cylinder: | Provided by carrier extension boom |
| Body rotation: | 315° power |
| Rotation system: | Rotation bearing & worm-driven gear box |
| Clamping pad rotation: | Continuous 360° power |
| Tilt: | +80° to –20° |
| Hydraulic controls: | Incorporated with the carrier controls |
| Shipping weight of tire manipulator only: | 6,000 lbs (2,722 kg) |
| TM16160/28000 Carrier Only | |
| Rating: | 280,000 ft-lbs (38.73 t-m) |
| Standard boom length: | 13' 2" (4.01 m) |
| Boom extension: | Hydraulic 37" (93.98 cm) |
| Max. horizontal reach: | 16' 3" (4.95 m) |
| Max. vertical lift: | 25' (7.62 m) |
| Rotation: | 315° power (planetary reduction) |
| Lifting capacities: | 28,000 lbs @ 10' (12,701 kg @ 3.05 m) |
| 21,300 lbs @ 13' 2" (9,662 kg @ 4.01 m) |
|
| 17,200 lbs @ 16' 3" (7,802 kg @ 4.95 m) | |
| Power supply req: | 16 gpm @ 4,200 psi (PTO & pump) |
| (60.6 lpm @ 290 bar) | |
| Controls: | Proportional paddle controls |
| Stowed height: | 114" (289.56 cm) |
| Mounting space req: | 48" (121.92 cm) |
| Shipping weight: | 13,000 lbs (5,897 kg) |
| Compressor | |
| 110P direct-driven, mounted above deck for maintenance ease | |
| 4-cylinder, 2-stage capable of 110 cfm @ 175 psi |
