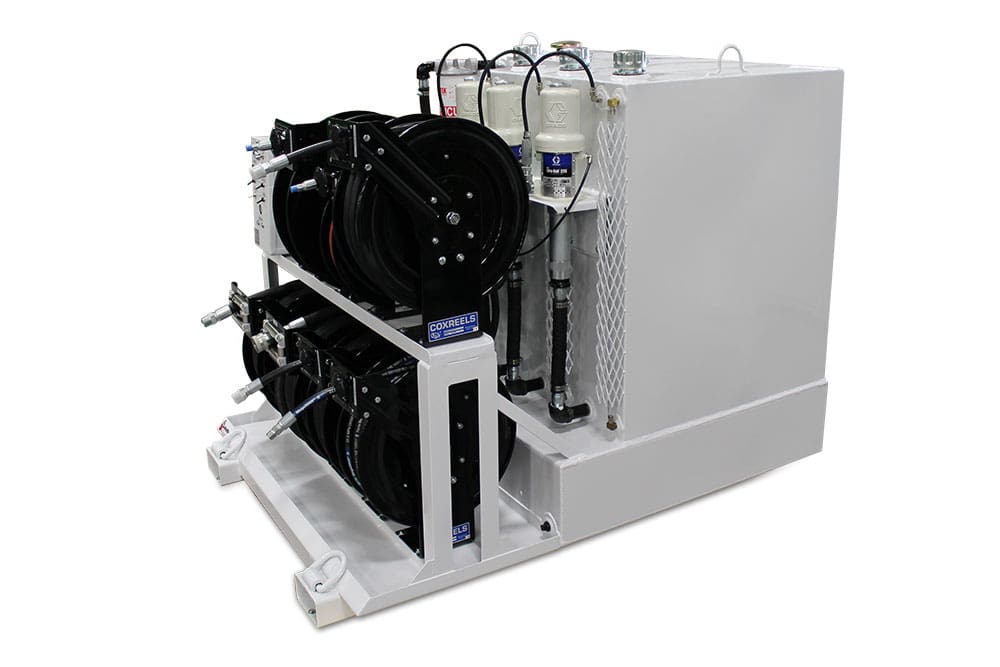

LM300 Lube Skid
High Capacity
Deliver full-scale lube service without the big investment of a dedicated lube truck. By adding lube truck services to your service truck with the LM300 Lube Skid, you can increase your field service capabilities and handle preventive maintenance onsite. Both mobile and permanent-mount models are available, and hardware to mount and plumb is included. Choose the lighter-weight aluminum model for higher truck payload.
PrintSpecifications

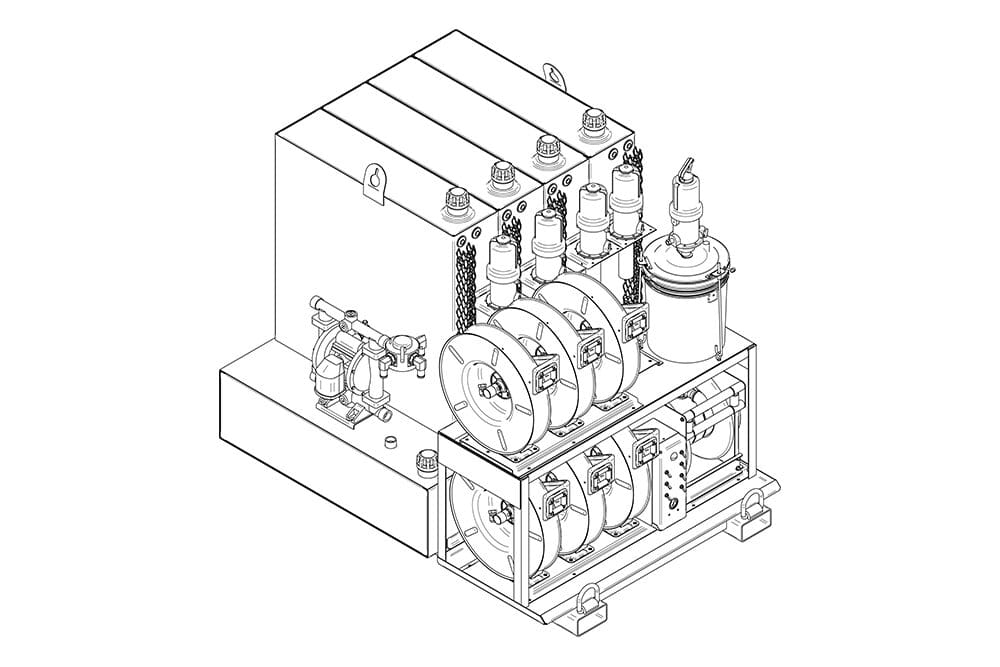

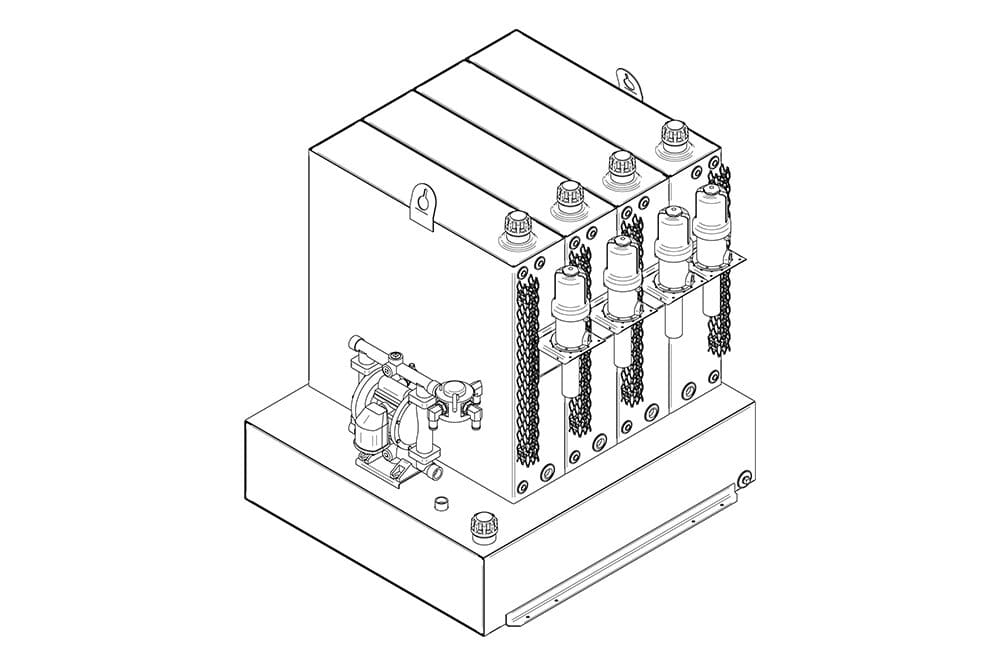

- Mobile and permanent models available
- Four (4) 50-gallon new oil tanks internally baffled with sight gauges and vented caps
- 100-gallon waste oil tank internally baffled with dipstick and vented cap
- Four (4) 5:1 pumps with reliefs for new oil
- 1″ diaphragm pump with 4-way valve for evacuation and discharge of waste oil tank
- Four (4) 1/2″ x 50′ new oil reels with mechanical meters
- 1″ x 25′ waste oil reel with quick coupler
- 3″ x 6″ forklift sleeves with D-ring tie-downs (mobile only)
- Optional 35-lb or 120-lb grease kit
- Drip pans and cabinets available for permanent models
- 7-gallon drain pan with quick coupler and stub, and connecting hoses
- Dimensions: 47.5″W x 52″T x 45″D
- Dry Weight: 850 lbs
