TC23-2H
TC23-3H

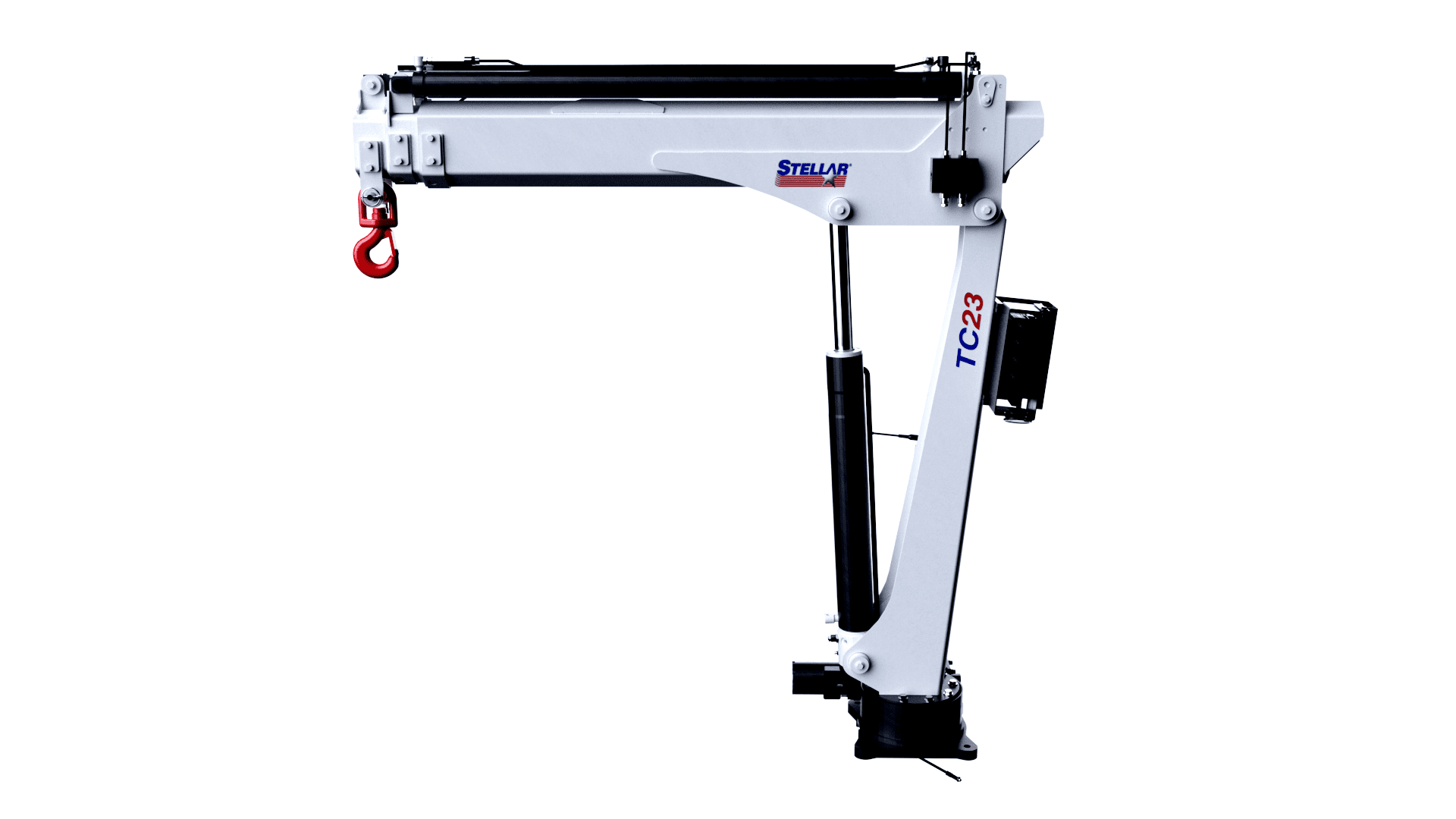

TC23 T-Boom Service Crane
3,970-lb Capacity with 11′ of Reach
Also available with a 3,745-lb capacity with 14′ of reach, the Stellar® TC23 Truck-Mounted T-Boom Crane delivers the lifting capacity you need with the compact design you want.
PrintAdditional Information
- Space-Saving Design. Engineered to occupy minimum bed space while providing a high load-lifting radius.
- Proportional Radio Remote. Works with the CDT™ Radio Remote Control System for safe, convenient operation away from the load.
- Selection. Available as the standard TC23 2H and the optional TC23 3H.
- Certified. Meets ANSI B30.5 and OSHA 1910.180 specifications.
Specifications
| TC23 2H (standard) | |
| Crane Rating: | 16,635 ft-lb |
| Max Lifting Capacity: | 3,970 lbs (1,801 kg) |
| Maximum Horizontal Reach: | 11' (3.35 m) |
| Crane Rotation: | 410° |
| Operating Pressure: | 2,750 psi |
| Pump Capacity: | 2.5 gal/min (9.5 l/min) |
| Weight: | 580 lbs (263 kg) |
| Min. Rec. Chassis (GVWR)*: | 14,500 |
| TC23 2H with Winch | |
| Crane Rating: | 16,635 ft-lb |
| Max Lifting Capacity: | 1,600 lbs (725 kg) |
| Maximum Horizontal Reach: | 11' (3.35 m) |
| Crane Rotation: | 410° |
| Operating Pressure: | 2,750 psi |
| Pump Capacity: | 2.5 gal/min (9.5 l/min) |
| Weight: | 720 lbs (327 kg) |
| Min. Rec. Chassis (GVWR)*: | 14,500 |

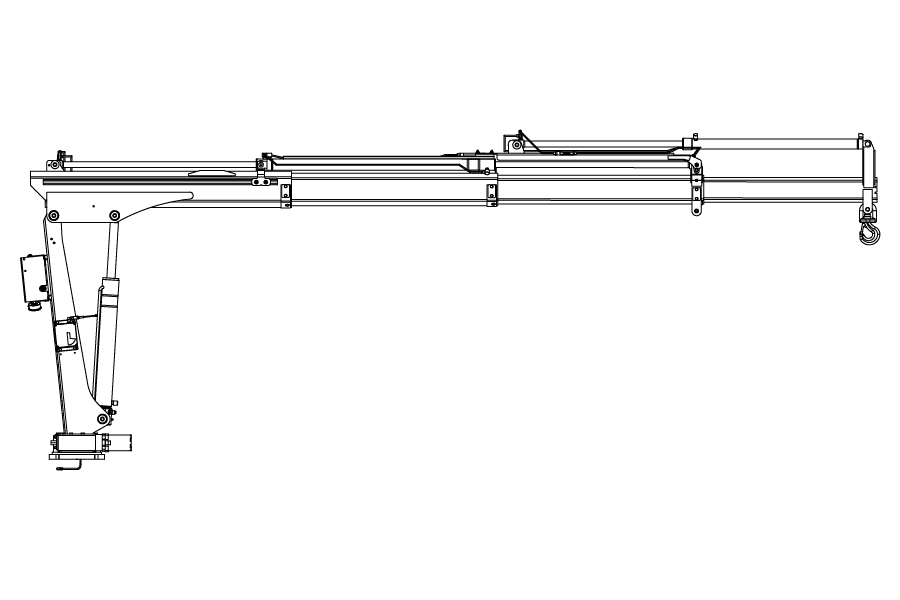

| TC23 3H (optional) | |
| Crane Rating: | 16,635 ft-lb |
| Max Lifting Capacity: | 3,745 lbs (1,699 kg) |
| Maximum Horizontal Reach: | 14.1' (4.30 m) |
| Crane Rotation: | 410° |
| Operating Pressure: | 2,750 psi |
| Pump Capacity: | 2.5 gal/min (9.5 l/min) |
| Weight: | 660 lbs (299 kg) |
| Min. Rec. Chassis (GVWR)*: | 14,500 |
| TC23 3H with Winch | |
| Crane Rating: | 16,635 ft-lb |
| Max Lifting Capacity: | 1,600 lbs (725 kg) |
| Maximum Horizontal Reach: | 14.1' (4.30 m) |
| Crane Rotation: | 410° |
| Operating Pressure: | 2,750 psi |
| Pump Capacity: | 2.5 gal/min (9.5 l/min) |
| Weight: | 800 lbs (363 kg) |
| Min. Rec. Chassis (GVWR)*: | 14,500 |
Optimize your Service vehicle
Because different people use service vehicles in different ways, Stellar makes it easy to outfit yours with a wide range of accessories.
