TM6116/13500 Large OTR Tire Service Truck
To meet the demanding requirements of tire service technicians, Stellar has created the TM6116/13500 OTR Tire Service Truck.

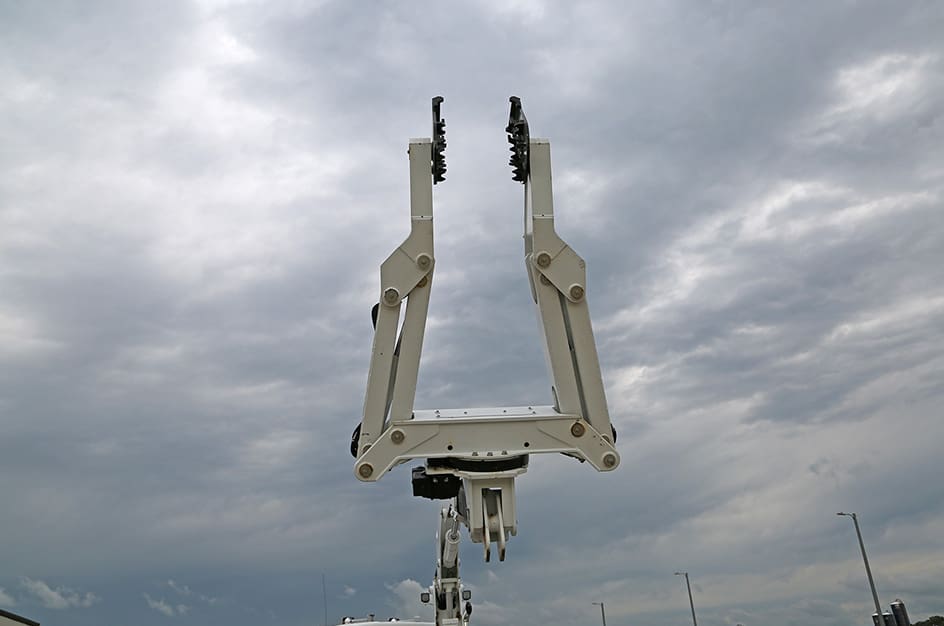

When mounted with the Stellar® TM6116/13500 Tire Manipulator, the carrier can handle tires up to 116″ in diameter and up to 6,000 lbs. Without the tire manipulator, the carrier can lift 13,500 lbs @ 10′ from the centerline of the carrier’s rotation.
PrintAdditional Information

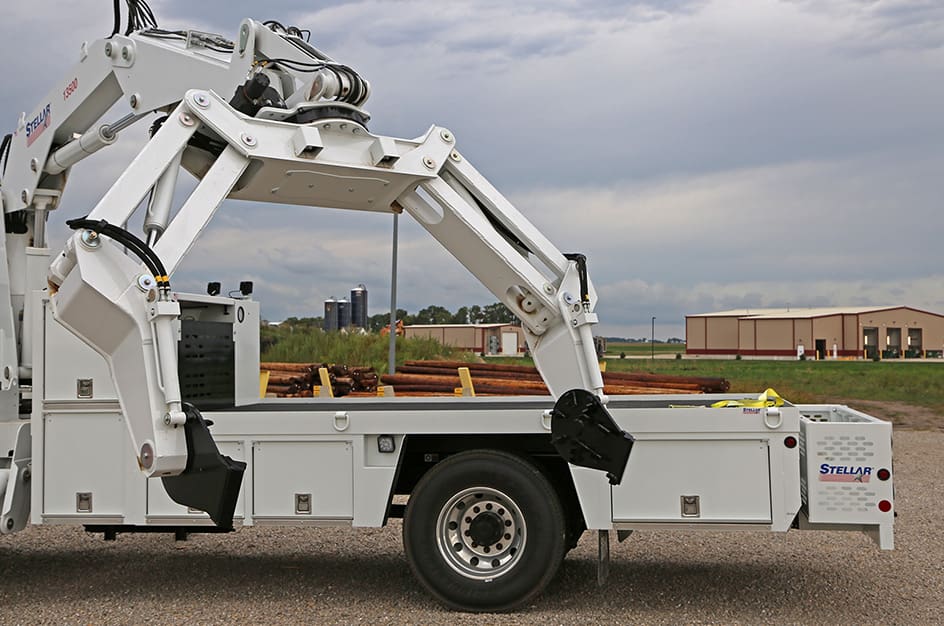

The TM6116/13500 has fold-down style stabilizers with a wide stance to give excellent stability whether mounted on a single- or optional tandem-axle chassis. This stabilizer system also offers excellent serviceability of all cylinders and hoses.
As with all Stellar OTR Tire Service Trucks, the carrier incorporates a hexagonal boom design. This boom design is well known in the industry for its excellent strength and durability.
Service Body Features:
- 17′ long single or 20′ long tandem body
- Heavy-duty steel construction
- Flat body has 8 D-ring tiedowns
- Stainless-steel rotary slam latches
- Slide-top doors on all tool compartments
- Recessed, skirt-mounted halogen floodlights
- Rubber-mounted running lights
- Entire body is undercoated
Carrier Features:
- Rotation is accomplished through a turntable bearing
- Standard fully proportional radio remote control and manual controls on TM6116/13500 with the ability to do multiple functions at once
- Fully enclosed extension boom cylinder
- Hexagon-shaped secondary and extension boom
- Integral-mounted pump and PTO on chassis
- Load-holding counterbalance valves
Specifications
| TM6116/13500 Tire Manipulator and Carrier | |
| Capacity: | 6,000 lbs @ 19' (2,721 kg @ 5.79m) |
| Clamping span: • Fixed pads • 90º rotating pads |
19" to 116" (48.3 cm to 294.6 cm) 19" to 116" (48.3 cm to 294.6 cm) |
| Clamp cylinders: | 3.5" (8.9 cm) bore with integral pilot-operated counterbalance valves |
| Tilt cylinder: | Provided by carrier extension boom |
| Body rotation: | 300° power |
| Rotation system: | Hourglass worm gear |
| Clamping pad rotation: | Optional 90° rotating pads |
| Tilt: | +79° to –43° |
| Hydraulic controls: | Incorporated with the carrier controls |
| Shipping weight of tire manipulator only: | 2,375 lbs (1,077 kg) standard |
| 2,650 lbs (1,202 kg) w/ 90º rotating pad | |
| TM6116/13500 Carrier Only | |
| Rating: | 135,000 ft-lbs (18.6 t-m) |
| Standard boom length: | 13' 3" (4.04 m) |
| Boom extension: | Hydraulic 41.5" (105.4 cm) |
| Max. horizontal reach: | 16' 8" (5.08 m) |
| Max. vertical lift: | 24' 7" (7.49 m) |
| Rotation: | 315° power (worm gear drive) |
| Lifting capacities: | 13,500 lbs @ 10' (6,123 kg @ 3.05 m) |
| 8,100 lbs @ 16' 8" (3,674 kg @ 5.08 m) | |
| Power supply required: | 16 gpm @ 4,400 psi (PTO & pump) |
| (60 lpm @ 303 bar) | |
| Controls: | Fully proportional radio remote standard, with manual controls on valve bank |
| Stowed height: | 97" (246.4 cm) |
| Mounting space required: | 47" (119.4 cm) |
| Shipping weight: | 6,400 lbs. (2,903 kg) |
| Compressor | |

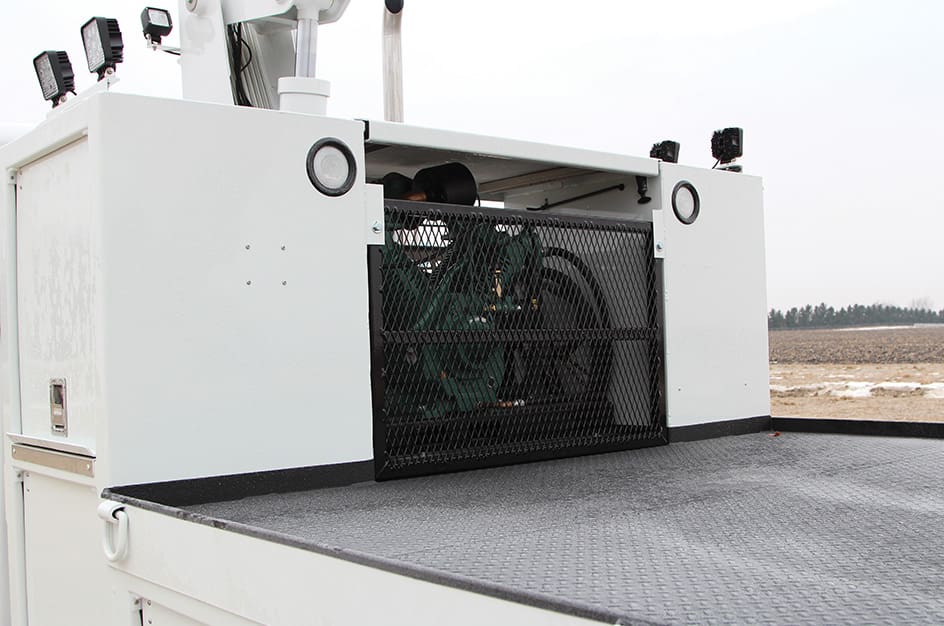

| 110P direct-driven, mounted above deck for maintenance ease | |
| 4-cylinder, 2-stage capable of 110 cfm @ 175 psi |
