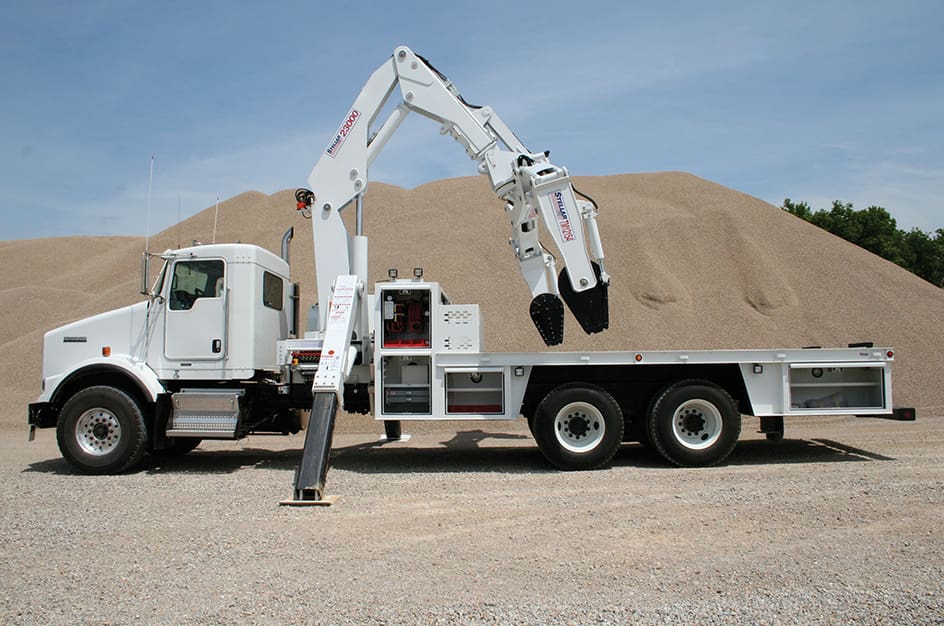

TM12154/23000 Large OTR Tire Service Truck
The Stellar® TM12154/23000 OTR Tire Service Truck meets the needs of OTR tire service technicians who need well-rounded versatility.
The TM12154/23000 OTR Series is the one to turn to when you need a reliable and dependable service truck. The 315° carrier rotation is carried out through a turntable bearing with a high-torque, planetary gear reduction system. The hexagon-shaped secondary and extension boom substantially increase boom strength over competitive square-shaped booms, ensuring solid performance.
PrintAdditional Information

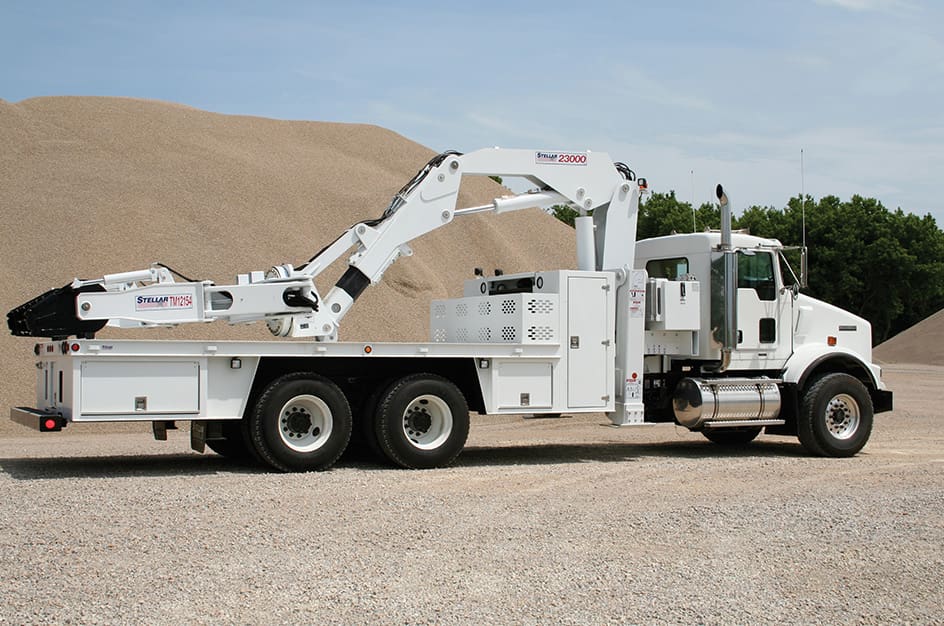

Stellar’s modified A-frame stabilizer design is an industry first. The Stellar TM12154/23000 OTR offers the stability and durability of A-frame stabilizers with the diversity of out-and-down style outriggers. Modifying the A-frame geometry and using dual cylinders allows A-frame stability at differing widths.
The performance of the TM12154/23000 OTR Series can be refined by the addition of the TM12154/23000 Tire Manipulator. The tire manipulator increases versatility and productivity while providing a safe method to handling any OTR tire up to and including a 12,000-lb 153″ tire.

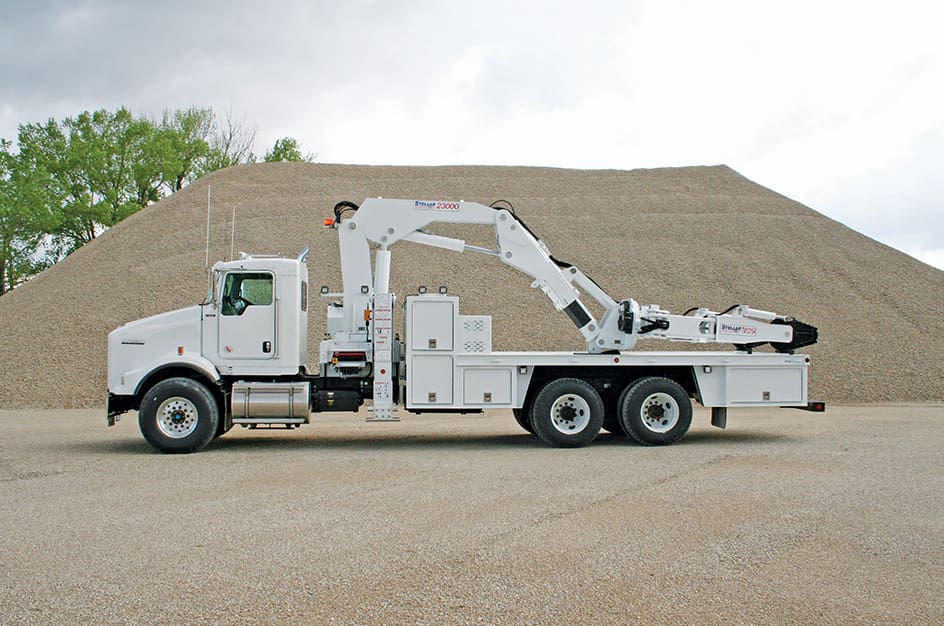

The TM12154/23000 tire manipulator is designed to perform in mine and construction sites worldwide. The unique parallelogram design provides clamping widths of 36″ to 153″. The TM12154/23000 also offers 315° body and 90° or continuous pad rotation.
Service Body Features:
- 20′ or 18.5′ long body
- Heavy-duty steel construction
- Flat body has 8 D-ring tiedowns
- Stainless-steel rotary slam latches
- Slide-top doors on all tool compartments
- Recessed, skirt-mounted LED floodlights
- Rubber-mounted running lights
- Entire body is undercoated
Carrier Features:
- Rotation is accomplished through a turntable bearing
- Standard fully proportional radio remote control and manual controls on TM12154/23000 with the ability to do multiple functions at once
- Fully enclosed extension boom cylinder
- Hexagon-shaped secondary and extension boom
- Integral-mounted pump and PTO on chassis
- Load-holding counterbalance valves
SPECIFICATIONS
| TM12154/23000 Tire Manipulator and Carrier | |
| Capacity: | 12,000 lbs @ 17' (5,443 kg @ 5.18 m) |
| Clamping span: • 90º rotating pads • continuous rotating pads |
36" to 153" (90 cm to 388 cm) 36" to 153" (90 cm to 388 cm) |
| Clamp cylinders: | 4" (10.16 cm) w/ pilot-operated check valve |
| Tilt cylinder: | Provided by carrier extension boom |
| Body rotation: | 315° power |
| Rotation system: | Rotation bearing & worm-driven gear box |
| Clamping pad rotation | 89° power |
| Tilt: | +81° to –20° |
| Hydraulic controls: | Incorporated with the carrier controls |
| Shipping weight of tire manipulator only: | 5,150 lbs (2,336 kg) w/ 90º rotating pads |
| 5,800 lbs (2,631 kg) w/ cont. rotating pads | |
| TM12154/23000 Carrier Only | |
| Rating: | 230,000 ft-lbs (31.8 t-m) |
| Standard boom length: | 13' 4" (4.06 m) |
| Boom extension: | Hydraulic 37" (94 cm) |
| Max. horizontal reach: | 16' 5" (5 m) |
| Max. vertical lift: | 25' (7.62 m) |
| Rotation: | 315° power (planetary reduction) |
| Lifting capacities: | 23,000 lbs @ 10' (10,480 kg @ 3.05 m) |
| 17,250 lbs @ 13' 4" (7,825 kg @ 4.06 m) | |
| 14,000 lbs @ 16' 5" (6,350 kg @ 5 m) | |
| Power supply required: | 16 gpm @ 4,200 psi (PTO & pump) |
| (60.6 lpm @ 290 bar) | |
| Controls: | Proportional paddle controls |
| Stowed height: | 116" (295 cm) |
| Mounting space required: | 48" (121.92 cm) |
| Shipping weight: | 11,500 lbs (5,220 kg) |
| Compressor | |

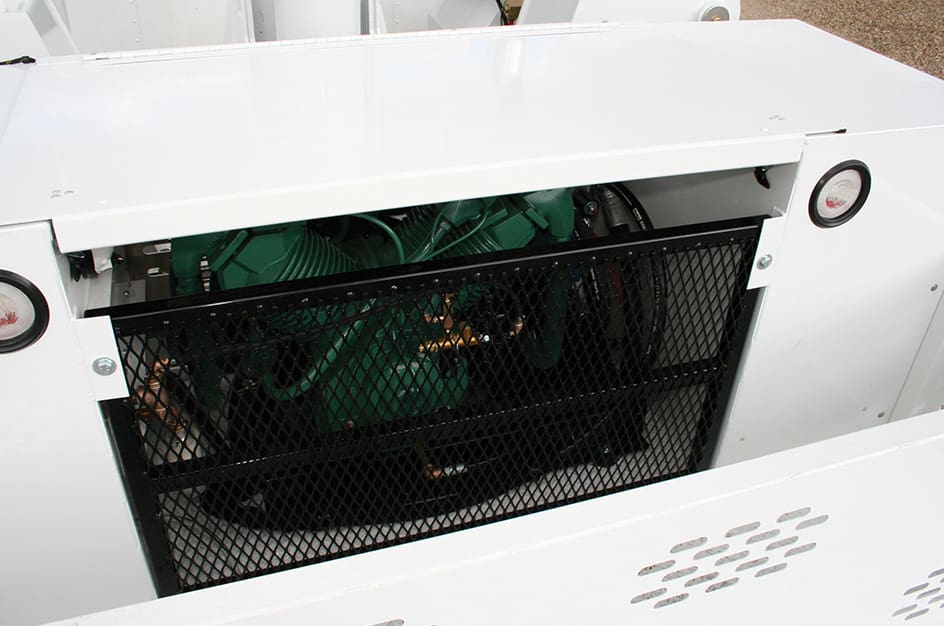

| 110P direct-driven, mounted above deck for maintenance ease | |
| 4-cylinder, 2-stage capable of 110 cfm @ 175 psi |
