1302 Tire Service Truck

• 10′, 11′, 13′ or 15′ long aluminum body (10′ body is for single rear wheel chassis)
• 26″-wide front vertical compartments
• Optional jack box/storage compartments for 11′, 13′ and 15′ long bodies
• 17″ or 29″ bolt-on rack extensions for more hauling capability on 13′ and 15′ bodies
• Skirt-mounted LED floodlights
• Truck-Lite rubber-mounted running lights
• Seamless 22″ high sign panels
• Extruded-aluminum plank floors
• Curbside front vertical cabinet has standard 3/8″ x 50′ and 1/2″ x 50′ hose reels along with an air filter and regulator mounted to the top of the compartment for ease of accessibility
• 2,000-lb 86″-wide electric-hydraulic liftgate
• Optional tall rack/solid side for increased tire handling and longer sign panels for more advertising on 13′ and 15′ long bodies
• Other options include a two-drawer cabinet with a 15-pin socket rack and compartment lights

• 26″-wide front vertical compartments with box extensions are standard.
• Available air compressor options are located top center in the truck bed. Here the compressor is protected from the elements, is easier to maintain and service and provides for a better-balanced truck.
• Also included are rounded automotive-style wheel wells with standard LED built-in floodlight on both left and right sides.
• Fold-back door design for unobstructed access to tool storage compartment. Standard features are the rear body tool compartments with slide top doors.

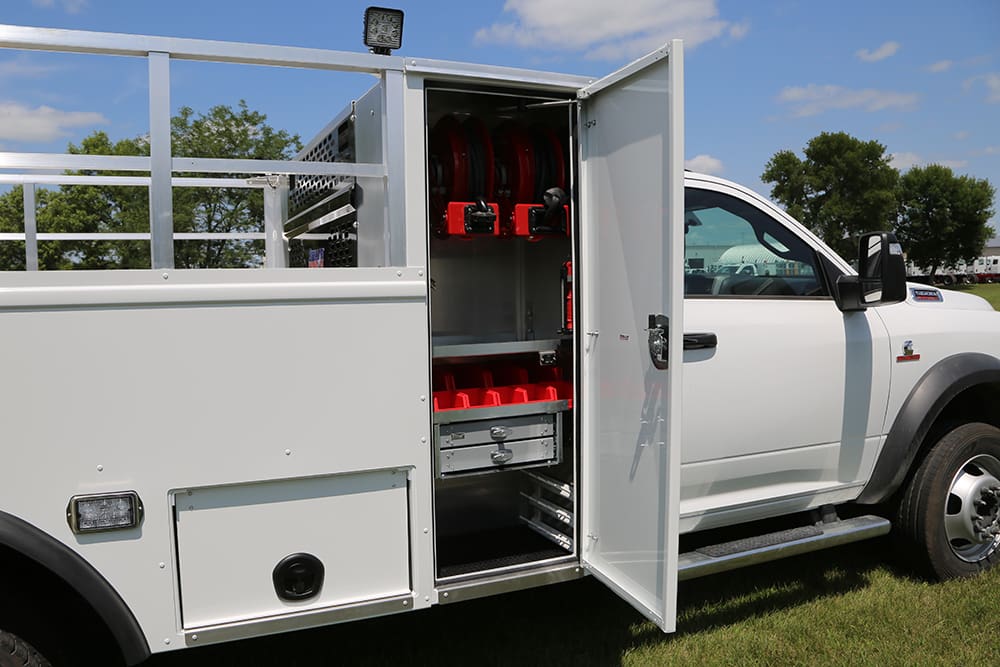

• A 26″-wide vertical cabinet is on the driver’s side with four large adjustable shelves and a heavy-duty reinforced door design with stainless-steel hinges. All door hardware is bolted on with stainless-steel bolts and lock nuts. The optional road service strobe lights are located on the compartment top or centered on the front of the body.
• All tool compartments feature compression-style T-handles with tamper-resistant locking mechanism.
• Standard fold-back door design allows for full access to the lower mounted jack box/storage compartments.

Air Compressor Options:

• Champion gas driven air compressor with 13 HP engine, 23 cfm @ 175 psi
• Champion gas driven air compressor with 23 HP engine, 40 cfm @ 175 psi
• 46P, hydraulic-driven direct drive, 46 cfm @ 175 psi

Liftgate Features:

• Electric-hydraulic lift with 2,000-lb capacity
• Grip-strut galvanized platform provides nonslip footing
• 86″ loading platform
• Dual cylinders for stable lift
