138-215 Ag Tire Service Truck
The Stellar® 138-215 Ag Service Truck features a rugged, heavy-duty 15′ steel service body with over 60 cubic feet of storage.

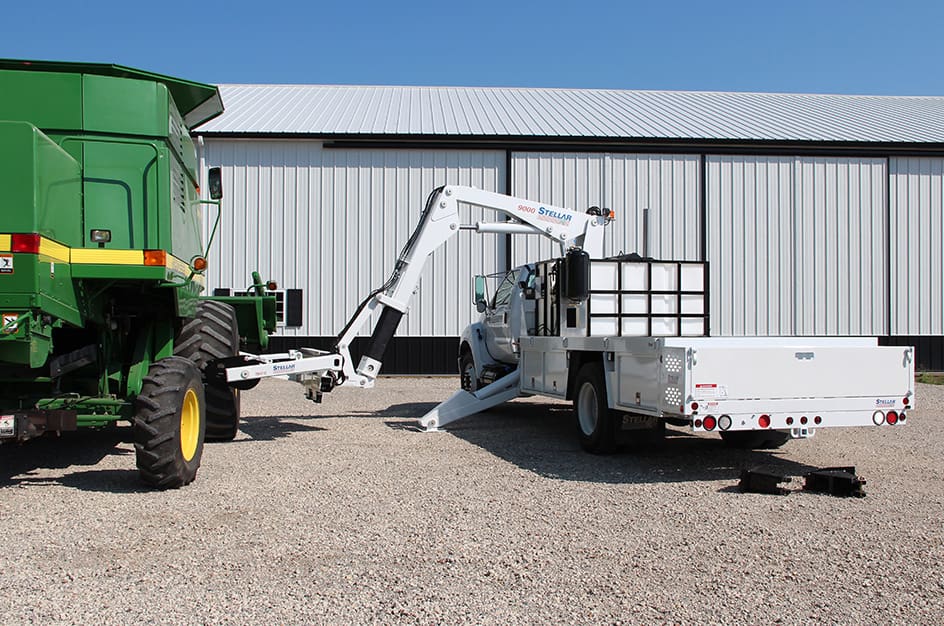

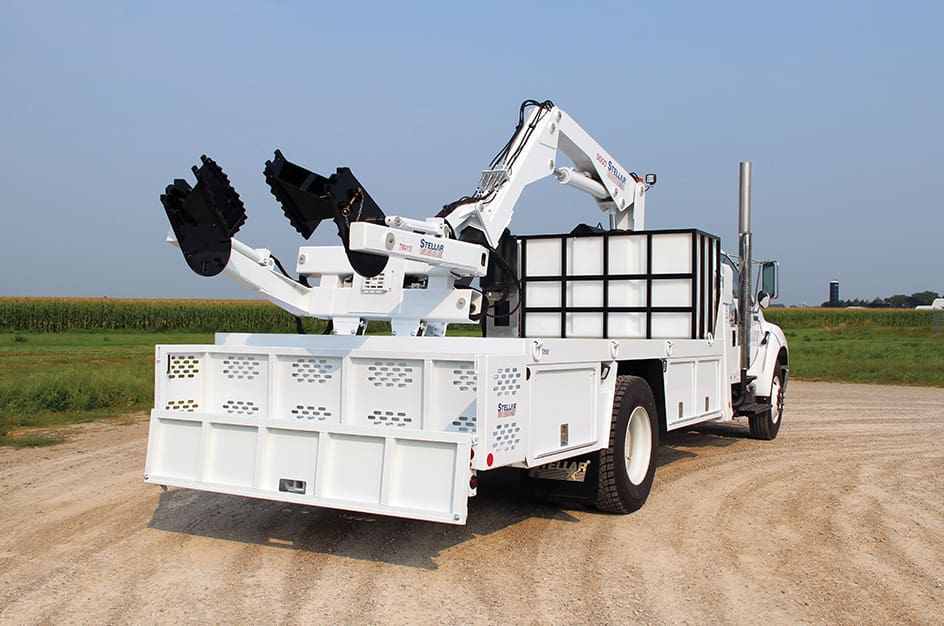

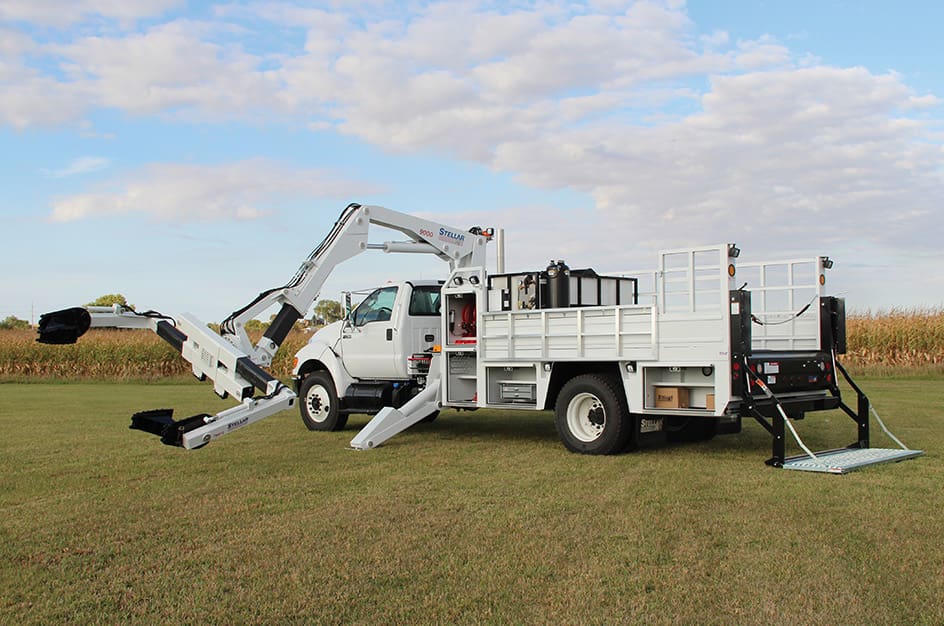

This unit is equipped with a hydraulic tire manipulator and carrier, and is operated by a standard fully proportional radio remote control. The hexagon-shaped secondary and extension boom greatly increase boom strength over competitive square-shaped booms, ensuring solid performance.
The 138-215 Ag allows versatility while providing a safe method to handle a variety of tires up to 110″ in diameter, or 4,600 lbs. It also offers articulation of +85° to –37° and 285° of body rotation, giving the 138-215 Ag the ability to service equipment with small- to medium-sized ag and OTR tires.
PrintAdditional Information
Service Body Features:
- Heavy-duty steel construction
- Flat body has 8 D-ring tiedowns
- Stainless-steel rotary slam latches
- Slide-top doors on all tool compartments
- Recessed, skirt-mounted LED floodlights
- Rubber-mounted running lights
- Entire body is undercoated
- Ballast pump system with 400-gallon reinforced polypropylene tank and air operated fluid mixer
Crane Features:
- Rotation is accomplished through a turntable bearing
- Standard fully proportional radio remote control and manual controls with the ability to do multiple functions at once; controls mounted to valve bank
- Fully enclosed extension boom cylinder
- Hexagon-shaped secondary and extension boom
- Load-holding counterbalance valves
SPECIFICATIONS
| Tire Manipulator and Carrier | |
| Capacity: | 4,600 lbs @16' (2,086 kg @ 4.87 m) |
| Clamping span: • Fixed pads • 90º rotating pads |
48" to 110" (122 cm to 279 cm) 47" to 109" (119 cm to 277 cm) |
| Optional pad extension: | 29" (73.66 cm) with arms closed |
| Clamp cylinders: | 2.5" (6.35 cm) with pilot-operated check valve |
| Tilt cylinder: | Provided by carrier extension boom |
| Body rotation: | 285° power |
| Rotation system: | Rotation bearing & worm-driven gear box |
| Clamping pad rotation: | None – stationary pads |
| Tilt: | +85° to –37° |
| Hydraulic controls: | Incorporated with the carrier controls |
| Shipping weight: | 1,550 lbs (703 kg) with fixed pads |
| 1,825 lbs (827 kg) with 90º rotating pads | |
| Carrier | |
| Carrier rating: | 90,000 ft-lbs (12.45 t-m) |
| Standard boom length: | 12' 11" (3.93 m) |
| Boom extension: | Hydraulic 37" (93.98 cm) |
| Max. horizontal reach: | 16' (4.88 m) |
| Max vertical lift: | 22' (6.71 m) |
| Rotation: | 290° power (worm gear drive) |
| Lifting capacities: | 9,000 lbs @ 10' (4,082 kg @ 3.05 m) 6,950 lbs @ 12' 11" (3,152 kg @ 3.93 m) 5,625 lbs @ 16' (2,551 kg @ 4.88 m) |
| Power supply required: | PTO & pump (fully proportional VB) |
| 12 gpm @ 3,000 psi (45.4l lpm @ 206 bars) | |
| Controls: | Fully proportional radio remote standard, with manual controls on valve bank |
| Stowed height: | 84" (213.36 cm) |
| Mounting space required: | 42" (107 cm) |
| Shipping weight: | 4,800 lbs (2,175 kg) |
| Compressor | |
| 46P direct-driven, mounted above deck for maintenance ease | |
| 4-cylinder, 2-stage, capable of 46 cfm @ 175 psi |
