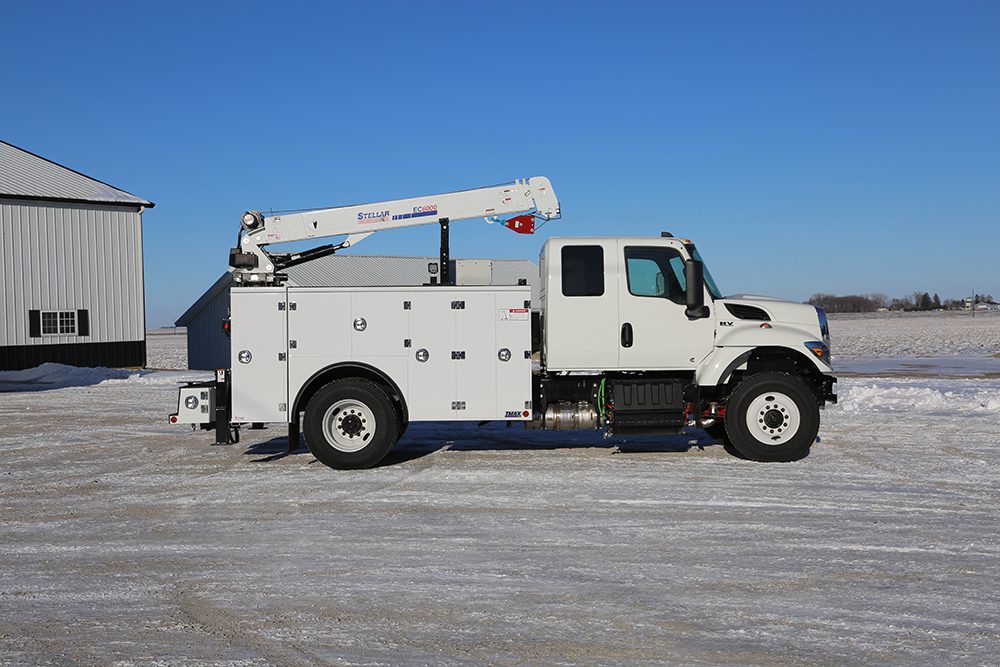

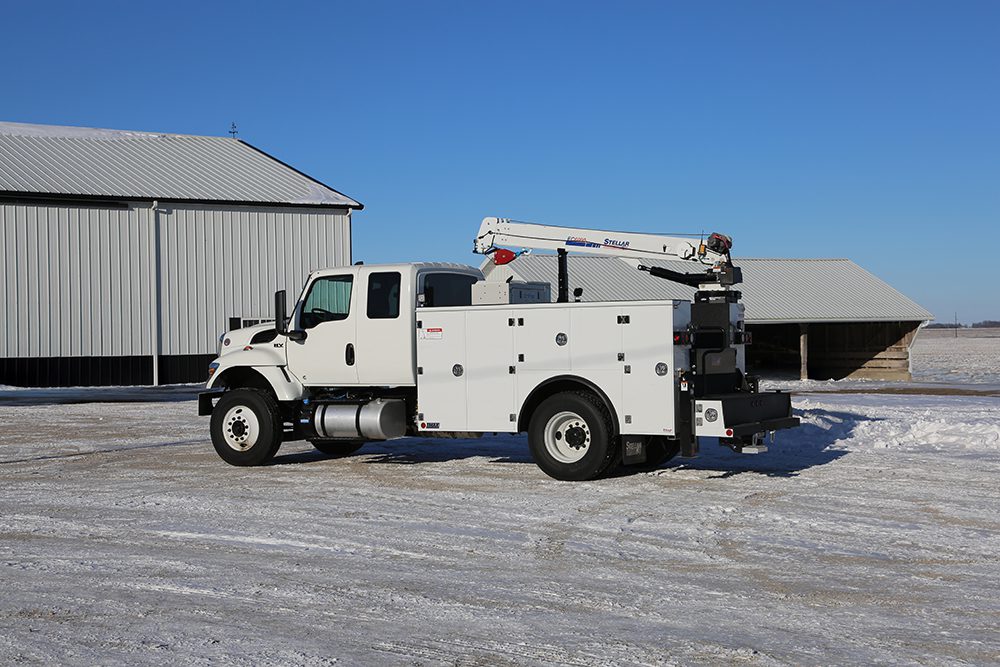

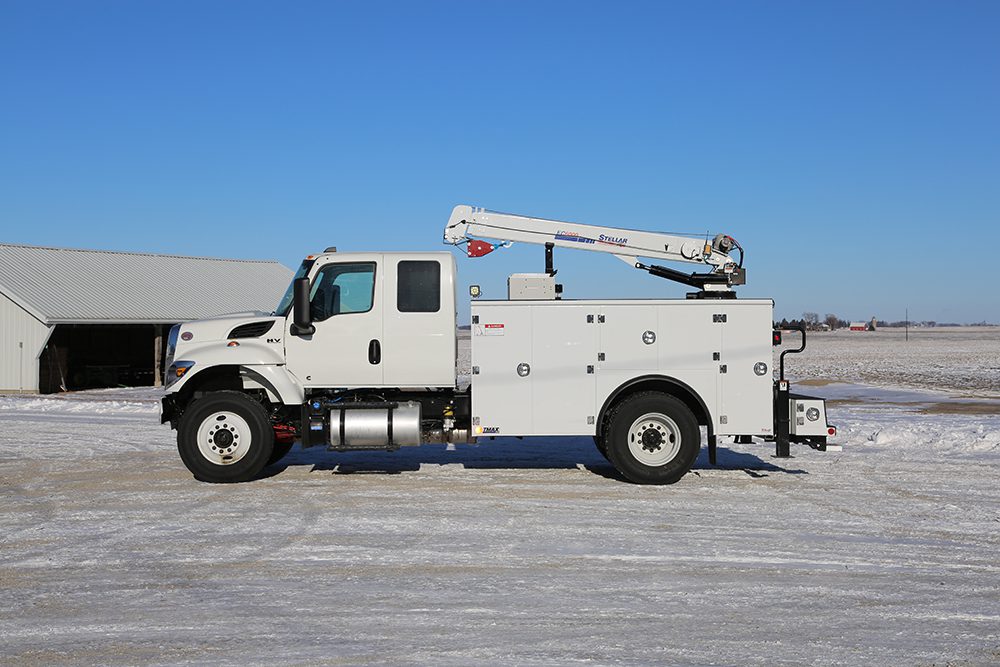

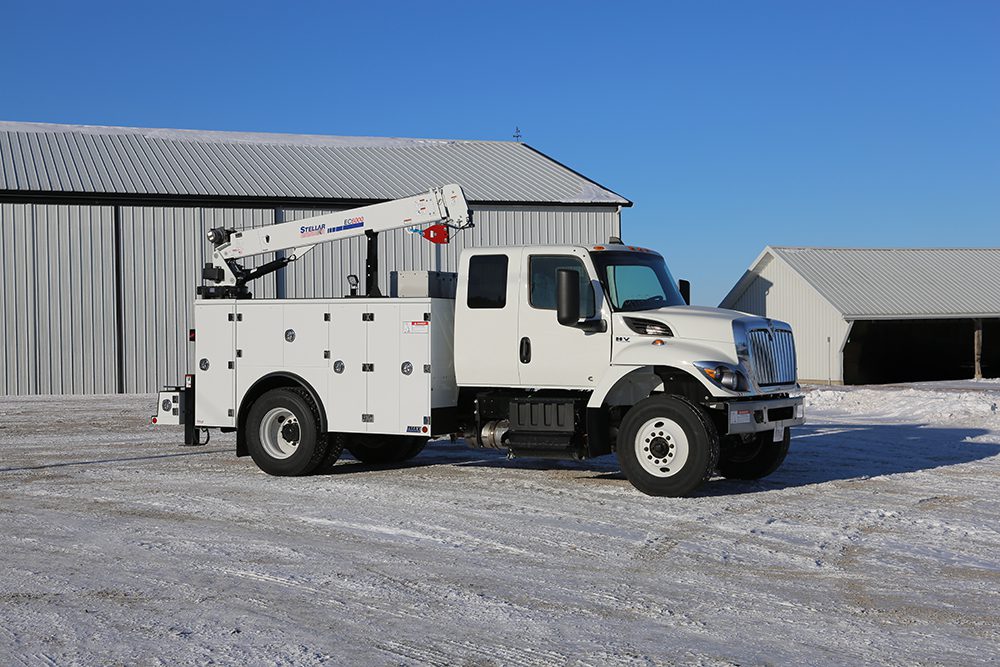

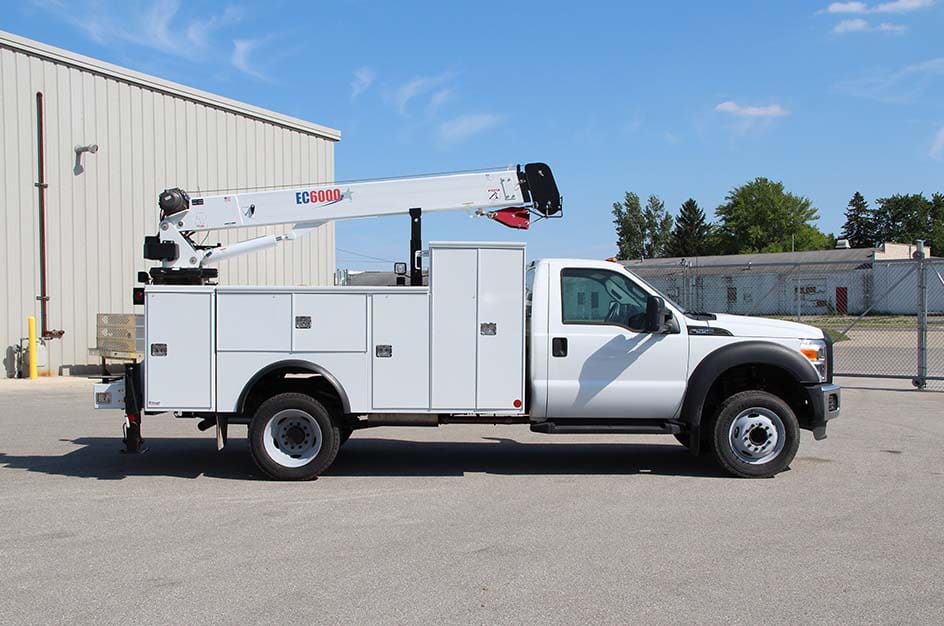

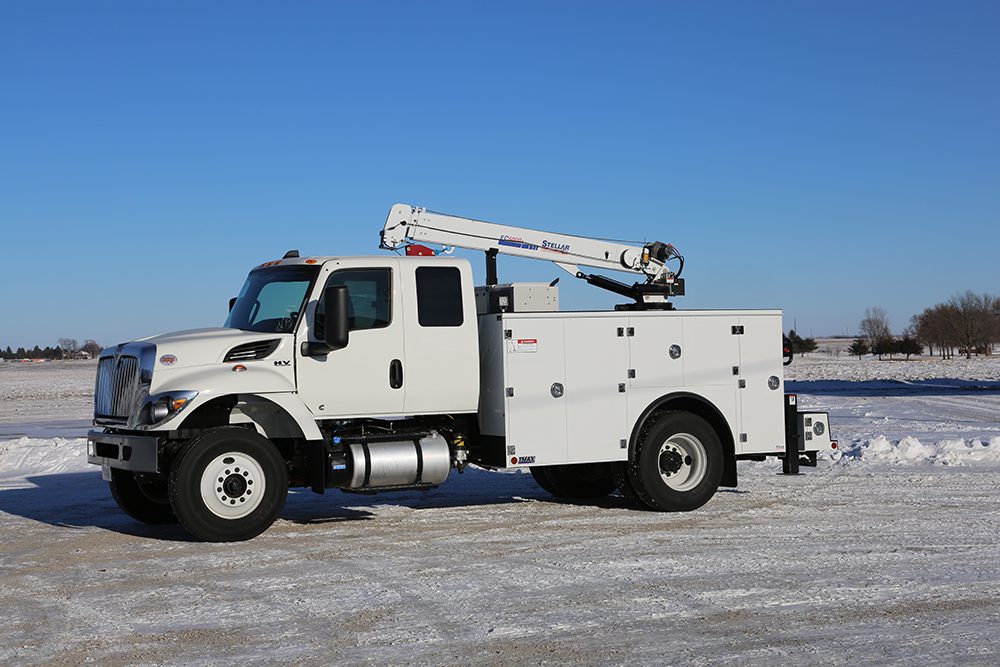

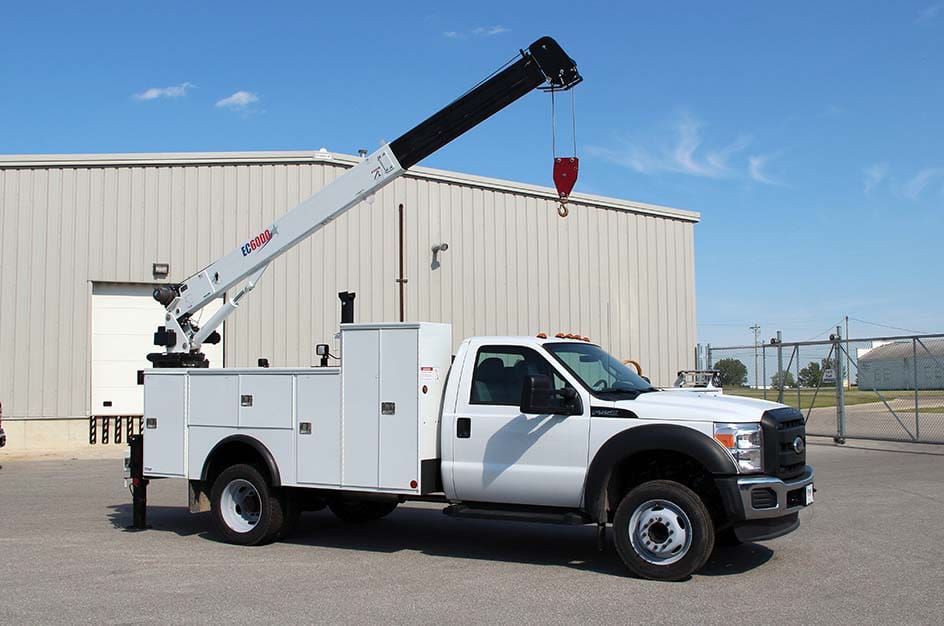

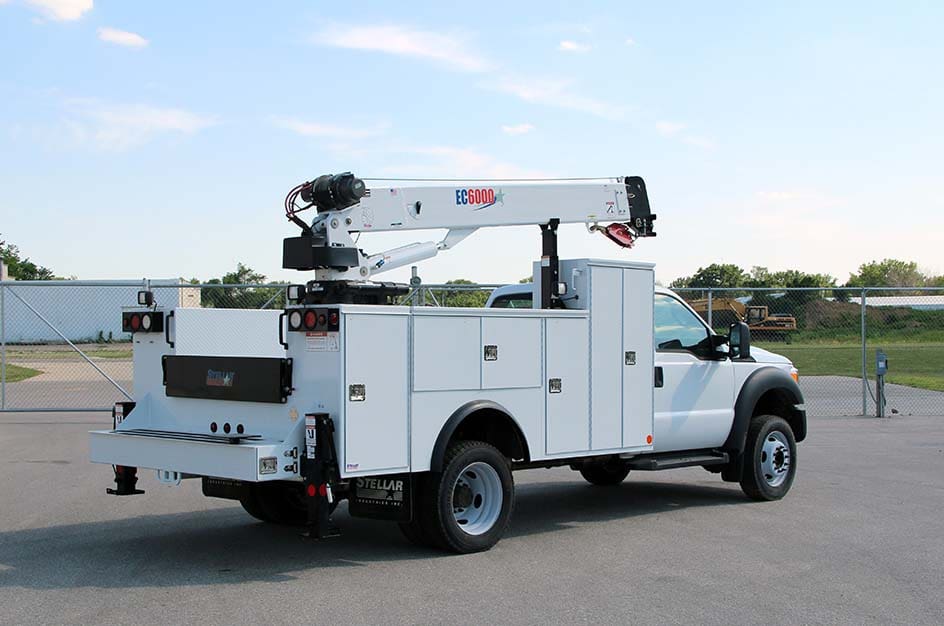

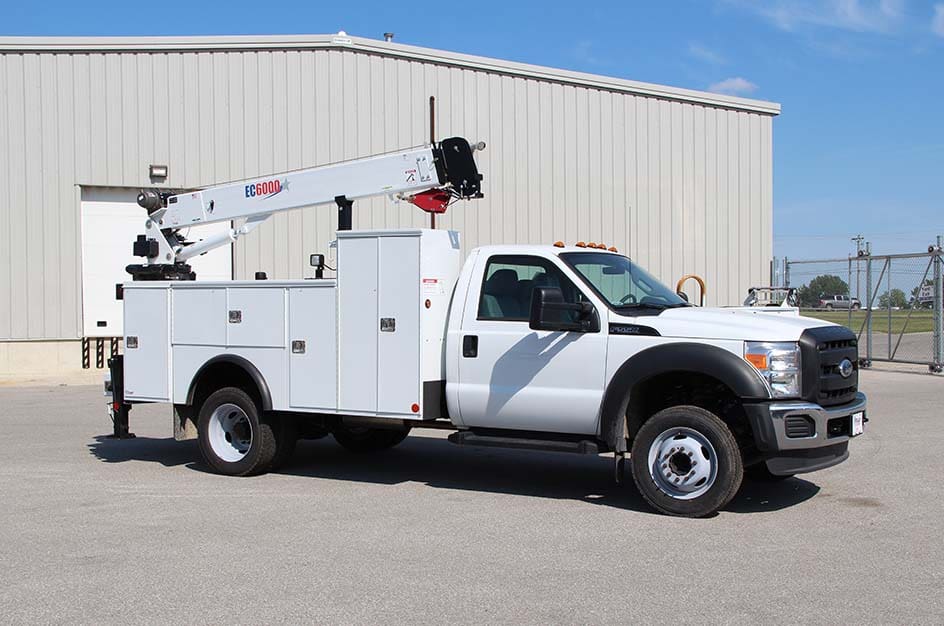

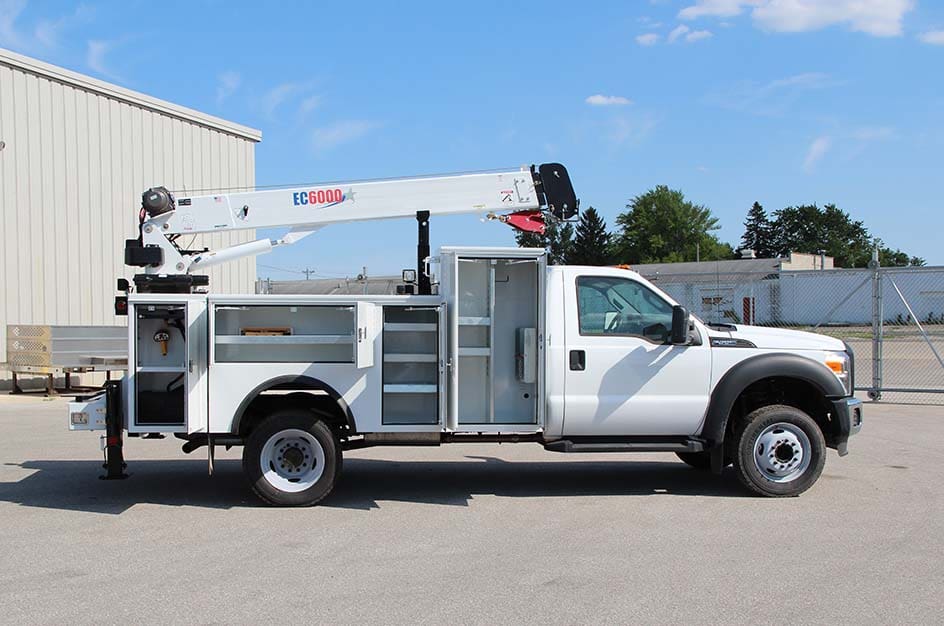

EC6000 Electric Service Cranes

6,000-lb Capacity with 21′ Horizontal Reach

Bring on the heavier challenges. Stellar® EC6000 Electric Service Cranes have you covered. They combine the lifting power you need with the economy you want, and operation is significantly quieter than hydraulic cranes so you can work at times and in locations where reduced noise is essential. Because you don’t have to maintain separate hydraulic components, you save on labor time and parts. You can also lower chassis costs because EC6000 Electric Cranes let you use a gas or diesel chassis without the need to add a power take-off (PTO) and pump to the chassis or a transmission that can handle the PTO and pump.

Print

Additional Information

EC6000 Includes:

  • Ball Bearing Rotation Gear for solid support and smooth operation
  • Steel Worm Gear for reliable speed control when rotating the shaft
  • Electric Planetary Winch that lifts the maximum crane load and offers the smoothest and fastest speeds in the market today for maximum productivity
  • Low-Profile Design for superior clearance
  • Exclusive Double-Boom Design for rigidity, strength and accuracy
  • Integral Rotation Stop with 410° rotation for the greatest performance while protecting wires and hoses from damage
  • Certification for ANSI B30.5 and OSHA 1910.180 specifications

Specifications

Crane Rating: 38,000 ft-lbs (5.25 tm)
Standard Boom Length: 11' (3.35 m) from CL of crane
Boom Extension:
• 1st Stage:
• 2nd Stage:

Hydraulic 60" (152.4 cm)
Manual 60" (152.4 cm)
Maximum Horizontal Reach: 21' (6.40 m) from CL of crane
Maximum Vertical Lift: 22' 10" (6.96 m) from crane base
Lifting Capacity: 6,000 lbs @ 6' 4" (2,720 kg @ 1.9 m)
1,810 lbs @ 21' (820 kg @ 6.4 m)
Boom Elevation: -5° to +80°
Stowed Height (crane only): 34.41" (87.4 cm)
Mounting Space Required: 20" x 21" (50.8 x 53.3 cm)
Approximate Crane Weight: 1,600 lbs (725 kg)
Controls: Radio remote
Winch
• Rope Diameter:
• Rope Length:
• Line Pull Speed:
• Max. Single Part Line:
• Max. Double Part Line:

5/16" (0.79 cm)
90' (27.4 m)
16 ft/min (4.88 m/min)
3,000 lbs (1,360 kg)
6,000 lbs (2,720 kg)
Rotation: 400° (worm gear)
Power Supply Required: 12V power unit: 2 gpm @ 2,900 psi (7.57 lpm @ 200 bars)
Min. Rec. Chassis (GVRW)*: 16,000

Optimize your Service vehicle

Because different people use service vehicles in different ways, Stellar makes it easy to outfit yours with a wide range of accessories.
