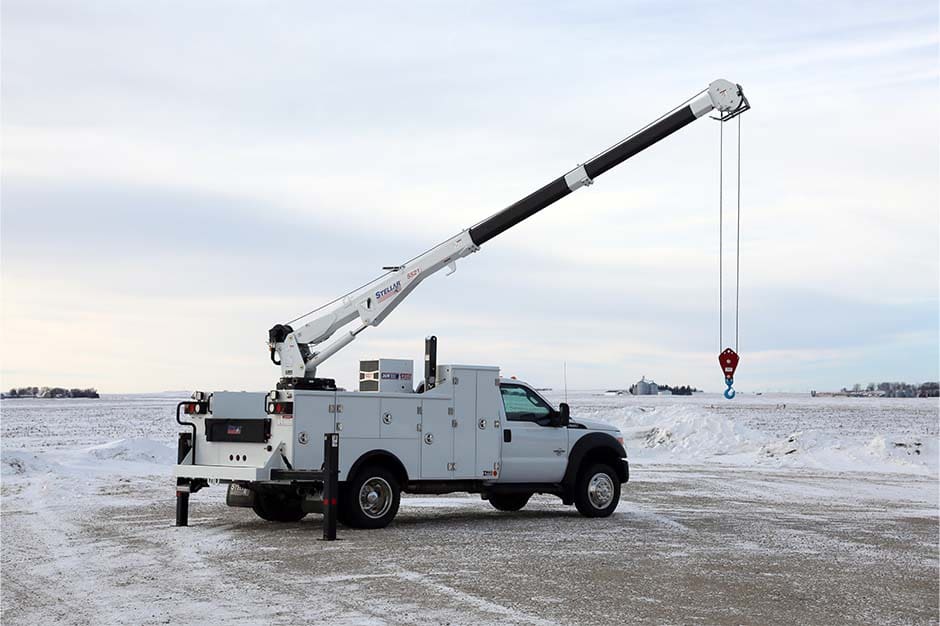

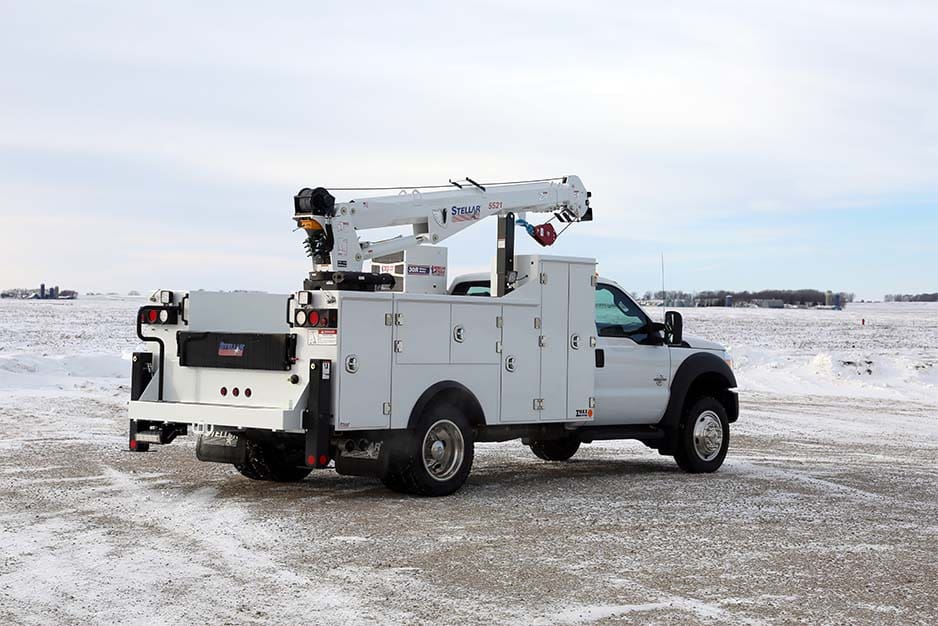

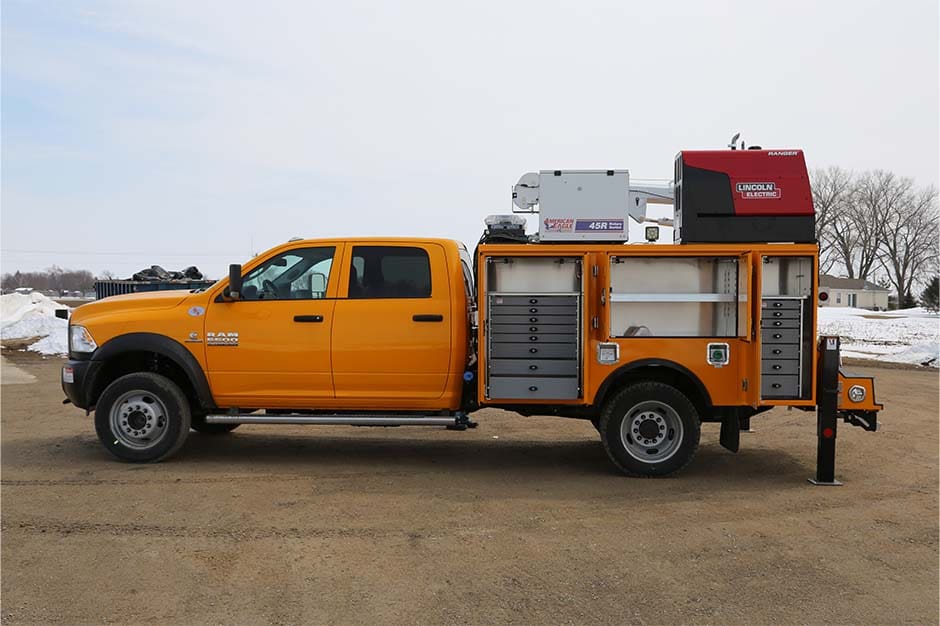

TMAX™ 30k Mechanic Truck
Quality comes standard with the TMAX 30K. The innovative engineering and precision construction make it a workhorse, and the lighter weight delivers increased payload.
But don’t let the lighter weight make you think there’s a sacrifice in performance and longevity. The TMAX 30K is a proven performer built for years of service. The body shell of the steel model is built with rugged 14-gauge, two-sided A-40 galvanneal steel. Side packs on the aluminum model are constructed of 1/8″ aluminum with highly engineered forming, welding, connecting and supporting techniques to deliver superior tool-carrying capability and extreme corrosion resistance.
PrintAdditional Information
- Available in either 9′ or 11′ steel or aluminum bodies.
- Stellar’s torq-isolator crane support design isolates the crane compartment from the rest of the side pack.
- Lifting stresses are transferred to the stabilizers and box-type subframe, not the compartment doors.
- Aluminum extruded top with drill-free mounting rails make it easy to add a wide range of mechanic service truck accessories.
- Aluminum sidepack and doors reduce weight and corrosion, allowing for more payload and longer life.

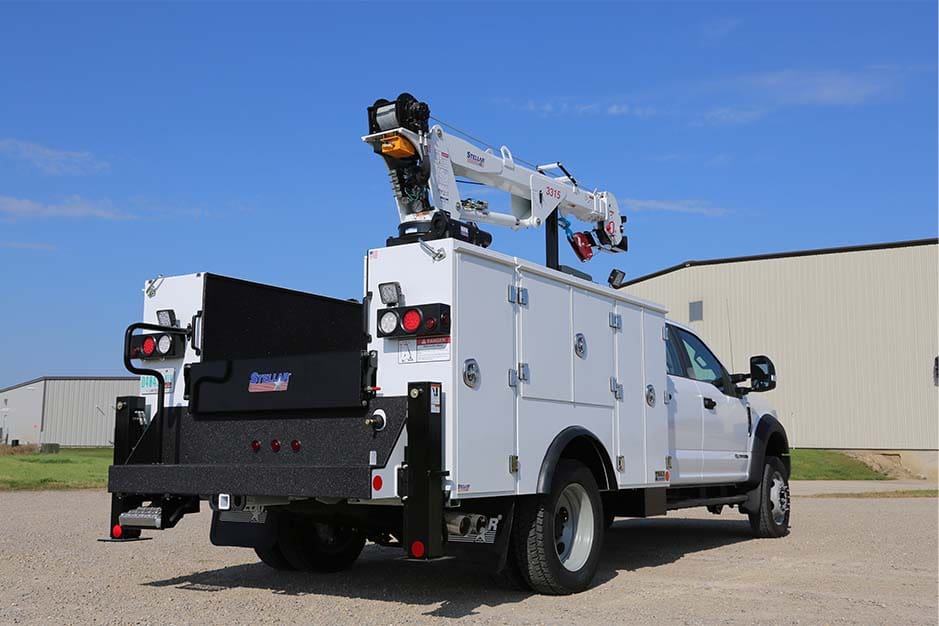

- Bodies feature either a 14″ steel step bumper or a 21″ steel workbench bumper with an integrated full-width long bar storage compartment and vise mounts.
- Roller-type boom support helps center the crane boom when stowing.
- Stainless-steel billet-style hinges have hidden fasteners and a rugged 5/16″ stainless-steel rod for years of heavy use.
- Rotating master-lock system for security.

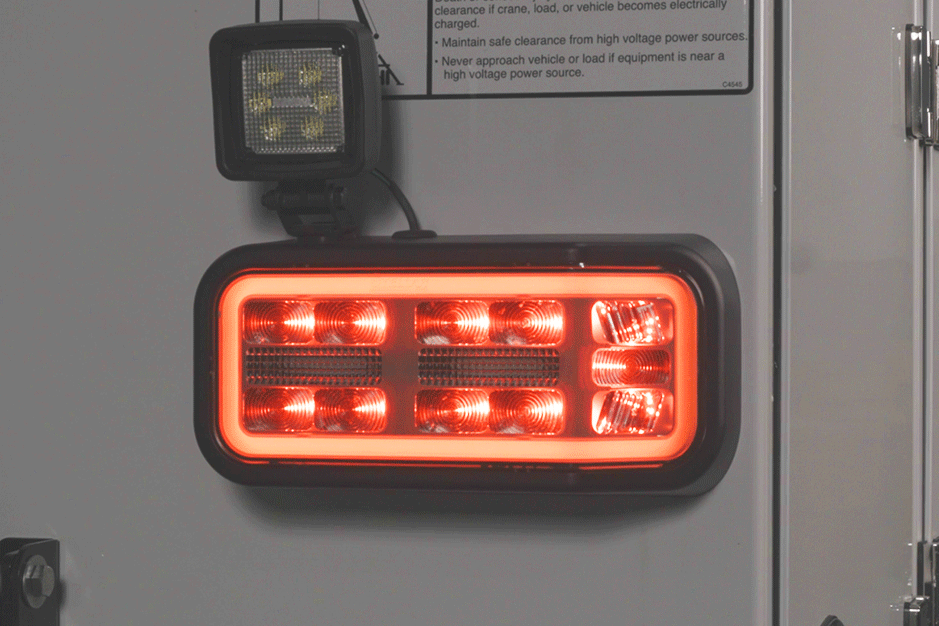

- Exterior mounted light box provides easy mounting for lights and other accessories while minimizing entry points into the body.
- 3-point compression latches keep weather-stripping tight while allowing easy access.
- Double-panel 1/8″ aluminum tailgate with hinged arm brackets provides a stout working surface.
- 250-lb capacity, adjustable divider shelves made of spangled galvanized steel.
- Complete undercoating, with minimum of 6.5 mils of petroleum base material, provides extra protection from corrosion and road debris.
- Easily add a wide range of mechanic service truck accessories.
Models:
- TMAX 30K-9 (steel and aluminum)
- TMAX 30K-11 (steel and aluminum)
Specifications
| STEEL | ALUMINUM | |
|---|---|---|
| Applicable Chassis: | 14,000 – 22,900 GVWR | 14,000 – 22,900 GVWR |
| Clear Cab to Axle: | 60" (152 cm) or 84" (213 cm) | 60" (152 cm) or 84" (213 cm) |
| Body Length: | 109" (277 cm) or 133" (338 cm) | 109" (277 cm) or 133" (338 cm) |
| Compartment Depth: | 22" (56 cm) | 22" (56 cm) |
| Floor Width: | 50" (127 cm) | 50" (127 cm) |
| Body Width: | 94" (239 cm) | 94" (239 cm) |
| Body Height: | • 44" (112cm) with 60" (152 cm) right front raised compartment • 52" (132 cm) with or without an 8" (20 cm) drop well for 60" bottle storage |
• 44" (112 cm) •52" (132 cm) with or without an 8" (20 cm) drop well for 60" bottle storage |
| Net Weight: | 2,417 – 3,131 lbs (1,097 – 1,420 kg) | 2,038 – 3,105 lbs (925 – 1,409 kg) |
Compatible Cranes
| Crane Rating | Max. Reach | Max. Capacity | Control Systems | |
|---|---|---|---|---|
| Electric Cranes | ||||
| EC3200 | 11,500 ft-lb | 15' (4.57 m) | 3,200 lbs (1,451 kg) | Yes |
| EC4000-16 | 16,000 ft-lb | 16' (4.88 m) | 4,000 lbs (1,814 kg) | Yes |
| EC4000-20 | 16,000 ft-lb | 20' (6.10 m) | 4,000 lbs (1,814 kg) | Yes |
| EC5000 | 25,000 ft-lb | 20' (6.10 m) | 5,000 lbs (2,268 kg) | Yes |
| Electric-Hydraulic Cranes | ||||
| 3315 | 11,500 ft-lb | 15' (4.57 m) | 3,200 lbs (1,451 kg) | CDT™ |
| 4421 | 16,000 ft-lb | 21' (6.40 m) | 4,000 lbs (1,810 kg) | CDT™ |
| 5521 | 29,500 ft-lb | 21' (6.40 m) | 5,000 lbs (2,268 kg) | CDT™ |
| 6521 | 35,000 ft-lb | 21' (6.40 m) | 6,000 lbs (2,722 kg) | CDT™ |
