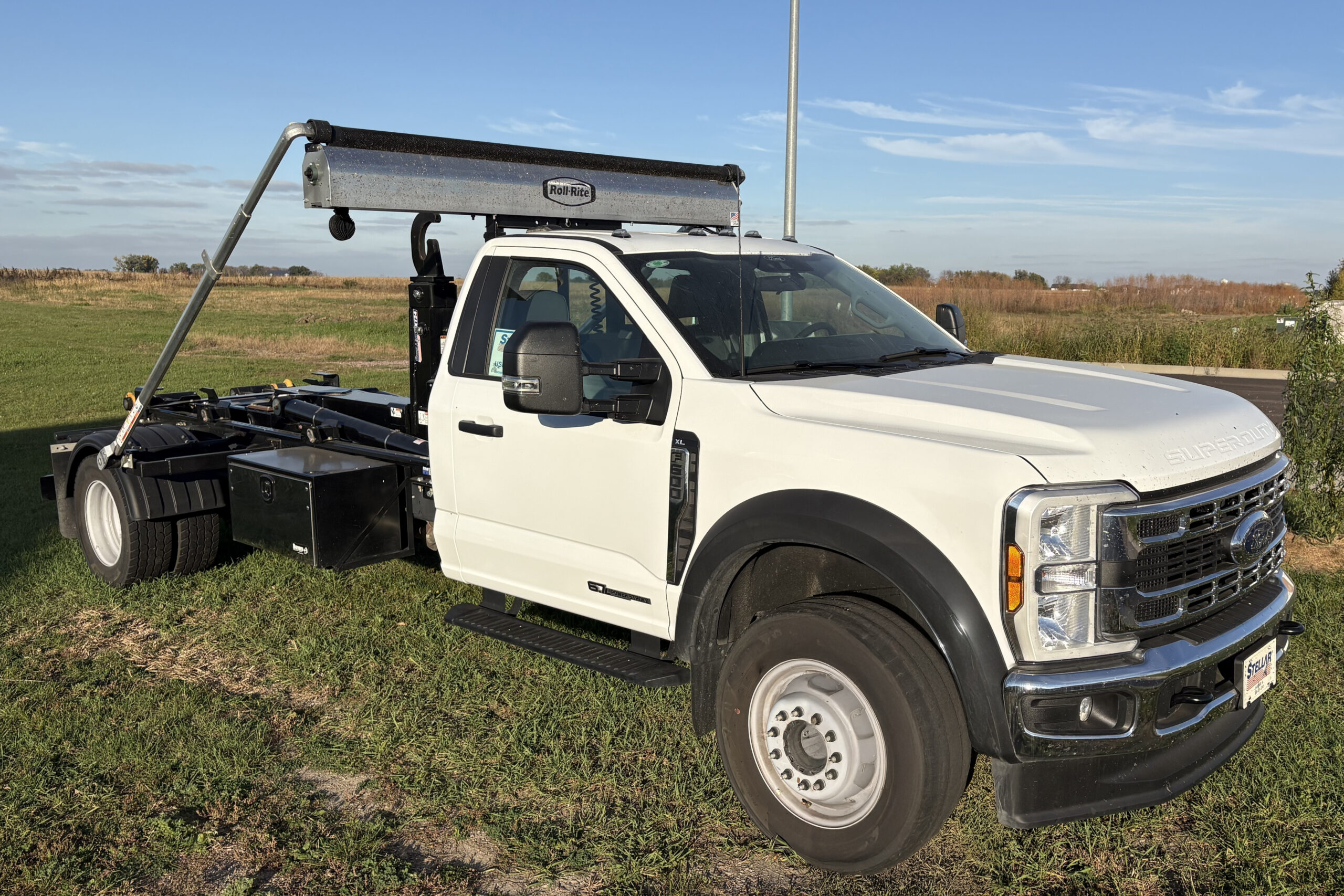

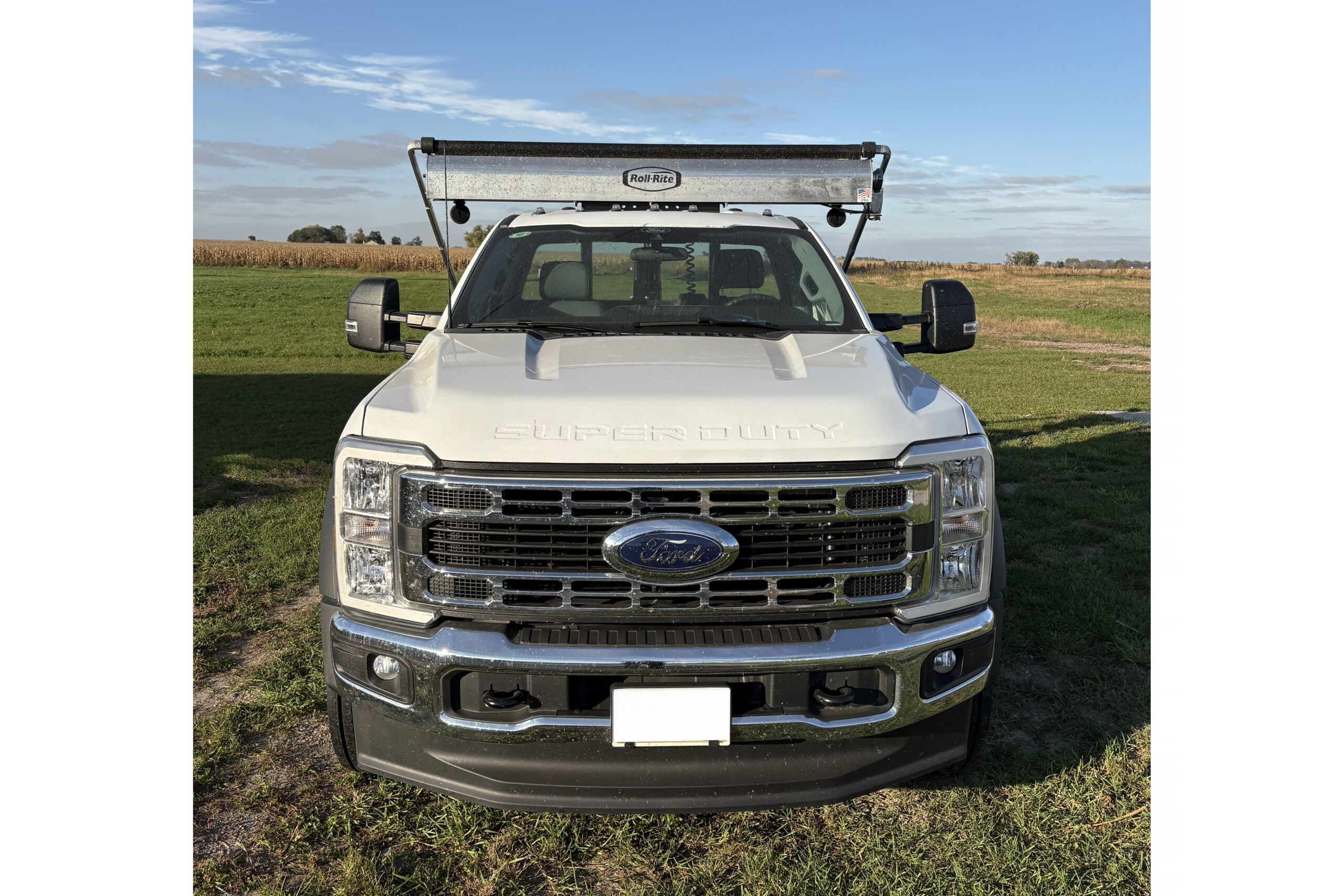

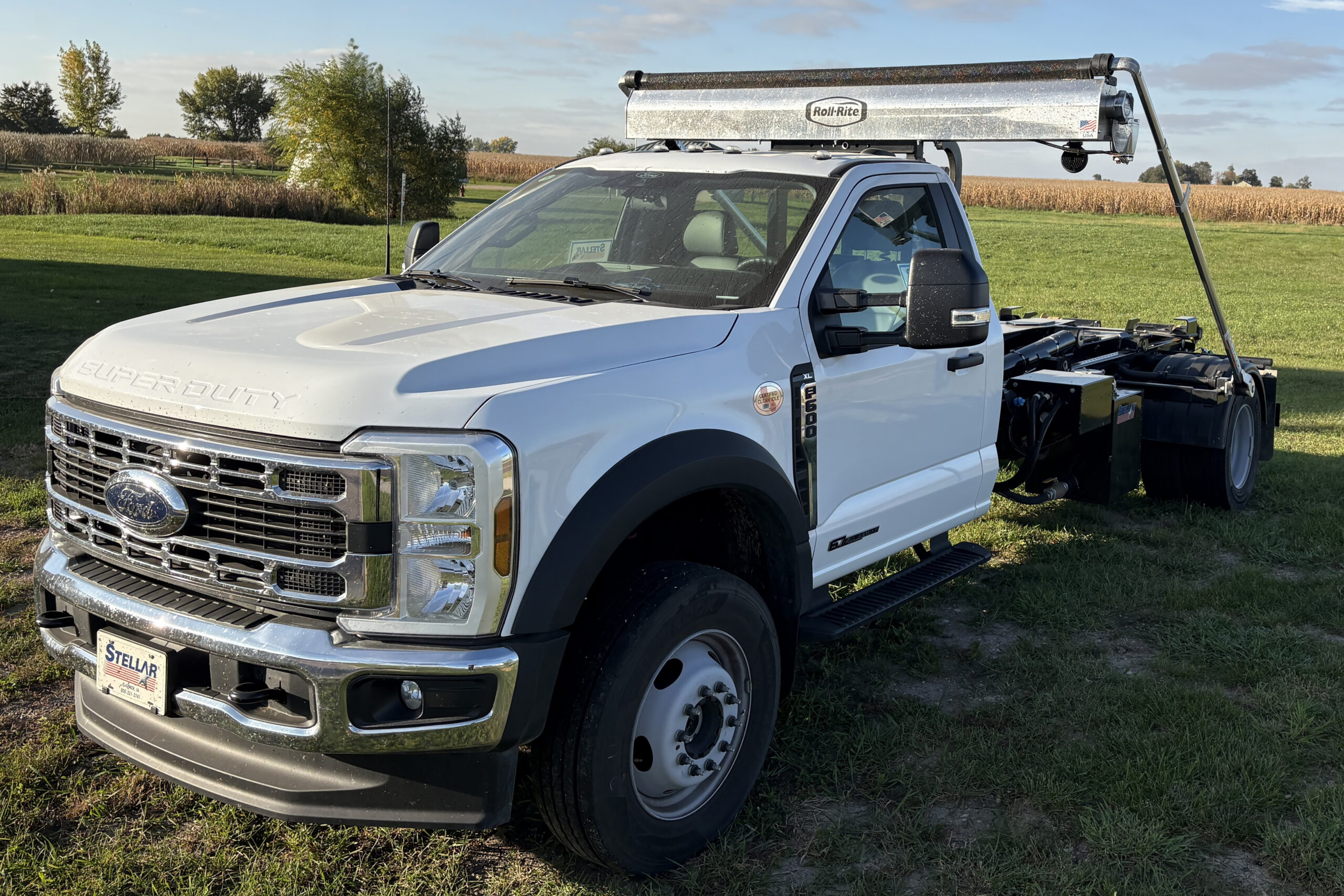

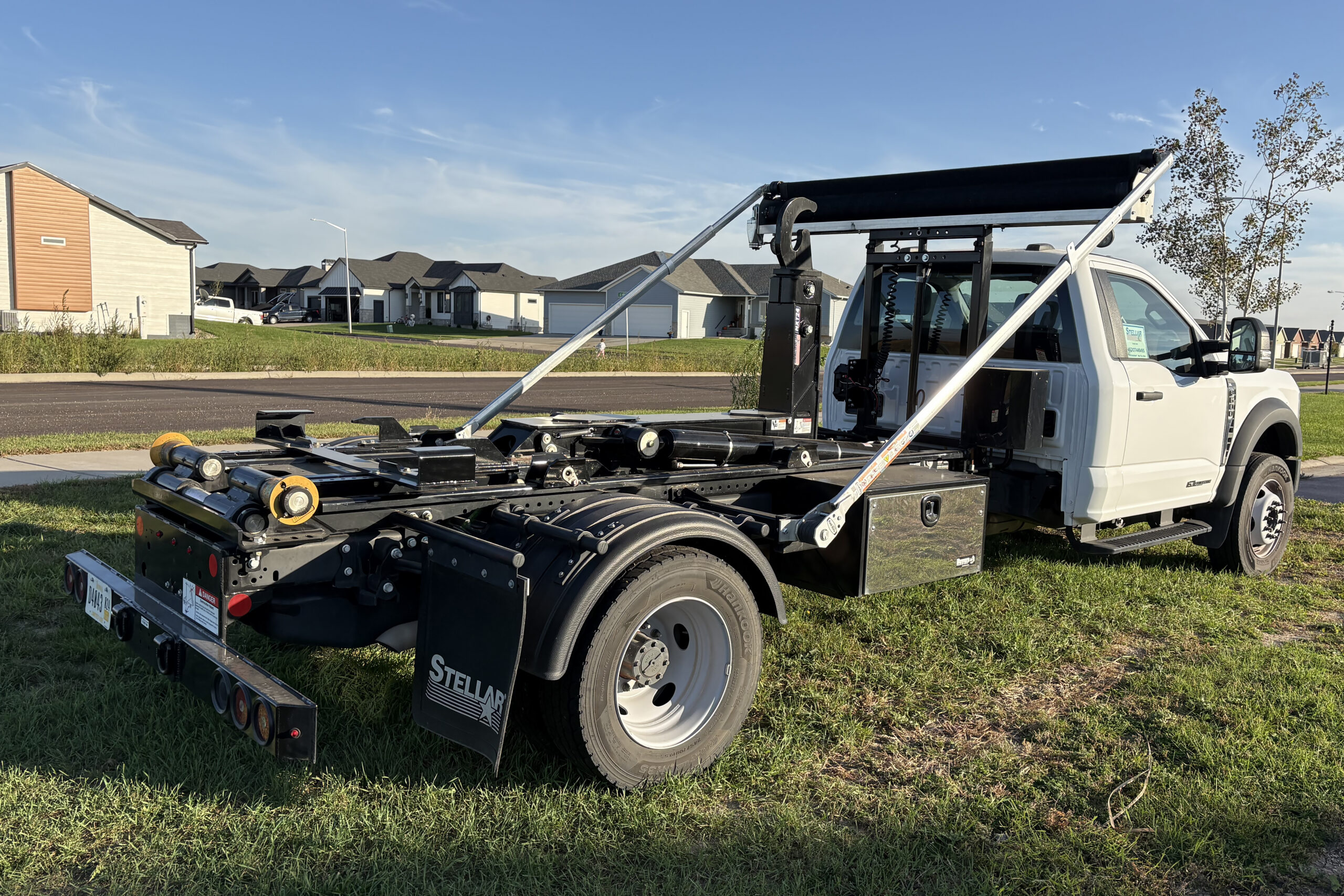

NXT24S

2026 Ford F600

• 4×4
• 120″CA/205″ WB
• 22000# GVW
• 6.7L Diesel
• Automatic w/PTO Prov.
• XL Trim
• Air Conditioning
• Cruise Control
• Tilt Wheel
• AM/FM
• Cab Steps
• 40/20/40 Vinyl Seat
• Sync System
• Power Group
• Backup Camera

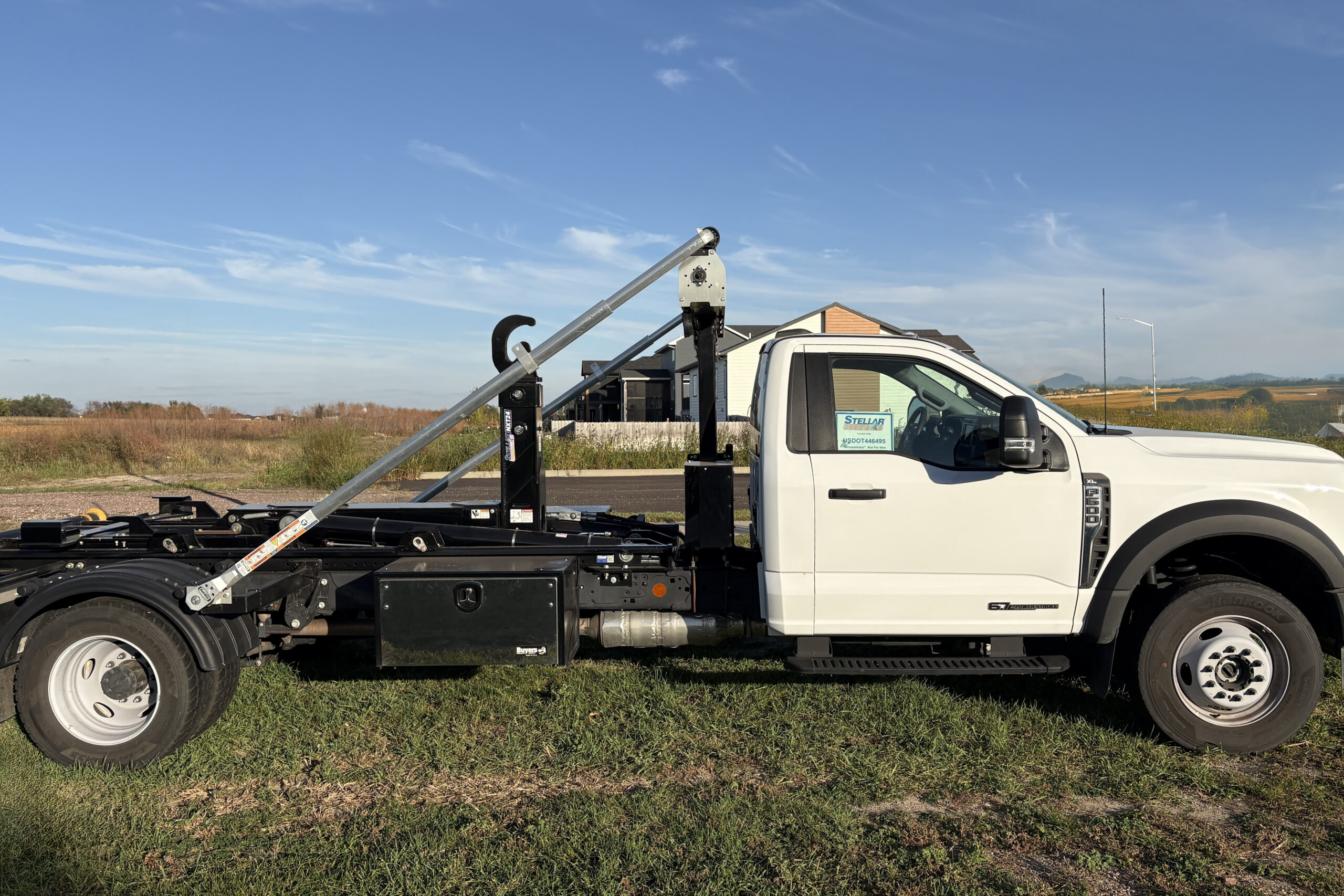

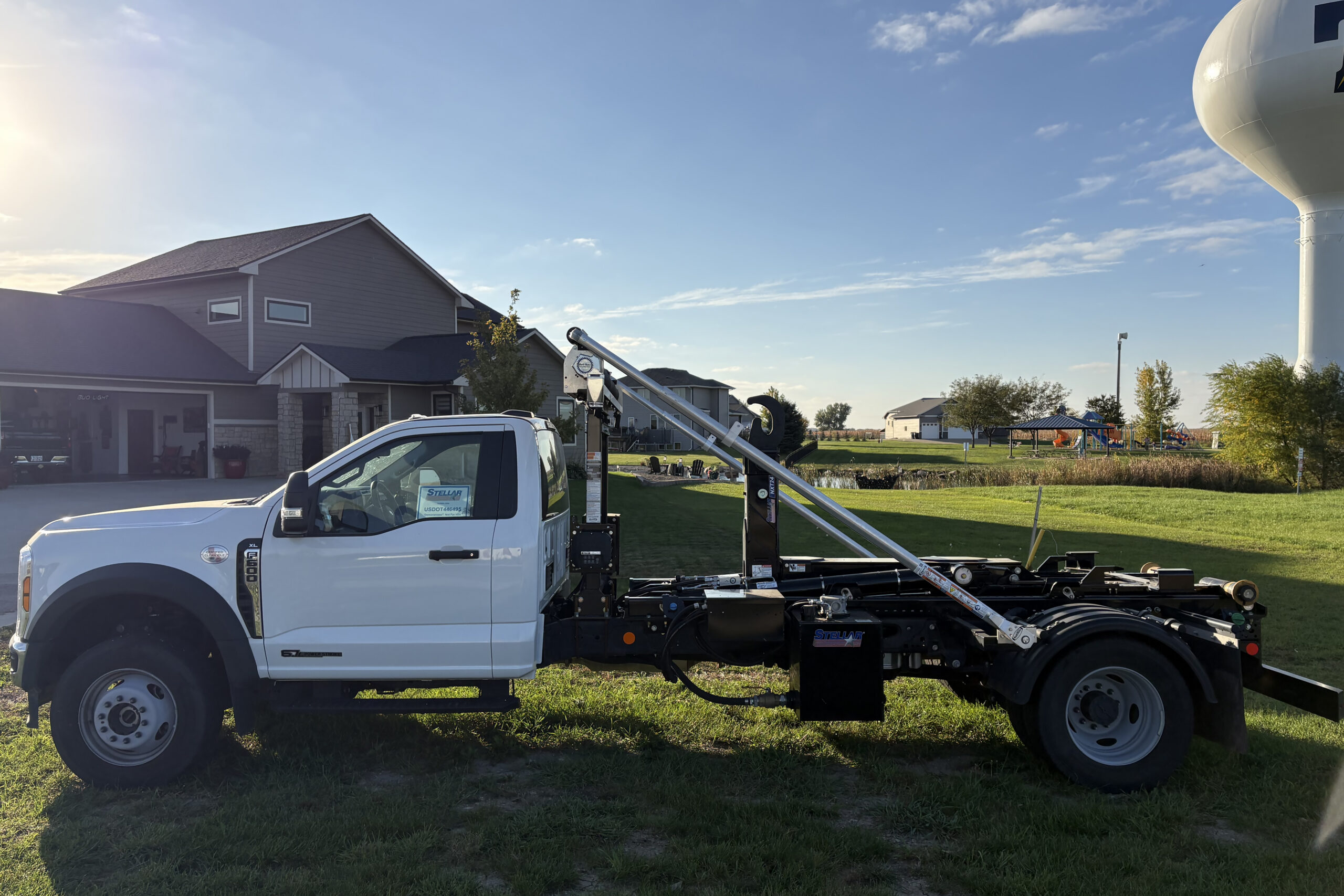

Hooklift

• Stellar NXT24S
• Double Pivot
• 30,000 lb Capacity Hooklift Hoist With Z-rail Base
• Telescopic Jib
• Manual Adjustable 35 5/8″/54” Hook Height
• Dump Designed To Accept Bolt-On Latches
• Single Rear Rollers And 63° Dump Angle
• (4) Roller Style Body Saddles
• 25-Gallon Hydraulic Reservoir
• Designed For 10’ To 14’ Container Body Lengths
• Shortest Container Body Length For Dumping Is 10’
• Longest Flatbed Body (w/Fold Down Bumper) Is 16′
• Maximum 24 GPM Hydraulic Flow
• Hydraulic Operating Pressure of 4,500 PSI

Includes:

• 141807 JIB ASM NXT24/30S 36/54HH
  141805 SECONDARY ASM NXT24/30S
  141803 DUMP ASM NXT24/30S
  141801 BASE ASM NXT24/30S
  140048 MNT KIT NXT24/30
  130144 RSRVR ASM 25GAL SQUARE

• Inside Body Locks – Bolt On (2 per kit)
• Outside Pass Thru Body Lock – Bolt On
• Standard Zinc Pins
• Standard Black Paint

Hydraulics

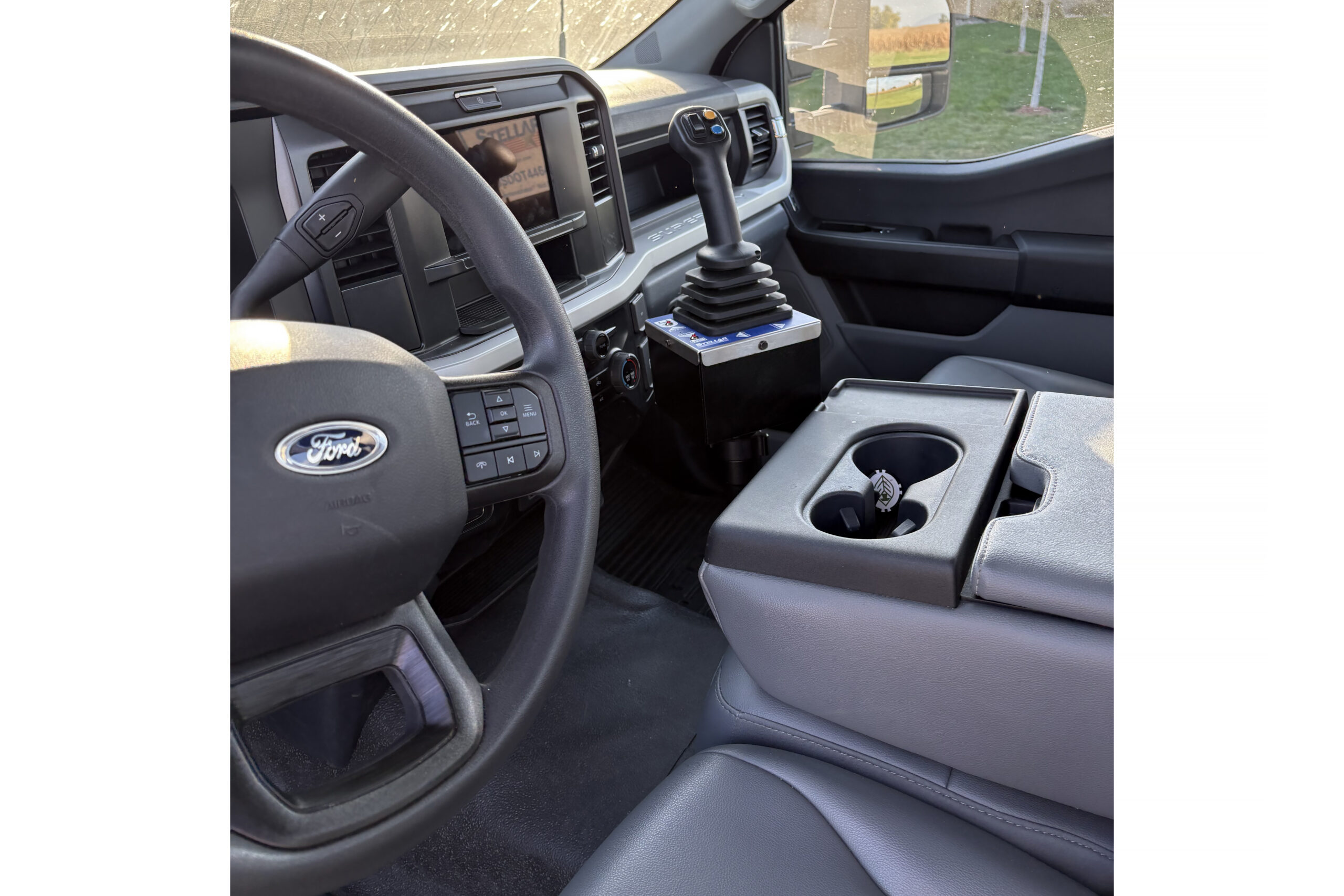

• 2-Function Electric Joystick Control
• 2-Funtion Joystick Tower
• 2-Section Valve Bank Assembly
• Valve Bank Mounting And Hoist Up Indicator
• PTO-Engineered To Order
• Pump-Engineered To Order

Accessories

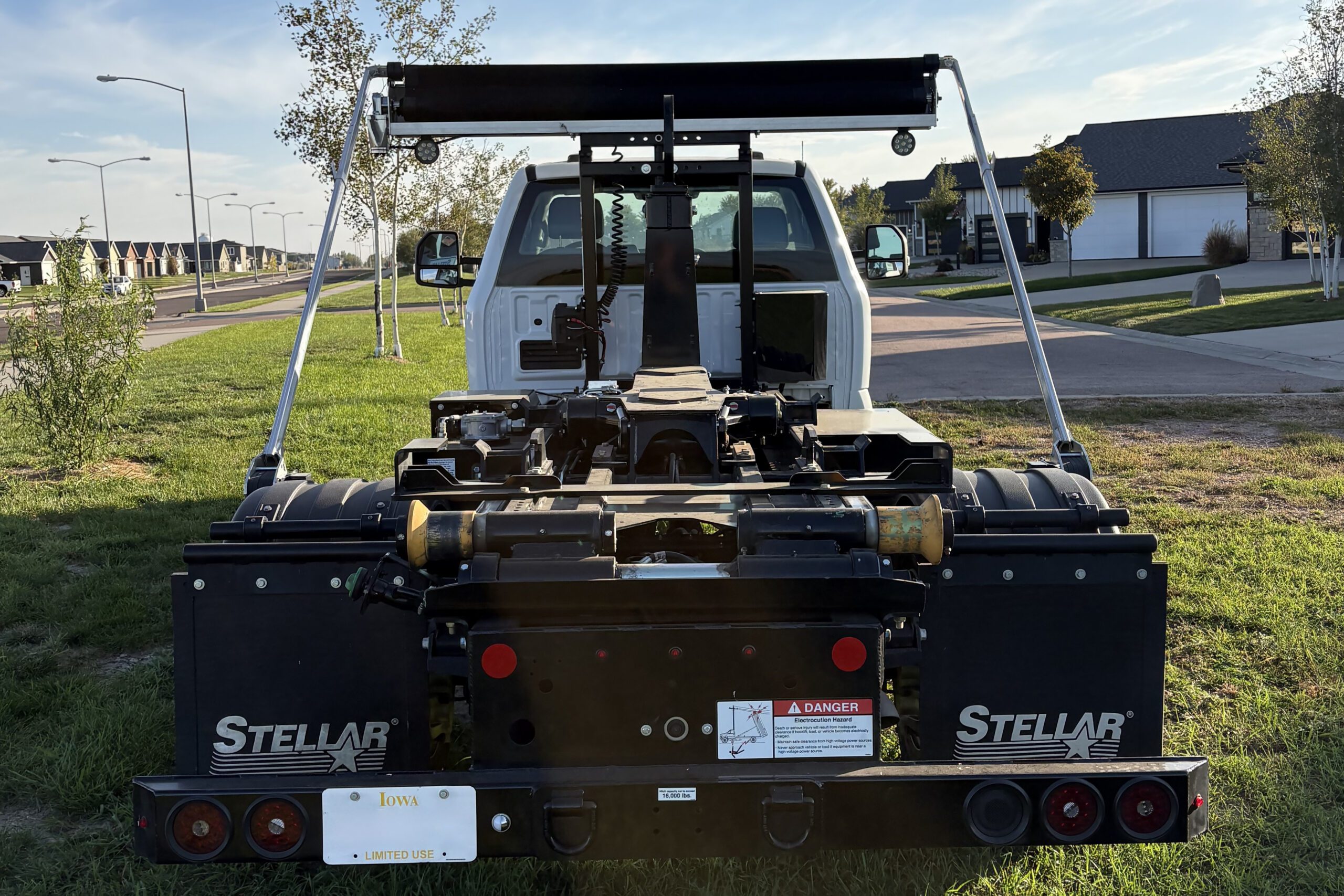

• 16,000lb Pintle Hitch Bumper Assembly
• Includes FMVSS108 Compliant Light Kit
• Backup Alarm
• One Pair Steel Fenders
• Stellar Mud Flaps
• Steel Underbody Toolbox With Flip Down Door 18″H x 36″L x 18″D
• Features Powder Coated Black Box
• Polished Stainless Steel Door
• Stainless Steel Compression Latch
• Continuous Hidden Hinge And Replaceable Gasket System

Tarper

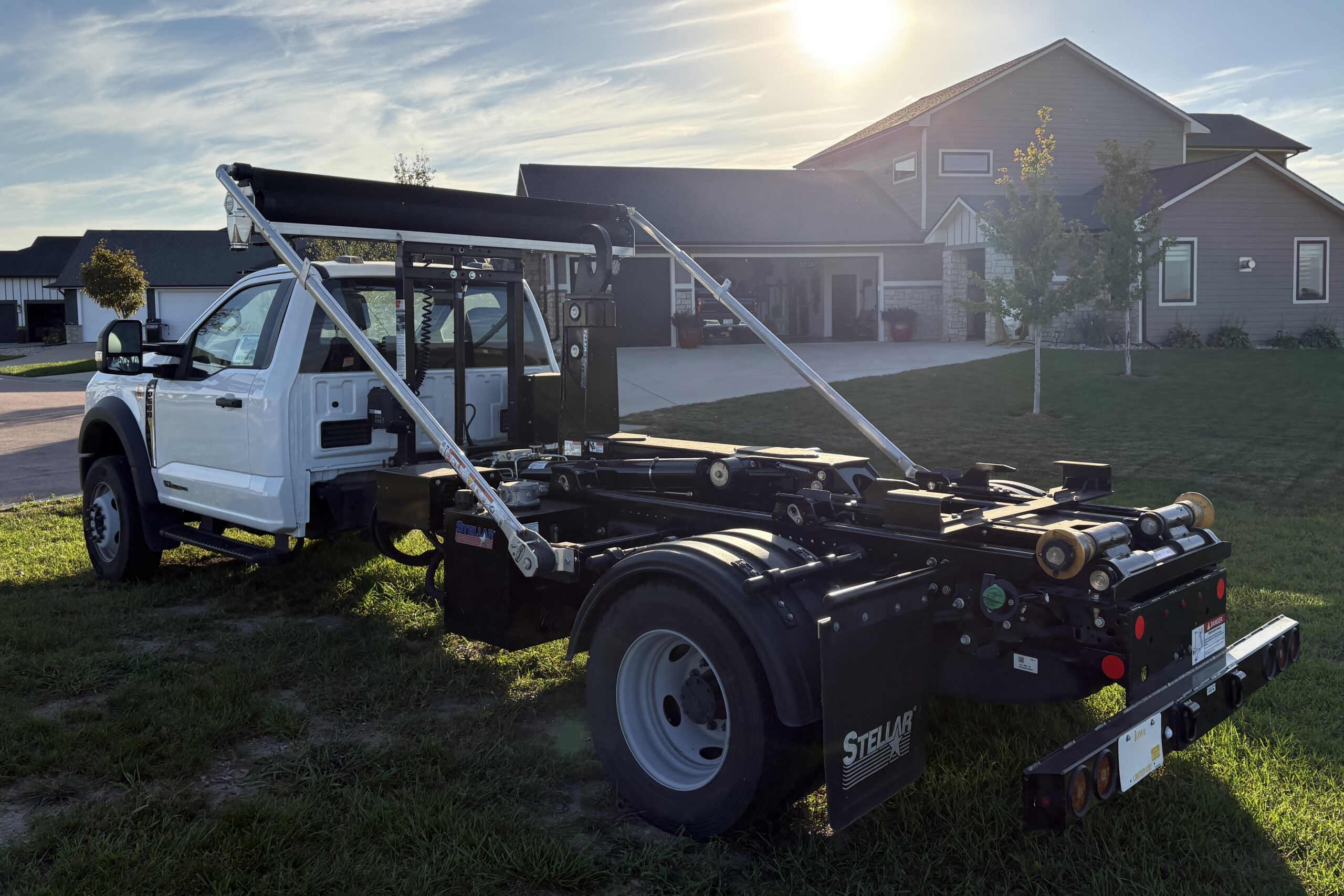

• Roll-Rite DC203 Automatic Roll-Off Tarp System
• Single-Stage Telescopic Gantry for Single Axle Chassis Applications
• Up to 18’ Long Containers
• Gantry Raises 5’ to 8’
• 12V Self-Contained Electric/Hydraulic Power Unit With Wireless Controls For Extend And Retract Of The Tarp
• Torsion Springs For Arms
• Heavy Duty Mesh Tarp
