NXT52-L

2027 WesternStar 49X

• 195″ CT, 66,000# GVW
• Cummins X-15 450 HP
• Allison 4500 RDS Transmission
• 20,000# Front Axle
• 46,000# Rear Axle
• Air Brakes
• Horizontal Exhaust Pipe
• 80-Gallon LH Fuel Tank
• 22.5 Tires

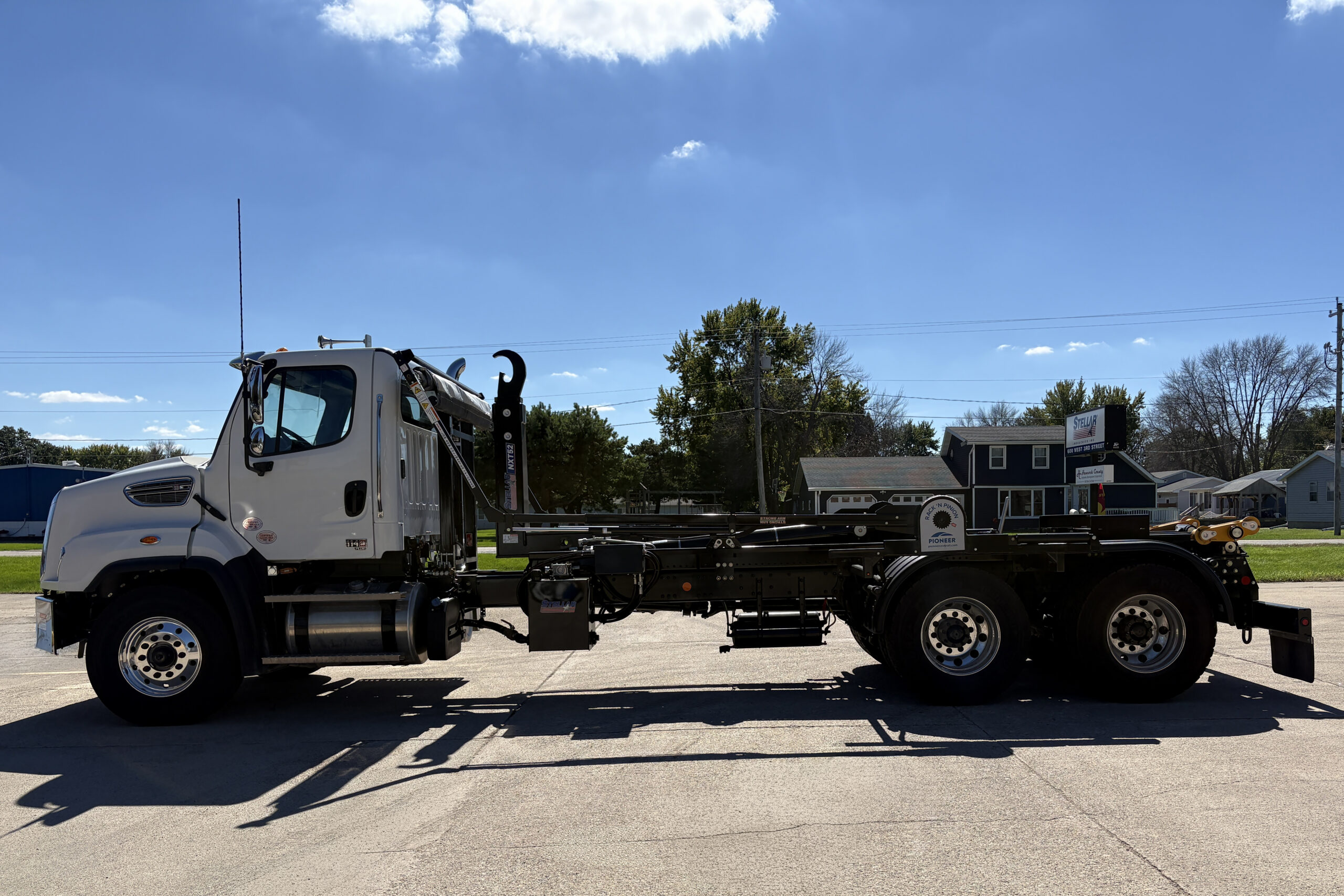

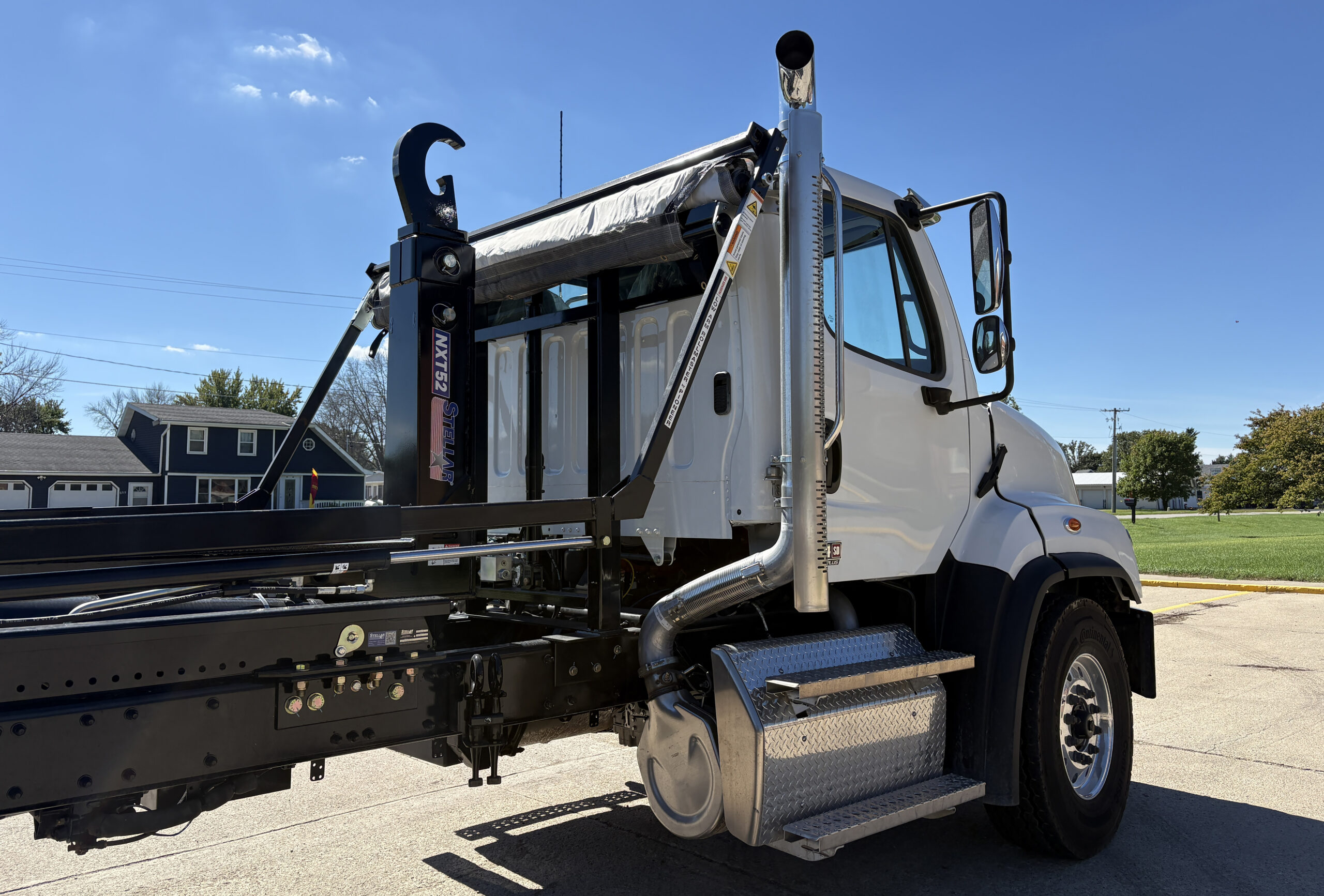

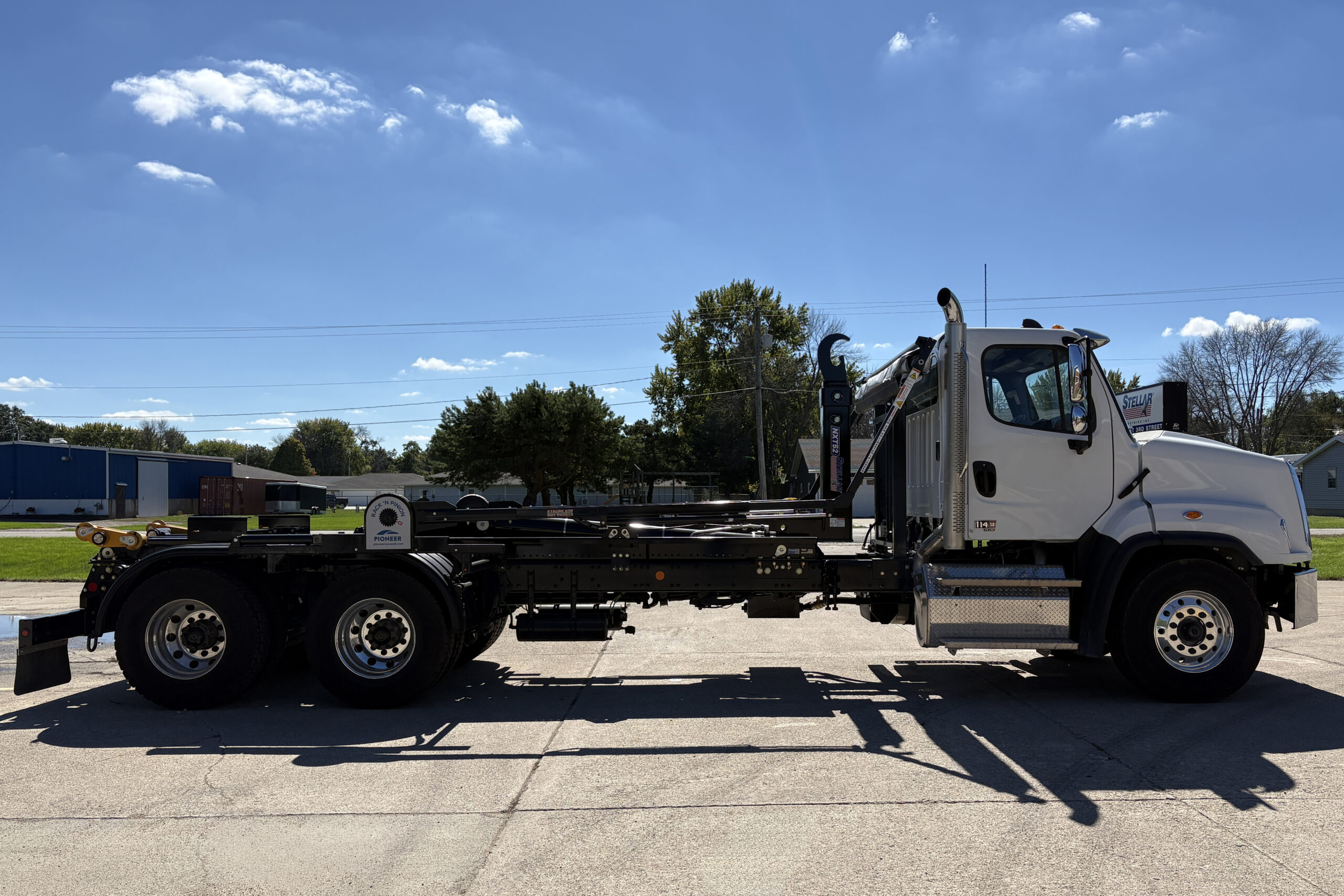

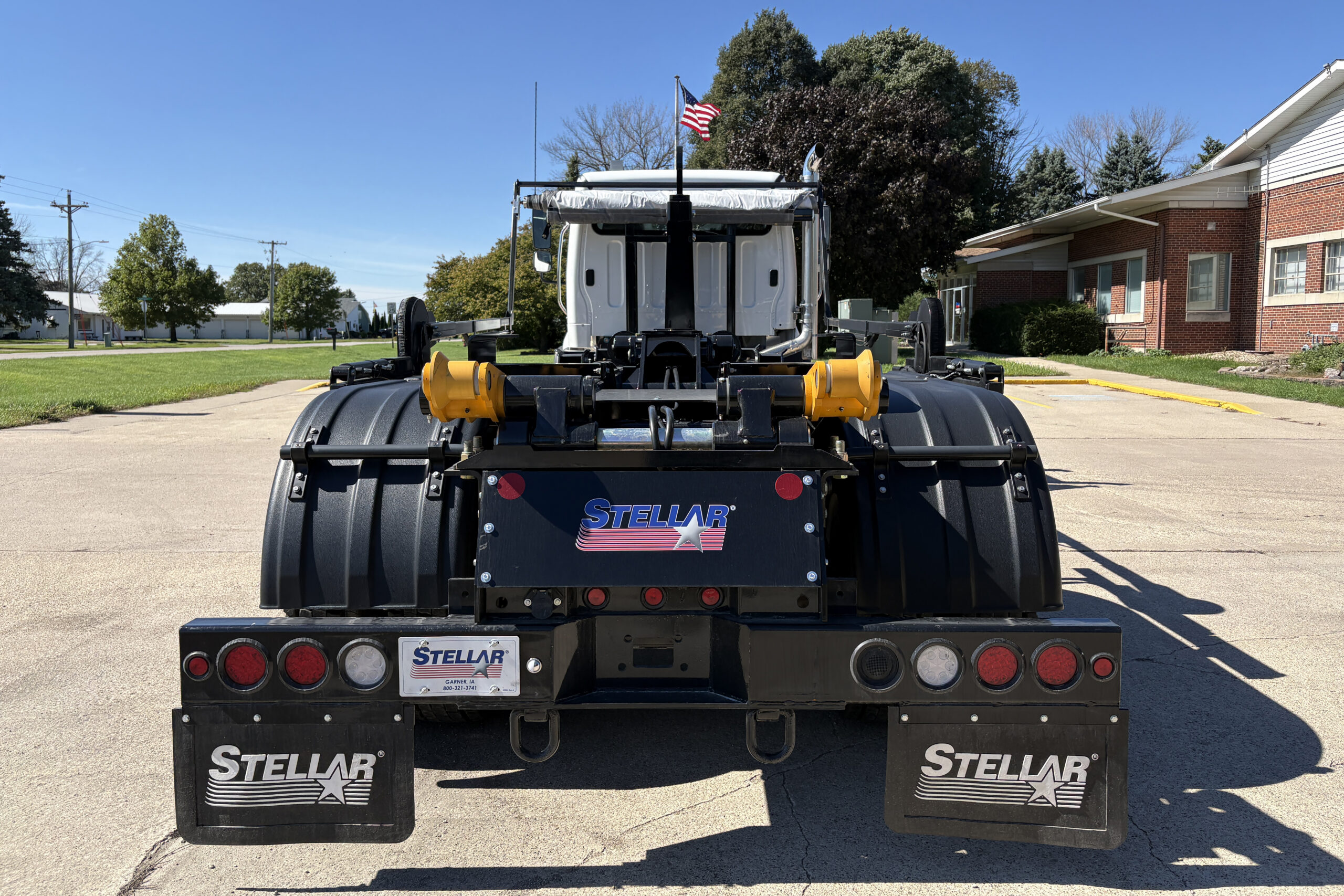

Hooklift

• Stellar NXT68
• Double Pivot
• 68,000 lb Capacity Hooklift Hoist
• Z-Rail Base
• Telescopic Jib
• Manual Adjustable
• 54″/61.75” Hook Height
• (6) Roller Style Body Saddles
• Bolt-On Outside Latches
• Dual Rear Rollers And 50° Dump Angle
• Designed For 16’ To 22’ Container Body Lengths
• Shortest Container Body Length For Dumping Is 16’
• Longest Flatbed Body (w/Fold Down Bumper) Is 24’
• Maximum 24 GPM Hydraulic Flow
• Hydraulic Operating Pressure Of 4,500 PSI
• Minimum CT Is 182” CA And Maximum Of 214”
• Minimum After Frame Of 64” And A Minimum GVWR of 62,000 lb
  •  Includes:
    • 134938 JIB ASM NXT68 54/62HH MANUAL
    • 134937 SECONDARY ASM NXT68
    • 134936 DUMP ASM NXT68
    • 134935 BASE ASM NXT68
    • 135729 MNT KIT NXT68
    • 130144 RSRVR ASM 25GAL SQUARE
• Standard Zinc Pins
• Standard Black Paint

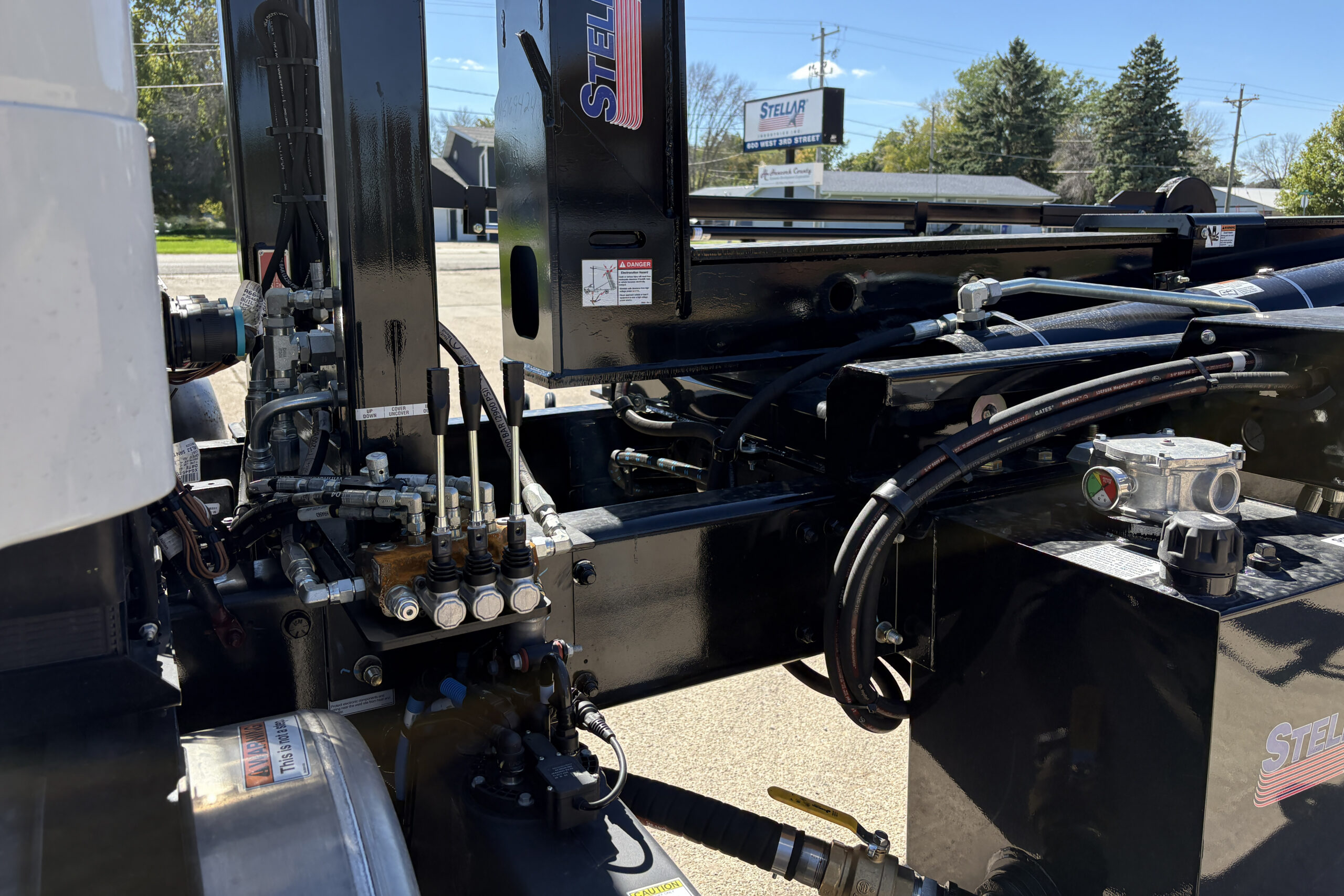

Hydraulics

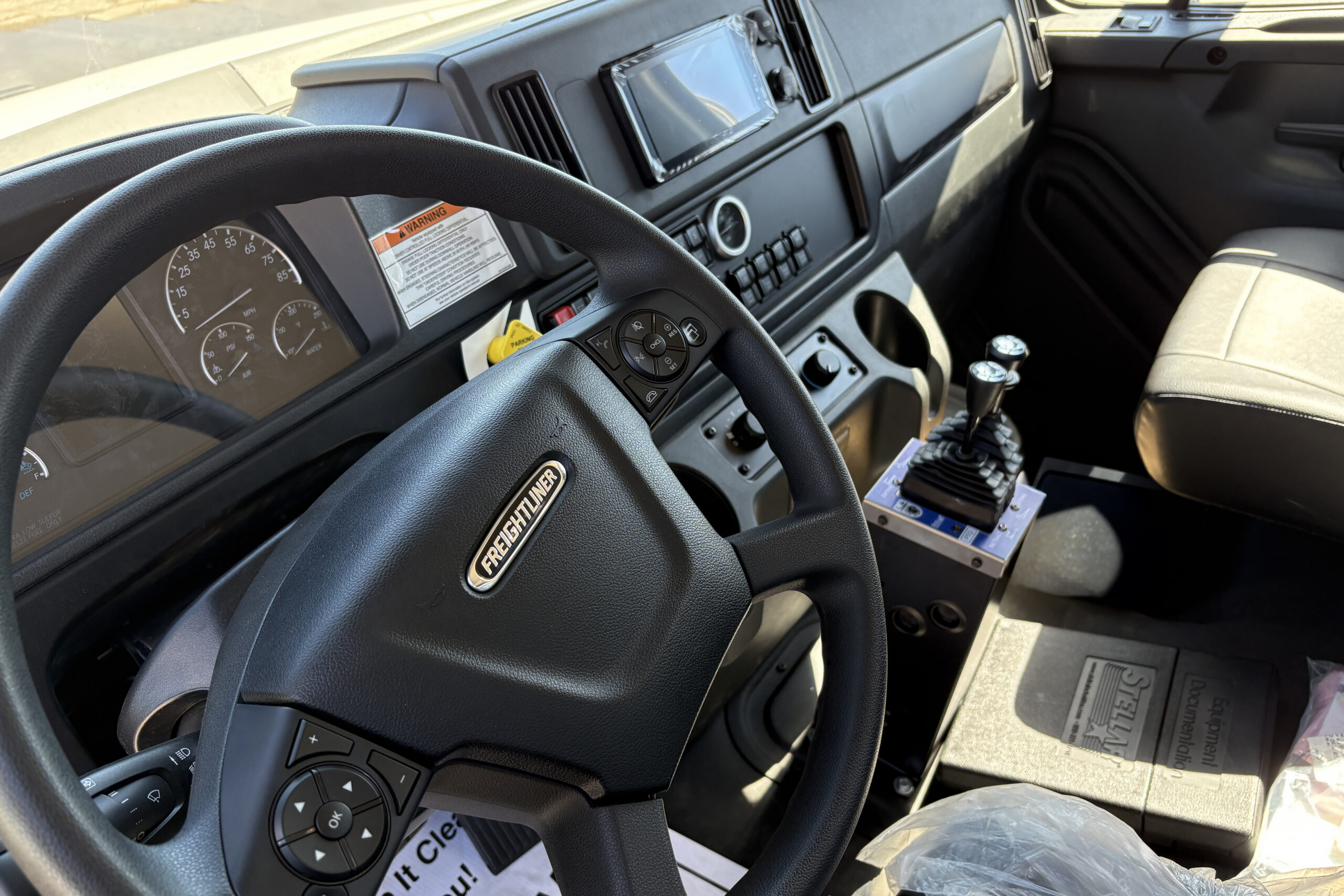

• 2-Function Air Control
• 2-Function Air Tower
• 2-Section Valve Bank Assembly
• Valve Bank Mounting And Hoist Up Indicator Light
• Hot Shift PTO For Various Chassis With Allison 4000 Transmission
• 123%, 7/8″-13T Spline Shaft
• Hydraulic Direct Mount Bent Axial Piston Pump
• 3.84 CID With 7/8″-13T Spline Shaft
• Bi-Rotational

Accessories

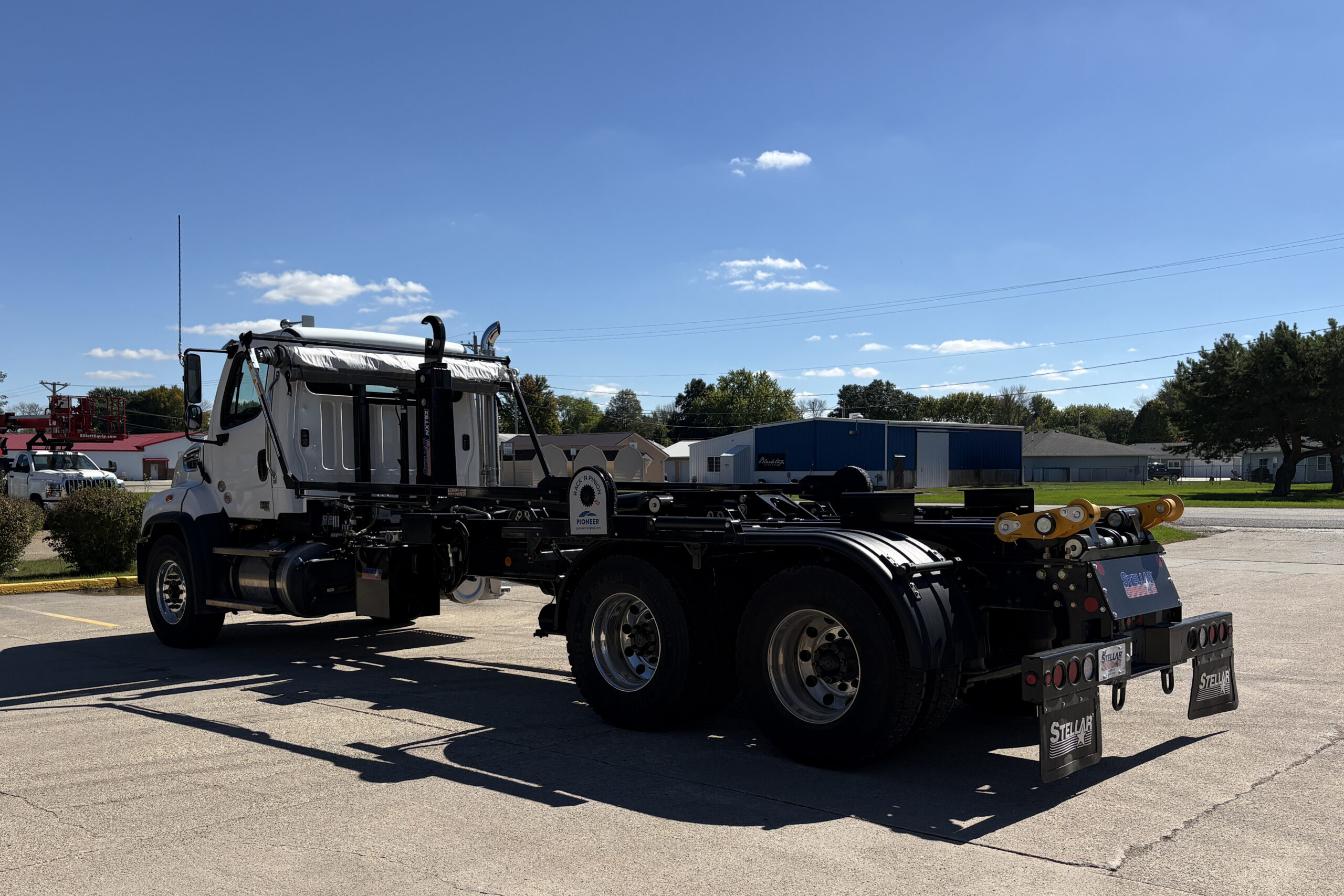

• Reinforced Bumper To Accept Pintle Hitch 90K
• Poly Fenders For Tandem Axle
• One Pair Stellar Mud Flaps
• ICC Safety Kit
• Rechargeable 2.5# Fire Extinguisher
• Reflector Kit

Tarper

• Donovan SWAT Automatic Rack-N-Pinion Roll-Off Tarp System
• Telescopic Gantry For Multi Axle Chassis Applications
• Up to 24’ Long Containers
• Powder Coated Low Profile Pivot
• Arms
• Precision Cut Gear and Rack
• Adjustable Over-Wheel Mounting Frame
• Hydraulic Driven with Control Valve
• Knitted Mesh Tarp
