1184-15 AG

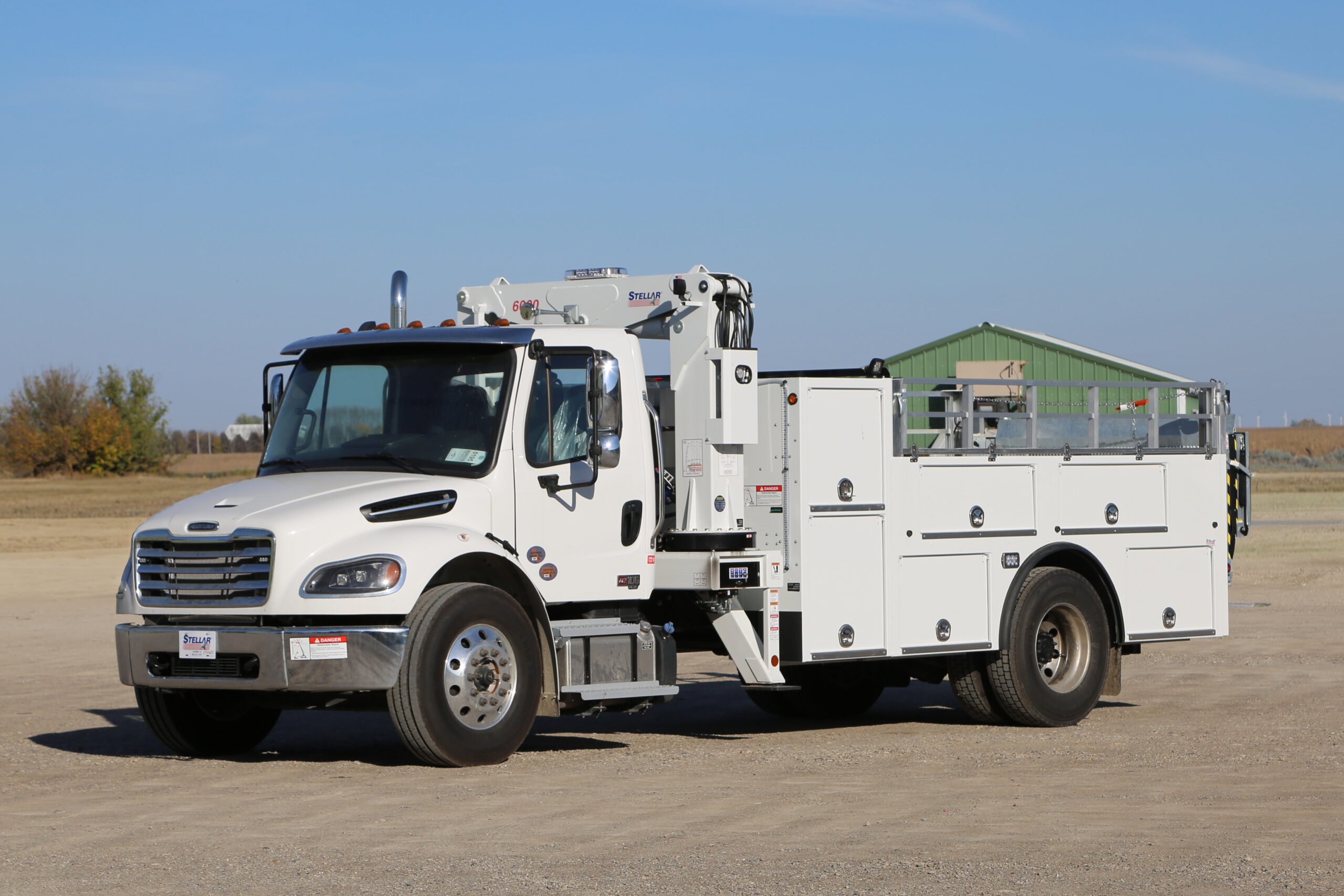

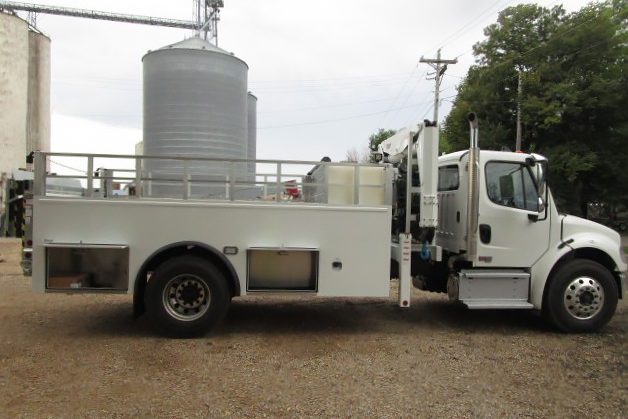

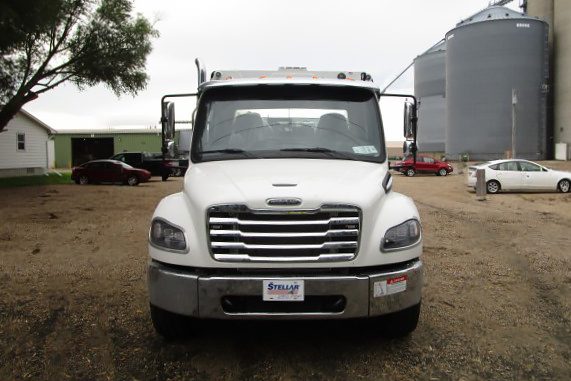

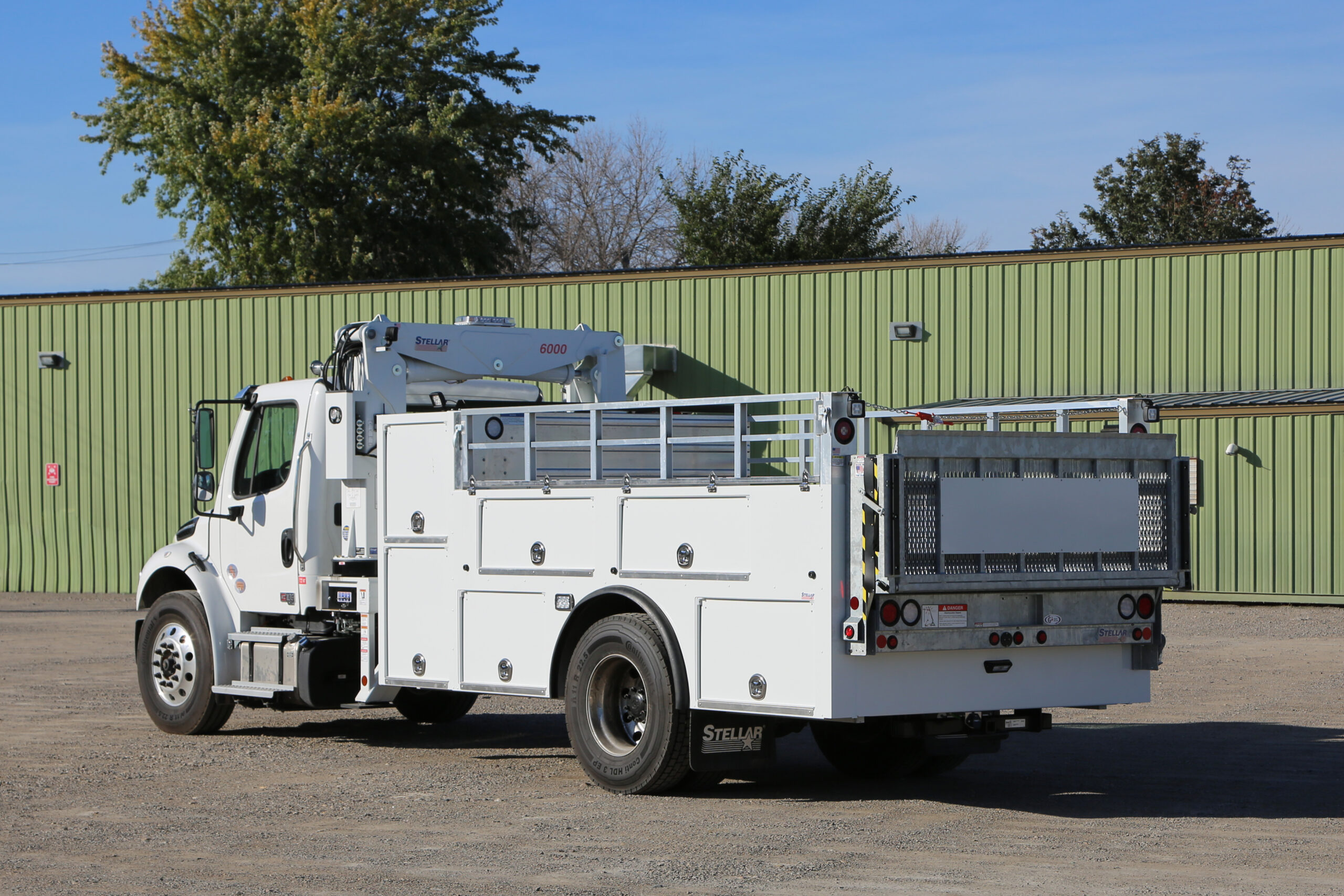

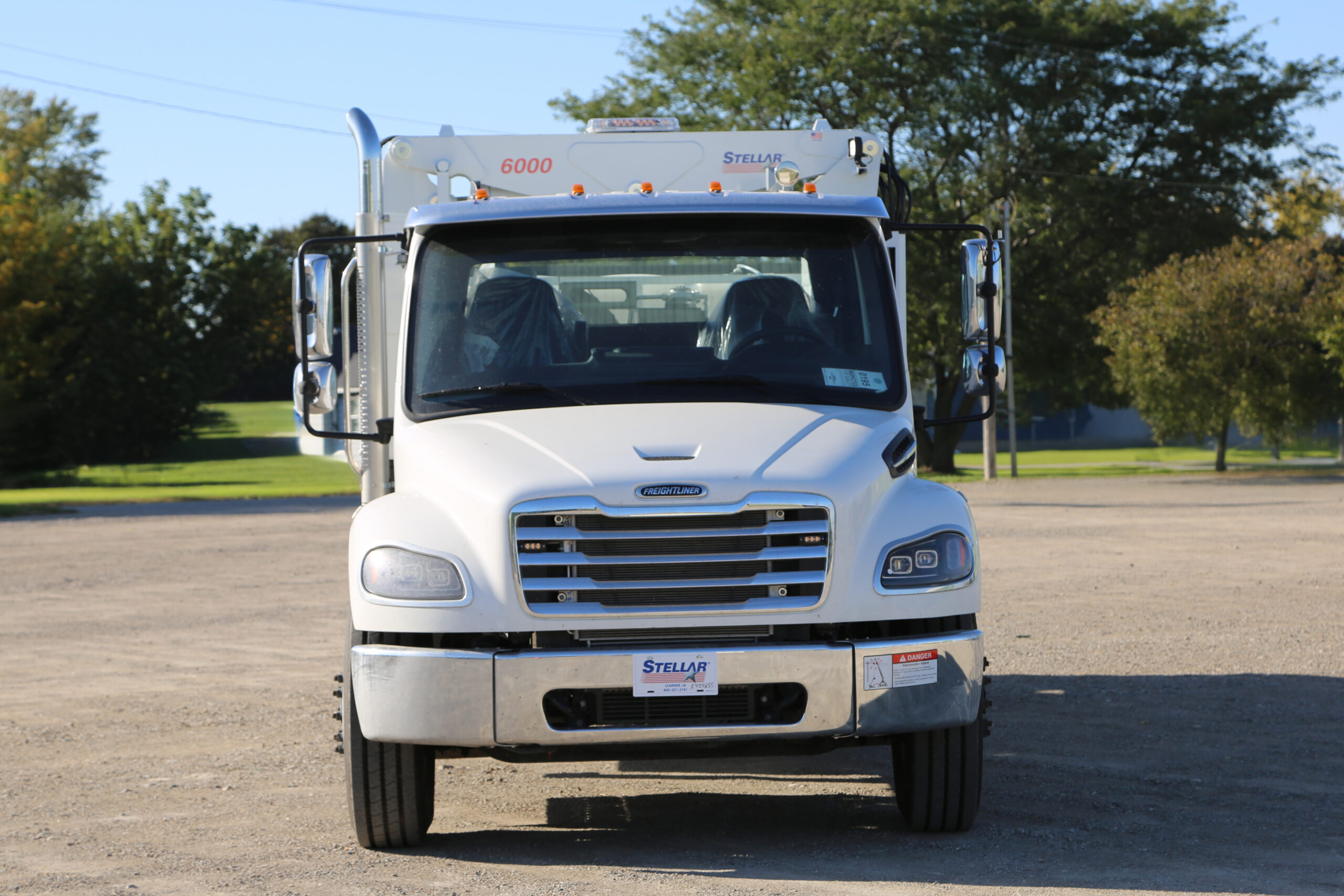

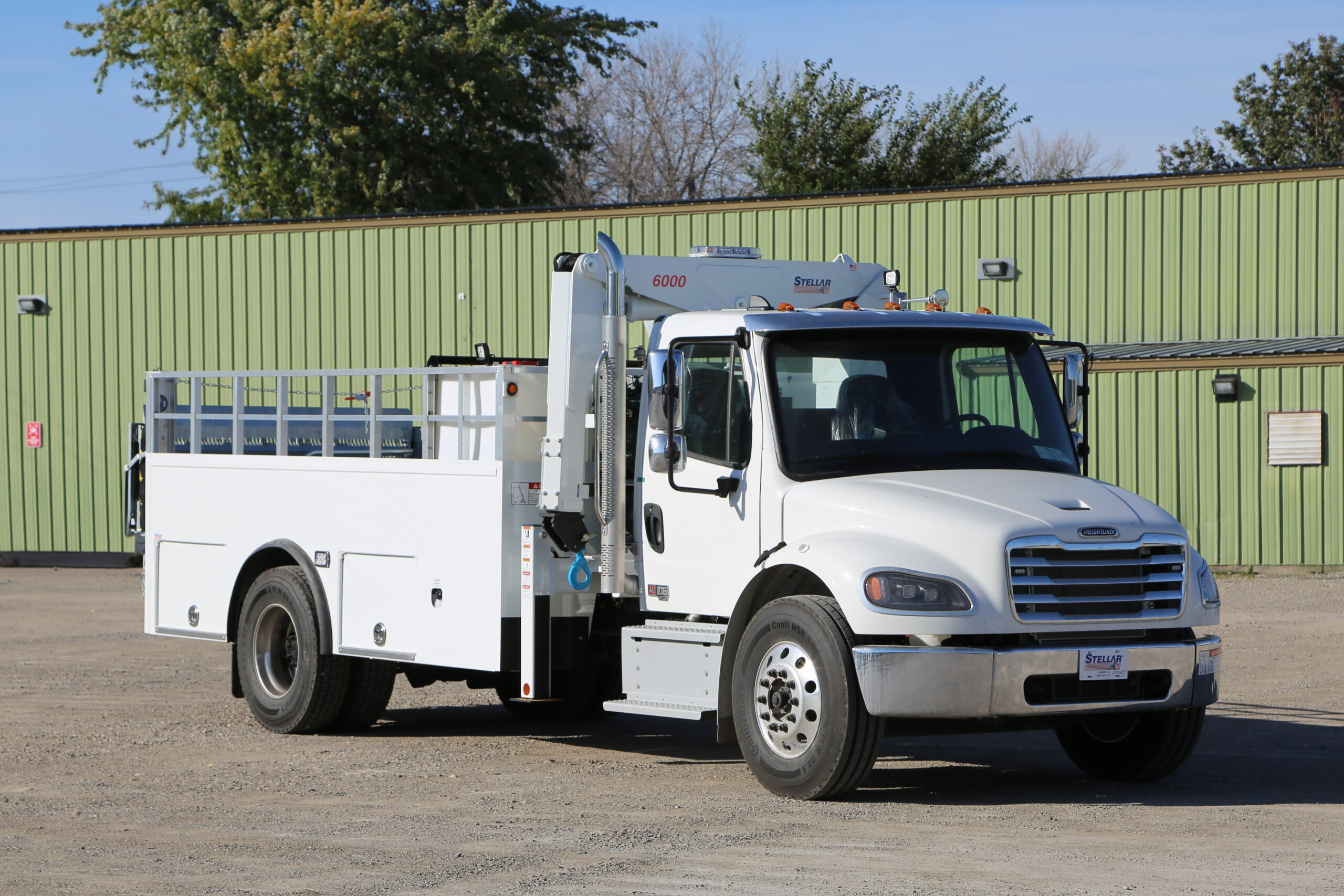

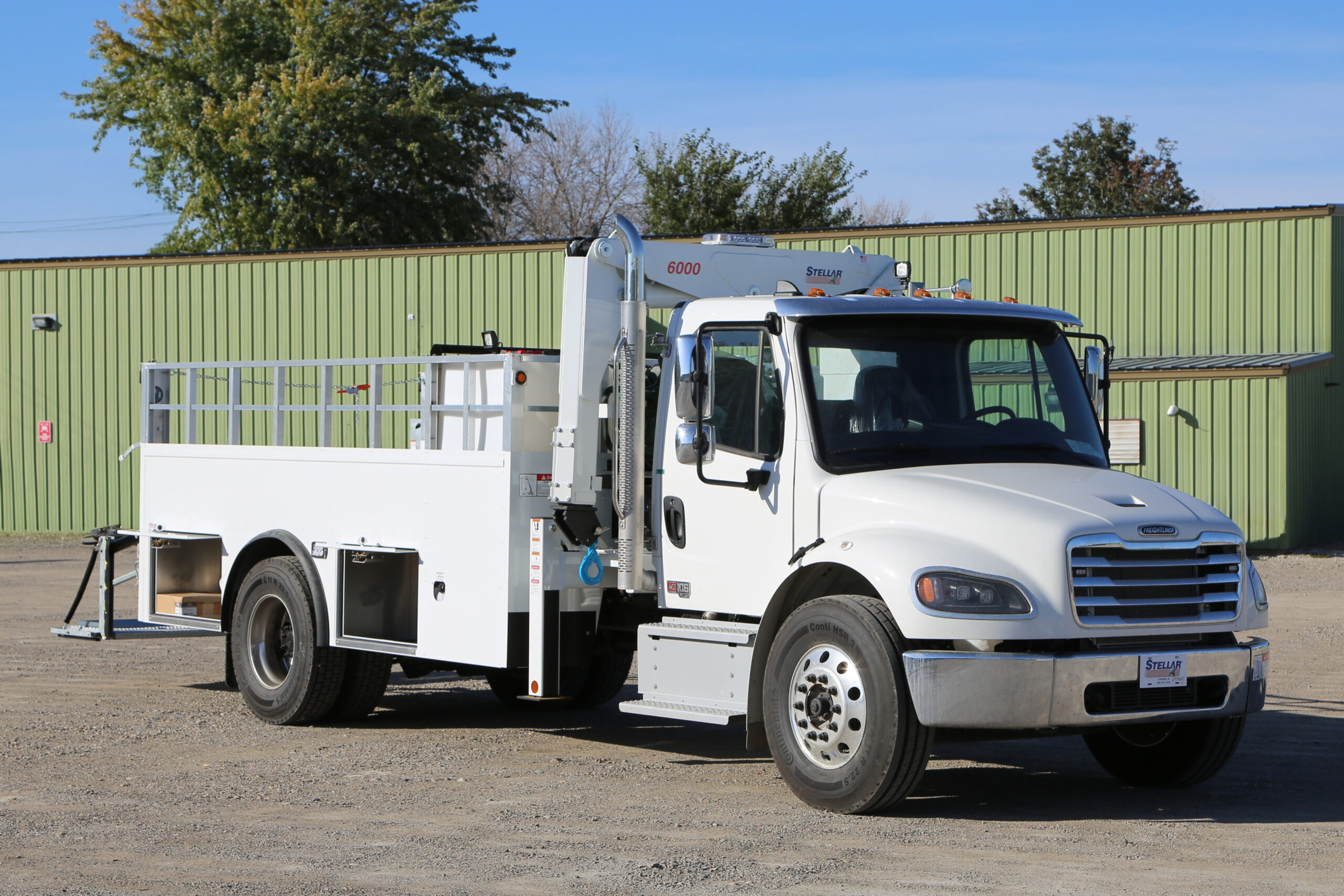

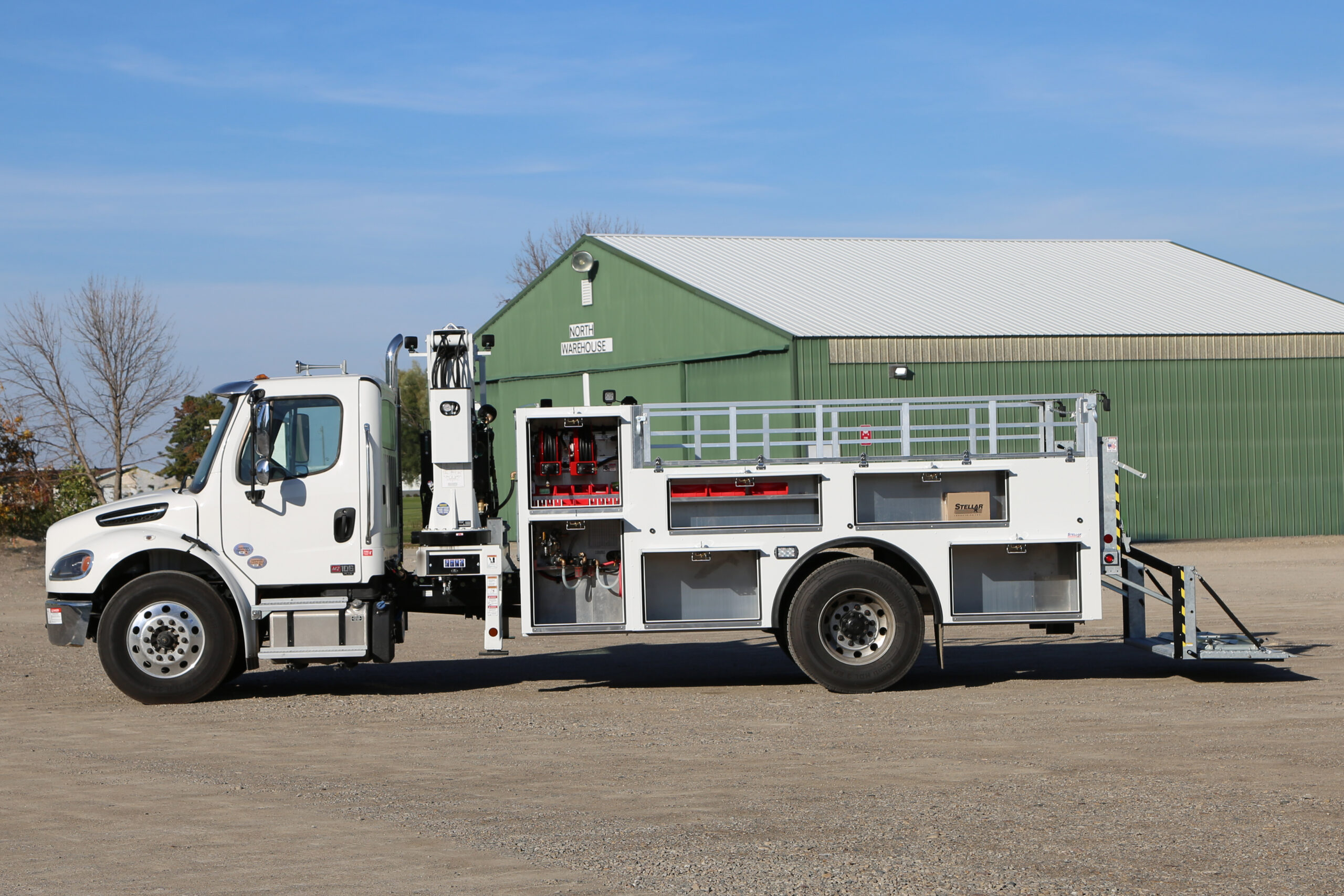

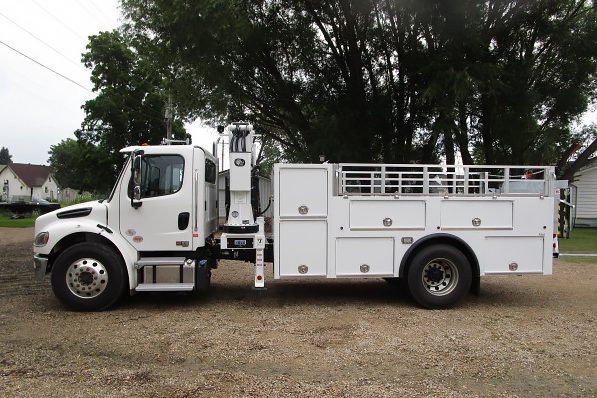

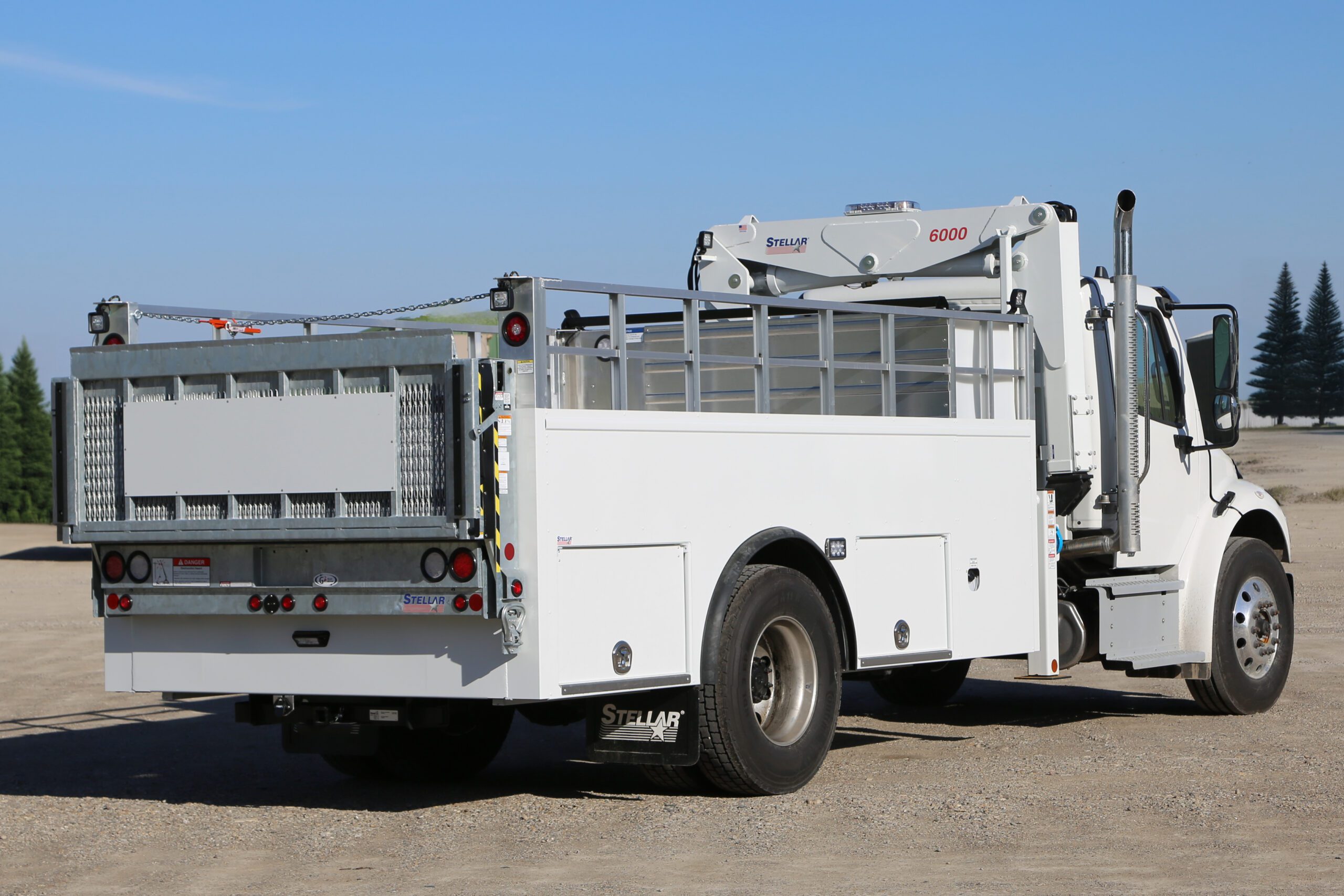

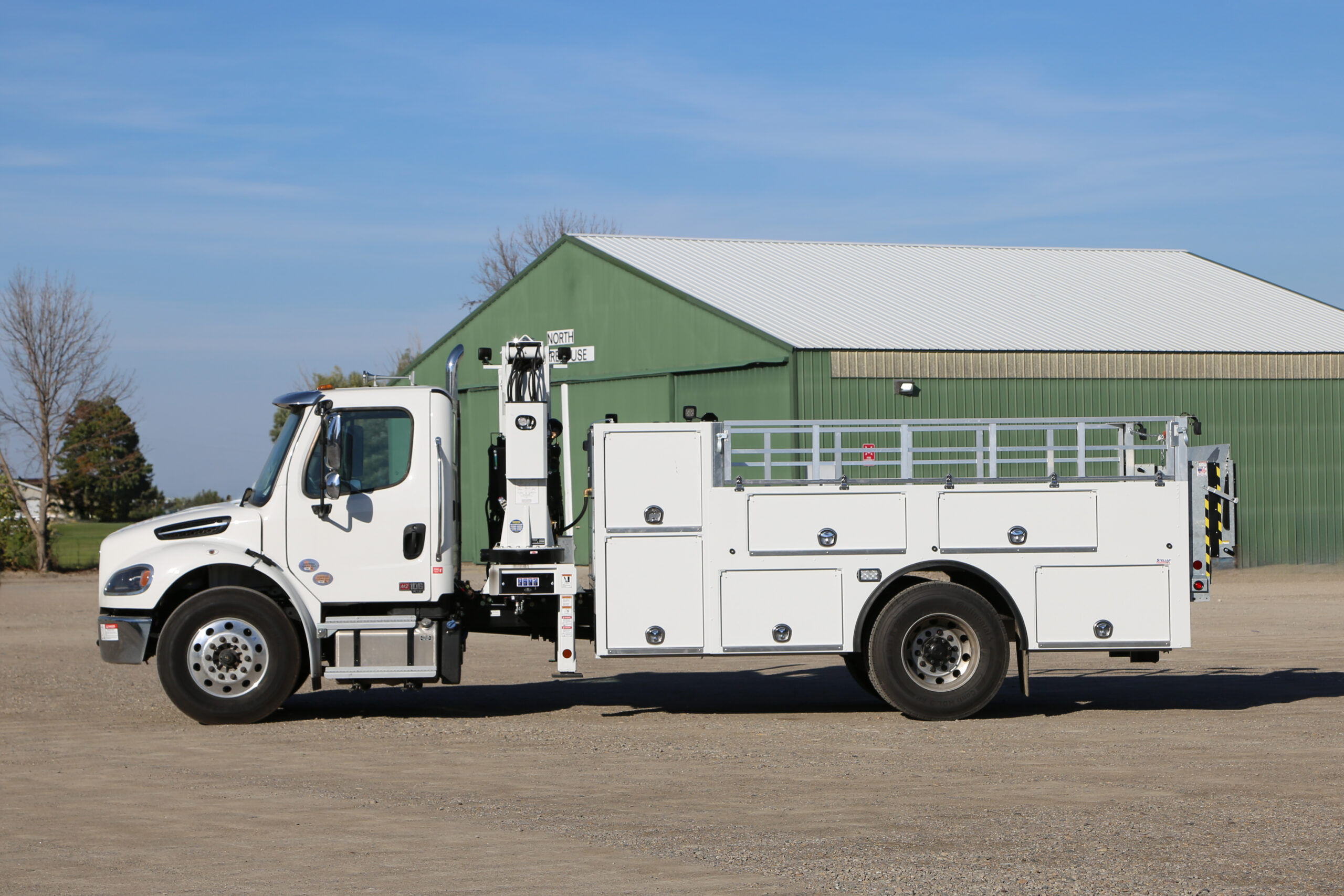

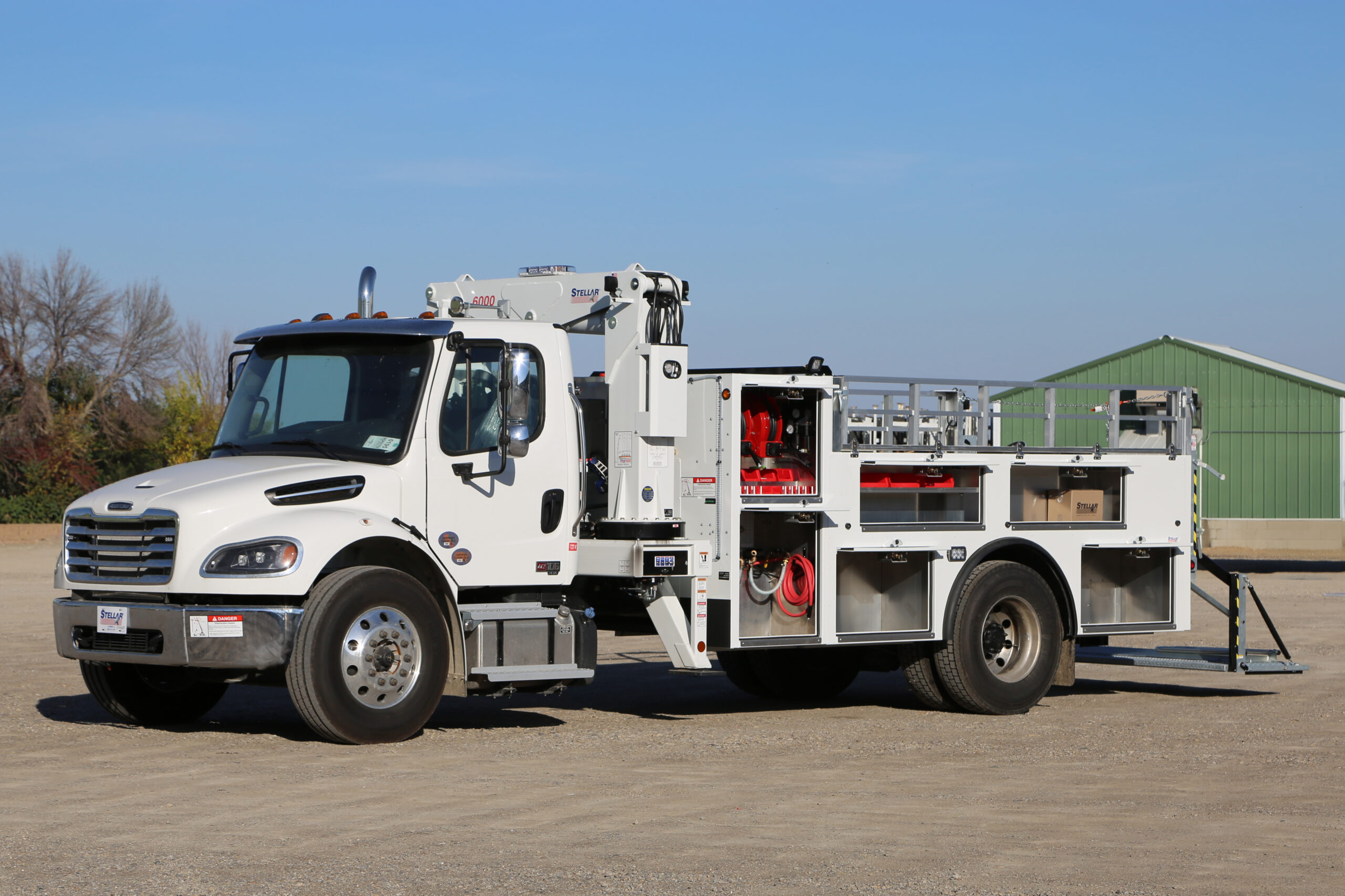

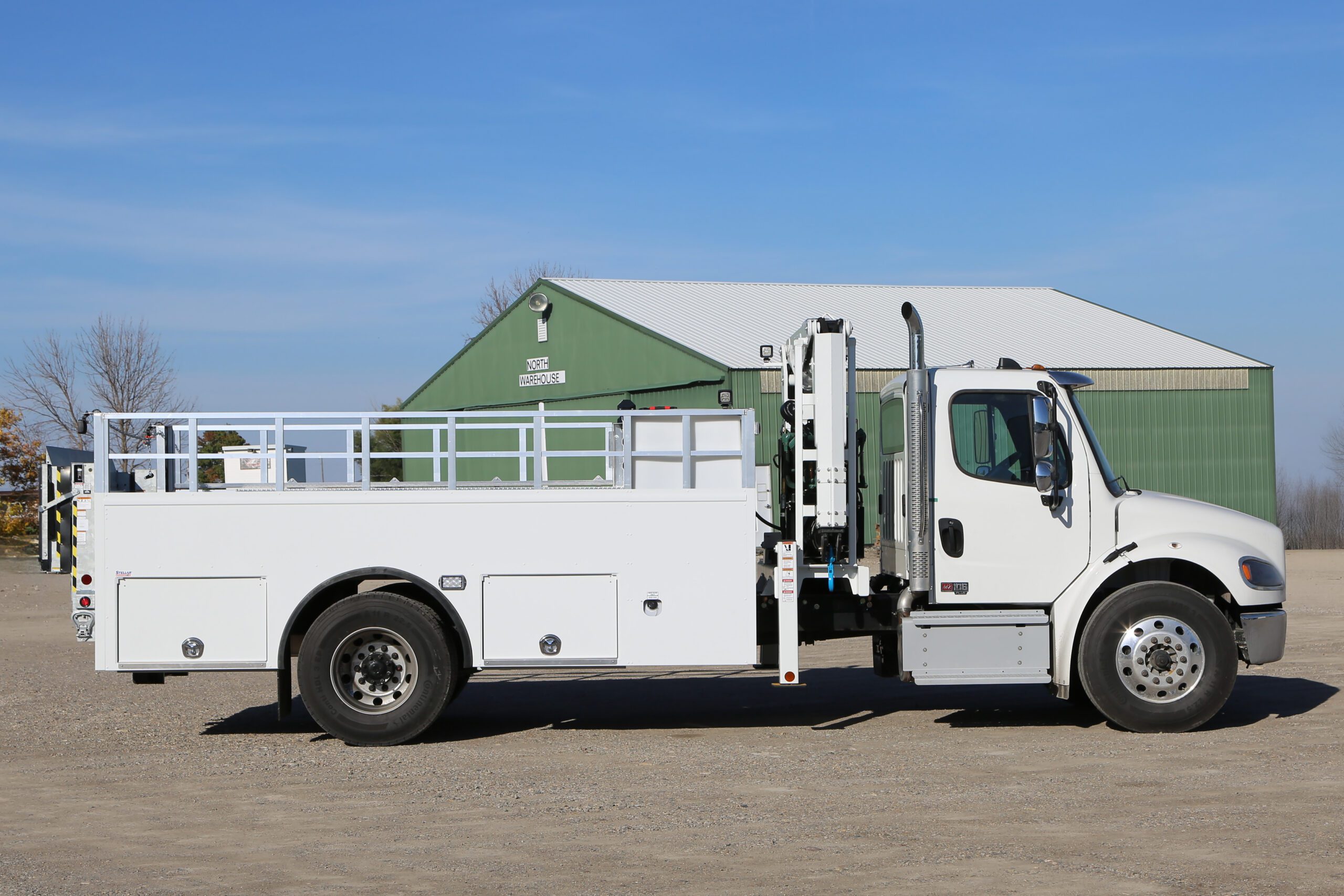

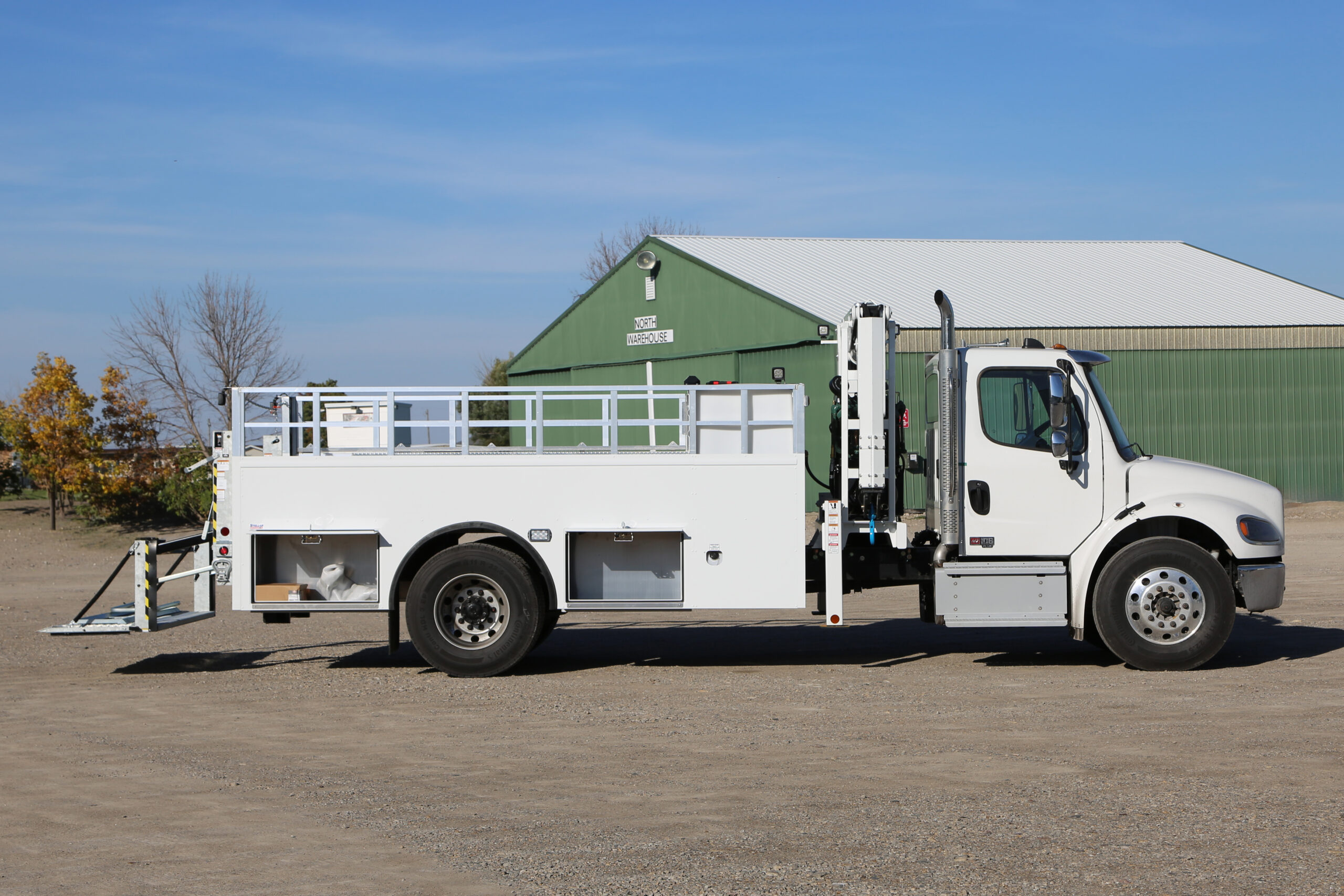

2027 Freightliner M2 106

• 144″ CA, 26,000# GVW
• Cummins B6.7 300HP
• Allison 2500 RDS Transmission
• 12,000# Front Axle
• 21,000# Rear Axle
• Air Brakes
• Air Suspension
• Horizontal Exhaust Pipe
• 50-Gallon LH Fuel Tank
• 22.5 Tires

Body

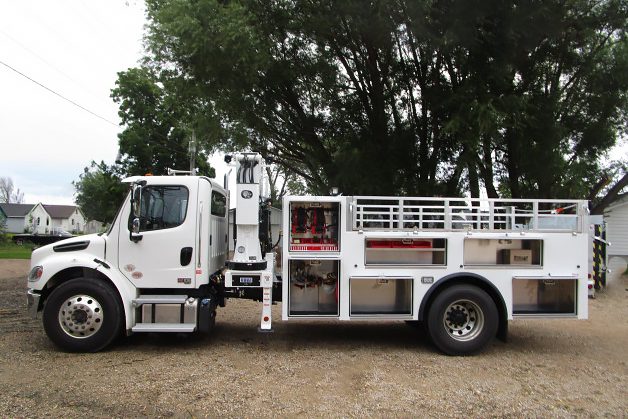

• 1184-15 AG V3 – Aluminum body
• Rack sides 15’L, 40″H
• Extruded Plank Floor
• (1) – 35″L Underbody Compartments (LF)
• (1) – 35″L Top Mount Compartment (LF)
• (2) 44″L Underbody Compartments (RR/LR)
• 117″ W x 21″ H x 13″D LS Deck Mount Toolbox
• 22″H Sign Panels
• Fold Down Rail (LS)
• Load Bed Wall Liner
• Stop, Turn, Tail Light Kit
• Aluminum Skirts With Skirt-Mounted Floodlights RS And LS
• 400-Gallon Calcium Tank
• Body Mounting Kit

Equipment/ Options

• Crane Installation Kit
• Mini-OTR Bead Hook – 12000# Capacity
• Small Tire Crane Remote Docking Station Kit
• Service Kit For Stellar 46P Compressor With Tank Top Filter

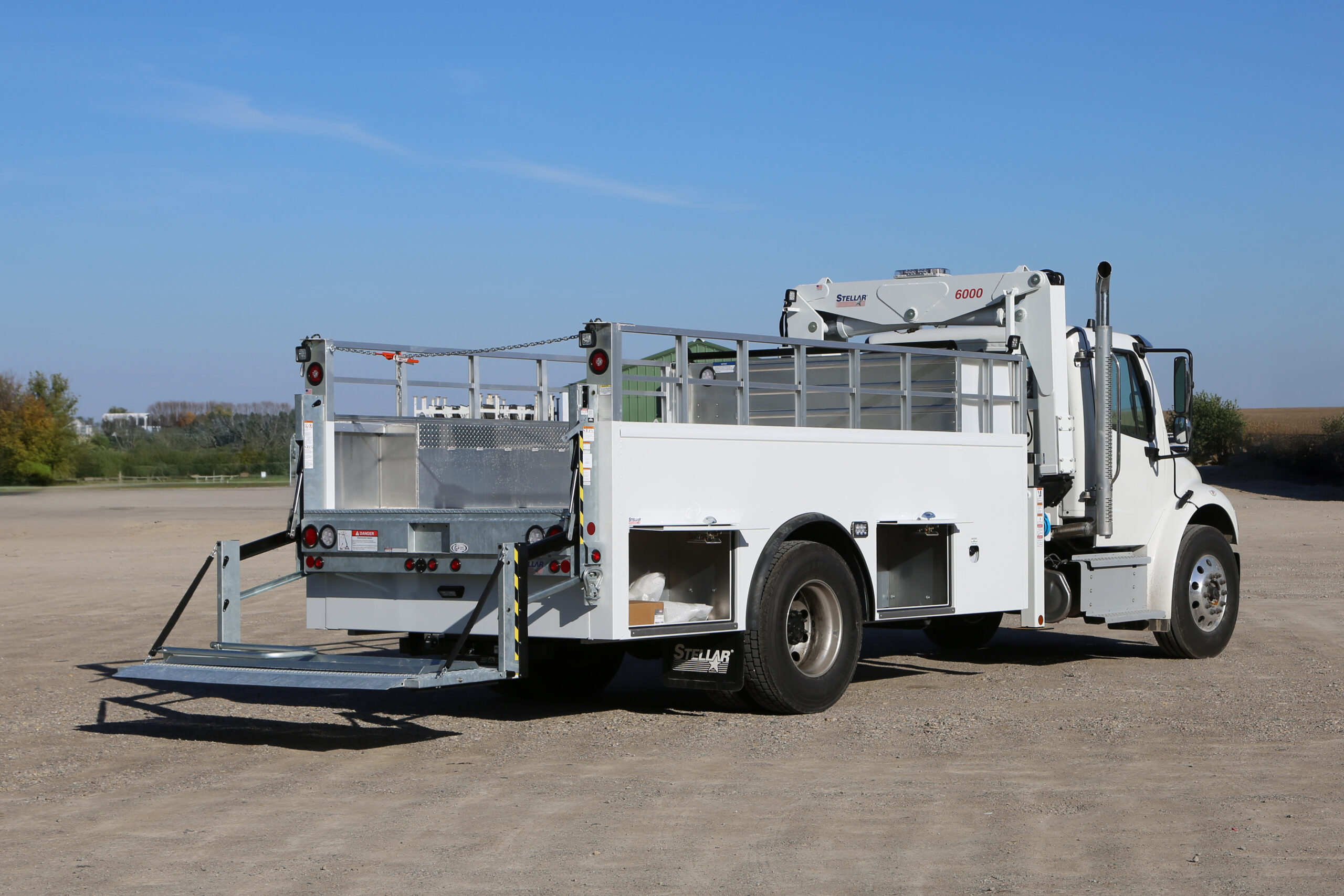

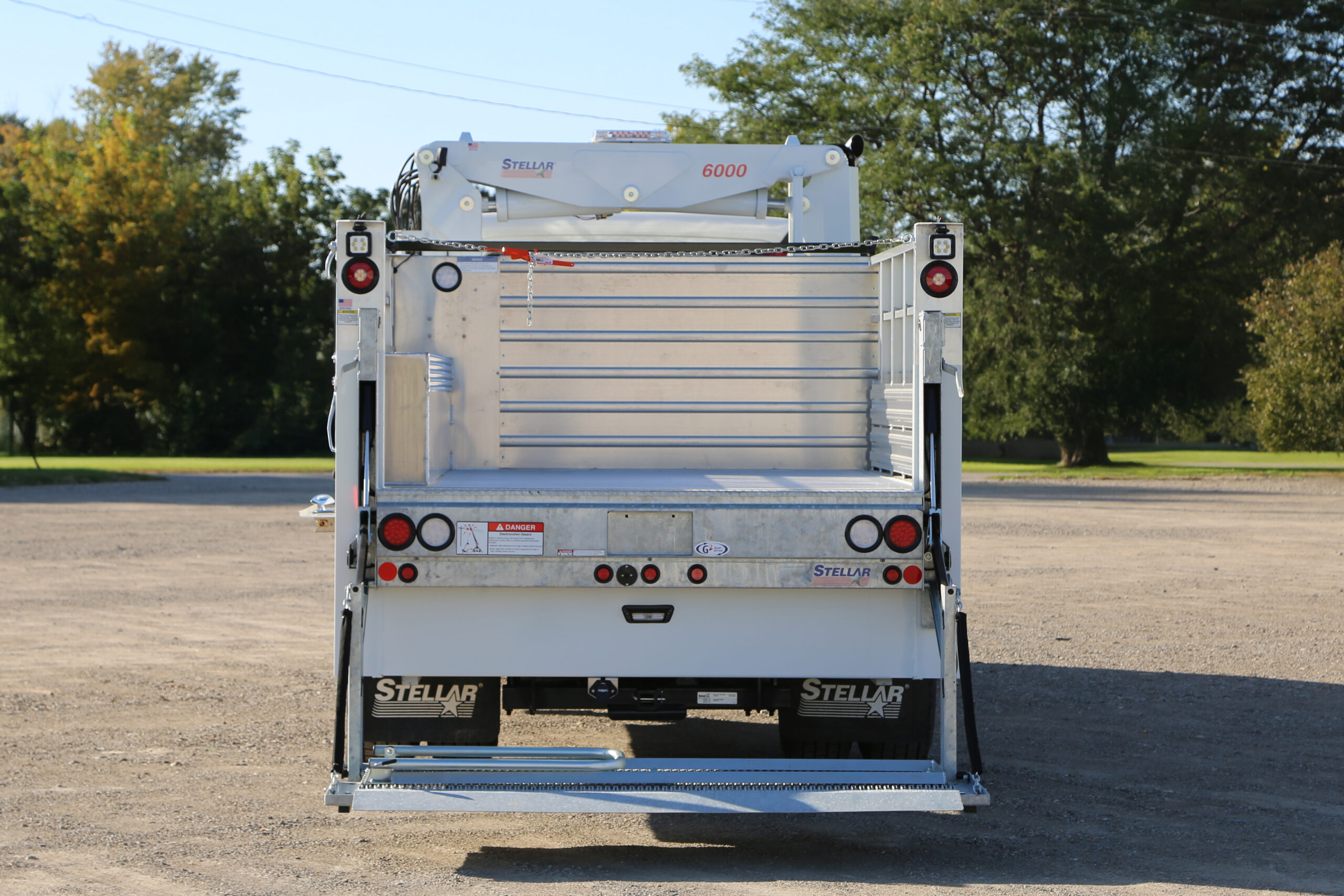

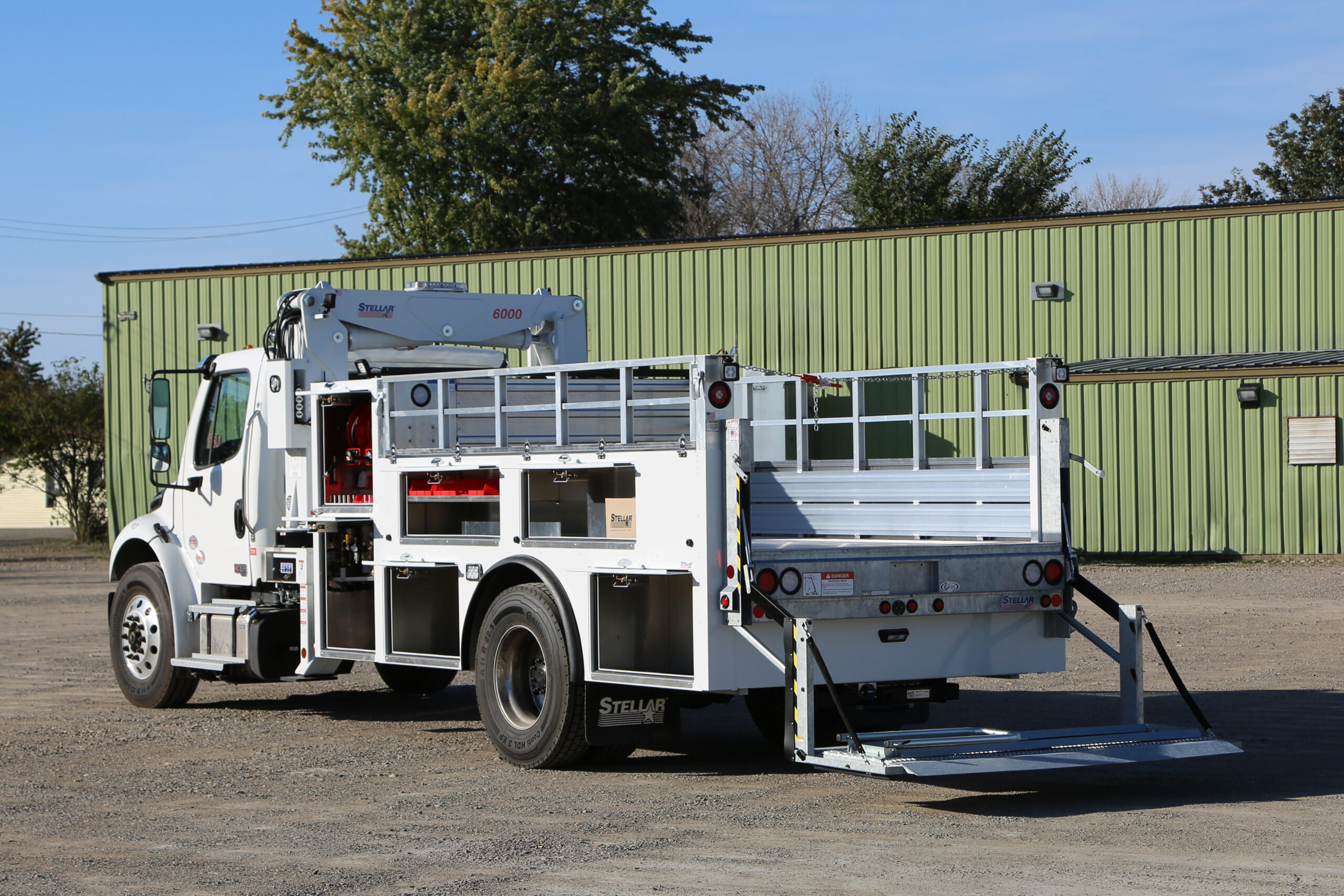

• 2,000# Hydraulic Liftgate
• 86″ Wide
• Dual Lift Cylinders
• Recessed Lights
• Galvanized Frame And Platform
• Folding Side Rail And Tire Stop For 86″ Wide Liftgate
• Sign Panel For Model 87 Tommy Gate

Module / Skid Options

• Pro Flow Poly Calcium Pump
• Rinse Tank w/ 12V Pump – 20 Gallon Cap

Air Options

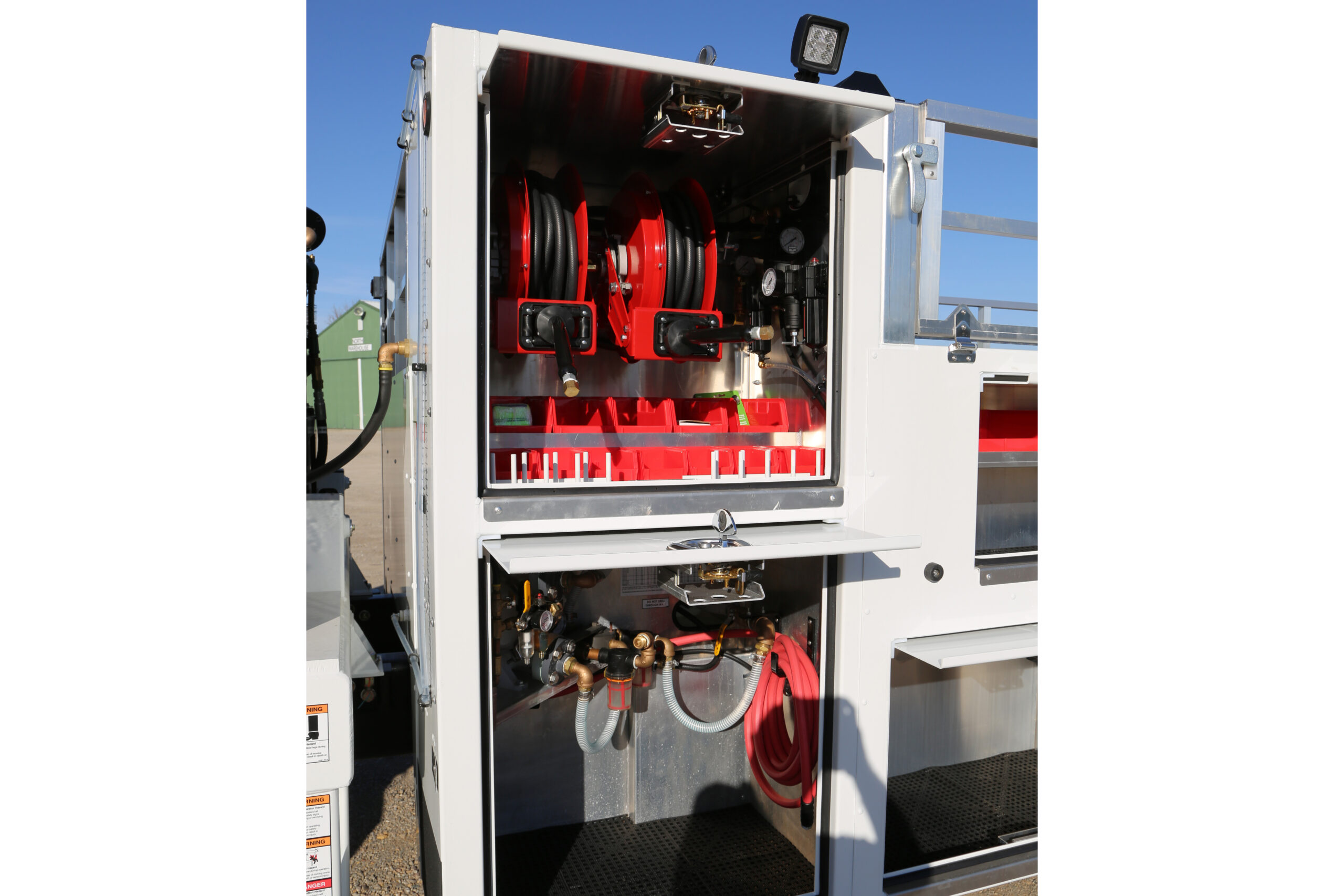

• 1/2″ Reel Craft Dual Post Hose Reel
• 50′ Artic Grade Hose
• 1/2″ FLR System (Filter/Lubricator/Regulator)
• Additional Regulator For Lubricated Line
• Easily Replaceable Segments And Safety Air Dump Valve
• 20′ OTR Inflation/Deflation Hose Kit
• Quick Release Coupler For Emergency Air Evacuation
• Includes Muffler, Small And Large Bore Core Ejectors
• 1/4 Turn Ball Valve And Rotary Air Gauge For Checking Tire Pressure

Tool Package

• Tire Bead Wedge – Six Pack

Compartment Options

• 3 1/2″ Wide Plastic Tray Inserts
• 5″ Wide Plastic Tray Inserts
• 11″ Wide Plastic Tray Inserts
• Socket Tray – Flat Design- 9 Pin- 12″w

Jackbox Option

• Underbody Toolbox Panel

Body Mounted Options

• Dri Deck Mat Kits
• Aluminum Sill Guard Kit
• Aluminum Folding Step
• One Pair Stellar Mud Flaps
• LED Flood Light With Wide Beam
• Compartment LED Light Kit
• Whelen Century 16″ LED Amber Mini Lightbar W/ Clear Lens
• Light Kit – High Mount
• Streamlight Stinger Switchblade LED Work Light
• J-Hook, Magnetic Base, UV Light For Leak Detection
• 180-Degrees Of Rotation
• Includes Charger
• Strobe Light Kit – Low Profile LED Amber Lights
• (2) Mounted In Chassis Grill
• Two Tire Carrier Mast Mounted LED Floodlights
• Rear Ground Perimeter Light

Safety Options

• Chassis Mounted Back Up Alarm – 107 Db
• ICC Safety Kit Consisting Of Rechargeable 2.5# Fire Extinguisher And Reflector Kit

Chassis Options

• Class 5 Receiver Hitch
• Trailer Plug – 7 Pin Round

PTO/Pump Options

• Hot Shift PTO
• Hydraulic Pump
• Tandem Section For Crane And Compressor

Includes:

• 58467X PTO 272GCHVP-B3RK I
• 34301 PUMP HYD DE2R41SHBB12521N113

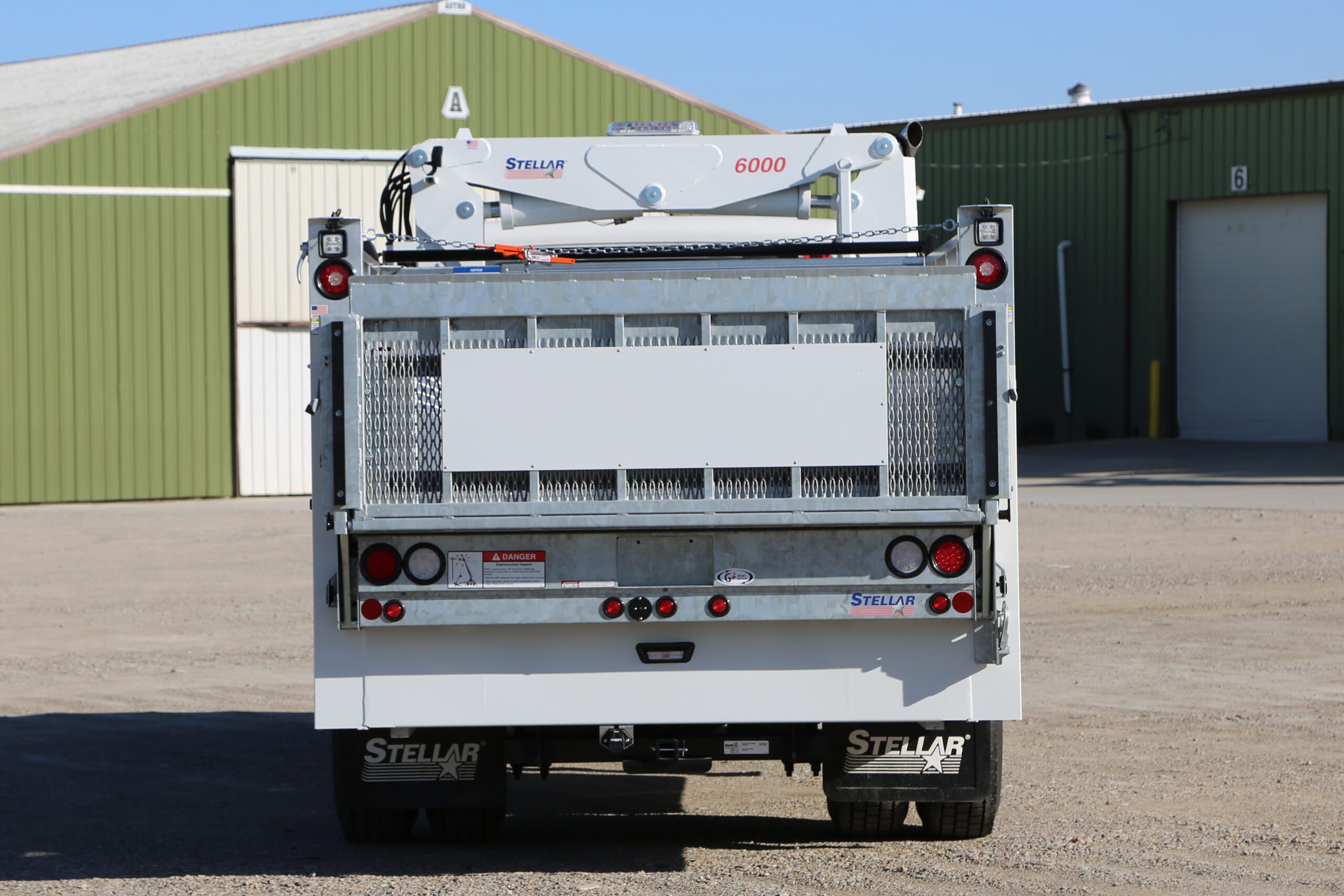

Stellar Model 6000

• Side Mount Mast Crane With 17′ Of Reach From Center Line Of Chassis
• 60,000 ft lb Capacity 10,000# @ 9′, 4,250# @17′

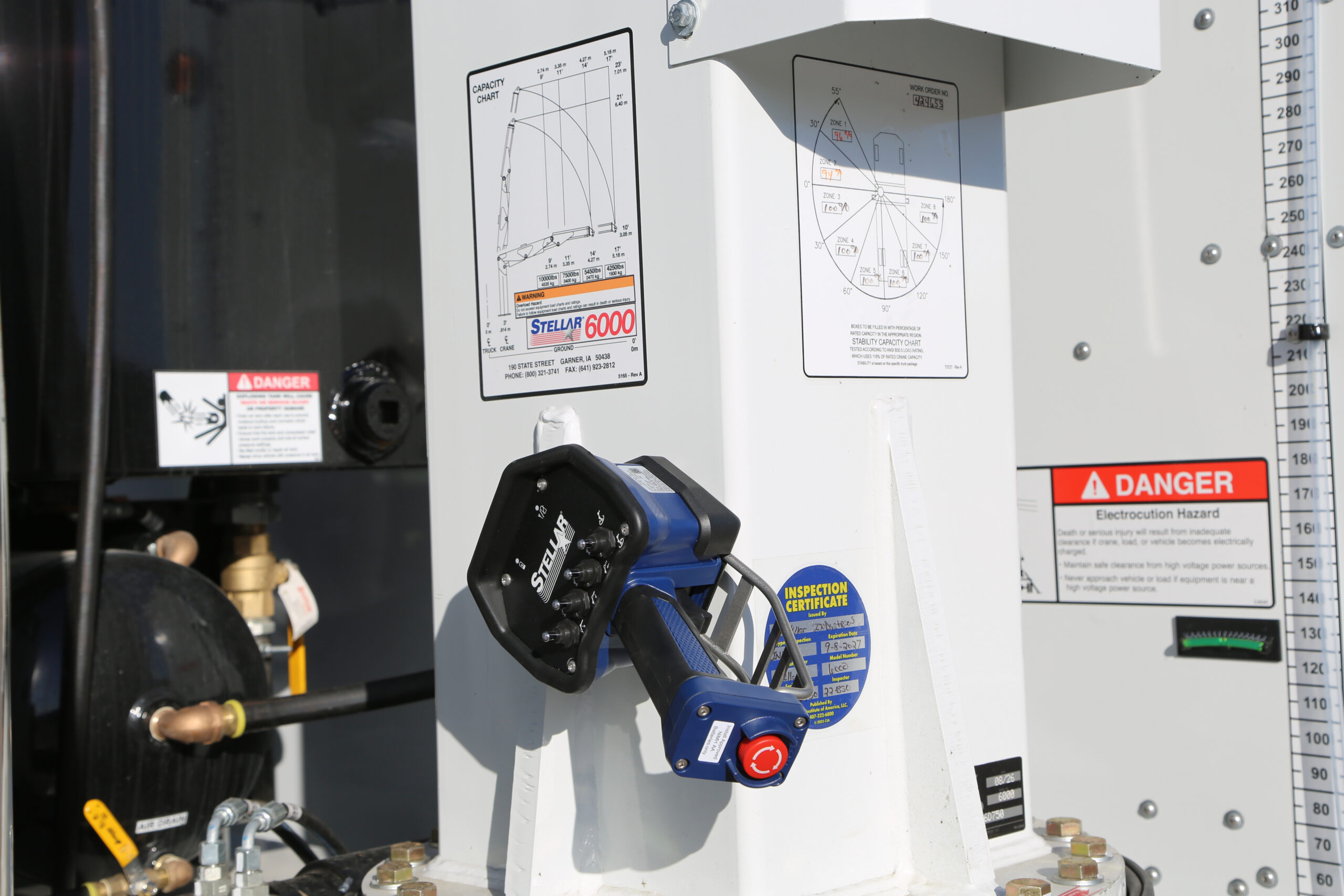

• Proportional Radio Remote Control
• Counter Balance Check Valves
• A-Frame Style Stabilizers
• Painted White

Stellar 46P compressor

• 15-Gallon Hydraulic Reservoir
• Crane Mounted
• 46 CFM @175 PSI
• Base, Motor, Cooler, Filters, Fittings
• 20-Gallon Air Tank
