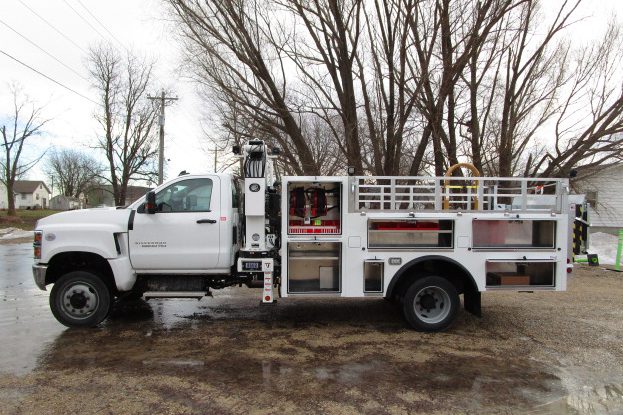

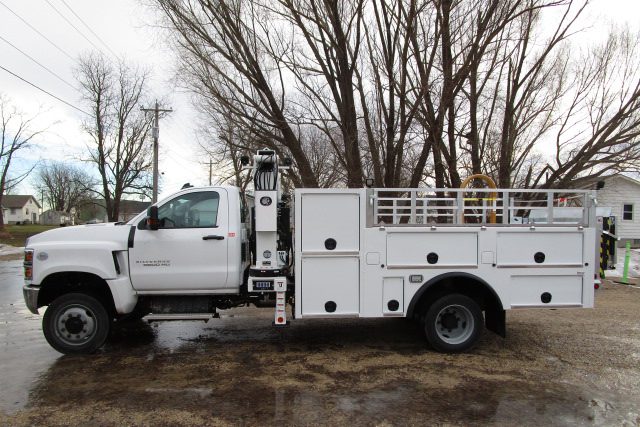

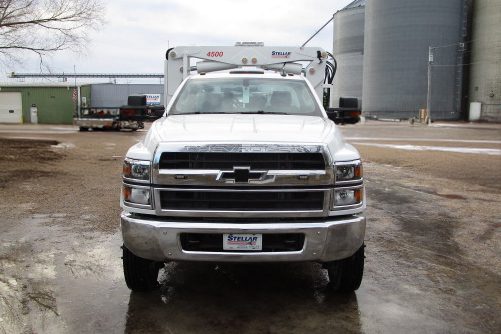

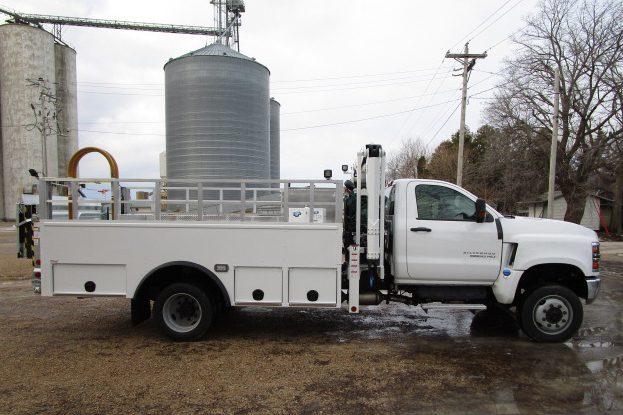

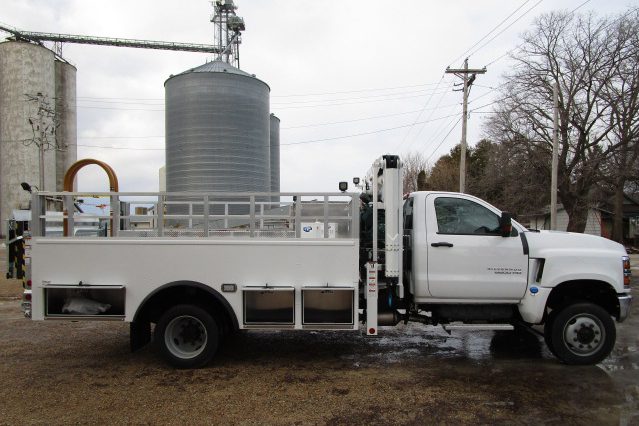

2024 Chevy 6500 w/1184-13'L OTR/4500 Rack Sides (WR178)

• 2024 Chevrolet 6500
• 4×4
• 108″ CA/189″WB, 22500# GVW
• 6.6L Duramax Diesel Engine
• Allison Automatic Trans w/PTO Provision
• Air Conditioning
• Cruise Control
• 40/20/40 Split Vinyl Bench Seat
• Power Group
• Backup Camera

Body

• 1184-13 OTR V3
• Aluminum Body
• Rack Sides 13’L – 46″H
• Extruded Plank Floor
• (2) LF and (1) RF underbody Compartments
• 36″ Top Mount
• (LF) With 2 Socket Racks
• (2) 44″L Underbody Compartments (RR/LR)
• 22″H Sign Panel
• LS Deck Mount Tool Compartment
• Fold Down Rail (LS)
• Load Bed Wall Liner
• Stop, Turn Tail Light Kit
• Aluminum Skirts With Skirt- Mounted Floodlights RS and LS
• Body Mounting Kit

Equipment / Options

• Crane Installation Kit
• Mini-OTR Bead Hook – 12000# Capacity
• Small Tire Crane Remote Docking Station Kit

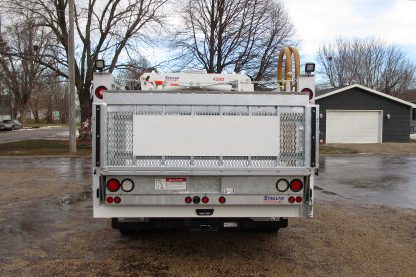

• 2,000# Hydraulic Liftgate
• 86″ Wide
• Dual Lift Cylinders
• Recessed Lights
• Galvanized Frame And Platform
• Folding Side Rail And Tire Stop For 86″ Wide Liftgate
• Sign Panel for Model 87 Tommy Gate

Air Options

• 1/2” Reel Craft Dual Post Hose Reel With 50’ Artic Grade Hose
• Channel Mounting In Compartment
• 1/2″ FLR System (Filter/Lubricator/Regulator)
• Regulator For Lubricated Line
• Easily Replaceable Segments
• Safety Air Dump Valve
• 20′ OTR Inflation/Deflation Hose Kit
• Quick Release Coupler For Emergency Air Evacuation
• Includes Muffler
• Small And Large Bore Core Ejectors
• 1/4 Turn Ball Valve And Rotary Air Gauge For Checking Tire Pressure

Tool Package

• Tire Bead Wedge – Six Pack

Compartment Options

• 3 1/2″ Wide Plastic Tray Inserts
• 5″ Wide Plastic Tray Inserts
• 11″ Wide Plastic Tray Inserts
• Socket Tray – Flat Design – 9 Pin – 12″w

Jackbox Option

• Underbody Toolbox Panel

Body Mounted Options

• Dri Deck Mat Kit For Compartment Floors
• Aluminum Sill Guard Kit
• Aluminum Folding Step
• One Pair Stellar Mud Flaps With Mounting Bolts
• 25-Gallon Tire Life Tank Mounted In Loadbed.
• Two Bar Truck Tire Safety Inflation Cage
• Inflation Cage Holder
• LED Flood Light With Wide beam
• Compartment LED Light Kit
• Whelen Century 16″ LED Amber Mini Lightbar With Clear Lens
• Light Kit – High Mount
• Streamlight Stinger Switchblade LED
• Work Light With J-Hook
• Magnetic Base
• UV Light For Leak Detection
• 180 Degrees Of Rotation
• Includes Charger
• Strobe Light Kit
• Low Profile LED Amber Lights
• (2) Mounted In Chassis Grill Two Tire Carrier Mast Mounted LED Floodlights
• Rear Ground Perimeter Light

Safety Options

• Chassis Mounted back Up Alarm – 107 Db
• GM Chassis Provided Backup Camera
• ICC Safety Kit Consisting Of Rechargeable 2.5# Fire Extinguisher And Reflector Kit

Chassis Options

• Leaf Springs
• Installed On Crane Side Of Chassis
• Class 5 Receiver Hitch For Aluminum Bodies With Liftgate
• Trailer Plug – 7-Pin (flat)

PTO/Pump Options

• PTO For 2019 Chevrolet 4500 / 5500 and International CV
• Hydraulic Pump
• Tandem Section For Crane And Compressor

Includes:

100319X PTO INST KIT CHEVY HD 2019
34476 PUMP HYD DE2R41SHBB12517N113

Electrical Options

• Speed Control Kit – GM chassis 2020
• Includes Start-Stop Functionality
• Electrical Control Kit – 1184 Body – Includes Harness
• Upfitter Switches

Paint & Finish

• Paint 1184-13/1184-14 Body Stellar White
• Axalta Paint Code 350407EX
• Single Stage
• Non-Metallic

• Stellar Model 4500 Side-Mount Mast Crane
• 17′ Reach From Center Line Of Chassis
• 45,000 ft lb. Capacity
• 7500# At 9′
• 3200# At 17′

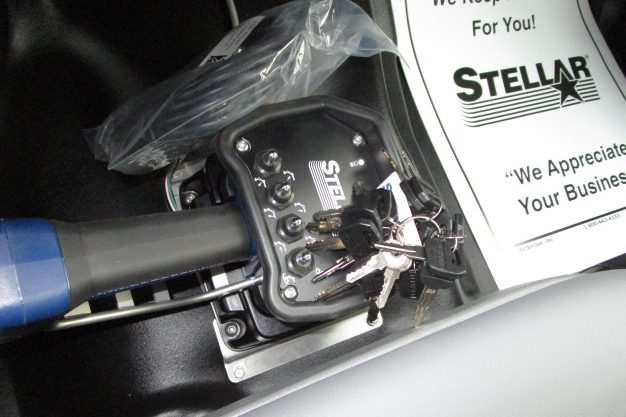

• Proportional Radio Remote Control
• Counter Balance Check Valves
• A-Frame Style Stabilizers

• Stellar 46P compressor
• 15-Gallon Hydraulic Reservoir
• Crane Mounted
• 46 CFM@175 PSI
• Base, Motor, Cooler, Filters, Fittings
• 20-Gallon Air Tank
