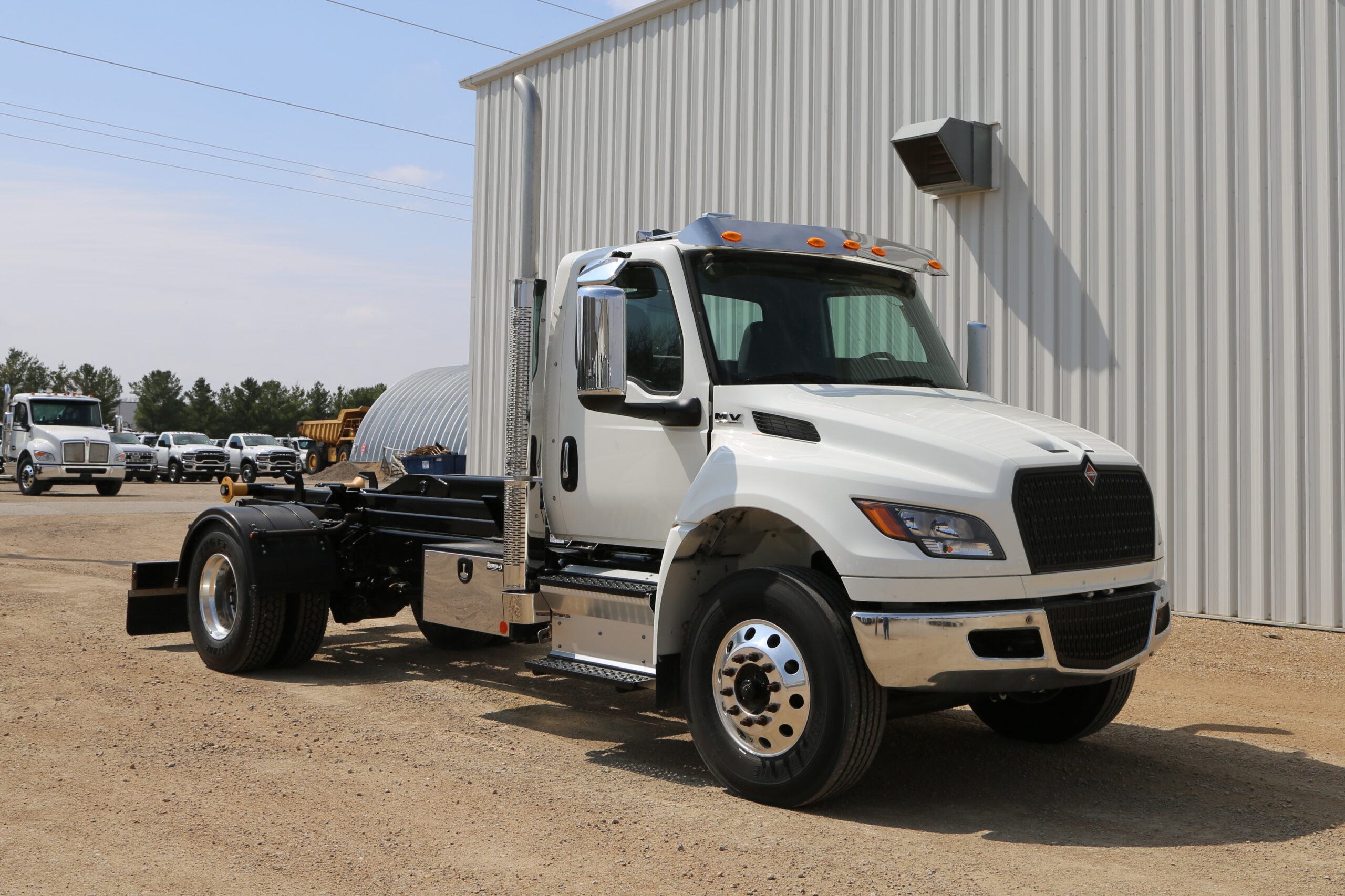

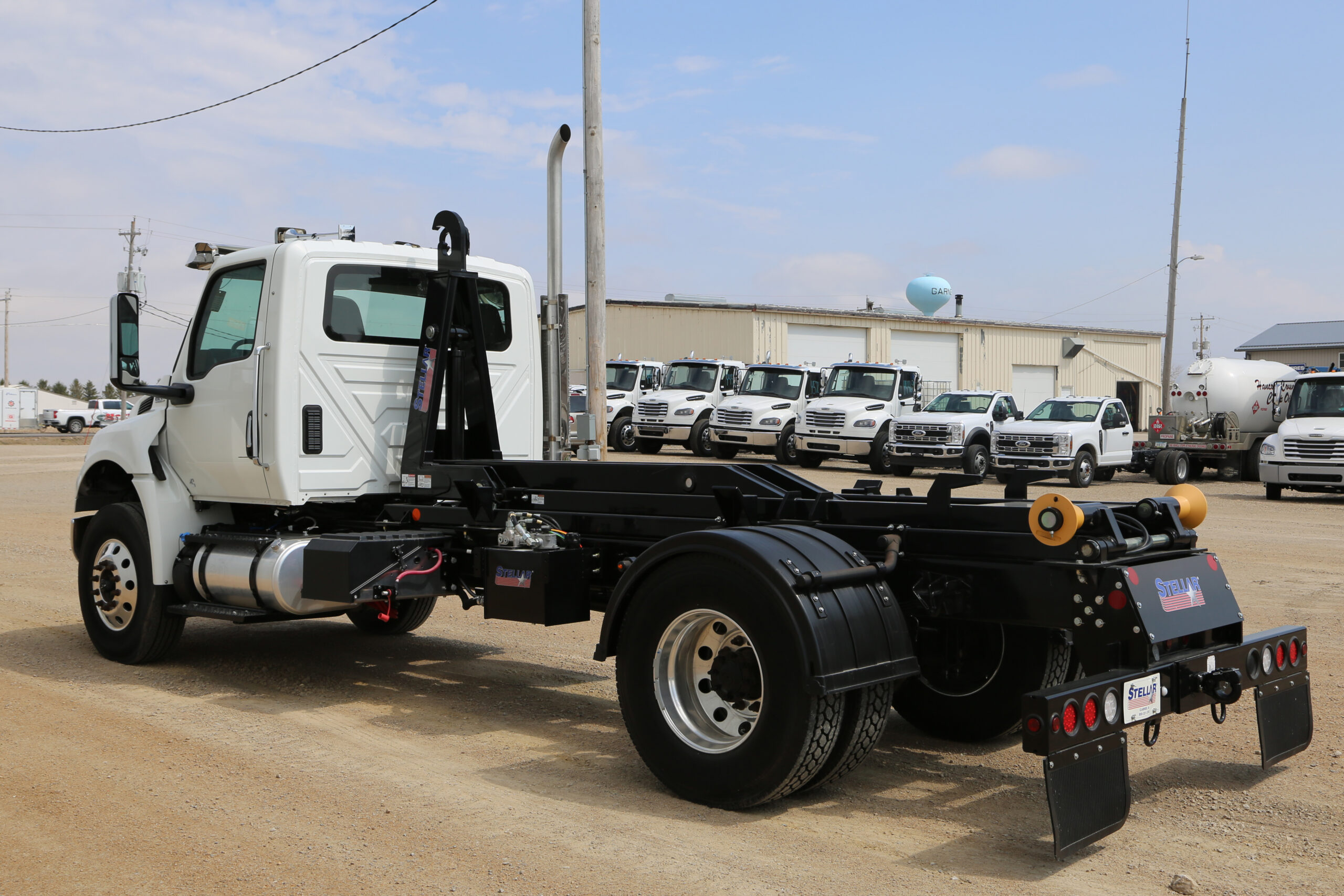

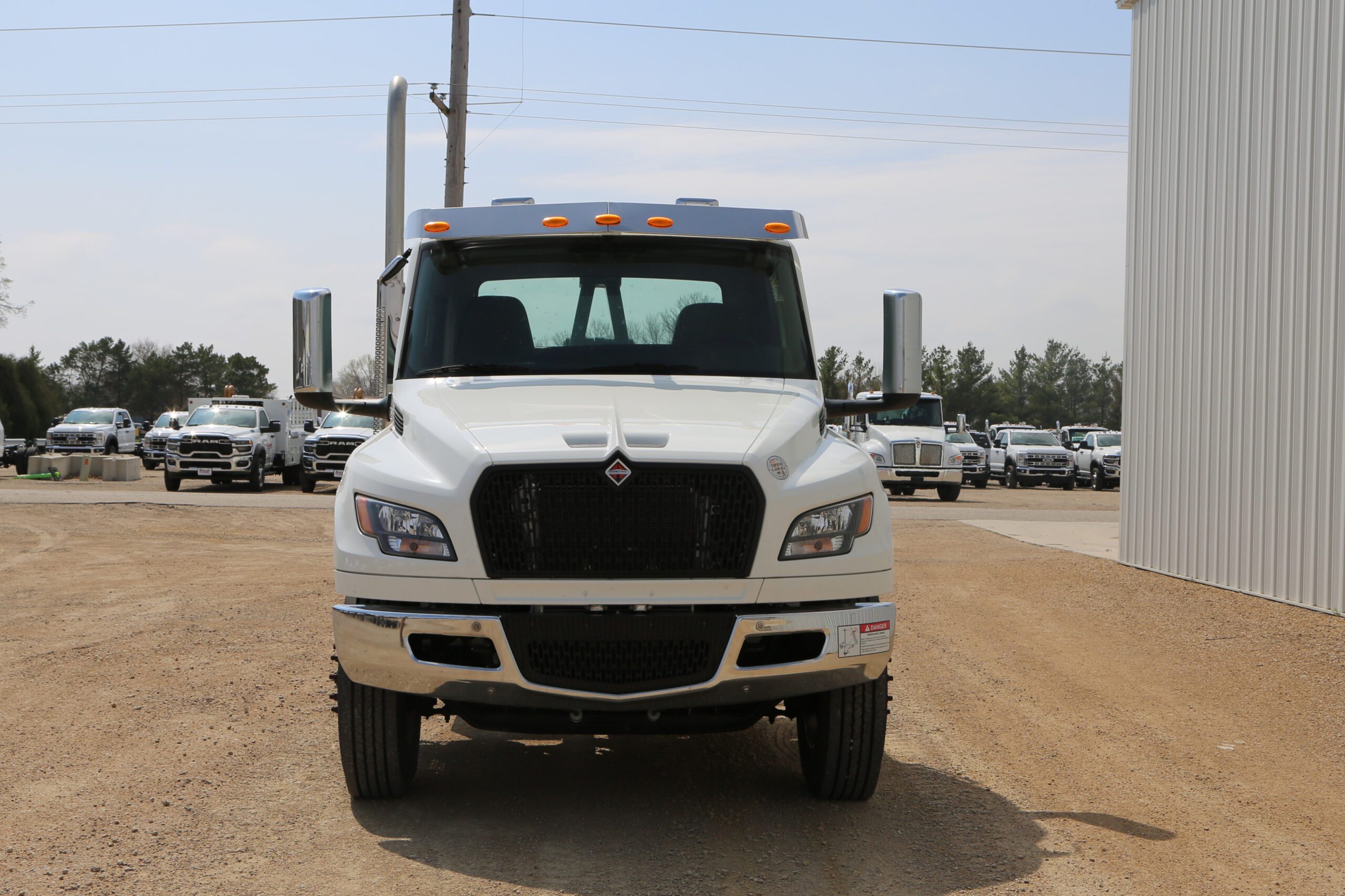

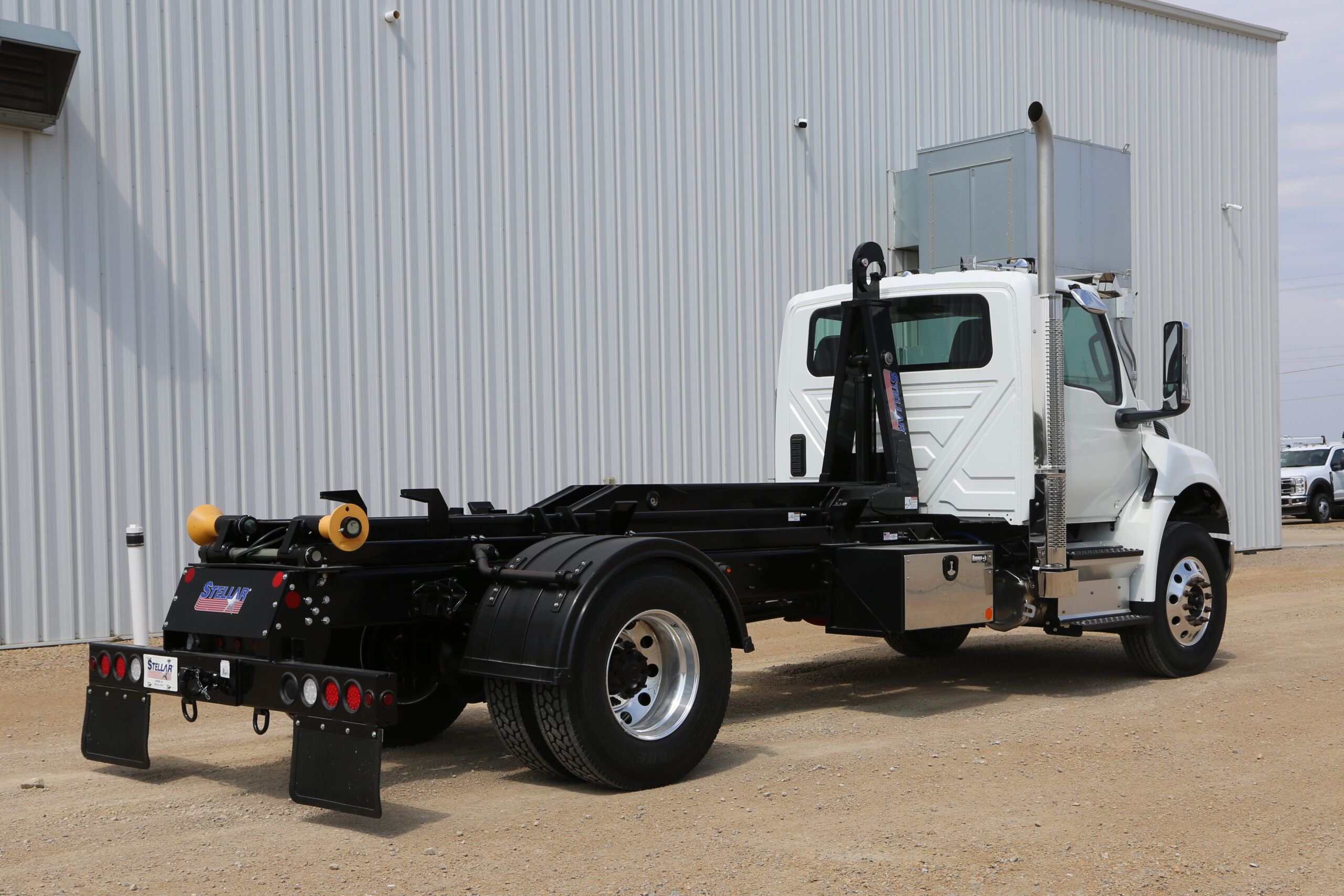

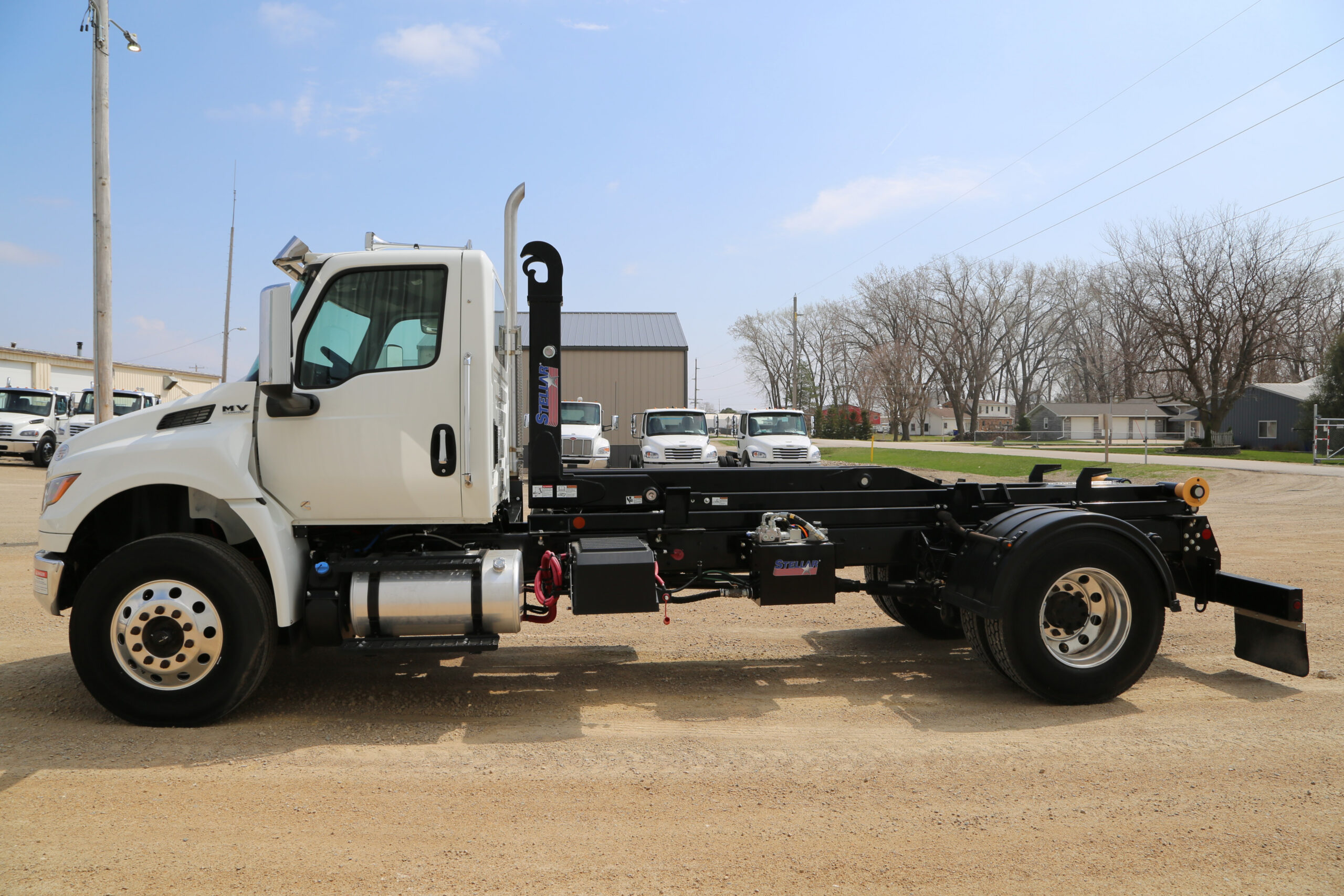

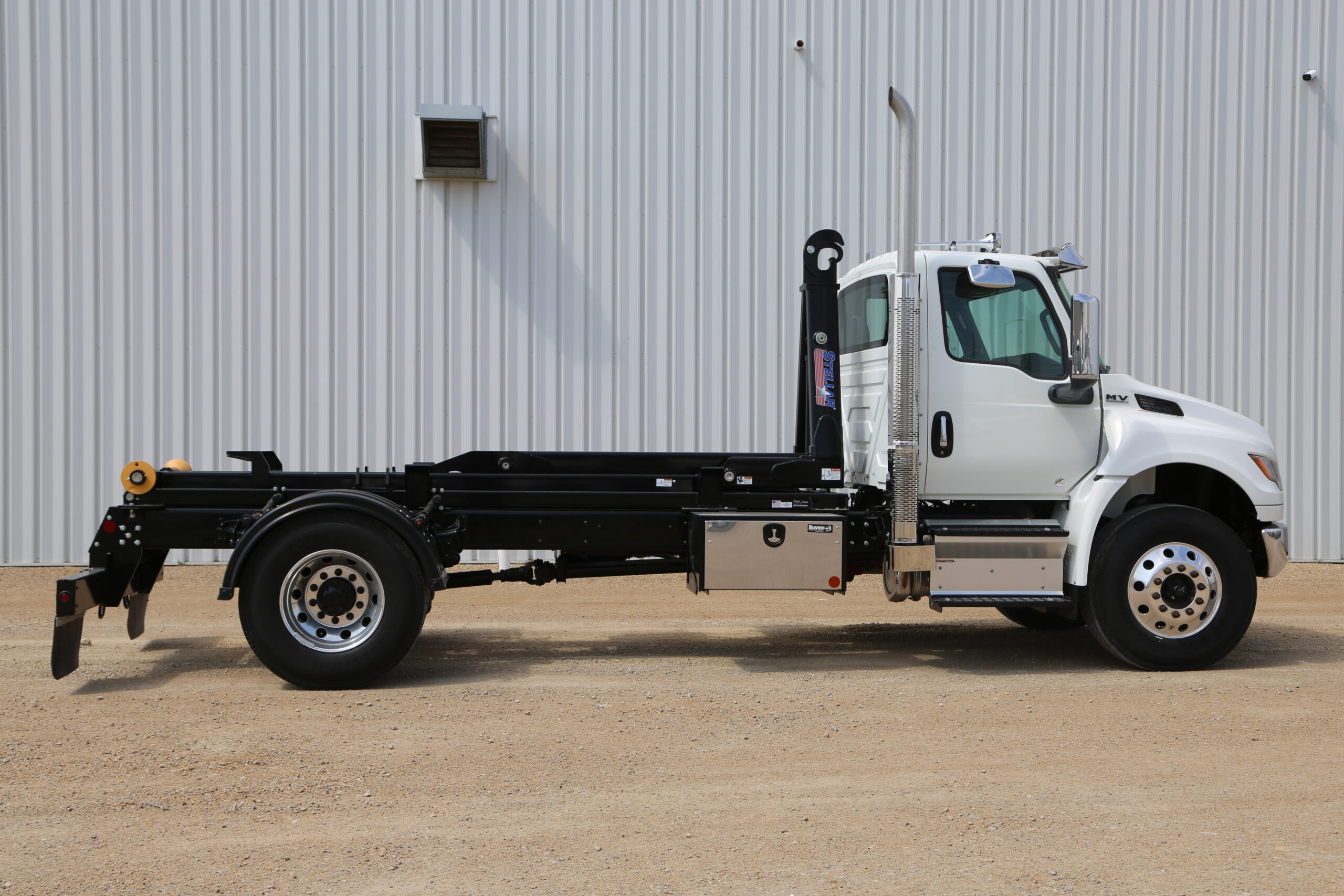

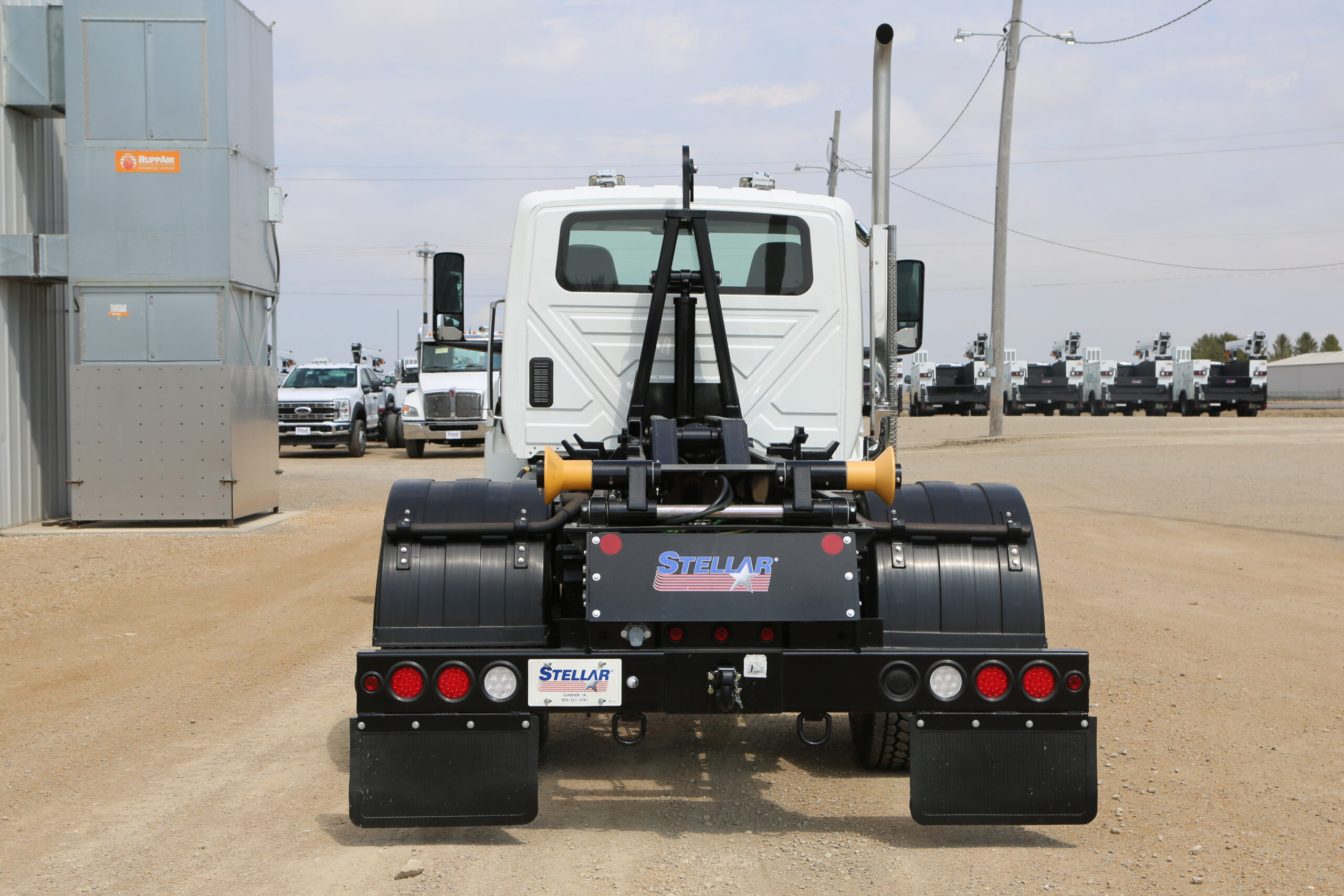

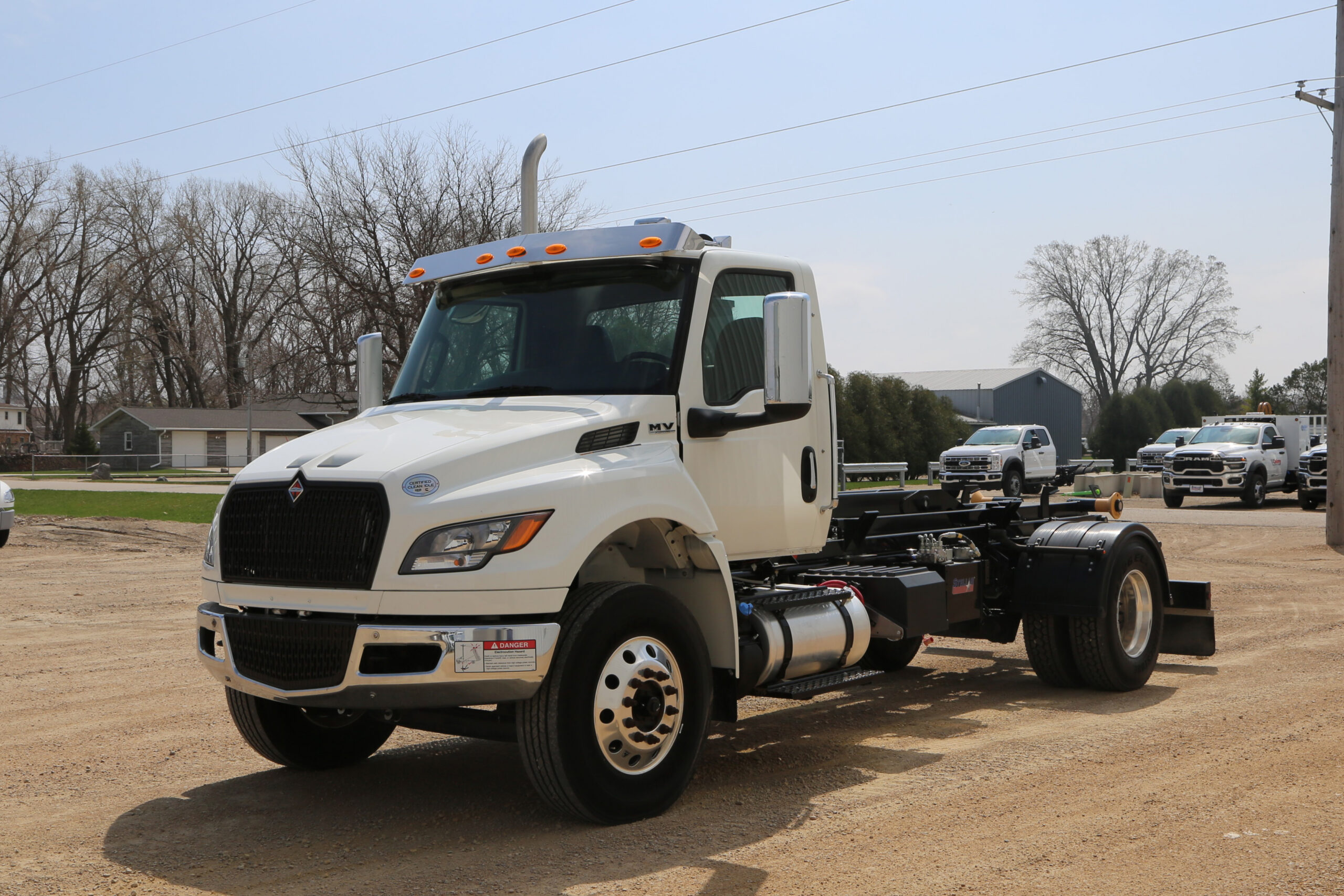

Shuttle20-138

• 133″ CA/201″ WB
• 26,000# GVW
• Cummins B6.7 300HP diesel
• Allison 3000
• 10,000# front axle
• 21,000# rear axle
• Horizontal exhaust with vertical pipe
• Air brakes
• 50 gallon LH fuel tank
• 11R22.5 tires
• Air conditioning
• Air cushion driver’s seat

Hooklift Features:

• Hook Height: 54″
• Lift/Dump Capacity: 20,000 lbs
• Body Lengths: 14.5′ to 17′
• Tab alarm kit w/bracket
• Standard zinc pins
• Painted black
• Additional Product Information

Hydraulic Options

• Reservoir and valve bank with 2-section air controls
• 10 gallon frame mounted reservoir, tower assembly, control levers and valve bank
• Hot shift PTO
• Hydraulic direct mount bent axial piston pump

Accessories

• Bumper, reinforced to accept pintle hitch 30K (pintle hitch is not included) – LED light kit (FMVSS108 compliant) and backup alarm is included
• Pintle Hitch – 30,000 lb.
• Trailer plug – 7 pin round
• One pair poly fenders – includes fender brackets, mounting hardware
• One pair Stellar mud flaps with mounting bolts
• ICC safety kit consisting of rechargeable 2.5# fire extinguisher and reflector kit
• Mid-body clearance light kit
• Steel underbody toolbox with flip down door
