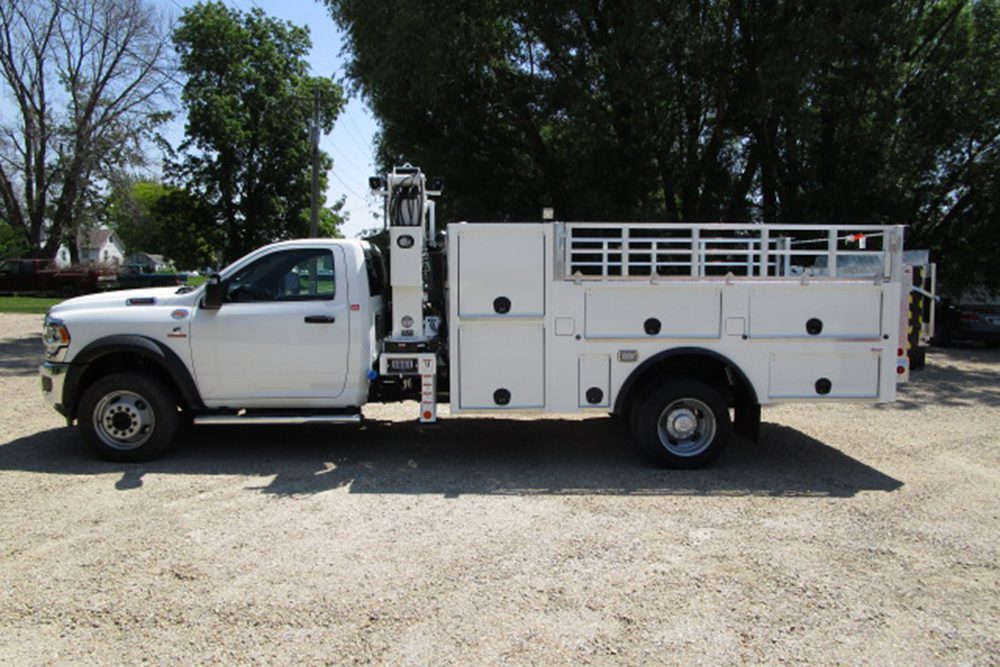

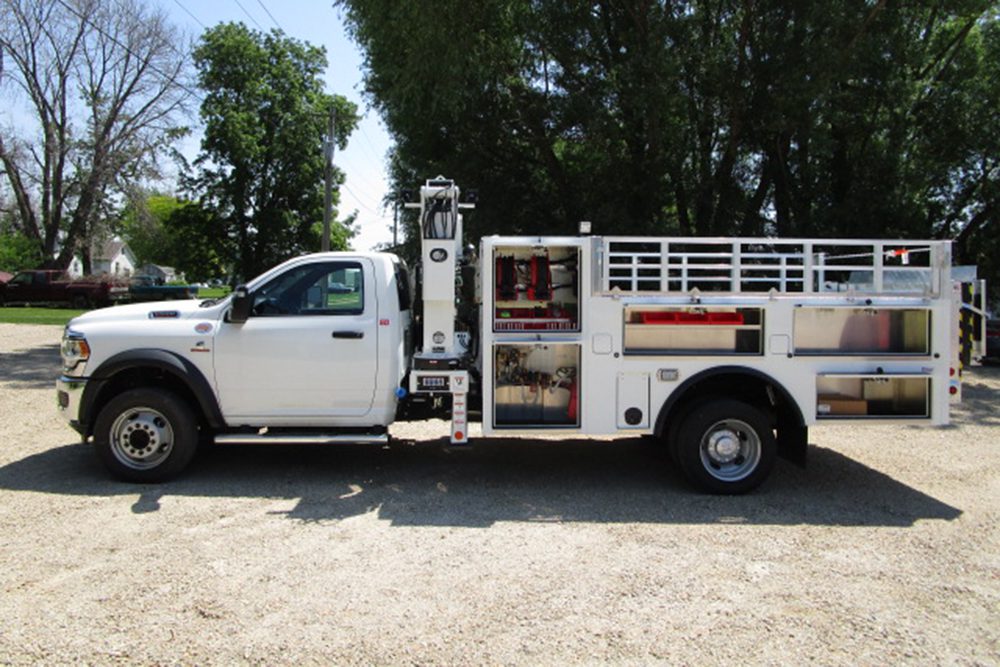

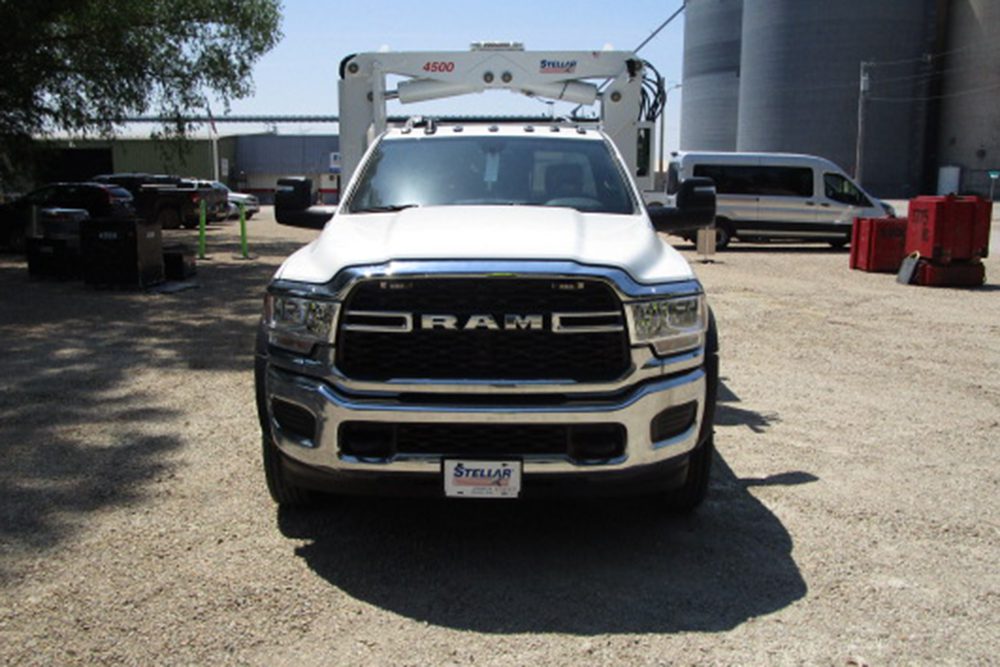

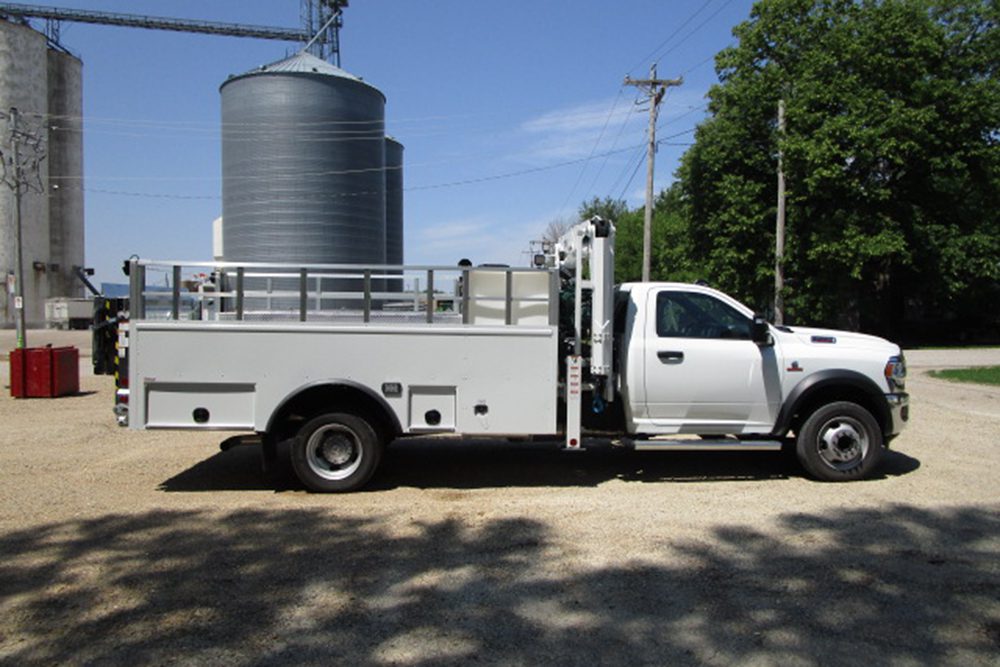

2024 Ram 5500 w/1184-13 AG/4500/46P (WR98)

• 4×2
• 108″ CA/192 WB
• 9500# GVW
• 6.7L Cummins diesel engine
• AISIN automatic trans w/PTO provision
• Air conditioning
• Cruise control
• 40/20/40 split vinyl bench seat
• Chrome tubular side steps
• Upgraded radio with Blue Tooth
• Power Group
• Backup Camera

Body Features

• 1184-13 AG V3 – Aluminum body
• Rack sides 13’L, 40″H
• Extruded plank floor
• (2) 25″L underbody compartments (LF)
• 36″ top mount (LF)
• (2) 44″L underbody compartments (RR/LR)
• 117″W x 21″H x 13″D LS deck mount toolbox
• 22″H sign panels
• Fold down rail (LS)
• Load bed wall liner
• Stop, turn, tail light kit
• Aluminum skirts with skirt-mounted floodlights RS and LS
• 400 gallon calcium tank
• Additional Product Information

Equipment Options

• Crane installation kit
• Service kit for Stellar 46P compressor and 3200/4500/6000 crane
• 2,000# Hydraulic liftgate
• 86″ wide
• Dual lift cylinders
• Recessed lights
• Galvanized frame and platform
• Folding side rail
• Tire stop for 86″ wide liftgate
• Sign Panel for Model 87 Tommy Gate

Module/Skid Options

• Pro Flow Poly calcium pump
• Rinse Tank w/ 12V Pump – 20 Gallon Cap

Air Options

• 1/2” Reel Craft dual post hose reel with 50’ Artic grade hose
• 1/2″ FLR system (filter/lubricator/regulator) with additional regulator for lubricated line
• 20′ OTR inflation/deflation hose kit w/quick release coupler for emergency air evacuation
• Includes muffler
• Small and large bore core ejectors
• 1/4 turn ball valve and rotary air gauge for checking tire pressure

Tool Package

• Tire bead wedge – six pack

Compartment Options

• 3 1/2″ wide plastic tray inserts
• 5″ wide plastic tray inserts
• 11″ wide plastic tray inserts
• Socket Tray – Flat Design – 9 pin – 12″w

Jackbox Options

• Underbody toolbox panel

Body Mounted Options

• Dri deck mat kit for compartment floors on 1202-13 and 1300 AR
• Aluminum folding step
• One pair Stellar mud flaps with mounting bolts
• LED Floodlight
• Compartment LED Light Kit
• Whelen Century 16″ LED amber mini lightbar with clear lens
• Light Kit – High Mount (in lieu of 13900 strobe light kit
• Streamlight Stinger Switchblade LED work light with J hook magnetic base
• UV light for leak detection
• Strobe light kit – low profile LED amber lights (2) mounted in chassis grill

Safety Options

• Chassis mounted back up alarm – 107 Db
• Backup camera
• ICC safety kit consisting of rechargeable 2.5# fire extinguisher and reflector kit –

Electrical Options

• Speed Control Kit – Includes start-stop functionality
• Electrical Control Kit – Includes harness – Upfitter Switches ONLY

Paint & Finish

• Paint 1184-13/1184-14 body Stellar White, Axalta Paint code 350407EX – Single Stage – Non-Metallic

• Side-mount mast crane with 17′ of reach from center line of chassis
• 45,000 ft lb capacity
• 7500# @ 9′, 3200# @ 17′
• Proportional radio remote control
• Counter balance check valves
• A-frame style stabilizers
• Painted white
• Additional Product Information

• Stellar 46P compressor
• 15 gallon hydraulic reservoir
• Crane mounted
• 46 CFM@175 PSI with base, motor, cooler, filters, fittings
• 20 gallon air tank for installation on a 19000# GVW chassis
