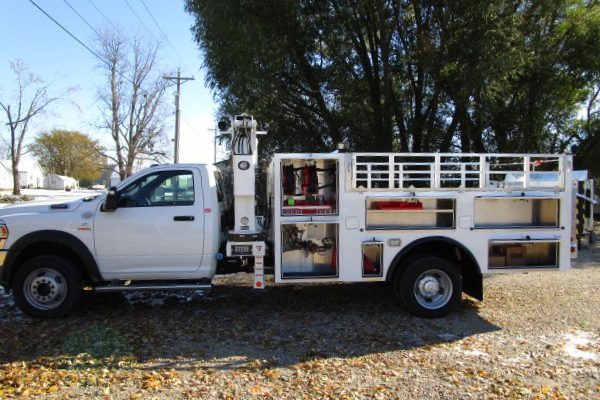

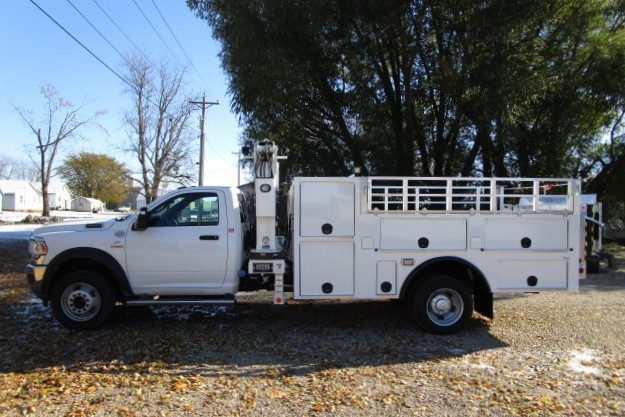

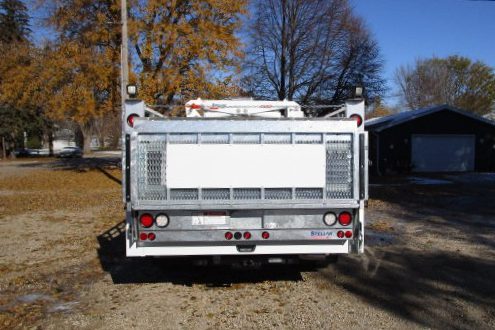

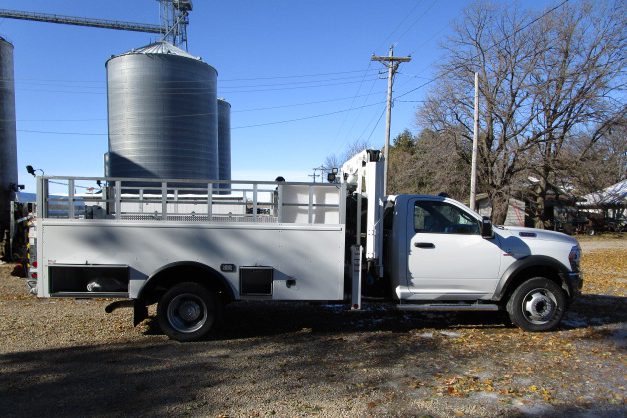

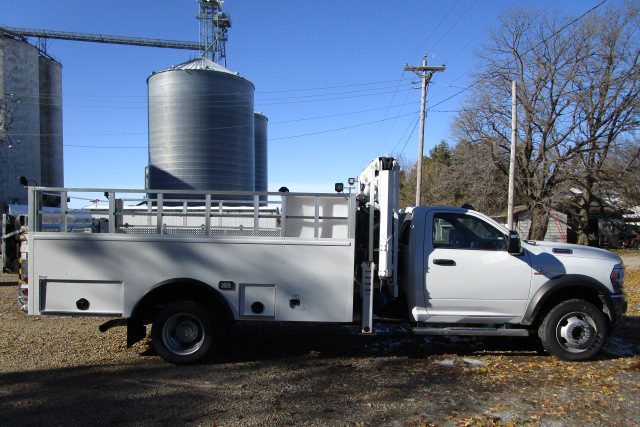

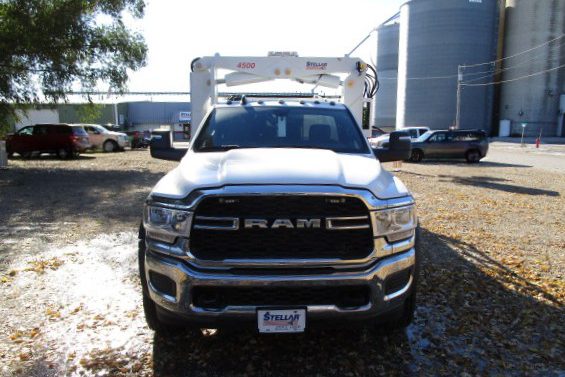

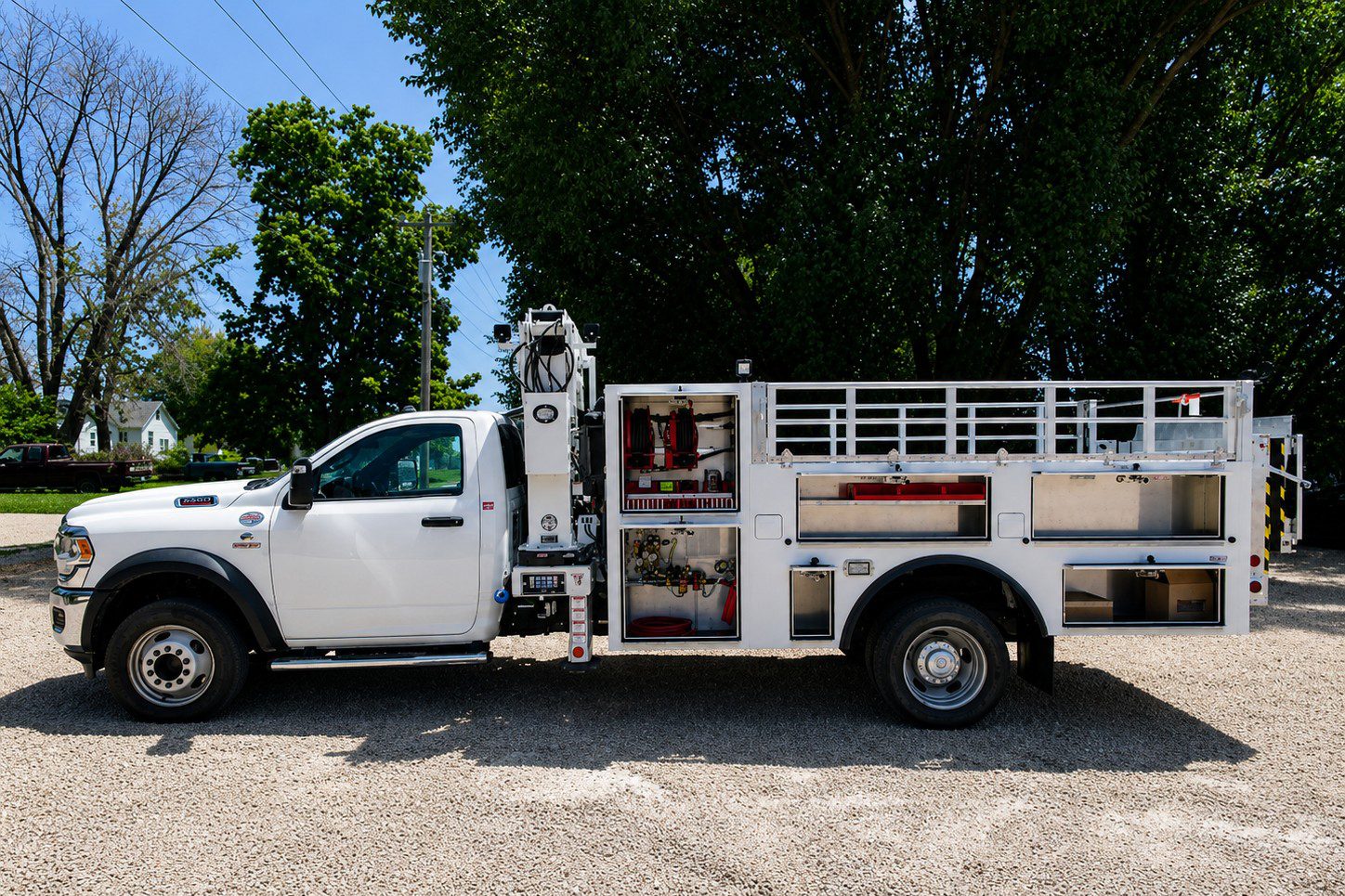

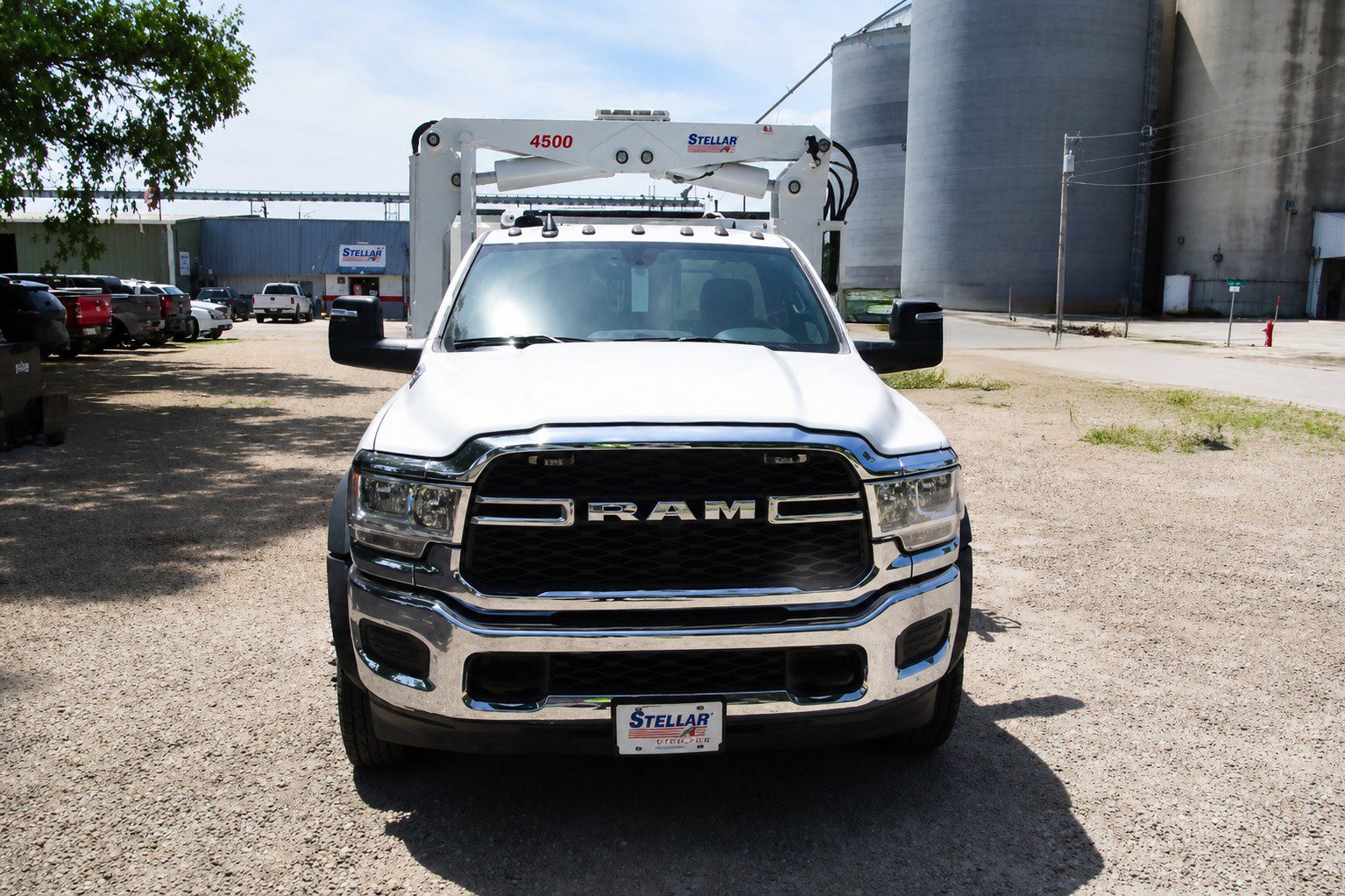

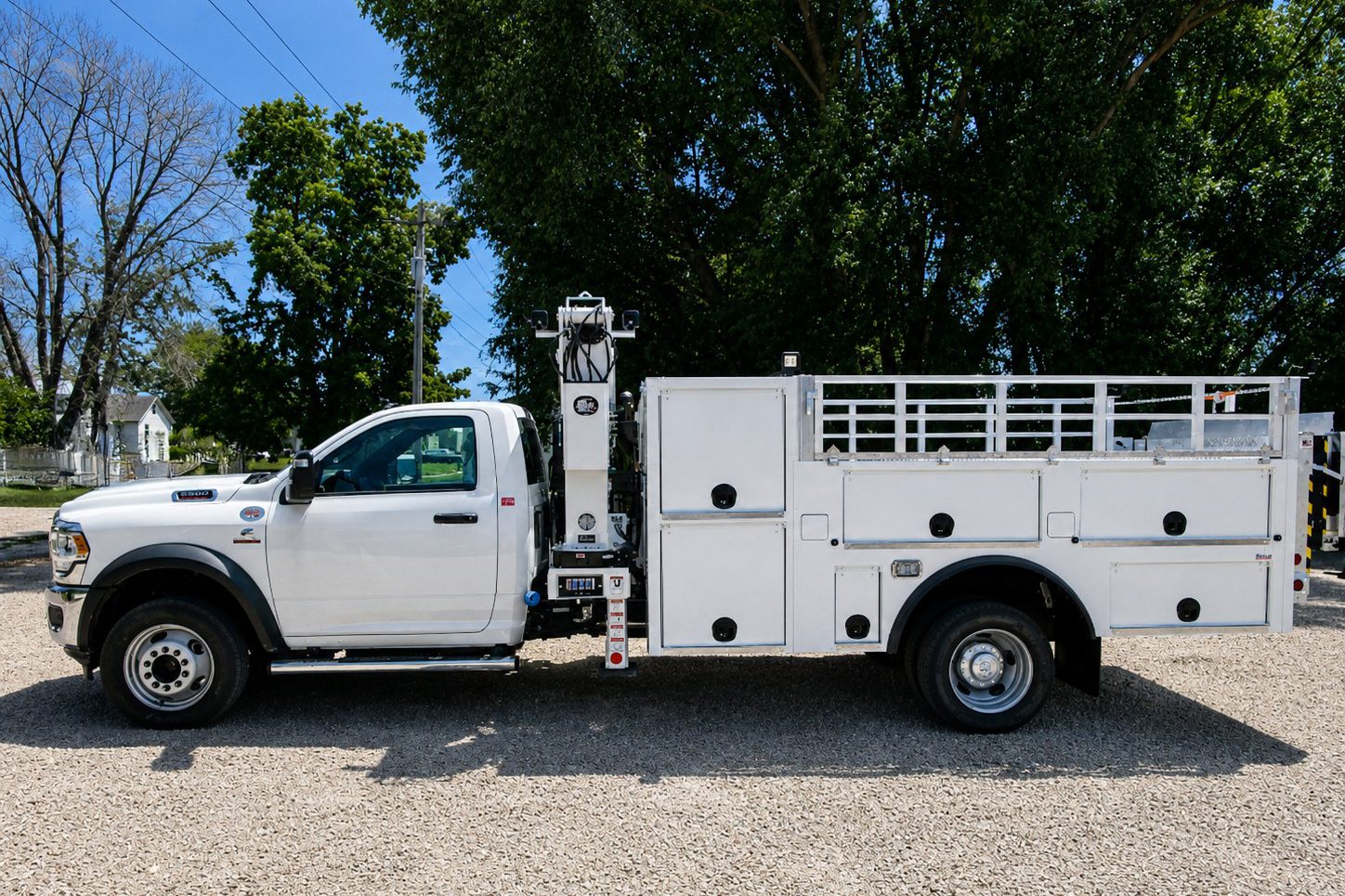

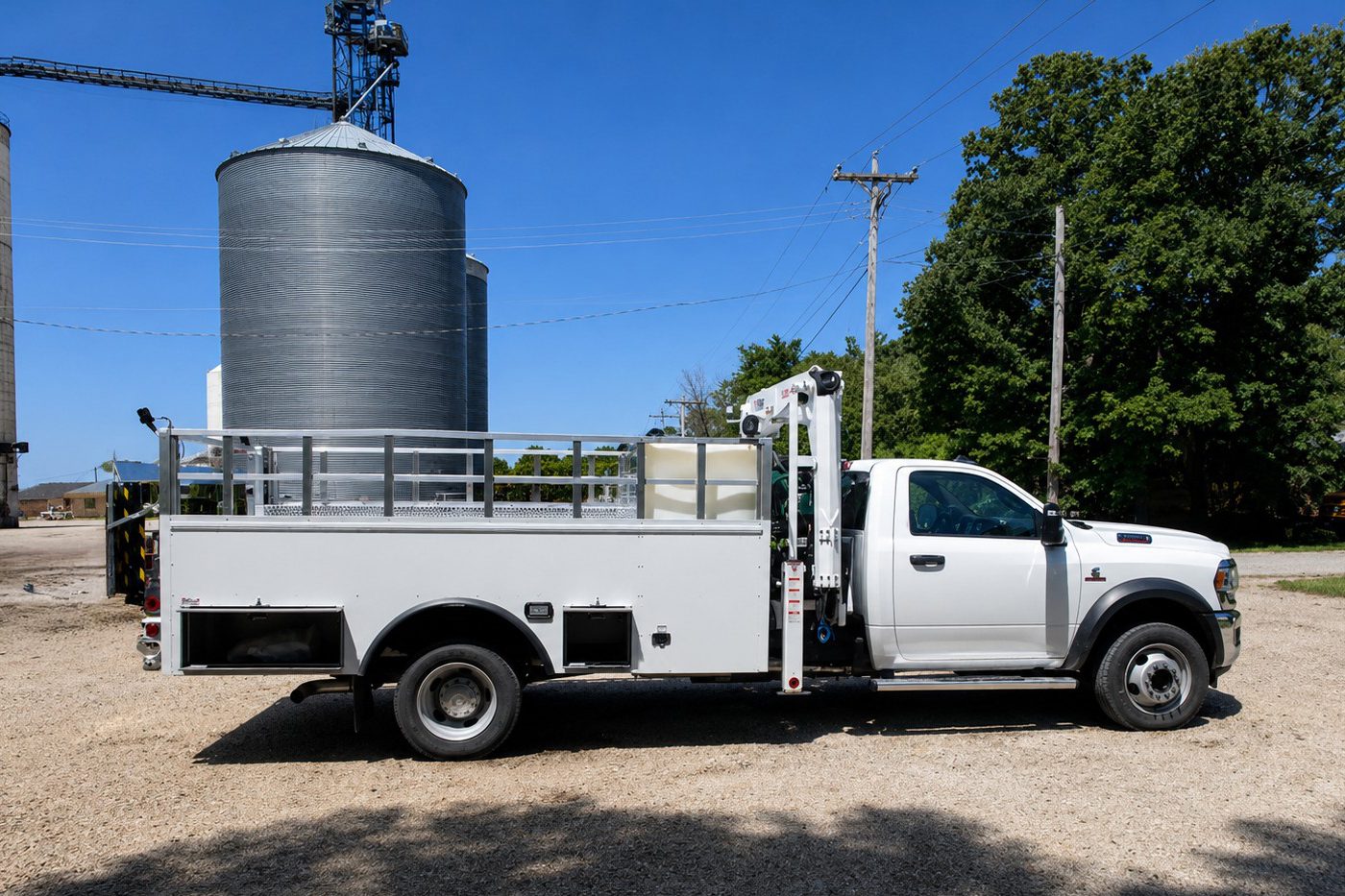

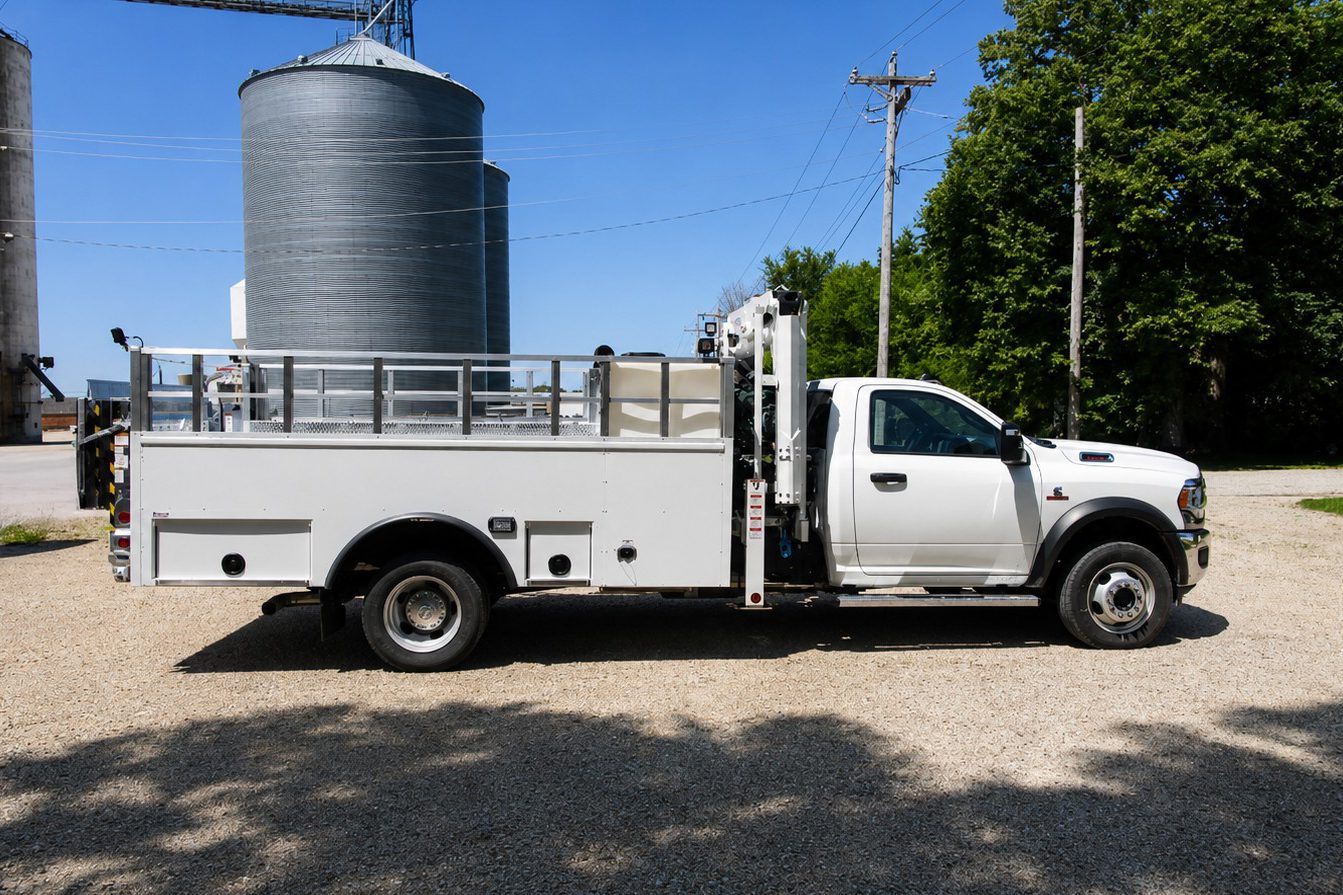

2024 Ram 5500 w/1184-13 AG/4500 (WR160)

•  2024 Ram 5500
• 4×4
• 108″ CA/192 WB
• 19500# GVW
• 6.7L Cummins Diesel Engine
• AISIN Automatic Trans
• PTO Provision
• Air Conditioning
• Cruise Control
• 40/20/40 Split Vinyl Bench Seat
• Chrome Tubular Side Steps
• Upgraded Radio w/ Blue Tooth
• Power Group
• Backup Camera

Body

• 1184-13 AG V3 – Aluminum Body
• Rack Sides 13’L, 40″H
• Extruded Plank Floor
• (2) 25″L underbody Compartments (LF)
• 36″ Top Mount (LF)
• (2) 44″L Underbody Compartments (RR/LR)
• 117″W x 21″H x 13″D LS Deck Mount Toolbox
• 22″H Sign Panels
• Fold Down Rail (LS)
• Load Bed Wall Liner
• Stop, Turn, Tail Light Kit
• Aluminum Skirts With Skirt-Mounted Floodlights RS and LS
• 400-Gallon Calcium Tank
• Body Mounting Kit

Equipment / Options

• Crane Installation Kit
• Mini-OTR Bead Hook – 12000# capacity
• Small Tire Crane Remote Docking Station Kit
• 2,000# Hydraulic Liftgate
• 86″ Wide
• Dual Lift Cylinders
• Recessed Lights
• Galvanized Frame and Platform
• Folding Side Rail And Tire Stop for 86″ Wide Liftgate
• Sign Panel For Model 87 Tommy Gate

Module / Skid Options

• Pro Flow Poly Calcium Pump
• Rinse Tank w/ 12V Pump – 20 Gallon Cap

Air Options

• 1/2 Reel Craft Dual Post Hose Reel With 50 Artic Grade hose
• 1/2″ FLR System (Filter/Lubricator/Regulator) With Additional Regulator For Lubricated Line
• Easily Replaceable Segments And Safety Air Dump Valve
• 20′ OTR Inflation/Deflation Hose Kit w/ Quick Release coupler for emergency air evacuation
• Includes Muffler
• Small And Large Bore Core Ejectors
• 1/4 Turn Ball Valve And Rotary Air Gauge For Checking Tire Pressure

Tool Package

• Tire Bead Wedge – Six Pack

Compartment Options

• 3 1/2″ Wide Plastic Tray Inserts
• 5″ Wide Plastic Tray Inserts
• 11″ Wide Plastic Tray Inserts
• Socket Tray – Flat Design – 9 Pin – 12″w

Jackbox Option

• Underbody Toolbox Panel

Body Mounted Options

• Dri Deck Mat Kit For Compartment Floors
• Aluminum Sill Guard Kit
• Aluminum Folding Step
• Stellar Mud Flaps
• LED Flood Light With Wide Beam
• Compartment LED Light Kit
• Whelen Century 16″ LED Amber Mini Lightbar With Clear Lens
• Light Kit – High Mount
• Streamlight Stinger Switchblade LED Work Light With J-hook
• Magnetic Base
• UV Light For Leak Detection
• 180 Degrees Of Rotation – Includes charger
• Strobe Light Kit – Low Profile LED Amber Lights (2) Mounted In Chassis Grill
• Two Tire Carrier Mast Mounted LED Floodlights
• Rear Ground Perimeter Light

Safety Options

• Chassis Mounted Back Up Alarm – 107 Db
• Ram Chassis Provided Backup Camera
• ICC Safety Kit Consisting Of Rechargeable 2.5# Fire Extinguisher And Reflector Kit

Chassis Options

• Super Spring For RAM 5500-Single Leaf
• Class 5 Receiver Hitch

PTO/Pump Options

• PTO For Automatic Transmission
• Hydraulic Pump – Tandem Section For Crane And Compressor

Electrical Options

• Speed Control Kit
• Electrical Control Kit – Includes Harness

Paint & Finish

• Paint 1184-13/1184-14 body Stellar White
• Axalta Paint Code 350407EX
• Single Stage
• Non-Metallic

• Stellar Model 4500 Side-Mount Mast Crane
• 17′ Reach From Center Line Of Chassis
• 45,000 ft lb. Capacity
• 7500# At 9′
• 3200# At 17′
• Proportional Radio Remote Control
• Counter Balance Check Valves
• A-Frame Style Stabilizers

• Stellar 46P compressor
• 15-Gallon Hydraulic Reservoir
• Crane Mounted
• 46 CFM@175 PSI
• Base, Motor, Cooler, Filters, Fittings
• 20-Gallon Air Tank
